P-2070-WE
NR 245
Friction Torque Limiters Series 300
(with Coupling Serie 300-05)
Service Manual
To adjust sliping torques for those limiters, you have to proceed as follow:
Sizes 10 to 30:
Wind the adjusting nut until tight. Make sure that the discs springs are correctly centered on the locking washer.
Use spanner to thighten the adjusting nut until no slip is observed under maximum load conditions.
In order to avoid excess slip on machine start-up, it is common practice to turn the adjusting nut a further 60
degrees.
Sizes 40 to 60:
Wind the adjusting nut until tight against pilot plate. Make sure that the discs springs are correctly centered on the
pilot plate. Apply load on the spring by releasing the adjustings bolts until no slip is observed under maximum load
conditions. It is essential that all of the four bolts are equally turned or damage to friction facings will occur.
In order to avoid excess slip on machine start-up, it is common practice to turn the bolts a further 60 degrees.
Sizes 70:
You have to distingquish in this size 2 types of spring assembly:
Assembly A to obtain Max sliping
torque : 3 800 N.m
Type A
Assembly B to obtain Max sliping
torque : 6 800 N.m
Type B
Wind the nut by hand. Ensure friction facings are concentric on the bush and the springs are correctly located
on the pins. Apply spring load by tightening the 8 adjusting bolts in approximatly 60 degrees steps until no slip is
observed under maximum load conditions in normal running mode. It is essential that all the 8 bolts have equal
adjustments or damage to friction facings will occur.
Having set the torque limiter as outlined above, it is common practice to advance the bolts a further 60 degrees to
prevent excess slip on machine start-up.
Lock the nut by tightening the 2 screws located in it.
Springs: For all sizes, the maximum torque is realised at approximatly 80% deflection of the spring. It is very
important to do not exceed this value to avoid damage to the springs.
D
C
B
A - Mise á jour g. A et B (page 1/3) 11-09-97 YF MP
Date: 07-05-97
Name: B. Zema
Checked: Y. Le Floch
Iss. FM Object Date By Checked
2 Warner Electric Europe • +33 (0)2 41 21 24 24 P-2070-WE • 2/13

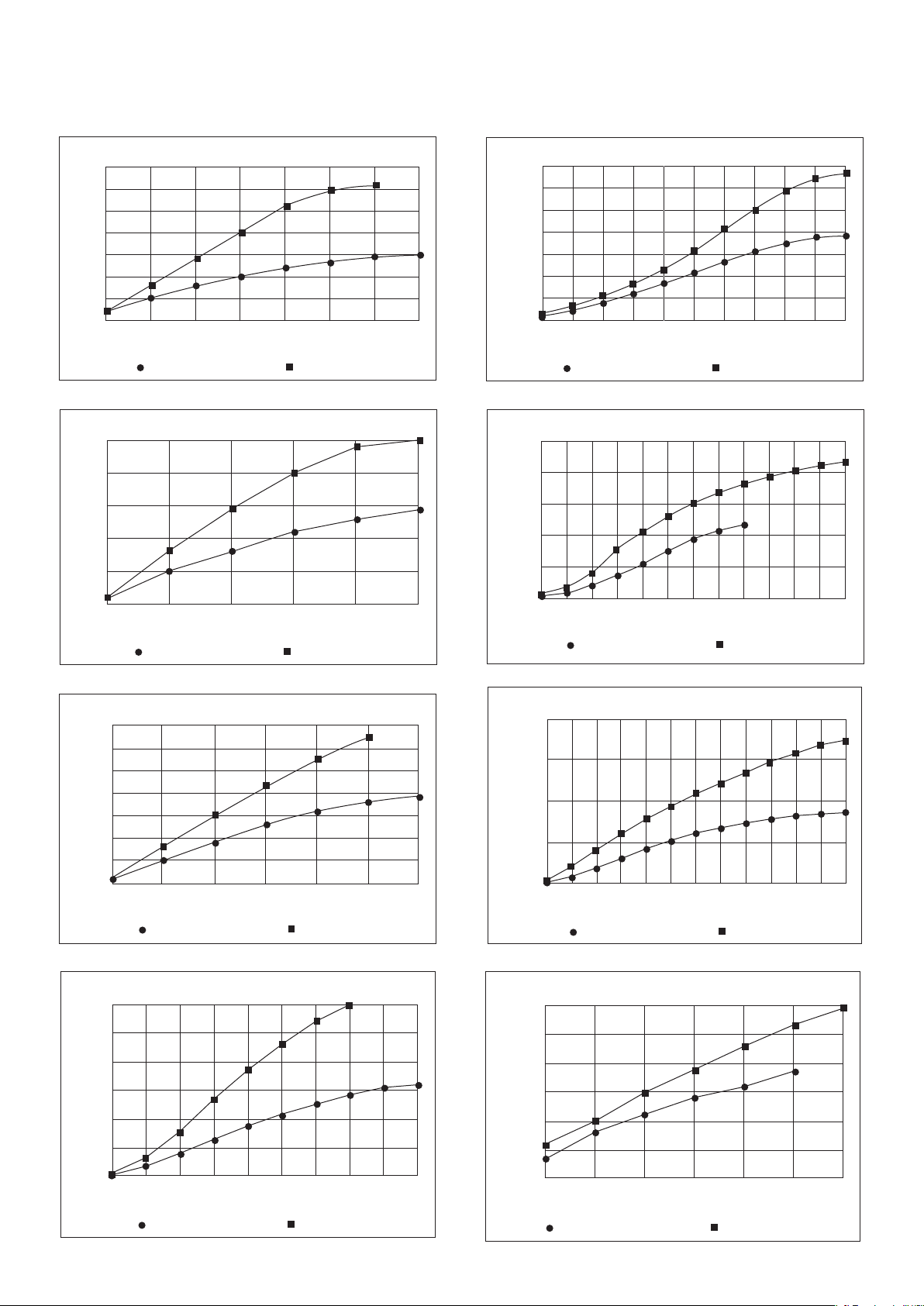

TORQUE ADJ. TL 300 SIZE 10
35
30
25
N
20
.
15
m
10
5
0
0 1/6 2/6 3/6 4/6 5/6 6/6 7/6
Nr of round
L 10-1 serie 300 L 10-2 serie 300
350
TORQUE ADJ. TL 300 SIZE 40
300
250
N
200
.
150
m
100
50
0
0 1/6 2/6 3/6 4/6 5/6 6/6 7/6 8/6 9/6 10/6
Nr of round
L 40-1 serie 300 L 40-2 serie 300
TORQUE ADJ. TL 300 SIZE 15
50
40
30
N
.
m
20
10
0
0 2/12 4/12 6/12 8/12 9/12
Nr of round
L 15-1 serie 300 L 15-2 serie 300
TORQUE ADJ. TL 300 SIZE 20
140
120
100
N
80
.
60
m
40
20
0
0 1/6 2/6 3/6 4/6 5/6 6/6
Nr of round
L 20-1 serie 300 L 20-2 serie 300
TORQUE ADJ. TL 300 SIZE 50
750
600
450
N
.
m
300
150
0
0 2/6 4/6 6/6 8/6 10/6 12/6 14/6 16/6 18/6 20/6 22/6 24/6
Nr of round
L 50-1 serie 300 L 50-2 serie 300
TORQUE ADJ. TL 300 SIZE 60
2000
1500
N
1000
.
m
500
0
0 2/6 4/6 6/6 8/6 10/6 12/6 14/6 16/6 18/6 20/6 22/6 24/6
Nr of round
L 60-1 serie 300 L 60-2 serie 300
TORQUE ADJ. TL 300 SIZE 30
240
200
160
N
120
.
m
80
40
0
0 1/6 2/6 3/6 4/6 5/6 6/6 7/6 8/6 9/6
m
N
.
6000
5000
4000
3000
2000
1000
Nr of round
L 30-1 serie 300 L 30-2 serie 300
Warner Electric Europe • +33 (0)2 41 21 24 24 P-2070-WE • 2/13 3
TORQUE ADJ. TL 300 SIZE 70
0
1/12 2/12 3/12 4/12 5/12 6/12 7/12
Nr of round
L 70-32A serie 300 L 70-32B serie 300
Warner & Tourco
7
*
3
4
5
6
FRICTION T.L
with couplings
Serie 300-05
SIZES 10 and 40
Manual Service
245 Page 3/3
2
1
6
5
4
KEY:
1 - Torque Limiter
2 - Intermediate Flange
3 - Coupling Flange
4 - Spider
5 - Hur
6 - Screw
7 - Fixing Screw
*
* Far serie 300-05, the fixing screws
will be tighten to the thigtening
torque, indicated in the board here
under. And installed with Loctite
270 or equivalence in other trade
mark, by the customer.
SIZES 50 and 60
1
7
2
3
SIZE
10 M5 3 5.2 ±0.5
15 M5 6 5.2 ±0.5
20 M6 6 9.1 ±0.9
30 M8 6 22 ±2
40 M10 6 44 ±4
50 M10 4 44 ±4
60 M10 6 44 ±4
Fixing Screw
M Qty
Tightening
Torque (N.m)
*
4 Warner Electric Europe • +33 (0)2 41 21 24 24 P-2070-WE • 2/13
NOTES
Warner Electric Europe • +33 (0)2 41 21 24 24 P-2070-WE • 2/13 5
