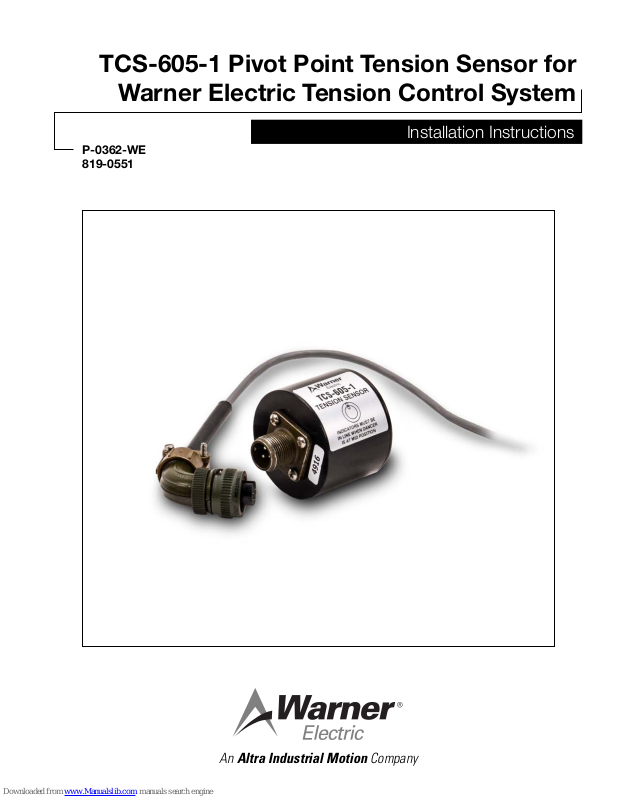

TCS-605-1 Pivot Point Tension Sensor for
Warner Electric Tension Control System
Installation Instructions
P-0362-WE
819-0551
An Altra Industrial Motion Company
TCS-605-1 Pivot Point Tension Sensor
The TCS-605-1 Tension Sensor is used with the Warner Tension Control System to provide smooth control of unwind
stands operating at any speed. The sensor is especially convenient in applications having small dancer arms and is
complete with versatile mounting brackets. The pivot point sensor does not add additional weight to the dancer arm.
TCS-605 Pivot Point Sensor TCS-605 Pivot Point Sensor
A Complete Dancer System
• For Unwind Stands
• Dancer Roll System
• Stable
• Electromagnetic Brakes
• Quiet
• Closed Loop Control
• Off-the-shelf Availability from your local Warner Distributor
2 Warner Electric • 800-825-9050 P-0362-WE • 819-0551
Bracket (see note 1)
NOTES:
1. TWO BRACKETS
WITH EACH UNIT SO THA
CUST
TCS-605-1
2. BRACKETS
14 GAUGE (.0747) STEEL
Replaceable Components
2 Dia.
5/16
15' Jacket
ARE SUPPLIED
T THE
OMER CAN MOUNT THE
ACCORDINGLY.
ARE MADE FROM
.
Sensor only TCS-605-1 7330-101-002
Cable assembly only 7330-101-001
4-3/8
8-32 Screws
(3 supplied)
10-32 Screws
Washers & Nuts
(2 supplied)
1-1/4
1-11/16 Nom.
Coupling
Supplied
Pin Supplied
3 Holes 3/16 Dia. on
1.50 B.C. Equally
.250/.253 Dia.
1/2 Deep
Dancer
Pivot
Shaft
Spaced
1. Using a 1/4” drill, drill a hole in the center of the
dancer pivot shaft 1/2” deep.
2. Drive the supplied pin into the hole in the shaft until
half its length remains exposed.
3. Assemble the brackets and mount the sensor on the
bracket.
4. Position the sensor and bracket on the machine
so the sensor shaft and the pin are aligned and
separated by 1/8 to 1/4 inch. While holding the
sensor and bracket in the above position, mark the
centers of the bracket holes on the machine. Drill
and tap holes in the machine for 8-32 screws.
5. Connect the sensor shaft to the pin with the flexible
coupling provided. The index mark on the sensor
shaft must be aligned with the index mark on
the sensor face when the dancer arm is near the
midtravel position.
6. Mount the sensor and bracket to the machine.
Connect the sensor to the tension control unit
with the cable assembly in accordance with the
instructions supplied with the control unit.
Warner Electric • 800-825-9050 P-0362-WE • 819-0551 3
