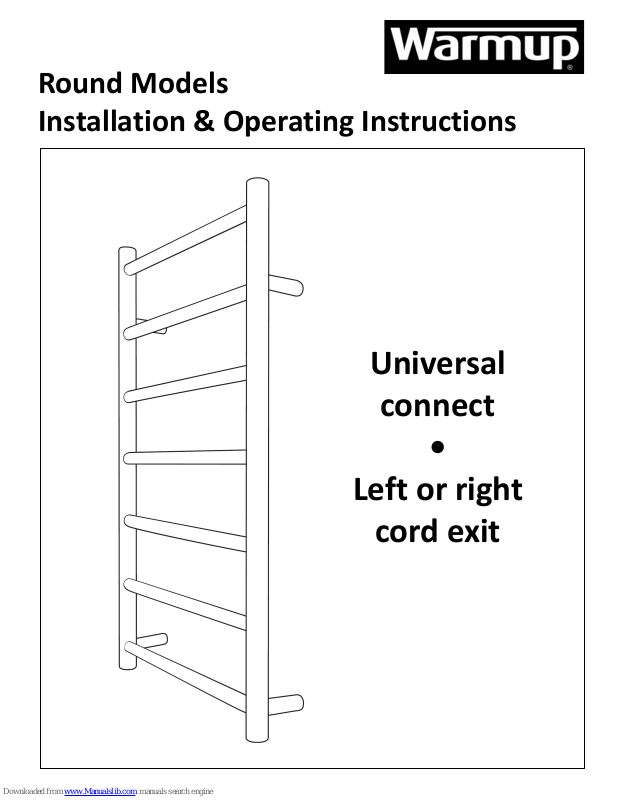

Warmup Round Installation & Operating Instructions Manual

Round Models
Installation & Operating Instructions

Universal

connect

•

Left or right

cord exit

Please note that this appliance must be installed as prescribed by the relevant wiring rules and regulations, including the

regulations covering installation of appliances and accessories in ‘wet areas’ such as bathrooms, showers and laundries.
Installations should be in accordance with AS/NZS 3000:2007.

Note :

• This class 1 appliance requires an earth connection.

• An accessible all pole disconnection switch is required in the fixed wiring.

The heated towel rail should be mounted vertically with the cord exiting from the base; it should be positioned at least
600mm above the floor.

Recommended mounting procedures

Installation Instructions

1. Select the method of cord entry required – whether exposed or concealed.

2. Select which side of the towel rail needs to be wired in. Depending on the location of existing wiring through or on
the wall you can decide which side you will use.

Exposed cord entry (to be used where an existing permanent connection outlet is already wired).

Concealed cord entry (to be used where no existing outlet is present)
