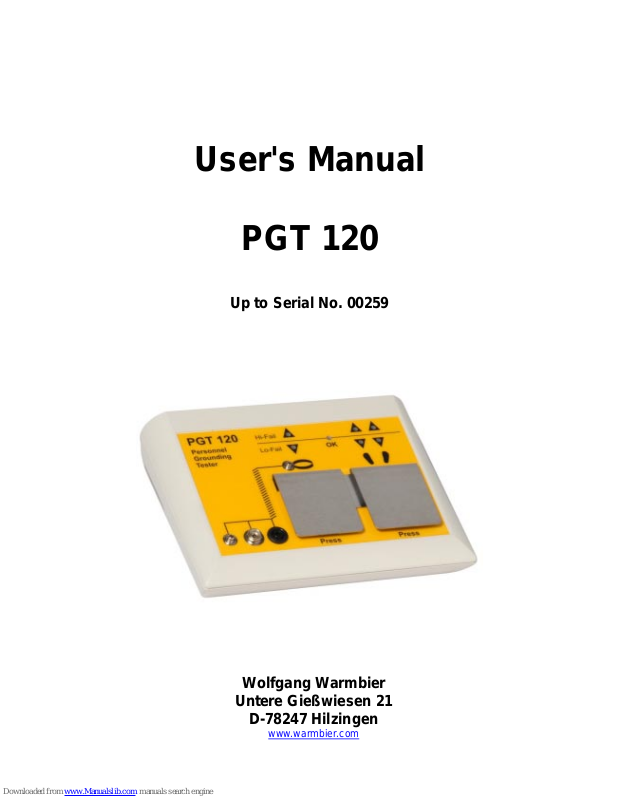

Warmbier PGT 120 User Manual

Wolfgang Warmbier

Untere Gießwiesen 21

D-78247 Hilzingen

www.warmbier.com

User's Manual

PGT 120

Up to Serial No. 00259

PGT 120 User's manual (up to SN: 00259)

Part No. 7100.PGT120

_

Page2of13 V0108

Table of contents

INTRODUCTION....................................................................................................................3

INSTALLATION................................................................................................................... ..4

OPERATION..........................................................................................................................5

Wrist strap test.....................................................................................................................5

Coil cord test........................................................................................................................5

Footwear test (single shoe)................................................................................................5

Wrist strap and footwear test..............................................................................................6

Footwear in series ...............................................................................................................6

CONFIGURATION.................................................................................................................8

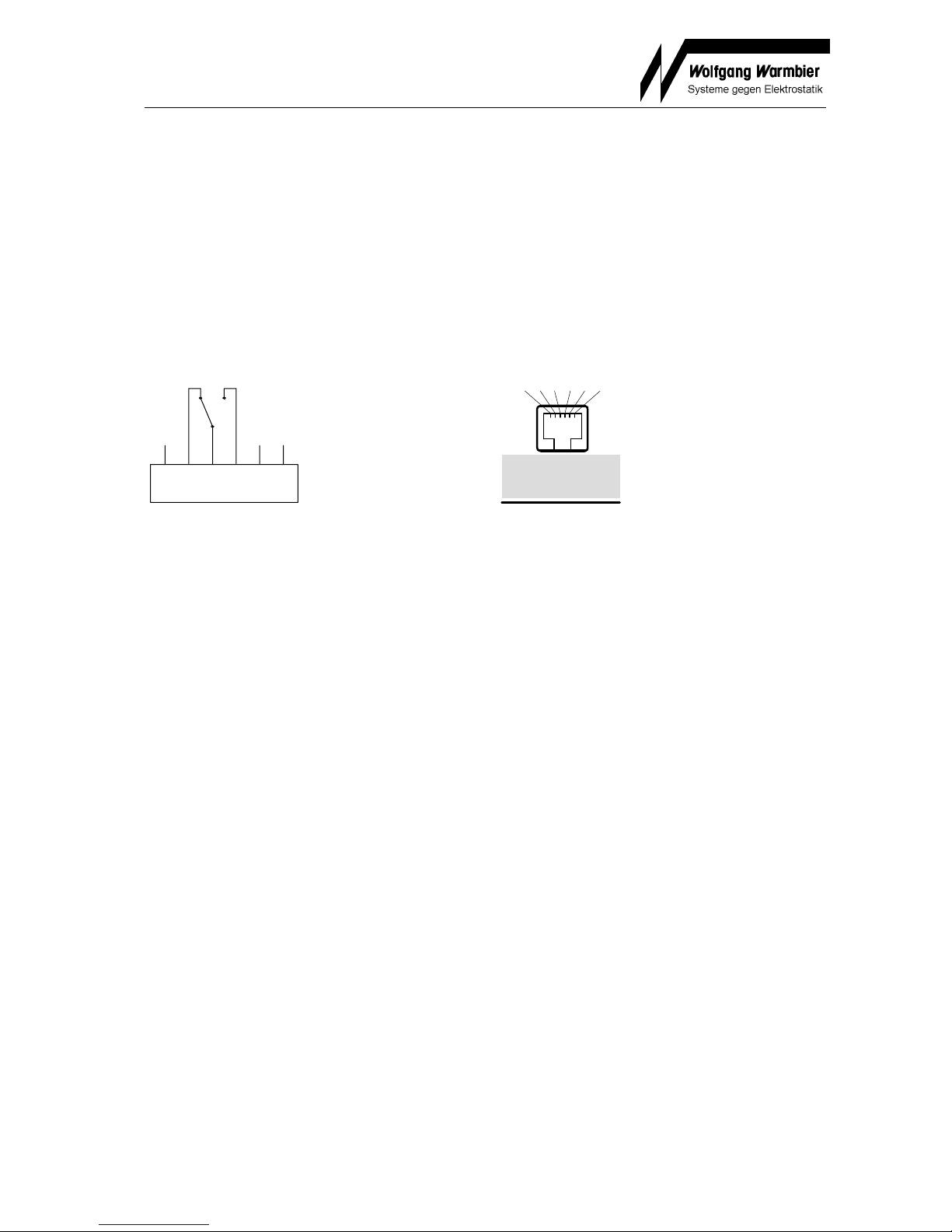

CONNECTORS......................................................................................................................9

WALL MOUNTING INSTRUCTIONS...................................................................................10

SPECIFICATIONS...............................................................................................................11

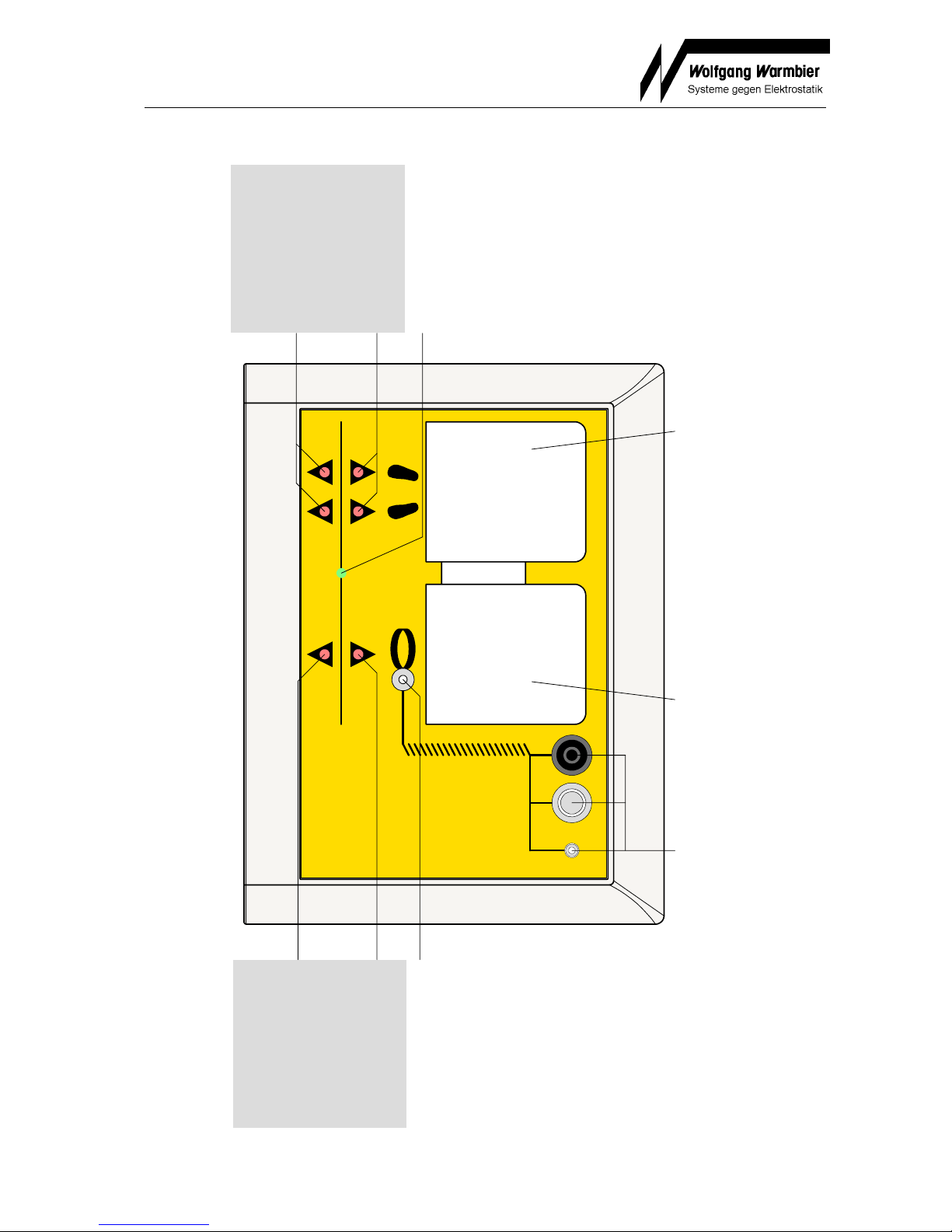

PICTURES...........................................................................................................................12

PGT 120 User's manual (up to SN: 00259)

Part No. 7100.PGT120

_

Page3of13 V0108

Introduction

The Personnel Grounding Tester PGT120 is an electronic test instrument for checking
personnel grounding systems such as wrist straps, coil cords and footwear. The PGT120 is
suitable for compliance verification of the above products, according to the IEC 61340-5-1
Edition 1.0 (2007-08) or ANSI/ESD S20.20-2007 (2007-03).

• The unit operates with 3 independent measuring circuits for the left shoe, the right shoe
and the wrist strap. This makes it possible to measure all the values at the same time

• It is possible to enable or disable separately the measuring circuits.

• The order of tests is random.

• Footwear measurement can be configured to measure in series with hands free for

passenger gates.

• Visual and audible test results and a dry relay contact for door opener

• Use the optionally available "Calibration Unit " Part No. 7100.PGT120.CU to check the

unit Hi and Lo limit values

PGT 120 User's manual (up to SN: 00259)

Part No. 7100.PGT120

_

Page4of13 V0108

Installation

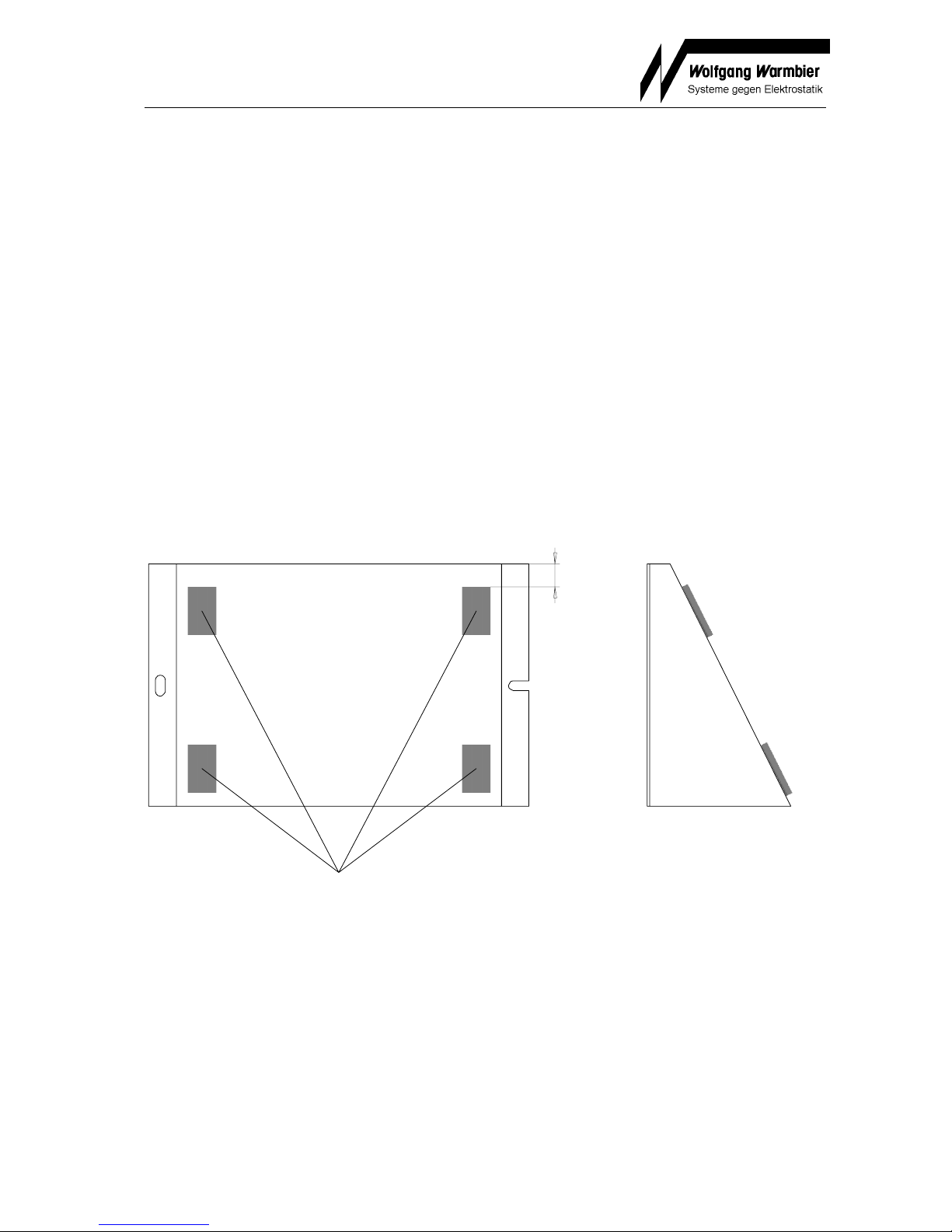

The Unit is for desktop or wall mounting. The optionally available wall mounting frame (Part
No. 7100.PGT100.101) can be used to fix the unit to a wall.

The power is either supplied by a 9V battery or by a power supply. Insert the batteries by
opening the battery compartment flap on the bottom side of the unit. Take care of the proper
polarity. Close the battery compartment flap again.

It is strongly recommended to remove old or empty batteries to avoid battery
leakage.

For heavy use or footwear in series mode, we recommend using the external power supply.
Use only an original power supply connected to the "AC12V" socket on the rear. On plugging
in external power, the internal battery is disconnected.
The battery should be removed to avoid wear out.
Do not connect any conducting articles with PGT120 except original accessories (power
supply, battery and foot wear electrode) and the door opener.

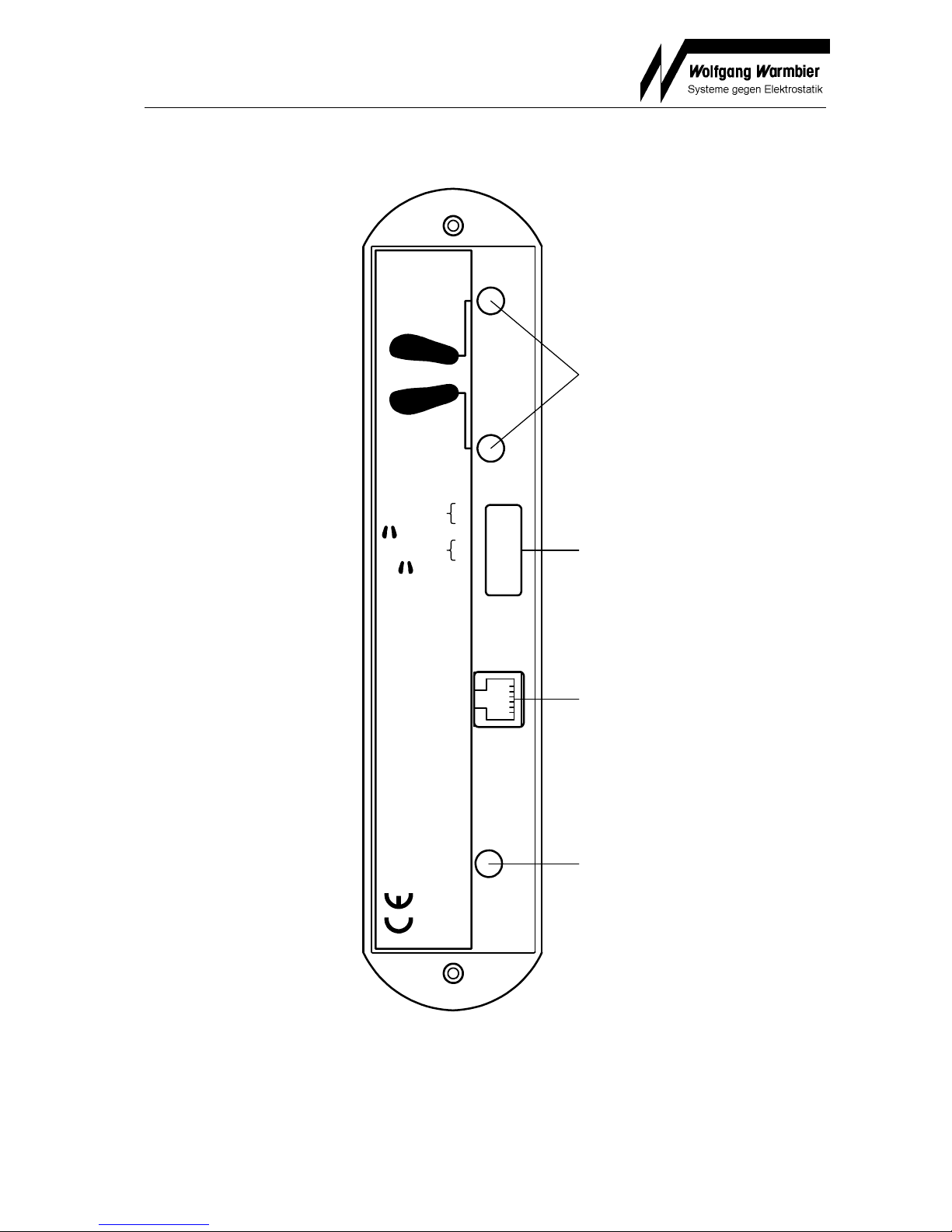

Connect the foot electrode with the coloured marked plugs to the back of the unit for
footwear test.
