2
1
Luna
10

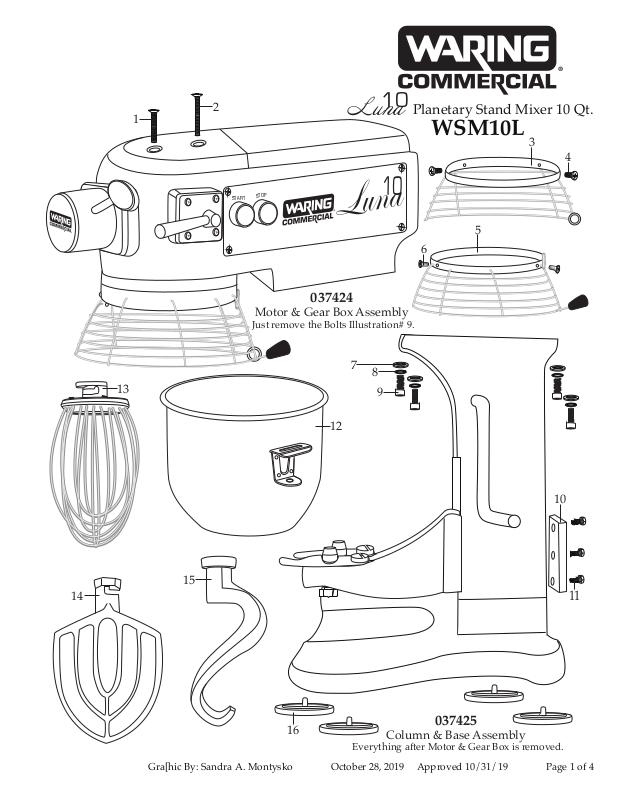

Planetary Stand Mixer 10 Qt.
WSM10L
3
4
13
STOP
START
037424
Motor & Gear Box Assembly
Just remove the Bolts Illustration# 9.
7
12
10
5
6
8
9
14
10
15
11
037425
16
Everything after Motor & Gear Box is removed.
Gra[hic By: Sandra A. Montysko October 28, 2019 Approved 10/31/19 Page 1 of 4
Column & Base Assembly
18
17
19
Blue Lead
Red Lead
+
START
STOP
10
Luna
Unit Components
WSM10L
21
20
22
25
+
26
27
28
29
23
24
31
32
33
34
+
36
+
35
38
30
39
40
21
5
3
1
22
6
4
2
Blue Lead
Red Lead
41
37
42
44
45
Page 2 of 4
43
46
Bowl Cradle
Catalog/Model
WSM10L
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
Illustration# Part# Description
1 037379 Screw /top front plate
2 037380 Screw /top front plate
3 037381 Top Bowl Guard
4 037382 Top Bowl Guard Screw
5 037383 Bottom Bowl Guard
6 037384 Bittin /Bowl Guard Screw
7 037390 Washer (4 required)
8 037389 Spring Washer (4 required)
9 037388 Bolt (4 required)
10 037392 Cradle Plate (2 required one for each side)
11 037391 Hex Head Bolt with Spring Wsher & Washer (6 required)
12 037397 10 Quart Bowl
13 037396 Whisk
(WSM10LW)
(2 required)
(2 required)
14 037395 Mixing Paddle (WSM10LMP)
15 037394 Dough Hook (WSM10LDH)
16 037393 Foot (4 required)
17 037398 Name Plate
18 037411 Screw
(4 required)
19 037401 Attachment Hub Cover
20 037402 Attachment Hub Screw
21 037399 Start Switch
(green)
22 037400 Stop Switch (red)
23 037403 Silver Back Plate
24 037412 Screw
(6 required)
25 037420 Guard Interlock Leads
26 037417 Guard Interlock
27 037419 Screw
(2 required)
28 037418 Guard Interlock Spacer
29 037409 6.25" Black Lead
30 037405 Cord
31 037407 Screw
Page 3 of 4
Catalog/Model
WSM10L
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Illustration# Part# Description
32 037406 Cord Clamp
33 037408 Hex Nut
34 037413 Cradle Interlock
35 037416 Washer
36 037415 Screw (2 required)
37 037414 Cradle Interlock Leads
38 037404 Reset Switch
39 037422 Run Capacitor with Leads
40 037423 Start Capacitor with Leads
41 037421 Relay
42 013731 Wire Ties
43 037410 2.75" Black Lead
44 037387 Screw
(2 required)
(5 required)
(2 required one for each side)
www.waringcommercialproducts.com
Fax 860-496-9017
45 037386 Spring (2 required one for each side)
46 037385 Bowl Bracket (2 required one for each side)
Page 4 of 4
