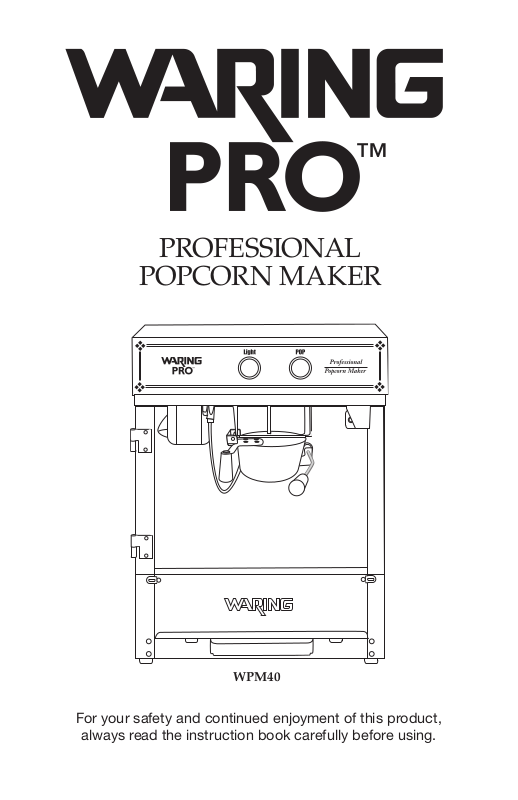

Waring WPM40 User Manual

PROFESSIONAL

POPCORN MAKER

WPM40

For your safety and continued enjoyment of this product,

always read the instruction book carefully before using.

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precau­tions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING YOUR

POPCORN MACHINE.

2. Do not touch hot surfaces. Always use handles or
knobs to operate.

3. To avoid any risk of electrical shock, do not immerse
cord or plug into water or other liquid.

4. This appliance should not be used by or near children,
or individuals with certain disabilities.

5. Unplug main power cord from outlet while not in use
and before cleaning.

6. Allow HOT parts to cool down before maneuvering.

7. Do not operate the appliance with damaged cord or
plug, or after the appliance malfunctions or has been
damaged in any matter. Send the unit to the nearest
authorized service center for examination, repair or
adjustment. (ONLY technicians should open up
the unit.)

8. The use of any accessories or attachments not
recommended by the manufacturer may cause injury.

9. Do not pop the kernels with a dry kettle (without oil).

10. Do not immerse popping kettle into water.

11. Kettle surface is HOT and should NOT be touched
during popping or just after use.

12. Unplug, allow to cool, clean and cover the unit and
store in a dry and safe place if not being used for a
long time.

13. Do not let power cord hang over edge of table or
counter or touch any hot surfaces.

1

14. Do not place the unit on or near a hot gas or electric
burner or in a heated oven.

15. Extreme caution must be paid when moving the
appliance containing hot oil or other hot liquids.

16. Turn ALL switches to OFF position before
disconnecting power plug from the wall supply outlet.

17. Not recommended for outdoor use.

18. Do not use appliance for other than intended use.

19. To avoid overheating, always add oil and then kernels
before operating.

20. Extreme caution must be used when unloading
popcorn. Always place the unit over a countertop
so that residual hot oil or water running out will not
cause burns.

21. KEEP OUT OF REACH OF CHILDREN.

22. DO NOT CLEAN USING ANY ABRASIVE MATERIAL.

23. NEVER FORCE ANY PARTS OR BRACKETS INTO
POSITION.

24. NO PARTS ARE INTENDED FOR THE DISHWASHER.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

2

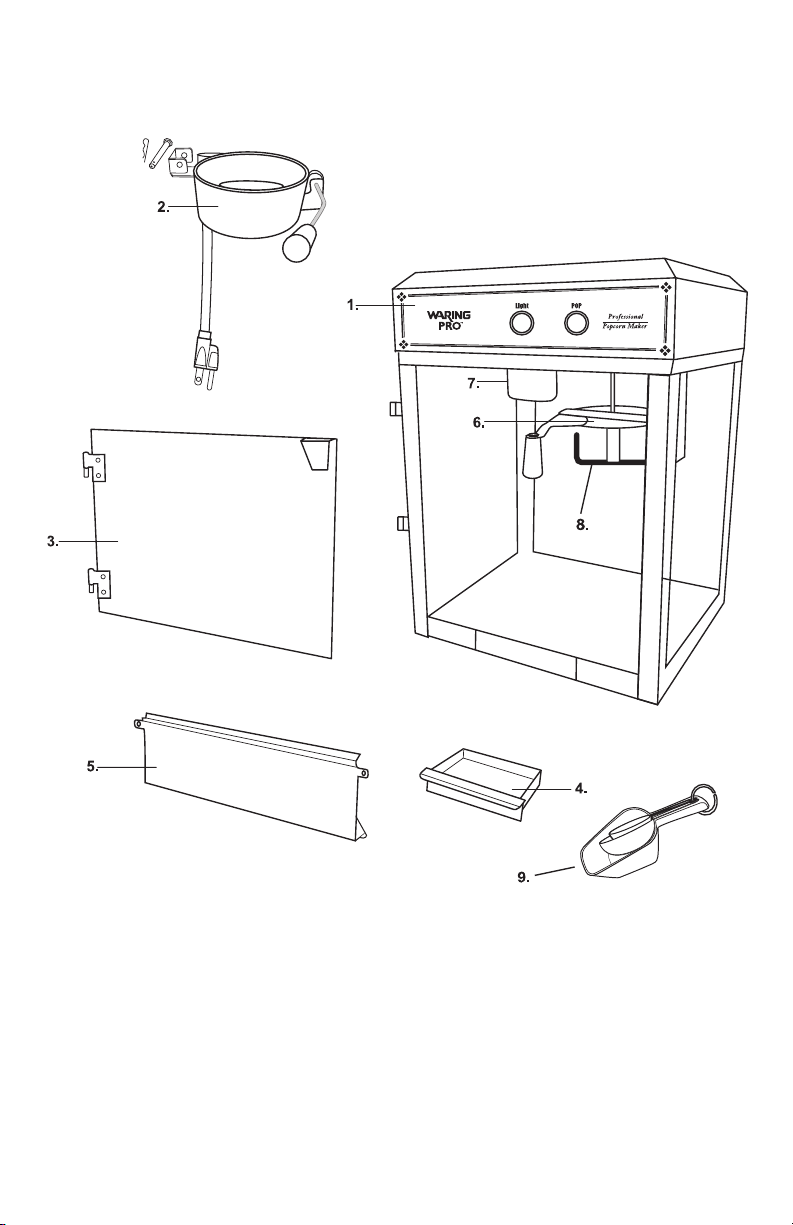

PARTS

1. Housing

2. Kettle, Attachment Pins

3. Door

4. Tray (removable)

5. Door Panel (removable)

6. Kettle Lid

7. Light/Warmer

8. Stirrer

9. Measuring Spoons and Scoops

3

ASSEMBLING PROCEDURE

FIGURE

Screw the lips, axle
xer and stirrer onto
the gear box.

FIGURE 3

Insert the pin through the
kettle and supporter.

kettle plug into the socket

1

FIGURE 5

Finally, insert the internal

on the inner top of

the popcorn housing.

FIGURE 2

Hold the kettle on
the supporter.

FIGURE 4

Use the retaining pin to x
kettle at the right position.

4

POPPING INSTRUCTIONS

1. Make sure the popcorn maker is unplugged before you
do any of the following.

2. Before using the unit, please check carefully if voltage
(120V – 60 Hz ) is suitable to your home.

3. Clean the internal surface of the kettle with warm sudsy
water, rinse well and dry with a clean cloth. Wipe down
inner and outer housing with damp cloth.

4. Main unit has 2 function switches as follows:

– Light/warmer combination
– POP switch to turn heater and stirrer on

5. Hook the kettle onto the hanger of the main unit.

6. Plug the power cord into an electric outlet.

7. Insert the internal plug into the socket (see gure 5,
previous page).

8. Turn the light switch to the On position and the POP
switch to the On position. The stirrer will begin to rotate
in the kettle. Let the stainless steel kettle preheat about
1 to 2 minutes. Open lid and add oil (1 tablespoon of
vegetable, corn, peanut, or safower oil). Immediately
add ½ cup of corn kernels and close lid to the kettle.

Caution: Lid might be hot – it is recommended to
use an oven mitt.

9. Popcorn starts popping out through the lid after about
2 minutes. Yields up to 12 cups per batch in less than
2½ minutes.

1 0. When unit is nished popping – you will no longer

hear the corn popping – immediately turn POP switch
to the Off position and rotate the roller bar of the kettle
down to release any remaining popcorn in the popper.
This will also stop the remaining popcorn from cooking
any further and avoid possible burning.

11. The light/warmer may be left in the On position.

12. Keep POP switch Off if the unit is not continuously
in use.

5

13. Keep only the Light/Warmer switch on.

14. Remove plug from power supply if the unit is not
being used.

15. Repeat steps 7 to 10 for continuous popping.

CLEANING AND MAINTENANCE

It is strongly recommended to clean the kettle frequently to
avoid burning excess oil onto the bottom of the inner pot.

After using the popcorn machine, use a wet cloth to
clean the main unit, main body and glass. It is strongly
recommended to wash and dry the tray after each use to
avoid any bacteria buildup.

LIGHT/WARMER

The light/warmer bulb can be replaced with a 120V, 60W
maximum bulb only.

QUICK CLEANING PROCEDURE

Turn the POP control to Off. Pour 5 to 8 ounces of water
(NO detergent is necessary) into inner pot. Switch to On
to boil the water and let the stirrer turn in order to remove
excess oil stuck on the surface. Pour out the water into a
deep bowl and discard after about 1 to 2 minutes of boiling.

CAUTION: THE KETTLE IS HOT.

Or, remove the kettle and clean it with a Scotch-Brite®
scouring pad. Do not immerse kettle or electrical plug
in water.

6

Any other trademarks or service marks of third parties herein

are the trademarks or service marks of their respective owners.

©2008 Waring Products

Division of Conair Corporation

150 Milford Road

East Windsor, NJ 08520

www.waringproducts.com

Printed in China
