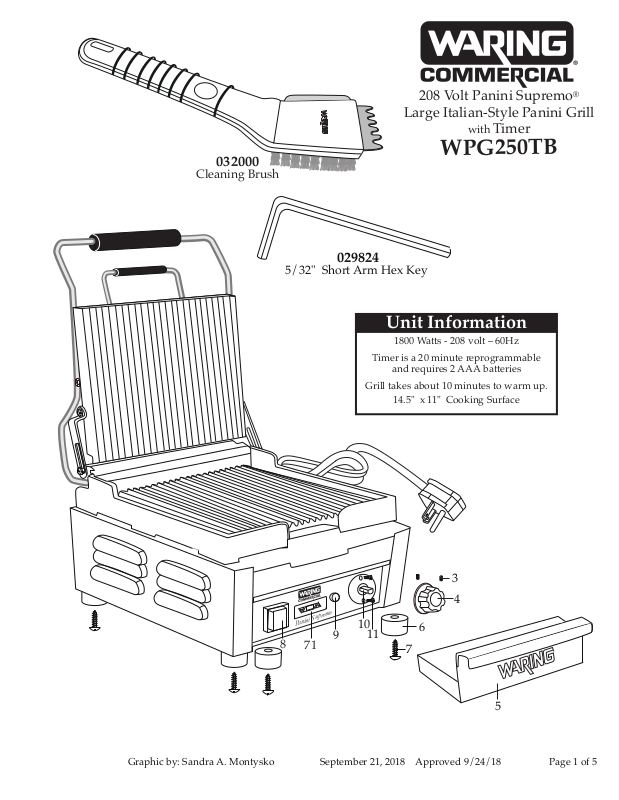

Page 1
032000
Cleaning Brush
208 Volt Panini Supremo
Large Italian-Style Panini Grill
029824
5/32" Short Arm Hex Key
Unit Information
1800 Watts - 208 volt – 60Hz
Timer is a 20 minute reprogrammable
and requires 2 AAA batteries
Grill takes about 10 minutes to warm up.
14.5" x 11" Cooking Surface
®
with Timer
WPG250TB
3
4
Panini Supremo
8
71
Graphic by: Sandra A. Montysko September 21, 2018 Approved 9/24/18 Page 1 of 5
10
9
11
6
7
5
Page 2
12
WPG250TB Base Unit Components
56
2
53
14
13
58
1
59
54
12
55
17
17
57
31
29
30
18
32
23
24
34
27
16
15
33
26
25
13
27
21
19
14
20
22
60
61
62
68
66
64
67
63
65
69
70
Panini Supremo
40
35
28
35
39
42
41
37
36
38
44
43
45
46
47
49
6
48
50
7
Page 2 of 5
52
51
Page 3
Catalog/Model
WPG250TB
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
Illustration# Part# Description
1 028625 Pivot Bracket Screw Set (1 large & 1 small 2 sets required)
2 028624 Pivot Bracket (2 required)
3 028627 Set Screw (2 required)
4 028626 Control Knob
5 029503 Drip Tray
6 028622 Foot
7 028623 Foot Screw (4 required)
8
9
10
029478 On-Off Switch
030018 Indicator Light
030013 Thermostat
11 029943 Thermostat Screw (2 required)
12 029945 Cover
(4 required)
13 029946 Washer
(4 required)
14 029947 Screw (4 required)
15 029950 Hex Head Bolt
16 029951 Washer
17 029953 Top Insulation Plate
18 029949 Top Insulation
19 029955 Top Element Plate
20 029962 Hex Head Bolt
(4 required)
21 029963 Spring Washer (4 required)
22 029964 Washer (4 required)
23 029956 Fiber Sleeve (4 required)
24 029957 Plastic Sleeve (4 required)
25 029958 Screw (2 required)
26 029959 Washer
27
030020 Top Element
(2 required)
28 029967 Top Ribbed Grill Plate
29
036549 Screw
(2 required
on units after 11/10/2017
030054 Screw
)
Page 3 of 5
Page 4
Catalog/Model
WPG250TB
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Illustration# Part# Description
030055 Tension Screw
31
030056 Tension Bracket
32 029992 Screw
33 029993 Spring Washer
34 029995 Large Handle Bracket
35
029971 Bottom Ribbed Grill Plate
36 029973 Thermostat Bracket
37 029974 Washer
38 029975 Screw
39 029956 Fiber Sleeve
30 036550 Tension Bolts (2 required on units after 11/10/2017)
036548 2 Piece Tension Bracket (on units after 11/10/2017)
(4 required)
(4 required)
(2 required)
036554 Bottom Ribbed Grill Plate (on units after 11/10/2017)
(2 required)
(2 required)
(2 required)
Fax 860-496-9017
40 029957 Plastic Sleeve
41 029958 Screw
42 029959 Washer
43
030021 Bottom Element
(2 required)
(2 required)
(2 required)
44 029979 Bottom Element Plate
45 029964 Washer
46 029963 Spring Washer
47 029962 Hex Head Bolt
(4 required)
(4 required)
(4 required)
48 029980 Nut
49 029982 Bottom Insulation
50 029984 Bottom Insulation Plate
51 029951 Washer
52 029980 Nut
53 029985 Screw
54 029986 Washer
(2 required)
(2 required)
55
036551 Rear Cover with Tension Cover (on units after 11/10/2017)
030007 Rear Cover with Tension Cover
56
036552
Rear Cover Plate with Tension Hole (on units after
030008 Rear Cover Plate with Tension Hole
Page 4 of 5
11/10/2017
)
Page 5
Catalog/Model
WPG250TB
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Illustration# Part# Description
57
030009 Large Handle
58 029990 Hex Head Screw
59 029991 Nut
60
61 029997 Washer
62 029998 Nut
63 029999 Washer
64 030000 Spring Washer
65 030001 Bolt
66 013731 Wire Tie
67 030003 17" Red Lead
68 030004 Joined Red & White Lead
036547 Large Handle (on units after 11/10/2017)
(2 required)
(2 required)
030014 Thermal Cut-off
(2 required)
(2 required)
(4 required)
(4 required)
(7 required)
(4 required)
Fax 860-496-9017
69 030002 Bottom Housing Plate
70 030006 Screw
71 034202 Timer ONLY
29
31
30
1st Generation
Tension Bracket
033682
- Cord 208 volt NEMA 6-20
(4 required)
(2AAA batteries needed)
(on units after 11/10/2017)
* Certified replacement of the cord set can
only be performed by an Authorized Service Center
or the Waring Factory Service Center.
Page 5 of 5
