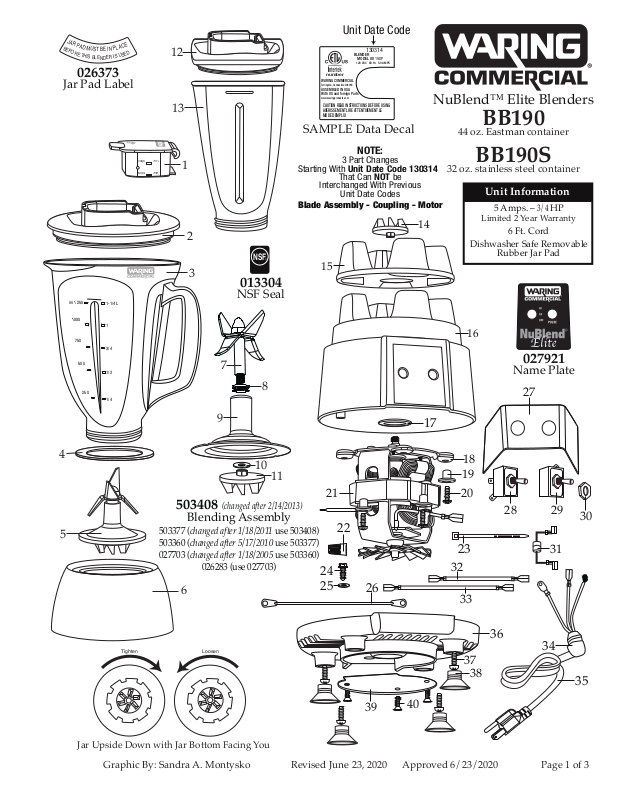

Waring WNG10186 Installation & Assembly

J

A

R

P

A

D

M

B

U

S

E

F

O

R

E

T

H

I

S

B

L

E

C

A

L

P

N

I

T

E

B

E

S

U

S

I

R

E

E

D

N

026373

Jar Pad Label

ml 1250

1000

750

1-1/4L

1

3/4

500

1/2

250

1/4

D

LIFT

1oz 30ml

2oz 60ml

12

13

Unit Date Code

130314

BLENDER

BB190P

MODEL

120 VAC 60 HZ 5.0 AMPS

number

WARING COMMERCIAL

Torrington, Connecticut 06790

ASSEMBLED IN USA
With US and foreign Parts

www.waringproducts.com

CAUTION READ INSTRUCTIONS BEFORE USING
AVERISSEMENT LIRE ATTENTIVEMENT LE
MODE DEMPLOI

SAMPLE Data Decal

NOTE:

1

Starting With Unit Date Code 130314

3 Part Changes

NuBlend™ Elite Blenders

BB190

44 oz. Eastman container

BB190S

32 oz. stainless steel container

That Can NOT be

Interchanged With Previous

Unit Date Codes

Blade Assembly - Coupling - Motor

14

2

®

NSF

3

15

Unit Information

5 Amps. –

Limited 2 Year Warranty

Dishwasher Safe Removable

Rubber Jar Pad

3/4

6 Ft. Cord

HP

013304

NSF Seal

16

7

8

027921

Name Plate

27

9

4

10

11

21

503408

(changed after 2/14/2013)

Blending Assembly

24
25

22

26

5

503377 (changed after 1/18/2011 use 503408)
503360 (changed after 5/17/2010 use 503377)
027703 (changed after 1/18/2005 use 503360)

026283 (use 027703)

6

17

32

19

20

23

18

28

29

31

30

33

36

Tighten

Loosen

39

37

38

40

34

35

Jar Upside Down with Jar Bottom Facing You

Graphic By: Sandra A. Montysko Revised June 23, 2020 Approved 6/23/2020 Page 1 of 3

Catalog Model

BB190 BB190P BB190 (TYPE 25)
BB190S BB190S BB190 (TYPE 25)

(on units after 5/12/2010)

Waring Factory Service Center

314 Ella T. Grasso Ave.

Torrington, CT 06790
Tele. 1-800-269-6640

www.waringcommercialproducts.com

Fax [phone]

Illustration# Part# Description

1 026282-E Cover Lid (for BB190)
035153 Jar Cover Lid (for BB190S)

2 026281-V Vinyl Jar Lid (changed after 9/20/2010)
3 026280-E 44 oz. Eastman Container (changed after 9/20/2010)
4 026284 Jar Seal
5 503408 Blending Assembly

503377 Blending Assembly
6 026285 Jar Bottom
7 503407 Blade Assembly

503378 Blade & Shaft Assembly
8 027716 V Seal
9 503358 Bearing Holder
10 030426 Nylon Washer
11 032453 Coupling

(on units after 3/14/2013)

027097 Coupling
12 026852-V Vinyl Jar Cover
13 026851 32 oz. Stainless Steel Container

(on units after 3/14/2013)

(on units after 3/14/2013)

(changed after 5/17/2010)

1 026282-E Cover Lid
2 026281-V Jar Lid
3 026280-E Jar /44 oz. - 5
4 026284 Jar Seal
5 503377 Blending Assy.
6 026285 Jar Bottom
7 503378 Blade & Shaft Assy.
8 027716 V Seal
9 503358 Bearing Holder /stainless steel
10 030426 Washer /nylon
11 027097 Clutch
12 026852-V Jar Cover /s.s. container

14 032453 Coupling

(on units after 3/14/2013)

027097 Coupling
15 028184 Jar Pad

(on units after 10/18/2005)

026785 Jar Pad
16 028098 Top Housing

(changed after 10/18/2005)

17 026269 Upper Motor Mount

18 026841 Rubber Bushing

(4 required)

19 026690 Eyelet (4 required)
20 028061 Screw (4 required changed after 7/4/2013)
21 033329 ECM Motor (changed after 6/4/2013)

032612 Motor (between 6/4/2013 & 5/32/2013)
029893 Motor use 033329 (on units after 5/14/2010)
027378 Motor use 029893

22 009051 Wire Nut
23 013731 Cable Tie
24 027278 Ground Screw

027278 Ground Screw (1 required on units after 1/16/2007)

(2 required on units after 11/19/2008)

002436 Ground Screw (1 required on units after 1/16/2007)

013270 Ground Screw (1 required)

002436 Ground Screw (1 required)
25 002943 Lock Washer (3 required)
26 502890 10" Green-Yellow Lead Assembly

Page 2 of 3 Revised June 23, 2020

Catalog Model

BB190 BB190P BB190 (TYPE 25)
BB190S BB190S BB190 (TYPE 25)

(on units after 5/12/2010)

Illustration# Part# Description

27 026891 Insulator Sheet

Waring Factory Service Center

314 Ella T. Grasso Ave.

Torrington, CT 06790
Tele. 1-800-269-6640

www.waringcommercialproducts.com

Fax [phone]

28 029355 Hi-Low-Off Toggle Switch

(changed after 8/13/2009)

29 026369 Momentary Toggle Switch (changed after 12/27/2017)
026982 Momentary On Switch (use 026369)

30 016236 Hex Nut (2 required on units after 2/8/2010)
015098 Ring Nut (2 required use 016236)

31 502834 Diode Assembly (003262-diode)
32 502832 5.25" Brown Lead Assembly
33 502833 8" Black Lead Assembly
34 013680 Strain Relief
35 502828 Cord Set
36 028099 Bottom Housing
37 026892 Screw

(4 required)

38 026278 Suction Cup Foot (4 required)
39 027056 Deflector Plate
40 019096 Screw

(3 required changed after 6/4/2013)

Part# is printed on each motor. Visually
you may think motors 029893 & 033329
are the same

027097

Coupling

but they are not.

032453

Coupling

503377

Blending Assembly

Wiring Diagram

503378

Blade Assembly

027097

Coupling

White or Blue
Green/Yellow

Black or Brown

Switch

On-Off

Black

Brown

Green/Yellow

Switch

On

Top View 029893 or 033329 Motor

Black or Brown

Wiring Diagram

(on units after 12/28/2009)

Switch

Off-On-On

Blue

Motor

Black

503407

Blade Assembly

Blue or White

Green/Yellow

Brown

Black

Green/Yellow

Switch

Momentary

Black

On

Blue

Motor

032453

Coupling

503408

Blending Assembly

Parts No Longer Used (limited availablity)

026669 - Shroud (last used 5/14/2010)

Revised June 23, 2020 Page 3 of 3
