Page 1
START/STOP
1
7
Luna
6
7
8
9
10
11
0
Luna
7
037793
Finger Guard
2
START/STOP
Luna
1
7
037791
Unit Assembly
6
7
8
9
10
11
0
7
Luna
037794
Splash Guard
Luna
7

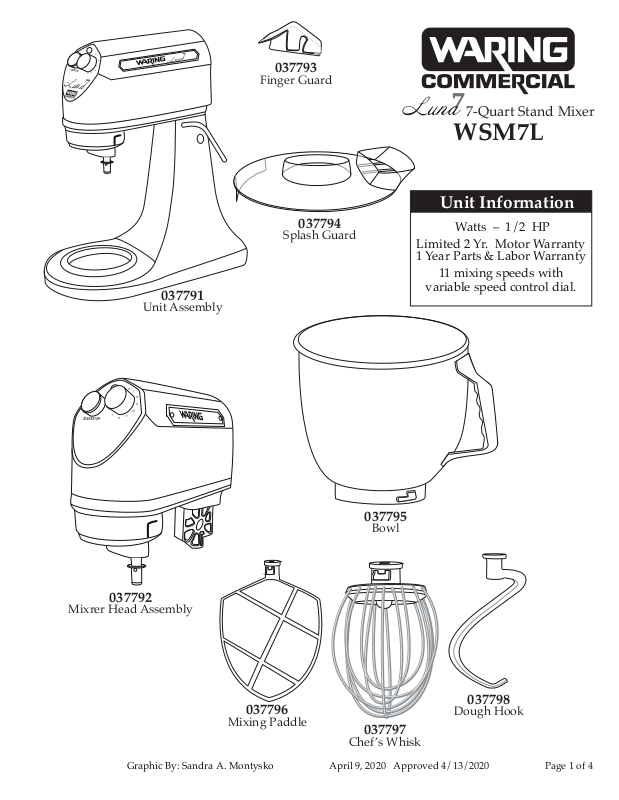

7-Quart Stand Mixer
WSM7L
Unit Information
Watts – 1/2 HP
Limited 2 Yr. Motor Warranty
1 Year Parts & Labor Warranty
11 mixing speeds with
variable speed control dial.
037792
Mixrer Head Assembly
Graphic By: Sandra A. Montysko April 9, 2020 Approved 4/13/2020 Page 1 of 4
037796
Mixing Paddle
037795
Bowl
037798
Dough Hook
037797
Chef’s Whisk
Page 2
WSM7L
Unit Assembly
6
5
7
4
8
3
1
7
9
10
11
0
7
Luna
1
START/STOP
2
Luna
2
14
16
13
17
4a
8
3
4
5
6
7
9
10
12
11
19
18
47
15
22
31
30
32
26
21
Page 2 of 4
20
48
24
25
23
49
33
34
27
29
28
46
37
45
35 36
44
40
42
43
39
41
38
Page 3
Catalog/Model
WSM7L
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com

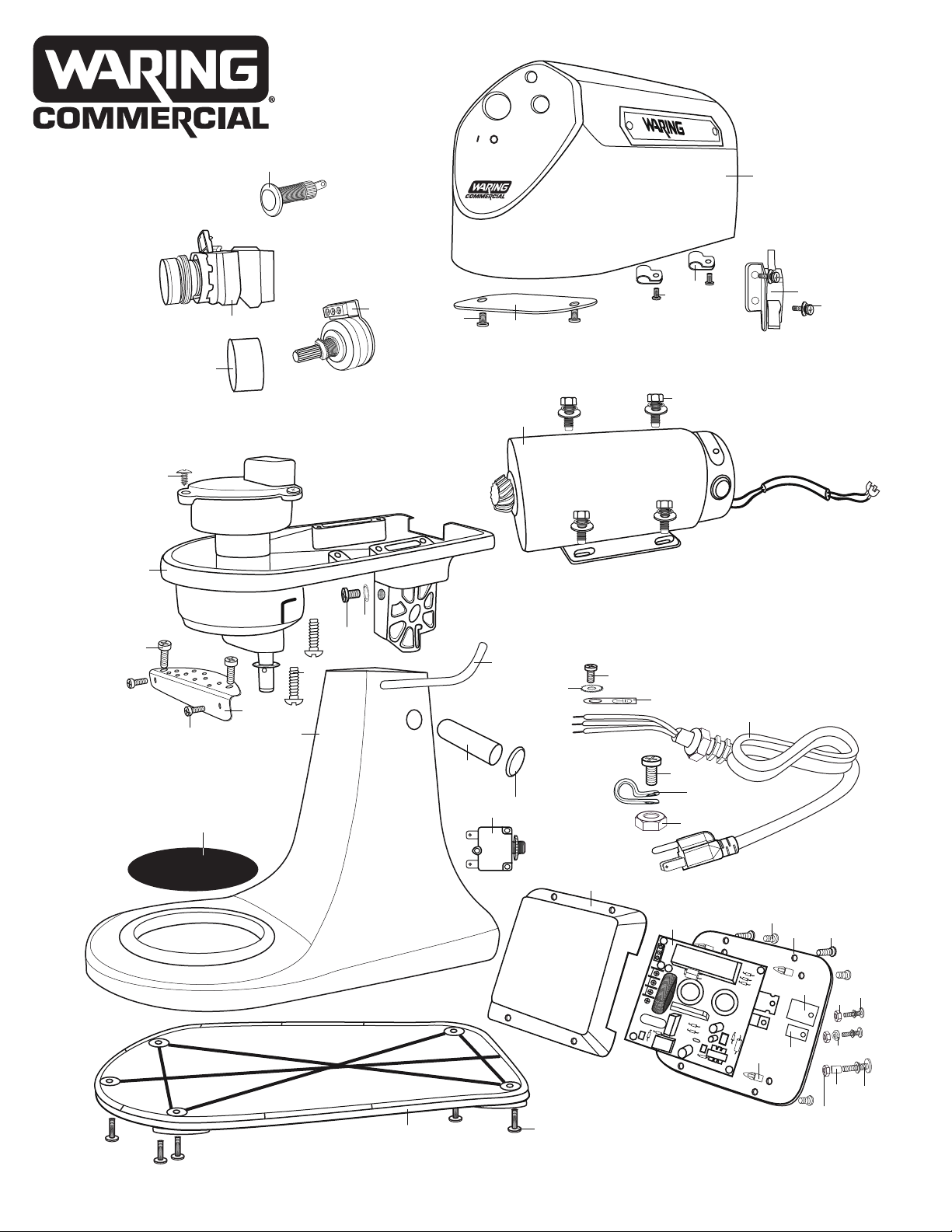

Illustration # Part # Description
1 037799 Top Cover
2 037800 Light
3 037801 Power Switch
4 037802 Potentiometer
4a 037803 Potentiometer Knob
5 037804 Screw
6 037805 Plastic Cover
7 037806 Screw (1 each clamp)
8 037807 Lead Clamp
9 037808 Interlock with Bracket
10 037809 Screw
11 037811 Motor
12 037812 Hex Bolt
13 037813 Screw
(2 required)
with Washers (2 required)
with Washers (4 required)
(3 required)
Fax 860-496-9017
14 037814 Mixer Head Bottom
15 037815 Screen
16 037816 Screw
17 037817 Screw
(2 required)
(2 required)
18 037818 Screw
19 037819 Spring Washer
20 037820 Bowl Pad
21 037821 Stand
22 037822 Plum Wrench
23 037823 Shaft Cover
(2 required)
24 037824 Shaft
25 037404 Reset Switch
26 037405 Cord
27 037407 Screw
28 037406 Clamp
29 037408 Hex Nut
30 037826 Ground Screw
31 037827 Lock Washer
32 037828 Ground Tag
33 037829 Junction Box
Page 3 of 4
Page 4
Catalog/Model
WSM7L
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Illustration # Part # Description
34 037830 PCB Board
35 037831 Metal Plate
36 037832 Nylon Screw
37 037833 Screw
38 037834 Screw
39 037835 Spacer (
(3 required holds 3 of corners of PCB to metal plate)
with Washers
holds the last corner of PCB to metal plate)
40 037836 Hex Nut (
41 037837 Screw
with Washers (2 required holds mosfets on PCB to metal plate)
42 037836 Hex Nut
43 037838 Ceramic Seal (
44 037839 Large Rubber Mat
45 037840 Small Rubber Mat
46 037841 Push Spacer Stand Offs
47 037842 Screw
(2 required)
(4 required holds junction box to metal plate)
(holds the last corner of PCB to metal plate)
holds the last corner of PCB to metal plate)
(2 required holds mosfets on PCB to metal plate)
holds mosfets on PCB to metal plate
(under large mosfet)
(under small mosfet)
Fax 860-496-9017
(3 required under 3 of corners of PCB)
48 037843 Bottom Plate with Feet
49 037844 Screw
(5 required)

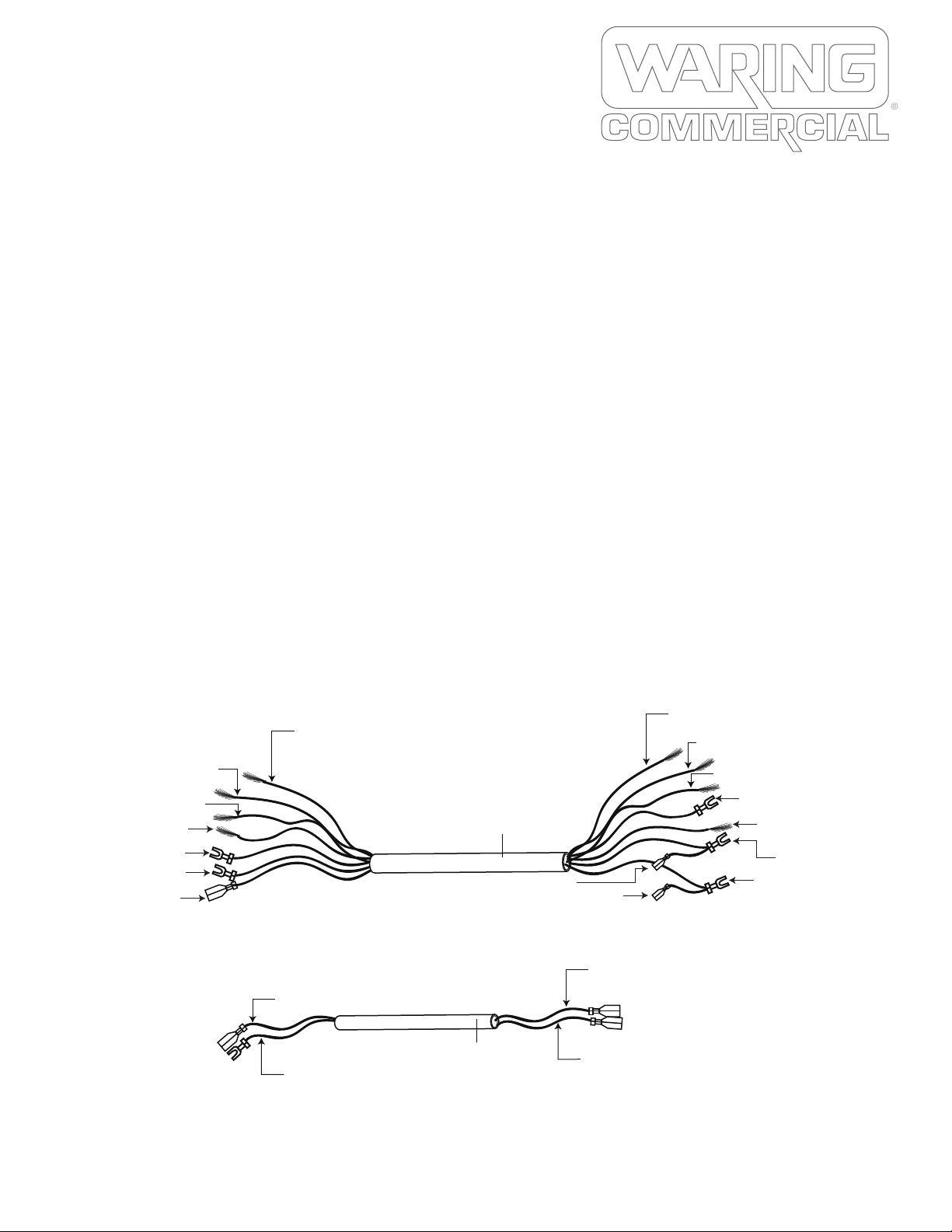

50 037810 Gray Rubber Sleeve with Leads
51 037825 White Rubber Sleeve with Leads
Brown Lead connected to
PCB Board
Gray Lead connected to
Green Lead connected to
Blue Lead connected to
Yellow Lead connected to
Pink Lead connected to
PCB Board
Black Cord Lead
PCB Board
PCB Board
Reset Switch
White Lead connected to
PCB Board
Black Lead connected to Light
Black Lead connected to Light
Red Lead connected
Green Lead on Gray Rubber Sleeve
50
Red Lead connected to
Interlock switch
White Lead connected to
PCB Board
Brown Lead connected to
PCB Board
Gray Lead connected to
PCB Board
Pink Lead connected to
Green Lead connected to
White Rubber Sleeve
Yellow Lead connected to
PCB Board
Blue Lead connected to
PCB Board
PCB Board
Page 4 of 4
Blue Lead connected to
PCB Board
51
Blue Lead connected to
Interlock switch
