LOCK
1
OPEN
LOCK
19
OPEN
LOCK
CBL10
Hot Blending Lid
(optional)
3
4
5
6
5
7
8
9
5
0
7
2
7
9
10
OPEN
18
2
current production
older units
21
23
22
25
24
20
CB15T
CB15TB
Base Only
CB15TS
CB15T with Hot Blending Lid
11
12
13
12
14
15
16
17
502977
Blending Assembly
(replaces 502493 or 502975)
Graphic By: Sandra A. Montysko Revised September 13, 2011 Approved 9/16/11 Page 1 of 4
Parts to old 502493
Blending Assy.
different from new Assy.
(limited quantities available)
018397 - Washer
018388 - O Ring
023903 - Bearing Cap
Unit Information
15.0 Amps. – 3.75 HP
3 Year Limited Motor Warranty
Electronic Membrane Keypad
Slow Start™ Blending Mechanism
Timer Adjustable from 10 seconds
to 3 minutes
Operating Cycle is 3 Min. ON
and 1 Min. OFF
26
013304
5
0
7
2
7
9
27
NSF Seal
30
502235 - Container with Blending Assy.
704587 - Container Complete with Lid
NSF
28
29
®
HEAVY DUTY BLENDER
POWER
ON/OFF
STOP
LOW MED HIGH
TIMER
PULSE
31
35
32
CB15T
CB15TB
Base Only
CB15TS
CB15T with Hot Blending Lid
34
36
37
43
33
49
42
44
51
50
41
40
027381
Brush & Spring Assy.
2 Req.’d
47
48
38
39
45
46
52
53
54
Page 2 of 4 Revised September 13, 2011
Catalog/Model
CB15T
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
Illustration # Part # Description
1 024000 Outer Lid /polycarbonate for hot blending
2 026496 Gasket
3 023998 Baffle Cup for hot blending lid
4 002972 Cap Nut
5 027581 Washer /flat
6 027683 Blade
7 018389 "O" Ring
8 027582 Bearing Cap
9 018390 "V" Ring /small
10 023934 Bearing Holder
11 004946 Washer
12 018386 Bearing
13 023926 Spacer
14 023907 Spring Washer
15 023927 Retaining Ring
16 023906 "V" Ring /large
17 023933 Drive Shaft
18 025817 Key
19 028530 Cover Insert
20 028226 Outer Lid /vinyl
21 013470 Stopper
22 013469 Stainless Steel Outer Lid
23 017442 Gasket /stainless steel lid
026496 Gasket /plastic lid
24 008791 Latch Wire 3 Req.'d
25 502773 Bracket Assy. /
spot welded to container 3 Req.'d
26 023909 Double Handle Container
(plastic outer lid is no longer available)
27 502977 Blending Assy. /complete
28 004949 Gasket /container base
29 025571 Container Support /container base
30 012008 Lock Nut
31 502696 Coupling
32 025871 Jar Pad
Revised September 13, 2011 Page 3 of 4
Catalog/Model
CB15T
Illustration # Part # Description
33 028052 Control Module Panel
34 028025 Top Housing
026316 Top Housing
35 026497 Screw 4 Req.'d
36 002984 Washer 4 Req.'d
37 016691 Screw 4 Req.'d
38 026170 Motor /ECM
39 026318 Baffle
40 026500 Screw 6 Req.'d
41 018791 Screen
42 502853 Lead & Fuse Assy.
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringproducts.com
(older units)
43 019123 Crimp Connector
44 013731 Cable Tie 5 Req.'d
45 502855 Cord Set
46 018811 Strain Relief
47 014798 Washer
48 016317 Screw
49 026317 Bottom Housing
50 002984 Washer 4 Req.'d
51 026412 Screw 4 Req.'d
52 026296 Foot 4 Req.'d
53 018314 Washer 4 Req.'d
54 026493 Screw 4 Req.'d
5W2K7J
5W2K7J
5W2K7J
5W2K7J
5W2K7J
5W2K7J
Brown or Black
Green
Blue or White
502853
5W2K7J
5W2K7J
Yellow
Blue
Black
Motor
Page 4 of 4 Revised September 13, 2011
Red

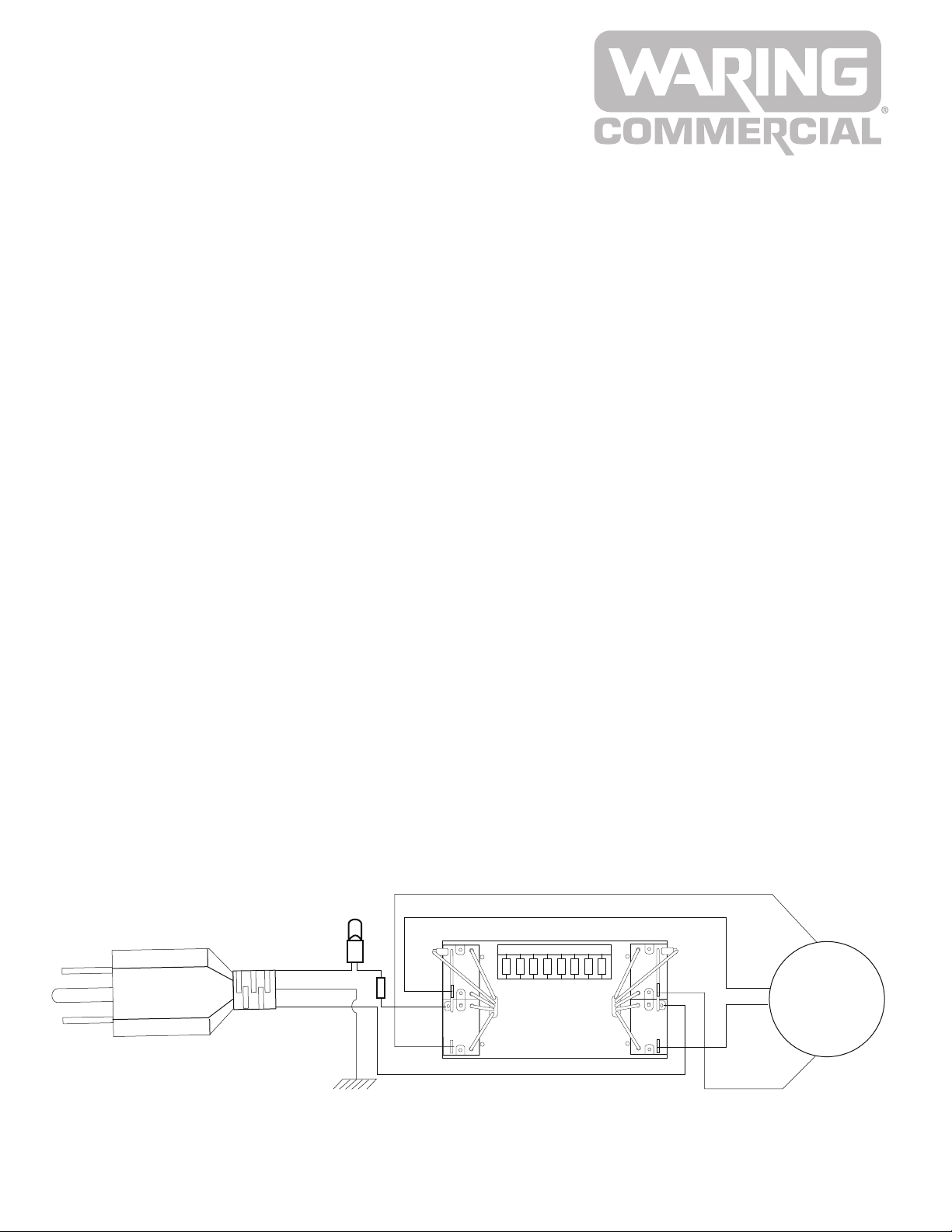

Wiring Diagram
