Waring CAC40 Parts List

500664

2 Piece Lid

3

4

1

2

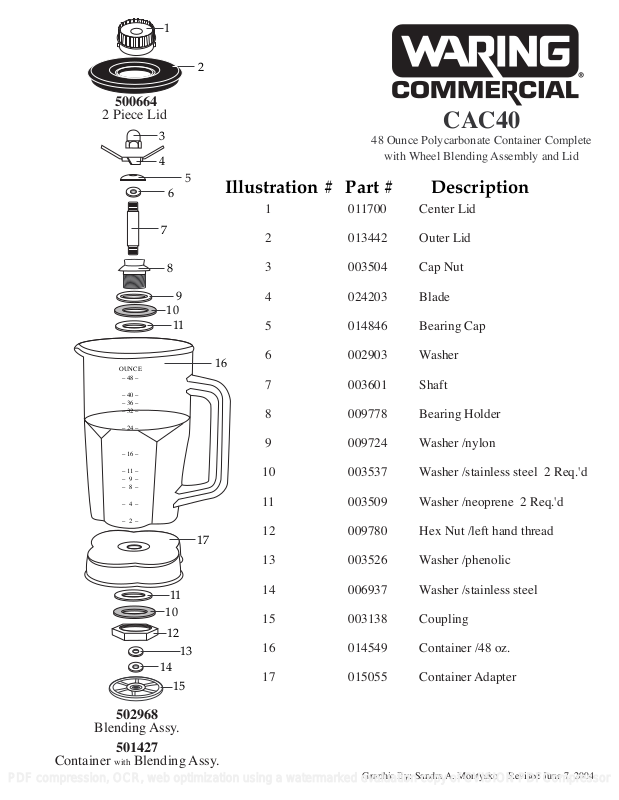

CAC40

48 Ounce Polycarbonate Container Complete

with Wheel Blending Assembly and Lid

5

6

Illustration # Part # Description

1 011700 Center Lid

OUNCE

– 48 –

– 40 –
– 36 –
– 32 –

– 24 –

– 16 –

– 11 –
– 9 –

4

– 8 –

– 4 –

– 2 –

7

2 013442 Outer Lid

8

9

10

11

3 003504 Cap Nut

4 024203 Blade

5 014846 Bearing Cap

6 002903 Washer

16

7 003601 Shaft

8 009778 Bearing Holder

9 009724 Washer /nylon

10 003537 Washer /stainless steel 2 Req.'d

11 003509 Washer /neoprene 2 Req.'d

12 009780 Hex Nut /left hand thread

17

13 003526 Washer /phenolic

11

10

12

13

14

14 006937 Washer /stainless steel

15 003138 Coupling

16 014549 Container /48 oz.

17 015055 Container Adapter

15

502968

Blending Assy.

501427

Container with Blending Assy.
