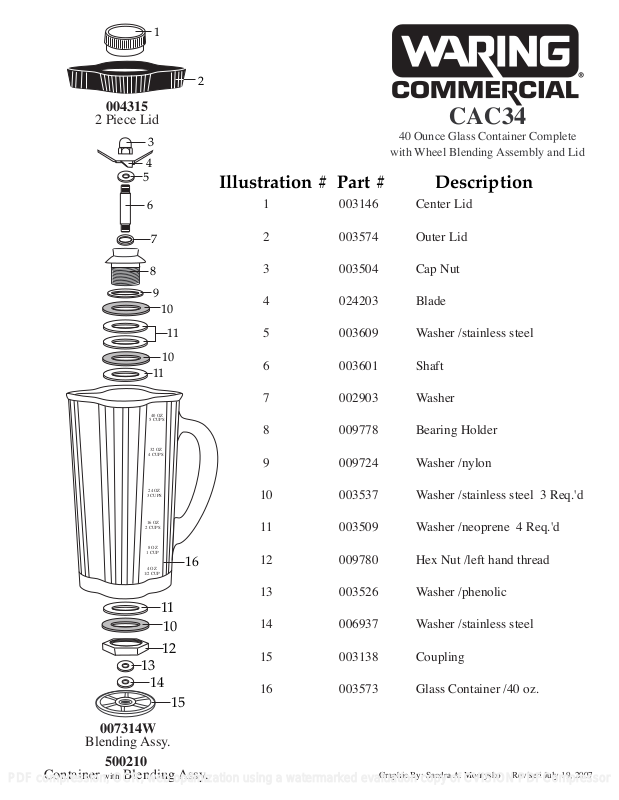

Waring CAC34 Parts List

004315

2 Piece Lid

3

4

5

1

2

CAC34

40 Ounce Glass Container Complete

with Wheel Blending Assembly and Lid

Illustration # Part # Description

6

7

8

9

11

40 OZ

5 CUPS

32 OZ

4 CUPS

24 OZ

3 CUPS

10

10

11

1 003146 Center Lid

2 003574 Outer Lid

3 003504 Cap Nut

4 024203 Blade

5 003609 Washer /stainless steel

6 003601 Shaft

7 002903 Washer

8 009778 Bearing Holder

9 009724 Washer /nylon

10 003537 Washer /stainless steel 3 Req.'d

16 OZ

2 CUPS

8 OZ

1 CUP

4 OZ

1/2 CUP

16

11 003509 Washer /neoprene 4 Req.'d

12 009780 Hex Nut /left hand thread

13 003526 Washer /phenolic

11

10

12

14 006937 Washer /stainless steel

15 003138 Coupling

13

14

16 003573 Glass Container /40 oz.

15

007314W

Blending Assy.

500210

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Container with Blending Assy.

Graphic By: Sandra A. Montysko Revised July 19, 2007
