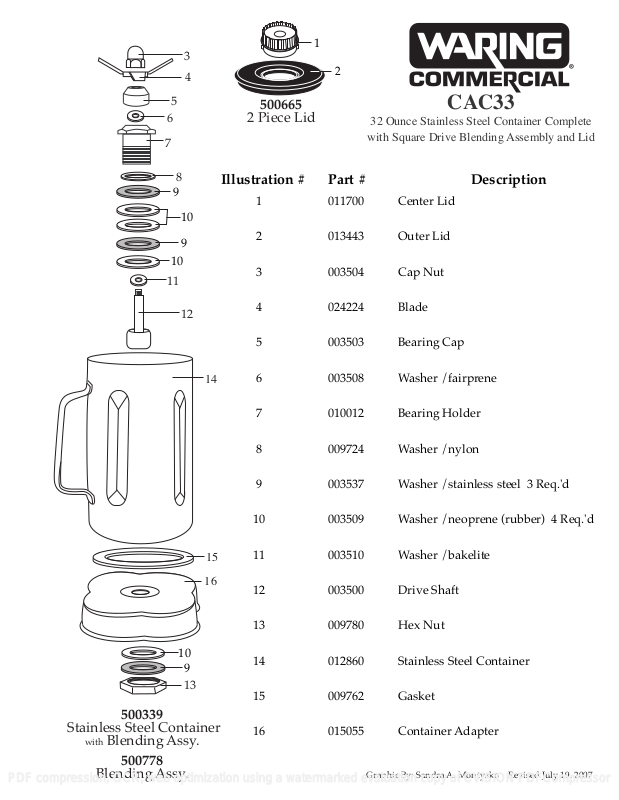

Waring CAC33 Parts List

1

3

4

2

7

6

11

5

9

10

500665

2 Piece Lid

8

10

9

12

Illustration # Part # Description

1 011700 Center Lid

2 013443 Outer Lid

3 003504 Cap Nut

4 024224 Blade

5 003503 Bearing Cap

6 003508 Washer /fairprene

14

32 Ounce Stainless Steel Container Complete

with Square Drive Blending Assembly and Lid

CAC33

10

9

13

7 010012 Bearing Holder

8 009724 Washer /nylon

9 003537 Washer /stainless steel 3 Req.'d

10 003509 Washer /neoprene (rubber) 4 Req.'d

11 003510 Washer /bakelite

15

16

12 003500 Drive Shaft

13 009780 Hex Nut

14 012860 Stainless Steel Container

15 009762 Gasket

500339

Stainless Steel Container

with Blending Assy.

16 015055 Container Adapter

500778

PDF compression, OCR, web optimization using a watermarked evaluation copy of CVISION PDFCompressor

Blending Assy.

Graphic By: Sandra A. Montysko Revised July 19, 2007
