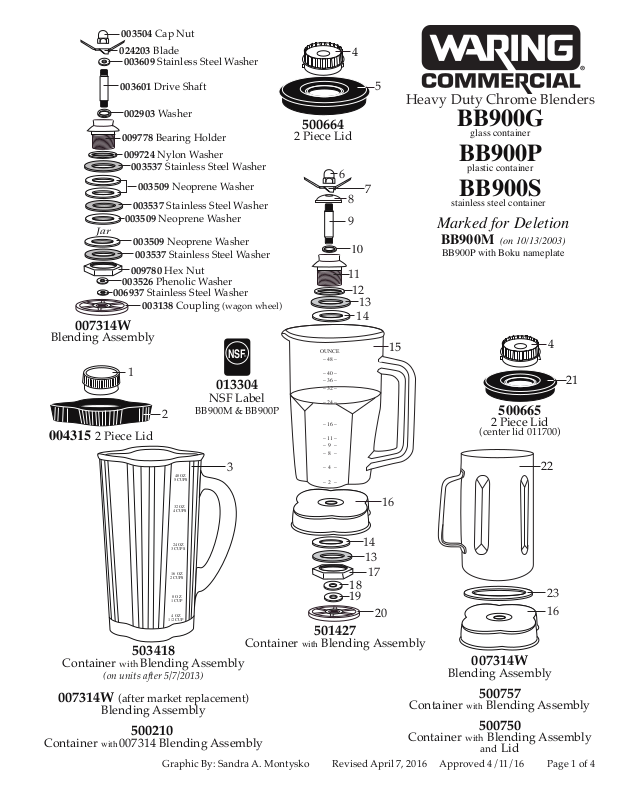

Page 1
003504 Cap Nut
024203 Blade
003609 Stainless Steel Washer
4
003601 Drive Shaft
002903 Washer
009778 Bearing Holder
009724 Nylon Washer
003537 Stainless Steel Washer
003509 Neoprene Washer
003537 Stainless Steel Washer
003509 Neoprene Washer
Jar
003509 Neoprene Washer
003537 Stainless Steel Washer
009780 Hex Nut
003526 Phenolic Washer
006937 Stainless Steel Washer
003138 Coupling (wagon wheel)
007314W
Blending Assembly
1
004315 2 Piece Lid
5
Heavy Duty Chrome Blenders
500664
2 Piece Lid
BB900G
glass container
BB900P
6
7
8
9
Marked for Deletion
10
11
12
13
14
®
NSF
013304
NSF Label
2
BB900M & BB900P
40 OZ
5 CUPS
3
OUNCE
– 48 –
– 40 –
– 36 –
– 32 –
– 24 –
– 16 –
– 11 –
– 9 –
4
– 8 –
– 4 –
– 2 –
15
plastic container
BB900S
stainless steel container
BB900M (on 10/13/2003)
BB900P with Boku nameplate
4
21
500665
2 Piece Lid
(center lid 011700)
22
32 OZ
4 CUPS
24 OZ
3 CUPS
16 OZ
2 CUPS
8 OZ
1 CUP
4 OZ
1/2 CUP
Container with Blending Assembly
503418
Container with Blending Assembly
(on units after 5/7/2013)
007314W (after market replacement)
Blending Assembly
500210
Container with 007314 Blending Assembly
Graphic By: Sandra A. Montysko Revised April 7, 2016 Approved 4/11/16 Page 1 of 4
501427
18
19
14
13
17
20
16
23
16
007314W
Blending Assembly
500757
Container with Blending Assembly
500750
Container with Blending Assembly
and Lid
Page 2
25
46
33
24
31
HI
26
LO
OFF
014899
Nameplate
(ALL units except BB900M)
28
27
29
30
®
HI
LO
OFF
023768
Nameplate
(BB900M)
32
Wiring Diagram
(BB900 units after 10/26/2004)
Grounding Post
on Base
2
1
0
2
1
0
BAR
BLENDER
SmoothE
Heavy Duty Chrome Blenders
BB900G
glass container
BB900P
plastic container
BB900S
Blender
White or Blue
Green or Green/Yellow
stainless steel container
Marked for Deletion
BB900M (on 10/13/2003)
BB900P with Boku nameplate
Black or Brown
White
5
3
6
Toggle
Switch
Diode
Motor
Black
42
41
Date Code System On This Motor
1st Digit = Year
2nd & 3rd Digit = Week of Year
4th Digit = Day of Week ( 0=Sun; 6=Sat )
1999
9205
Week 20
Friday
XXXX
For Example:
9205 = May 14 1999
43
45
UF-321200-61RO2
120V 60Hz
XXXXX
WARING P/N 027255
35
025628
Brush & Spring
38
(2 required)
39
40
Wiring Diagram
(BB900 units before 10/26/2004)
44
34
36
Grounding
Post
on Base
37
White or Blue
Black or Brown
Green or Green/Yellow
White
Black or White with Black Trace
Motor
3
Toggle
Switch
Diode
Black
5
6
Page 2 of 4 Revised April 7, 2016
Page 3
Catalog Model
(on units after 2/1/1999)(on units after 3/31/2010)
BB900G WF2111211 51BL20 33BL78
BB900P WF2111215 51BL21 34BL62
BB900S WF2111213 51BL20 33BL78
BB900M Unit Marked for Deletion 39BL55
Illustration # Part # Description
1 003146 Center Lid
2 003574-09 Clover Leaf Outer Lid (changed on 8/15/2007)
3 003573 40 oz. Glass Container
4 011700 Center Lid
5 013442 Outer Lid
6 003504 Cap Nut
7 024203 Blade
8 014846 Bearing Cap
9 003601 Shaft
10 002903 Rubber Washer
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
11 009778 Bearing Holder
12 009724 Nylon Washer
13 003537 Stainless Steel Washer
(2 required)
14 003509 Neoprene Washer (2 required)
15 014549-E 48 oz. Eastman Container (changed 8/5/2011)
16 015055 Container Adapter
17 009780 Hex Nut
18 003526 Phenolic Washer
19 006937 Stainless Steel Washer
20 003138 Coupling
21 013443 Outer Lid
22 012860 32 oz. Stainless Steel Container
23 009762 Gasket
24 014009 Coupling
25 033058-09S Jar Pad
(4 pack changed on 7/25/2013)
26 007967 Jar Pad Stud (4 required)
27 017289 Plated Top Cover
28 012752 Seal (4 required)
29 012751 Spacer (4 required)
30 015165 Whizlock Nut (4 required)
31 018594 Housing Seal
32 003563 Baffle
Revised April 7, 2016 Page 3 of 4
Page 4
Catalog Model
(on units after 2/1/1999)(on units after 3/31/2010)
BB900G WF2111211 51BL20 33BL78
BB900P WF2111215 51BL21 34BL62
BB900S WF2111213 51BL20 33BL78
BB900M Unit Marked for Deletion 39BL55
Illustration # Part # Description
33
014790-A-CHM
Bright Chrome Base (changed 4/17/2012)
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
34 009051 Wire Nut
35 013731 Cable Tie
(1 required on units after 10/26/2004) - (2 required)
36 501162 Cord Set (on units after 6/25/2008)
003565 Cord Set (on units after 9/4/2002)
500830 Cord Set
37 013680 Strain Relief (on units after 8/4/2008)
016041 Strain Relief (on units after 8/15/2002)
38 027255 Motor (changed 10/26/2004)
39 002943 Ground Washer
40 027278 Ground Screw (on units after 4/17/2012)
013659 Ground Screw
41 029355 Switch (on units after 7/29/2003)
012698 Switch
42 012703 Switch Seal (boot)
43 027790 Metal Bottom Plate ONLY (on units after 8/4/2008)
503011
502974
502776
Metal Bottom Plate Assembly with Cord Set (on units after 8/4/2008)
Plastic Bottom Plate Assembly with Cord Set (on BB900G & P after 8/5/2004)
(on BB900S after 4/1/2005)
Plastic Bottom Plate Assembly with Cord Set (on units after 2/10/2003)
026151 Plastic Bottom Plate ONLY
44 503376 Screw & Foot Assembly (3 required on units after 6/28/2010)
002891 Foot (3 required for metal bottom plates)
024645 Foot (3 required plastic bottom plates)
45 003569 Screw (used with 002891 feet No Longer Available)
013659 Screw (3 required plastic bottom plates)
46 003532 Rivet (2 required)
Parts No Longer Used
002957 - Hex Nut
(BB900P units before 2/14/2003 & All BB900M)
014553 - Cable Clamp
(BB900P units before 2/14/2003 & All BB900M)
007558 - Screw
(BB900P units before 2/14/2003 & All BB900M)
016211 - Foot Plug
(3 required for BB900M & BB900P units before 2/14/2003)
500916 Lead Assembly with 003262-Diode (on units after 10/26/2004)
502874 Lead Assembly with 003262-Diode (for BB900M)
Page 4 of 4 Revised April 7, 2016
002962 - Clamp Screw
(BB900G & S units before 2/14/2003)
016410 - Clamp Stain Relief
(BB900G & S units before 2/14/2003)
