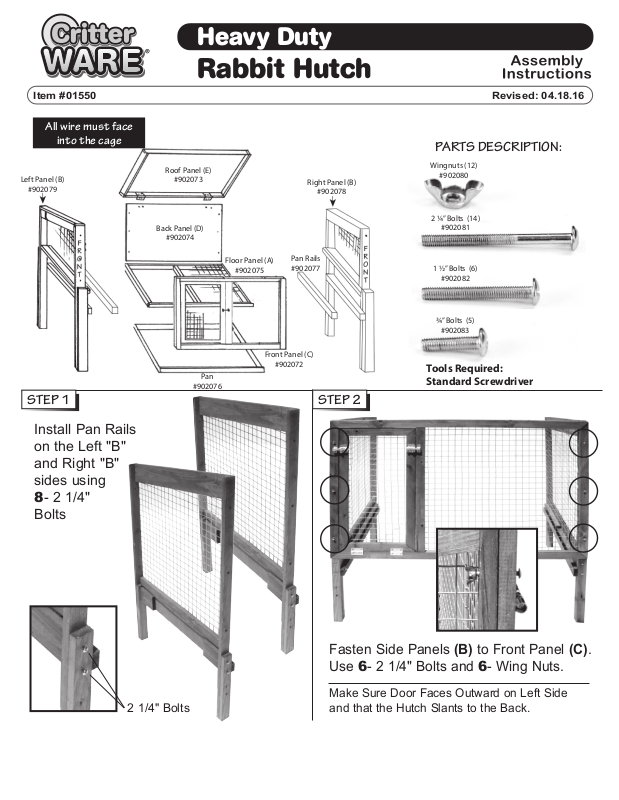

Page 1
All wire must face
into the cage
Heavy Duty
Rabbit Hutch
Revised: 04.18.16Item #01550
PARTS DESCRIPTION:
Left Panel (B)
#902079
Install Pan Rails
on the Left "B"
and Right "B"
sides using
8- 2 1/4"
Bolts
Roof Panel (E)
#902073
Back Panel (D)
#902074
#902076
Pan
Floor Panel (A)
#902075
Front Panel (C)
Pan Rails
#902077
#902072
Right Panel (B)
#902078
STEP 2STEP 1
Wingnuts (12)
#902080
2 ¼” Bolts (14)
#902081
1 ½” Bolts (6)
#902082
¾” Bolts (5)
#902083
Tools Required:
Standard Screwdriver
2 1/4" Bolts
Fasten Side Panels (B) to Front Panel (C).
Use 6- 2 1/4" Bolts and 6- Wing Nuts.
Make Sure Door Faces Outward on Left Side
and that the Hutch Slants to the Back.
Page 2
STEP 3
STEP 4
FLOOR
Slide Floor into Bottom of Hutch, Wire
Side Up. Align Side Holes and Fasten
Back Panel (D) to Side Panels using
6- 1 1/2" Bolts and 6- Wing Nuts.
Wing Nuts should face into the Hutch.
STEP 5
Slide Pan in Front Below Floor on Pan Rails. Assembly is Now Complete!
3/4" Bolt 3/4" Bolt
Set Roof on Top of Hutch.
Align Hinges and Attach 4- 3/4" Bolts.
Install “Stop Chain” as Shown Below
using 1- 3/4" Bolt.
Tip: This item
(as any wood)
should be peri-
odically (every
12 to 18 months
depending on
climate) treated
with a non-toxic
exterior grade
stain.
If you have any questions or concerns about this product, contact our customer service
department at 1-800-295-2243 or [email protected] and we will help you with any problems,
Mon-Fri 8:00-4:00 MST
