Page 1
Support Email/ Skype: [email protected] 1
Wansview Pro HD
1080P Pro IP Camera K1
User Manual
Revised 18thApril 2016
Page 2
Support Email/ Skype: [email protected] 2
Contents
Contents...............................................................................................................................................................................................................2
Welcome..............................................................................................................................................................................................................6
Important Security Warning...............................................................................................................................................................................6
Important Safeguards and Warnings................................................................................................................................................................. 6
1．Features and Specifications.........................................................................................................................................................................8
1.1 Product Overview................................................................................................................................................................................ 8
1.2 Product Profile..................................................................................................................................................................................... 8
1.3 Packing List..........................................................................................................................................................................................8
1.4 Features.................................................................................................................................................................................................8
2. Device Connection......................................................................................................................................................................................... 9
2.1 Connection Diagram............................................................................................................................................................................9
2.2 Wi-Fi Set Up.......................................................................................................................................................................................10
2.2.1 Mobile Phone Wi-Fi Set Up.................................................................................................................................................. 10
2.2.2 Wi-Fi Set Up Via Network Cable..........................................................................................................................................11
2.2.3 WPS/QSS One Key Wi-Fi Set Up.........................................................................................................................................11
3. iPhone/iPad Access...................................................................................................................................................................................... 12
3.1 Software Installation..........................................................................................................................................................................12
3.2 App Interface Introduction................................................................................................................................................................ 12
3.2.1 Interface.................................................................................................................................................................................. 12
3.2.2 Add Camera............................................................................................................................................................................ 13
3.3 Live View and Setting....................................................................................................................................................................... 15
3.3.1 Viewing Camera on a Single Window.................................................................................................................................. 15
3.3.2 Viewing Camera on Multi-View........................................................................................................................................... 16
3.4 Edit Camera........................................................................................................................................................................................16
3.4.1 Local Picture and Record.......................................................................................................................................................16
3.4.2 SD/TF Record Playback........................................................................................................................................................ 17
3.4.3 Alarm Setting..........................................................................................................................................................................17
3.4.4 Advanced Setting....................................................................................................................................................................18
3.4.4.1 WiFi Setting.................................................................................................................................................................18
3.4.4.2 User Settings............................................................................................................................................................... 19
3.4.4.3 Time Setting................................................................................................................................................................ 19
3.4.4.4 FTP Setting..................................................................................................................................................................19

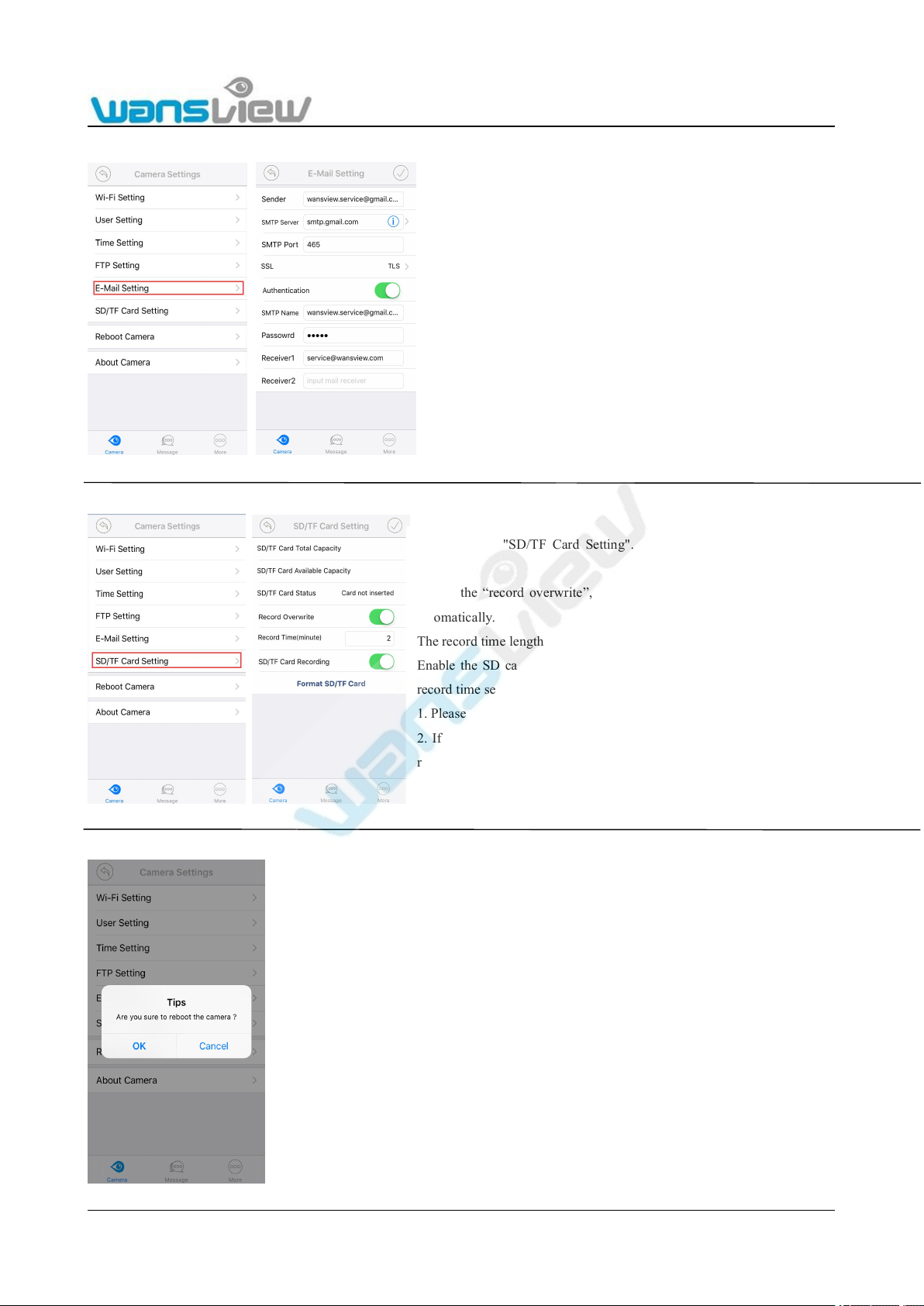

3.4.4.5 E-Mail Setting............................................................................................................................................................. 20
3.4.4.6 SD/TF Card Setting.................................................................................................................................................... 20
3.4.4.7 Reboot camera.............................................................................................................................................................20
3.4.4.8 About Camera..............................................................................................................................................................21
3.4.5 Start Video.............................................................................................................................................................................. 21
3.4.6 Delete Device......................................................................................................................................................................... 21
4. Android Access.............................................................................................................................................................................................22

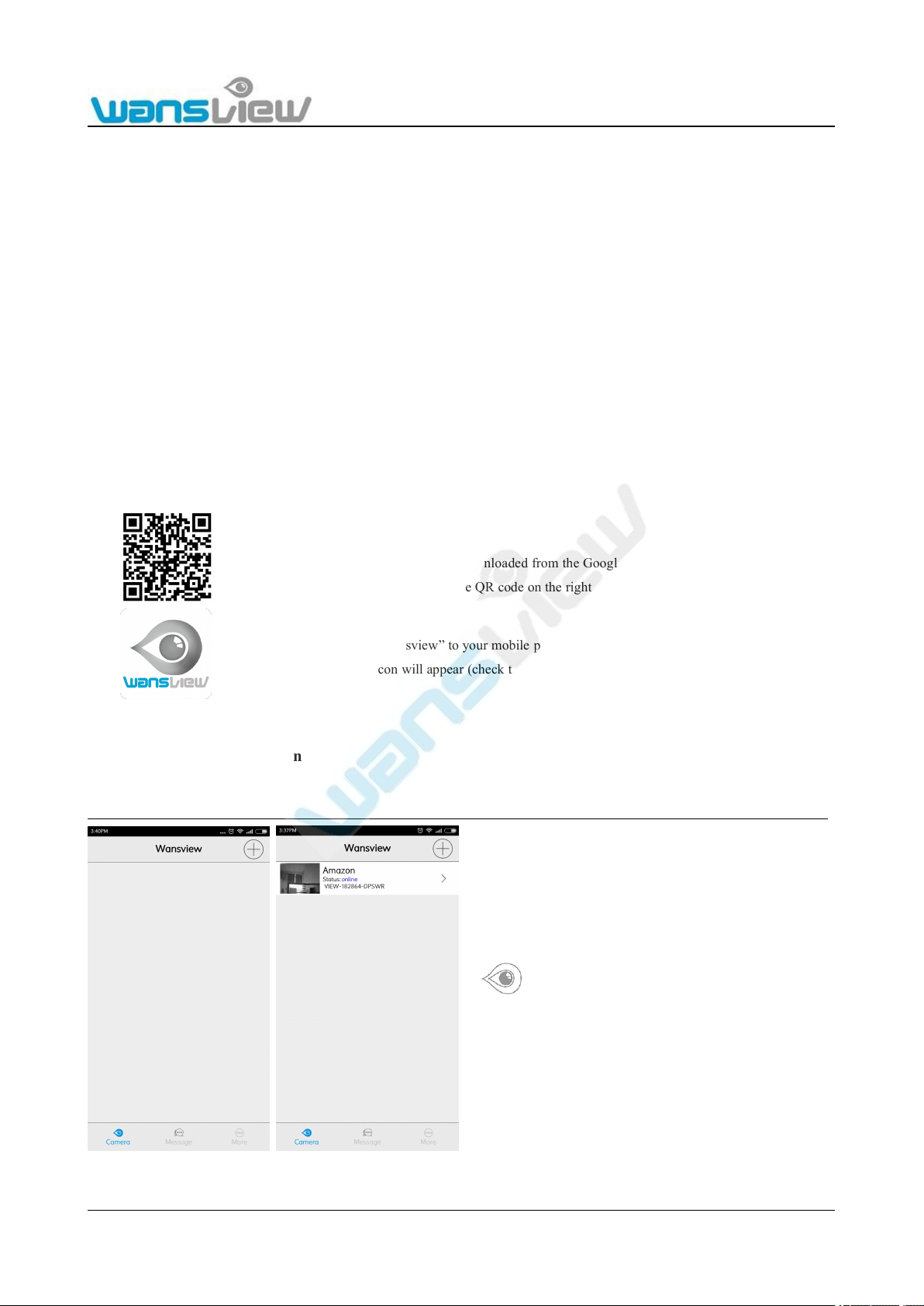

4.1 Software Installation..........................................................................................................................................................................22
4.2 App Interface Introduction................................................................................................................................................................ 22
4.2.1 Interface.................................................................................................................................................................................. 22
Page 3
Support Email/ Skype: [email protected] 3

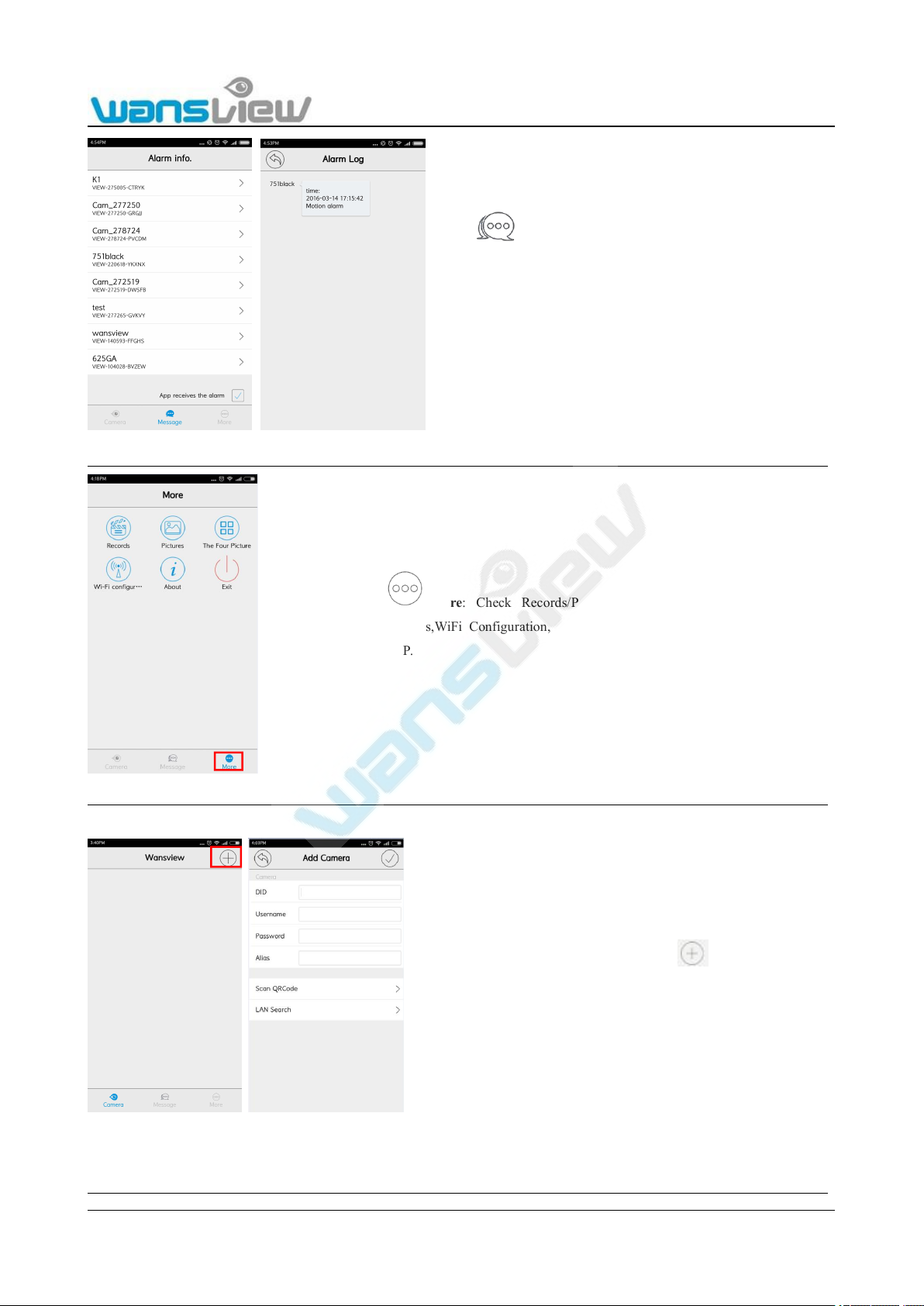

4.2.2 Add Camera............................................................................................................................................................................ 23
4.3 Live View and Setting....................................................................................................................................................................... 25

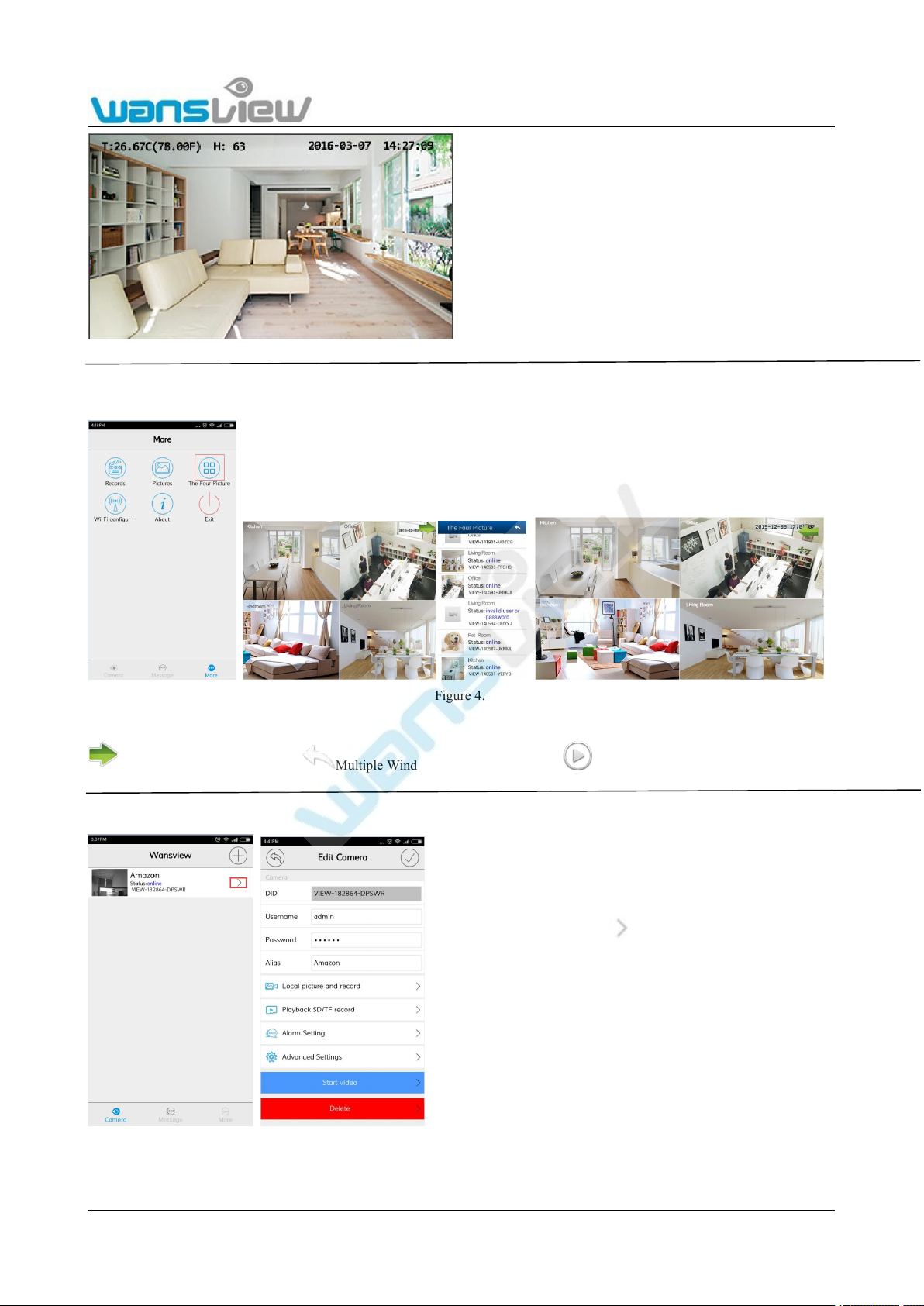

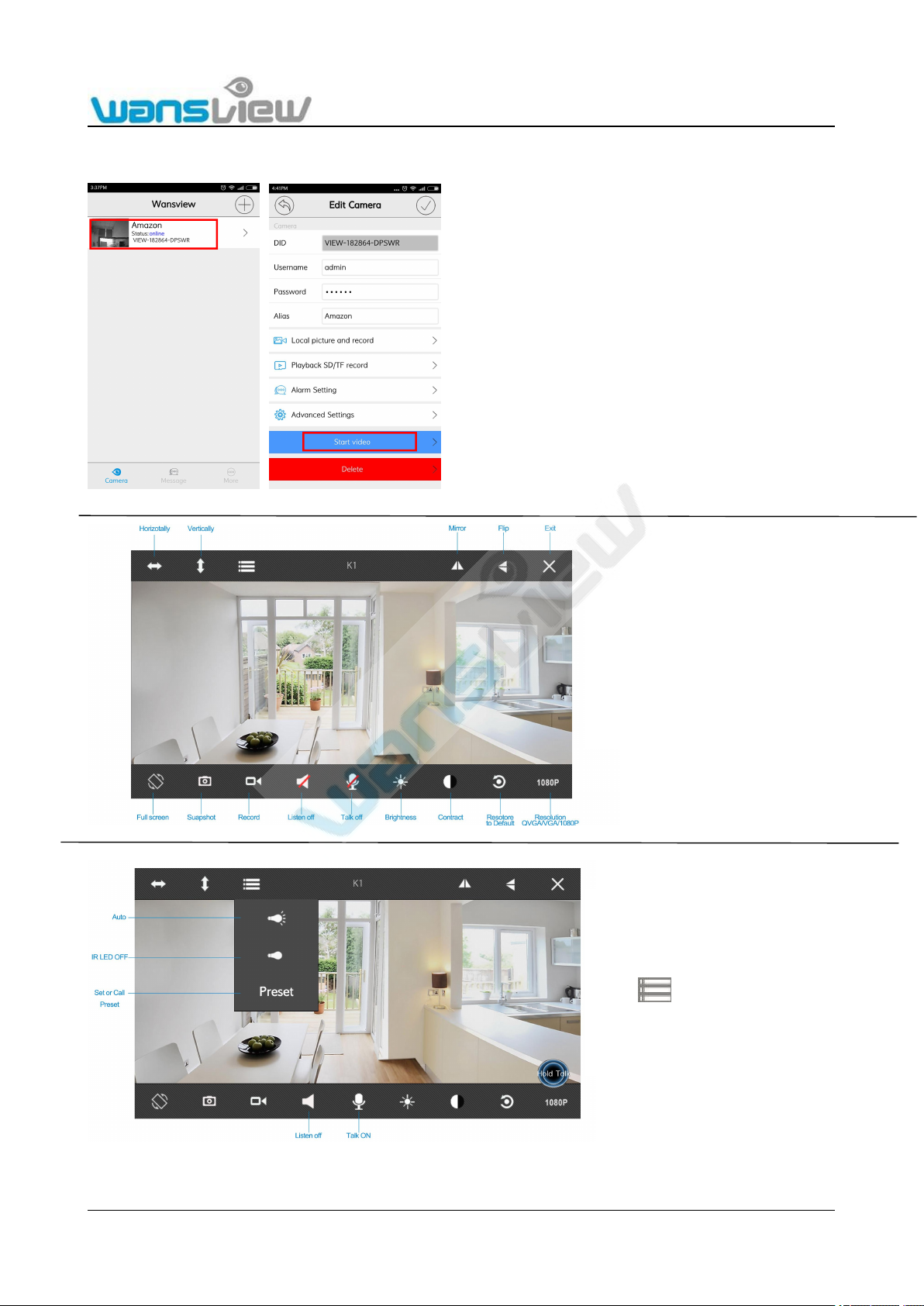

4.3.1 Viewing Camera on a Single Window.................................................................................................................................. 25
4.3.2. Viewing Camera on Multi-View.......................................................................................................................................... 26
4.4 Edit Camera........................................................................................................................................................................................26
4.4.1 Edit camera Alias....................................................................................................................................................................27
4.4.2 Local Picture and Record.......................................................................................................................................................27
4.4.3 SD/TF Record Playback........................................................................................................................................................ 28

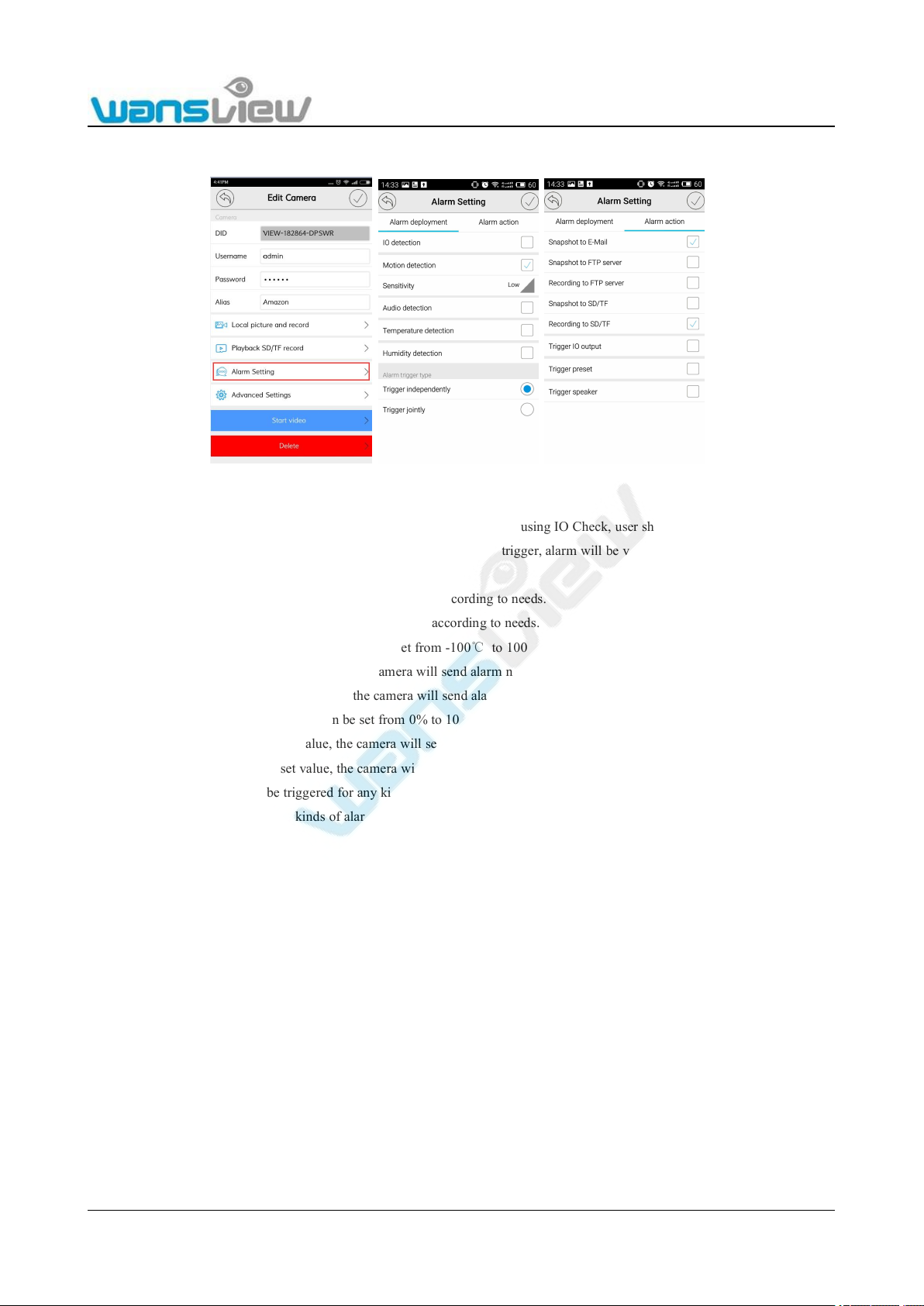

4.4.4 Alarm Setting..........................................................................................................................................................................29
4.4.5 Advanced Setting....................................................................................................................................................................30

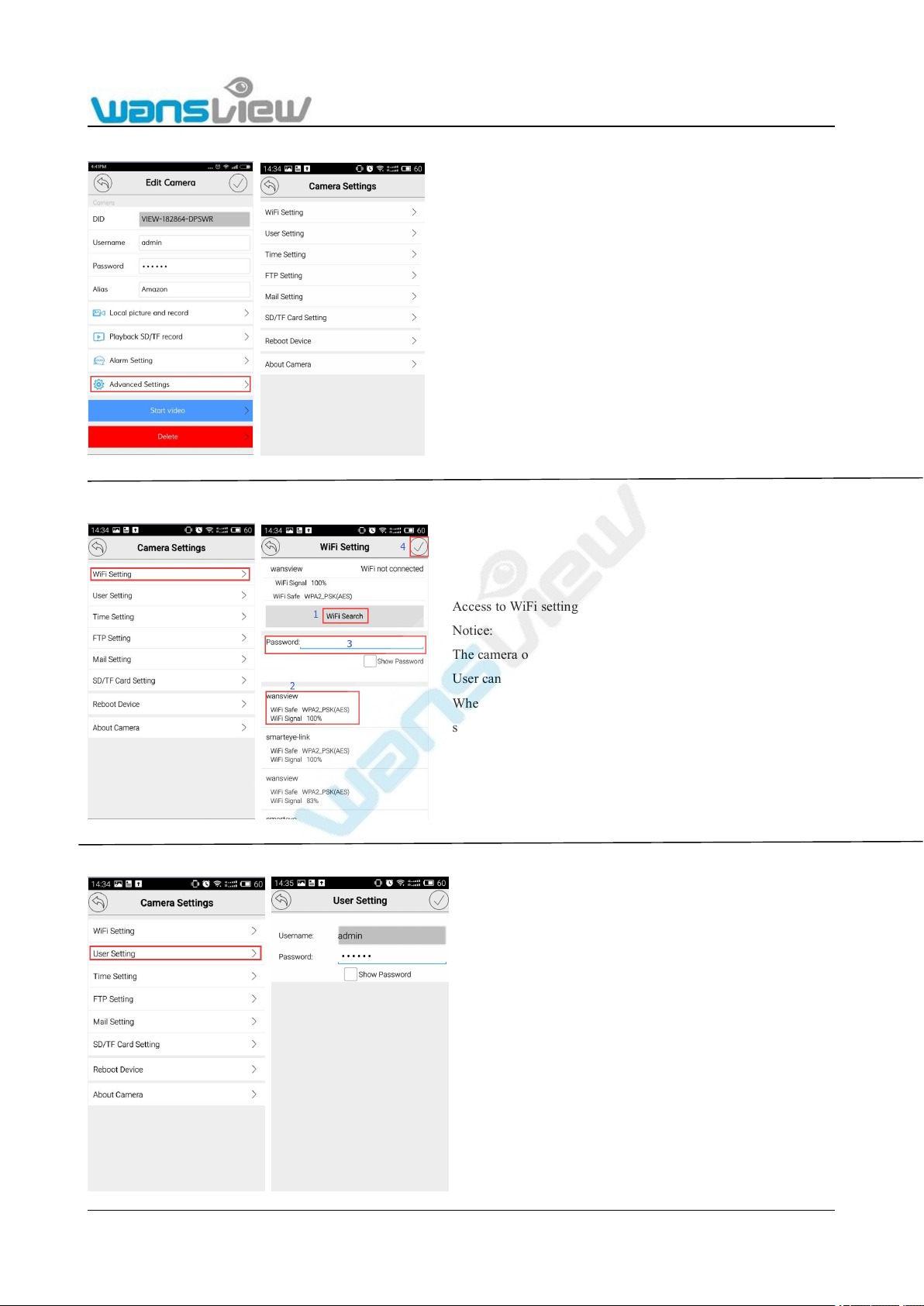

4.4.5.1 Wi-Fi Setting...............................................................................................................................................................30
4.4.5.2 User Settings............................................................................................................................................................... 30

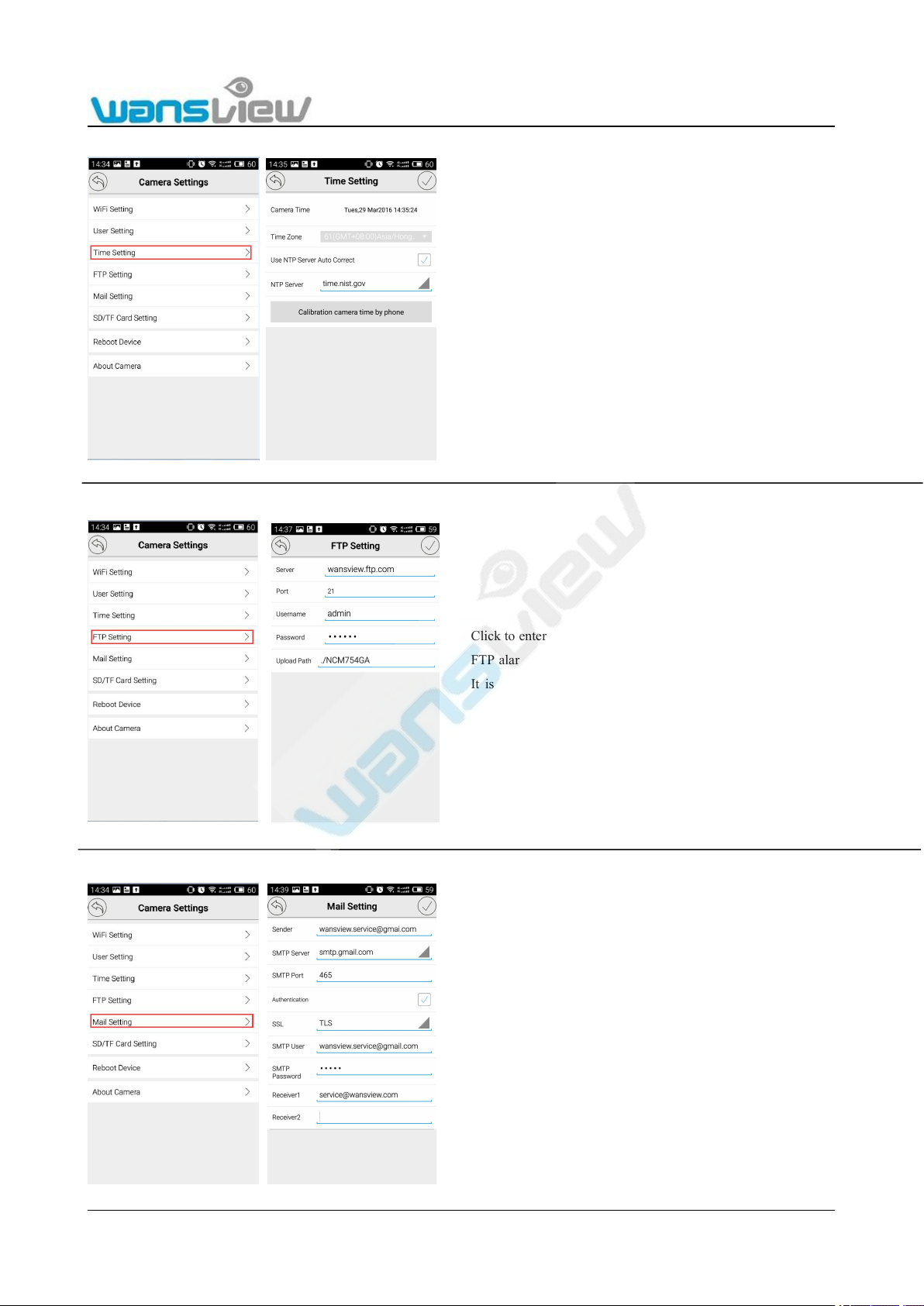

4.4.5.3 Time Setting................................................................................................................................................................ 31
4.4.5.4 FTP Setting..................................................................................................................................................................31
4.4.5.5 Mail Setting.................................................................................................................................................................31

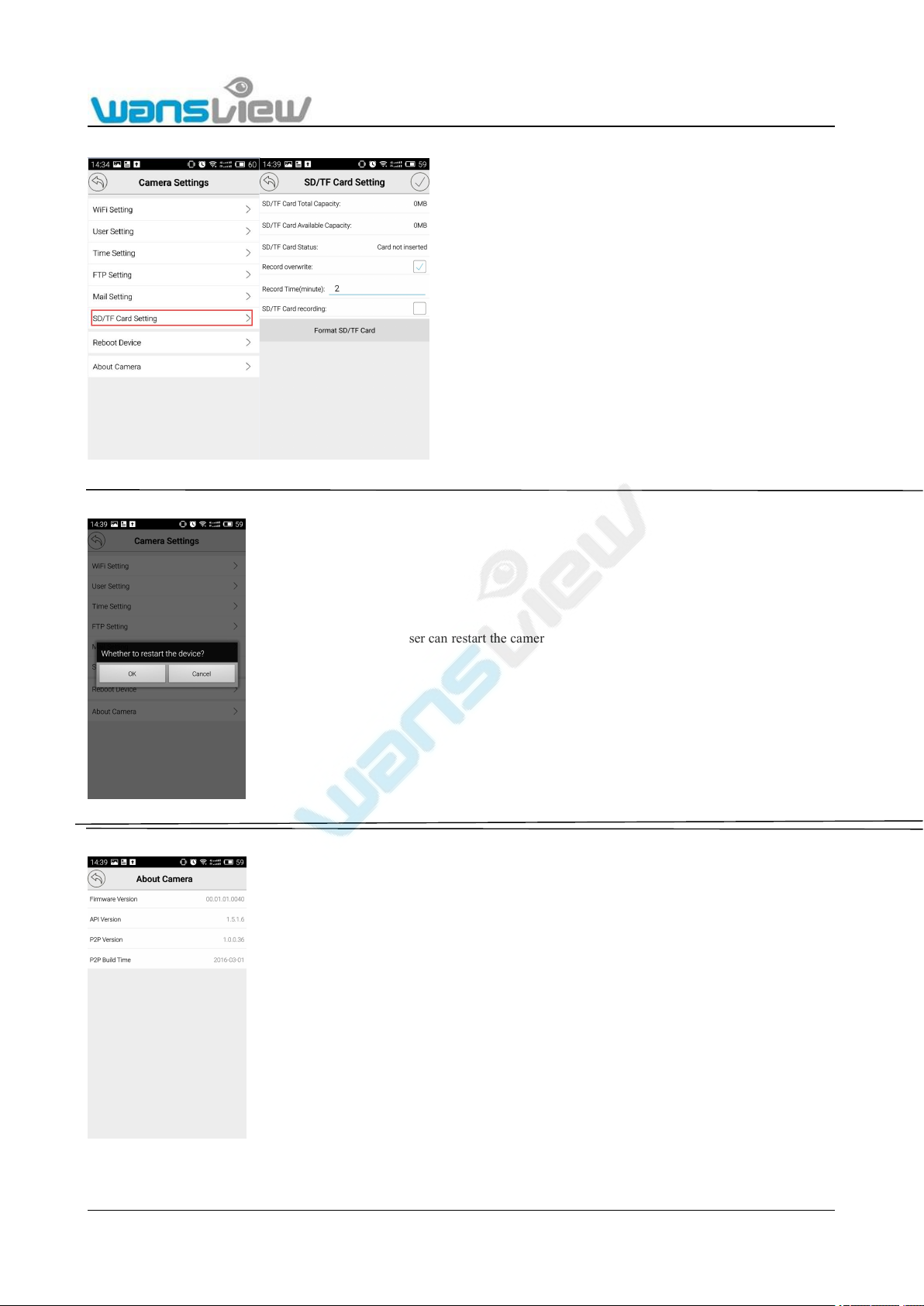

4.4.5.6 SD/TF Setting............................................................................................................................................................. 32
4.4.5.7 Reboot Device.............................................................................................................................................................32
4.4.5.8 About Camera..............................................................................................................................................................32
5. Web Access................................................................................................................................................................................................... 33
5.1 Start up................................................................................................................................................................................................33

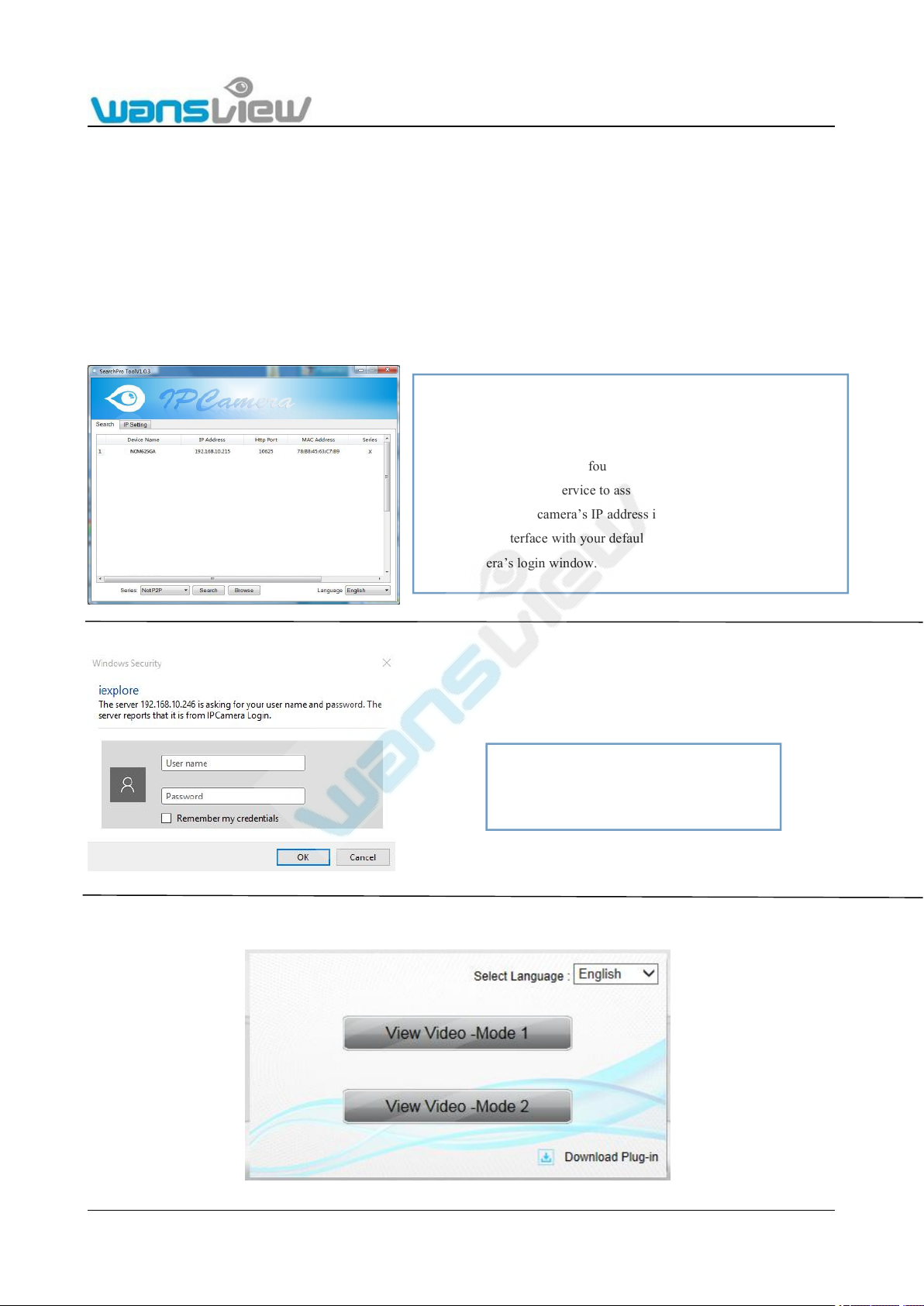

5.1.1 Network Installation...............................................................................................................................................................33
5.1.2 Login....................................................................................................................................................................................... 33

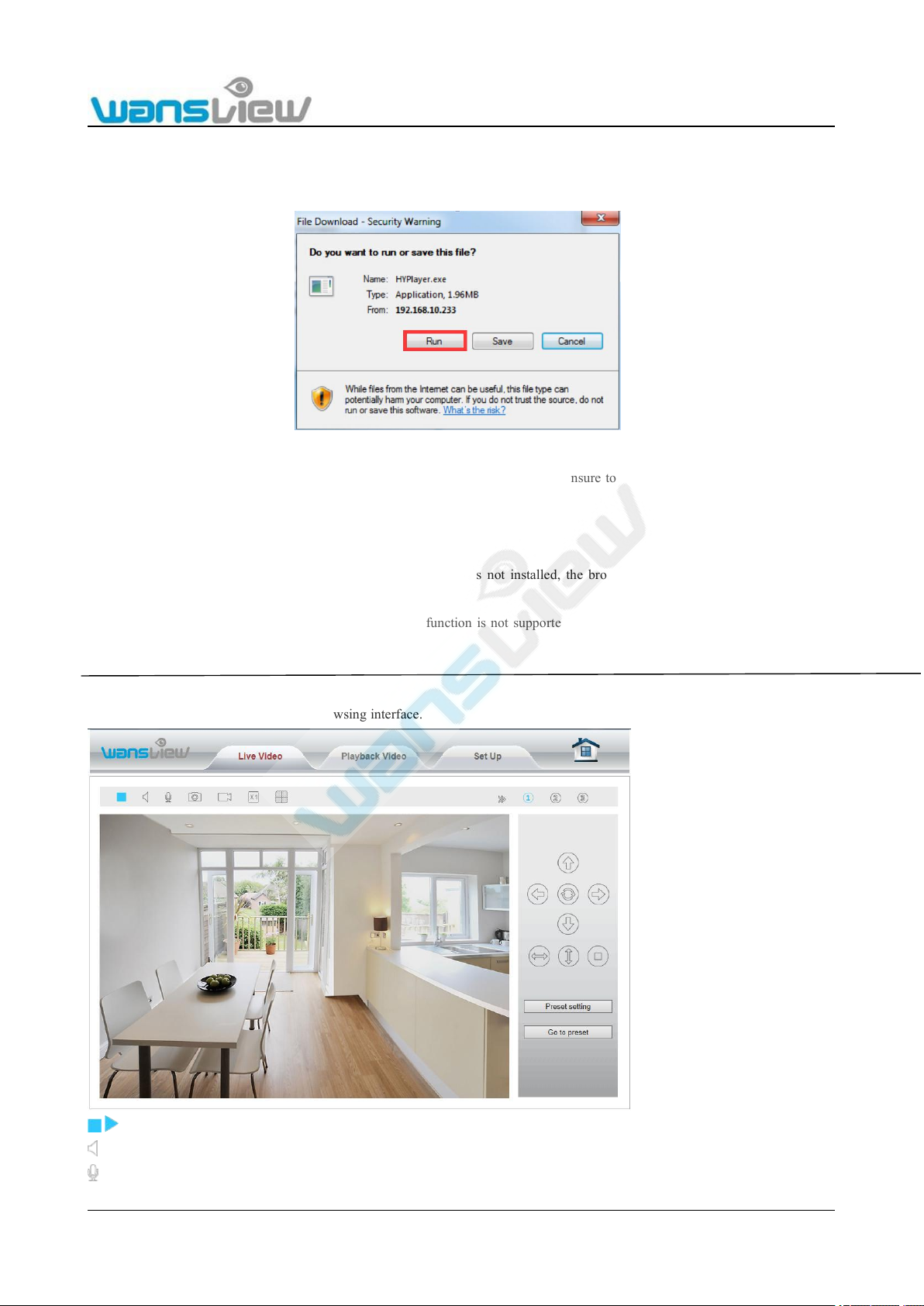

5.1.3 Plugin installation...................................................................................................................................................................33
5.2 Live Video.......................................................................................................................................................................................... 34

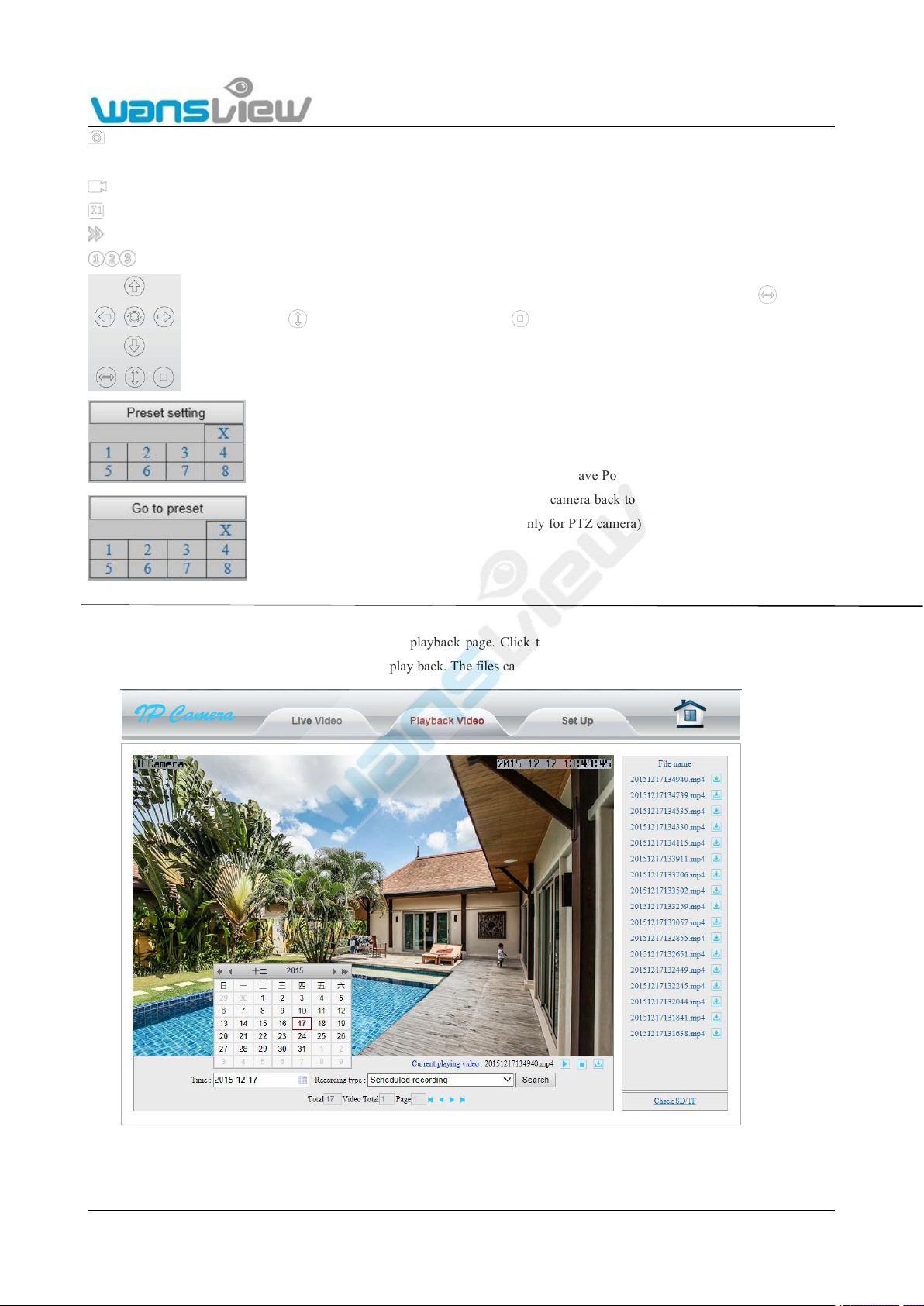

5.2 Playback Video...................................................................................................................................................................................35
5.3 Set Up................................................................................................................................................................................................. 36
5.3.1 System.....................................................................................................................................................................................36

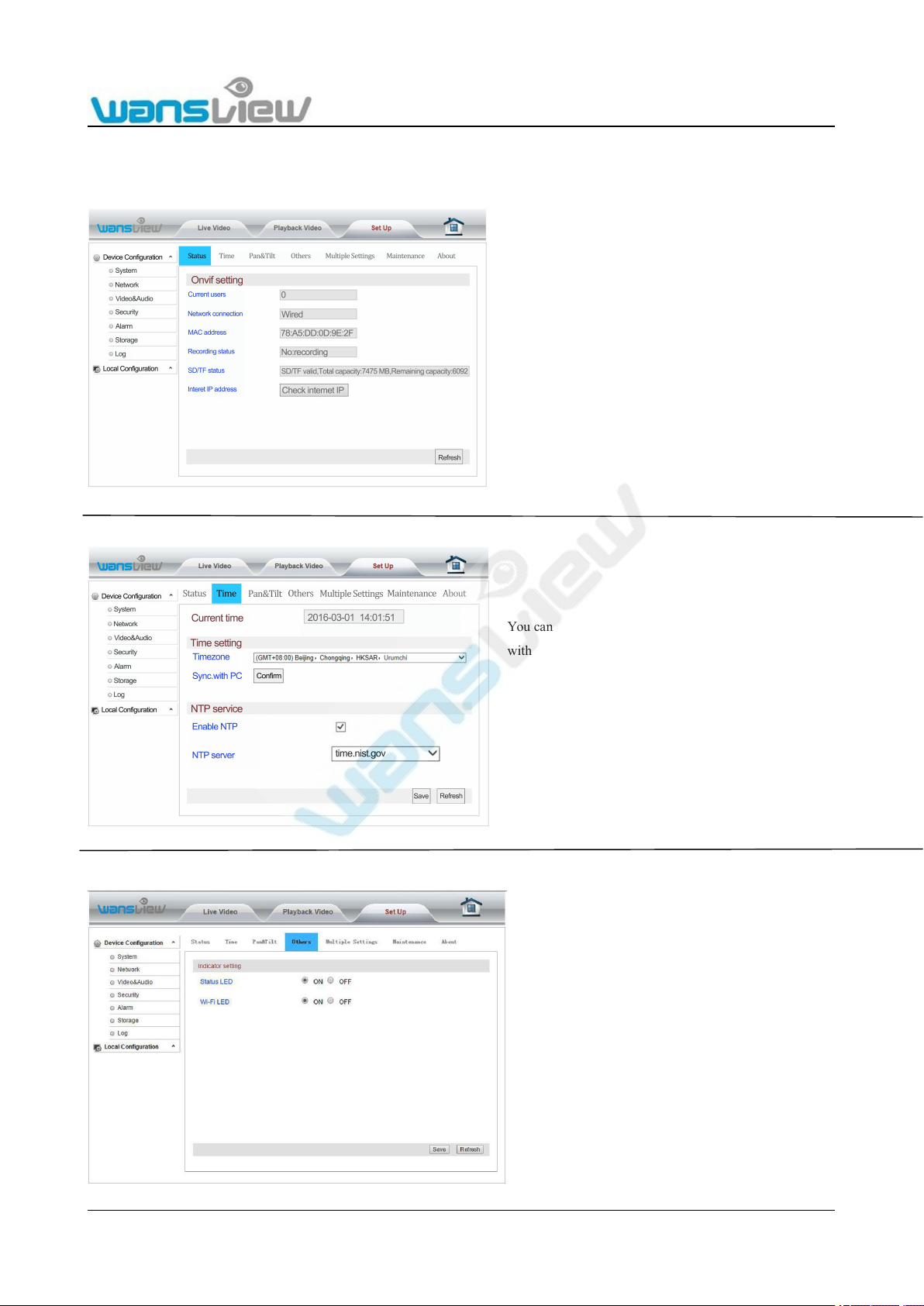

5.3.1.1 Device Status...............................................................................................................................................................36
5.3.1.2 Time Setting................................................................................................................................................................ 36
5.3.1.4 Other Settings..............................................................................................................................................................36
5.3.1.5 Multiple Settings.........................................................................................................................................................37
5.3.1.6 Maintenance................................................................................................................................................................ 37
5.3.1.7 Device Information.....................................................................................................................................................37
5.3.2 Network...................................................................................................................................................................................38
5.3.2.1 IP Address Setting.......................................................................................................................................................38
5.3.2.2 Port Setting..................................................................................................................................................................38
5.3.2.3 Wi-Fi Set Up............................................................................................................................................................... 38

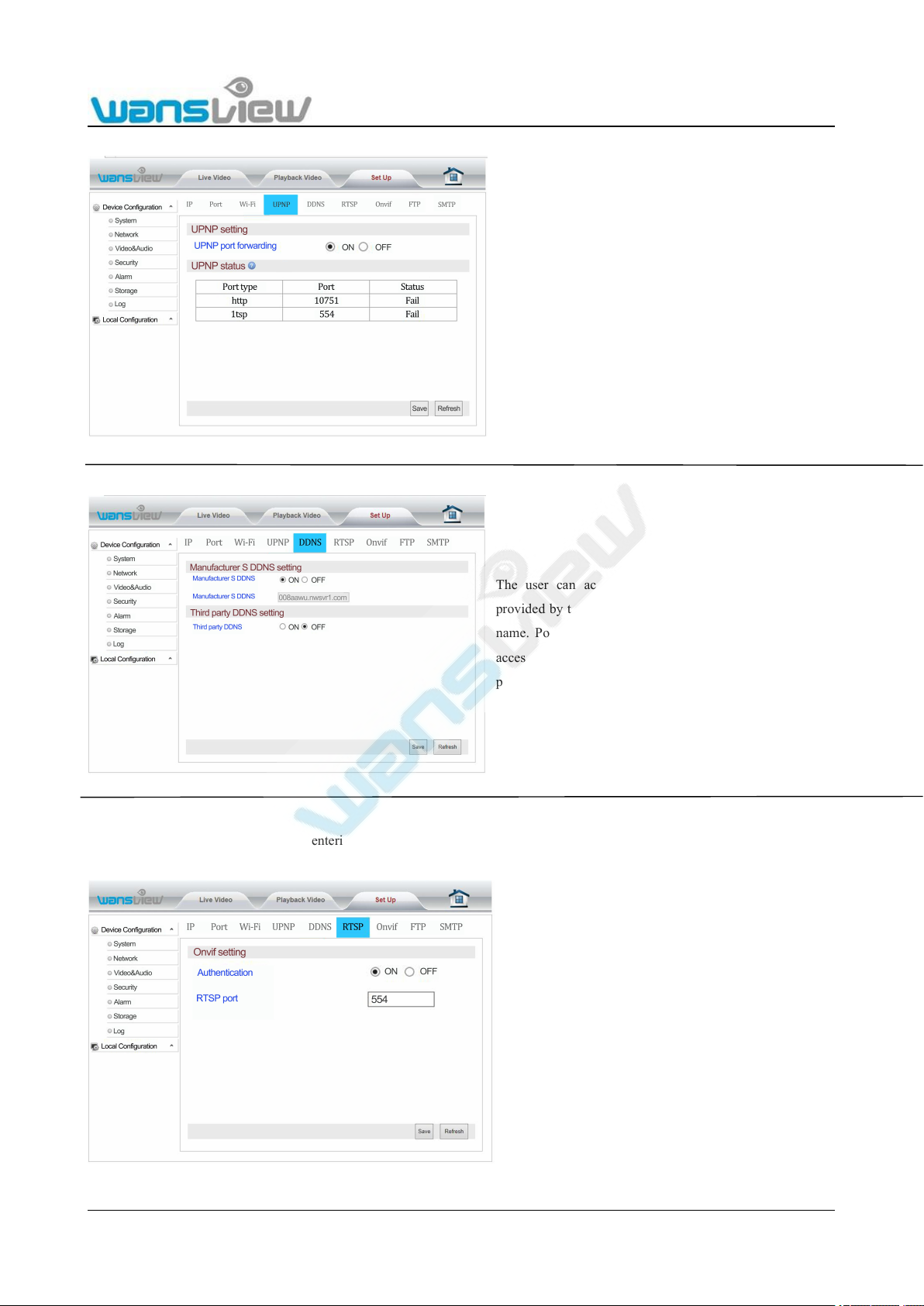

5.3.2.4 UPNP...........................................................................................................................................................................39
5.3.2.5 DDNS Setting............................................................................................................................................................. 39
5.3.2.6 RTSP Setting............................................................................................................................................................... 39
5.3.2.7 Onvif Setting............................................................................................................................................................... 40
5.3.2.8 FTP Setting..................................................................................................................................................................40
5.3.2.9 SMTP (E-mail) Setting...............................................................................................................................................40
5.3.3 Video and Audio.....................................................................................................................................................................41
Page 4
Support Email/ Skype: [email protected] 4
5.3.3.1 Video............................................................................................................................................................................41
5.3.3.2 Image Setting.............................................................................................................................................................. 41
5.3.3.3 On Screen Display Setting......................................................................................................................................... 41

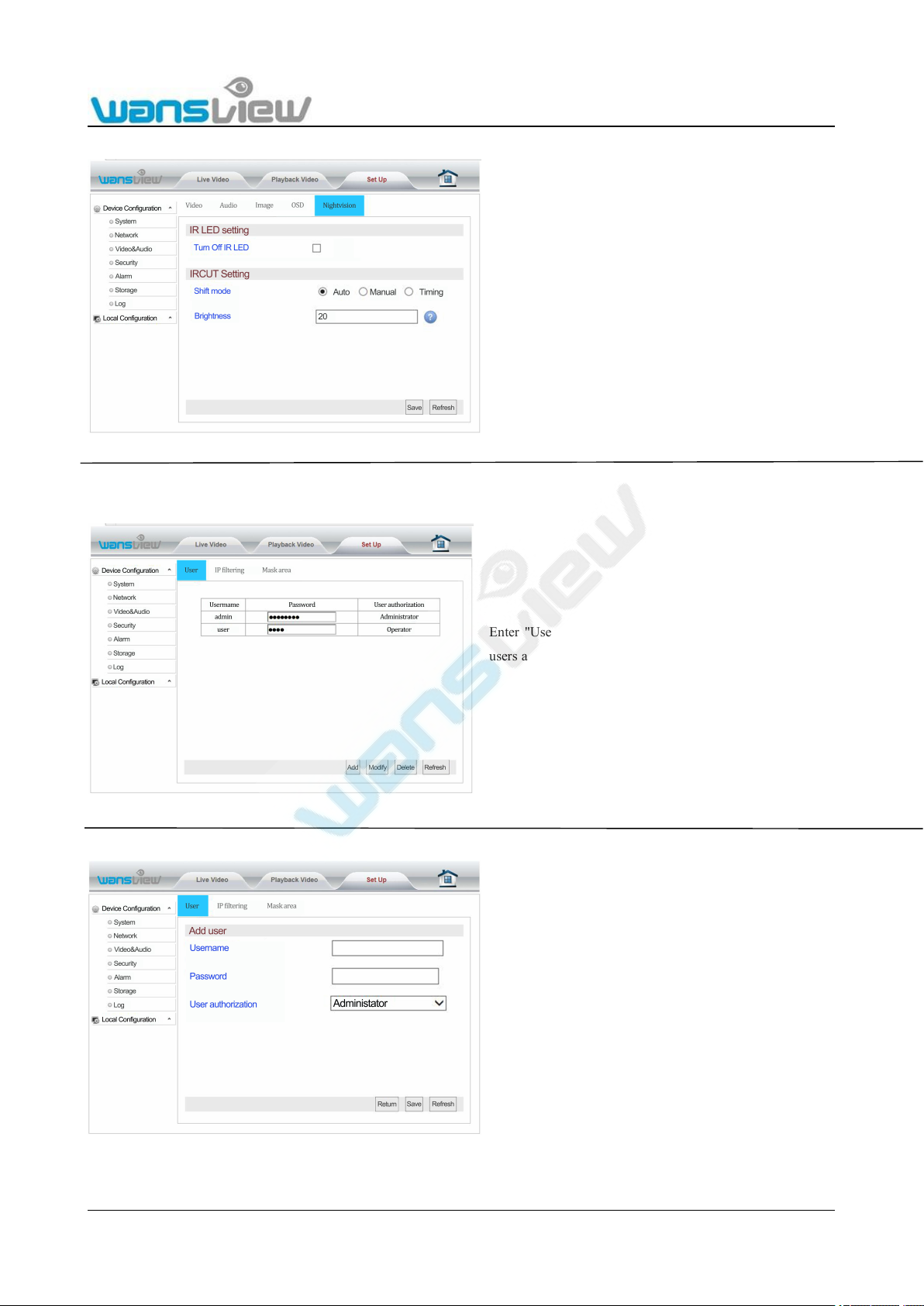

5.3.3.4 Night Vision Setting................................................................................................................................................... 42
5.3.4 Safety.......................................................................................................................................................................................42

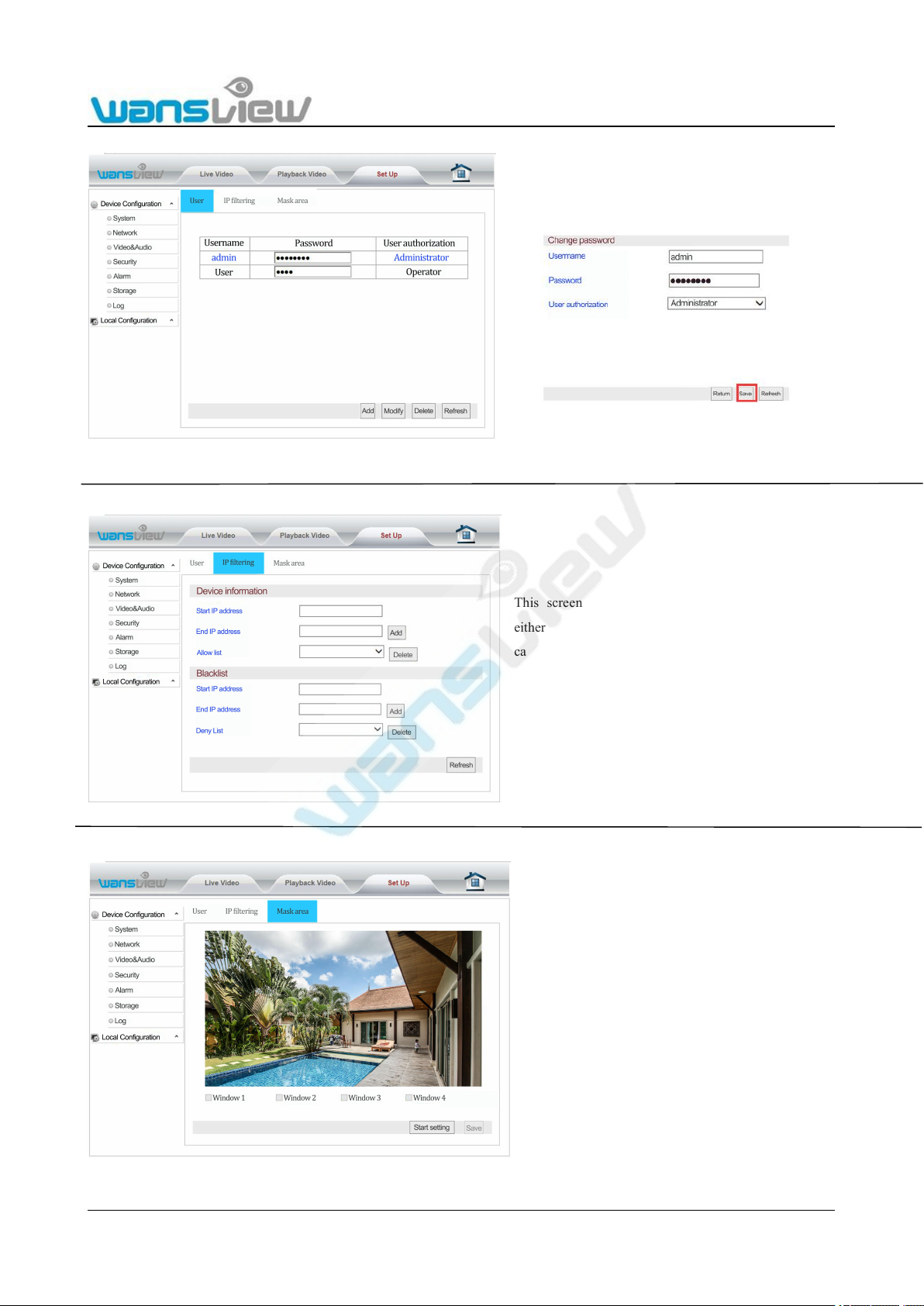

5.3.4.1 User Setting.................................................................................................................................................................42
5.3.4.2 IP Filtering...................................................................................................................................................................43
5.3.4.3 Mask Area....................................................................................................................................................................43
5.3.5 Alarm.......................................................................................................................................................................................44

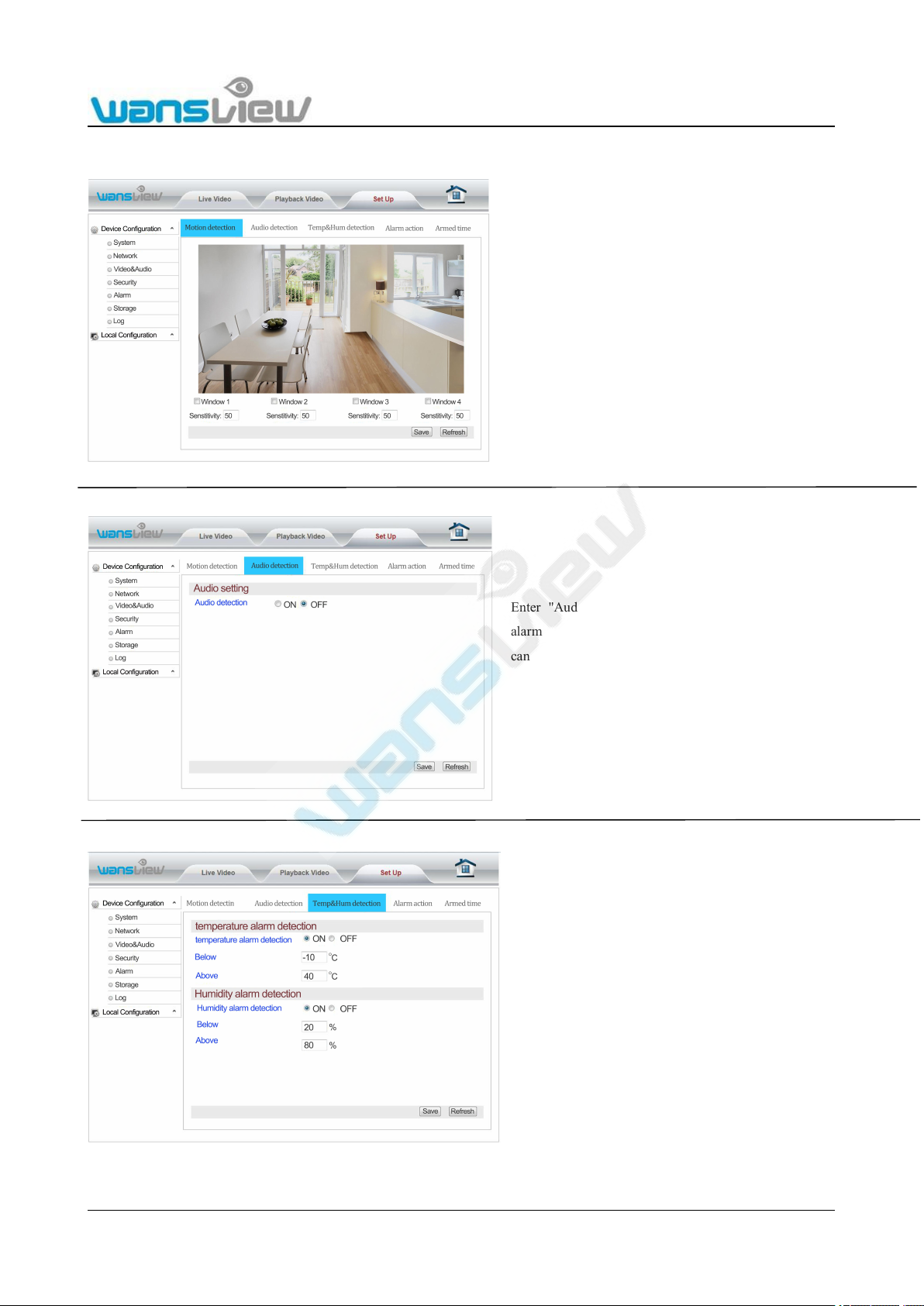

5.3.5.1 Motion Detection........................................................................................................................................................ 44
5.3.5.2 Audio detection........................................................................................................................................................... 44
5.3.5.3 Temp &Hum detection............................................................................................................................................... 44

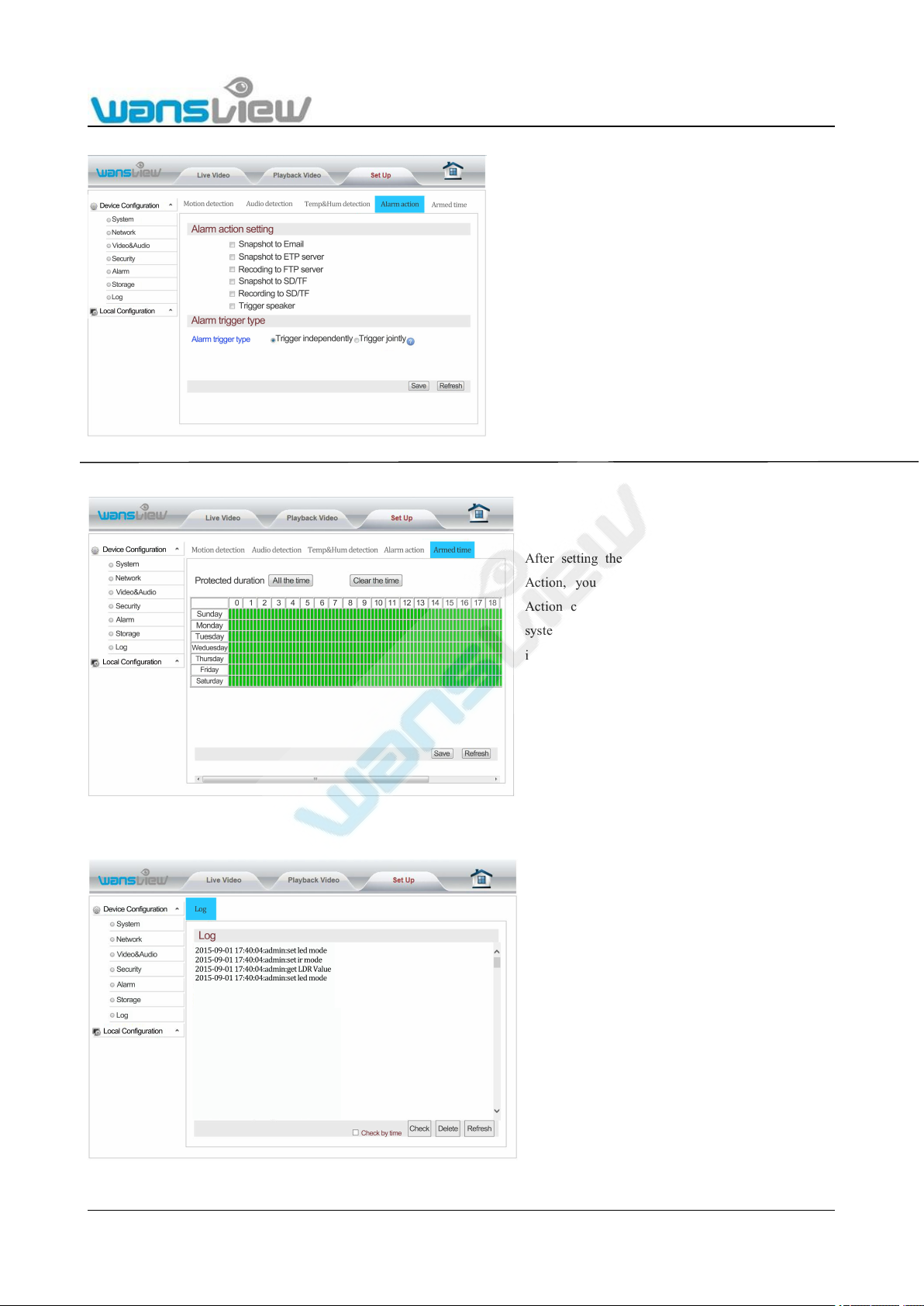

5.3.5.2 Alarm Action............................................................................................................................................................... 45
5.3.5.3 Armed Time.................................................................................................................................................................45
5.3.7 Log...........................................................................................................................................................................................45
5.3.8 Local Configuration...............................................................................................................................................................46
5.4 Mac Web Access................................................................................................................................................................................ 46
6. Windows PC Software Access.................................................................................................................................................................... 47
6.1 About iSmartViewPro........................................................................................................................................................................47
6.2 Operational Requirements.................................................................................................................................................................47
6.3 iSmartViewPro Installation............................................................................................................................................................... 47
6.4 iSmartViewPro Operation................................................................................................................................................................. 47
6.4.1 CMS Interface.........................................................................................................................................................................47
6.4.2 Access to camera.................................................................................................................................................................... 48

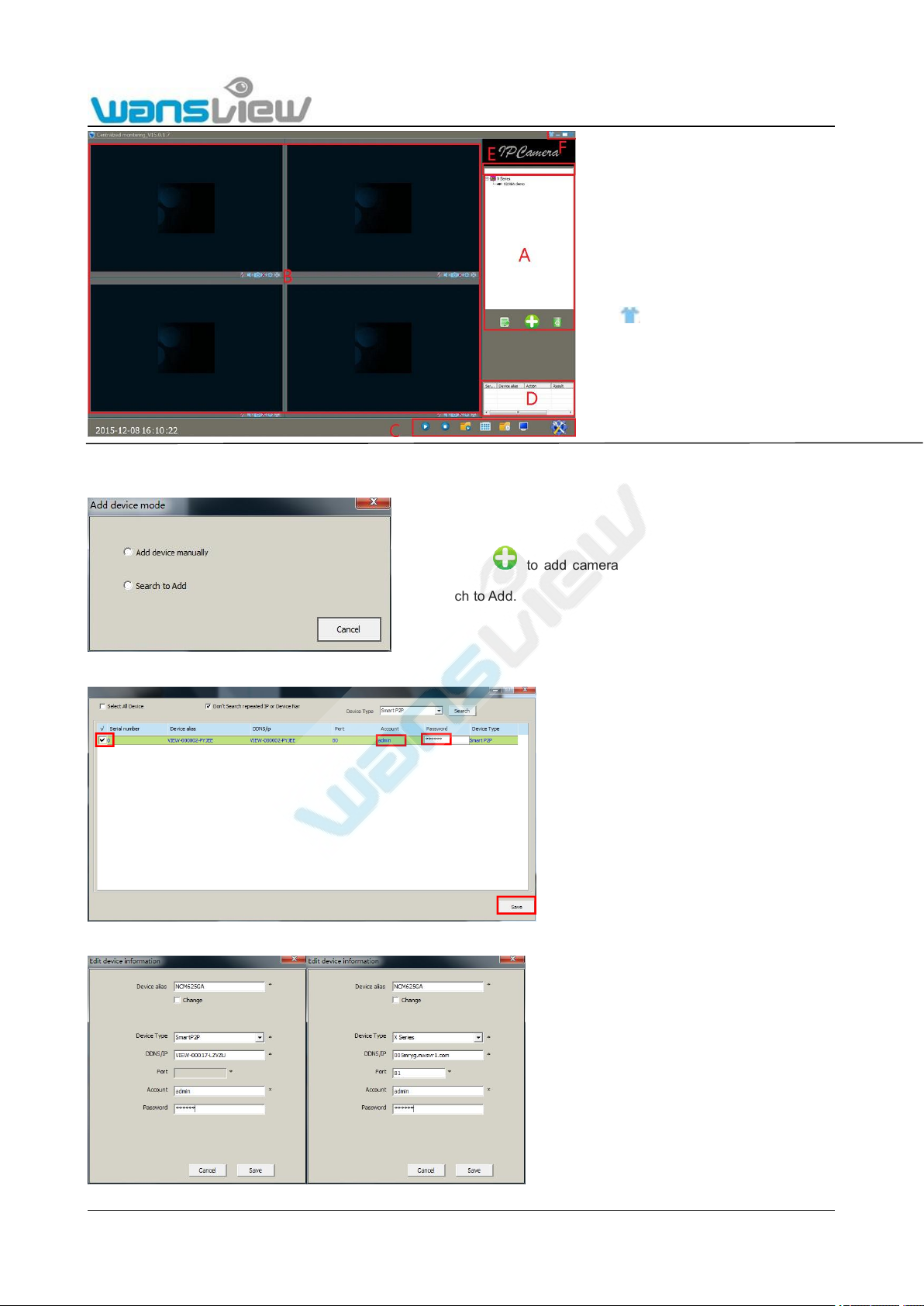

6.4.2.1 Add Camera.................................................................................................................................................................48
6.4.2.2 Edit / Delete Device....................................................................................................................................................49

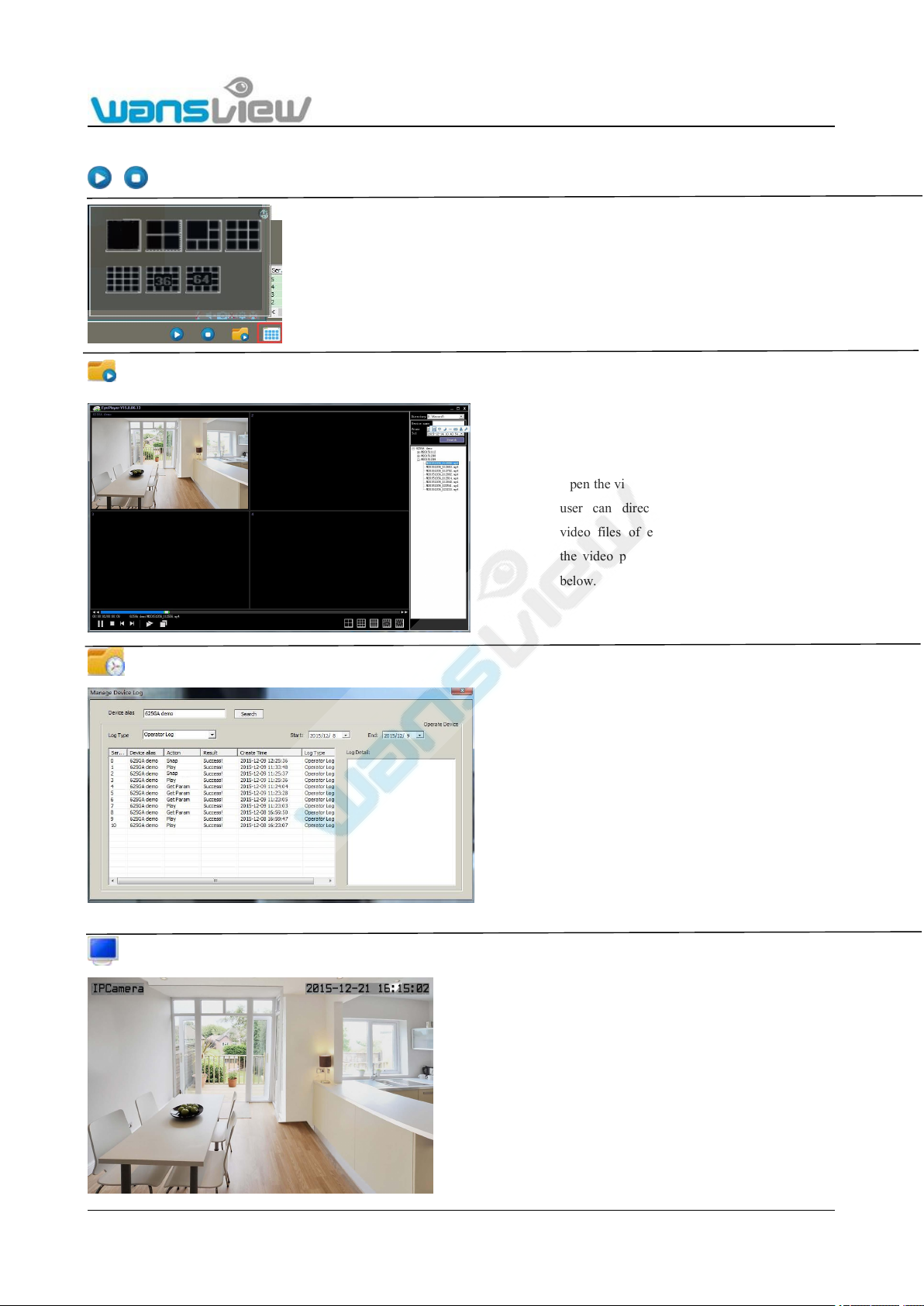

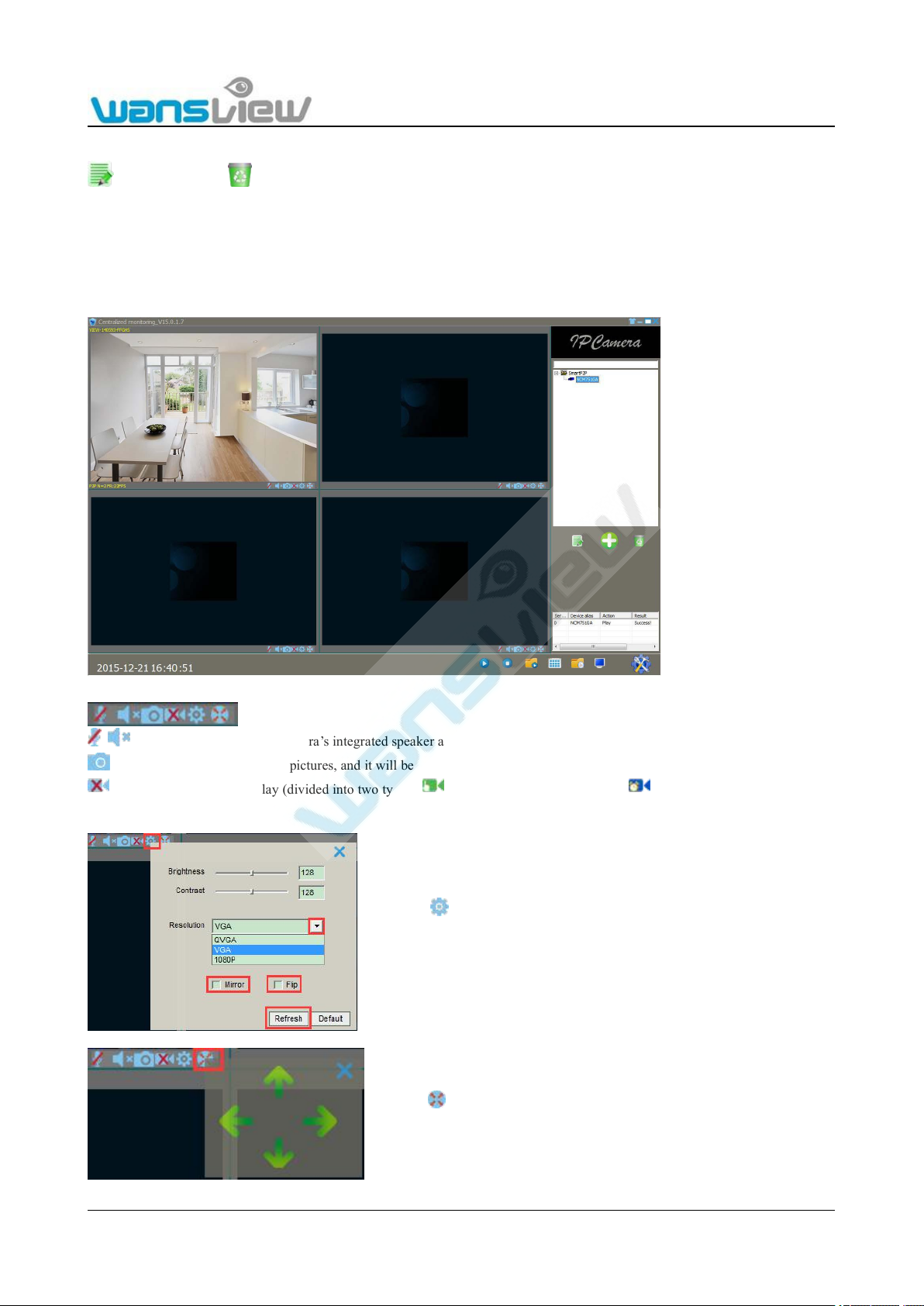

6.5 Play Video.......................................................................................................................................................................................... 49
6.6 System Settings..................................................................................................................................................................................50
6.7 Local menu bar...................................................................................................................................................................................51
7. Mac Software Access...................................................................................................................................................................................52
7.1 About iSmartViewPro........................................................................................................................................................................52
7.2 Operational Requirements.................................................................................................................................................................52
7.3 Installation..........................................................................................................................................................................................52
7.4 iSmartViewPro 2.0 Operation...........................................................................................................................................................53

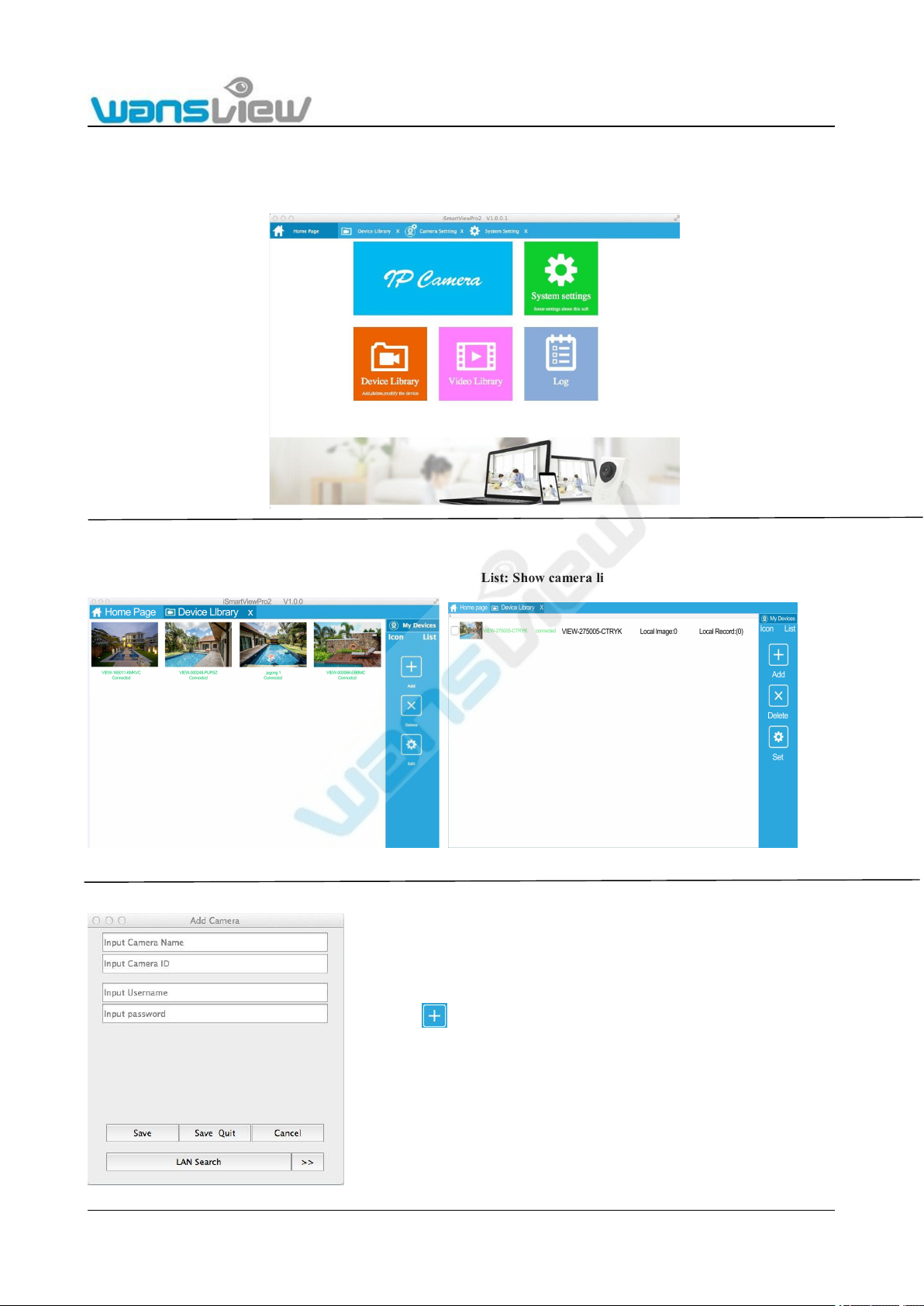

7.4.1 Interface.................................................................................................................................................................................. 53

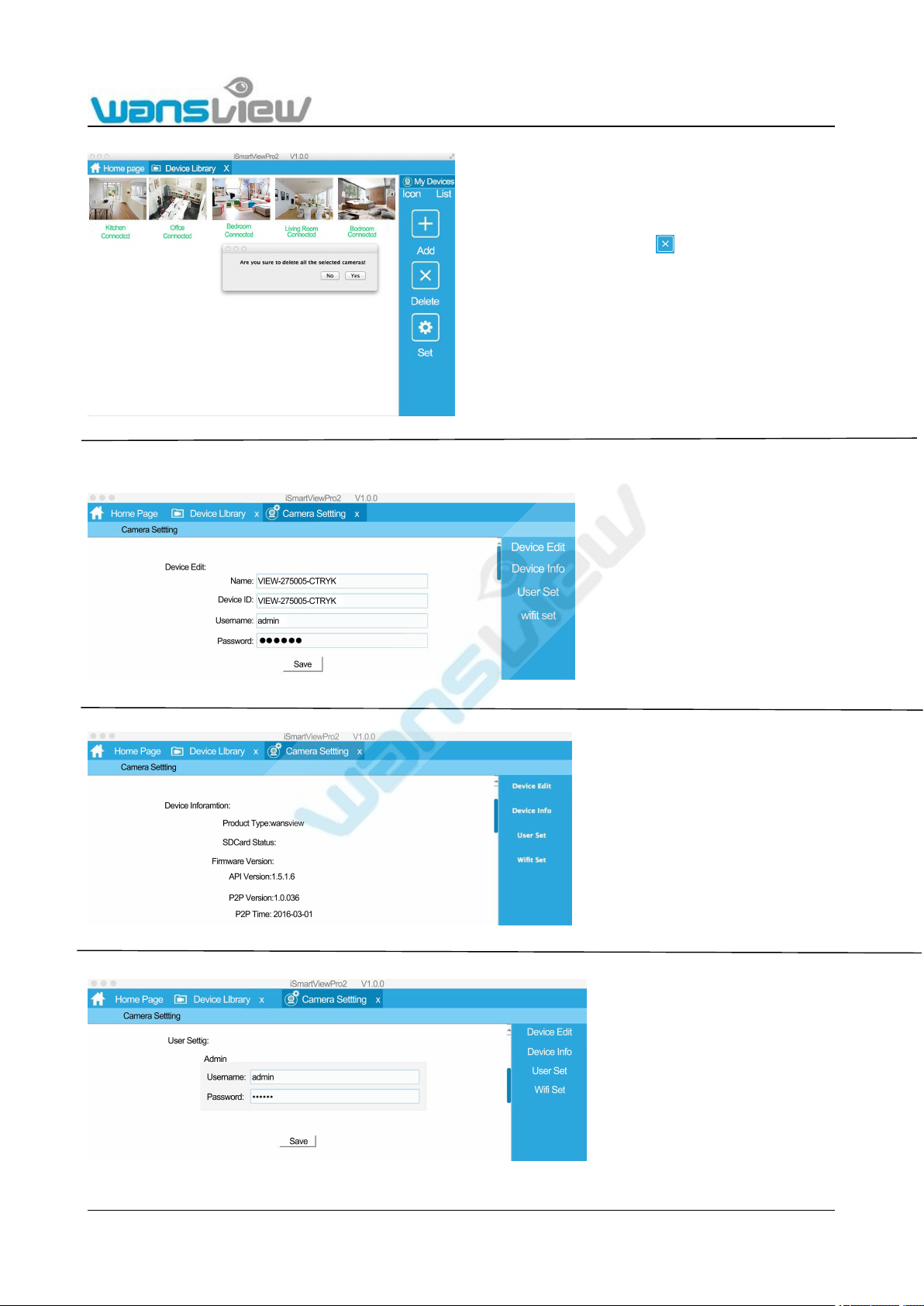

7.4.2 Device Library........................................................................................................................................................................53
Add........................................................................................................................................................................................... 53
Delete....................................................................................................................................................................................... 54
Device Edit.............................................................................................................................................................................. 54
Device information..................................................................................................................................................................54
User Setting..............................................................................................................................................................................54

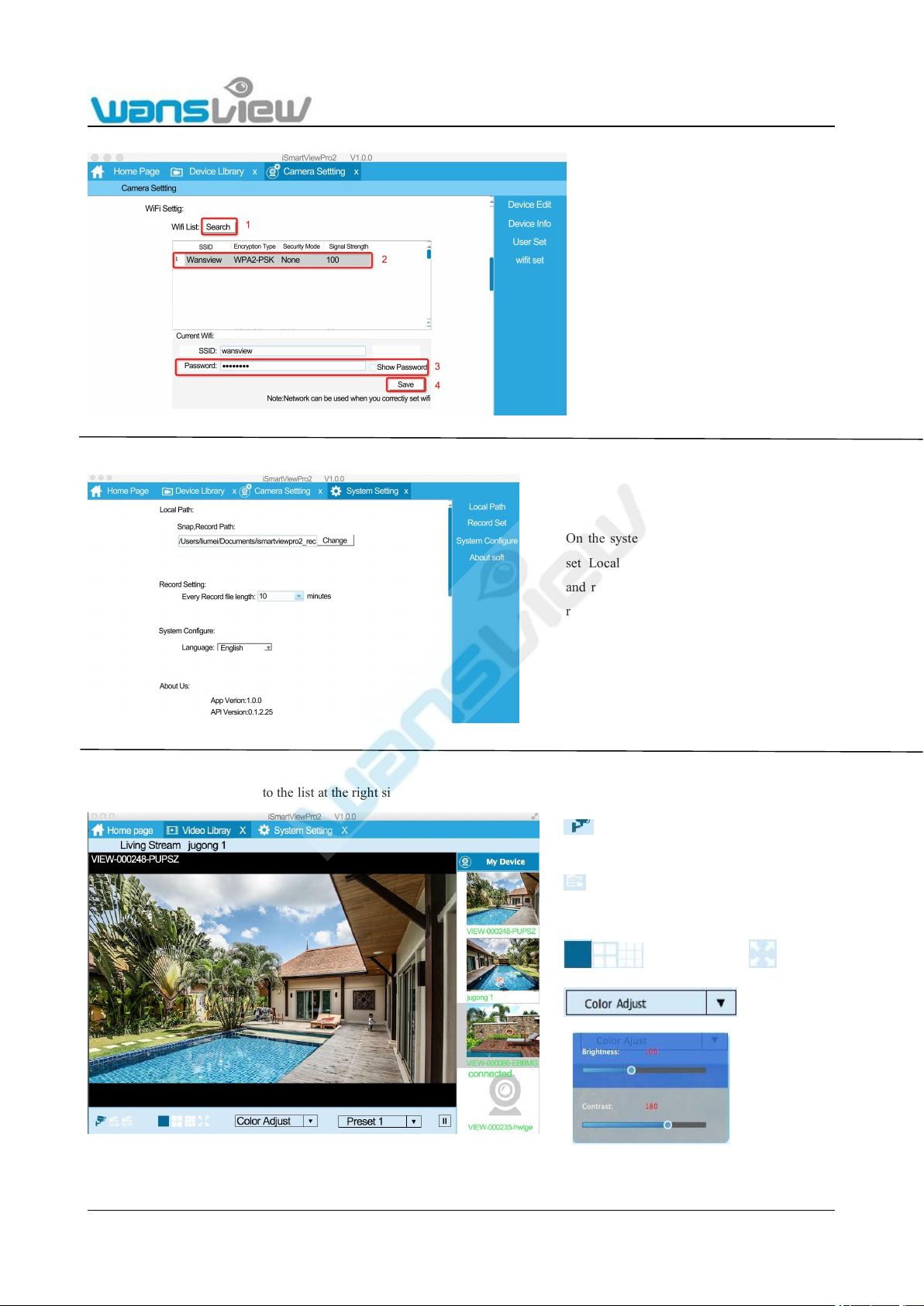

WiFi Setting.............................................................................................................................................................................55
7.4.3 System Settings...................................................................................................................................................................... 55
7.4.4 Video Library..........................................................................................................................................................................55
Page 5
Support Email/ Skype: [email protected] 5

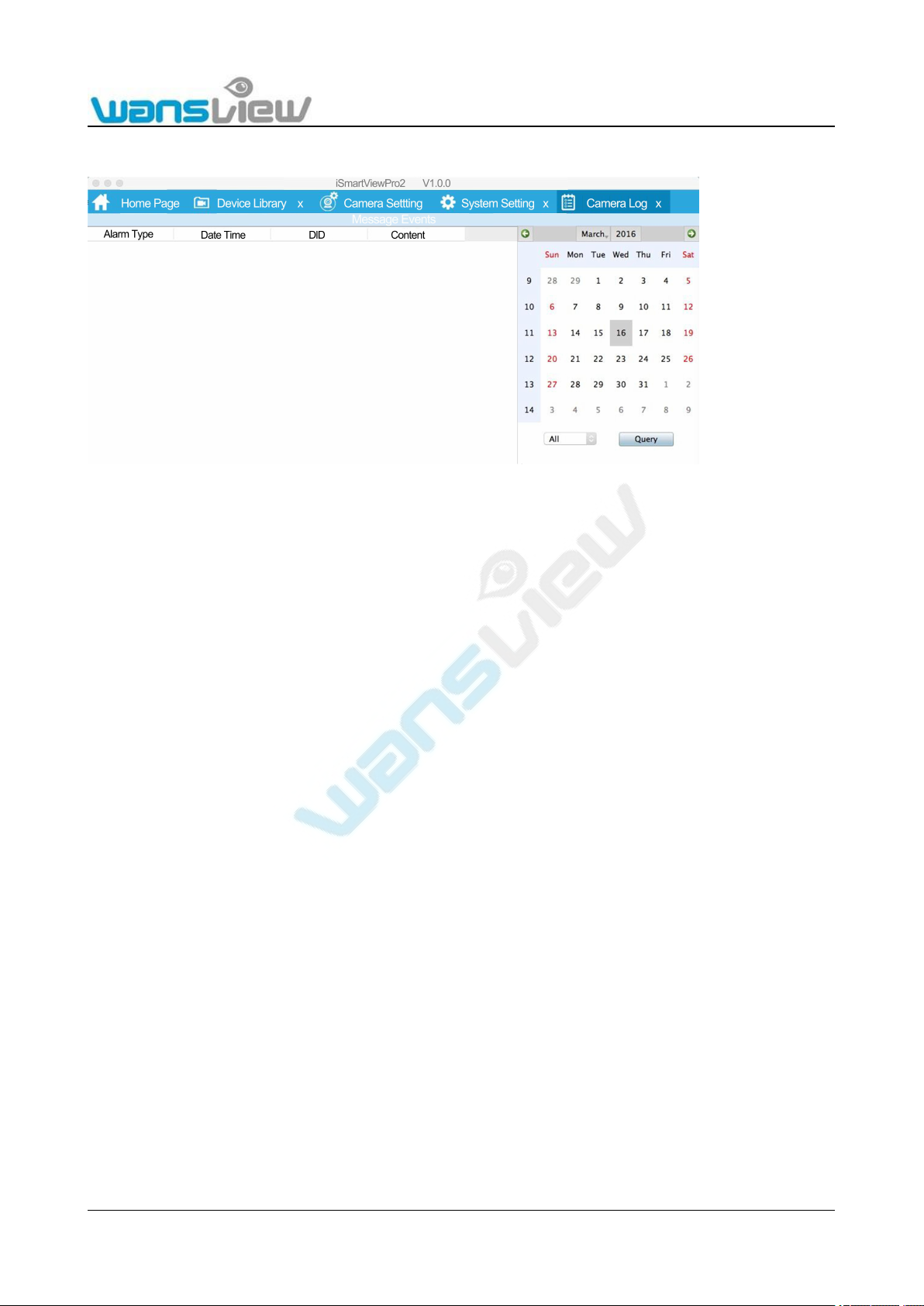

7.4.5 Camera Log.............................................................................................................................................................................56
8. FAQs/Troubleshooting.................................................................................................................................................................................57
8.1 Compatibility Settings for Internet Explorer................................................................................................................................... 57
8.2 Plugin Issues.......................................................................................................................................................................................57

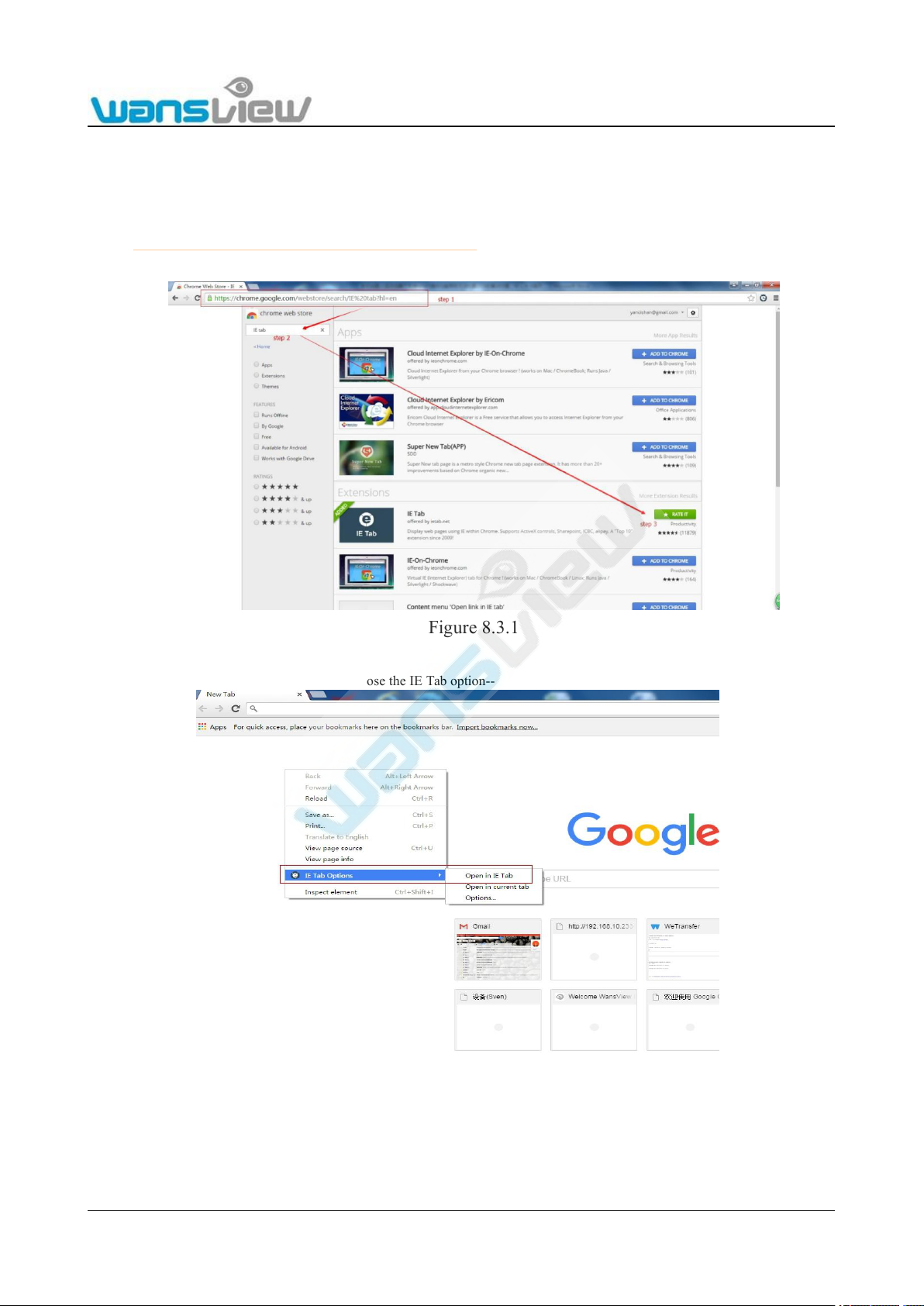

8.3 Install IE Tab for Chrome 43............................................................................................................................................................ 58

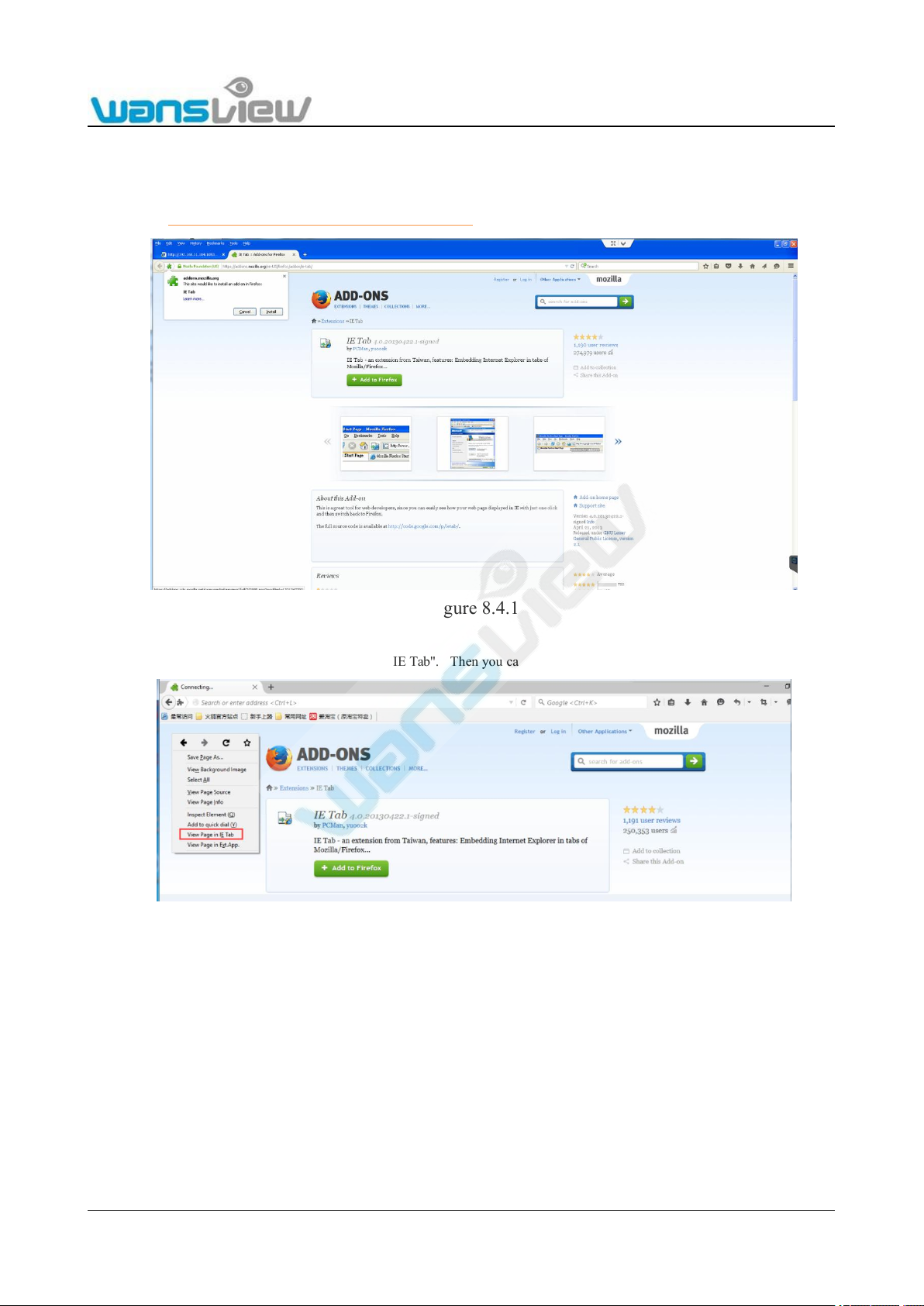

8.4 Install IE Tab for Firefox 42..............................................................................................................................................................59

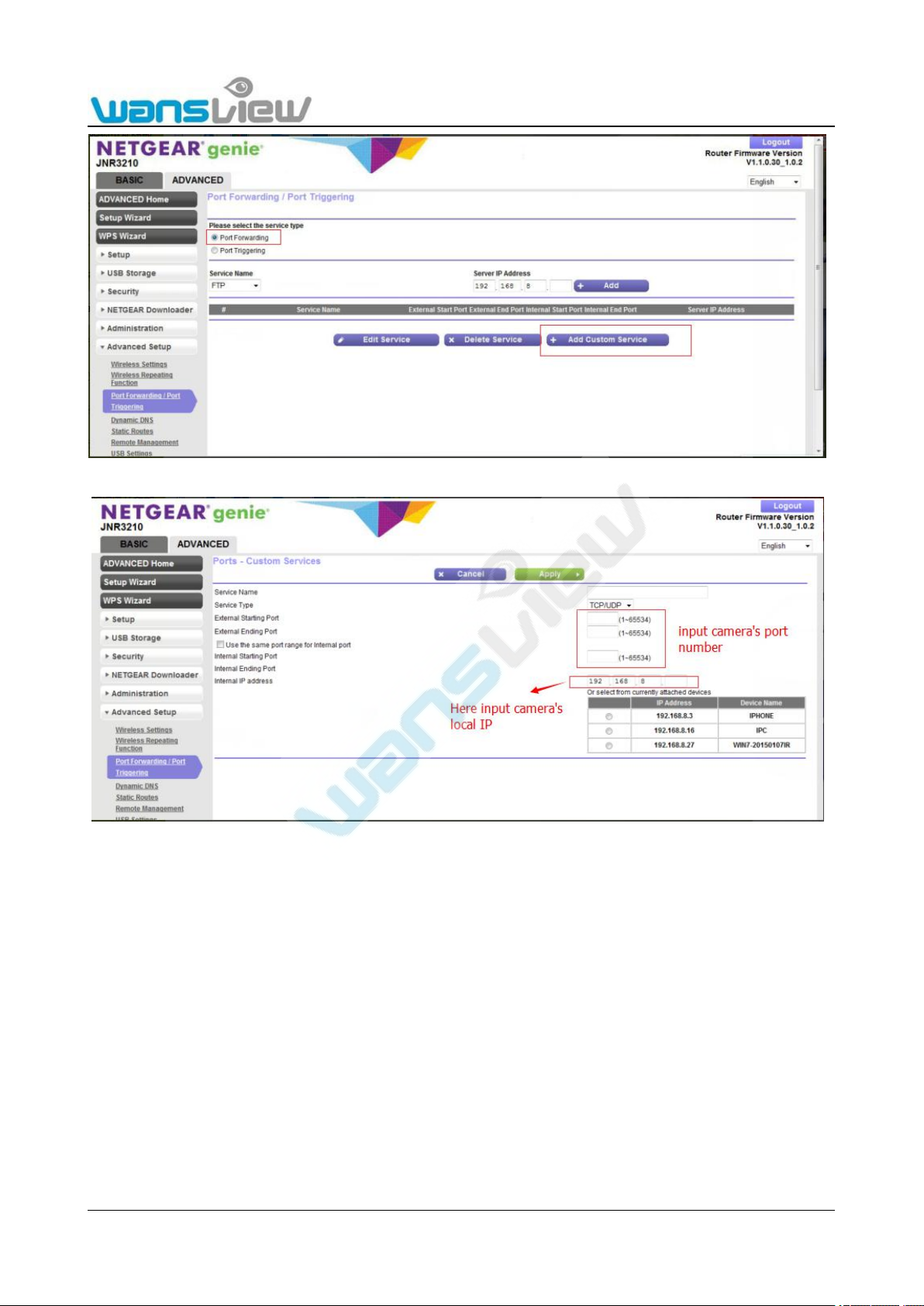

8.5 Port Forwarding................................................................................................................................................................................. 59
8.6 iSmartViewPro Exit Abruptly on Windows XP...............................................................................................................................61
Page 6
Support Email/ Skype: [email protected] 6
Welcome
Thank you for purchasing Wansview K1 1080P Pro HD IP Camera!
The user manual is designed to be a reference tool for the installation and operation of your K1 camera.
Here you can find information about the camera's features and functions, as well as information to aid in troubleshooting.
For quick access to the start-up guide and other support information, go to www.wansview.com/Service/download/
Many of the setup and installation sections below have corresponding videos on YouTube. Scan the QR Code to enter our Youtube
channel
To contact Wansview support, please do one of the following:
1: Contact us by Email: [email protected] / [email protected]
2: Contact us by Skype: [email protected]
3: Contact us by Facebook
www.facebook.com/WansviewClub/
Important Security Warning
In order to keep your Wansview camera secure and prevent unauthorized access, please make sure to follow the steps below:
1. Always make sure that your camera has the latest firmware as listed on www.wansview.com/Service/download/
2. Never use the default password for your camera. Always ensure that your password is 8-10 characters and contains a combination
of lowercase characters, uppercase characters and numbers.
Important Safeguards and Warnings.
1. Electrical Safety
All installation and operation should conform to your local electrical safety codes.
The product must be grounded to reduce the risk of electric shock.
We assume no liability or responsibility for any fires or electrical shock caused by improper handling or installation.
2. Transportation Safety
Heavy stress, violent vibrations, and excess moisture should not occur during transportation, storage, and installation of the device.
3. Installation
Handle the device with care. Keep the device right side up.
Do not apply power to the camera before completing installation.
Do not place objects on top of the camera.
4. Repair Professionals
All inspection and repair work should be done by qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or user-attempted repair.
5. Environment
The camera should be kept in a cool, dry place away from direct sunlight, flammable materials, explosive substances, etc.
This product should be transported, stored, and used only in the specified environments as stated above.
Page 7
Support Email/ Skype: [email protected] 7
Do not aim the camera at a strong light source, as it may cause overexposure of the picture, and may affect the longevity of the
camera's sensors.
Ensure that the camera is in a well ventilated area to prevent overheating.
6. Operation and Maintenance
Do not touch the camera sensor or lens directly.
To clean dust or dirt off of the lens, use an air blower or a microfiber cloth.
7. Accessories
Be sure to use only the accessories recommended by the manufacturer.
Before installation, please open the package and check to ensure that all of the components are present.
Contact the retailer where you purchased from the camera, or Wansview directly, if anything is broken or missing in the package.
Page 8
Support Email/ Skype: [email protected] 8
1．Features and Specifications
1.1 Product Overview
Thank you for purchasing a Wansview K1 Pro HD IP Camera! The product is an integrated indoor IP Camera developed
specifically for network video applications. It is suitable for families, shops, chain stores, supermarkets, office buildings and other
uses.
1.2 Product Profile
1.3 Packing List
Please make sure you received all items including the camera accessories as follows:
Figure 1.3.1
Note: Please contact us immediately if there are any damaged items or if the package is short of any of the accessories listed
above.
1.4 Features
- Superb HD 1080P Video with 1920x1080p 30 fps
- H.264 video compression format with maximum clarity
- Support IEEE802.11b/g/n 150Mbps
- Real Plug and Play, easy set up in 5 minutes
- One Key WiFi Configuration via mobile app
- Equipped with Local search pro tool and instructions on CD.
- Two-Way audio, built in mic and speaker
- Built in Temperature and Humidity sensor
1: Status Led are red, WiFi Led is
blue
2:Please pull out the
Temperature&Humidity sensor
and keep it away from the camera.
Page 9
Support Email/ Skype: [email protected] 9
- Motion/Audio detection, send alarm pictures or video to email/FTP/SD
- Local Micro SD Card storage up to 64GB
- QSS/WPS button for easy WiFi connection setup
- Provide Wansview DDNS service, support web browser viewing and control interface (IE, Firefox, Safari, Chrome supported),
PC/MAC software on the CD included, and iSmartViewPro iOS/Android app
- Superior high quality 4.2mm Lens
- 6pcs IR LEDs for Night Vision Up to 26 feet distance
2. Device Connection
2.1 Connection Diagram
Figure 2.1.1
Steps for product connection:
Figure 2.1.2
1. Use the power adapter to power up the camera (Please verify the output voltage of the adapter and the allowable voltage value of
the camera).
2. Observe the status LED and
3. Observe the two lights at the network interface. When the orange light on the left side is ON, it indicates that someone is
accessing the camera. When the green light on the right side is ON, it indicates that the network is connected.
4. Pull out the temperature and humidity sensor and keep it away from the camera
You can access the IP camera following the four steps above via a computer by using the power adapter to power up the camera and
connecting the IP camera and router via network cable, or via Wi-Fi. However, before the connection, camera Wi-Fi configuration is
required (under such circumstances, camera Wi-Fi should be configured for the Wi-Fi of the current router so that the camera can be
Page 10
Support Email/ Skype: [email protected] 10
detected by the LAN computer). For detailed information, please refer to section 2.2 Wi-Fi Set Up.
2.2 Wi-Fi Set Up
2.2.1 Mobile Phone Wi-Fi Set Up
Method 1:
One Key Wi-Fi Configuration
1) Make sure the mobile phone is in a WIFI connection state. Install the “Wansview” app at the Android or iPhone mobile phone
device.
2) Run the app and click . The user can add IP cameras via the following three methods: (Directly input the camera DID;
scan the QR code at the bottom of the camera; LAN search). Then, input the user name and password.
Reminder: When using the camera for the first time, please use the default user name of the manufacturer: admin, password 123456.
3) Click "More", select "Wi-Fi Config", fill in the Wi-Fi password and click "Configuration".
Reminders:
● Please complete configuration within 5min. after camera start-up (while the blue Wi-Fi indicator light is slowly flashing).
Otherwise, configuration cannot be completed and the power must be plugged in again.
● The mobile phone speaker should be close to microphone of camera. Then click "Configuration".
● After successful configuration, the blue Wi-Fi indicator light of the camera will flash quickly several times. And then two
"beeps" will be heard. It will connect to the router automatically. Simultaneously, the blue indicator light will remain on
(The indicator light displays the status without plugging the network cable in. After plugging the cable in, the blue
indicator light will shut off). Click "Configuration" for 1 minute. If no corresponding reaction of the camera is observed,
continuously click "Configuration" for 5 minutes until completion of the configuration.
Method 2:
Wi-Fi Set Up Via Advanced Settings
1) Please keep the camera on-line. Click the icon on the right side of the camera.
2) Enter advanced Settings
3) Select Wi-Fi Setting
4) Automatically search for available Wi-Fi SSID
5) Select WiFi hot spots to connect to
6) Input the password
7) Click Done to complete WiFi set up.
Page 11
Support Email/ Skype: [email protected] 11

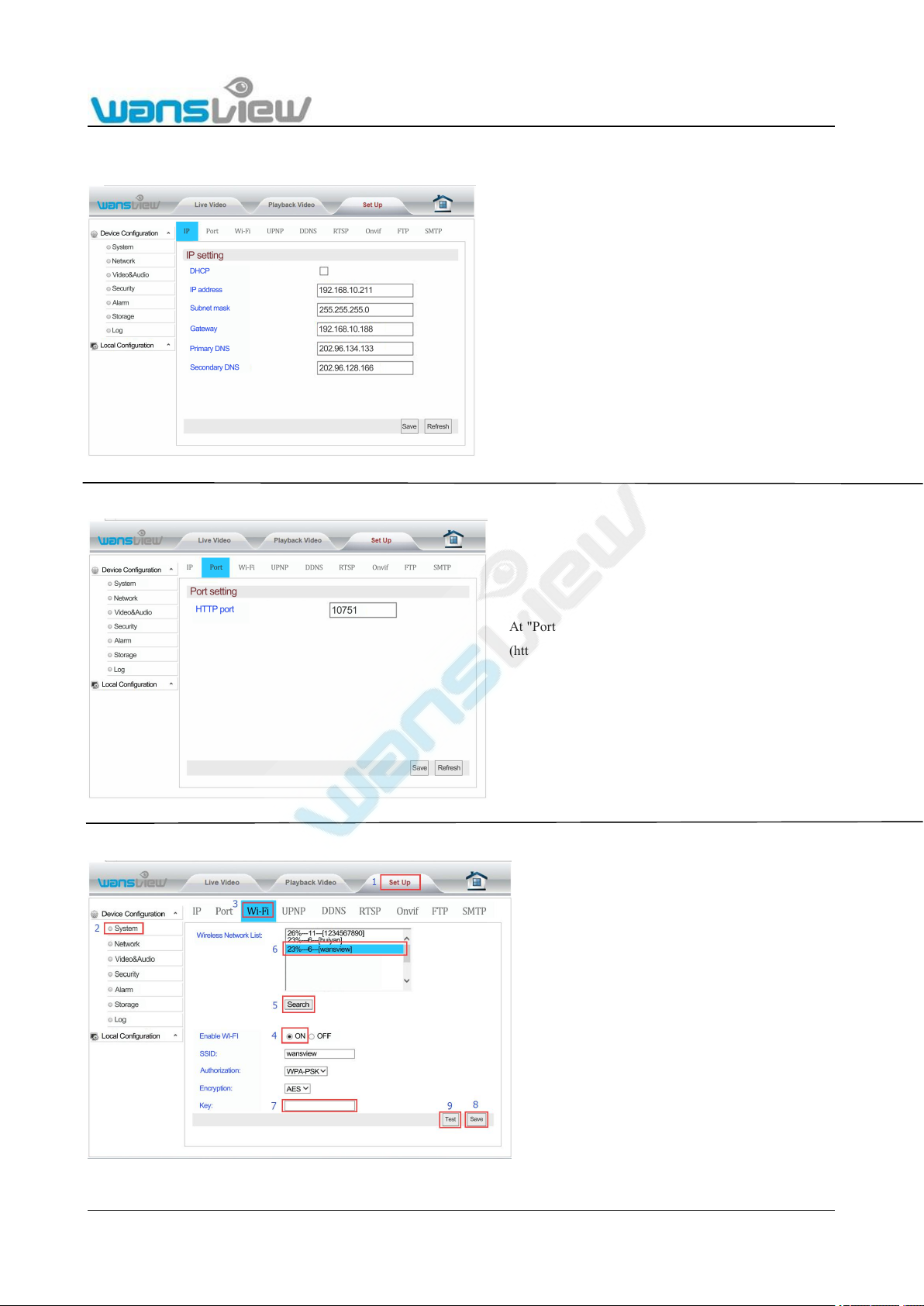

2.2.2 Wi-Fi Set Up Via Network Cable
Connect the IP camera and router via a network cable as shown in Figure 2.1.2. Log into the camera and access the system
configuration page following the steps in section 5. Web Access. Complete the set up and unplug the network cable referring to
section 5.3.2.3 to connect the camera via Wi-Fi.
2.2.3 WPS/QSS One Key Wi-Fi Set Up
Since the camera supports WPS/QSS function, Wi-Fi connection set up can be done in a simple way:
1) Please confirm whether the wireless router that the camera will be connected to supports WPS/QSS function (by reviewing the
router manual or getting support from the manufacturer of the router);
2) Connect to the power supply of the camera, and wait for 1 minute. After the camera starts-up, hold the "WPS" button of the
camera for 3s. Then click the “WPS/QSS” button of the Router. The camera and router will perform Wi-Fi configuration based on
the WPS/QSS protocol. Please wait for 1-2 minutes to check whether it connect successfully or go to your router to find the new
added device. After successful configuration, the blue Wi-Fi indicator light of the camera will flash quickly several times and two
"beeps" will be heard. It will connect to the router automatically. Simultaneously, the blue indicator light will remain on (The
indicator light displays the status without plugging the network cable in. After plugging the cable in, the blue indicator light will
shut off).
Attention: The configuration method is not applicable to some routers since they do not support WPS/QSS. And make sure that the
WPS function has been enabled.
Page 12
Support Email/ Skype: [email protected] 12
3. iPhone/iPad Access
Wansview APP (iPhone version) is an application developed by our company based on the iOS system. It is applicable to iPad/iPod
of iPhone4s or higher. It supports iOS 6.0 or 9.2. The functional characteristics of this software:
Supports Alarm Notification
Temperature and Humidity Alarm
Supports rapid mobile phone acoustic configuration of camera Wi-Fi;
Supports PnP products of the Smart P2P cloud;
Supports viewing on multiple screens (Supports simultaneous viewing of up to 4 cameras);
Supports Playback SD Card Recording at mobile phone terminal;
Supports video control, video parameter setting, audio monitoring, intercom, pan/tilt control, snapshot and other
functions;
Supports searching for and adding LAN equipment;
Supports editing and management of the equipment (Wi-Fi/Email/Alarm/FTP and other advanced functions);
Supports photo sharing
3.1 Software Installation
3.2 App Interface Introduction
3.2.1 Interface
Message
“Wansview” can be searched for and downloaded from the App Store.
Or scan QR code to download and install App “Wansview” to your
mobile phone.
After installation, the icon will appear on your phone
Camera: On this page, user can add camera,
check camera list and can enter to Edit Camera page.
Page 13
By tapping icon to check alarm
message, tap the camera you added
you can check the alarm type.
By tapping icon you can check the Local
Records/Photo, Multi-View for the cameras, do Wi-Fi
Configuration, do Push Set and check App version.
By tapping icon you can add camera as your P2P camera.

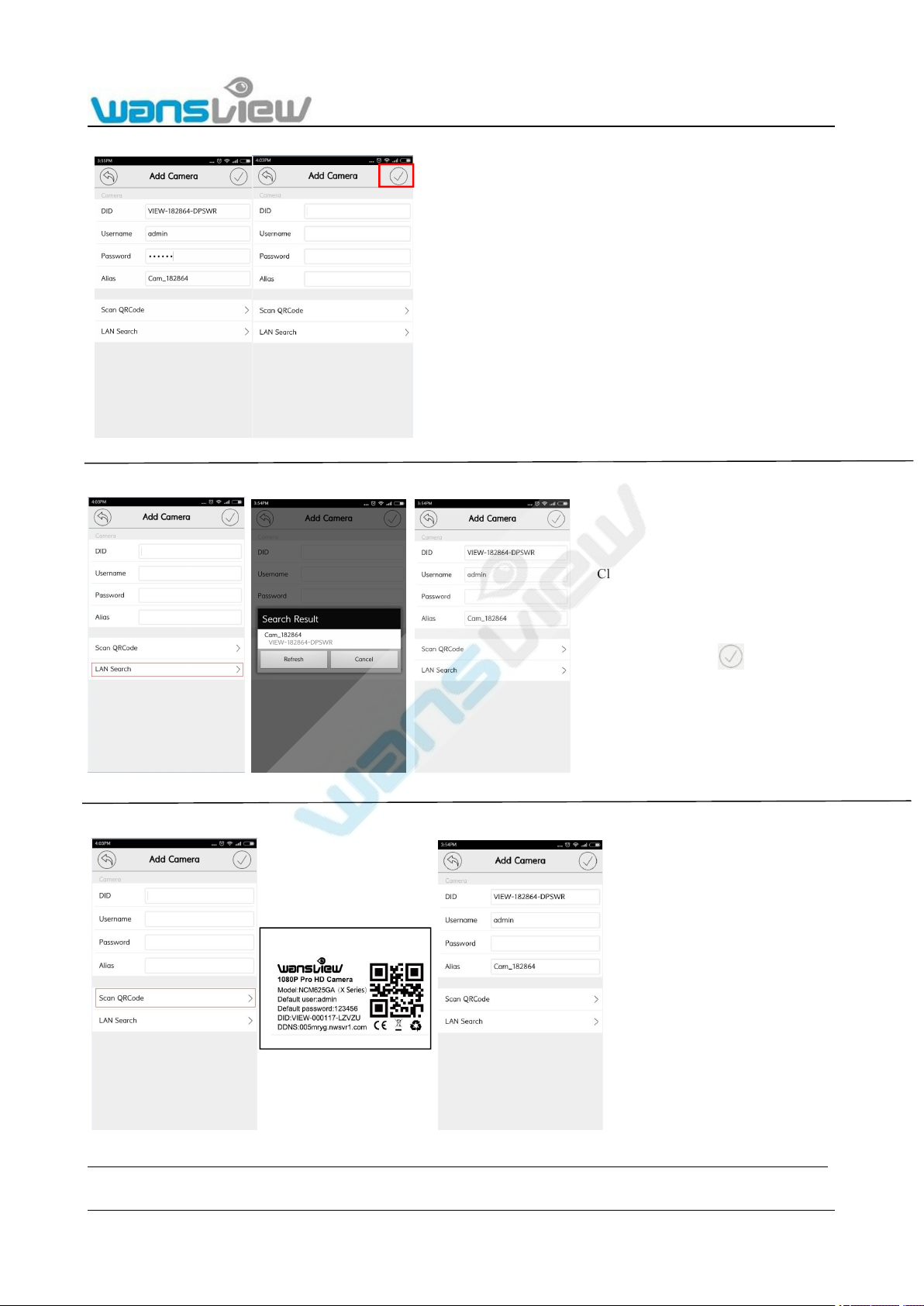

There are three methods available to add camera: add manually,
LAN Search and Scan QRCode on the bottom of the camera.
Reminder：DID number is showed on the sticker which is on
the bottom of the camera.
Page 14
Please input the info: Camera DID, Username and Password, then
click .
Default user name:admin
Default password: 123456
Tap “Lan Search”, then the
camera info will appear, click
camera and access to another
page to input password, then
click .
Click 【Scan QRCode】, then scan
the Sticker’s Barcode on the
bottom of the camera.
Page 15
Support Email/ Skype: [email protected] 15

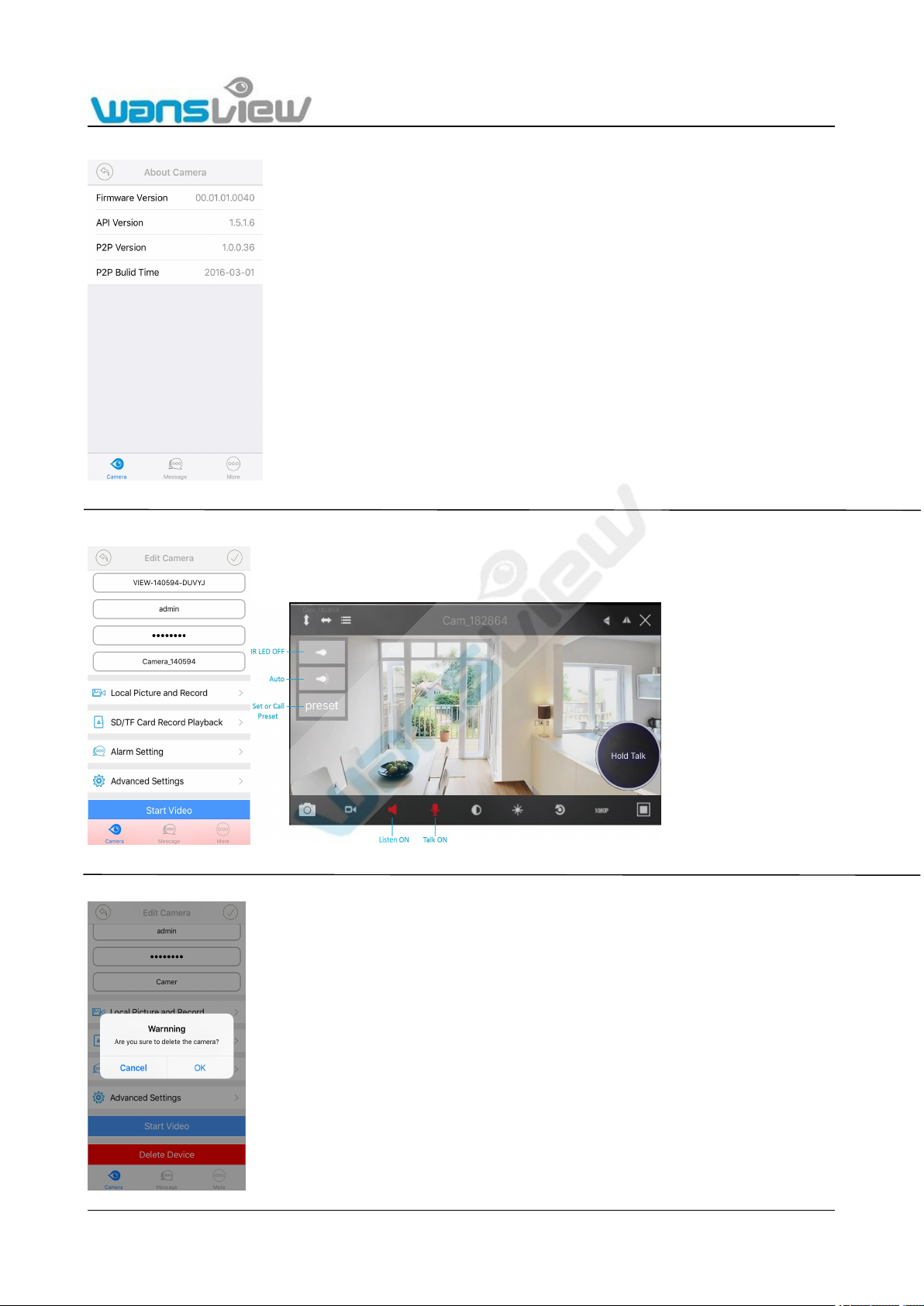

3.3 Live View and Setting
3.3.1 Viewing Camera on a Single Window
Tap the camera successfully added and displayed online,
tap the camera, then it will start to view the camera.
Or you can Tap > to access to Edit Camera page, choose
Start video.
Tap the monitoring screen. The video menu action
bar will appear.
1: For two-way audio, make the Listen/Talk ON, When
talk, please press Hold Talk, then talk.(not for this
camera)
2: Tap , you can turn ON/OFF the IR LED and
Set or Call Preset(For PTZ camera).
Page 16
Support Email/ Skype: [email protected] 16
3.3.2 Viewing Camera on Multi-View
3.4 Edit Camera
3.4.1 Local Picture and Record
1.Tap “More” and select Multi-View, there are
Max. 4 cameras can be viewed at the same
time.
2. Tap to hide the equipment list button
3. Tap to exit multiple windows mode
4. which means the camera is playing, tap
it you can stop playing..
When camera is online, click to enter “Edit Camera”
page. On this page, user can check Local Picture and Record,
SD/TF Record Playback, Alarm Setting and Advanced
Setting and Start Video and Delete device.

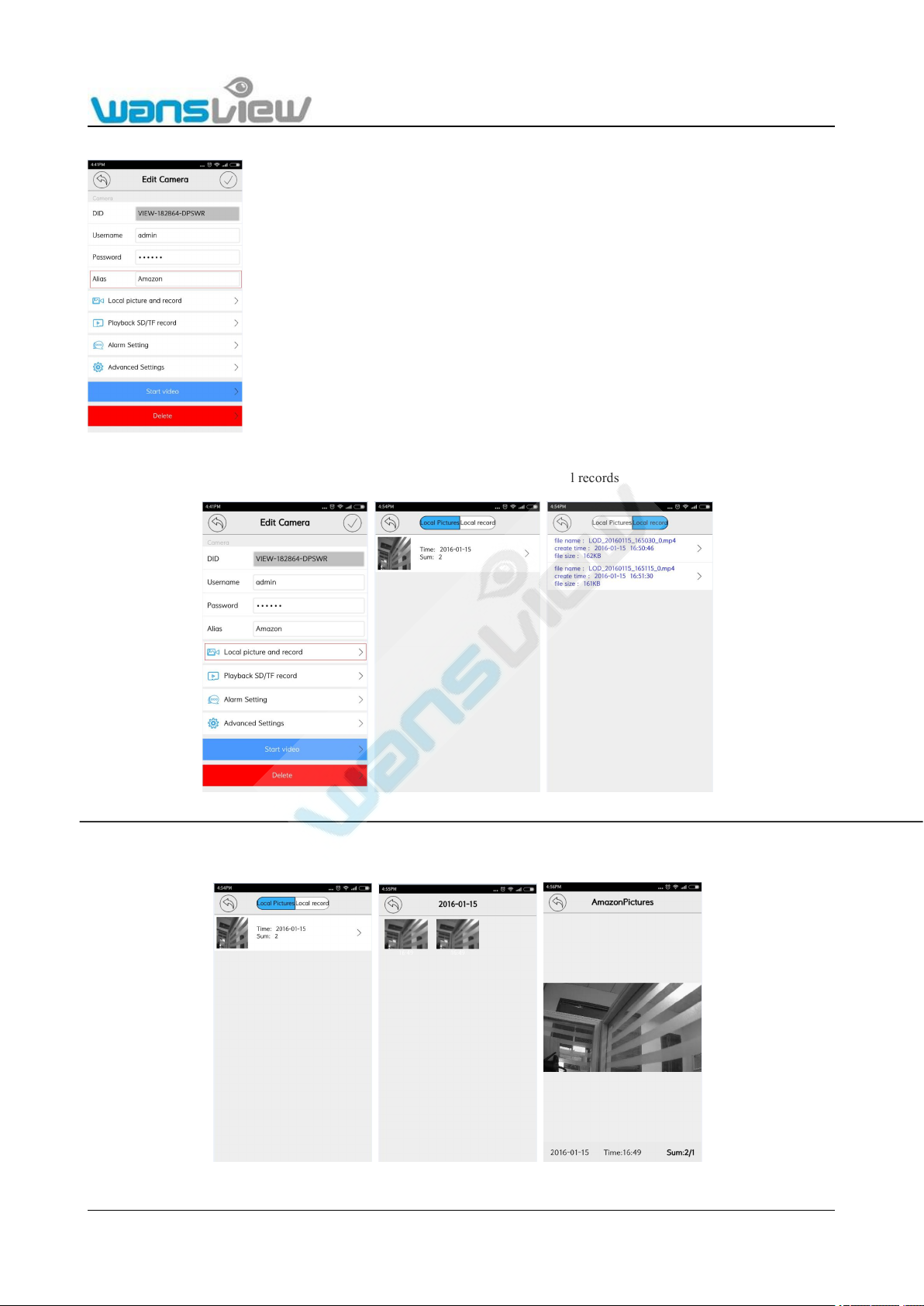

Tap Local Picture and Record you
check pictures and records on Mobile.
Page 17
Support Email/ Skype: [email protected] 17

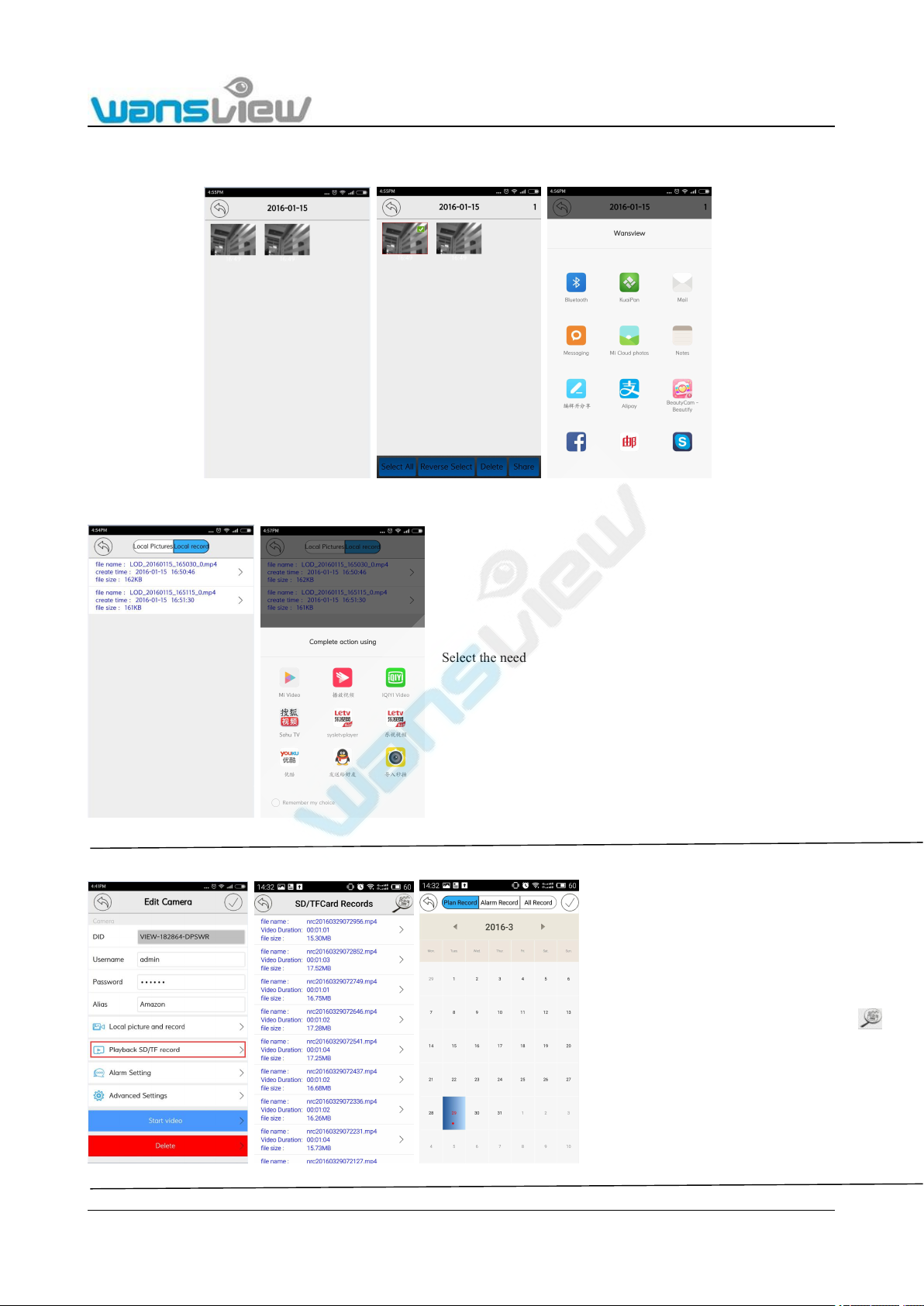

3.4.2 SD/TF Record Playback
3.4.3 Alarm Setting
Alarm Deployment
IO Detection：Sensor type can choose Always open or Always close. When using IO Check, user should enable IO detection,
Always open means external alarm device is needed, and only with alarm trigger, alarm will be valid. If choose Always close, the
camera will be alarm continuously per 30 second.
Motion Detection: Sensitivity can choose Low/ Middle/ High according to needs.
Voice Detection: Sensitivity can choose Low/ Middle/ High according to needs.
Temperature detection: the temperature range can be set from -100℃ to 100℃
“<”means the temperature below the set value, the camera will send alarm notification.
“>”Means the temperature above the set value, the camera will send alarm notification.
Humidity detection: the humidity range can be set from 0% to 100%.
“<”means the humidity below the set value, the camera will send alarm notification.
“>”Means the humidity above the set value, the camera will send alarm notification.
Trigger Alone : The alarm will be triggered for any kind of alarm condition.
Trigger Linkage: If set two or more kinds of alarm methods, only met all alarm conditions, the alarm can be triggered.
Enter SD/TF Record Playback, record
file will be automatically displayed.
User can also search needed files by
clicking icon to enter calendar to
check schedule or alarm record on an
exact date.
Notice： The date in red means there are
recorded files on that day.
Access to “Alarm Setting”, there are
options for Alarm Deployment and
Alarm action.
Page 18
Support Email/ Skype: [email protected] 18
Alarm Action:
Save Picture to Email: When an alarm is detected, the camera will send two alarm pictures to the email you set. We support Gmail,
Hotmail, Yahoo, Gmx etc.
Save Picture to FTP: When an alarm is detected, the camera will send 2 alarm pictures to the FTP server you set, 3-4 pictures will
be sent if the motion is too frequent.
Save Record to FTP: When an alarm is detected, the camera will send alarm video to the FTP server you set. The video length is
about 15 seconds for each alarm video, for constant recording, the alarm will be upload to FTP every 30seconds.
Save Picture to SD/TF: When an alarm is detected, the camera will send 2 alarm pictures to SD card, 3-4 pictures will be sent if
the motion is too frequent.
Save Record to SD/TF: When an alarm is detected, the camera will send alarm video to the FTP server you set. The video length is
about 15 seconds for each alarm video, for constant recording, the alarm will be upload to FTP every 30seconds.
Trigger IO Output:When an alarm is detected, the external IO output device will be linked then send alarm; it doesn't support PoE.
Preset Linkage: When an alarm is detected, it will be linked to the camera to Pan/Tilt the camera to the Preset you set.
Speaker Linkage:Link the speaker to send alarm when a alarm is detected.
3.4.4 Advanced Setting
3.4.4.1 WiFi Setting
Click to enter “Advanced Settings”, user can edit camera’s advanced
settings.
Tap【WiFi Setting】, User can manually set
WiFi.
Note:
1. It only accept 2.4GHz WiFi signal.
2. The password shall be not longer than 31
characters. The following special characters
are not be supportted in SSID and
password: ‘ and &
Page 19
Support Email/ Skype: [email protected] 19
3.4.4.2 User Settings
3.4.4.3 Time Setting
3.4.4.4 FTP Setting
Click to enter【User Setting】, the password of the camera
can be modified and Username cannot be modified at
present
Note: the password shall be not longer than 20 characters
Click to enter【Time Setting】，The user can auto correct the local
time zone of the camera to set the camera in the correct time zone.

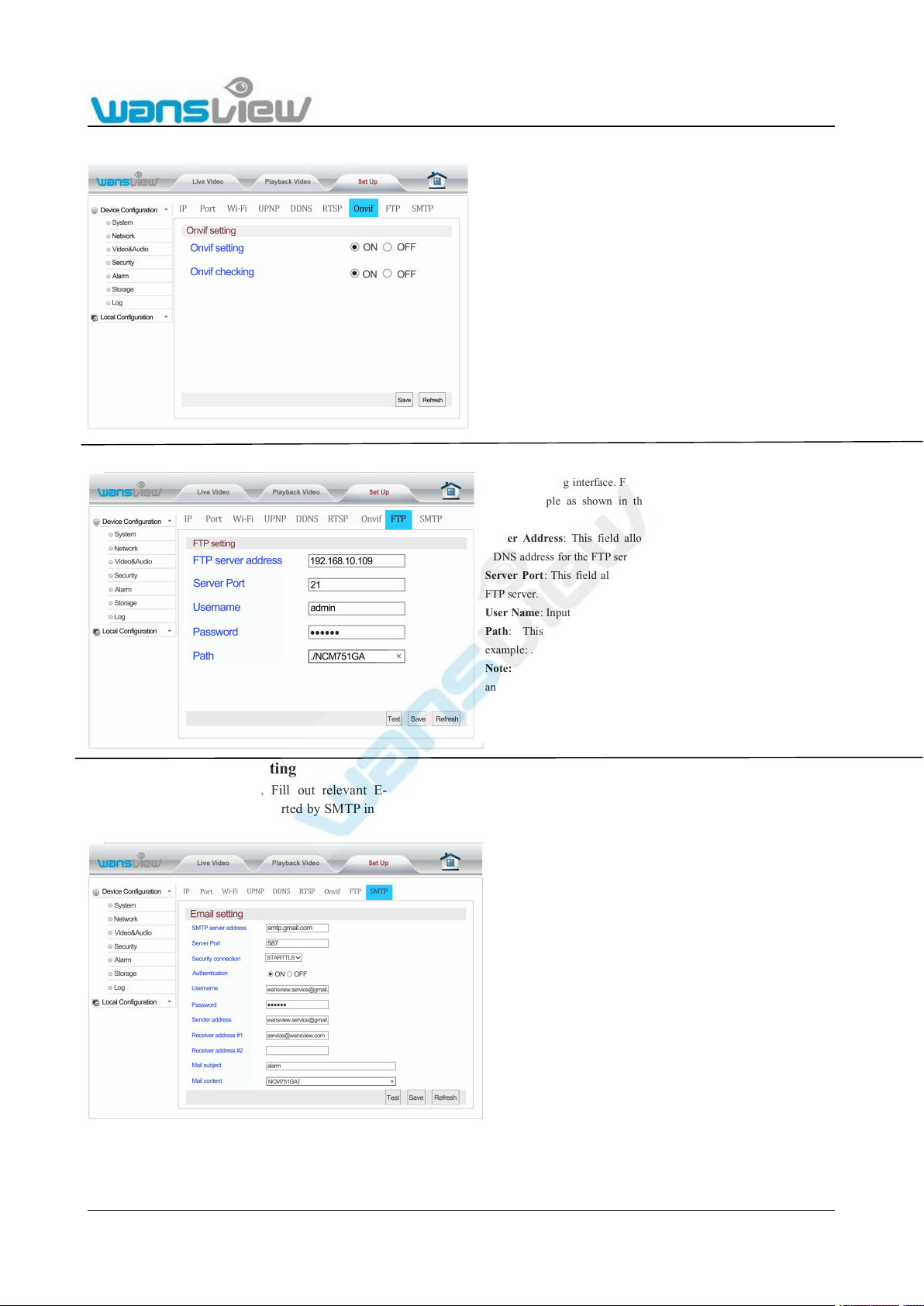

Click to enter【FTP Setting】, when the user is using the FTP
alarm, user parameters of FTP servers can be set. It is
recommended to fill in “./” for Upload Path. Please refer to
5.2.3.8 for settings.
Page 20
Support Email/ Skype: [email protected] 20
3.4.4.5 E-Mail Setting
3.4.4.6 SD/TF Card Setting
3.4.4.7 Reboot camera
Click to enter 【 E-Mail Setting 】 , when the user is using the mail alarm
function, Sender, Receiver, SMTP Server, SMTP Port(common port is
25,465 and 587), TLS etc. can be set.
Notice：
*User can select SMTP server according to your Mailbox server, if not in
the listed, please input manually.
*The Authentication must be ON, or the camera cannot log to the sender
email to send email.
* Please select SSL or TLS when the SMTP Port is 465 and 587.
Click to enter "SD/TF Card Setting". User can check the SD card capacity and
status.
Enable the “record overwrite”, the new recorded files will overwrite the old files
automatically.
The record time length can be set between 2-15 minutes
Enable the SD card recording, the camera will record constantly. For example, if
record time set at 2 minutes, the camera will record every 2 minutes
1. Please perform SD card formatting before SD card recording.
2. If SD card formatting is required during video recording, please stop SD card
recording first.
3. Support Max.64GB Micro SD card.
Tap “reboot camera”, user can restart
the camera.
Page 21
Support Email/ Skype: [email protected] 21
3.4.4.8 About Camera
3.4.5 Start Video
3.4.6 Delete Device
On this page, user can check the camera firmware
version
Tap Start Video to view
live stream.
Tap Delete Device to delete the camera.
Page 22
Support Email/ Skype: [email protected] 22
4. Android Access
Wansview APP (Android version) is an application developed by our company based on the Android system. It supports iOS 2.3.0
or 6.0. The functional characteristics of this software:
Supports Alarm Notification
Temperature and Humidity Alarm
Supports rapid mobile phone acoustic configuration of camera Wi-Fi;
Supports PnP products of the Smart P2P cloud;
Supports viewing on multiple screens (Supports simultaneous viewing of up to 4 cameras);
Supports Playback SD Card Recording at mobile phone terminal;
Supports video control, video parameter setting, audio monitoring, intercom, pan/tilt control, picture taking and
other functions;
Supports searching for and adding LAN equipment;
Supports editing and management of the equipment (Wi-Fi/Email/Alarm/FTP and other advanced functions);
Supports photo sharing
4.1 Software Installation
4.2 App Interface Introduction
4.2.1 Interface
“Wansview” can be searched for and downloaded from the Google Play.
You can use a mobile phone to scan the QR code on the right to download the APP.
Download and install “Wansview” to your mobile phone.
After installation, the icon will appear (check the picture on the right)
Camera: On this page, user can add camera, check
camera list and can enter to Edit Camera page.
Page 23
Support Email/ Skype: [email protected] 23
4.2.2 Add Camera
There are three methods available to add camera: add manually, LAN Search and Scan QRCode on the bottom of the camera.
Reminder：Camera ID is DID number showed on the sticker which is on the bottom of the camera.
Message ： Tick the “App receives the alarm”,
when the camera sends alarm notification, you can go
to Message to check the Alarm info and alarm type.
More: Check Records/Photo, Multi-View for the
cameras,WiFi Configuration, About Wansview and Exit the
APP.
Start up the “Wansview” app and tap
to access to Add Camera page
Page 24
Support Email/ Skype: [email protected] 24
1) Manually add the camera
2) LAN search
3) Scan QRCode
.
Note: Default user name/password: admin/123456
Please input the info: Camera ID (DID), Username and
Password, then click Done.
Click “Lan Search”, then the camera
info will appear, click camera and
access to another page to input
password, then click .
Click Scan QRCode, then scan the
Sticker’s QRCode on the bottom
of the camera
Page 25
Support Email/ Skype: [email protected] 25
4.3 Live View and Setting
4.3.1 Viewing Camera on a Single Window
Click the monitoring screen. The video
menu action bar will appear to allow
snapshot, record, listen, talk and other
advanced functions.
The mobile phone app can capture video
files and store them on the mobile phone.
1: For two-way audio, make the Listen/Talk
ON, When talk, please press Hold Talk, then
talk.(not for this camera)
2: Tap , you can turn ON/OFF the IR
LED and Set or Call Preset(For PTZ camera).
Select the camera successfully added and
displayed online, tap the camera, then it will
start to view the camera.
Or you can Tap > to access to Edit Camera
page, choose Start video.
Page 26
Support Email/ Skype: [email protected] 26
4.3.2. Viewing Camera on Multi-View
Tap “More” and select Multi-View, there are Max. 4 cameras can be viewed
Figure 4.3.2.1
Functional operation in Multi-View Mode
Hide the equipment list button Multiple Windows Mode Exit button Equipment playing now
4.4 Edit Camera
When camera is online, click to enter “Edit Camera” page.
On this page, user can check Local Picture Record, SD/TF
Record Playback, Alarm Setting and Advanced Setting.
Tips:
Temperature and Humidity display on screen

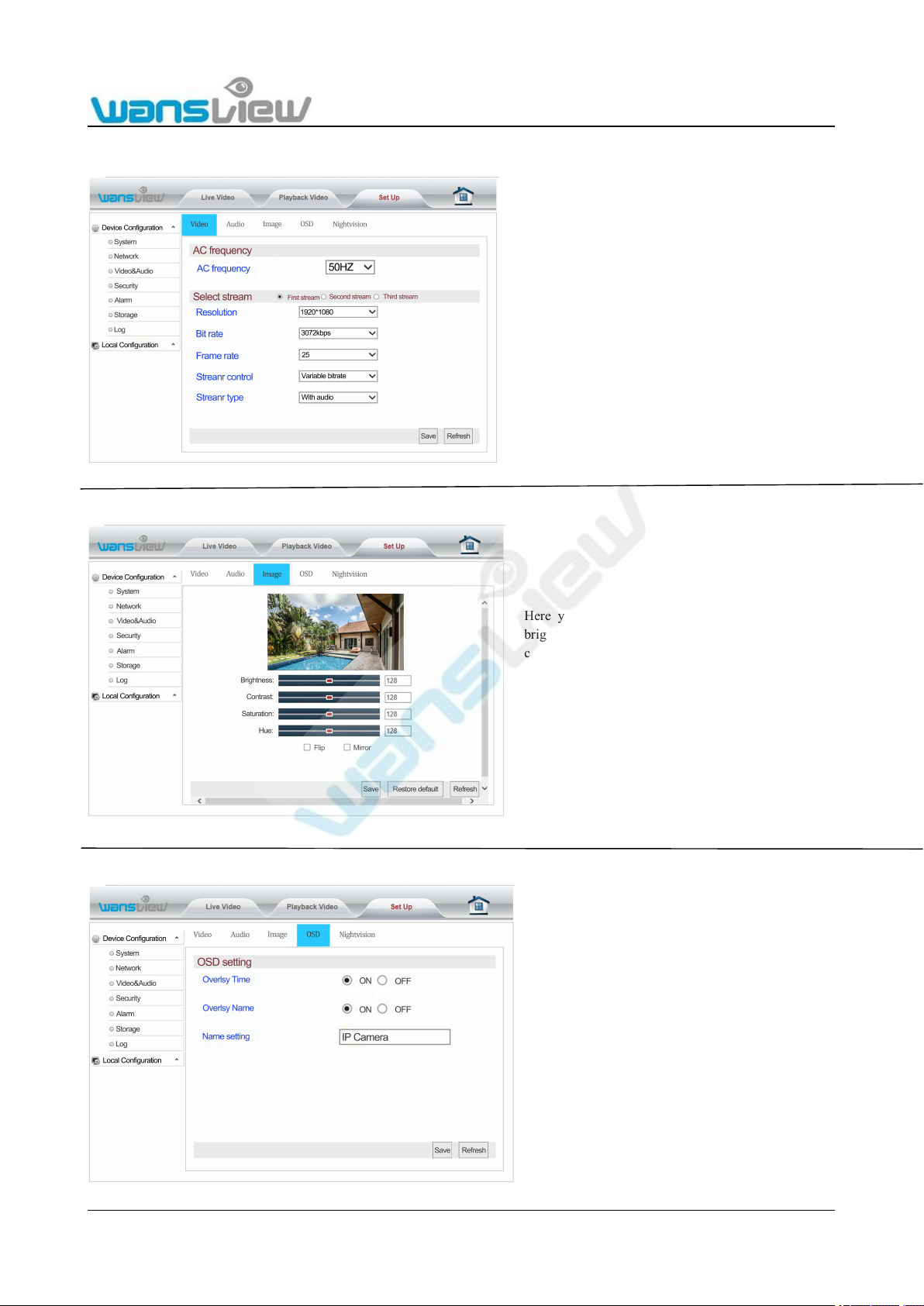

Go to “Set Up -Video & Audio -OSD”, enable the Overlay
name, and modify name setting as “TEMP_HUM”, Then the
Temperature and Humidity value can be showed on Video
screen.
Page 27
Support Email/ Skype: [email protected] 27
4.4.1 Edit camera Alias
4.4.2 Local Picture and Record
Check snapshot pictures and recorded video on Mobile. Click Local Pictures and Local records.
Check Local Picture
User can check the pictures according to date, and check the snapshot picture.
Access to Edit camera page, on the Alias
column, user can edit camera’s name.
Page 28
Support Email/ Skype: [email protected] 28
Share Local Picture
Long press a selected picture, then user can share picture.
View Local Video
4.4.3 SD/TF Record Playback
Select the needed video and choose video player to broadcast.
Enter SD/TF Record Playback, recorded file will
be automatically displayed.
User can also search needed files by click
icon to enter calendar to check schedule or alarm
record on an exact date.
Notice：The date in red means there are recorded
files on that day.
Page 29
Support Email/ Skype: [email protected] 29
4.4.4 Alarm Setting
Access to “Alarm Setting”, there are options for Alarm Area and Alarm IO.
Alarm Deployment
IO Detection：Sensor type can choose Always open or Always close. When using IO Check, user should enable IO detection,
Always open means external alarm device is needed, and only with alarm trigger, alarm will be valid. If choose Always close, the
camera will be alarm continuously per 30 second.
Motion Detection: Sensitivity can choose Low/ Middle/ High according to needs.
Audio Detection: Sensitivity can choose Low/ Middle/ High according to needs.
Temperature detection: the temperature range can be set from -100℃ to 100℃
“<”means the temperature below the set value, the camera will send alarm notification.
“>”Means the temperature above the set value, the camera will send alarm notification.
Humidity detection: the humidity range can be set from 0% to 100%.
“<”means the humidity below the set value, the camera will send alarm notification.
“>”Means the humidity above the set value, the camera will send alarm notification.
Trigger Alone : The alarm will be triggered for any kind of alarm condition.
Trigger Linkage: If set two or more kinds of alarm methods, only met all alarm conditions, the alarm can be triggered.
Alarm Action:
Save Picture to Email: When a alarm is detected, the camera will send two alarm pictures to the email you set. We support Gmail,
hotmail,Yahoo,Gmx etc.
Save Picture to FTP：When a alarm is detected, the camera will send 2 alarm pictures to to the FTP server you set, 3-4 pictures will
be sent if the motion is too frequent.
Save Record to FTP： When an alarm is detected, the camera will send alarm video to the FTP server you set. The video length is
about 15 seconds for each alarm video, for constant recording, the alarm will be upload to FTP every 30seconds.
Save Picture to SD/TF：When a alarm is detected, the camera will send 2 alarm pictures to SD card, 3-4 pictures will be sent if the
motion is too frequent.
Save Record to SD/TF：When an alarm is detected, the camera will send alarm video to the FTP server you set. The video length is
about 15 seconds for each alarm video, for constant recording, the alarm will be upload to FTP every 30seconds.
Trigger IO Output：When an alarm is detected, the external IO output device will be linked then send alarm; it doesn't support
PoE.
Preset Linkage：When an alarm is detected, it will be linked to the camera to Pan/Tilt the camera to the Preset you set.
Speaker Linkage：Link the speaker to send alarm when a alarm is detected.
Page 30
Support Email/ Skype: [email protected] 30
4.4.5 Advanced Setting
4.4.5.1 Wi-Fi Setting
4.4.5.2 User Settings
Access to Advanced Settings, users can edit camera settings like WiFi
setting, password changing, Time display on live video, Save
picture/video to FTP/Email and TF card, Reboot camera to factory
default and check the camera’s firmware etc.
Access to WiFi setting, user can set the camera connected with WiFi.
Notice:
The camera only support 2.4Ghz frequency.
User can check whether the camera is connected with WiFi or not.
When Searching WiFi, user can see the WiFi encryption and signal
strength
Click to enter "User Setting", the password of the camera can be
modified and Username cannot be modified at present.
Page 31
Support Email/ Skype: [email protected] 31
4.4.5.3 Time Setting
4.4.5.4 FTP Setting
4.4.5.5 Mail Setting
Click to enter "Time Setting". The user can auto calibrate
the local time zone of the camera to set the camera in the
correct time zone.
Click to enter "FTP Setting"; when the user is using the
FTP alarm, user parameters of FTP servers can be set.
It is recommended to fill in “./” for Upload Interval.
Please refer to 5.2.3.8 for settings.
Click to enter 【Mail Setting】, when the user is using the mail alarm
function, Sender, Receiver, SMTP Server, SMTP Port(common port is
25,465 and 587), TLS etc. can be set.
Notice：
*User can select SMTP server according to your Mailbox server, if
not in the listed, please input manually.
*The Authentication must be ON, or the camera cannot log to the
sender email to send email.
* Please select SSL or TLS when the SMTP Port is 465 and 587.
Page 32
Support Email/ Skype: [email protected] 32
4.4.5.6 SD/TF Setting
4.4.5.7 Reboot Device
4.4.5.8 About Camera
Click to enter "SD/TF Card Setting". User can check the SD card capacity and status.
Enable the “record overwrite”, the new recorded files will overwrite the old files
automatically.
The record time length can be set between 2-15 minutes
Enable the SD card recording, the camera will record constantly. For example, if the record
time set at 2 minutes, the camera will record every 2 minutes.
Reminders:
1. Please perform SD card formatting before SD card recording.
2. If SD card formatting is required during video recording, please stop SD card recording
first.
The duration of SD card formatting is about 20s.
Tap “reboot camera”, user can restart the camera.
Page 33
Support Email/ Skype: [email protected] 33
5. Web Access
There was a CD included when you bought the camera, please insert it into the CD driver of your PC to install the search tool
SearchPro to your PC. If your PC doesn’t have a CD driver or the CD can’t be read, please go to our official website
www.wansview.com/service to download the SearchPro Tool.
Please note: SearchPro can only be used in a LAN.
If you lost the label which is on the bottom of camera and forget the DID number, you can select Smart P2P with SearchPro to get
the DID number (Device Name). Also you can change the camera’s IP address and Port number via the Search Tool.
5.1 Start up
5.1.1 Network Installation
5.1.2 Login
5.1.3 Plugin installation
After the login, there are two View Video Modes you can choose.
1: Please install and start the SearchPro tool
2: The camera tool will automatically find all Wansview IP Cameras in
your network and will show their IP address(Figure 5.1).
3: In case your camera isn’t found right away please wait 10-15 seconds
for your routers DHCP service to assign an IP address to your camera.
4: Double-click the camera’s IP address inside the camera tool to open
the web user interface with your default browser and you will be greeted
by the camera’s login window.
For the first installation of the camera, please
log in with the Default user name/password:
admin/123456.
Page 34
Support Email/ Skype: [email protected] 34
View Video-Mode 1: APNPI viewing mode (OCX plugin)
● You must download the OCX plugin the first time you use View Video Mode 1. Click “Download Plugin” to download and install
the plugin as below Figure.
Figure 5.4
● When you select Video Viewing Mode 1 with Google Chrome or Firefox, please ensure to use the right version : (since they do
not support the APNPI plugin)
View Video- Mode 2: Flash Player mode (Adobe Flash Player plugin)
● When you select Flash Player mode, if the Flash Player plugin is not installed, the browser will automatically prompt you to
download and install the file.
● When you select Flash Player mode, the multiple image function is not supported, nor is multiple region motion detection. The
Microsoft Edge browser is not supported.
5.2 Live Video
Video plays after clicking into the video browsing interface.
/ Play/ Stop: Click this icon, you can play or stop to view the video.
Listen: In case your PC is equipped with microphone, click here to activate the audio-out of your camera.
Talk: click here to activate the Talk function. You can adjust the volume of the audio signal under Set up--Video&Audio--Audio
Page 35
Support Email/ Skype: [email protected] 35
Snapshot: Click here to capture the live image and save to local computer. Checking captured pictures, please find the store
path for the local configuration.
Record: Click here to manually record to local computer..
Digital Zoom: Click here to adjust the camera 4X digital zoom.
Show/Hide Control Panel. Click here you can show or hide the control panel.
Resolution: It presents 1920x1080 / 640x360 / 320x180 accordingly
5.2 Playback Video
Click "Playback Video" to enter the SD card video file playback page. Click the video date to inquire. Click "Search" to list the
video files of the selected day. Click the listed files to play back. The files can be downloaded by clicking the download button.
You can Set up to 8 camera preset by moving the camera into desired direction and
clicking on one of the numbered slots after choosing Save Position. Clicking on the slots
1-8 when Go to Preset is activated will move the camera back to the preset position. You
can delete all presets by clicking X. (This is only for PTZ camera)
You can use the control panel to pan and tilt your camera’s head. You can also start a horizontal
or vertically or stop the the camera movement . The camera will move in both patrols into
the according terminal positions and then go back to the initial position. (This is only for PTZ
camera)
Page 36
Support Email/ Skype: [email protected] 36
5.3 Set Up
5.3.1 System
5.3.1.1 Device Status
5.3.1.2 Time Setting
5.3.1.4 Other Settings
Click here user can check the current number of users with access to
IPC/Network connection method/MAC address of the device/SD card status
and Recording status /Internet IP address viewing etc. in the "Device Status"
bar. Among these, "On-line Users" will only show statistics of users watching
the real-time videos on the camera;
"Recording Status " will show only whether Record Planning is on.
You can set up the internal clock of the camera to be either sync.
with your PC c lock or with one several NTP servers. As long as
your camera has access to the internet it is recommended to use
an NTP server synchronization to achieve a higher accuracy for
alarm trigger events.
The power status indicator light and Wi-Fi status
indicator light of camera can be turned on or off
at "Other Settings".
Page 37
Support Email/ Skype: [email protected] 37

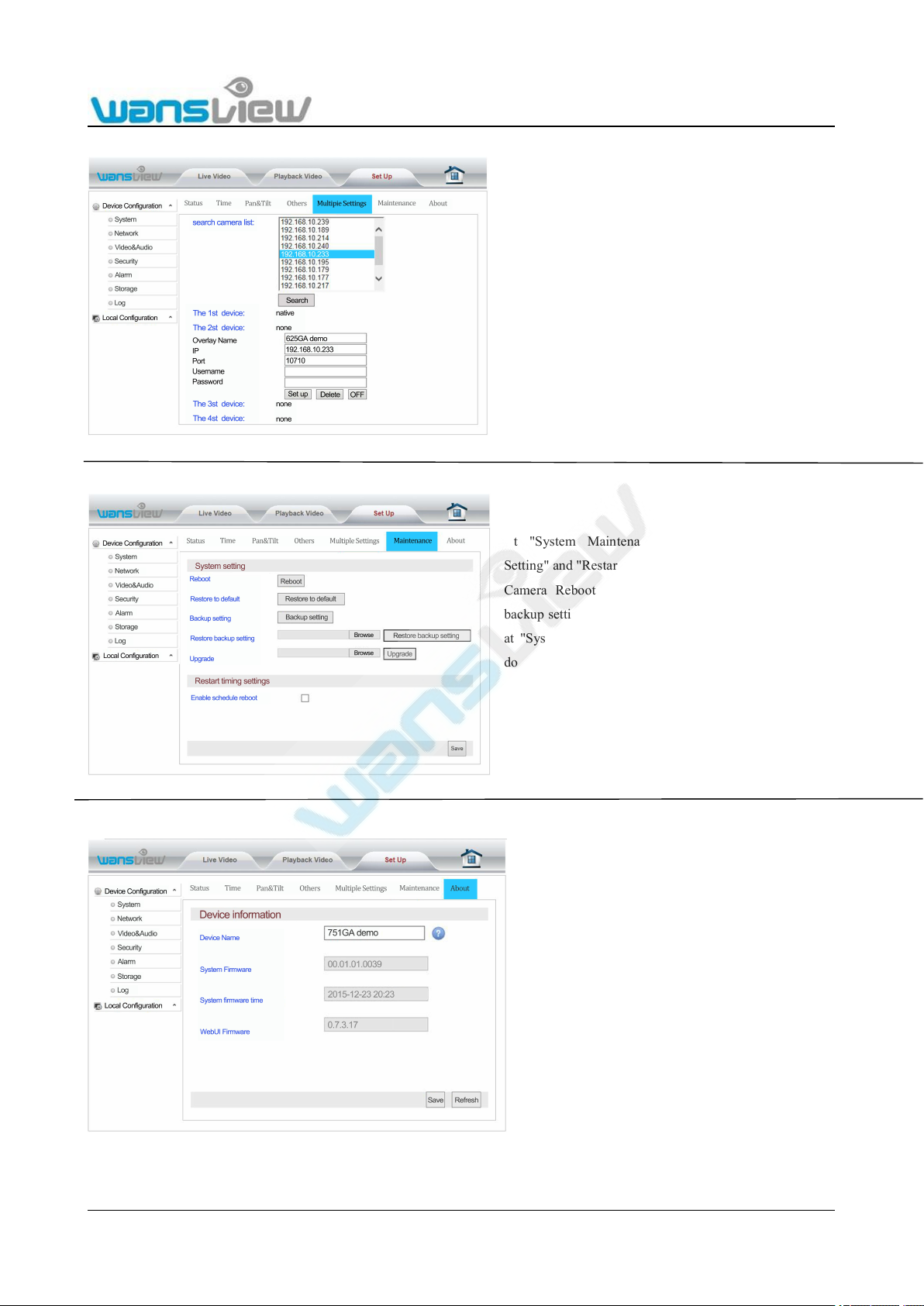

5.3.1.5 Multiple Settings
5.3.1.6 Maintenance
5.3.1.7 Device Information
Equipment can be added at "Multiple Settings". The 1st
device is the native. A maximum of three devices can
be added. Only at multiple settings can one or four
images be reviewed at the Live Video interface.
Multiple settings supports adding extranet IP addresses
or dynamic domain names.
At "System Maintenance", you can perform "System
Setting" and "Restart Timing Setting";
Camera Reboot/Restore to default/Backup setting/Restore
backup setting and System Upgrade of the camera can be set
at "System Setting" (Firmware for system upgrade can be
downloaded from the official website of the company:
http://www.wansview.com/Service/).
At "Restart timing settings ", the timing restart function can
be set for date and time settings.
Enter “About” bar, Device name can be
modified, and system firmware version/system
firmware time /WebUI firmware version etc. can
be checked at "Device Information". The device
name will be showed at the searched information
when using the SearchPro tool.
Page 38
Support Email/ Skype: [email protected] 38
5.3.2 Network
5.3.2.1 IP Address Setting
5.3.2.2 Port Setting
5.3.2.3 Wi-Fi Set Up
You can set whether the camera will be assigned an IP
address by your router(DHCP) or you want to
manually set a fixed address.
-IP address (for example 192.168.x.x)
-Subnet mask(for example 255.255.255.0)
-Gateway(IP address of your router; for example
192.168.x.1)
-Primary DNS(IP address of your router; for
example192.168.x.1)
-Secondary DNS(IP address of your router; for
example192.168.x.1)
At "Port Setting", the user can change web access port
(http port). Port setting range: 80-65535. Pay attention
not to conflict with other port values.
At "Wi-Fi Set Up", click "Search" and start up "Wi-Fi".
Choose the wireless router to be connected. Input the
password to connect to the router. Click Save to
complete Wi-Fi Configuration. After completing the
configuration, click Test to confirm whether it is
connected to the wireless router.
Page 39
Support Email/ Skype: [email protected] 39
5.3.2.4 UPNP
5.3.2.5 DDNS Setting
5.3.2.6 RTSP Setting
The user can set the RTSP port after entering RTSP Setting bar. In addition, the RTSP Authentication function can be closed.
Default value of RTSP port is: 554 Selection range: 554-65535
If the user needs to view the camera through the
internet, the router and camera UPNP function Auto
Port Mapping has to be turned on.
The user can access the camera via DDNS domain name
provided by the manufacturer for free and a third party domain
name. Port mapping is required while using domain name to
access (For port mapping, please refer to the FAQ). The third
party domain name supports 3322.org/dyndns.org/No-iP.com.
Some general RTSP streaming media software can be
adopted to access video on the device, such as VLC.
Access links are as shown below:
The first bit stream: rtsp://user: password @IP:rtsp port
/live/ch0
The second bit stream: rtsp://user: password @IP:rtsp
port /live/ ch1
The third bit stream: rtsp://user: password @IP:rtsp port
/live/ ch2
Page 40
Support Email/ Skype: [email protected] 40
5.3.2.7 Onvif Setting
5.3.2.8 FTP Setting
5.3.2.9 SMTP (E-mail) Setting
Enter SMTP (E-mail) Setting. Fill out relevant E-mail parameters as shown in the figure below to achieve E-mail delivery.
Mainstream E-mail suffixes supported by SMTP include: smtp.gmail.com, mail.yahoo.com, smtp.gmx.com, smtp-mail.outlook.com.
Take gmail setting as an example.
Receiver Address #1: These fields allow the user to enter the receiver email address which will receive any emails pertaining to alert and alarm emails.
Mail subject: This field allows the user to define the subject line of the email.
Mail content: This field allows the user to define the mail content.
Onvif is a global standard for the interface of IP-based security products.
The ONVIF specification will be ensure interoperability between products
regardless of manufacturer, allowing you to integrate your IP camera as a
generic ONVIF camera into existing security systems.
Enter Onvif Setting. The user can start up and calibrate Onvif functions.
The default setting for Onvif calibration is on.
NVR devices of some manufacturers do not support camera access with
Onvif calibration. The device supports Onvif versions 2.5 and below.
Enter FTP Setting interface. Fill out relevant FTP parameters according to the
set up example as shown in the figure below to achieve FTP document
delivery.
Server Address: This field allows the user to designate an IP address or
DDNS address for the FTP server.
Server Port: This field allows the user to designate the port number for the
FTP server.
User Name: Input FTP user name. Password: Input FTP password.
Path: This field allows the user to specify a save path. For
example: ./NCM751GA
Note: If you want to save the alarm picture and video to FTP, you must build
an FTP sever, then create an FTP account with a password (not an
anonymous account) on your FTP server. The FTP account must have create
and delete file rights.
To get started, make sure that the e-mail provider you are using supports SMTP
functions.
Server address: SMTP stands for Simple Mail Transfer Protocol. This field
allows the user to enter the SMTP server used by the email service.
Server Port: This field allows the user to enter the port that corresponds to the
selected SMTP server. The SMTP port is usually set at 25 if there is no security.
Some SMTP servers have their own ports, such as 587 or 465. Specific port
number is to be determined by mail service provider.
Security connection: This dropdown box allows the user to select an encryption
type.
Authentication: It should be on.
User name: Input FTP user name.. Password: Input FTP password.
Sender Address: This field allows the user to enter the email address to which
alarms are sent. This email address should be consistent with the above Email
address for the User name.
Page 41
Support Email/ Skype: [email protected] 41
5.3.3 Video and Audio
5.3.3.1 Video
5.3.3.2 Image Setting
5.3.3.3 On Screen Display Setting
Enter “Video Encoding Setting” to adjust camera power frequency
and video stream settings.
Power frequencies include: 50HZ, 60HZ; (220V voltage selection
50HZ. 110V voltage selects 60HZ, and 60HZ in Japan, Canada etc.)
Bit stream settings include: Resolution（1920*1080 or 1280*720）,
Bit rate (256~4096kbps), frame rate (1~30fps), steam control or
stream type etc.;
Reminder: Audio transmission video can be controlled through the
on/off button.
Here you can adjust the image parameters
brightness, contrast, saturation and hue. You
can also flip and mirror the video image
when tick the options.
Enter "OSD Setting" to overlay the time and
name on the video image.
Page 42
Support Email/ Skype: [email protected] 42
5.3.3.4 Night Vision Setting
5.3.4 Safety
5.3.4.1 User Setting
1: Add user
Enter "Night Vision Setting" to set IR LED
and IRCUT. Once IR LED is off, the LED
will not work any longer.
Enter "User ". The user can add, edit or delete
users as needed.
Click Add to enter the following interface
to add users and choose user authorities.
Page 43
Support Email/ Skype: [email protected] 43
2. Modify the user
Reminder: After the operation, click Save. Then click Refresh so that the edited content will be displayed on the web page.
5.3.4.2 IP Filtering
5.3.4.3 Mask Area
After clicking admin, it will turn blue. Click Modify
and enter to the page on the right. The user can modify
the user name, password or user authority. Click Save.
This screen allows for the filtering of IP addresses,
either blocking them or granting them access to the
camera.
This feature helps make the camera more secure by
limiting remote access only to approved users. Below is
a Screen shot of the IP Filtering screen.
The user can set up privacy in the Mask Area to be
excluded from monitoring. Click Start Setting and check
certain windows. The image will be displayed
corresponding to the red box. Click the red box and it will
turn green. Click and drag the mouse to move and modify
the size of the box. And then click Save to complete
setting.
Page 44
Support Email/ Skype: [email protected] 44
5.3.5 Alarm
5.3.5.1 Motion Detection
5.3.5.2 Audio detection
5.3.5.3 Temp &Hum detection
Enter "Motion Detection". The user can set 4 detection
areas and sensitivity for each area ranging from 1-100. The
higher the value, the higher sensitivity will be.
Enter "Audio Detection"to start up audio detection and
alarm function. In addition, detection sensitivity setting
can be set.
Enter " Temp &Hum detection", user can set temp and
hum alarm. Please enable them and set the ranges
accordingly.
“Below”means the temperature or humidity below the set
value, the camera will send alarm notification.
“Above”Means the temperature or humidity above the set
value, the camera will send alarm notification.
Page 45
Enter"Alarm Action" to respond to abnormalities detected
by IO detection/motion detection/audio detection etc，and
execute a variety of alarm actions at linkage：snapshot and
sending via Email, snapshot and uploading to FTP, video
uploading to FTP, snapshot saving to SD card, video
saving to SD card, linkage IO output and linkage pan/tilt
preset position.
Reminder: The method of "Combination Triggered Alarm"
among alarm trigger types:
If the user starts up an Audio Detection Alarm and Motion
Detection Alarm, the "Combination Triggered Alarm" will
be started up. Only when any abnormality is detected
simultaneously by the Audio Detection Alarm and Motion
Detection Alarm will the Alarm Action be triggered.
After setting the type of Alarm Detection and Alarm
Action, you will enter Armed Time setting. Alarm
Action can only be triggered when armed; the time
system is 7d*24h, 15min. intervals. The camera default
is open 24 hours. The user can drag the mouse to
perform continuous selection of the arming time.
Enter "Log". The user can check the
functional operation log of the camera.
Page 46

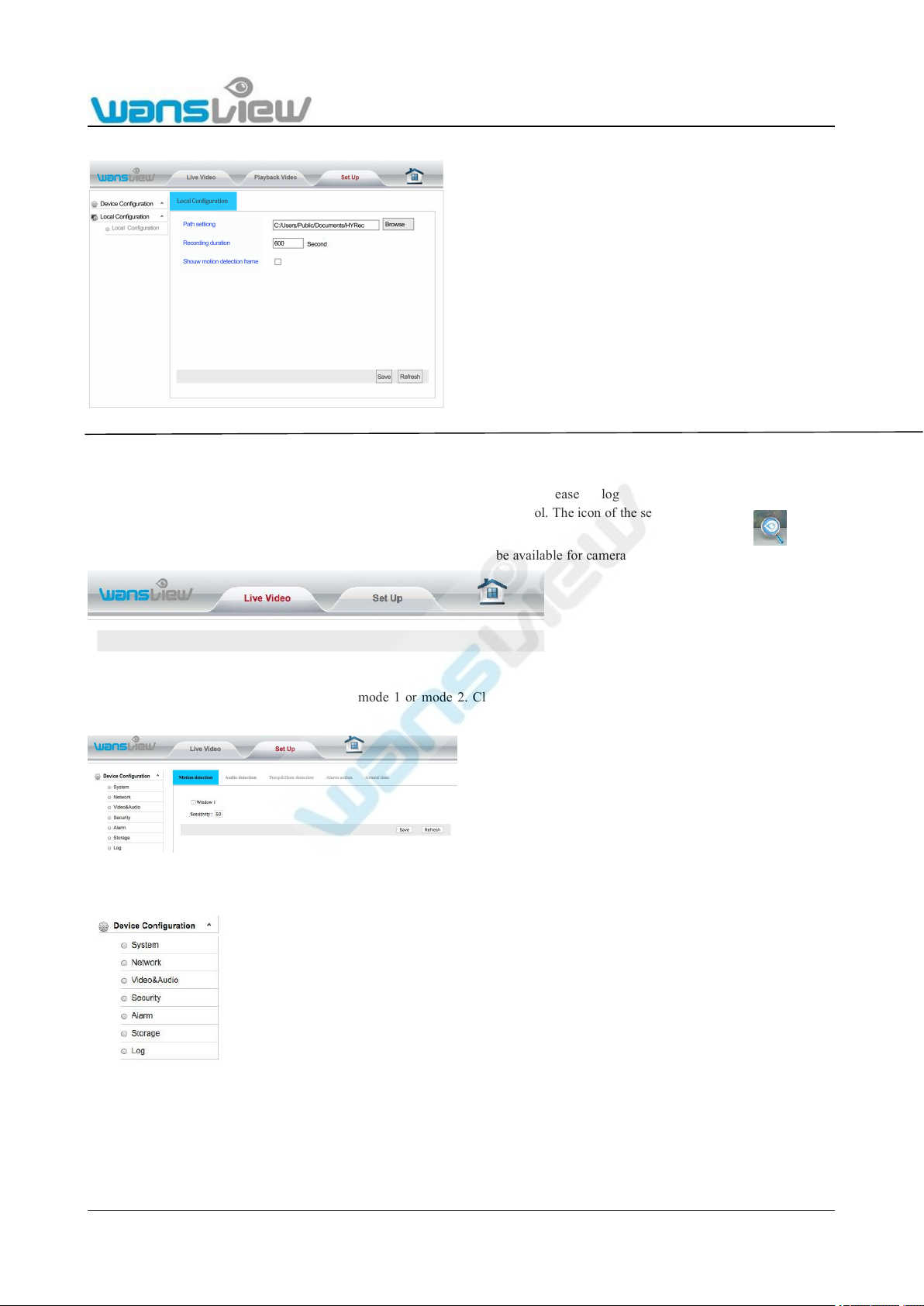

For specific setup steps, please refer to section 5.3.
If no CD driver is available on a Mac computer, please log into the official website
http://www.wansview.com/Service/download/23.html to download the search tool. The icon of the search tool is:
1. When accessing the camera via Mac, the following menu bar will not be available for camera setting.
2. No motion detection box is available under mode 1 or mode 2. Click Window 1, it will show the full screen motion detection
box.
3. When accessing the camera via Mac, no local storage path is available.
Enter "Local Configuration". You can set the save
path for videos and pictures on your PC as well as
the recording duration.
Reminders:
1: When using IE9 or higher, please run the
browser video path and picture path as "
administrator" so that you can save the files
successfully. The default video path is "HYRec"
on disk C. The default picture path is “HYSnap”
on disk C.
2: The user can start up the Motion Detection
Alarm and view the flashing box on the screen.
Page 47
Support Email/ Skype: [email protected] 47
6. Windows PC Software Access
6.1 About iSmartViewPro
ISmartViewPro is an IP centralized monitoring software provided by the SmartCloud IP Camera centralized monitoring software
manufacturer. It supports monitoring, intercom, video recording, alarm detection and other functions on IP cameras on a LAN and
internet environment.
ISmartViewPro supports installation and operation on a Windows system.
Features of iSmartViewPro:
Supports P2P cloud camera connection;
Supports DDNS dynamic domain name connection;
Supports multinational language switching;
Supports local schedule video recording;
Supports alarm recording and snapshot;
Supports image settings;
User smart "skin changing".
6.2 Operational Requirements
For stable operation of iSmartViewPro,
Internal storage: Over 1G
CPU: Dual-core CPU
Internal storage: Over 1G
Hard disk: Over 500G
Operating system: Windows XP or above(When using XP, please use Compatibility mode. Kindly check FAQ 8.6).
Screen resolution: ≥1024*768
6.3 iSmartViewPro Installation
Access iSmartViewPro installation software:
Access the installation software from the camera disk or official website of our company http://www.wansview.com/Service
Please create a desktop shortcut when you install iSmartViewPro
Desktop shortcut icon
6.4 iSmartViewPro Operation
6.4.1 CMS Interface
Double-click the desktop shortcut of iSmartViewPro on the desktop with the mouse to run iSmartViewPro client software.
Page 48
Support Email/ Skype: [email protected] 48
6.4.2 Access to camera
6.4.2.1 Add Camera
a. Search to Add
b. Add device manually
A: Camera control menu bar setting
B: Video and video menu bar setting
C: Local menu bar setting
D: Camera operation log
E: Search
F: System language switching and
other function settings
Select "Search to Add" to access the search page.
Select corresponding device type for searching. Fill in
the correct user name and password for the detected
device.
Reminder: After being saved, the device will be
displayed in the device list.
Click icon
to add camera. User can Add device manually or
Search to Add.
Select "Add device manually" to access the add page.
The items marked with “*” are required to be filled in.
Reminder: Please select correct corresponding "device
type".
Please fill out DID while selecting SmartP2P.
Please fill out DDNS or IP address while selecting X
series.
Page 49
Support Email/ Skype: [email protected] 49
6.4.2.2 Edit / Delete Device
Edit Device icon Delete Device icon
Select a camera being added into the device list and click "Edit Device" or "Delete Device" to modify user management parameters
or delete the device.
6.5 Play Video
Select the camera to play video from the device list. Double-click to "Play Video" with the mouse.
Click here to activate the camera’s integrated speaker and microphone..
click here, user can capture live pictures, and it will be stored to Local computer
Video and video status display (divided into two types: manual video display status and scheduled video display status)
Click Brightness and contrast of the camera can be adjusted through
the image parameter setting button. The user can choose resolution and
can tick Mirror or Flip if the video is upside down.
Click , user can pan and tilt the camera by click Up/Down/Left/Right
arrow. (Only for PTZ camera)
Page 50

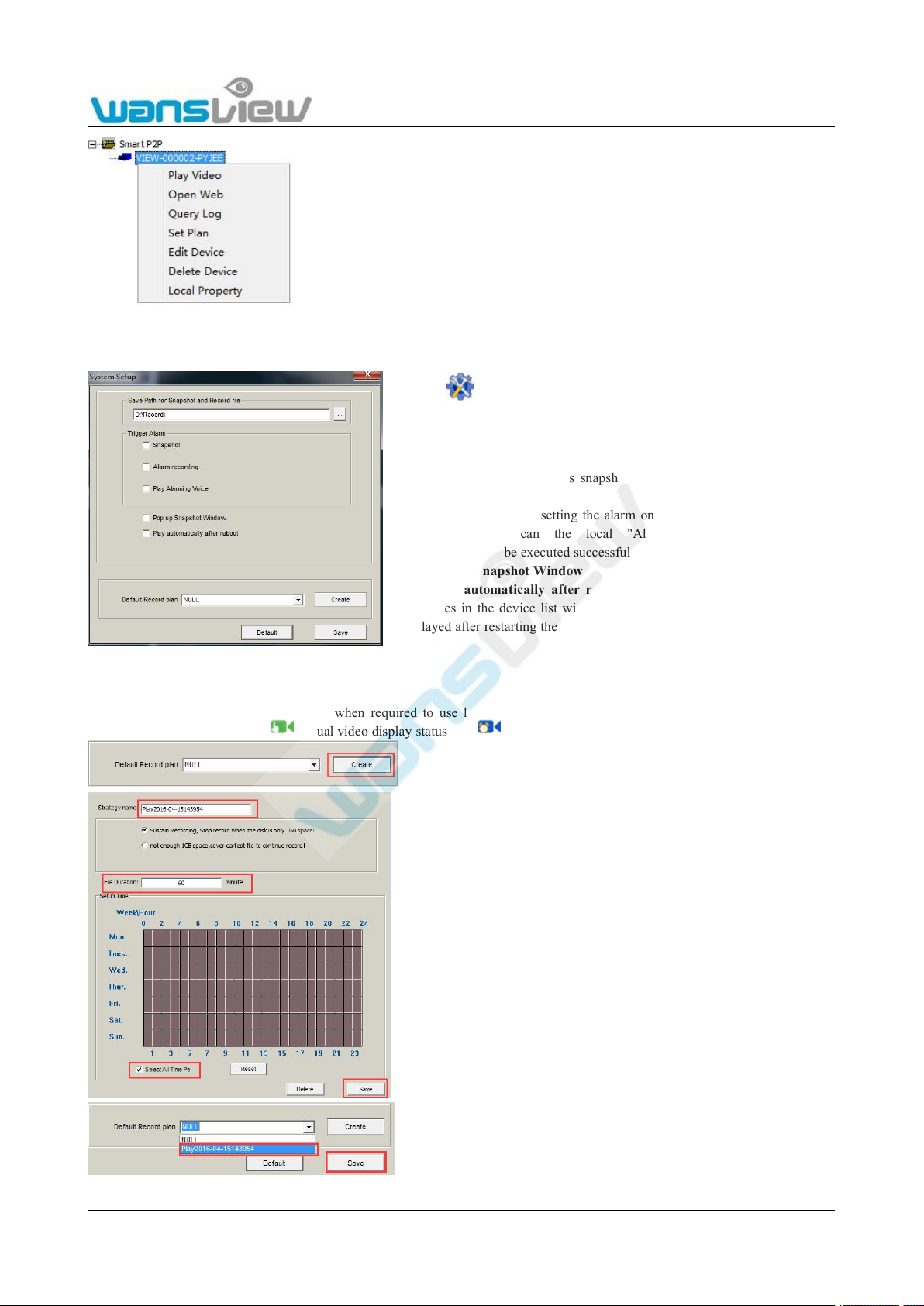

The user needs to create scheduled video when required to use local video scheduling to set the scheduled video; video status
display (divided into two types: manual video display status and scheduled video display status);
Click to access system setting as the picture on the right.
1: Save Path: The default snapshot pictures and videos storage
path is Disk D. The user can change the setting at his own
discretion.
2. Alarm trigger: Supports snapshot, Alarm Recording, Play
Alarming Voice.
Reminder: Only after setting the alarm on the camera (motion
detection/alarm) can the local "Alarm triggering" of
iSmartViewPro be executed successfully.
3: Pop up Snapshot Window
4: Play automatically after reboot: When it is clicked, the
devices in the device list will be automatically connected and
played after restarting the software.
Select the camera and right click the camera name, then more
operation options will be appear.
Create a default record plan
Tick“Select All Time, and Save.
User can change the File duration. 60 minutes means each
recorded file is around 60 minutes, then it will change to
another recorded video.
Reminder: While creating video scheduling, select “Sustain
Recording, stop record when the disk is only 1GB space” or
“not enough 1GB space, cover earliest file to continue
record”.
Choose the created record plan, then Save.
Page 51
Support Email/ Skype: [email protected] 51
6.7 Local menu bar
Play /close all devices in device list
View Camera on Multiple windows
Playback and Query Recorded video
Manage device Log
Full screen mode
Open the video playback player so that the
user can directly access corresponding
video files of each camera according to
the video path. Please refer to the figure
below.
On this icon, users can query camera
operation, such as detailed operation time for
Play, Snapshot Record, Get Param, as well as
log type etc.
Page 52
Support Email/ Skype: [email protected] 52
7. Mac Software Access
7.1 About iSmartViewPro
ISmartViewPro 2.0 is an IP centralized monitoring software provided by the SmartCloud IP Camera centralized monitoring
software manufacturer. It supports monitoring, intercom, video recording, alarm detection and other functions on IP cameras in a
LAN and internet environment.
ISmartViewPro 2.0 supports the Mac OS operating system.
Features of iSmartViewPro 2.0:
Supports SmartP2P smart cloud platform camera;
Supports multinational language switching;
Supports local video;
Supports local video playback;
Supports image settings;
7.2 Operational Requirements
For stable operation of iSmartViewPro, the following minimum system parameters are suggested:
CPU: Dual-core CPU
Internal storage: Over 4G
Hard disk: Over 500G
Operating system: Mac OS*10.9 or above
Screen resolution: ≥1024*768

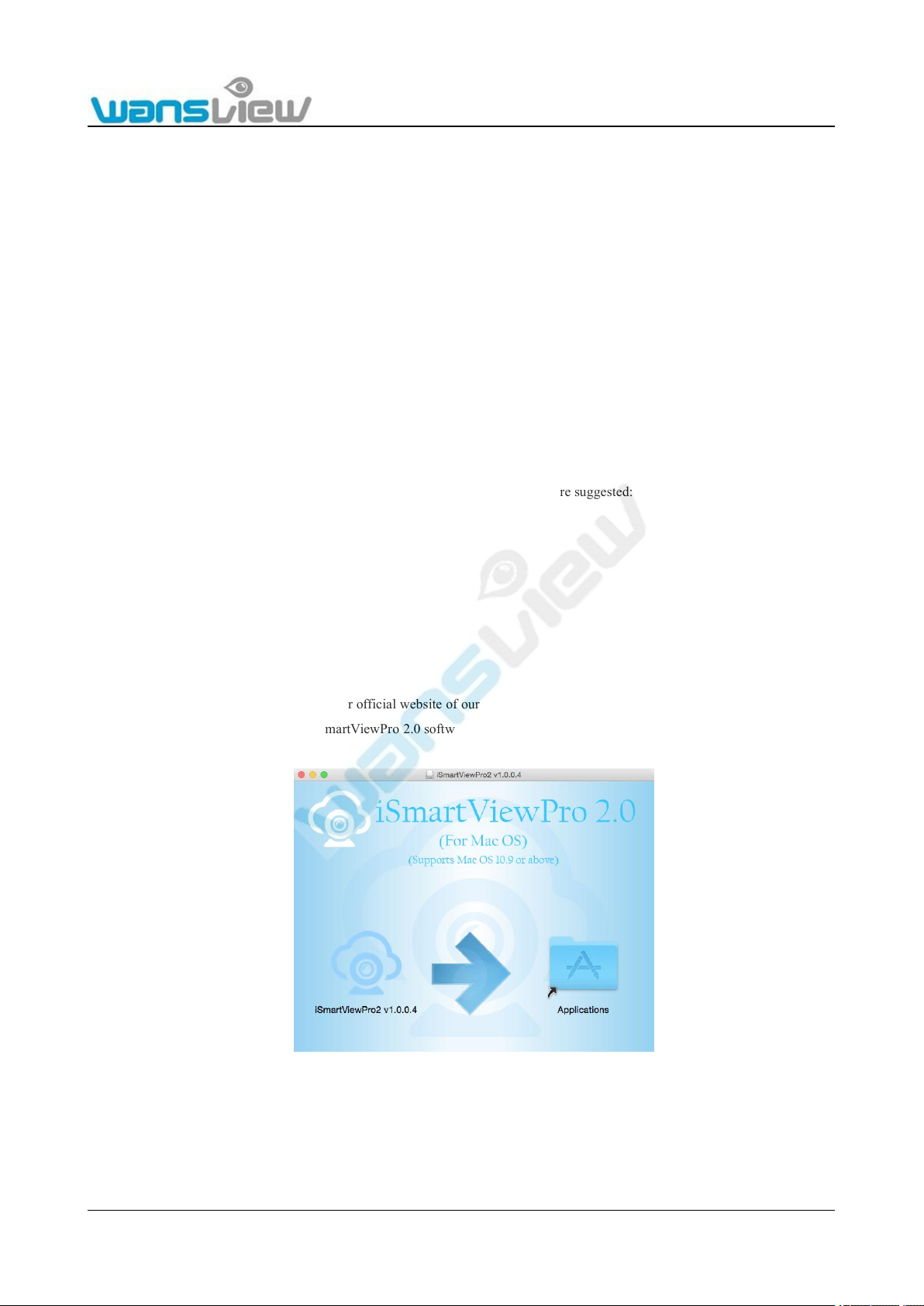

7.3 Installation
Access iSmartViewPro 2.0 installation software:
You can download the software from the CD or official website of our company www.wansview.com/service
Double click to open the dmg file. Drag iSmartViewPro 2.0 software to copy to the computer according to the direction of the
arrow.
Figure 7.3.1
Page 53
Support Email/ Skype: [email protected] 53
7.4 iSmartViewPro 2.0 Operation
7.4.1 Interface
Run iSmartViewPro2.0 client software on the computer as shown in the figure below:
7.4.2 Device Library
Check setting list, add, delete and advanced settings of the camera
Icon: Show camera list by Icon List: Show camera list by List.
Add
Click to enter Add Camera. Cameras can be
added manually or Lan Search
Page 54
Select a specified camera. Click to delete the
camera from the list.
To modify device name and
change password
To check relevant information of the
camera
To modify user name and password of the
administrator
Page 55
Support Email/ Skype: [email protected] 55
WiFi Setting
7.4.3 System Settings
7.4.4 Video Library
Click the cameras being added to the list at the right side for real-time viewing
1: Search your WiFi SSID
2: Choose your WiFi SSID
3: Input your WiFi password, and make
sure it is correct.
4: Save
On the system settings, user can
set Local path for snap picture
and recorded videos, and set the
record time length for each file.
User can also choose language.
Live Video
Real-time Live video, Snap, Record for the camera, and
choose Resolution and IR led ON/OFF.
Local Recording
Check local recorded files or playback the local
recorded video.
1/4/9 Windows Full screen
Color Adjust:
Page 56
Support Email/ Skype: [email protected] 56
7.4.5 Camera Log
The user can get online information of the device through a camera log query, such as alarm information etc..
Page 57
Support Email/ Skype: [email protected] 57
8. FAQs/Troubleshooting
8.1 Compatibility Settings for Internet Explorer
8.2 Plugin Issues

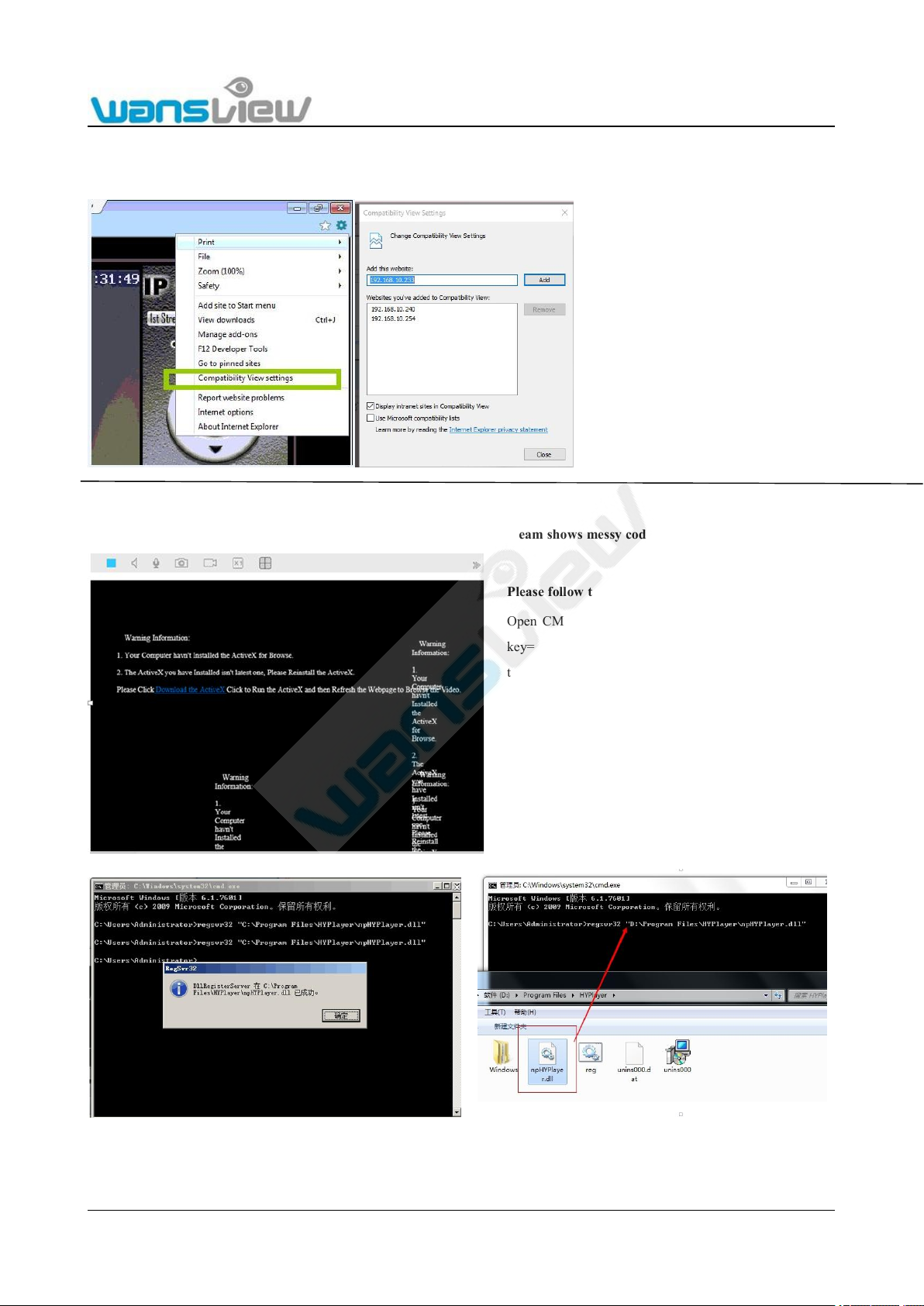

Question: I’ve already installed a Plug-in for the browser, but the live stream shows messy code like the image below:
When using Internet Explorer 9 and higher to
view the camera, if you already downloaded a
plug-in for camera, but still have no live
video, please perform the following
operations:
Click Compatibility View Setting (Figure 1)
----- you will see Figure 2, click Add, then
click Close.
Please follow these steps to fix this issue:
Open CMD ===> input command "regsvr32", press the space
key===> find the installation package for "npHYplayer.dll",
then drag "npHYplyaer.dll" into the CMD window after
“regsvr32” (as shown in Figure 8.4) ====> Press Enter, a
dialog box will pop up (Figure 8.5) that says that the
npHYPlayer.dll has been installed successfully. Click to
confirm====>You can refresh or re-open the web page to view
camera in real time.
Page 58
Support Email/ Skype: [email protected] 58
8.3 Install IE Tab for Chrome 43
Due to the fact that Chrome43 and higher no longer supports NPAPI plug-in, the user needs to add an IE tab for Chrome.
Here is how to install an IE tab for Chrome:
1. Visit https://chrome.google.com/webstore/search/IE%20tab●hl=en to go to the Chrome web store to download and install an IE
tab.
Figure 8.3.1
2. Open Chrome, right-click on a blank place, choose the IE Tab option-- click Open in IE Tab
Figure 8.3.2
Page 59
Support Email/ Skype: [email protected] 59
8.4 Install IE Tab for Firefox 42
Due to the fact that Firefox42 and higher no longer supports NPAPI plug-in, the user needs to add an IE tab for Firefox.
Here is how to install an IE Tab for Firefox:
1. Please visit https://addons.mozilla.org/en-US/firefox/addon/ie-tab/ to download the IE Tab for Firefox.
Figure 8.4.1
2. Open Firefox, right click and choose "View Page in IE Tab". Then you can view the live stream of the camera.
Figure 8.4.2
8.5 Port Forwarding
Every time you reboot the camera, the Local IP Address will be changed, so you’d better set the camera’s local IP by using the
SearchPro tool (on the CD).
There are two ways to do port forwarding:
1. One router connected (only one router is being used, and the router is directly connected to the WAN)
Log on the router, find the Port forwarding (or Port Mapping or Virtual Server), then add the camera’s local IP and Port as in the
figure below:
Page 60
Support Email/ Skype: [email protected] 60
Figure 8.5.1
Figure 8.5.2
2 .Multiple routers connected (there are 2 or more routers being used, and your camera is not directly connected to the
router that is connected to the WAN port)
For example, there are two routers . Router 1 is directly connected to the WAN port, and router 2 is connected to router 1. The
camera and computer are connected to router 2.
Router 1 Local IP: 192.168.0.5
Router 2 Local IP: 192.168.10.12
WAN IP: 192.168.0.10
Camera IP : 192.168.10.14 Port :255
First, please log on to router 2, find port forwarding, then add the camera’s IP and port.
Second, please log on to router 1, find port forwarding, then add the Router 1 IP and camera’s Port number.
Note: Because each brand of router is different, port forwarding methods may be different, please consult the user manual
of your router to carry out port forwarding.
Page 61
Support Email/ Skype: [email protected] 61
8.6 iSmartViewPro Exit Abruptly on Windows XP
1: Right click the iSmartViewPro shortcut, and select Properties as below.
Figure 8.6.1
2. Select Compatibility and tick “run this program in compatibility mode for”
Figure 8.6.2
Page 62
Support Email/ Skype: [email protected] 62
Technical Support
We hope your Wansview IP Camera is enjoyable and easy to set up and use. You may have some additional questions or conc
erns that are not clarified in this user manual. You can always contact us at :
Email: [email protected] / [email protected]
Skype: [email protected]
Note:
This user manual is for reference only. Slight differences may be found in the user interface.
All the designs and software here are subject to change without prior written notice.
For latest firmware and user manual, please go to www.wansview.com to download.
