WANDERS Marvic MF Cassette Instructions For Use Installation And Servicing

1

Marvic MF Cassette

Instructions for Use,

Installation and Servicing

For use in GB & IE (Great Britain and Republic of Ireland).

IMPORTANT

This appliance will become hot whilst in operation, it is therefore

recommended that a suitable guard should be used for the protection

of young children, the elderly or infirm. Do not attempt to burn rubbish

in this appliance.

Please read these Instructions carefully before installation or use.

Keep them in a safe place for future reference and when servicing the

fire.

2

APPLIANCE COMMISSIONING CHECKLIST 4

General Points 5

USER INSTRUCTIONS 6

Using the Appliance for the first time 7

Lighting the appliance 9

Running the appliance 9

Recommended Fuels 10

Ash Removal 12

Burning Tips 13

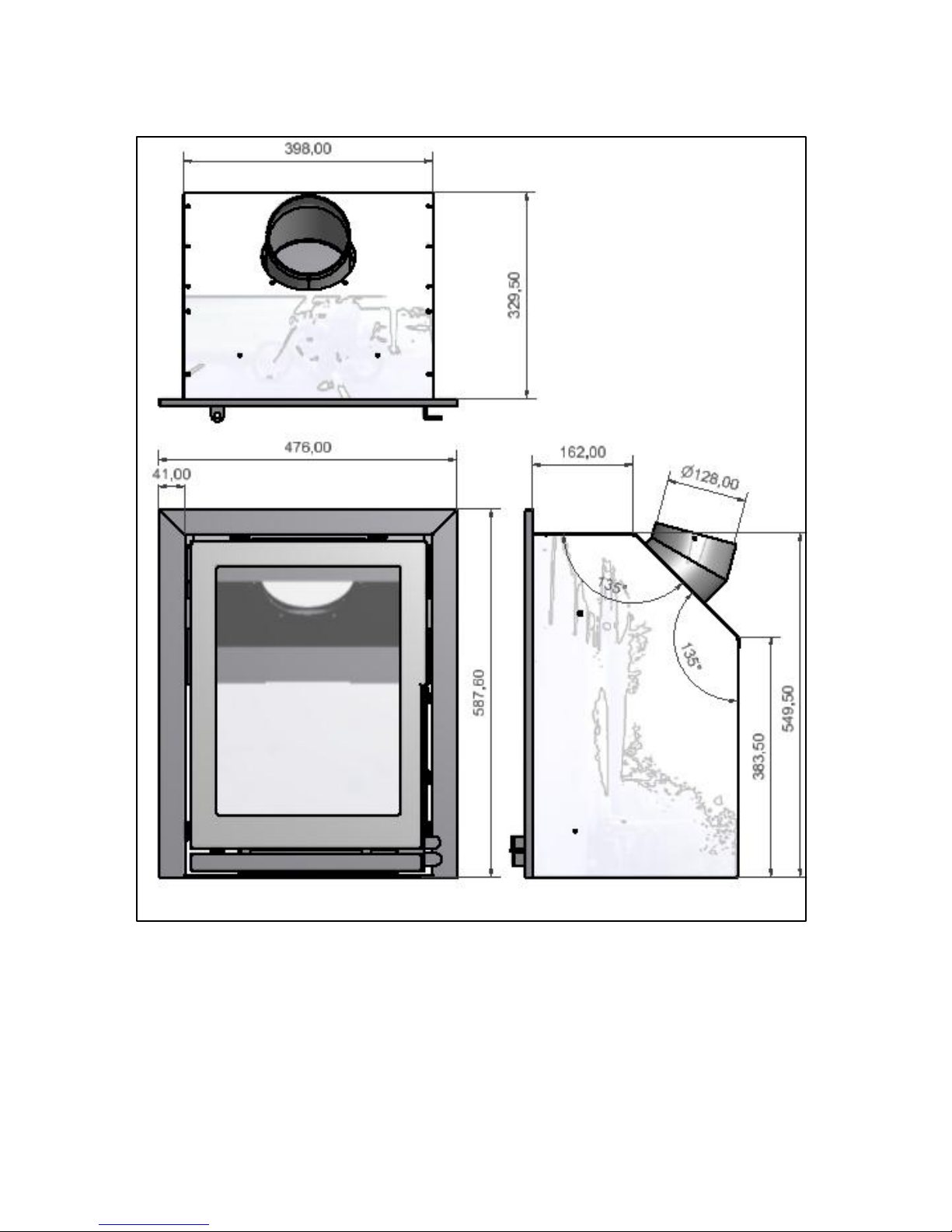

TECHNICAL SPECIFICATION 14

INSTALLATION INSTRUCTIONS 21

COMMISSIONING 24

MAINTENANCE and SERVICING 25

SPARE PARTS 26

WARRANTY 27

3

Dear Client,

Congratulations on your new stove, which will be a comfortable source of heat to enjoy for many years
on end.

When designing this fireplace we took particular care regarding the ease of use, the operational safety
and the design. The Marvic is developed and produced at our own factory in Netterden (the
Netherlands) and is designed with the technical assistance of ACR heat products ltd Birmingham UK
and for the greater part handmade. Only the best materials are used for the construction and comply
with current international standards. This will guarantee that your stove has a long life.

The first part of this user’s guide gives you tips and directions about how to use your stove correctly
and safely. The second part of the manual contains the installation instructions and the technical
specifications of the Marvic. They are of particular importance to the installer.

We advise you to read this manual thoroughly before using your new stove and to keep the manual in
a handy place. Your installer may need the manual for the yearly maintenance of your fireplace.

We wish you much warmth with your new fireplace!

The WANDERS team

4

APPLIANCE COMMISSIONING CHECKLIST

Dealer appliance was purchased from

Name:

Address:

Telephone number:

Essential Information

-

MUST be completed

Date installed:

Model Description:

Serial number:

Installation Engineer

Company name:

Address:

Telephone number:

Commissioning Checks (to be completed and signed)

Is flue system correct for the appliance yes no

Flue swept and soundness test complete yes no

Smoke test completed on installed appliance yes no

Spillage test completed yes no

Use of appliance and operation of controls explained yes no

Clearance to combustible materials checked yes no

Instruction book handed to customer yes no

Signature: name:

5

General points

1: Before installation and/or use of this appliance please read these instructions fully and
carefully to ensure that you have fully understood their requirements.

2: The appliance must be fitted by a registered installer, or approved by your local building
control officer.

3: All local regulations, including those referring to national and European Standards need to
be complied with when installing the appliance.

4: Only use for domestic heating in accordance with these operating instructions.

5: You must burn only approved fuels. Do not use with liquid fuels or as an incinerator.

6: Appliance surfaces become very hot when in use. Use a suitable fireguard if young children,
elderly or infirm persons are present.

7:Do not place combustible items on the wall or near the appliance. Exposure to hot
temperatures will cause damage. Do not place furniture or other items such as drying clothing
closer than 1m from the front of this appliance.

8: Extractor fans or cooker hoods must not be placed in the same room or space as this can
cause appliance to emit fumes into the room.

9: Do not obstruct inside or outside ventilation required for the safe use of this appliance.

10: Do not make unauthorized changes to the appliance.

11: The chimney must be swept at least once a year.

12: Do not connect, or share, the same flue or chimney system with another appliance.

13: it is important to follow these instructions in order to achieve clean burning and to
maximize the efficiency from the stove.

14: You must burn only approved fuels. Do not use with liquid fuels or as an incinerator.

15:The Marvic is capable of intermittent burning

6

User instructions

1: Primary Air - burns the fuel under the fuel
bed. For use with solid fuel and initially with
wood fires.

Push in to close pull out to open

O=open

C=closed

2: Air wash - air drawn over the window
cleans the glass. The source of Primary
Combustion air when burning wood.

Push in to open pull out to close

Door handle

Use a protected gloved hand to operate.

To open the door:

1: Pull the lower portion of the handle

To close the door:

2: Hold the handle in the open position and
push the door to the closed position

3: Rotate the handle to the vertical position

C

O

O

C

7

warning

Properly installed, operated and maintained this appliance will not emit fumes into the room.

Occasional fumes from de-ashing and refueling may occur.

Persistent fume emission is potentially dangerous and must not be tolerated.

If fume emission does persist:

• Open doors and windows to ventilate the room

• Allow fire to burn out or safely dispose of fuel from the appliance

• Check for chimney blockage and clean if required

• Do not attempt to relight until the cause of the emission has been identified and corrected

If necessary seek expert advice.

• All open flue appliances can be affected by temporary atmospheric conditions which may allow
fumes to enter the house. Because of this it is recommended that an electronic carbon monoxide
detector conforming to BSEN50291 be fitted and maintained.

First time use

1: To allow the appliance to settle, and fixing glues and paint to fully cure, operate the appliance at
alow temperature for first few days.

2: Do not touch the paint during the first period of use.

3: During this time the appliance may give off some unpleasant odours. Keep the room well ventilated
to avoid a build-up of fumes.

Wood Logs

Burn only seasoned timber with a moisture content of less than 20% and a length of 250mm. To
ensure this allow cut wood to dry for 12 to 18 months.

Poor quality timber:

Causes low combustion efficiency

Produces harmful condensation

Reduces effectiveness of the air wash and life of the appliance

Do not burn construction timber, painted, impregnated / treated wood, manufactured board
products or pallet wood.

8

Solid fuel

To burn smokeless fuels it is required to fit a multi fuel kit.

This is fitted by replacing the parts on the bottom of the combustion chamber in the order shown.

Burn only anthracite or manufactured briquette smokeless fuels listed as suitable for use with
closed heating appliances

Do not burn bituminous coal, ‘petro-coke’ or other petroleum based fuels as this will invalidate
the product guarantee.

9

Lighting the appliance

For best results set air controls
primary air open and air wash
completely open

Place firelighters and two hands full
of dry kindling wood on the grade
Light the firelighters,

Leave the door slightly open as the
fire establishes and the glass warms
to avoid buildup of condensation.

after several minutes the fire bed is

dying back at this point you place
lager pieces of wood on the fire approximately 1 kg leave the air controls unaltered when
these logs are well alight place two more logs onto the fire approximately 1,4 kg the air
controls and the door being in the same position as before after about 20 minutes from the
start close the door and primary air control.

Do not overload the fire ensure that the top of the logs are no higher than and do not obstruct
the rear holes

Close the door do not leave the door open as this could over-fire and damage the appliance.

Refueling

after refueling set the door on the
latch but not closed. the primary
air set fully open and the
secondary air set in the required
position after 5 minutes when the
logs are burning well close the
door and the primary air supply.

You can close the grate by using the tool that is supplied with the stove

Close the Primary air control and use the Air wash to control the burn rate when appliance is at
operating temperature,

Wood burns best on a bed of ash.

Burn new logs at high output for a few minutes before adjusting the Air wash control. Refuel little and

often for clean, burning.

When in use, burning the appliance at high output for a short period also reduces tars and soot.
