Faux

Tape Echo

Ever since the first incarnate of the Faux Tape Echo hit the stores in around 2008, it’s
been well known for it’s purity of tone, depth of effect and - dare I say it - sheer beauty
of tone. The secret to the Faux Tape Echo then, and now, is the purity of the signal path.
Your original tone does not go through the digital converters, it stays pure - all the way,
all the time. We separate the signal and the only the repeats are converted, and they are
worked at the highest standard possible, making your tone pure.

To be honest, all of the above wasn’t why most people loved the original FTE. Sure, they
appreciated the core tone, but once they flicked the switch that turned the tap emula­tion on they were simply blown away - let’s be honest here, how many times have you
heard a “tape emulation” that is just a chorus, usually quite a choppy one at that and
thought - ‘nope’. If you are anything like me, many many many times. The tape emula­tion on the FTE is organic, it’s not predictable, it’s not a chorus. The way it moves just
makes it sound like an old tape echo that’s seen better days - you know the type, the
ones that sound perfect!

Several years and two complete reworks later, the Faux Tape Echo STILL sports that
beautiful through tone, the amazingly deep repeats, THAT tape emulation and a couple
of new features designed to make your life that much easier.

We added a Tap Tempo, we also added about 200ms to the delay time (making it around
800ms now), top jacks to make sure your pedal board can be jam packed with as many
tone machines you want, soft switches for the ultimate in durability and most recently ­sub divisions on the TT. You can set it to be 1/4 notes, 1/8 notes, dotted 8ths and even
triplets... v2 of the FTE is the ultimate delay pedal, there are no wasted algoryhtms
giving you endless stuff you will never use, everything is poured into one thing and one
thing only. Great tone - there’s no reverse ice reflecting cavern multi tap nonsense here!

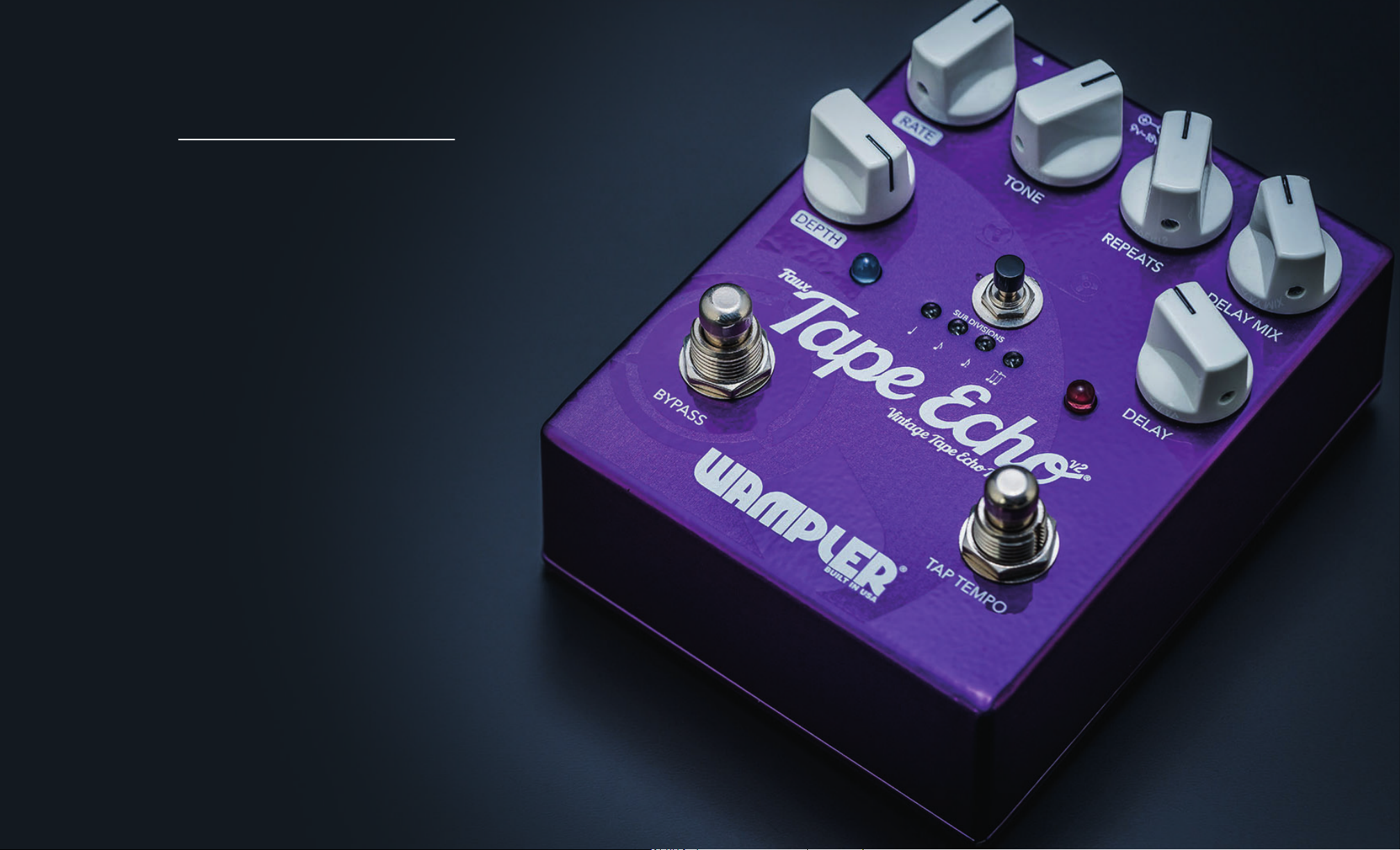

To get the most out of your new pedal, you'll want to become very familiar with the
controls. The new Faux Tape Echo features Depth, Rate, Tone, Repeats, Delay Mix and
Delay controls - in addition to a Tap Tempo footswitch located on the bottom right which
overrides the Delay control as long as the pedal is powered. There is also the sub
division selector switch to control how the delay come back to you in relation to the
tempo that has either been selected via the knob or tap tempo.

Bypass – A relay based true-bypass footswitch thatensures that your signal is unaffected when bypassed.

Delay Mix – Controls the level of the delayed signal. At low settings, this can be quite subtle, and it is strongly interactive with

the Tone and Repeats controls. Where it begins to equal or even overtake the dry signal depends on how loud your guitar's
output is, but it has a very thorough range of adjustment which allows you to dial in precisely how much wet signal you want.

Repeats – This controls the level of feedback into the delay line. Up to a certain point, which depends on other factors (where
the Tone knob is set, and how hot your guitar's output is among them), this will just mean more repeats. However, dialed in
high enough for your particular setup, you can get very pleasing oscillation, or feedback that continues on and on once you've
played the initial note. There are a lot of neat sounds that you can achieve with oscillation, from a building swell at higher
Level settings, to an ambient background you can create with lower Mix and Tone settings and Repeats just at the point of
oscillating. This can give you a beautiful undertone to play over that doesn't get in the way of anything. There's a huge range
to be explored on the Repeats knob, and like the Delay Mix control it is setup-dependent as to where the first repeats,
pre-oscillation, oscillation, etc. can be found.

Tone – The Tone knob adjusts the character of the delayed signal, going from a warmer (but still clear), darker tone fully
counterclockwise to a more "pristine" sound with less rounding off of the high frequencies fully clockwise. Useful for dialing in
exactly how you want your delay to sound, nonetheless it will always have a basically analog character to its tone, by design,
without digitally clean repeats, and at longer delay times with the Tone knob set higher, some natural soft distortion on the
end of notes

Delay – This determines the actual delay time itself. At 9 o'clock and before, you have a quick delay, the "slapback" delay
range. At noon, it's about 300-350ms or so, a common limit for some classic analog delays. Past noon, you have up to around
600ms of delay available. Note, the fidelity of the signal will decrease and the amount of soft distortion of the end of notes
will increase as you stretch the delay time out farther. It's intended to emulate the behavior of pushed analog/tape delays. It is
also more noticeable with higher Shade knob settings, so you are free to balance it however you'd like.

Tap Tempo – This is the feature so many have been waiting for! The Tap Tempo is a "soft" switch located on the right side of
the pedal. Tapping this will override the delay control and set the time of the repeats

Sub Divisions - This sets the delay pattern in relation to the tempo set by the TT stomp or the delay switch. Play with this, see
what it does - you’ll have a LOT of fun!

Suggested Settings

Right back at ya

Ultimate Solo Enhancer

Rate – This controls how fast the modulation reacts to the signal. The more clockwise you have this the fast it moves.

You better run!!

On the Edge

Depth– This controls how deep the modulation goes. The more clockwise you go, the ‘deeper’ the effect goes. These two
work together, play with them both and see where it leads you!

*if the both controls are all the way counterclockwise the modulation effect will be ‘bypassed’.

WAMPLER Pedals Limited Warranty. WAMPLER oers a ve (5) year warranty to the original purchaser that this WAMPLER product will be free from defects in material and workmanship. A dated sales receipt will establish coverage under this warranty. This warranty does not cover service or parts to repair damage caused by accident, neglect,
normal cosmetic wear, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures and service, repair or modications to the product, which have not been authorized by WAMPLER. If this product is defective in materials or workmanship as warranted above, your sole remedy shall be repair replacement as provided below.
RETURN PROCEDURES. In the unlikely event that a defect should occur, follow the procedure outlined below. Defective products must be shipped, together with a dated sales receipt, freight pre-paid and insured directly to WAMPLER SERVICE DEPT – 3383 Gage Ave., Huntington Park, CA 90255, USA. A Return Authorization Number must be
obtained from our Customer Service Department prior to shipping the product. Products must be shipped in their original packaging or its equivalent; in any case, the risk of loss or damage in transit is to be borne by the purchaser. The Returns Authorization Number must appear in large print directly below the shipping address. Always include a
brief description of the defect, along with your correct return address and telephone number.
When emailing to inquire about a returned product, always refer to the Return Authorization Number. If WAMPLER determines that the unit was defective in materials or workmanship at any time during the warranty period, WAMPLER has the option or repairing or replacing the product at no additional charge, except as set forth below. All replaced
parts become a property of WAMPLER. Products replaced or repaired under this warranty will be returned via ground shipping within the United States freight prepaid. WAMPLER is not responsible for costs associated with expedited shipping, either to WAMPLER or the return of the product to the customer.
INCIDENTAL OR CONSEQUENTIAL DAMAGE. In no event is WAMPLER liable for any incident or consequential damages arising out of the use or inability of the possibility of such damages, or any other claim by any other party. Some states do not allow the seclusion or limitation of consequential damages, so the above limitation and exclusion may
not apply to you. This warranty gives you specic legal rights and you may also have other rights which may vary from state to state.
FOR YOUR PROTECTION. Please complete the online warranty registration within (10) ten days of the date of purchase so that we may contact you directly in the event of a safety notication issued in accordance with the 1972 Consumer Product Safety Act.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantees that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experience radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s warranty to operate the equipment. CUSTOMER SUPPORT. Our dedicated sta is ready to help you with any warranty or product questions – please email us at [e-mail] or call us on [phone]
Please remember to register your pedal as soon as possible after purchase at the following web page to ensure quicker service if you should ever need to make a warranty claim: www.RegisterYourWamplercom
