WAMBLEE W400, W400EX Users manual

W400

W400EX

Ed. 1.2.0 (US)

1/2016

User's manual

Doc: Wamblee_W400_Users manual (US)

3

4

Warning

This device must only be used in situations of serious, imminent danger.

Deliberate use in a non-emergency situation may lead to prosecution.

Keep the device at least 1 meter away from magnetic sources and any

devices sensitive to magnetic fields.

The technical data, information and illustrations contained in this manual

were believed to be correct at the time of print. Wamblee s.r.l. reserve the

right to change specifications and other information contained in this

manual as part of our continual improvement process.

No part of this manual may be reproduced, stored in a retrieval system or

transmitted in any form, electronic or otherwise, without the prior

permission of Wamblee s.r.l..

No liability can be accepted for any inaccuracies or omissions in this

manual.

WamBlee is a registered trademarks of WamBlee s.r.l.

5

6

EN

Introduction

Congratulations and thank you for purchasing the W400/W400EX

MSLD, one of the most high-tech, reliable devices available on the market.

The W400/W400EX, when activated, is capable of transmitting a
radio signal at a frequency of 121.5 MHz, useful for locating people who
are missing at sea.

As the owner of this radio device you are advised to:

 Read this manual.

 Activate your W400/W400EX ONLY in the event of an emergency.

 Prepare and check an emergency plan.

 Do not activate your W400/W400EX to check whether it is

working properly: follow the test procedures described in this

manual.

.

This product has been evaluated for compliance with the FCC RF
exposure limits given in CFR 47 part 1.1307(b) at a distance of greater
than 7 cm.

7

EN

8

EN

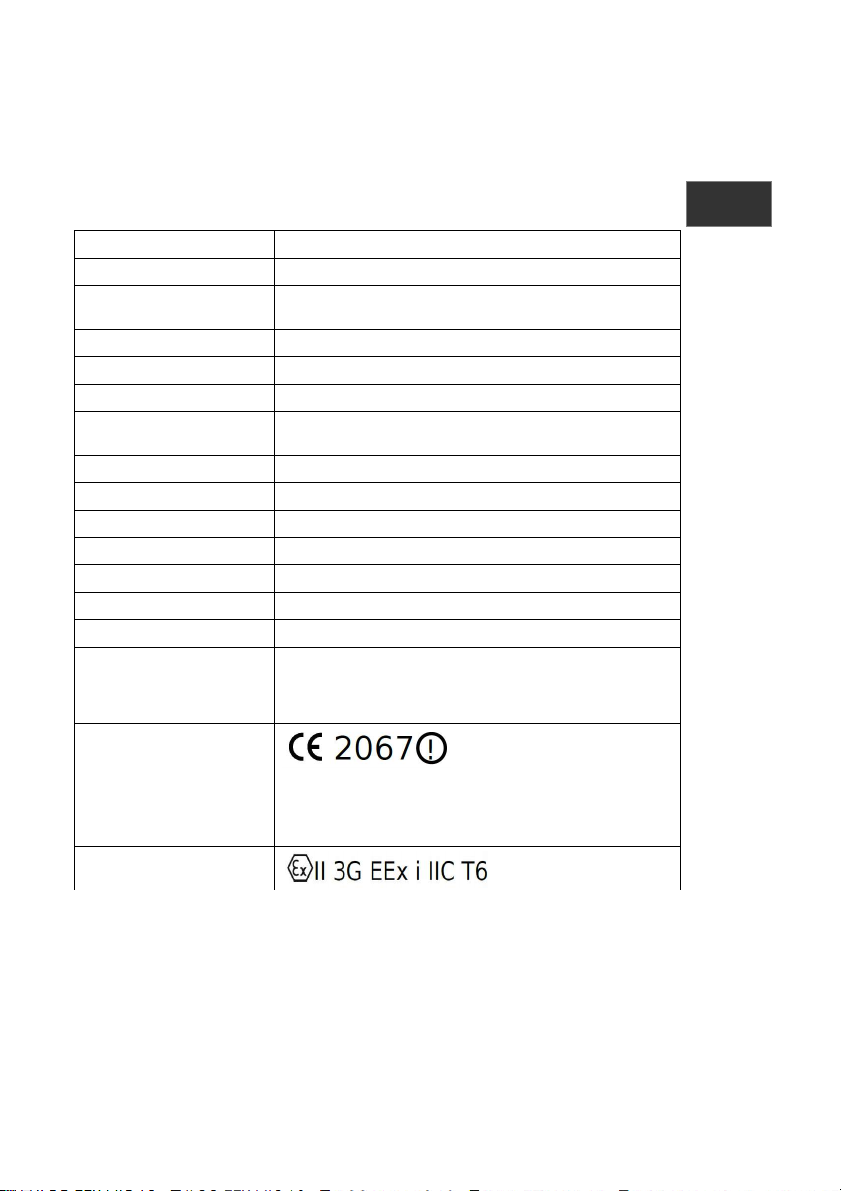

Technical specifications

Emission frequency 121.5 MHz

Test frequency 121.5 MHz (with low power emission)

Emission power +20 dBm typ. (> +14 dBm, < +23 dBm)

< -23 dBm during test procedure

Modulation A3X

Modulation tone Dropping from 1500 to 400 Hz, twice a second

Light signaling white LED, 70 mS flash repeated 20 times/minute

Antenna Flexible wipe antenna with silicone rubber protective

sheath

Duration of operation > 6 hours at -20 °C

Operating temperature from -20 C to +55 C

Stowage temperature from -20 C to +70 C

Power supply 3 primary batteries LiMnO2 2/3AA (3 x 3 Volts)

Battery replacement 5 year from installation.

Dimensions 65 x 125 x 25 mm (antenna excluded)

Weight 200 g

Standard applied and
compliance

RTCM 11901.1 + Addendum 1&2
EN60945
ETSI EN 300 152-1, -2 & -3
ITU-R M.690-1

Approval

FCC ID : XLK-W400

ATEX approval
(for W400EX version)

9

EN

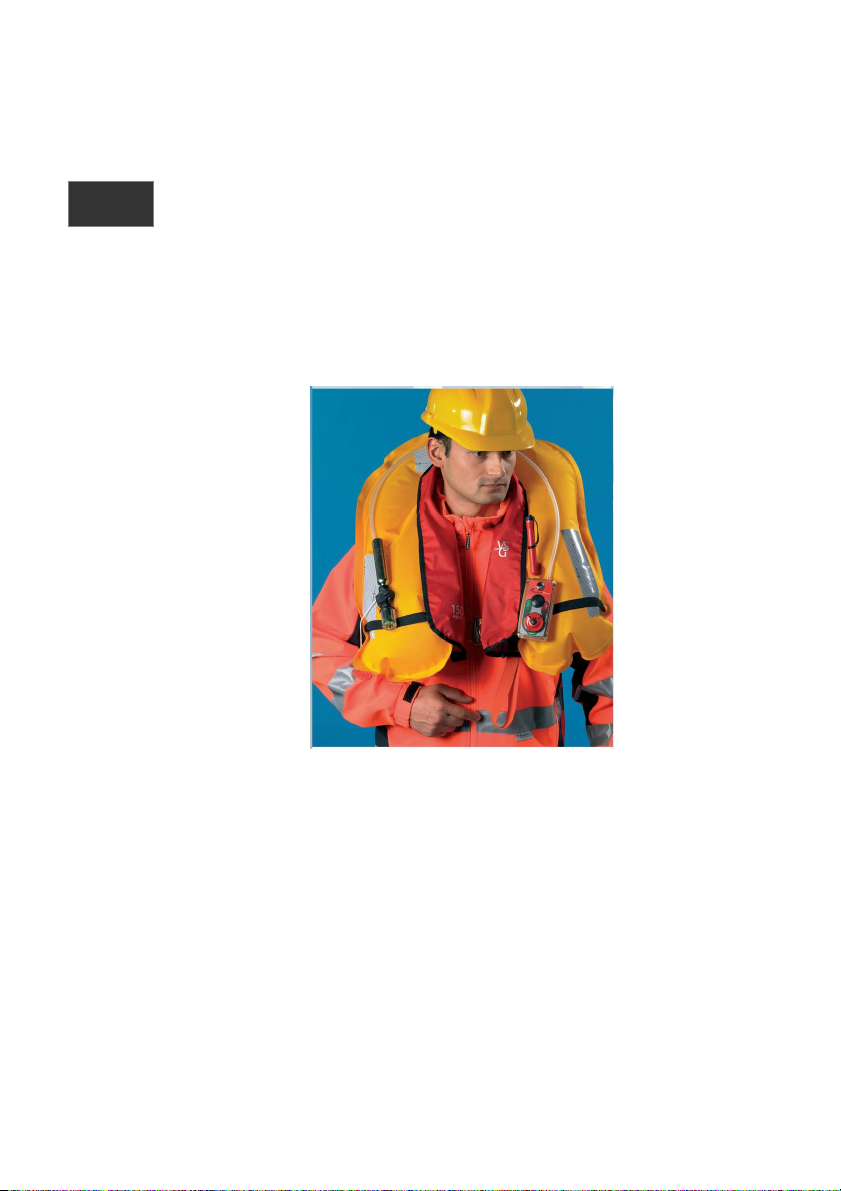

Installation

The W400/W400EX device has been designed to be worn by the user.

The device can be installed directly on lifejacket using the mounting
bracket and adhesive sticker to fix the antenna. The use of the MSLD unit
with the antenna around the neck or close to the body, dramatically
reduce the coverage area and is not recommended.

For this type of installation please consult the life jacket manufacturer of
our representative Dealer.

10

EN

Operation

Before wearing the device it is recommended that you proceed with a test
of your W400/W400EX MSLD to ensure it is working properly; test
procedures are described in the 'Functional Test’ section of the manual.

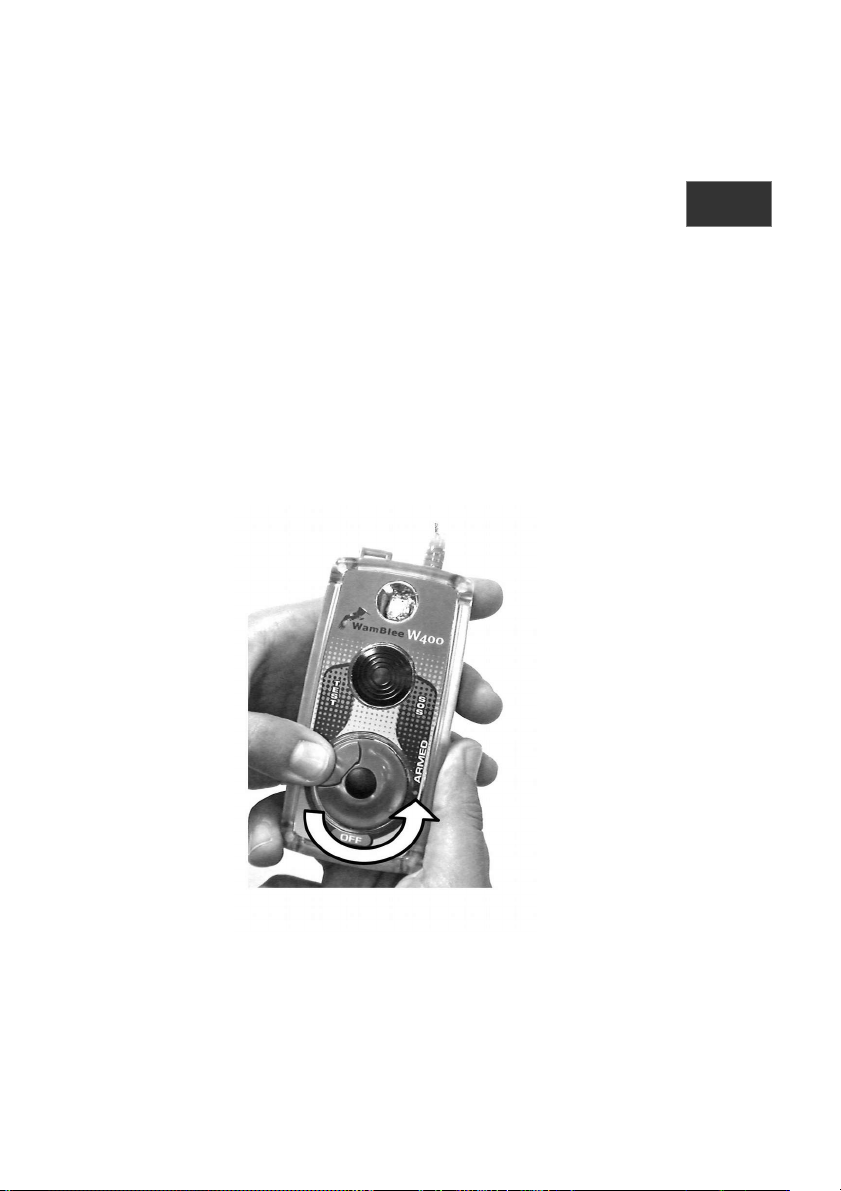

How to “arm” your W400/W400EX MSLD

To ensure your device is ready for activation the knob (1) must be set to
the 'ARMED' position.

Press the push button (2) inwards to release the safety lock. Then, keeping
the push button pressed, rotate the knob anticlockwise until it reaches the
'ARMED' position, then release the push button (2).

Your W400/W400EX is ready to be activated in the event of an emergency.

11

EN

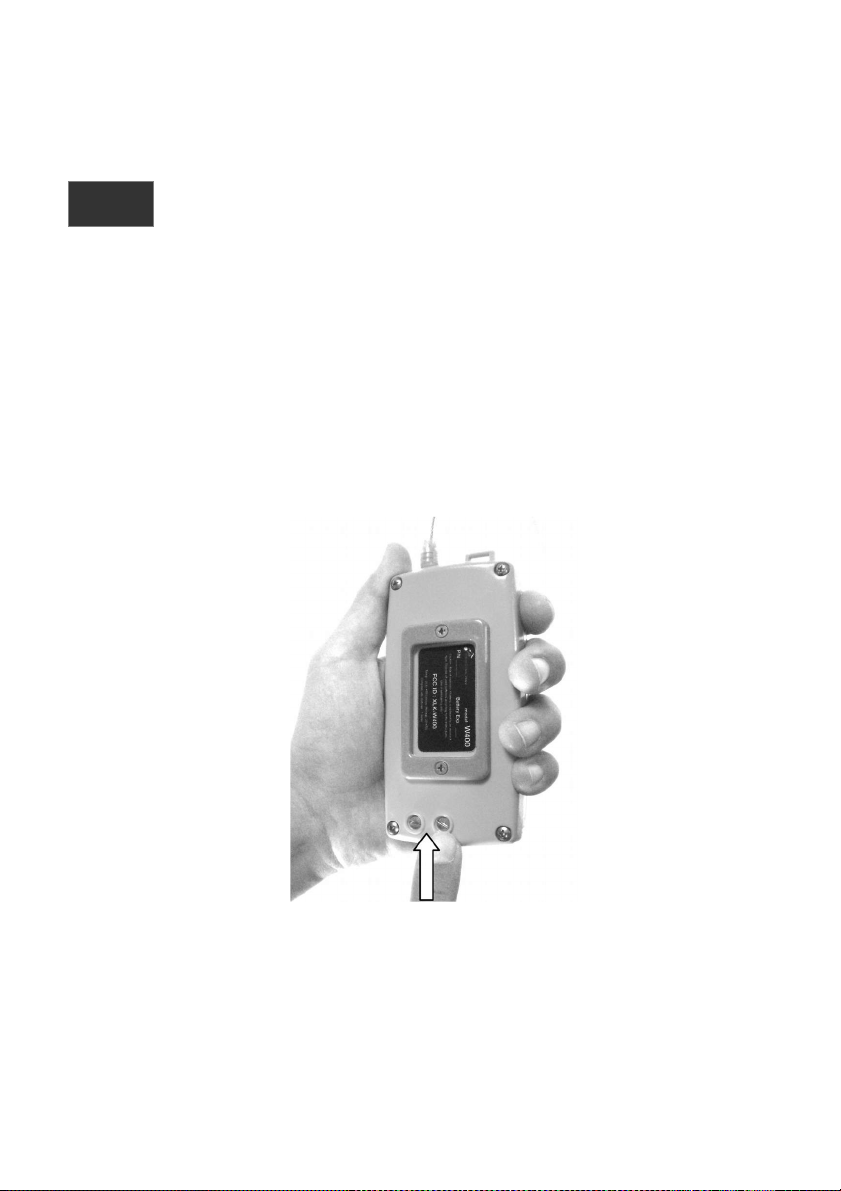

Automatic activation

If your device accidentally falls in the water it will, on coming into contact
with the water, start working within approximately 5-10 seconds. The
‘water contact’ sensors are located on the rear of your device (3) and must
be externally accessible; keeping your W400/W400EX in a waterproof
pocket or a zone inaccessible to water will prevent its activation.

Activation of your W400/W400EX MSLD will be indicated by:

 A red light inside the flash lens (4)

 A beep emitted twice a second

 A white light flashing once every 3 seconds.

During this stage a radio signal will be emitted to aid localisation of the
person in need of rescue.

12

EN

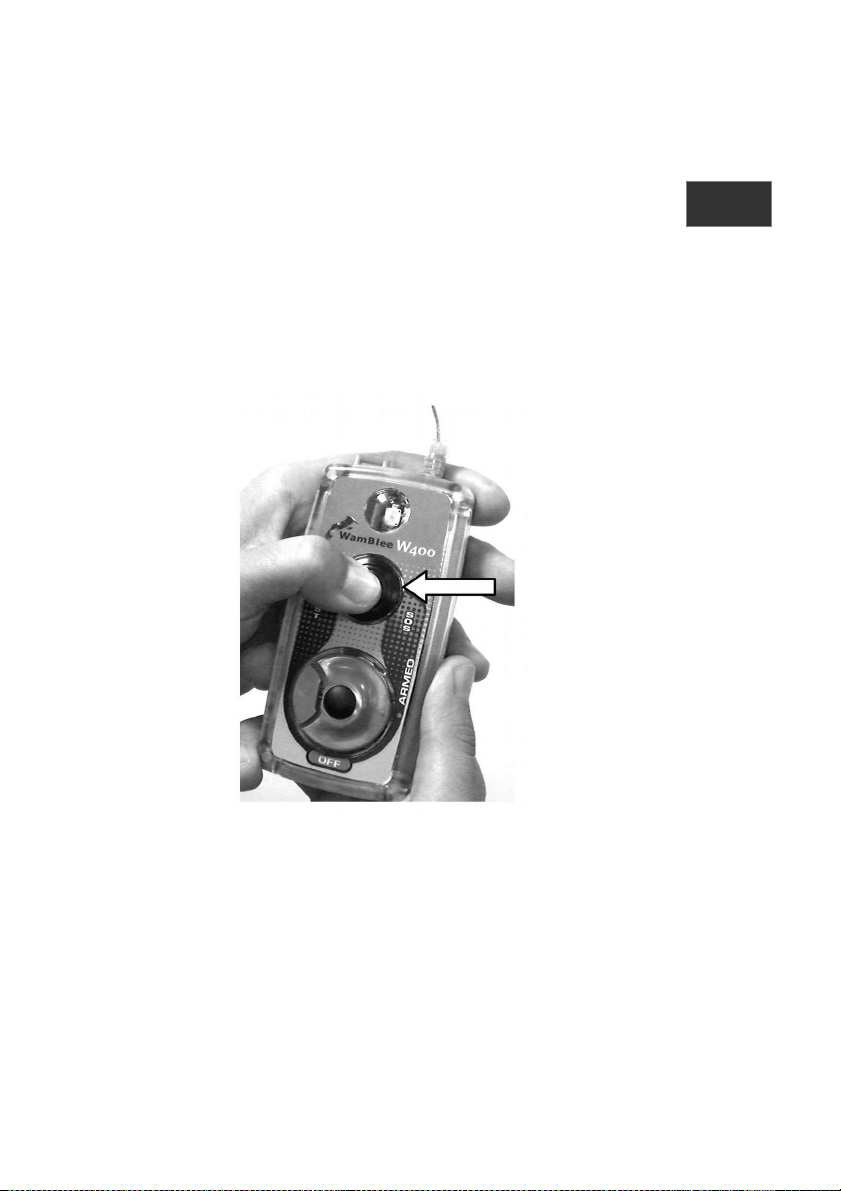

Manual activation

Should your W400/W400EX MSLD fail to activate automatically you can
proceed with manual activation. After checking that the knob (1) is in the
'ARMED' position, press the 'Test/Activation' push button (5). Once pressed
your W400/W400EX device will be activated the same way as it is in
automatic mode.

13

EN

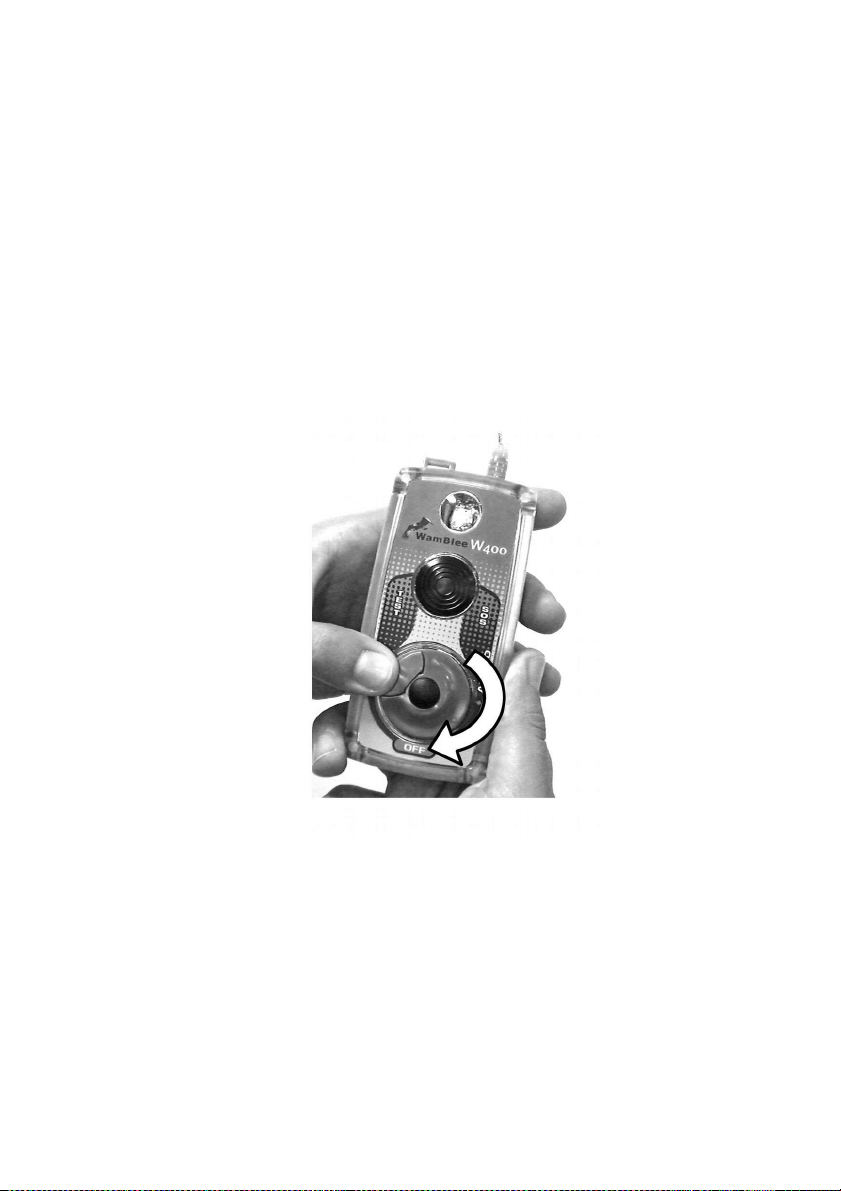

Deactivation

To turning off your W400/W400EX it is necessary to rotate the knob (1)
clockwise, repositioning it to 'OFF'.

Press the push button (2) inwards to release the safety lock and then,
continuing to hold the push button down, rotate the knob clockwise until
the 'OFF' position is reached, then release the push button (2).

The device will be deactivated and stop emitting radio signals.

14

Preventing accidental activation

To avoid accidental activation of your product, we recommend:

• When not in use, store it in a dry environment

• When not in use, make sure the knob (1) is positioned in OFF

• In the case of obvious malfunctions, if possible remove the

batteries

In case of accidental activation

In the case of accidental activation involving transmission of a 121.5 MHz
signal, the user should deactivate the W400/W400EX MSLD and notify the
appropriate search and rescue authorities (e.g., U.S. Coast Guard or
Rescue Coordination Centre serving the geographic area) at the earliest
possible time.

Periodic checks and maintenance

Our W400/W400EX MSLD does not require special maintenance, it is only
necessary to make a visual check (checking the integrity of the plastic
case) every time you proceed with a periodic test or if there is a doubt
about a possible plastic case damage and make a periodically functional
check.

Compliance with the rules of test of safety devices operating at 121.5 MHz,
the self test should be performed only within the first 5 minutes of any
hour.
Make sure the knob (1) is in the 'OFF' position, then press the
'Test/Activation’ push button (5) and release it.

The check, which lasts about 12 seconds, observes the following sequence:

 The red indicator light inside the flash lens (4) comes on.

 The green battery charge status light inside the flash lens (4)

comes on.

 Flashing of the white flash

15

 A series of beeps in rapid succession indicating battery charge

status.

 Once the check has been run all the indicator lights go out.

Device status Green indicator Beeps

Battery charged On 4 rapid beeps

Battery almost charged On 3 rapid beeps

Battery almost flat On 2 rapid beeps

Battery needs changing Flashing 1 rapid beep

16

Changing the batteries

The supplied batteries must be changed 5 years after their installation.
Batteries must only be of the specific models approved by WamBlee; of

unapproved models may involve the malfunction or breakdown of
the device .

To change the batteries proceed as follows:

 Make sure the knob (1) is in the 'OFF' position.

 Use a suitable Phillips screwdriver to remove the 4 screws on the

underside edges of the device (6).

 Remove the upper part of the case; if necessary tap the edge

gently.

 Remove the three old batteries (8) and replace them with three

new ones. Make sure they are installed the right way round

(positive pole facing top of device).

 Press the push button (7) and check the test sequence as

described in 'Periodic checks’.

 Re-close the upper lid, making sure the seal is inserted in its seat

correctly and is not damaged. If you notice that the seal is

damaged or see any infiltration of foreign matters inside the

device replace the seal.

 Screw the 4 underside edge screws back in; tighten properly but

not excessively.

The batteries should be disposed of properly and not thrown in the
household trash. Check with authorized operators on proper disposal of
used batteries indicating the chemical (Li-MnO2).

17

Approved batteries

The batteries approved for your device unit are, at the time this handbook
going to press, the following:

 VARTA CR2/3AH

 Duracell CR123A, DL123A

Please note that the new battery cell/pack shall be new or maximum not
more of 2 Years old from date of manufacturing.

This list is continuously updated and can be consulted on the following
website www.wamblee.it

Shipping

Within the delivery of the device, remove the internal batteries (see
'Changing the batteries') and ship the unit without the batteries using the
original container or alternatively a carton after the apparatus with
appropriately wrapped airball or bubblewrap.

Troubleshooting

Should the device fail to pass the periodic check it will be necessary to
send your W400/W400EX to our after-sales service, which will restore
proper performance.

A list of after-sales centres authorised to carry out maintenance on your
device can be consulted on our website:

www.wamblee.it

18

Warranty

Your unit is covered by a 5 year parts and labor warranty. (battery
excluded). Wamblee s.r.l. warrants to the purchaser that the products
conform to manufacturers specifications and that the products are free of
defects on materials and workmanship for a period of one year from the
date delivered to the customer/end user. In the event of a defect,
due to faulty material, design or construction, the customer will
return to Wamblee at the business address were we, or the
manufacturer will undertake, at our choice, a repair or replacement.

Warranty covers all parts, materials and labor, provided that the product is
returned to our works. Exclusions: damage caused by other than normal
use and lack of basic, general care carried out in accordance with the
instruction manuals.

Wamblee s.r.l. does not accept any responsibility or any claim for direct or
indirect consequences of defects of the equipment, either during the
guarantee period or at a later stage.

Disclaimer

The Wamblee products are an aid to recovery only, it is the
responsibility of the user/operator to ensure they are fully conversant
with the operation of the equipment and the equipment is kept in full
working order at all times combined with functionality and damage checks
before and after each use.

Wamblee does not accept liability for loss of life or injury caused during
any accident during which the equipment is being used, how so ever it
arises. Wamblee Alerting Units/MSLDs are an ‘Aid to rescue only’, they do
not guarantee your safety.

The Wamblee MSLDs will dramatically increase the chances of detection
and location of a Man Over Board. Personal safety remains at all times the
sole responsibility of the individual. It is the responsibility of the
individual to inform their local Coast Guard, their senior
personnel/crew members and or family of their intended
location/destination and estimated duration of journey. It is also the
responsibility of the individual to notify these people of the type of
safety equipment they will be carrying. In the case of accidental activation
the user should deactivate the unit and notify the appropriate Search And
Rescue Authority.

19

Wamblee s.r.l.

Via Vittori 19 – 48018 FAENZA (RA) ITALY

Tel. [phone] / Fax [phone] / email:[email protected]

Made in Italy

20
