Walther Colt M4 Instruction Manual

SAFETY AND OPERATING INSTRUCTIONS

USAFront Sight

M4 / M16

Self loading rifle
Cal. .22L.R.

Handguards

Muzzle

Handguards

Rear Receiver PinCompensator

Carry Handle

Ejection Port Cover

Magazine

GripTrigger Buttstock Latch

Buttstock

Safety

Charging Handle

Upper Receiver

Lower Receiver

Rear Sight

Magazine Release

Trigger Guard READ THE INSTRUCTIONS

AND WARNINGS IN THIS

MANUAL CAREFULLY BEFORE USING THIS FIREARM.

!

WARNING:

MADE BY CARL WALTHER

2

CONTENTS

No. Contents Page

Identification 1

Safety Rules 3 - 11

1

Safety Operating Instructions 12

2

Inspection 13

3

Loading the Firearm 14

4

Insertion of the first Cartridge 14 - 15

5

Firing 15

6

Decocking the Hammer 15-16

7

Firearm with empty Magazine 16

8

Unloading 16

9

Clearing Misfires 17

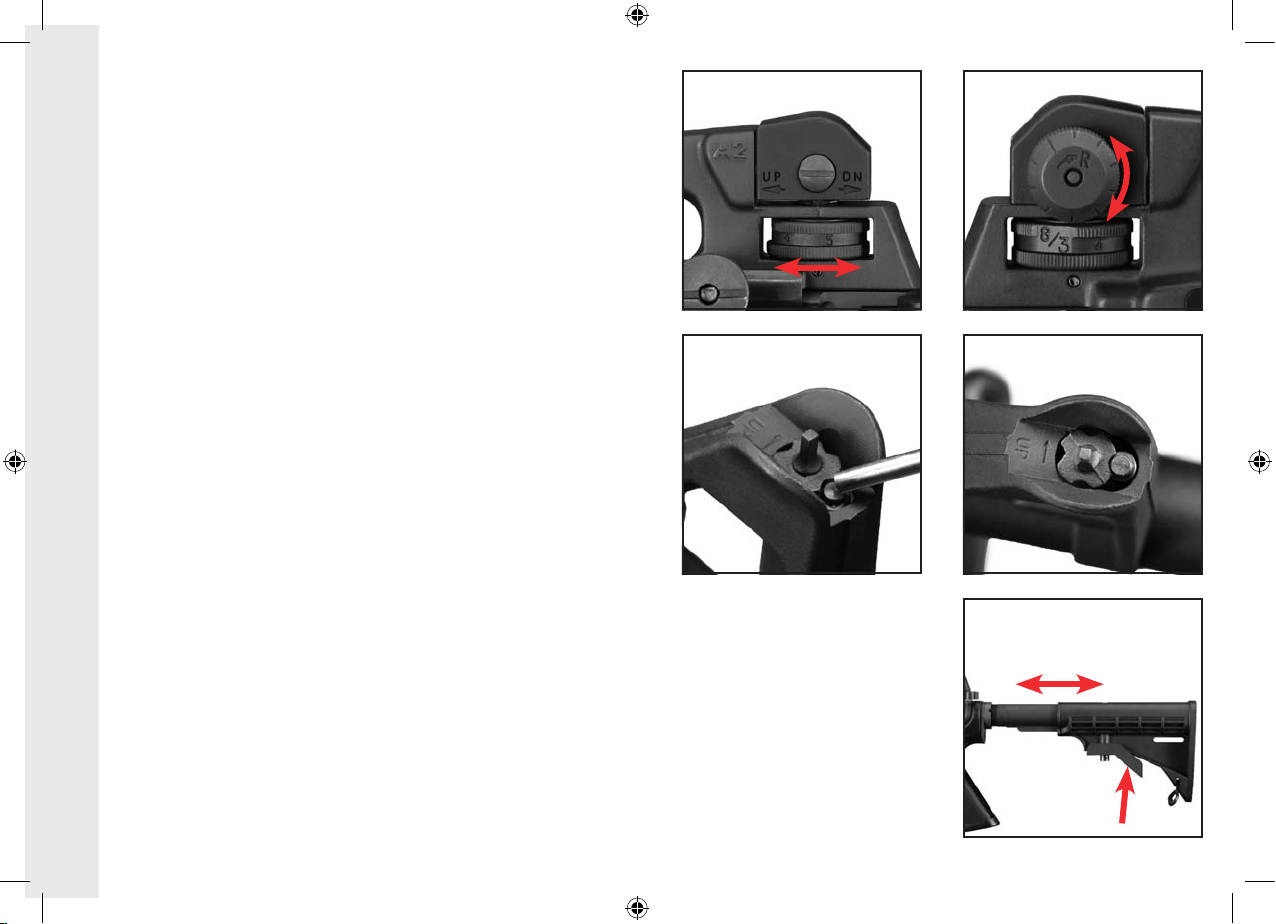

10 Settings - Sights, Stock, Bolt Speed 17 - 19

11 Mounting a telescopic Sight 19

12

Field stripping the Firearm 19 - 20

13

Cleaning 20

14 Storage 20

15

Repair 21

16 Warranty 21 - 22

17

Technical Data 23

18

Exploded view / Parts 24 - 25

19

Variants / Accessories 26 - 27

Contact back

3

YOUR SAFETY RESPONSIBILITIY

SAFETY IS YOUR NUMBER ONE RESPONSIBILITY!

AT HOME, IN THE FIELD, AT THE RANGE, OR ANYWHERE, THE FIRST CONCERN OF EVERY FIREARM OWNER SHOULD BE SAFETY. APPLY THE
FOLLOWING SAFETY RULES IN EVERY SITUATION, WITH ANY KIND OF FIREARM.

YOU MUST FOLLOW ALL OF THESE SAFETY RULES TO ENSURE THE SAFE USE OF YOUR FIREARM

SAFE GUN HANDLING IS YOUR PERSONAL RESPONSIBILITY!

SAFE USE OF A FIREARM IS YOUR PERSONAL RESPONSIBILITY AND THE FAILURE TO FOLLOW ALL OF THESE BASIC SAFETY RULES MAY
RESULT IN SEVERE PERSONAL INJURY OR DEATH TO YOU OR OTHERS. YOU ARE THE MOST IMPORTANT SAFETY DEVICE WHEN IT COMES TO
THE USE OF YOUR FIREARM. CARL WALTHER GMBH AND UMAREX USA WILL NOT BE RESPONSIBLE FOR ANY PERSONAL INJURY, DEATH OR
PROPERTY DAMAGE THAT RESULTS FROM:
(1) THE CRIMINAL OR NEGLIGENT USE OF THIS FIREARM;
(2) A DISREGARD OF THESE SAFETY INSTRUCTIONS AND WARNINGS;
(3) IMPROPER OR CARELESS HANDLING OF THIS FIREARM;
(4) THE USE OF NON-STANDARD, DEFECTIVE, IMPROPER OR RELOADED AMMUNITION; OR

(5) IMPROPER OR NEGLIGENT MODIFICATIONS OR REPAIR TO THE FIREARM.

YOUR SAFETY RESPONSIBILITY

! !

!

WARNING:

!

WARNING:

!

WARNING:

4

- SAFE GUN HANDLING IS YOUR PERSONAL RESPONSIBILITY at all times.
Firearms are dangerous and can cause serious injury or death if they are misused or used inappropriately. Safety must be the first
consideration of anyone who owns or handles firearms.

- YOU ARE RESPONSIBLE FOR FIREARM SAFETY AT ALL TIMES.
You must undertake full-time responsibility for your firearm`s safety and security. You must protect yourself and all
others against injury or death from misuse of the firearm

- SAFE FIREARM STORAGE IS YOUR RESPONSIBILITY.
You must secure firearms safely from children and unauthorized users. A lock has been provided for use with this firearm.
Never assume that the use of this lock is sufficient to safely secure your firearm. You must always evaluate your personal situation and
employ the security system(s) that meet your needs and prevent children and unauthorized user from gaining access to your firearm.

- Accidents are the result of violating the rules of safe gun handling and common sense.

- For your safety and the safety of others, NEVER RELY ON MECHANICAL FEATURES ALONE.
Only your safe gun handling habits will ensure the safe use of the firearm.
This is your responsibility.

- NEVER KEEP AMMUNITION IN THE SAME LOCATION AS THE FIREARM.
Store in a separate and secure place.

- DO NOT ALTER, MODIFY OR REPLACE ANY OF THE PARTS OF THE INTERNAL COMPONENTS OF YOUR

FIREARM

All work must be performed by a qualified gunsmith. If you do otherwise, improper functioning may occur
and serious injury may result.

- NEVER MANIPULATE, ADJUST OR CHANGE ANY OF THE INTERNAL COMPONENTS OF

YOUR FIREARM

including the firing pin, sear, or drawbar. Improper manipulation of any internal component may
affect the safety and reliability of your firearm and may cause serious injury.

YOUR SAFETY RESPONSIBILITIY

5

YOUR SAFETY RESPONSIBILITY

- READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE USING YOUR FIREARM

WARNING: THE FAILURE TO FOLLOW THESE BASIC FIREARM SAFETY RULES MAY RESULT IN AN UNINTENDED DISCHARGE WHICH
COULD CAUSE SERIOUS PERSONAL INJURY OR DEATH TO YOU AND OTHERS.

- BEFORE HANDLING ANY FIREARM, UNDERSTAND ITS OPERATION.
Not all firearms are the same. Familiarize yourself with the mechanical features of any firearm you intend to use. If you
feel uncertain about any operational aspects of your firearm, please contact Umarex USA before proceeding with its operation.

- ALWAYS SAFELY STORE AND SECURE YOUR FIREARM.
Safe and secure storage of your firearm is one of the most important responsibilities of firearm ownership.
It is a full-time responsibility. You must always secure your firearm and ammunition separately so that they are not
accessible to children or other unauthorized persons. (See Safe Storage Instructions in this manual).

- ALWAYS KEEP YOUR FIREARM POINTED IN A SAFE DIRECTION.
Never point at anyone or anything you do not intend to shoot whether or not the firearm is loaded. This is particulary important
when loading, unloading, or field stripping the gun. ALWAYS control the direction of the muzzle.

- NEVER PLACE YOUR FINGER ON THE TRIGGER OR INSIDE THE TRIGGER GUARD UNLESS YOU INTEND TO

FIRE. Ensure that other objects do not touch the trigger.

- ALWAYS BE SURE OF YOUR TARGET AND WHAT IS BEYOND IT.
Always be sure of where the bullet will strike and shoot only where there is a safe backstop free of obstructions, water
or other surfaces which can cause ricochets. Think of what the bullet may hit if it misses the target or ricochets. Do not fire into the sky.

- NEVER DISASSEMBLE YOUR FIREARM OR MANIPULATE THE INTERNAL COMPONENTS OF YOUR FIREARM

beyond the field stripping procedure outlined in this manual. Improper disassembly or manipulation of your

firearm may be dangerous and can lead to serious injury or death.

- NEVER CARRY OR STORE A FIREARM with the hammer or striker in the cocked position.

- NEVER ALLOW YOUR FIREARM TO BE USED BY INDIVIDUALS WHO HAVE NOT READ OR DO NOT UNDERSTAND THESE FIREARM

SAFETY RULES

6

- BE SURE ALL ACCESSORIES, SUCH AS HOLSTERS AND GRIPS, ARE COMPATIBLE
with the firearm and that the accessories do not interfere with the safe operation.

- ALWAYS USE THE CORRECT AMMUNITION FOR YOUR PARTICULAR FIREARM
as indicated by the marking on the barrel or receiver. Never use non-standard, reloaded, or “handloaded” ammunition which has
not been subjected to internal ballistic pressure testing.

- ALWAYS HAVE ADEQUATE VENTILATION.
Discharging firearms in poorly ventilated areas, cleaning firearms, or handling ammunition may result in exposure to lead
and other substances known to cause birth defects, reproductive harm, and other serious physical injury. Review the
warning and labels for all ammunition and cleaning products carefully.

- NEVER USE ALCOHOL OR DRUGS BEFORE OR WHILE SHOOTING.
Do not use your firearm if you are on any medication which impairs, even slightly, your mental physical ability.

- ALWAYS WEAR EYE AND HEARING PROTECTION SPECIFIED FOR FIREARM USE
every time you discharge your firearm. Make sure others in the vicinity of where you will be shooting wear protection as well.

- NEVER ALLOW ANY ALTERATION OR REPLACEMENT OF PARTS IN YOUR FIREARM UNLESS

PERFORMED BY A QUALIFIED GUNSMITH.

If you do otherwise, improper functioning of your firearm may occur and serious injury or
death may result.

- NEVER CROSS OBSTACLES SUCH AS FENCES OR STREAMS WITH A LOADED FIREARM.

- Firearm safety training is available. Contact your dealer, law enforcement agency, local sportman`s club, or the NRA for availability.

- APPROPRIATE USE FOR YOUR FIREARM MEANS USING YOUR FIREARM FOR LEGAL PURPOSES.

YOUR SAFETY RESPONSIBILITIY

7

YOUR SAFETY RESPONSIBILITY

SAFE STORAGE & TRANSPORTATION

!

WARNING:

SAFE AND SECURE STORAGE OF YOUR FIREARM IS ONE OF THE
MOST IMPORTANT RULES OF FIREARM SAFETY. YOUR FAILURE TO FOLLOW
THESE RULES MAY RESULT IN SERIOUS INJURY OR DEATH TO YOU OR OTHERS.

- You must always secure your firearm and ammunition separately so that they are not
accessible to children or other unauthorized persons.

- Safe and secure storage and transportation of your firearm is your responsibility.
It is a full-time responsibility.

- YOU SHOULD ALWAYS SECURE YOUR FIREARM IN A MANNER THAT WILL

PREVENT UNAUTHORIZED ACCESS. ALWAYS STORE YOUR FIREARM
UNLOADED.

Your firearm and ammunition should be stored separately and in a manner
inaccessible to children and unauthorized persons.

- ALWAYS MAKE CERTAIN THAT YOUR FIREARM IS SAFELY SECURED IN A MANNER SO AS TO PREVENT

UNAUTHORIZED ACCESS TO THE FIREARM. CARL WALTHER HAS PROVIDED A LOCK FOR THIS PURPOSE.

Please read and follow the instructions for the use of this lock. There are other alternative locks and
safe storage containers available in the marketplace which may be appropriate for your particular needs.
Consult your local gunshop, hardware store or local police department for guidance on the variety of other safe storage
devices or practices which may be appropriate for your particular needs. By purchasing this firearm you have taken
on the responsibility of safely securing the firearm at all times and preventing its unauthorized use. Never assume that
the use of only a lock is sufficient to safely secure your firearm. It is your personal responsibility to select and use
whatever measure or practices that will best enable you to be absolutely certain that your firearm is secure at all times.

You are responsible to determine witch devices or practices are appropriate

for the safe storage of your firearm and your ammunition.

8

NEVER LOCK A LOADED FIREARM AND NEVER LOAD A LOCKED FIREARM

- NEVER ASSUME THAT A ``HIDING`` PLACE IS A SECURE STORAGE METHOD.
Others may be aware of your storage location or come upon it by chance. It is your personal responsibility to use common sense when
storing and securing your firearm and ammunition and to always make sure that it is not accessible to children or other unauthorized
persons. Always make sure your firearm is unloaded before storing.

- ALWAYS FOLLOW THE LAW!!
You must be familiar with all local, state, and federal laws regarding the safe discharge, storage and transportation of your firearm.
Failure to know and follow the law may result in unauthorized access or use of your firearm by another. Obey all laws relating to the
storage and transportation of firearms. Your local police department or gunshop will furnish you with available information
on storing and/or transporting a firearm legally.

- NEVER TRANSPORT A LOADED FIREARM.
When transporting your firearm, be sure it is unloaded and the cylinder or action is open.

- YOUR FIREARM IS YOUR RESPONSIBILITY.
Protect your firearm from theft or misuse by untrained or unqualified individuals.

PREPARATION FOR FIRING

THE FAILURE TO FOLLOW THESE FIREARM SAFETY
REQUIREMENTS WILL CAUSE SERIOUS INJURY OR DEATH TO YOU OR OTHERS.

- ALWAYS WEAR ADEQUATE AND PROPER EAR PROTECTION SPECIFIED

FOR FIREARM USE to prevent permanent damage to your hearing. Make sure others who are nearby are wearing ear protection as well.

- ALWAYS WEAR SAFETY GLASSES SPECIFIED FOR FIREARM USE, whether indoors or out. Safety glasses should protect
your eyes from the firing flash and particles associated with the discharge of ammunition. Failure to do so creates a risk of
personal injury from particle or debris spitting or ricochets.

!

WARNING:

!

WARNING:

YOUR SAFETY RESPONSIBILITIY

9

YOUR SAFETY RESPONSIBILITY

- NEVER SHOOT AT HARD SURFACES, WATER OR UP INTO THE SKY.
Always select a place to shoot that has a safe backstop and is free from obstruction and water surfaces which cause
ricochets.

- ALWAYS BE AWARE OF PEOPLE AROUND YOU so that persons cannot accidentally walk into the line of fire.

- ALWAYS POSITION THE SHOOTER SO THAT ALL OTHERS ARE OUT OF THE LINE OF FIRE
and are not within an area where they may be struck by ricochets, or by ejected cases from other types of firearms.

- ALWAYS KEEP FINGERS AND OTHER PARTS OF YOUR BODY AWAY FROM THE MUZZLE AND AWAY FROM THE FIREARM BOLT AND

EJECTION PORT.

- ALWAYS BE ALERT AND ALWAYS FOLLOW THE SAFETY INSTRUCTIONS OF FIRING RANGE OFFICER.

- ALWAYS BE SURE THAT ALL ACTIONS OF FIREARMS ARE OPEN, THAT CHAMBERS ARE CLEAR

OF AMMUNITION, MAGAZINES ARE REMOVED, AND THE FIREARM IS POINTING IN A SAFE DIRECTION.

- ALWAYS BE ALERT.
Never shoot if you are tired, cold or impaired in any way.

- ALWAYS TREAT YOUR FIREARM AS IF IT WERE LOADED.

- NEVER USE ALCOHOL OR DRUGS BEFORE OR WHILE SHOOTING.

10

AMMUNITION

A GENERAL PRINCIPLES

- There are different types of ammunition for different types of firearms. Your firearm has been designed for ammunition of a specific type
and a specific caliber. It is important to select the proper ammunition for your firearm.

NEVER USE AMMUNITION NOT SPECIFICALLY DESIGNATED FOR USE IN YOUR FIREARM. FAILURE TO USE THE
CORRECT TYPE OR CALIBER OF AMMUNITION MAY CAUSE THE FIREARM TO JAM, FAIL TO FIRE OR EVEN GENERATE EXCESSIVE
PRESSURE WHICH CAN DAMAGE OR EVEN RUPTURE YOUR FIREARM, CAUSING PERSONAL INJURY, DEATH OR PROPERTY DAMAGE.

- You are responsible for selecting ammunition that meets industry standards and is appropriate in type and caliber for
this firearm.

- Locate the caliber designation marked on the left side of the lower receiver. This information indicates the
ammunition caliber that should be used in this firearm.

B HANDLOADED OR RELOADED AMMUNITION

NEVER USE NON-STANDARD, RELOADED OR ``HANDLOADED`` AMMUNITION WHICH HAS NOT BEEN SUBJECTED TO
INTERNAL BALLISTIC PRESSURE TESTING. RELOADED OR HANDLOADED AMMUNITION MAY HAVE MANY MANUFACTURING AND
QUALITY VARIABLES (SUCH AS THE TYPE AND AMOUNT OF GUN POWDER). ANY AMMUNITION THAT IS IMPROPERLY
MANUFACTURED, EVEN IN THE SLIGHTEST DEGREE, MAY FAIL TO FIRE OR MAY GENERATE EXCESSIVE INTERNAL PRESSURES
WHICH CAN DAMAGE OR EVEN RUPTURE THE FIREARM, CAUSING PERSONAL INJURY OR DEATH TO THE SHOOTER OR THOSE
IN THE IMMEDIATE VICINITY.

!

WARNING:

!

WARNING:

YOUR SAFETY RESPONSIBILITIY

11

YOUR SAFETY RESPONSIBILITY

- Use only commercially manufactured ammunition with internal ballistic pressure which
are in strict accordance with the specifications of the Sporting Arms and Ammunition
Manufacturers´ Institute (SAAMI). If you are uncertain, contact your ammunition supplier
for verification.

C AMMUNITION SPECIFICS

- Use only ammunition specifically recommended for your firearm.

- Never mix ammunition.

- Never use a cartridge not specifically designated for use in your firearm.

- Pressure from the wrong type of ammunition may exceed the capability of
your firearm and may damage or even rupture your firearm.

- In some cases, a round of ammunition not specified on your firearm may fit into the chamber. Firing
ammunition not specified on your firearm may cause it to rupture and cause serious injury or death to you or others.

- Always inspect your ammunition before using it. Never use dirty, corroded or damaged ammunition which can lead to a
burst cartridge which may cause damage to the firearm and personal injury or death.

!

WARNING:

.22 L.R. caliber cartridges have a wide range of loads, from very weak for sport shooting and maximum
precision to very powerful for a high projectile velocity. To ensure reliable operation, a semiautomatic firearm must be matched to
a certain cartridge load. For this reason the .22 L.R. Colt M16 / M4 has been designed for high-quality standard ammunition and
HV (High Velocity) ammunition, and one can be sure of trouble-free operation only with these types.

12

OPERATING INSTRUCTIONS

1 Manual Safety

SAFE POSITION - turn the safety lever to the right so the
word “SAFE” is visible (fig. 1).

FIRE POSITION - turn the safety lever to the left so the
word “FIRE” is visible (fig. 2).

On the right side of the firearm you also have an indicator for the
position of the manual safety (fig. 3 and 4).

Always leave the manual safety

engaged (on “SAFE”) until you intend to fire.

!

WARNING:

NEVER RELY SOLELY ON MECHANICAL
FEATURES ALONE - always be extremely careful, use safe gun
handling practices, and avoid situations which could lead to
an accident.

!

WARNING:

!

WARNING:

Always inspect the chamber of your firearm after the magazine has been removed from the gun. Make sure
that no cartridge is left in the chamber.

fig. 4 Manual safety in

“FIRE” position

fig. 3 Manual safety in

“SAFE” position

SAFEFIRE

SAFE

FIRE

fig. 1 Manual safety in

“SAFE” position

fig. 2 Manual safety in

“FIRE” position

SAFE

FIRE

13

INSPECTION

!

WARNING:

Make sure that the firearm is unloaded (chamber cleared, barrel clear of any obstructions, magazine

empty) for inspection and that the safety is in the safe position and the muzzle is pointed in a safe direction.

!

WARNING:

Never put your hand in front of the muzzle.

2 Inspection

Functional Inspection:

1. Bolt movement: Remove the magazine and retract the bolt by pulling back the charging handle. Release the charging handle

to return the bolt fully forward into battery.

2. Bolt catch: Insert the empty magazine, retract the bolt by pulling back the charging handle. The bolt locks back

in rearmost position.

3. Decocking: Make sure that the firearm is unloaded (chamber cleared, barrel clear of any obstructions, magazine empty)!
Make sure the muzzle is pointed in a safe direction. Pull the trigger. The hammer drops in decocked position.

CAUTION:

Make sure that the firearm is unloaded (chamber cleared, barrel clear of any obstructions, magazine empty)!

14

fig. 7

LOADING THE FIREARM

3 Loading the firearm

Press magazine release and remove empty magazine (fig. 5). Use the side-mounted button to push the follo­wer down. Insert the cartridge under the magazine lips, at the same time pushing down the follower (fig. 6).
Do not use excessive force. Insert the loaded magazine until the magazine catch locks it in position (fig. 7).

fig. 5

Make sure that the firearm is unloaded (chamber cleared, barrel clear of
any obstructions, magazine empty) for inspection and that the safety is in the safe position and
the firearm is pointed in a safe direction.

!

WARNING:

fig. 6

4 Loading the chamber with the first cartridge

Pick up the firearm with your shooting hand and point the muzzle in a safe direction. Use your other hand to
retract and release the bolt with the help of the charging handle (fig. 8). Never put your hand in front of the
muzzle. As the bolt travels forward it inserts the first round into the chamber. The hammer is now cocked.
Leave the safety in the safe position until you are ready to fire.

!

WARNING:

Never put your hand in front of the muzzle.

!

WARNING:

Always load a round into the chamber by feeding it from the magazine.
Failure to follow this warning can result in severe injury or death to you or others. Never attempt
to load the firearm by inserting a round into the open ejection port.

15

Colt M4/M16 cal. .22L.R. are designed so that they are able to fire when

the magazine is removed. Therefore, if the magazine is removed from the
firearm and there is a loaded round in the chamber, it will fire if the trigger is pulled. After inser­ting a magazine, always test to make sure it is locked in place by applying some removal pressu­re to the magazine.

!

WARNING:

fig. 8

Your firearm is now ready to fire. Keep your finger off the trigger and
out of the trigger guard until you are ready to fire.

!

WARNING:

LOADING / FIRING / DECOCKING

5 Firing

Grasp firearm with one hand on forearm and other hand on grip with index finger resting along outside of
trigger guard. Raise firearm and pull buttstock firmly into shoulder.

Aim at a safe target. Push the manual safety to the fire position. Squeeze the trigger slowly and maintain
the pressure until the round is fired.

Your firearm loads immediately after firing.

- You may continue to fire by pulling and fully releasing the trigger until the magazine is empty

- If you wish to stop, release trigger, remove finger from triggerguard, and set saftey selector to “SAFE”
position. If you have fired the last round from the magazine, the bolt will be held in the rearmost position
so that the firearm can quickly be reloaded by replacing the magazine, or the chamber can be inspected
to ensure it is empty.

fig. 9

6 Decocking

- If you decide not to fire after the hammer has been cocked or if you decide to suspend firing, keep the firearm pointed in a safe direction.

- Remove your finger from within the trigger guard.

- Place the manual safety in the “SAFE” position and remove the magazine.

- Pull charging handle rearward to eject any remaining cartridge(s).

16

EMPTY MAGAZINE / UNLOADING

7 Firearm with empty magazine

After the last round has been fired, the bolt catch holds the bolt in the open position (fig. 11).
Place the manual safety in the

“SAFE” position.

Continue shooting - Replace the empty magazine with a full one. Pull bolt rearward and release with the
help of the charging handle (fig. 8), the bolt will travel forward and load the chamber
with the first round. Keep your firearm in your shooting hand, finger off the
trigger and pointed in a safe direction so that there is no danger to other persons.
Discontinue shooting - Remove magazine and inspect the chamber, to verify it does not contain any
ammunition (fig. 9). Close the bolt and decock hammer as described in section 6.

fig. 11

fig. 10 Manual safety in

“FIRE” position

- Make sure that the firearm is unloaded (chamber cleared, barrel clear of any obstructions, magazine empty)!

- You must be certain there is no cartridge in the chamber or obstructions in the barrel. Remember that any time you release the bolt
while a magazine containing cartridges is in the firearm, you will have reloaded the firearm and it will be capable of firing.

- Place the manual safety in the “FIRE” position (fig. 10).

- Squeeze trigger to decock the firearm.

- The firearm may now be transported safely.

Note: The bolt catch lever does not function. The gun has an internal bolt catch.
To put the bolt into its forward position insert a loaded magazine and retract the
charging handle or retract the charging handle without the magazine installed.

!

WARNING:

Keep the firearm pointed in a safe direction when decocking.

Failure to do this can result in serious injury or death.

8 Unloading

Point the muzzle in a safe direction. Remove the magazine. Ensure that the chamber is empty by pulling back the charging handle to visually
inspect the chamber (fig. 9). Keep firearm pointed in a safe direction. Retract the charging handle so that the bolt moves into battery. Push the
manual safety to the “FIRE” position (fig. 10) and squeeze trigger to decock the firearm. The firearm may now be carried safely.

!

WARNING:

Keep the firearm pointed in a safe direction when unloading. Failure to do this can result in serious injury

or death.

FIRE

17

9 Clearing misfires

!

WARNING:

If your firearm gives any indication that it is not performing properly or the operation of your firearm has
changed “the way it feels or sounds”, stop firing. Make sure the firearm is pointed in a safe direction, unload the firearm and have it
inspected and test fired by a gunsmith qualified to perform service on COLT M16/M4 rimfire rifles made by Carl Walther.

- If a cartridge fails to fire, wait 30 seconds while keeping the muzzle pointed in a safe direction.

- Keep your finger off the trigger and out of the trigger guard.

- Place the manual safety in the “SAFE” position and remove the magazine.

- Grasp the bolt with the charging handle and briskly pull it fully rearward to eject the misfired round. Check the barrel chamber
and bore visually for any obstructions. Never look down the barrel from the muzzle end.

- You must be certain there are no cartridges in the chamber or obstructions in the barrel. Remember that any time you release the bolt while
a magazine containing cartridges is in the firearm, you will have reloaded the firearm and it will be capable of firing.

Note: The forward assist plunger does not function. In case of feeding failures, retract the charging handle to extract the damaged
round.

!

WARNING:

Never try to use a misfired cartridge again.

CLEARING MISFIRES / SETTINGS

10 Settings

10.1 Setting the dual aperture rear sight

The dual aperture rear sight can be adjusted for two target ranges
by flipping it foward or backward.

Short Range - The larger aperture is used for 0 - 200 yards
range (0-200 meter) (fig. 12).
Normal Range - The smaler aperture is used for over 200 yards
(200 meters) range (fig. 13).

fig. 13fig. 12

18

SETTINGS

fig. 15

fig. 17

fig. 14

10.2 Setting of the rear sight

The elevation is adjusted using the elevation knob below the rear
sight (fig. 14). Turning the knob adjusts elevation up or down.
Amount of adjustment is defined by a click when the knob is turned.

The windage is adjusted using the windage knob on the side of the
rear sight (fig. 15). Turning the knob adjusts for windage left or right.
Amount of adjustment is defined by a click when the knob is turned.

Note: Because this is a replica, the markings on the elevation and
windage knobs are not set for .22 LR ammunition.

10.3 Setting of the front sight post

The elevation is adjusted by pushing in the front sight post detent
near the front sight post (fig. 16) and simultaneously turning the front
sight post in desired position.The front sight post must be engaged
in one of the 4 detents (fig 17).

NOTE: Adjustment of the front sight post is for initial zeroing of the
rifle. For all future elevation adjustments use the rear sight.

fig. 16

10.4 Setting of the retractable stock (Models M4 Carbine; M4 OPS only)

On the Variants M4 Carbine and M4 OPS the buttstock can be adjusted in its length. Pushing the buttstock
latch allows the buttstock to be adjusted to various lengths (fig. 18).

fig. 18

19

fig. 21

SETTINGS / FIELD STRIPPING

fig. 19

10.5 Setting of the bolt speed

The bolt speed can be adjusted for different ammunition requirements. To reach the screw for bolt speed
adjustment the gun has to be disassembled as described in Section 12 Field Stripping (fig.19). Only adjust
the bolt speed if problems are encountered when firing a different type of ammunition.

For high velocity ammunition, use the correct size Allen wrench (hex key) to reduce the bolt speed by turning
the screw clockwise (fig. 19).

For standard ammunition, use the correct size Allen wrench (hex key) to increase the bolt speed by turning
the screw counter clockwise (fig. 19). The screwhead must not rise out of, or be removed from the gun.

11 Mounting an optical sight

To mount an optical sight, the carry handle can be removed by loosing the nuts on the left side of the
carry handle (fig. 20). This will provide a mil-standard rail for mounting of optics.

Always follow the disassembly instructions exactly. Never do anything
beyond what you are specifically instructed to do in this manual. Never alter or modify the parts
in your firearm.

!

WARNING:

Always wear eye protection that is specified for use with firearms, every

time you handle your firearm for cleaning and maintenance.

!

WARNING:

Prior to disassembly, place the manual safety in the safe position, take

out the magazine and check that the firearm is not loaded.

!

WARNING:

12 Field stripping

fig. 20

20

To disassemle insert an empty magazine, pull back the bolt to its rearmost position with the charging
handle. Remove the magazine for further disassembly. The gun can be opened by pushing the rear
receiver pin out of the gun to the right (fig. 21; 22). Do not use excessive force. There are
5 false/dummy pins (3 left side (fig. A), 2 right side (fig.B)). Do not try to tap them out. Doing so will
damage your firearm and will void your warrenty.

MOUNTING ACCESORIES / CLEANING / STORAGE

fig. 22

Remove fouling from breech, magazine lips, follower, and receiver with a brush and a cloth. Clean the barrel with bore solvent and a brush and
then dry it with cleaning patches; always begin at the chamber. Repeat until barrel is clean. Apply a thin coat of oil to all metal parts.
Reassemble firearm and check for proper function.

13 Cleaning

In order to keep the firearm functional and to extend its service life, the firearm should be cleaned and
maintained at regular intervals.

!

WARNING:

Place the manual safety in the “SAFE” position, remove the magazine, open the bolt, and inspect the

chamber to make sure it is empty.

14 Storage

Always keep and store your firearm in an unloaded condition with the safety in the “SAFE” position. Keep
the firearm and ammunition away from children and unauthorized persons. Firearms should be stored sepa­rately from ammunition. The ejection port cover is without function. Always store your firearm with the
simulating device in the chamber to make sure no cartrige is loaded (fig. 23).

!

WARNING:

Never leave a loaded firearm unattended!

fig. B

fig. 23

fig. A

NOTE: Further disassembly is not
necessary or recommended and
will void your warranty.

21

REPAIR / WARRANTY

15 Repair

Do not return defective or damaged product to the dealer. If your firearm needs repair, call Umarex USA [phone] and ask for the Service
Department or visit www.Colt22Rimfire.com.

!

WARNING:

Only an authorized and qualified gunsmith should inspect and repair your firearm!

16 Warranty

LIMITED ONE YEAR WARRANTY

This product is warranted to the original owner for 1 year from date of purchase against defects in material and workmanship and is not trans­ferable.

WHAT IS COVERED
Replacement parts and labor.

WHAT IS NOT COVERED
Parts, labor, and shipping charges related to to Umarex USA for defective product and damages caused by abuse or failure to perform normal
maintenance as well as any other expense. Consequential damages, or incidental expenses, including damage to property. Umarex USA will not
be responsible for unauthorized adjustments or modifications, use of defective or improper ammunition, corrosion, criminal misuse, negligence,
resale, and/or use under the influence of drugs or alcohol. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Umarex USA reserves the right to determine what constitues ordinary wear
and tear.

WARRANTY CLAIMS
Warranty Claims and Repair for U.S. customers. Call Umarex USA (479)-646-4210 and ask for the Service Department. If it is determined a
return is necessary, you will be issued a Return Authorization Number. Write this number boldly on the box and return the product prepaid to
Umarex USA. Your name, address, phone number and a note with the model number, serial number, and explanation of the defect found must be
included in the package. A copy of the original purchase receipt must accompany the return.

22

WARRANTY

IMPLIED WARRANTIES
Any implied warranties, including the implied warranties of merchantability and fitness for a particular purpose, are limited in duration to 1 year
from date of retail purchase. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU. TO THE EXTENT ANY PROVISION OF THIS WARRANTY IS PROHIBITED BY FEDERAL STATE, OR MUNICIPAL
LAW WHICH CANNOT BE PREEMPTED, IT SHALL NOT BE APPLICABLE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE AND COUNTRY TO COUNTRY.

UNDER NO CIRCUMSTANCES SHALL UMAREX USA AND CARL WALTHER GMBH BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES WITH RESPECT TO ECONOMIC LOSS, INJURY, DEATH OR PROPERTY DAMAGE, WHETHER AS A RESULT OF
BREACH OF THIS WARRANTY, NEGLIGENCE OR OTHERWISE.

Note: All liability is excluded in the event that the instructions and warnings in
this manual are not observed.

SHIPPING GUIDELINES

• Ensure that the firearm is unloaded.

• Do not attempt to ship a firearm via US Postal Service; only federally licensed firearm dealers may ship a firearm by US Postal Service.

• DO NOT SHIP ANY AMMUNITION.

• Enclose a letter which includes your full name and address (no P.O. Boxes, please), daytime telephone number, e-mail

address, the serial number of the firearm, and details of the problem experienced (stating the brand and type of ammunition
used when the problem occurred) or work desired.

• Record the serial number before shipping, in case you wish to check on the repair status of your firearm.

• Please remove all custom parts and accessories, such as stocks, special sights and scopes, or slings from your firearm

before returning.

• Place the firearm in its original case or in a similarly secure container and pack it securely.

• The package must NOT bear any markings which indicate the identity of the contents.

• It is recommended that shipments be insured by the owner, since Umarex USA will accept no responsibility for loss or damage in transit.

• It is most important that you comply with federal, state, and local laws and regulations. The following guidelines are meant

to help, but you must seek assistance from the appropriate authorities if necessary.

• If your firearm must be replaced, it may be necessary to ship the replacement to a dealer rather than directly to you. You

will be requested to furnish a signed FFL (Federal Firearms License) from your dealer in such an instance.

23

TECHNICAL DATA

M4 Carbine M16 Rifle M4 OPS M16 SPR

caliber .22 L.R. .22 L.R. .22 L.R. .22 L.R.

action blowback blowback blowback blowback

trigger single stage trigger single stage trigger single stage trigger single stage trigger

trigger pull 6.6 - 9.9 lbs (3500-4500g) 6.6 - 9.9 lbs (3500-4500g) 6.6 - 9.9 lbs (3500-4500g) 6.6 - 9.9 lbs (3500-4500g)

magazine capacity 30 rounds 30 rounds 30 rounds 30 rounds

dimensions (L/H/W)

31.1 - 34.4 / 9.1 / 2.6 inch
(790 - 875 / 230 / 65mm)

39.8 / 9.1 / 2.6 inch

(1010 - 875 / 230 / 65mm)

31.1 - 34.4 / 9.1 / 2.6 inch
(790 - 875 / 230 / 65mm)

39.8 / 9.1 / 2.6 inch

(1010 - 875 / 230 / 65mm)

barrel length 16.2 inch (412mm) 21.2 inch (538mm) 16.2 inch (412mm) 21.2 inch (538mm)

sight radius 14.8 inch (375mm) 20.1 inch (510mm) 14.8 inch (375mm) 20.5 inch (520mm)

diameter of rear sight
aperture

0.06 / 0.2 inch

(1.65 / 5.25mm)

0.06 / 0.2 inch

(1.65 / 5.25mm)

0.06 / 0.2 inch

(1.65 / 5.25mm)

0.06 / 0.19 inch
(1.65 / 4.9mm)

front sight width 0.08 inch (2mm) 0.08 inch (2mm) 0.08 inch (2mm) 0.08 inch (2mm)

weight w/out mag 6.0 lbs (2750g) 6.5 lbs (2950g) 5.9 lbs (2700g) 6.5 lbs (2950g)

magazine weight (empty) 4.2 ounce (120g) 4.2 ounce (120g) 4.2 ounce (120g) 4.2 ounce (120g)

17 Technical Data

24

EXPLODE VIEW

18 Exploded view/ Parts

18.1 Exploded view

25

DESIGNATION

576.70.02.1 Bolt
2245117 Carry Handle

576.70.01.1 Carry Handle M4 Carb., M16 Rifl.
2245121 Tactical Rear Sight

576.71.01.1 Sight Base M4 OPS

576.70.05 Rear Sight
2245122 Flip up rear sight

576.70.15.3 Pin

576.70.12.1 Knob Elevation

576.70.10.3 Rear Sight Ball Bearing

576.70.14.1 Spring

576.70.17.3 Bearing Screw

576.30.02.1 Ejection Port Cover

576.70.04.1 Clamping Bar M4 Carb., M16 Rifl.

576.71.04.1 Clamping Bar M4 OPS

576.70.03.1 Thumb Nut

576.30.08.1 Spring

576.30.07.1 Pin

576.30.06.1 Plunger

576.11.03.1 Buttstock Tube Lock

576.11.02.1 Nut

576.11.05.1 Screw

576.11.04.1 Washer

576.11.01.1 Carbine Receiver Extension

576.11.07.1 Screw

576.11.06.1 Receiver Extension Plate
2245110 Buttstock M4 Carbine, M4 OPS

576.12 Buttstock M16 Rifle, M16 SPR

576.70.26.3 Pin

576.50.02 Barrel M4 Carbine, M4 OPS

576.51.02 Barrel M16 Rifle, M16 SPR

576.50.11.1 Handguard M4 Carbine

576.51.11.1 Handguard M16 Rifle
2245113 RIS M16 SPR
2245112 RIS M4 OPS
2245116 Compensator

512.50.06.2 Rubber Ring

576.70.20 Front Sight
2245120 Flip up front sight

576.50.12.3 Screw

576.50.10.1 Handguard Cap M4 Carbine

1
2

3

4
5
6
7
8
9

10

11
12
13
14
15
16
17
18
19
20
21
22

23
24

25

26
27
28

29
30

576.51.10.1 Handguard Cap M16 Rifle

576.52.04.1 RIS Barrel Nut M4 OPS, M16 SPR

576.50.07.1 Deltaring M4 Carbine, M16 Rifle

576.52.06.1 RIS Screw M4 OPS, M16 SPR

576.50 Barrel Sleeve M4 Carbine

576.51 Barrel Sleeve M16 Rifl.

576.53 Barrel Sleeve M16 SPR

576.54 Barrel Sleeve M4 OPS

570.70.07.3 Spring Loaded Thrust Pad

576.40.09.0 Screw

576.30.01.1 Upper Receiver

576.40.18.1 Adjustment pin

576.40.05.1 Charging Handle

576.40.04.0 Slide Cover

570.40.07.0 Firing Pin

576.40.07.1 Bolt

576.40.13.1 Main Spring

576.40.06.0 Screw

506.20.39.0 Screw

570.40.11.1 Spring

576.40.17.0 Extractor

506.40.05.1 Bolt

506.40.06.1 Spring

506.40.16.0 Ejector

576.40.08.3 Pin

576.40.03.0 Slide

576.40.01.1 Slide Housing Right

576.40.14.1 Spring

576.40.11.0 Slide Catch
2245102 Magazine 30 rd
2245100 Magazine 10 rd

576.10.11.0 Pin

576.40.15.3 Pin

576.40.02.0 Slide Housing Left

576.10.09.0 Bolt Catch Lever

576.10.10.0 Pin

576.20.16.3 Screw Nut

576.20.17.0 Safety Button

576.20.02.1 Trigger Housing Right

576.20.09.1 Bumper

576.20.23.3 Pin

31

32

33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

55
56
57
58
59
60
61
62
63
64

18.2 Parts

576.20.18.3 Pin

576.40.08.3 Pin

576.20.12.1 Spring

576.20.04.1 Trigger Sear Arm

576.20.19.3 Pin

570.20.11.0 Hammer

576.20.15.3 Pin

570.20.67.3 Pin

576.20.07.0 Safety

576.20.01.1 Trigger Housing Left

576.20.11.0 Magazine Catch Button

576.20.13.1 Spring

576.20.06.0 Disconnector

570.20.23.3 Screw Nut

570.20.13.0 Hammer Strut

570.20.20.1 Spring

576.20.14.1 Hammer Spring Receptor

570.20.18.1 Spring

506.20.19.3 Spring

576.20.21.1 Spring

576.20.05.0 Trigger Sear

576.20.12.1 Spring

576.20.03.0 Trigger

570.20.25.3 Pin

576.20.10.0 Magazine Catch

576.20.08.0 Safety Lever

576.10.01.1 Lower Receiver M4 Carbine, M4 OPS

576.13.01.1 Lower Receiver M16 Rifle, M16 SPR

576.10.02.1 Trigger Guard

576.10.04.1 Pin

576.10.05.1 Spring

576.10.12.3 Screw

576.10.03.3 Pin

576.10.06.1 Pistol Grip

576.10.08.3 Lock Washer

576.10.07.3 Screw

506.20.47.3 Allen Wrench SW 2.5

576.20.24.3 Allen Wrench SW 4

576.20.22.1 Allen Wrench SW 4

570.51.03.1 Wrench SW 13

512.20.42.1 Simulating Device

65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
90
91
92

93
94
95
96
97
98

99
100
101
102
103
104
105

26

M4 Carbine

• Adjustable Buttstock

• Adjustable Front Sight (Elevation)

• Adjustable Rear Sight (Windage, Elevation)

• 16.2” Barrel Length

M4 OPS

• Adjustable Buttstock

• Rail Interface System

• Detachable Rear Sight

• Adjustable Front Sight (Elevation)

• Adjustable Rear Sight (Windage, Elevation)

• 16.2” Barrel Length

M16 Rifle

• Adjustable Front Sight (Elevation)

• Adjustable Rear Sight (Windage, Elevation)

• 21.2” Barrel Length

19 Variants and accessories

19.1 Variants

M16 SPR

• Rail Interface System

• Detachable Flip Up Rear Sight

• Adjustable Flip Up Front Sight (Elevation)

• Adjustable Flip Up Rear Sight (Windage)

• 21.2” Barrel Length

VARIANTS

27

19.2 Accessories

ACCESSORIES

M4/M16 Carry
Handle

2245117

Walther PS 55 Scope

2300580

M4/M16 Tactical
Rear Sight

2245121

M4/M16 Metal
Compensator

2245116

M4/M16 Flip Up
Front Sight

2245120

Walther Xenon
Tactical Flashlight

2252516

M4/M16 Magazine

10 Round 2245100
30 Round 2245102

Walther PS 22 Red
Dot Sight

2300577

Walther RS 55 4x32

Compact Tactical Scope with
Illuminated Reticle

2245132

M4 Special Force
Crane Stock

2245111

M4 Retractable
Stock

2245110

M4/M16 Quad RIS

for M4 Carbine 2245112
for M16 Rifle 2245113

M4/M16 Magazine
Speed Holster

2245103

M4/M16 Flip Up
Rear Sight

2245122

Walther Cord Switch
for Flashlight

2252517

Walther Flashlight
Mount

2252518

Walther XRL 635

635 mm Red Laser
2245130

Walther XGL 650

650 mm Green Laser
2245131

All technical changes and modifications reserved.

8.576.80.02
March 2009 - rev. A

UMAREX USA Inc. www.umarexusa.com www.colt22rimfire.com

CONTACT

COLT M4/M16 .22 Rimfire Rifles
made by Carl Walther - Germany
under license from New Colt Holding Corp.

Distribution and repair service by:

Sales + Warranty Service

6007 South 29th Street / Fort Smith, AR 72908 / USA Phone: [phone] / Fax: [phone]

This INSTRUCTION MANUAL should always accompany the firearm and be

transferred with it upon change of ownership or when presented to another person.
A copy of the INSTRUCTION MANUAL is available FREE upon request from:
