WDC205 variant details Rev 4.

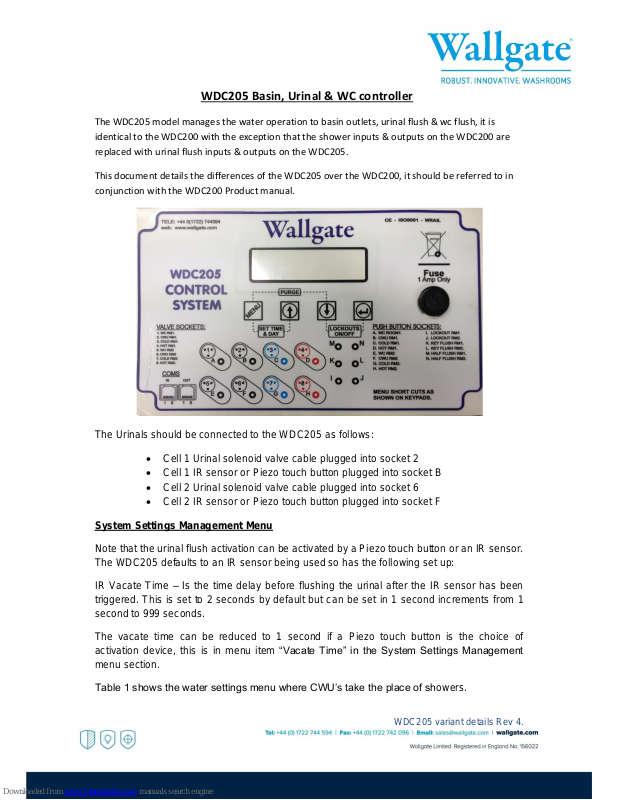

WDC205 Basin, Urinal & WC controller
The WDC205 model manages the water operation to basin outlets, urinal flush & wc flush, it is
identical to the WDC200 with the exception that the shower inputs & outputs on the WDC200 are
replaced with urinal flush inputs & outputs on the WDC205.
This document details the differences of the WDC205 over the WDC200, it should be referred to in
conjunction with the WDC200 Product manual.
The Urinals should be connected to the WDC205 as follows:
Cell 1 Urinal solenoid valve cable plugged into socket 2
Cell 1 IR sensor or Piezo touch button plugged into socket B
Cell 2 Urinal solenoid valve cable plugged into socket 6
Cell 2 IR sensor or Piezo touch button plugged into socket F
System Settings Management Menu
Note that the urinal flush activation can be activated by a Piezo touch button or an IR sensor.
The WDC205 defaults to an IR sensor being used so has the following set up:
IR Vacate Time – Is the time delay before flushing the urinal after the IR sensor has been
triggered. This is set to 2 seconds by default but can be set in 1 second increments from 1
second to 999 seconds.
The vacate time can be reduced to 1 second if a Piezo touch button is the choice of
activation device, this is in menu item “Vacate Time” in the System Settings Management
menu section.
Table 1 shows the water settings menu where CWU’s take the place of showers.
WDC205 variant details Rev 4.
Table 1 Menu functions.
Main Menu Item
Sub Menu 1
Sub Menu 2
Available Options
Default
Value
Cell 1 Water
Settings
Basin cold outlet run time
Basin Cold Cycle Time
1 to 999 Seconds
10 Seconds
Basin hot outlet run time
Basin Hot Cycle Time
1 to 999 Seconds
10 Seconds
Permitted number of
basin activations
Basin Cycle
Activations
1 to 100 Activations
10 Activations
Time period of a basin
activation cycle
Basin Cycle Period
15 to 1440 Minutes
60 Minutes
Basin lockout time
Basin Lockout Time
15 to 1440 Minutes
60 Minutes
Urinal outlet run time
CWU Cycle Time
1 to 999 Seconds
7 Seconds
Permitted number of
urinal activations
CWU Cycle
Activations
1 to 100 Activations
4 Activations
Time period of a Urinal
activation cycle
CWU Cycle Period
15 to 1440 Minutes
60 Minutes
Urinal lockout time
CWU Lockout Time
15 to 1440 Minutes
60 Minutes
WC outlet run time
W.C. Cycle Time
1 to 999 Seconds
3.3 Seconds
WC outlet reduced time
W.C. Reduced Time
1 to 999 Seconds
1.7 Seconds
Permitted number of WC
activations
W.C. Cycle Activations
1 to 100 Activations
4 Activations
Time period of a WC
activation cycle
W.C. Cycle Period
15 to 1440 Minutes
15 Minutes
WC lockout time
W.C. Lockout Time
15 to 1440 Minutes
15 Minutes
WC cistern refill time
W.C. Refill Time
1 to 999 Seconds
30 Seconds
Copy the water settings
from Cell 1 to Cell 2
Copy Settings Cell 1
to Cell 2
Copy the water settings
from Cell 2 to Cell 1
Copy Settings Cell 2
to Cell 1
Cell 2 Water
Settings
Basin cold outlet run time
Basin Cold Cycle Time
1 to 999 Seconds
10 Seconds
Basin hot outlet run time
Basin Hot Cycle Time
1 to 999 Seconds
10 Seconds
Permitted number of
basin activations
Basin Cycle
Activations
1 to 100 Activations
10 Activations
Time period of a basin
activation cycle
Basin Cycle Period
15 to 1440 Minutes
60 Minutes
Basin lockout time
Basin Lockout Time
15 to 1440 Minutes
60 Minutes
Urinal outlet run time
CWU Cycle Time
1 to 999 Seconds
7 Seconds
Permitted number of
Urinal activations
CWU Cycle
Activations
1 to 100 Activations
4 Activations
Time period of a Urinal
activation cycle
CWU Cycle Period
15 to 1440 Minutes
60 Minutes
Urinal lockout time
CWU Lockout Time
15 to 1440 Minutes
60 Minutes
WC outlet run time
W.C. Cycle Time
1 to 999 Seconds
3.3 Seconds
WC outlet reduced time
W.C. Reduced Time
1 to 999 Seconds
1.7 Seconds
Permitted number of WC
activations
W.C. Cycle Activations
1 to 100 Activations
4 Activations
Time period of a WC
activation cycle
W.C. Cycle Period
15 to 1440 Minutes
15 Minutes
WC lockout time
W.C. Lockout Time
15 to 1440 Minutes
15 Minutes
WC cistern refill time
W.C. Refill Time
1 to 999 Seconds
30 Seconds
Copy the water settings
from Cell 1 to Cell 2
Copy Settings Cell 1
to Cell 2
Copy the water settings
from Cell 2 to Cell 1
Copy Settings Cell 2
to Cell 1
