Product Manual
SNC-02 Ceiling Mounted
Shower Head
Page 2
Revision 3
2
SNC-02 Product Manual
Page 3
Revision 3
3
SNC-02 Product Manual
Table of Contents
1. Disclaimer .......................................................................................................................... 4
2. Conventions ....................................................................................................................... 5
2.1 Warning ................................ ............................................................................................ 5
2.2 Note ................................................................................................................................. 5
2.3 Numbered procedures ...................................................................................................... 5
2.4 Bullet lists ........................................................................................................................ 5
2.5 Menu items ....................................................................................................................... 5
3. Glossary ............................................................................................................................. 6
4. Overview ............................................................................................................................ 6
5. Package Contents .............................................................................................................. 7
5.1 Mounting Guidelines ......................................................................................................... 7
5.2 Ceiling Mounted Shower Installation. ................................................................................ 8
5.2.2 Method 1: Cast Concrete Ceiling Mounted .................................................................. 11
5.2.3 Method 2: Fixing Box ................................................................ ................................... 13
5.2.4 Method 3: Cast in Box ................................................................................................. 15
5.2.5 Method 4: Clamping Plate ........................................................................................... 17
5.3 Water Connections ......................................................................................................... 18

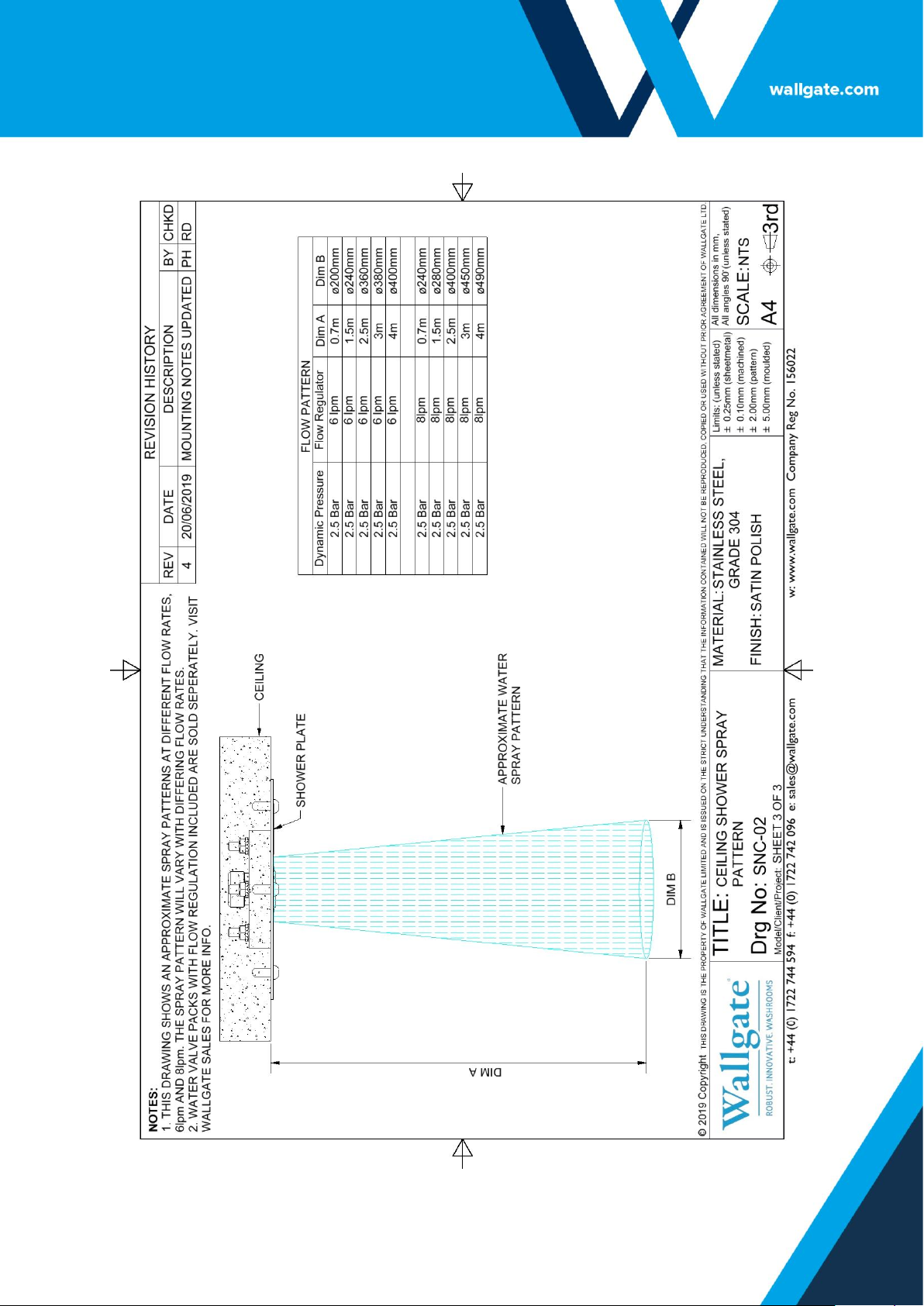

5.4 Ceiling Shower Spray Pattern ......................................................................................... 19
5.5 Commissioning for Use .................................................................................................. 21
5.6 Technical Specifications ................................................................................................. 21
6. User and Maintenance Instructions .................................................................................. 21
6.1 Operation ....................................................................................................................... 22
6.2 Maintenance ................................................................................................................... 22
6.3 Spare Parts List .............................................................................................................. 23
7. Related Documentation .................................................................................................... 23
Page 4
Revision 3
4
SNC-02 Product Manual
1. Disclaimer
Every effort has been made to supply information within this manual which is correct.
Wallgate Limited will not be liable for any damage or loss that arises if the person
installing, operating or maintaining the unit has not read or not complied with the
manual.
In any event, and without prejudice to any warranties in Wallgate Limited’s terms and
conditions of sale, Wallgate Limited’s liability for all damages and losses (including
negligence) shall not in any circumstances exceed the amount paid by the customer
for the shower head.
Wallgate reserves the right to alter, update or improve its product specification at any
time without prior notice. This manual is specific to the product that it has been
supplied with at the date of supply.
Without prejudice to any warranties in Wallgate Limited’s terms and conditions of
sale, any warranty will be invalidated if the equipment is installed or serviced by
unqualified personnel.
No part of this publication and the information contained may be reproduced,
transmitted, stored in a retrieval system, used or disclosed wholly or partly without
prior written permission from Wallgate Limited.
For full warranty details please see Wallgate Limited Terms and Conditions.
Please ensure this manual is passed to the end user. The manual forms an integral
part of the product and should be kept for its working life. Additional copies of this
and other supporting documents are available by contacting Wallgate Ltd or by
visiting www.wallgate.com
Page 5
Revision 3
5
SNC-02 Product Manual
2. Conventions
Certain conventions are used in this manual to make it easier to read and
understand. They are given in the sections below.
2.1 Warning
A warning with red text on a white background is used to give information about
hazards that can cause injury or death. Read and understand these warnings before
you install and commission the shower. Failure to heed these warnings can have
serious consequences.
WARNING!
This is a warning!
2.2 Note
A note with yellow text on a white background is used to draw your attention to
important and useful information.
NOTE:
This is a note.
2.3 Numbered procedures
Steps in procedures are numbered, starting from 1.
1. This is step 1.
2. This is step 2 etc.
2.4 Bullet lists
• A bullet list is used to give information that is not sequential.
2.5 Menu items
Menu items, submenu items, and settings, where available, are given in bold.
Page 6
Revision 3
6
SNC-02 Product Manual
3. Glossary
The glossary lists all words, abbreviations and technical terminology used in this
manual, along with a short description of these terms.
Term
Description
TMV
Thermostatic mixer valve controls and maintains a mix of
hot and cold-water temperature for safety and prevention
possible scalding.
Anti-Ligature
Recently we have become aware that there is some
inconsistency in the market as to the exact meaning of
"anti-ligature". When we use this phrase about our
products it means that we have designed and tested the
product to reduce any risk of that product being used as
a ligature attachment point.
BSP
The British Standard Pipe (BSP) thread is a family of
standard screw thread types that has been adopted
internationally for interconnecting and sealing pipe ends
by mating an external (male) with an internal (female)
thread.1
4. Overview
This product is an anti-ligature and highly robust stainless-steel flush fitting ceiling
mounted shower head with anti-ligature/anti-tamper fixings and front facing
removable shower plate.
1 Description sourced from Wikipedia at http://en.wikipedia.org/wiki/British_standard_pipe_thread Description
Page 7
Revision 3
7
SNC-02 Product Manual
5. Package Contents
Before you begin the installation, make sure that you have the following items:
✓ 1x Product manual
✓ 1x SNC-02 Ceiling Mounted Shower Head.
✓ 4x M5 Security Screws
✓ 1x ½” BSPP Female to 1/2'' NPT Male (the US only)
NOTE: An electronic control unit, activation sensor and solenoid water valves
with cables are supplied separately. Various other control options are
available, contact the Wallgate sales for more information.
5.1 Mounting Guidelines
• The ceiling shower nozzle must be mounted to a flat surface.
•
The nozzle must be fed by a blended supply that complies with the regulatory
standards, set to the necessary temperature range(s). If a TMV is used it must be
positioned before a solenoid valve.
• Measure, mark and cut aperture for the plate housing and fixings (as shown in
figure 3, 4, 5 or 6 depending on fixing method).
•
A mounting box is available for recessed precast concrete or fabricated ceiling
mounting. Contact the Wallgate sales desk for more information.
Page 8
Revision 3
8
SNC-02 Product Manual
5.2 Ceiling Mounted Shower Installation.
NOTE: The ceiling mounted shower requires installation following the
guidelines in figures 3 - 6 depending on the mounting method.
NOTE: The following examples refer to the use of Hilti HUS3 masonry screws
for a concrete ceiling. Refer to Hilti data sheet for full installation instructions
of fixing system. If other fixings systems are used, refer to the manufacturer's
literature for torque settings. Tighten sufficiently to prevent removal without
tooling.
NOTE: Exceeding the torque setting for the M5 screws can result in damage to
the mounting plate.
NOTE: It is recommended to apply anti-pick hard set mastic to shower nozzle
plate edges against the wall, (i.e. Sikadur 33).
Page 9
Revision 3
9
SNC-02 Product Manual

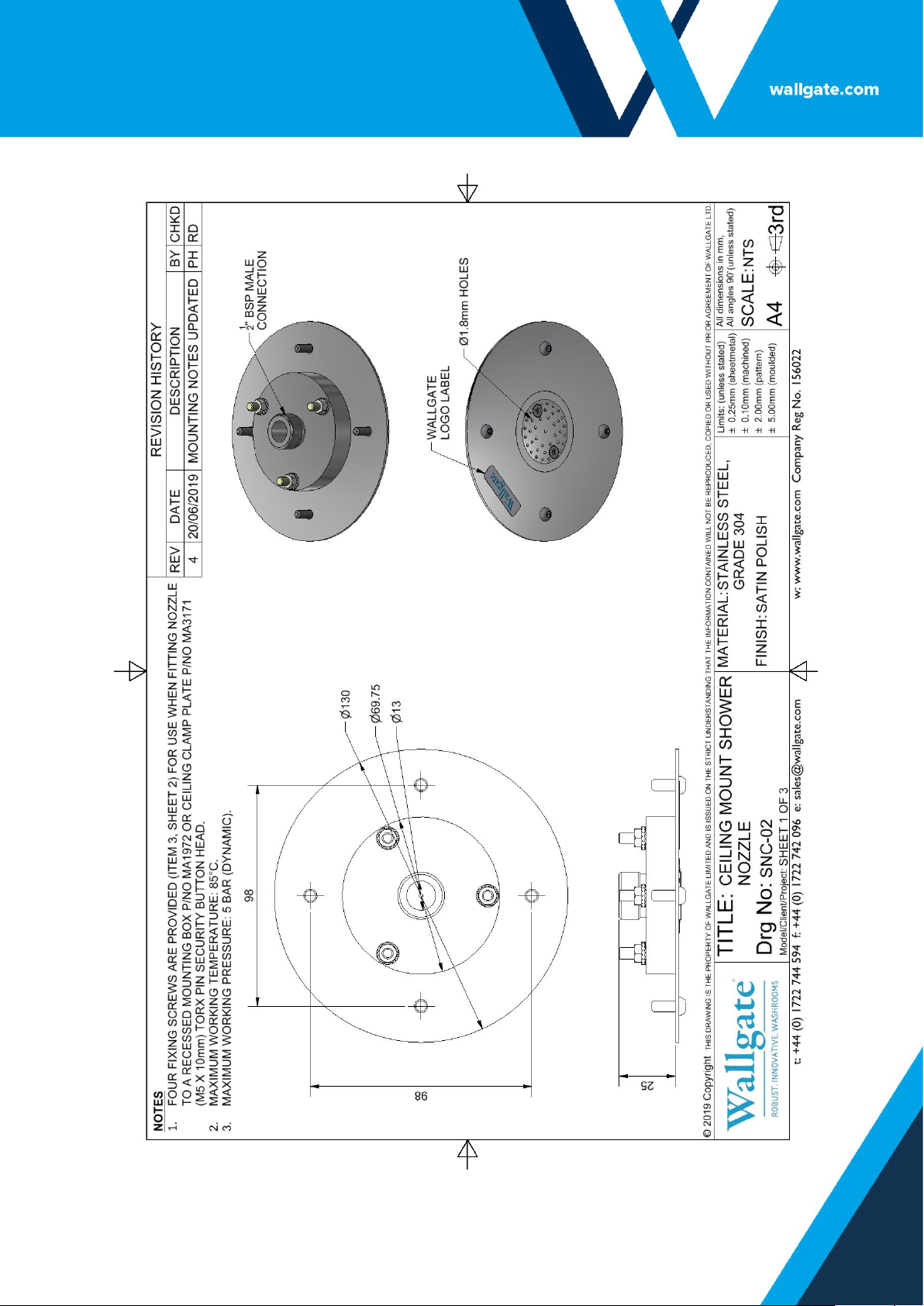

Figure 1: Ceiling mounted shower head.
Page 10
Revision 3
10
SNC-02 Product Manual

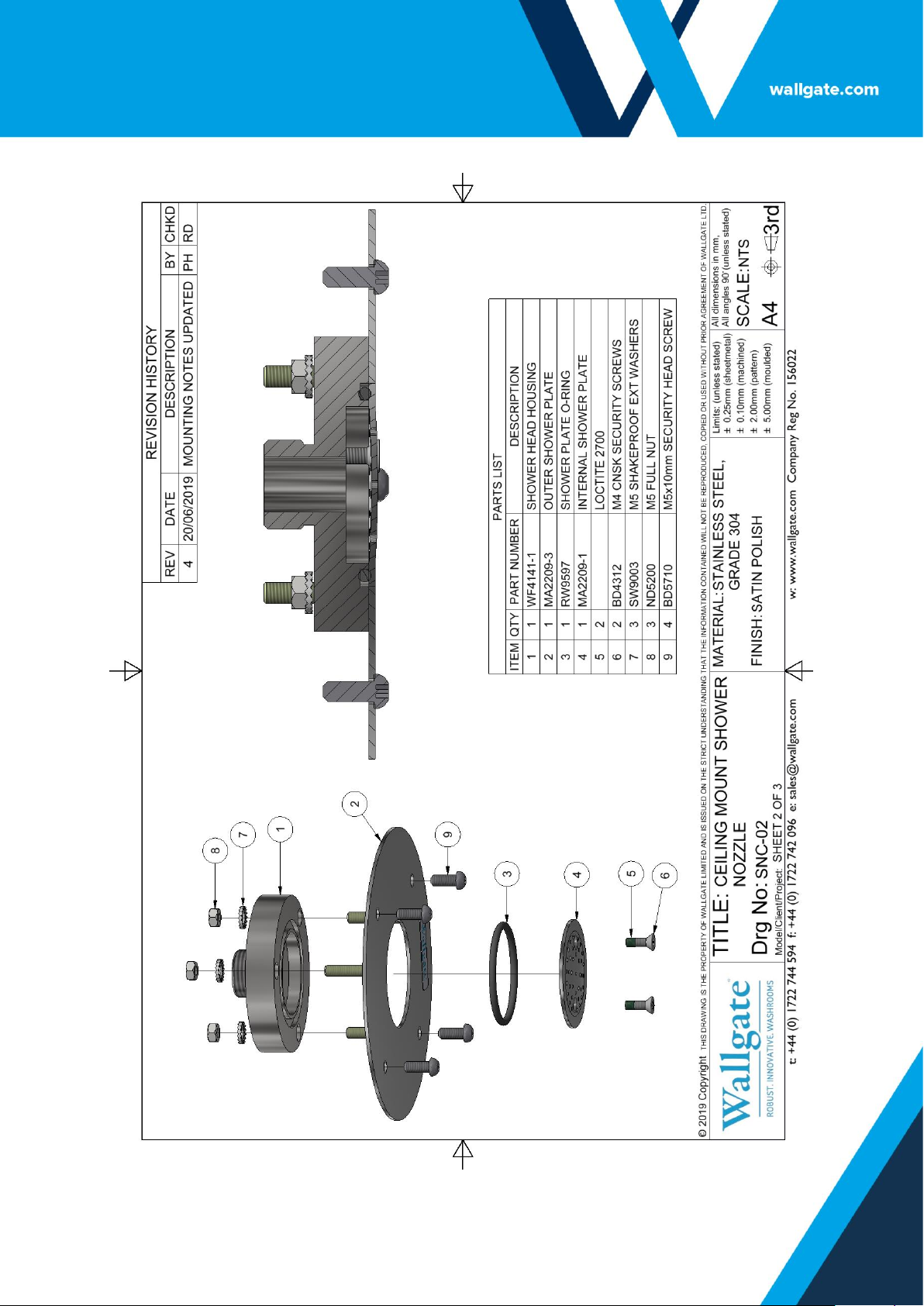

Figure 2: Ceiling mount shower head exploded view.
Page 11
Revision 3
11
SNC-02 Product Manual
5.2.2 Method 1: Cast Concrete Ceiling Mounted
(See Figure 3):
1. Create ø80mm clearance hole in the ceiling.
2. Mark fixing hole location with the shower head as a reference.
3. Use 4x pan head, security fixing screws suitable for concrete ceiling material (not
supplied) to fix the shower head to the ceiling (e.g. Hilti HUS3 6mm concrete
screw anchors). Drill ceiling holes as detailed in Hilti data sheet and then retain
plate to the ceiling using installation torque of 25Nm. For alternative fixing
systems, refer to fixing manufacturer’s guidance for torque settings.
4. Ensure the plate is flush against the ceiling to maintain anti-ligature and vandal
properties.
Page 12
Revision 3
12
SNC-02 Product Manual

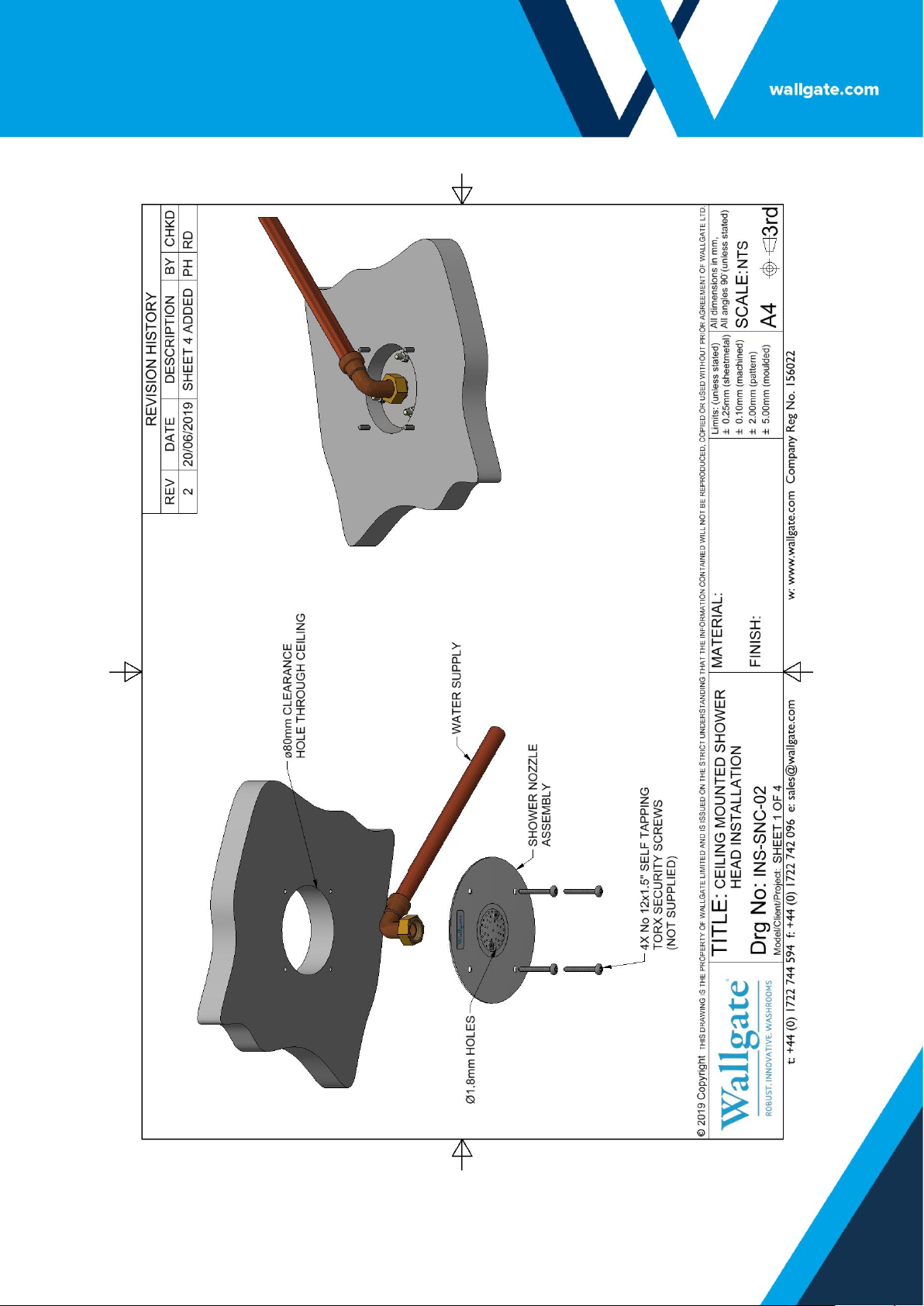

Figure 3: Ceiling mounted shower head installation (Method 1).
Page 13
Revision 3
13
SNC-02 Product Manual
5.2.3 Method 2: Fixing Box
(See Figure 4):
1. Create 85mmx85mm clearance hole in the ceiling.
2. Create ø120mm x 2mm recess for the nozzle box flanges.
3. Using the mounting box as a reference, mark 4x ø6.5mm clearance holes for the
threaded fixings on the back box.
4. Use 8x pan head, security fixing screws suitable for concrete ceiling material (not
supplied) to fix the shower head to the ceiling (e.g. Hilti HUS3 6mm concrete
screw anchors). Drill ceiling holes as detailed in Hilti data sheet and then retain
plate to the ceiling using installation torque of 25Nm. For alternative fixing
systems, refer to fixing manufacturer’s guidance for torque settings.
5. Fit the 4 x M5 screws (Item 3, Fig: 2) through shower plate into ceiling mounting
box. Tighten each screw to a torque of 3.5Nm, a thread lock can be applied
(Loctite 222).
Page 14
Revision 3
14
SNC-02 Product Manual

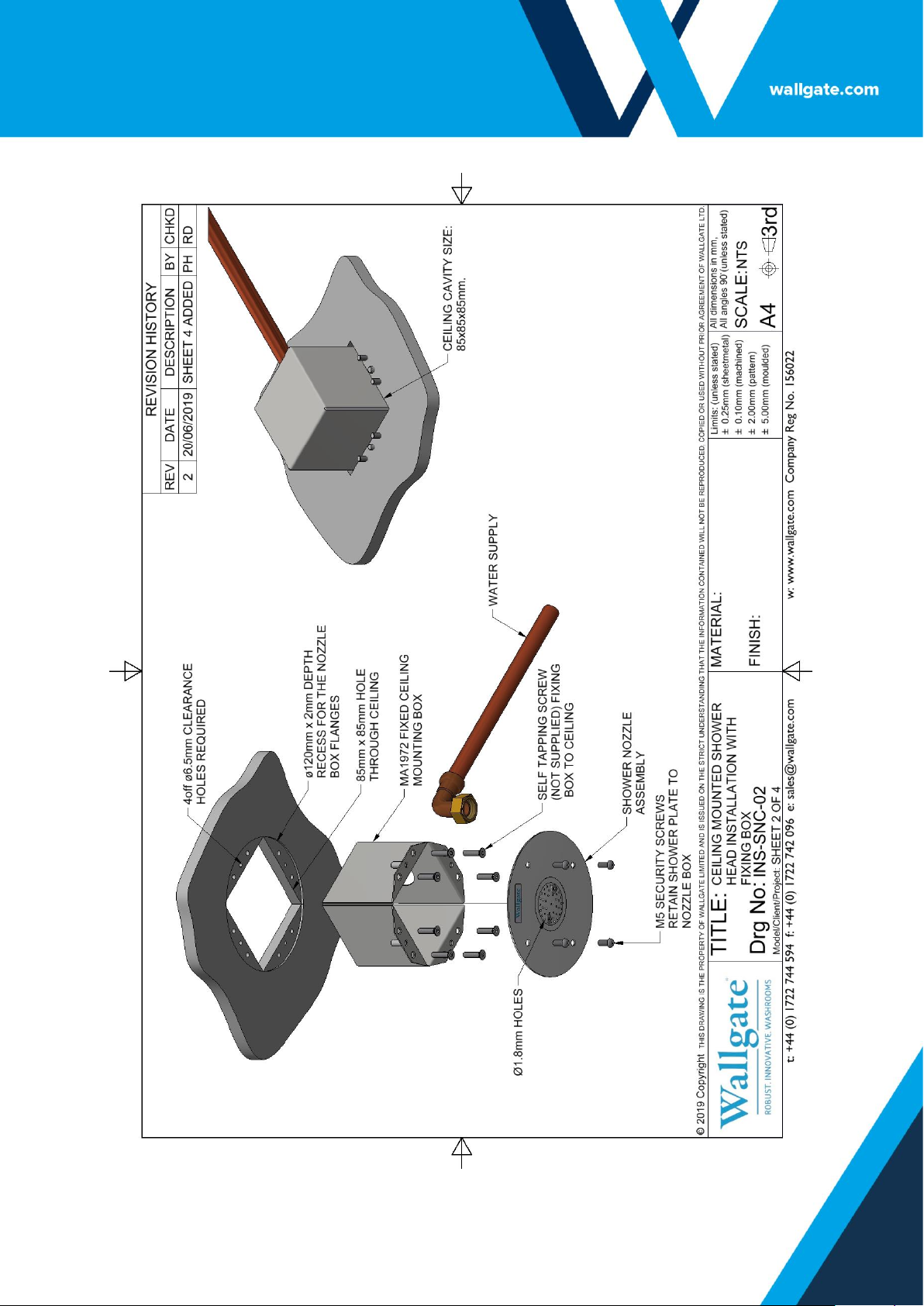

Figure 4: Ceiling mounted shower head installation with fixing box (Method 2).
Page 15
Revision 3
15
SNC-02 Product Manual
5.2.4 Method 3: Cast in Box
(See Figure 5):
1. Cast ceiling mounting box into ceiling ensuring flanges are flush with the ceiling.
NOTE: Box size: 80x80x65mm.
2. Fit the 4 x M5 screws (Item 3, Fig: 2) through shower plate into ceiling mounting
box. Tighten each screw to a torque of 3.5Nm, a thread lock can be applied
(Loctite 222).
Page 16
Revision 3
16
SNC-02 Product Manual

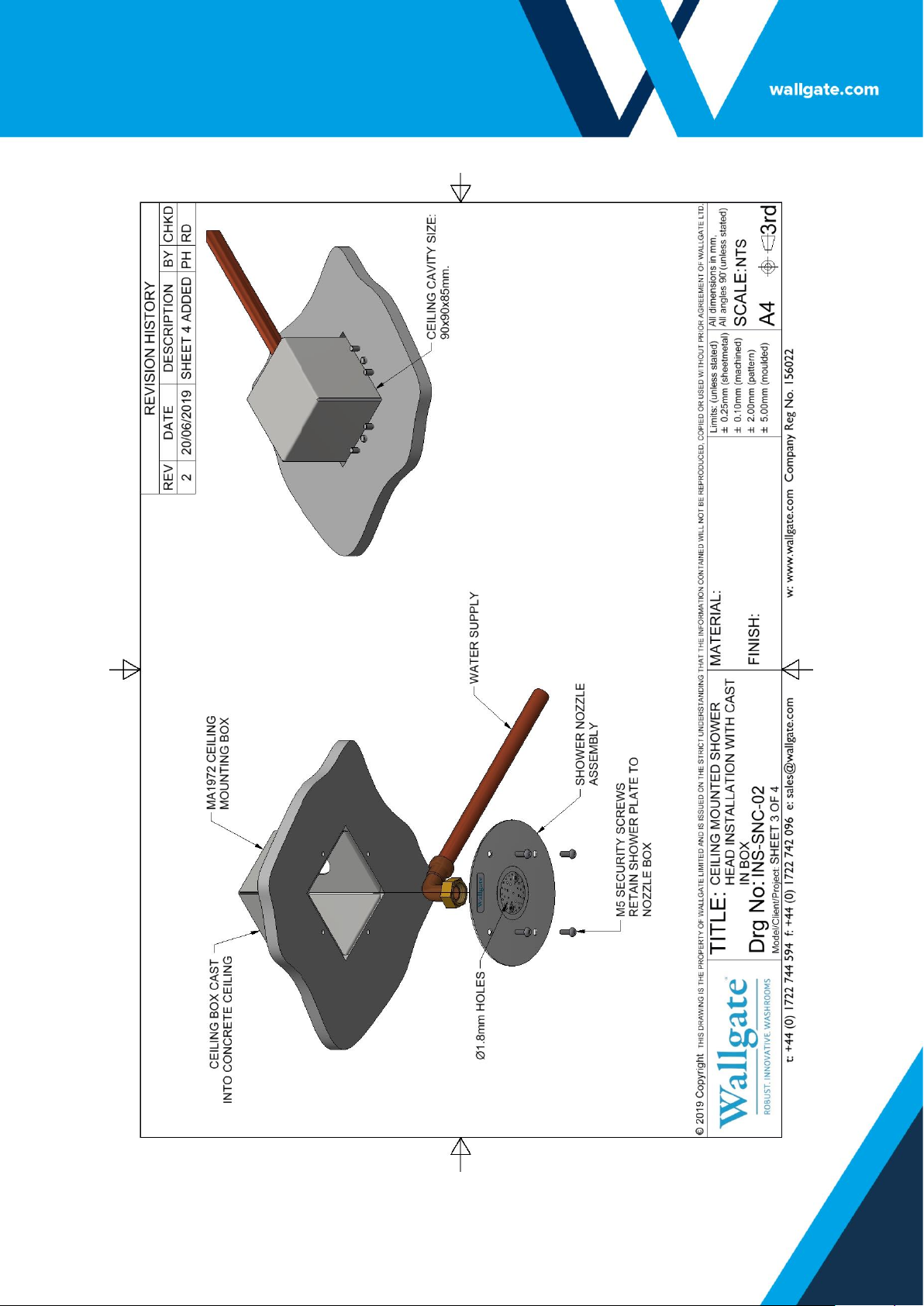

Figure 5: Ceiling mounted shower head installation with a cast in box (Method 3).
Page 17
Revision 3
17
SNC-02 Product Manual
5.2.5 Method 4: Clamping Plate
(See Figure 6):
1. Create ø80mm clearance hole in the ceiling.
2. Offer shower plate up to opening and mark 4x fixing points.
3. Drill 4x holes to a suitable clearance diameter for M5 machine screws.
4. Fit 4 x M5 button head security screws with a suitable length to pass through
ceiling thickness into ceiling clamping plate. Tighten each screw to a torque of
3.5Nm, a thread lock can be applied (Loctite 222).
Page 18
Revision 3
18
SNC-02 Product Manual

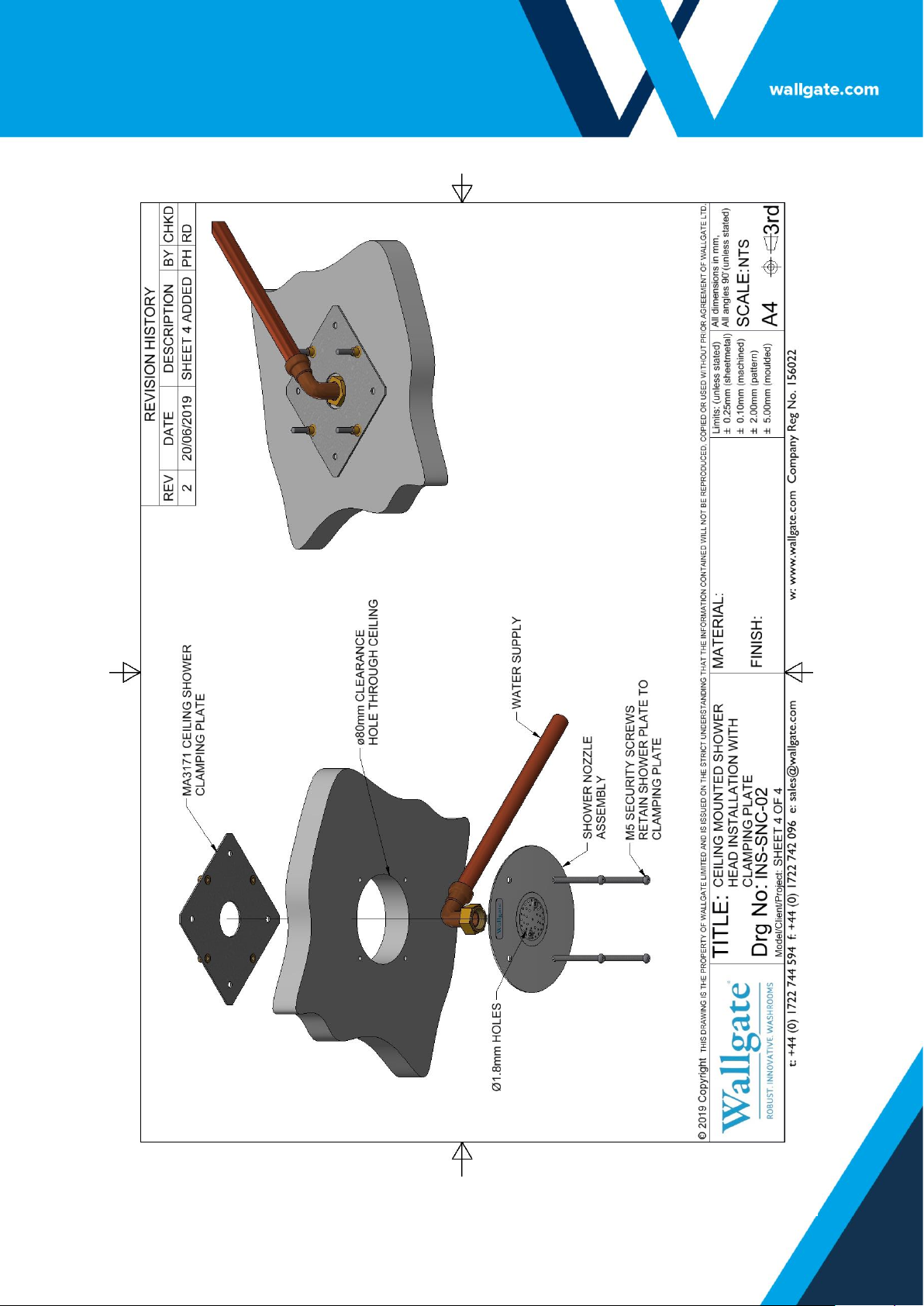

Figure 6: Ceiling mounted shower head installation clamping plate (Method 4).
Page 19
Revision 3
19
SNC-02 Product Manual
5.3 Water Connections
NOTE: Before you carry out the following steps, flush the water supply pipes to
remove any debris and trapped air.
NOTE: Fit a Y strainer in the water supply feed pipes prior to connection of
solenoid valve, especially on older installations where loose particles from
ageing water pipes can cause a blockage and/or damage to the outlet or
solenoid valves.
NOTE: The shower nozzle must be fed by a blended supply that complies with
the regulatory standards, set to the necessary temperature range(s). If a TMV is
used it must be positioned before a solenoid valve.
NOTE: Use of any pipe sealing compound should be avoided to prevent
blockages and damage to the shower nozzle and water solenoid valves.
NOTE: It is recommended to fit a service isolating tap on the water supply feed
before solenoid valve. This allows for ease of maintenance when required. The
isolating taps are not supplied by Wallgate and should be purchased
separately.
1. Connect ½” BSP female fitting to male ½” BSP thread on shower nozzle
housing.
2. Figures 3, 4 and 5 are for illustration only, installation should be made in
accordance with site-specific plumbing requirements.
5.4 Ceiling Shower Spray Pattern
The ceiling shower will have varying spray pattern dimensions depending on
mounting height and water flow rate. Figure 7 on the following page has a table
indicating the various spray diameters at two different flow rates, 6lpm and 8lpm.
Page 20
Revision 3
20
SNC-02 Product Manual
Figure 7: Ceiling shower spray pattern.
Page 21
Revision 3
21
SNC-02 Product Manual
5.5 Commissioning for Use
1. Fully open the water supply isolating tap. Check the system for leaks.
2. Operate the all shower outlet supplies available. Operate the water several times
to make sure all air has been purged from the system.
3. Ensure that the flow rate is correct, and the shower nozzle’s pattern is fully filled.
4. Where a thermostatic mixer valve (not supplied) is fitted to the plumbing system
for the outlet, you may have to adjust the valve to set the correct hot water
temperature. If so, you should do so in accordance with the instructions supplied
by the manufacturer of the thermostatic mixer valve.
5. Leave a copy of this Product Manual with the person responsible on site.
5.6 Technical Specifications
Table 1. Technical specifications
Ceiling Shower Technical Specification
Weight
0.5 Kg
Dimensions
ø130mm (W) x 27mm (H) (1.8mm dia outlet holes).
Maximum Operating
Water Temperature
+85°C
Water Supply
Minimum pressure: 2 Bar (Static)
Maximum Operating Pressure: 5 Bar (72psi, 500kPa)
(Dynamic).
Supply pipe size ½” BSP
6. User and Maintenance Instructions
The ceiling shower nozzle is designed and manufactured from high-quality materials.
With correct installation, operation and maintenance, as described by the instructions
given in this manual, the unit will give reliable, efficient service. If you need any
further information or advice, please contact Wallgate customer services.
Wallgate offers a comprehensive service package, details of which can be obtained
from our customer service department.
Page 22
Revision 3
22
SNC-02 Product Manual
6.1 Operation
1. Fully open the water supply isolating tap.
2. Operate the shower.
3. If the shower is activated by Wallgate controls, i.e. WDC100 or WDC200 the
default run time for the shower is 60 seconds.
NOTE: Further settings can be found in the WDC product manuals which are
also available on the Wallgate website.
NOTE: This product offers no form of temperature control.
6.2 Maintenance
The ceiling shower plate is polished stainless steel and can be cleaned using warm
soapy water or a stainless-steel cleaner. A suitable limescale remover applied to the
manufacturers guidelines is also a safe method for cleaning.
NOTE: Bleach, spray cleaners and abrasive cleaners may damage the surface
and internal parts of the shower.
For ease of cleaning, the spray plate can be removed from the external plate. The
assembly is shown in figure 2.
1. Unscrew the 2x security screws to release the internal plate and an O-ring.
This can be cleaned separately following the guidelines above.
2. After cleaning reinstall the O-ring, plate, and screws. To do this set the O-ring
on the underside of the internal plate.
3. Push the plate and O-ring into the opening, aligning the 2x holes in the plate
with those on the housing.
NOTE: For maximum vandal resistant properties it is recommended to reapply
Loctite 2700 WRAS approved thread sealant to M4 screws before refitting.
Page 23
Revision 3
23
SNC-02 Product Manual
4. Hold the plate in place and screw in 2x screws. Equally tighten to 3Nm.
NOTE: Ensure O-ring is seated in groove correctly, countersunk screws are
flush with the internal plate. The internal plate must flush with external plate to
maintain water seal and anti-ligature properties.
6.3 Spare Parts List
Table 2 Spare Parts List
Part Number
Description.
RW9597
Shower plate O-ring
MA2209-1
Internal Shower Plate
BD4312
M4 C/Sunk Security Screws
BD5710
M5 Pan Head Security Screws
7. Related Documentation
Additional information on the WDC controller or shower controls can be found in
product manuals on the Wallgate website.
Page 24
Wallgate Ltd.
Crow Lane, Wilton,
Salisbury, Wiltshire,
SP2 0HB, England
tel: +44 (0) 1722 744594
fax: +44 (0) 1722 742096
email: [email protected]
web: www.wallgate.com
Loading...
