Wallflower Smart Monitor WFA001, Smart Monitor WFA002 Installation Manual

© 2017 Wallower Labs Inc. or its aliates. All rights reserved. Wallower, the Wallower logo, and the Wallower Smart Monitor are trademarks of Wallower Labs Inc.
or its aliates, registered in the U.S. and other countries. Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
Google, Google Play and Android are trademarks of Google Inc., registered in the U.S. and other countries. The Android robot is reproduced or modied from work
created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. Patent pending.

This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CAN ICES-3 (B)/NMB-3(B)
Contains Transmitter CC32xx Module
FCC ID: Z64-CC3200M0DR1
IC ID: 451I-CC3200M0DR1

Conforms to UL Std. 498A
Cert. to CSA Std. C22.2 No. 42
For disconnecting use only.

5008908

Wallflower Smart Monitor™ is compatible with

Apple iPhone® and Google Android™

Wallflower Smart Monitor™

Installation Guide

For 3-Wire & 4-Wire Stoves

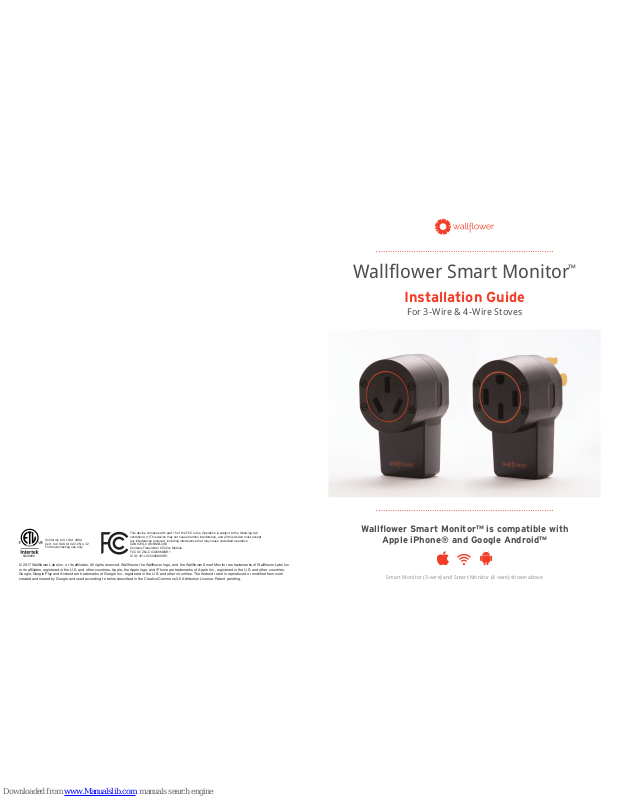

Smar t Monitor (3- wire) and Smar t Monitor (4 -wire) show n above

Installation Steps

1. Turn off circuit breaker for stove circuit

2. To access stove power cord, pull stove away from wall

or remove stove drawer

3. Unplug stove power cord

4. Plug Smart Monitor into outlet then plug power cord

into Smart Monitor

5. Push stove back and ensure anti-tip bracket engages
or replace stove drawer

6. Turn on circuit breaker for stove circuit

7. Download Wallflower App from App Store or Google

Play and follow setup

Resetting To Factory Default

After setting up your Wallflower Smart Monitor using the App,
if resetting to factory default settings is ever required, simply
cycle your circuit breaker OFF and ON per the following:

1. Turn OFF circuit breaker

2. Turn ON circuit breaker, wait 5 seconds

3. Turn OFF circuit breaker

4. Turn ON circuit breaker, wait 5 seconds

5. Turn OFF circuit breaker

6. Turn ON circuit breaker

Your Smart Monitor will beep to let you know that it has
been reset and is ready for setup. If you have trouble factory
resetting your Smart Monitor, visit wallflower.com/support

Technical Specifications

Model No. WFA001

125/250V~ 4-wire, 50A, 14-50R

Model No. WFA002

125/250V~ 3-wire, 50A, 10-50R

Questions?

If you have questions or difficulties, please visit
wallflower.com/install or email [e-mail]

WARNING

Turn Off Circuit Breaker Before Install

Smart Monitor (4-wire) installation shown
