Page 1
BY EMB MFG INC.
EMB Manufacturing Inc.
4144 Boomer Line · St. Clements, On · N0B 2M0 · Canada
Ph: (519) 699-9283 · Fax: (519) 699-4146
www.embmfg.com

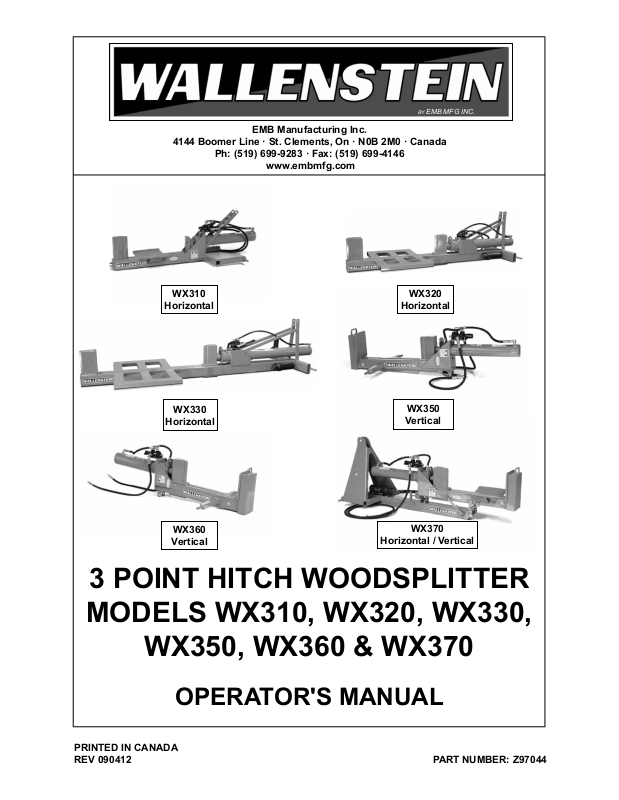

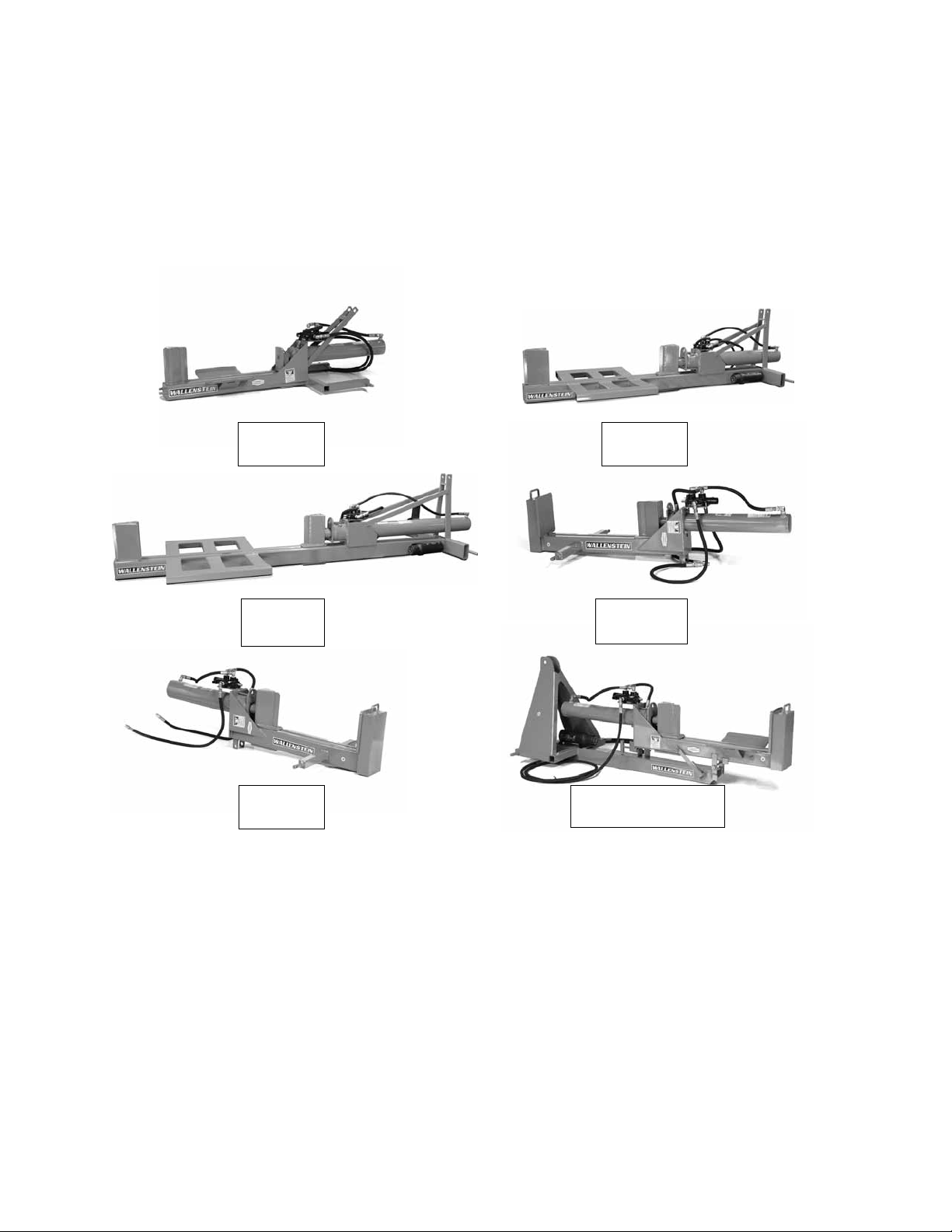

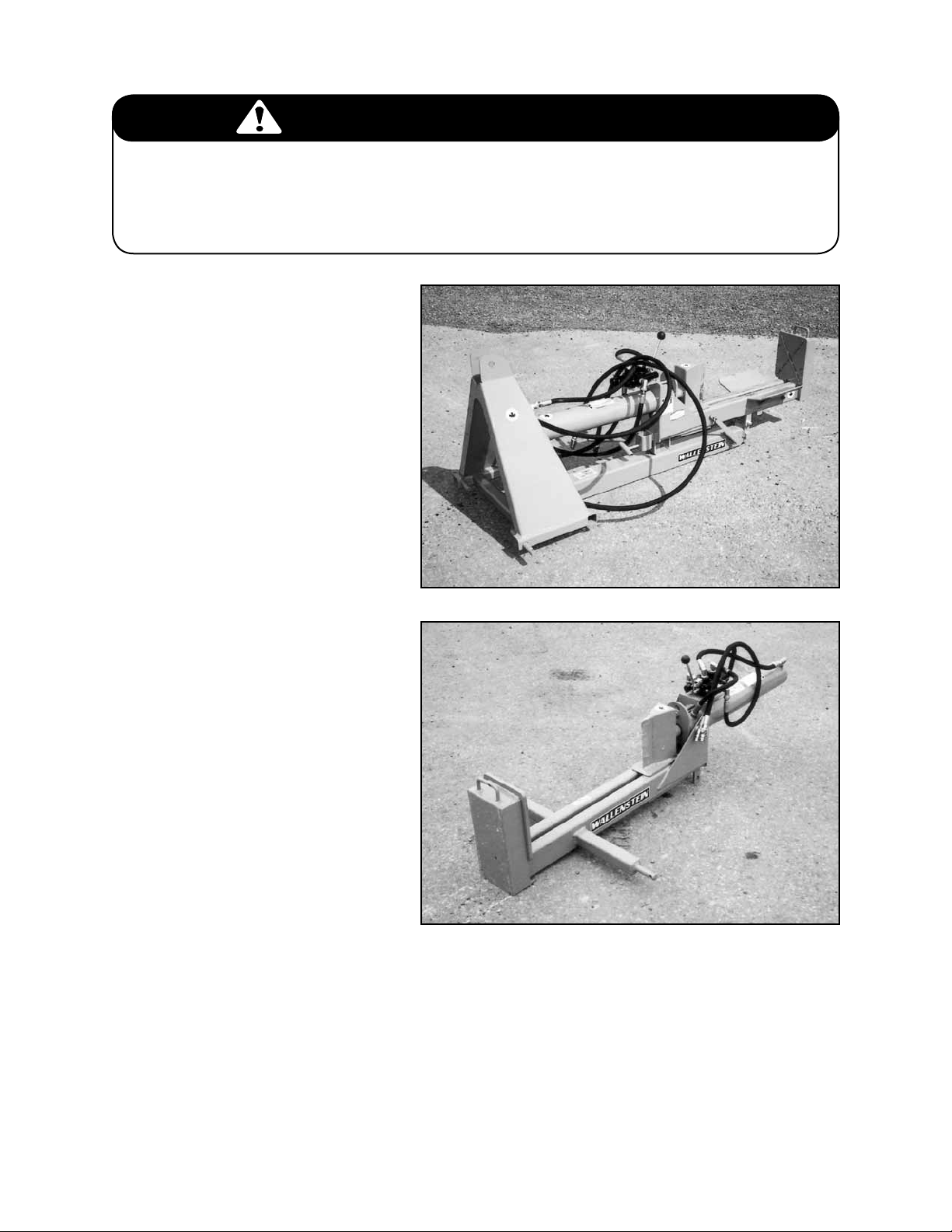

WX310
Horizontal
WX330
Horizontal
WX360
Vertical
WX320
Horizontal
WX350
Vertical
WX370
Horizontal / Vertical
3 POINT HITCH WOODSPLITTER
MODELS WX310, WX320, WX330,
WX350, WX360 & WX370
OPERATOR'S MANUAL
PRINTED IN CANADA
REV 090412 PART NUMBER: Z97044
Page 2
TABLE OF CONTENTS
WARRANTY ....................................................... 3
INSPECTION REPORT ...................................... 4
SERIAL NUMBER LOCATION .......................... 5
1 INTRODUCTION ................................... 6
2 SAFETY ................................................ 7
2.1 GENERAL SAFETY ........................... 8
2.2 EQUIPMENT SAFETY GUIDELINES 9
2.3 SAFETY TRAINING .........................10
2.4 SAFETY SIGNS ...............................10
2.5 PREPARATION ................................ 11
2.6 OPERATING SAFETY ..................... 12
2.7 HYDRAULIC SAFETY ..................... 13
2.8 STORAGE SAFETY.........................13
2.9 TRANSPORT SAFETY ....................14
2.10 MAINTENANCE SAFETY ................14
2.11 SIGN-OFF FORM ............................ 15
3 SAFETY SIGN LOCATIONS .............. 16
3.1 THREE PANEL ................................ 16
3.2 TWO PANEL .................................... 16
4 OPERATION ....................................... 17
4.1 TO THE NEW OPERATOR .............. 17
4.2 MACHINE COMPONENTS .............. 18
4.3 MACHINE BREAK-IN ......................19
4.4 PRE-OPERATION CHECKLIST ...... 19
4.5 ATTACHING/UNHOOKING.............. 20
4.5.1 THREE POINT HITCH .....................20
4.5.2 CONNECT THE HYDRAULICS: ...... 21
4.6 CONTROLS .......................................... 22
4.7 FIELD OPERATION .............................. 23
4.7.1 OPERATION ........................................ 24
4.7.2 BEGIN WORK: ...................................... 24
4.7.3 LOG PLACEMENT: ............................... 25
4.7.4 WEDGE CONFIGURATION: ................ 26
4.7.5. WX370 CONVERSION ......................... 26
4.7.6. OPERATING HINTS: ............................ 27
4.8 TRANSPORTING ................................. 28
4.9 STORAGE ............................................ 29
5 SERVICE AND MAINTENANCE ............. 30
5.1 FLUIDS AND LUBRICANTS ................. 30
5.2 GREASING ........................................... 30
5.3 SERVICING INTERVALS ...................... 30
5.4 SERVICE ILLUSTRATION .................... 31
5.5 SERVICE RECORD .............................. 31
6 TROUBLE SHOOTING ............................ 32
7 SPECIFICATIONS ................................... 33
7.1 MECHANICAL....................................... 33
7.2 HYDRAULIC FITTING TORQUE .......... 33
7.3 BOLT TORQUE ..................................... 34
8 ACCESSORIES ....................................... 35
#W4110 4 WAY SPLITTING WEDGE ............... 35
#W4120 4 WAY SPLITTING WEDGE ............... 35
#W4130 4 WAY SPLITTING WEDGE ............... 35
INDEX.................................................................... 36
2
Page 3
WARRANTY
WARRANTY
Effective on products retailed on or after January 1, 2011.
Register your product online at
This product is warranted to be free of defects in materials and workmanship under normal use and service, for a period of
One (1) Year for Commercial/Rental
from the date of purchase, when operated and maintained in accordance with the Operating and Maintenance Instructions
supplied with this unit. Warranty is limited to the repair of the product and/or replacement of parts.
This warranty does not cover the following items:
1) Machines or parts lost or damaged during shipment,
2) Normal maintenance or adjustments after initial pre-service and set up is completed
3) Normal replacement of service items.
4) Accessory items / parts not supplied by EMB MFG INC.
5) Damages resulting from:
• misuse, negligence, accident, theft or re
• use of improper or insufcient fuel, uids or lubricants
• use of parts or after market accessories other than genuine EMB MFG INC. parts
• modications, alteration, tampering or improper repair performed by parties other than an authorized dealer
• any device or accessories installed by parties other than an authorized EMB dealer or distributor
www.embmfg.com within 30 days of purchase to activate warranty.
Three (3) Years for Consumer
Engines are covered by the manufacturer of the engine and covered by the warranty period specied by that manufacturer.
Engine warranty must be registered at the engine manufactures website. For service contact your local engine dealer.
Under no circumstances will the manufacturer be liable for any consequential damage or expense of any kind, including loss
of prots. The manufacturer is under no circumstances liable for tow vehicle of any kind. The manufacturer is not liable for
the maintenance of the product.
This warranty is extended only to the original purchaser and is not transferable. Warranty is void if repairs are attempted by
anyone other than a Wallenstein Authorized Service Centre.
If a difculty develops with the product, contact the local dealer from which you purchased the unit. Only Wallenstein author-
ized dealers are authorized to make repairs to the product or affect the replacement of defective parts, which will be done at
no charge within a reasonable time after the receipt of the product. Unit or parts shall be returned at the customer’s expense
to the Authorized Service Centre. Damage in transit is not covered by warranty. Include the original purchase receipt with
any claim (keep a copy of the receipt for your les).
The distributor’s liability under warranty is limited to the repair of the product and/or replacement of parts and is given to the
purchaser in lieu of all other remedies including incidental and consequential charges. There are no warranties, expressed
or implied, other than those specied herein.
EMB MFG Inc
4144 Boomer Line, St Clements, ON N0B 2M0 Canada
Phone: 519-699-9283 Fax: 519-699-4146 : attention to Warranty Dept
Email: [email protected]
rev.201011
WARRANTY IS VOID IF NOT REGISTERED
3
Page 4
WALLENSTEIN
3 POINT HITCH WOODSPLITTER
INSPECTION REPORT
This form must be lled out by the dealer and signed by both the dealer and the customer at the time of delivery.
Customer’s Name Dealer Name
Address Address
City, State/Province, Code City, State/Province, Code
Phone Number ( ) Phone Number ( )
Contact Name
Model
Serial Number
Delivery Date
DEALER INSPECTION REPORT
____ Check For Hydraulic Leaks
____ Check That Cylinder Extends Freely
____ Fasteners Tight
____ Lubricate Machine
____ Retainer Installed Through Mounting Pins
I have thoroughly instructed the buyer on the above described equipment which review included the Operator’s Manual content, equipment care, adjustments, safe operation and applicable warranty policy.
Date Dealer’s Rep. Signature
The above equipment and Operator’s Manual have been received by me and I have been thoroughly
instructed as to care, adjustments, safe operation and applicable warranty policy.
Date Owner's Signature
SAFETY
____ All Decals Installed
____ Guards and Shields Installed and Secured
____ Review Operating and Safety Instructions
To activate warranty, register your product online at www.embmfg.com
4
Page 5
SERIAL NUMBER LOCATION

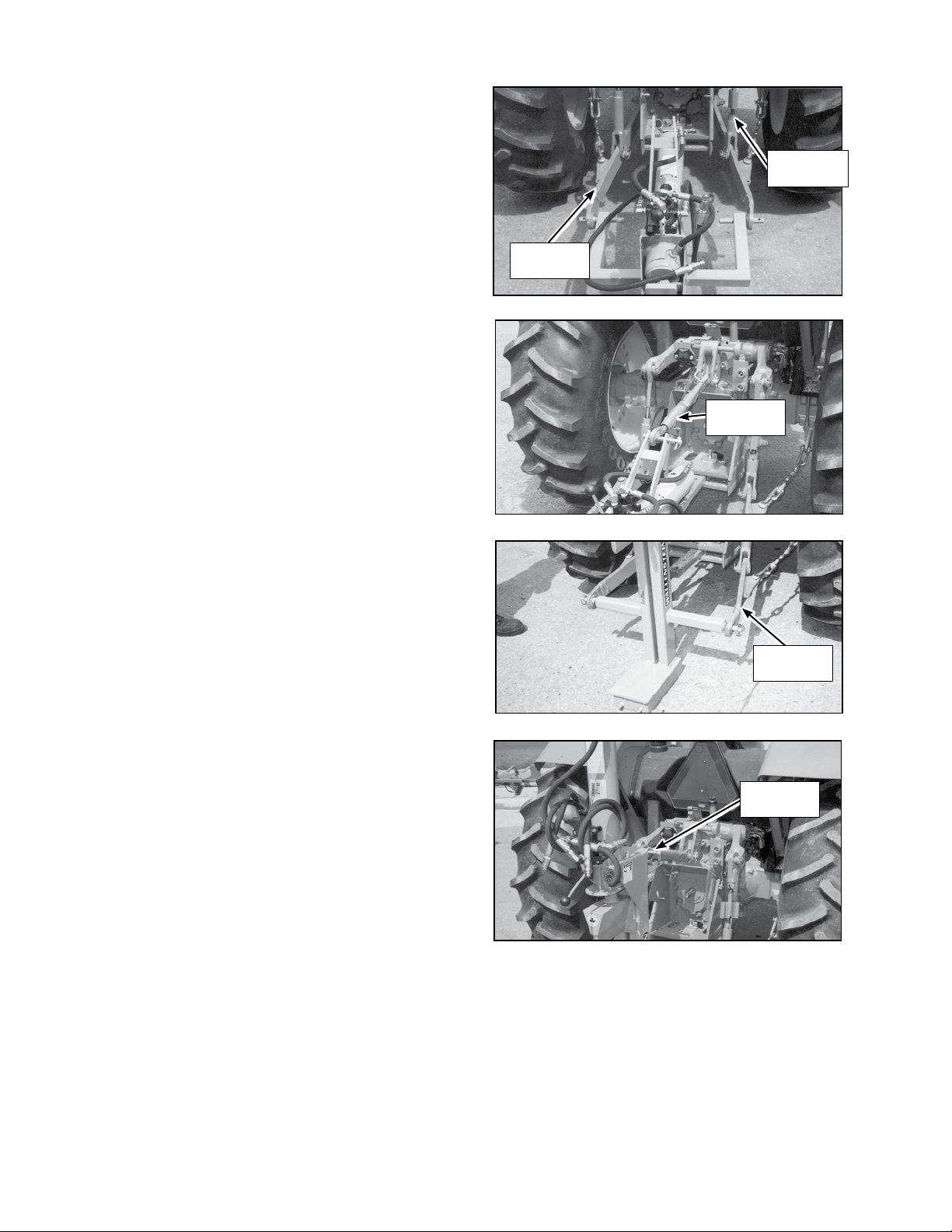

Always give your dealer the serial number of your Wallenstein 3 Point Hitch Woodsplitter when ordering
parts or requesting service or other information.

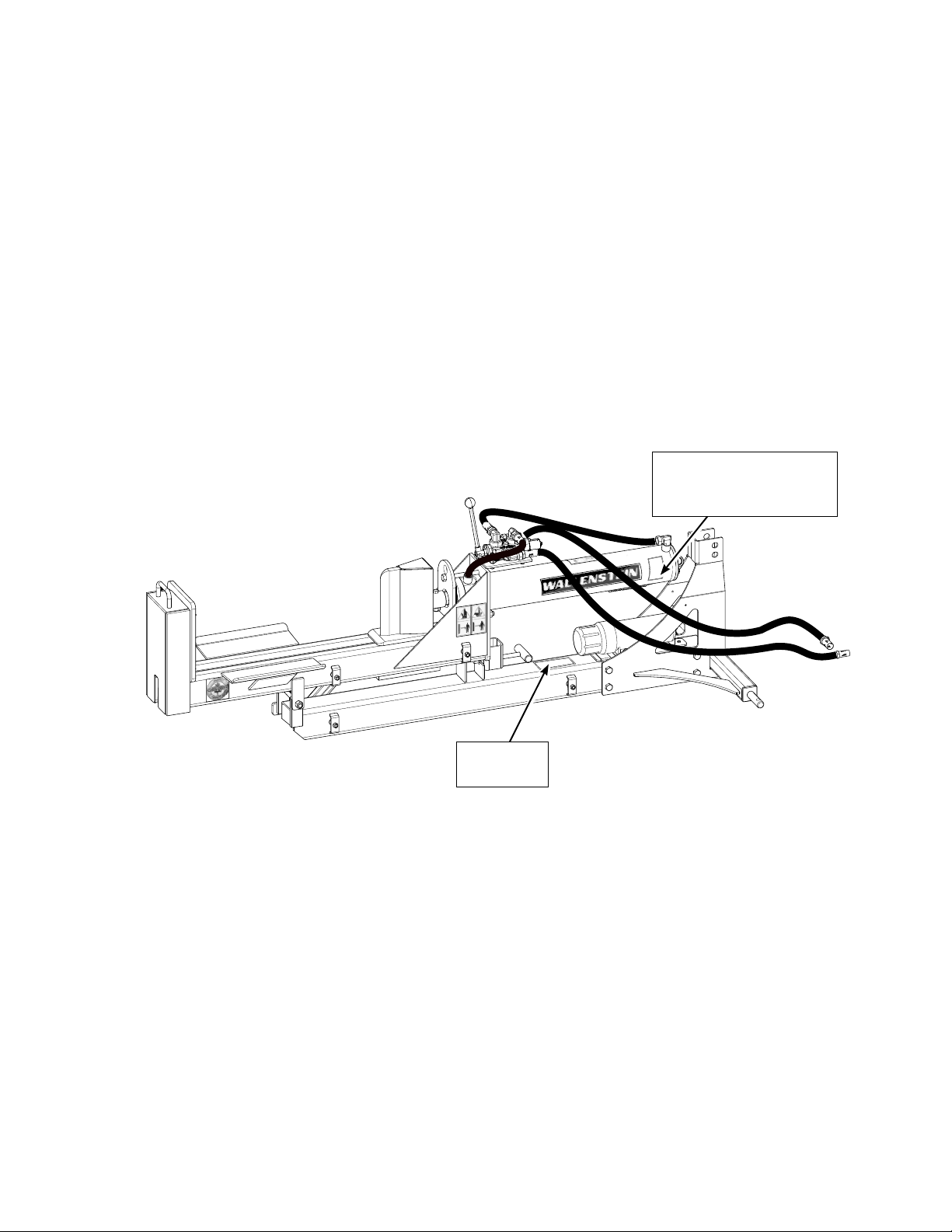

The serial number plates are located where indicated. Please mark the numbers in the spaces provided
for easy reference.
WX310, WX320, WX330,
WX350, WX360
Serial
WX370
Serial
SERIAL NUMBER LOCATION
Model Number ____________________________________________________
Splitter Serial Number _____________________________________________
5
Page 6
1 INTRODUCTION
Congratulations on your choice of a Wallenstein 3 Point Hitch Woodsplitter to complement your log splitting operation. This equipment has been designed and manufactured to meet the needs of a discriminat-
ing buyer for the efcient splitting of logs.
Safe, efcient and trouble free operation of your Woodsplitter requires that you and anyone else who will
be operating or maintaining the machine, read and understand the Safety, Operation, Maintenance and
Trouble Shooting information contained within the Operator's Manual.
WX310
Horizontal
WX330
Horizontal
WX360
Vertical
This manual covers the Wallenstein 3 Point Hitch Woodsplitters, models WX310, WX320, WX330,
WX350, WX360 and WX370. Units with closed centre hydraulics are identied with a "C" (eg:WX310C) in
the model number. Opertation is identical for both models.
WX320
Horizontal
WX350
Vertical
WX370
Horizontal / Vertical
Use the Table of Contents and Index as a guide to locate required information.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your
Wallenstein dealer, distributor or the factory if you need assistance, information or additional copies of the
manuals.
OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout this
manual, are as seen from the driver's seat and facing in the direction of travel.
6
Page 7
2 SAFETY
SAFETY ALERT SYMBOL
This Safety Alert symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Why is SAFETY important to you?
3 Big Reasons
SIGNAL WORDS:
Note the use of the signal words DANGER,
WARNING and CAUTION with the safety
messages. The appropriate signal word for
each message has been selected using the
following guide-lines:
The Safety Alert symbol identies
important safety messages on the
Wallenstein Woodsplitter and in the
manual. When you see this symbol,
be alert to the possibility of personal
injury or death. Follow the instructions in the safety message.
Accidents Disable and Kill
Accidents Cost
Accidents Can Be Avoided
DANGER - Indicates an imminently hazardous
situation that, if not avoided, will result in death or serious injury. This
signal word is to be limited to the
most extreme situations typically
for machine components which,
for functional purposes, cannot be
guarded.
WARNING -
Indicates a potentially hazardous
situation that, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may
also be used to alert against unsafe
practices.
CAUTION - Indicates a potentially hazardous
situation that, if not avoided, may
result in minor or moderate injury.
It may also be used to alert against
unsafe practices.
If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or Wallenstein, 4144 Boomer Line, St. Clements, ON, N0B 2M0. Phone
(519) 699-9283 or Fax (519) 699-4146.
7
Page 8
SAFETY
2.1 GENERAL SAFETY
YOU are responsible for the SAFE operation and
maintenance of your Wallenstein 3 Point Hitch
Woodsplitter. YOU must ensure that you and anyone else who is going to operate, maintain or work
around the Woodsplitter be familiar with the operating and maintenance procedures and related
SAFETY information contained in this manual.
This manual will take you step-by-step through
your working day and alerts you to all good safety
practices that should be adhered to while operating the Woodsplitter.
Remember, YOU are the key to safety. Good
safety practices not only protect you but also
the people around you. Make these practices a
working part of your safety program. Be certain
that EVERYONE operating this equipment is
familiar with the recommended operating and
maintenance procedures and follows all the safety
precautions. Most accidents can be prevented.
Do not risk injury or death by ignoring good safety
practices.
• Woodsplitter owners must give operating
instructions to operators or employees before
allowing them to operate the machine, and at
least annually.
• The most important safety feature on this
equipment is a SAFE operator. It is the operator’s responsibility to read and understand
ALL Safety and Operating instructions in the
manual and to follow these. Most accidents
can be avoided.
• A person who has not read and understood
all operating and safety instructions is not
qualied to operate the machine. An untrained
operator exposes himself and bystanders to
possible serious injury or death.
• Do not modify the equipment in any way.
Unauthorized modication may impair the
function and/or safety and could affect the life
of the equipment.
• Think SAFETY! Work SAFELY!
1. Read and understand the
Operator’s Manual and all
safety signs before operating, maintaining, adjusting or
unplugging the Woodsplitter.
2. Have a rst-aid kit available
for use should the need
arise and know how to use
it.
3. Have a re extinguisher
available for use should the
need arise and know how to
use it.
4. Do not allow riders.
5. Wear appropriate protective gear. This list
includes but is not
limited to:
- A hard hat
- Protective shoes
with slip resistant
soles
- Protective goggles, glasses or
face shield
- Heavy gloves
- Protective clothing
6. Install and secure all guards
before starting.
7. Wear suitable ear protection
for prolonged exposure to
excessive noise.
8. Place all controls in neutral, stop tractor engine, set park brake, remove ignition key and
wait for all moving parts to stop before servicing, adjusting, repairing or unplugging.
9. Clear the area of people, especially small
children, before starting.
10. Review safety related items annually with all
personnel who will be operating or maintaining the Woodsplitter.
8
Page 9
2.2 EQUIPMENT SAFETY GUIDELINES
1. Safety of the operator and bystanders is one
of the main concerns in designing and developing a machine. However, every year
many accidents occur which could have been
avoided by a few seconds of thought and a
more careful approach to handling equipment.
You, the operator, can avoid many accidents
by observing the following precautions in this
section. To avoid personal injury or death,
study the following precautions and insist
those working with you, or for you, follow
them.
2. In order to provide a better view, certain photographs or illustrations in this manual may
show an assembly with a safety shield removed. However, equipment should never be
operated in this condition. Keep all shields in
place. If shield removal becomes necessary
for repairs, replace the shield prior to use.

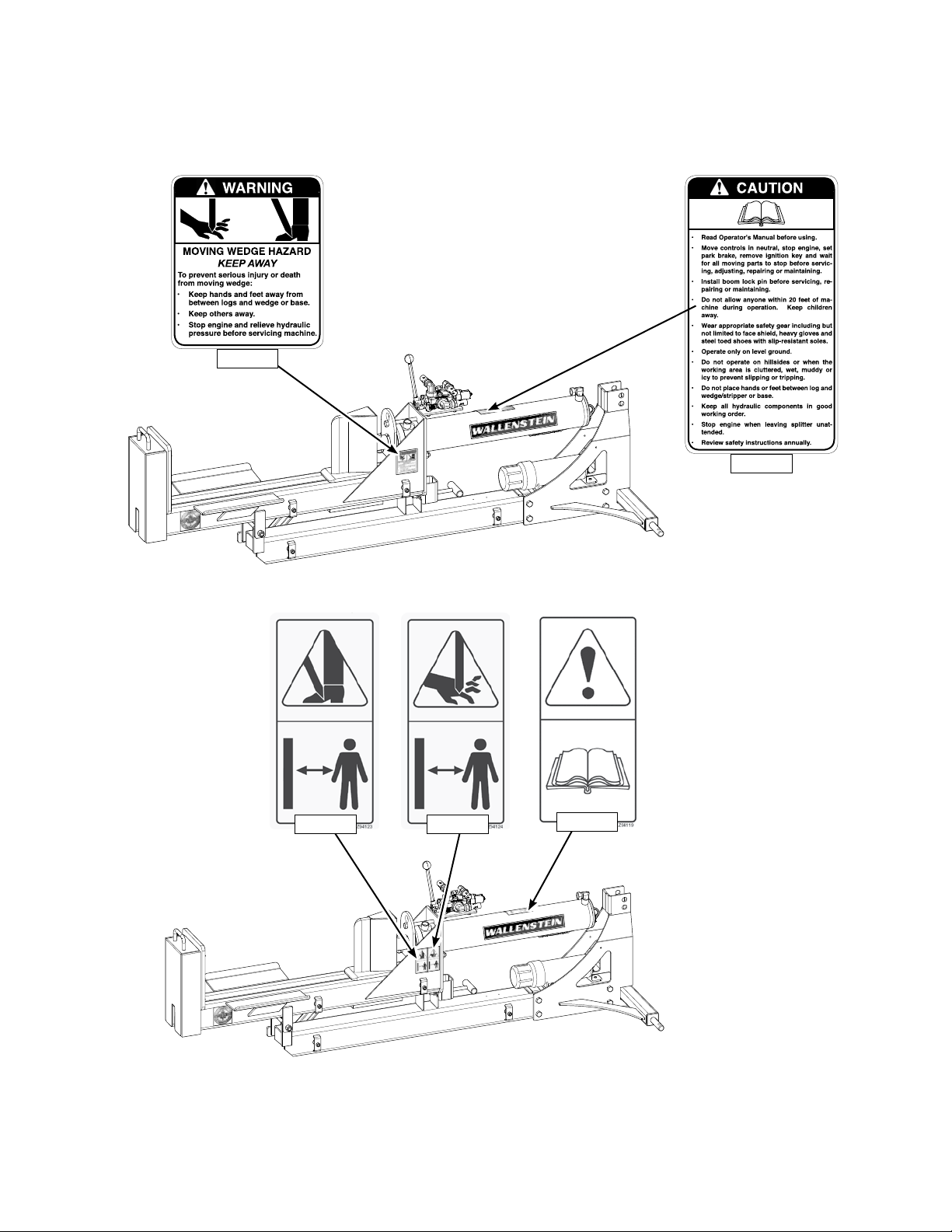

3. Replace any safety sign or instruction sign
that is not readable or is missing. Location of
such safety signs is indicated in this manual.
4. Never use alcoholic beverages or drugs which
can hinder alertness or coordination while
operating this equipment. Consult your doctor about operating this machine while taking
prescription medications.
5. Under no circumstances should young
children be allowed to work with this
equipment. Do not allow persons to operate or assemble this unit until they have
read this manual and have developed a
thorough understanding of the safety precautions and of how it works. Review the
safety instructions with all users annually.
6. This equipment is dangerous to children and
persons unfamiliar with its operation. The
operator should be a responsible, properly
trained and physically able person familiar
with farm machinery and trained in this equipment's operations. If the elderly are assisting
with work, their physical limitations need to be
recognized and accommodated.
7. Use a tractor equipped with a Roll Over Protective Structure (ROPS) and a seat belt.
8. Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely,
is in question - DON'T TRY IT.
9. Do not modify the equipment in any way. Un-
authorized modication result in serious injury
or death and may impair the function and life
of the equipment.
10. In addition to the design and conguration of
this implement, including Safety Signs and
Safety Equipment, hazard control and accident prevention are dependent upon the
awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of
the machine. Refer also to Safety Messages
and operation instruction in each of the appropriate sections of the Tractor and machine
Manuals. Pay close attention to the Safety
Signs afxed to the Tractor and the machine.
9
Page 10
2.3 SAFETY TRAINING
2.4 SAFETY SIGNS
1. Safety is a primary concern in the design and
manufacture of our products. Unfortunately,
our efforts to provide safe equipment can
be wiped out by a single careless act of an
operator or bystander.
2. In addition to the design and conguration of
equipment, hazard control and accident prevention are dependent upon the awareness,
concern, prudence and proper training of
personnel involved in the operation, transport,
maintenance and storage of this equipment.
3. It has been said, "The best safety feature is
an informed, careful opera-
tor." We ask you to be that
kind of an operator. It is
the operator's responsibility to read and understand
ALL Safety and Operating instructions in the
manual and to follow these. Accidents can be
avoided.
4. Working with unfamiliar equipment can
lead to careless injuries. Read this manual, and the manual for your tractor, before
assembly or operating, to acquaint yourself with the machines. If this machine is
used by any person other than yourself,
or is loaned or rented, it is the machine
owner's responsibility to make certain that
the operator, prior to operating:
a. Reads and understands the operator's
manuals.
b. Is instructed in safe and proper use.
5. Know your controls and how to stop tractor,
engine, and machine quickly in an emergency.
Read this manual and the one provided with
your tractor.
1. Keep safety signs clean and legible at all
times.
2. Replace safety signs that are missing or have
become illegible.
3. Replaced parts that displayed a safety sign
should also display the current sign.
4. Safety signs are available from your authorized Distributor or Dealer Parts Department or
the factory.
How to Install Safety Signs:
• Be sure that the installation area is clean and
dry.
• Be sure temperature is above 50°F (10°C).
• Determine exact position before you remove
the backing paper. (See Section 3).
• Remove the smallest portion of the split backing paper.
• Align the sign over the specied area and
carefully press the small portion with the exposed sticky backing in place.
• Slowly peel back the remaining paper and
carefully smooth the remaining portion of the
sign in place.
• Small air pockets can be pierced with a pin
and smoothed out using the piece of sign
backing paper.
6. Train all new personnel and review instructions frequently with existing workers. Be
certain only a properly trained and physically
able person will operate the machinery. A
person who has not read and understood all
operating and safety instructions is not quali-
ed to operate the machine. An untrained
operator exposes himself and bystanders to
possible serious injury or death. If the elderly
are assisting with farm work, their physical
limitations need to be recognized and accom-
modated.
10
Page 11
2.5 PREPARATION
1. Never operate the tractor and machine until
you have read and completely understand this
manual, the Tractor Operator's Manual, and
each of the Safety Messages found on the
safety signs on the tractor and machine.
5. Clear working area of stones, branches or
hidden obstacles that might be hooked or
snagged, causing injury or damage.
6. Operate only in daylight or good articial light.
7. Be sure machine is properly mounted, adjusted and in good operating condition.
2. Personal protection equipment including hard hat,
safety glasses,
safety shoes,
and gloves are
recommended
during assembly, installation,
operation, adjustment, maintaining, repairing,
removal, or moving the implement. Do not al-
low long hair, loose tting clothing or jewellery
to be around equipment.
3. PROLONGED EXPOSURE
TO LOUD NOISE MAY
CAUSE PERMANENT
HEARING LOSS!
Tractors with or without
equipment attached can often
be noisy enough to cause
permanent, partial hearing
loss. We recommend that you wear hearing
protection on a full-time basis if the noise in
the Operator's position exceeds 80db. Noise
over 85db on a long-term basis can cause severe hearing loss. Noise over 90db adjacent
to the Operator over a long-term basis may
cause permanent, total hearing loss. NOTE:
Hearing loss from loud noise (from tractors,
chain saws, radios, and other such sources
close to the ear) is cumulative over a lifetime
without hope of natural recovery.
8. Ensure that all safety shielding and safety
signs are properly installed and in good condition.
4. Operate the machine only with a tractor
equipped with an approved
Roll-Over-Protective Structure (ROPS). Always wear
your seat belt. Serious injury
or even death could result
from falling off the tractor
---particularly during a turnover when the operator could
be pinned under the ROPS or the tractor.
11
Page 12
2.6 OPERATING SAFETY
1. Please remember it is important that you read
and heed the safety signs on the Woodsplitter.
Clean or replace all safety signs if they cannot be clearly read and understood. They are
there for your safety, as well as the safety of
others. The safe use of this machine is strictly
up to you, the operator.
2. All things with moving parts are potentially
hazardous. There is no substitute for a cautious, safe-minded operator who recognizes
potential hazards and follows reasonable
safety practices. The manufacturer has
designed this Woodsplitter to be used with
all its safety equipment properly attached,
to minimize the chance of accidents. Study
this manual to make sure you have all safety
equipment attached.
3. If a safety shield or guard is removed for any
reason, it must be replaced before the machine is again operated.
4. Personal protection equipment including hard
hat, safety glasses, hearing protection, safety
shoes, and tight gloves are recommended
during assembly, installation, operation, adjustment, maintaining, repairing, removal, or
moving. Do not allow long hair, loose tting
clothing, or jewellery to be around moving
parts.
5. Always use two people to handle heavy, unwieldy components during assembly, installation, removal or moving.
6. Never place any part of your body, ngers,
hands, feet, etc. where it would be in danger
if movement should occur during assembly,
installation, operation, maintaining, repairing,
removal or moving. Keep others away.
7. Do not allow bystanders within 20 feet of
machine during operation. Wood chips can y
out and injure others.
11. Always load logs by holding on the sides, not
the top and bottom.
12. Do not load the splitter when the wedge is in
motion.
13. Do not try to split logs across the grain. Some
kinds can burst or splinter and y out of machine causing injury.
14. For uneven cut logs, always place the wide
end down and the most square kind against
the splitting wedge.
15. Never use alcoholic beverages or drugs which
can hinder alertness or coordination while
operating this equipment. Consult your doctor about operating this machine while taking
prescription medications.
16. Do not allow riders on the machine or tractor
at any time. There is no safe place for any
riders.
17. Before you operate the machine, check over
all pins, bolts, connections and hydraulic components to be sure all are securely in place
and tight. Tighten or replace any leaking,
damaged or worn parts immediately.
18. Do not allow anyone who is not familiar with
the safety rules and operation instructions to
use this machine.
19. Never allow children to operate or be around
this machine.
20. Use stabilizer bars, adjustable sway chains,
or sway blocks on the tractor lift arms to
keep the machine from swinging side to side.
Adjust as tightly as practical for best performance.
21. Do not operate on slopes or hillsides. Sloping
terrain can cause logs to roll or slip.
8. Do not step over or straddle splitter during
operation.
9. Do not try to split more than one log at a time.
The extra log can y out and cause injury.
10. Keep your ngers and hands away from
cracks in the log that can open while splitting.
12
22. Clear the work area of objects which might be
picked up and snagged or entangled in the
machine. Do not operate on slippery, wet,
muddy or icy surfaces. Good footing prevents
slipping and tripping.
Page 13
2.7 HYDRAULIC SAFETY
2.8 STORAGE SAFETY
1. Make sure that all the components in the hydraulic system are kept in good condition and
are clean.
2. Replace any worn, cut, abraded, attened or
crimped hoses and metal lines.
3. Stop engine or motor, disconnect spark plug
wire or unplug power cord, and wait for all
moving parts to stop before servicing, adjusting, repairing or cleaning.
4. Do not attempt any makeshift repairs to the
hydraulic lines, ttings or hoses by using
tapes, clamps or cements. The hydraulic system operates under extremely high-pressure.
Such repairs will fail suddenly and create a
hazardous and unsafe condition.
5. Wear proper hand and
eye protection when
searching for a highpressure hydraulic leak.
Use a piece of wood or
cardboard as a backstop
instead of hands to isolate and identify a leak.
1. Store the unit in an area away from human
activity.
2. Do not permit children to play on or around the
stored machine.
3. Store the unit in a dry, level area. Support the
frame with planks if required.
6. If injured by a concentrated high-pressure
stream of hydraulic uid, seek medical attention immediately. Serious infection or toxic
reaction can develop from hydraulic uid
piercing the skin surface.
7. Before applying pressure to the system, make
sure all components are tight and that lines,
hoses and couplings are not damaged.
• Think SAFETY! Work SAFELY!
13
Page 14
2.9 TRANSPORT SAFETY
2.10 MAINTENANCE SAFETY
1. Comply with state and local laws governing
highway safety and movement of machinery on
public roads.
2. The use of ashing amber lights is acceptable in
most localities. However, some localities prohibit their use. Local laws should be checked for
all highway lighting and marking requirements.
3. At all times, when driving the tractor and equipment on the road or highway under 20 mph (32
kph) use ashing amber warning lights and a
slow moving vehicle (SMV) identication em-
blem. Do not exceed 20 mph (32 kph). Reduce
speed on rough roads and surfaces.
4. Plan your route to avoid heavy trafc.
5. Always install transport locks, pins or brackets
before transporting.
6. Do not drink and drive.
7. Be a safe and courteous driver. Always yield to
oncoming trafc in all situations, including narrow bridges, intersections, etc. Watch for trafc
when operating near or crossing roadways.
1. Good maintenance is your responsibility.
Poor maintenance is an invitation to trouble.
2. Follow good shop practices.
- Keep service
area clean and
dry.
- Be sure electrical
outlets and tools
are properly
grounded.
- Use adequate
light for the job at
hand.
3. Make sure there is
plenty of ventilation. Never operate the engine of the towing vehicle in a closed building.
The exhaust fumes may cause asphyxiation.
4. Before working on this machine, shut off the
engine, set the brakes, and remove the ignition keys.
5. Never work under equipment unless it is
blocked securely.
8. Turn into curves or go up or down hills only at
a low speed and at a gradual steering angle.
Make certain that at least 20% of the tractor's
weight is on the front wheels to maintain safe
steerage. Slow down on rough or uneven surfaces.
9. A heavy load can cause instability of the tractor.
Use extreme care during travel. Slow down on
turns and watch out for bumps. The tractor may
need front counterweights to counterbalance the
weight of the machine.
10. Never allow riders on either tractor or machine.
6. Use personal protection devices such as eye,
hand and hearing protectors, when performing
any service or maintenance work.
7. Where replacement parts are necessary for
periodic maintenance and servicing, genuine
factory replacement parts must be used to
restore your equipment to original specications. The manufacturer will not be responsible for injuries or damages caused by use of
unapproved parts and/or accessories.
8. A re extinguisher and rst aid kit should be
kept readily accessible while performing
maintenance on this
equipment.
9. Periodically tighten
all bolts, nuts and screws and check that all
cotter pins are properly installed to ensure unit
is in a safe condition.
10 When completing a maintenance or service
function, make sure all safety shields and
devices are installed before placing unit in
service.
14
Page 15
2.11 SIGN-OFF FORM
SIGN-OFF FORM
Wallenstein follows the general Safety Standards specied by the American Society of Agricultural Engineers (ASAE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be
operating and/or maintaining the Woodsplitter must read and clearly understand ALL Safety, Operating
and Maintenance information presented in this manual.
Do not operate or allow anyone else to operate this equipment until such information has been reviewed.
Annually review this information before the season start-up.
Make these periodic reviews of SAFETY and OPERATION a standard practice for all of your equipment.
We feel that an untrained operator is unqualied to operate this machine.
A sign-off sheet is provided for your record keeping to show that all personnel who will be working with
the equipment have read and understand the information in the Operator’s Manual and have been instructed in the operation of the equipment.
DATE EMPLOYEES SIGNATURE EMPLOYERS SIGNATURE
15
Page 16
3 SAFETY SIGN LOCATIONS
3.1 THREE PANEL
The types of safety signs and locations on the equipment are shown in the illustration below. Good safety
requires that you familiarize yourself with the various safety signs, the type of warning and the area, or
particular function related to that area, that requires your SAFETY AWARENESS.
Z94040
Z94039
3.2 TWO PANEL
Z94123 Z94124
Note: Model WX370 is shown, label placement
is similar on all WX models
Z94119
REMEMBER - If safety signs have been damaged, removed, become illegible or parts replaced without
signs, new signs must be applied. New signs are available from your authorized dealer.
16
Page 17
4 OPERATION
OPERATING SAFETY
• Read and understand the Operator’s Manual and all safety signs before operating,
servicing, adjusting, repairing or unplugging.
• Do not allow riders.
• Install and secure all guards and shields
before starting or operating.
• Keep hands, feet, hair and clothing away
from moving parts.
• Place all controls in neutral, stop tractor
engine, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing or unplugging.
• Place all tractor and machine controls in
neutral before starting.
• Always wear the appropriate personal
safety equipment when operating splitter
including but not limited to hard hat, safety
shoes, face shield and heavy gloves.
4.1 TO THE NEW OPERATOR
OR OWNER
The Wallenstein 3 Point Hitch Woodsplitter is designed to split any kind of wood or log. Be familiar
with the machine before starting.
In addition to the design and conguration of
equipment, hazard control and accident prevention are dependent upon the awareness,
concern, prudence and proper training of personnel involved in the operation, transport,
maintenance and storage of equipment. It is
the responsibility of the owner or operator to
read this manual and to train all other operators
before they start working with the machine.
It is the responsibility of the owner or operator
to read this manual and to train all other operators before they start working with the machine.
Follow all safety instructions exactly. Safety is
everyone's business. By following recommended procedures, a safe working environment is
provided for the operator, bystanders and the
area around the work site. Untrained operators
are not qualied to operate the machine.
• Clear the area of bystanders, especially
small children, before starting.
• Do not operate on slopes or side hills.
• Keep working area clean, neat and dry to
prevent slipping and tripping.
• Keep all mechanical and hydraulic components in good condition. Do not operate
with leaks or damaged components.
• Load splitter by holding logs on the side
rather than the top and bottom.
• Do not split wood across the grain.
• Review safety instructions with all operators
annually.
Many features incorporated into this machine are
the result of suggestions made by customers like
you. Read this manual carefully to learn how to operate the machine safely and how to set it to provide
maximum eld efciency. By following the operating
instructions in conjunction with a good maintenance
program, your Woodsplitter will provide many years
of trouble-free service.
17
Page 18

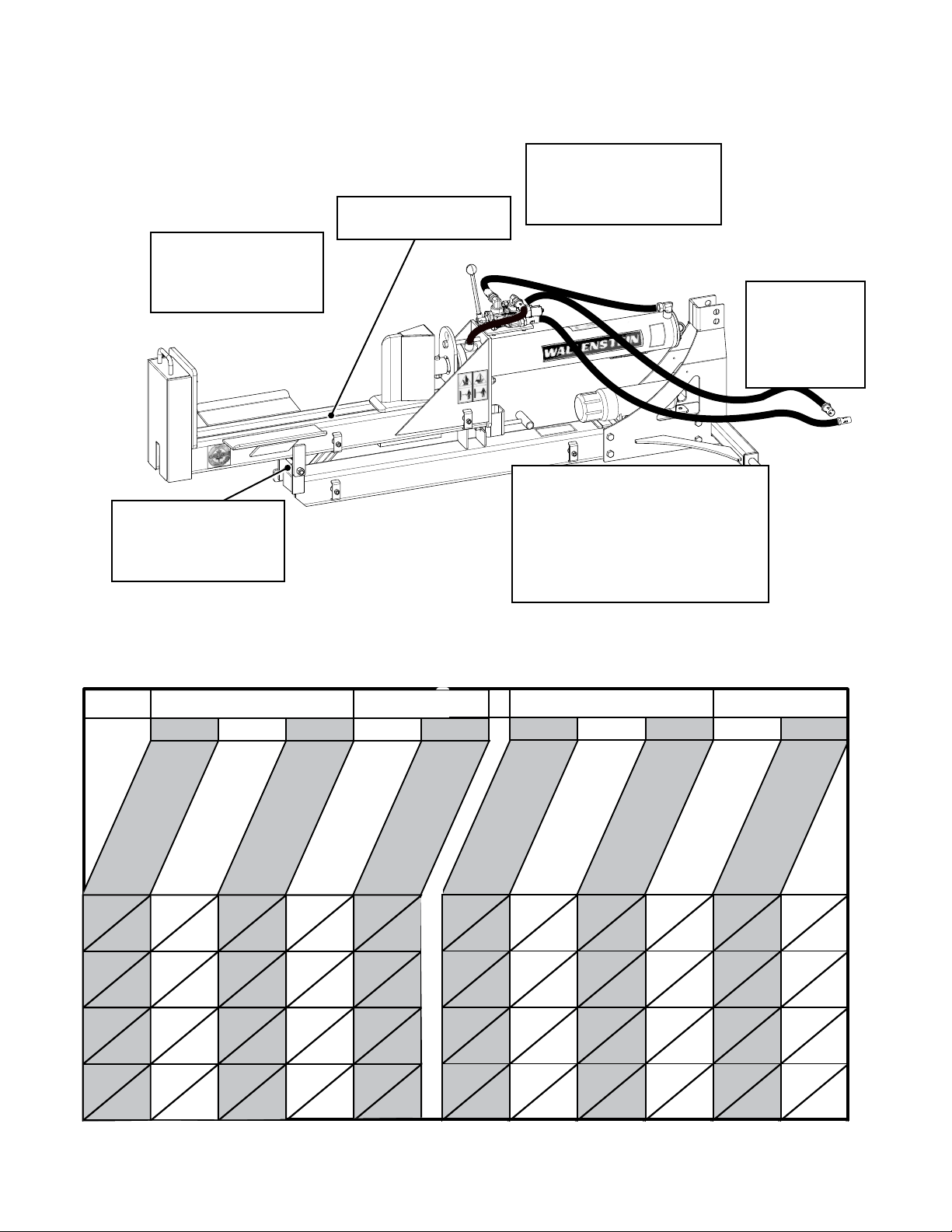

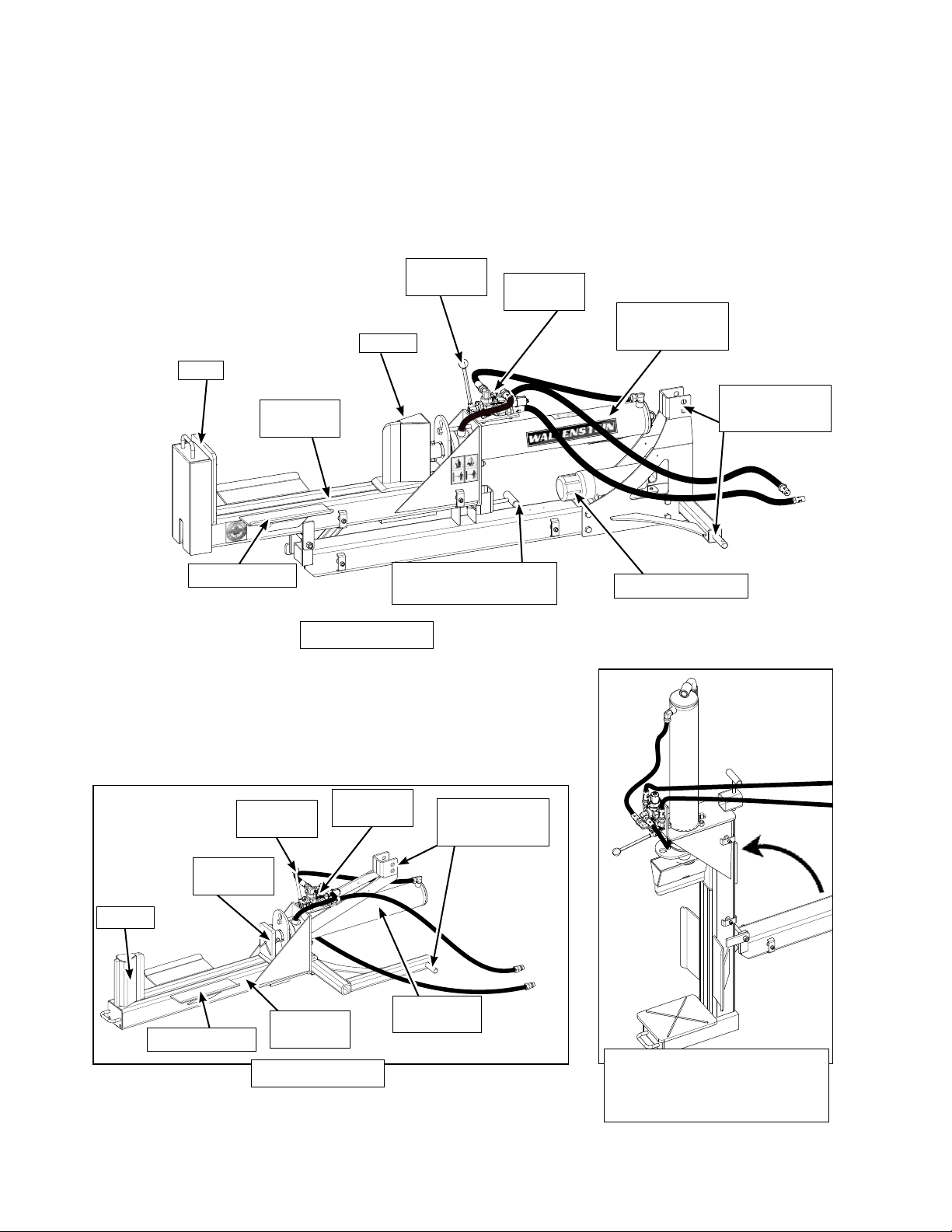

4.2 MACHINE COMPONENTS
The Wallenstein 3 Point Hitch Woodsplitter consists of a wedge on the end of a hydraulic cylinder
for splitting wood or logs. Hydraulic power from
the tractor is routed through a double acting valve
Control
Lever
Wedge
Anvil
Splitter
Frame
to control the cylinder position. The WX370 Splitter can be used in vertical or horizontal conguration.
Note: Models WX310 & W X 3 7 0 are
shown,component layout is similar on all WX
models
Control
Valve
Hydraulic
Cylinder
Category I
3 Point Hitch
Wedge
Log Saddle
Push
Block
Log Saddle
Control
Lever
Splitter
Frame
Frame Release Latch
Model WX370
Control
Valve
Hydraulic
Cylinder
(WX 370 only)
Category I
3 Point Hitch
Document Tube
18
Model WX310
Model WX370 in Vertical
Splitting Mode
Page 19
4.3 MACHINE BREAK-IN
4.4 PRE-OPERATION CHECKLIST
Although there are no operational restrictions on
the Woodsplitter when used for the rst time, it is
recommended that the following mechanical items
be checked:
A. After Operating For 1 and 5 Hours:
1. Check all nuts, bolts and other fasteners.
Tighten to their specied torque level.
2. Check hydraulic system for leaks. Tighten
all leaking ttings and replace any leaking
components.
3. Then go to the service schedule as de-
ned in the Maintenance Section.
Efcient and safe operation of the Wallenstein
Woodsplitter requires that each operator reads
and understands the operating procedures and all
related safety precautions outlined in this section.
A pre-operation checklist is provided for the operator. It is important for both the personal safety and
maintaining the good mechanical condition of the
Woodsplitter that this checklist is followed.
Before operating the machine and each time
thereafter, the following areas should be checked
off:
1. Use only a small Agricultural tractor of less
than 100 horsepower on the machine.
2. Check that the machine is properly attached
to the tractor. Be sure retainers are used on
the mounting pins.
3. Be sure extra weights are mounted on the
front of the tractor if required.
4. Check the wedge and block. Be sure they are
not damaged or broken and is not badly worn.
Repair or replace as required.
5. Check for entangled material. Remove this
material.
6. Check for hydraulic leaks. Tighten ttings or
replace components to stop leaks.
19
Page 20

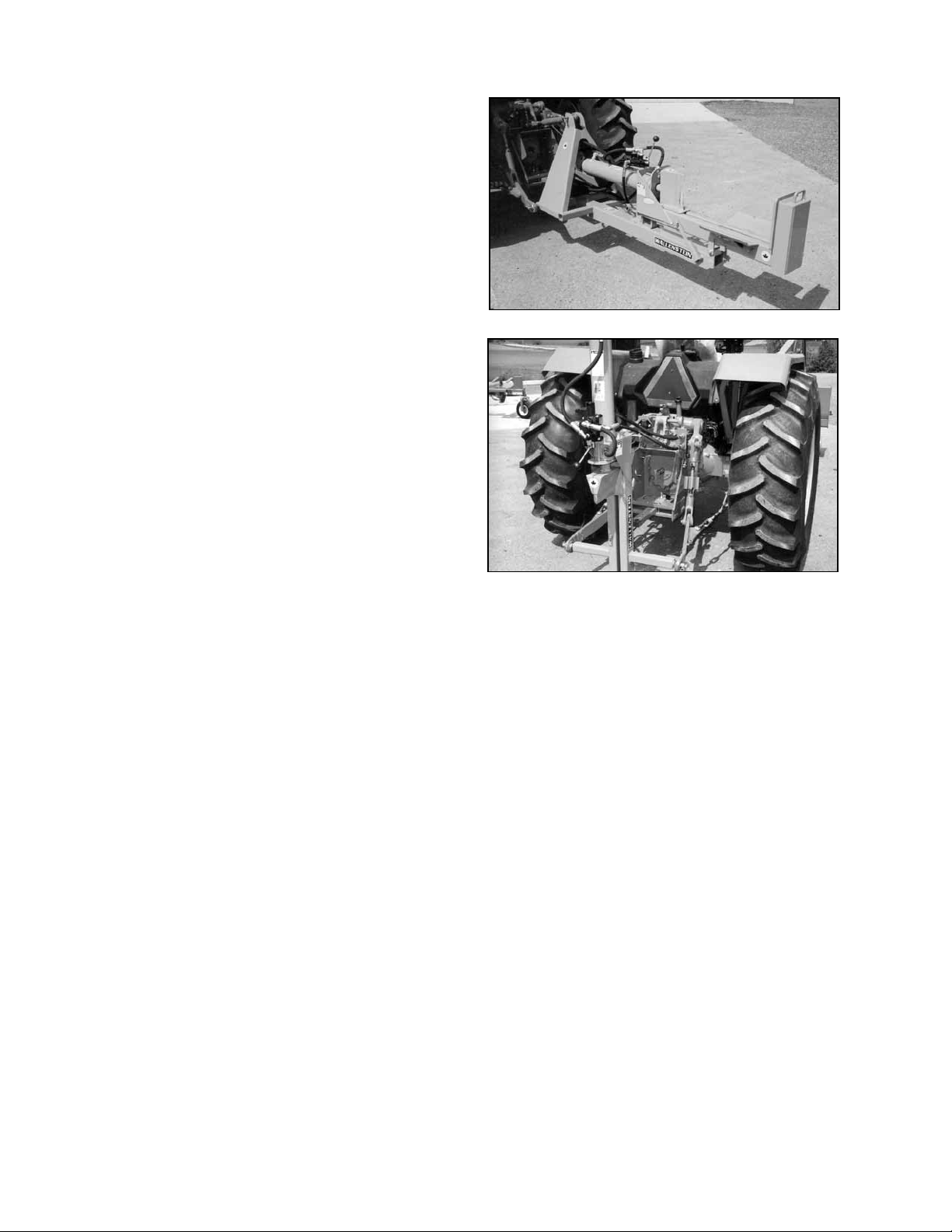

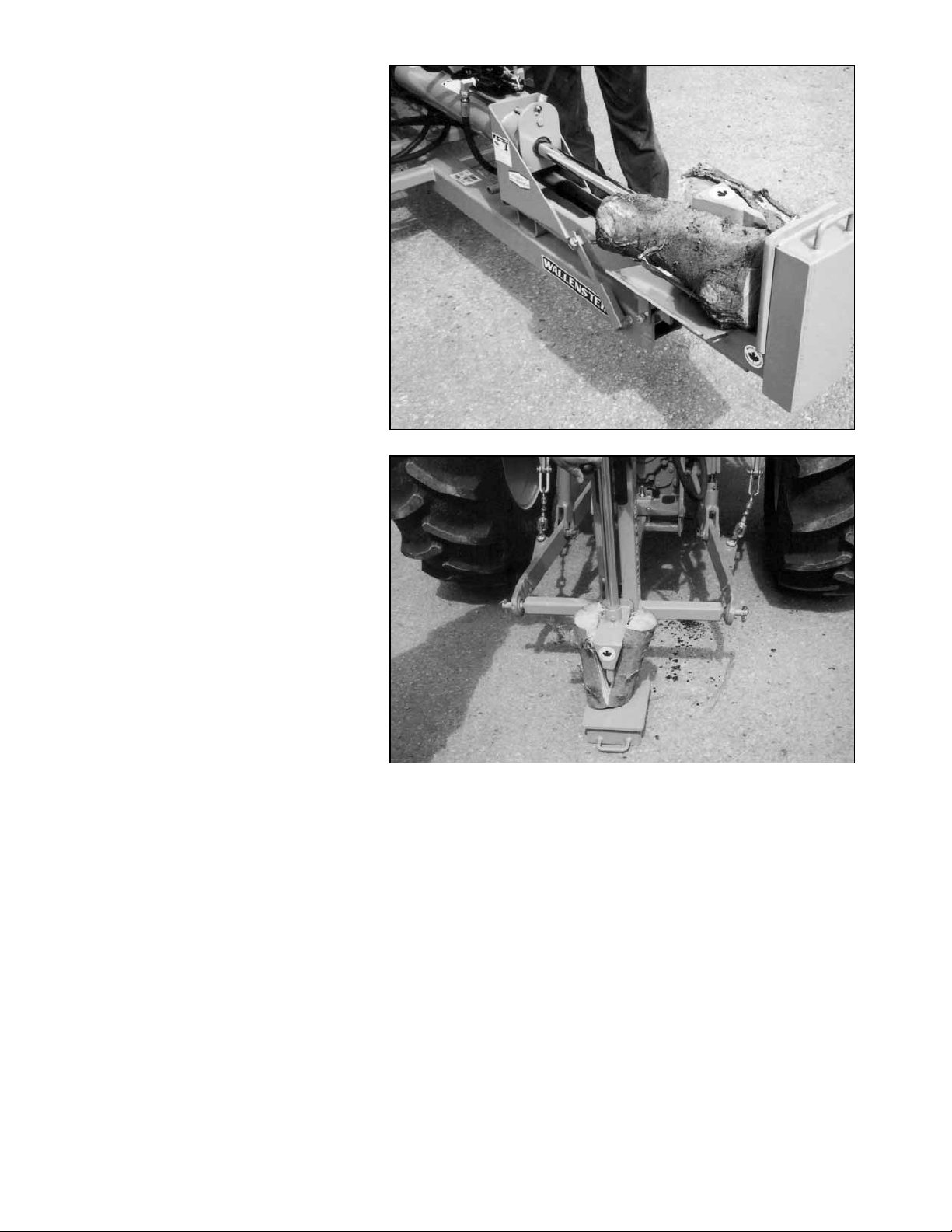

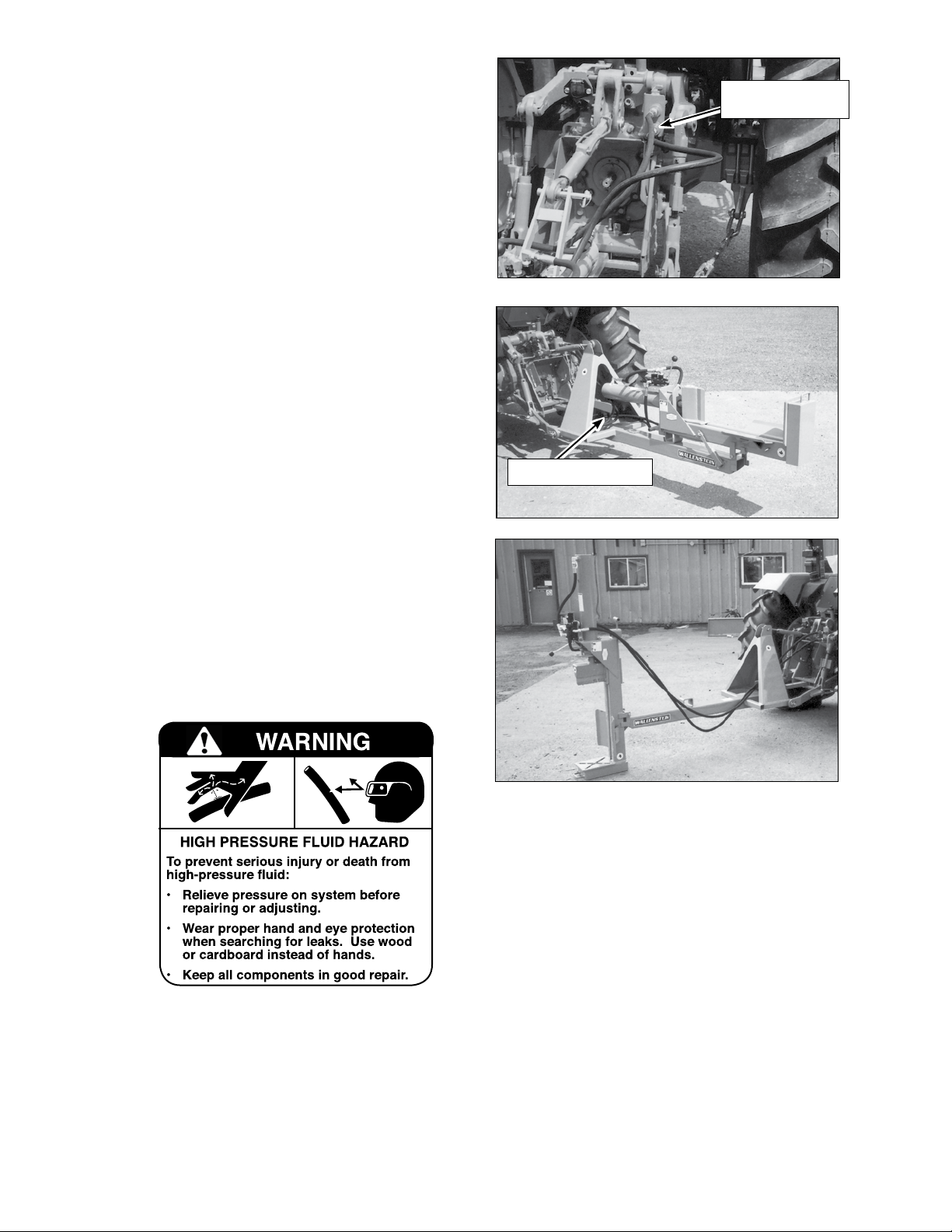

4.5 ATTACHING/UNHOOKING TRACTOR
4.5.1 THREE POINT HITCH
HORIZONTAL MODELS (WX310, 320, 330, 370)
AND VERTICAL MODELS (WX360, 350)
All WX models (horizontal and vertical splitting) attach the 3 point hitch in the same manner, follow the
steps below and use the pictures as a guide.
Note: All WX models are "quick hitch" compatible
When attaching splitter to a tractor, follow this procedure:
1. Clear the area of bystanders, especially small
children.
2. Make sure there is enough room and clearance to safely back up to the splitter.
3. Place the lift arms in their full sway position.
4. Back up slowly and align the lift arm ball to the
pins on the machine.
5. Align the left lift arm ball with the left splitter
pin.
6. Insert the left pin through the ball and install
the retainer.
7. Align the right lift arm ball to the pin by turning
the jackscrew on the arm.
8. Insert the right pin through the ball and install
the retainer. Return the jackscrew to its starting position.
9. Remove the top pin and install the top link.
Use the turnbuckle to align the top link. Insert
the pins and install the retainers. Return the
turnbuckle to its original length and lock.
lift arm
jack
screw
Lift Arms Aligned
top link
Top Link Pinned
lift arm
Vertical Model - Lift Arms Pinned
20
IMPORTANT
Move or remove the tractor
drawbar if there is interference
between the cylinder and drawbar. Check the tractor manual if
required.
top link
Vertical Model - Top Link Pinned
Fig. 7 ATTACHING:
HORIZONTAL AND VERTICAL
Page 21

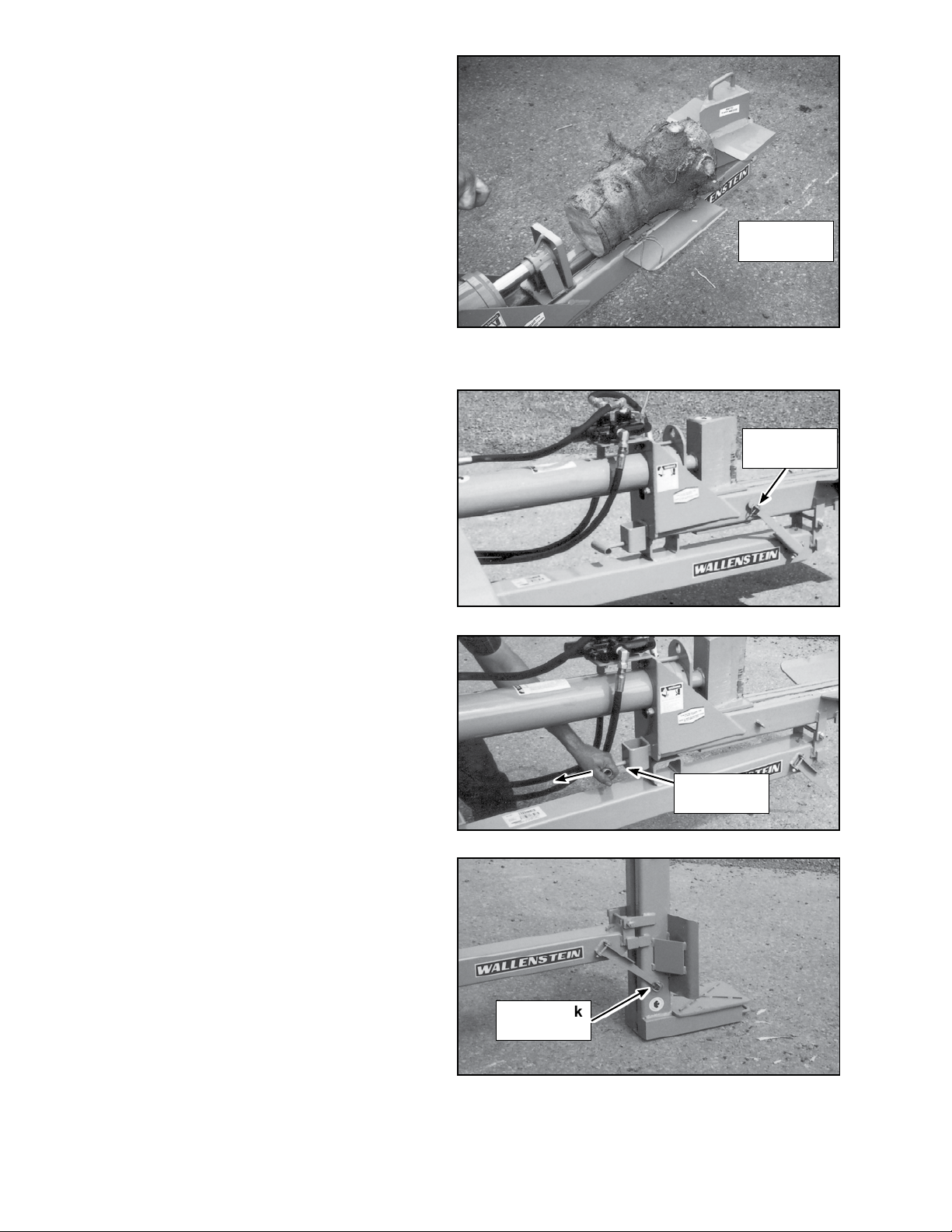

4.5.2 CONNECT THE HYDRAULICS:
1. Use a clean rag or paper towel to clean the dirt
from couplers on the hose ends and the tractor.
2. Connect the hoses to the tractor couplers. Be
sure the couplers are securely seated.
3. Route and secure the hoses along the hitch with
clips, tape or plastic ties to prevent binding and
pinching.
4. Start the engine and place the tractor hydraulic
lever in detent.
5. Move the splitter hydraulic lever to move the
wedge.
6. Reverse the hoses if the wedge does not move
in the same direction as the hydraulic lever.
7. Slowly raise the machine through its operating
range to make sure that there is no interference
or binding.
8. Level the splitter front and rear, and side to side
using the jackscrew on the right arm and the
turnbuckle on the top link.
9. The splitter bed should always be horizontal or
vertical (depending on its working conguration)
during operation.
10. To unhook from the tractor, reverse the above
procedure. Always park the machine in a dry,
level area.
hydraulic
connections
Fig. 10 ATTACHING AND HYDRAULICS
safe hose routing
WX 370 Horizontal
WX 370 Vertical
Fig. 12 LEVELLING ADJUSTMENTS
21
Page 22
4.6 CONTROLS
All controls are conveniently positioned next to
where the operator would stand when loading
or splitting wood. Review this section to familiarize yourself with the location and function of
the control before starting.
All Wallenstein WX 3 Point Hitch Woodsplitters are
designed with one (1) hydraulic lever to control
the extending and retracting movement of the
cylinder rod.
Wedge Position Control Lever:
This 3-position spring-loaded-to-center neutral le-
ver controls the ow of oil to the cylinder.
1. Move the lever toward the base and hold for
the cylinder piston to extend and split the wood.
2. Move the lever away from the wood and place
in detent to retract the cylinder ram.
3. Release the lever, it will return to its centered
neutral position at the end of the stroke, after
pressure builds up enough to kick the lever out
of detent.
4. The cylinder piston will stop moving.
Horizontal
Vertical
Fig. 13 HYDRAULIC CONTROL LEVER
22
Page 23
4.7 FIELD OPERATION
Wallenstein Woodsplitters attach to a tractor 3 point hitch and use the tractor hydraulics to move a wedge
through wood to split it.
The operation and operating procedures outlined in this section are similar for both horizontal splitters
(WX310, 320, 330, 370) or vertical splitters (WX360, 350).
The WX370 splitter can be used in the vertical or horizontal conguration, and its operation is covered later
on in this section
The operator has the responsibility of being familiar with all operating and safety procedures and following
them.
OPERATING SAFETY
• Read and understand the Operator’s Manual
and all safety signs before operating, servicing, adjusting, repairing or unplugging.
• Do not allow riders.
• Install and secure all guards and shields
before starting or operating.
• Keep hands, feet, hair and clothing away
from moving parts.
• Place all controls in neutral, stop tractor
engine, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing or unplugging.
• Place all tractor and machine controls in
neutral before starting.
• Always wear the appropriate personal safety
equipment when operating splitter including
but not limited to hard hat, safety shoes, face
shield and heavy gloves.
• Clear the area of bystanders, especially
small children, before starting.
• Do not operate on slopes or side hills.
• Keep working area clean, neat and dry to
prevent slipping and tripping.
• Keep all mechanical and hydraulic components in good condition. Do not operate with
leaks or damaged components.
• Load splitter by holding logs on the side
rather than the top and bottom.
• Do not split wood across the grain.
• Review safety instructions with all operators
annually.
Each operator should review this section of the manual at the start of the
season and as often as required to be
familiar with the machine.
23
Page 24

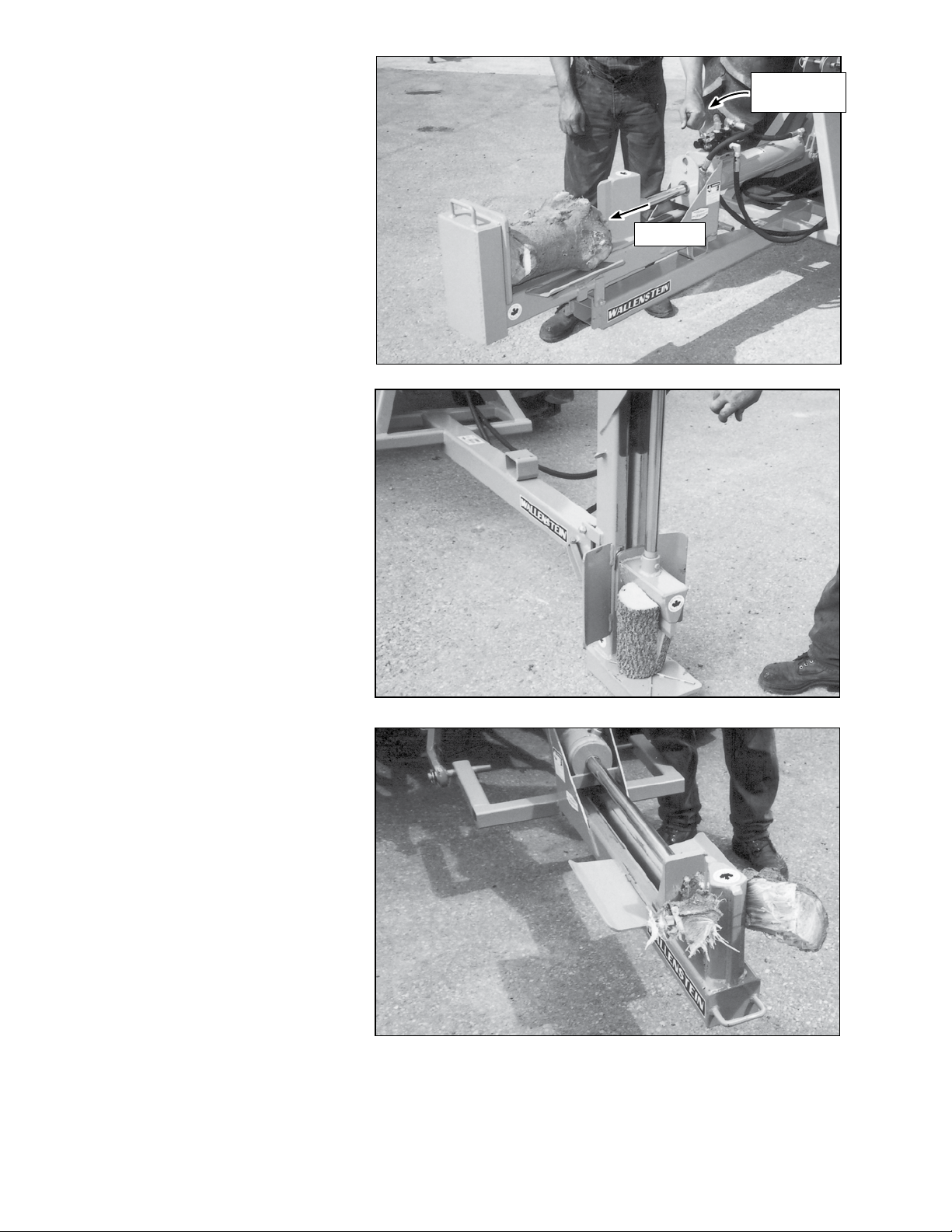

4.7.1 OPERATION
1. Clear the area of bystanders, especially small children.
2. Review and follow the Preoperation Checklist (Section
4.4).
3. Attach the splitter to the
tractor (Section 4.6).
IMPORTANT
If the parking brakes don't
hold the tractor, chock the
wheels front and rear.
4.7.2 BEGIN WORK:
1. Move tractor into its working
position, lower the frame to the
ground and set park brake. Be
sure the working area is level,
dry and free of obstructions.
2. Place the throttle in its mid-
range position.
3. On the tractor, place the work-
ing hydraulic circuit in detent.
4. Use the hydraulic control on
the splitter to move the wedge/
cylinder to its fully retracted
position.
5. Position log between the wedge
and the base of the frame.
6. Move the hydraulic lever toward
the base and hold it while the
wedge moves through the log.
7. Release the lever when the log
splits into 2 pieces or the wedge
reaches the base and the wedge
will stop.
8. Move the lever fully into detent.
Release the lever and it will be in
detent until the ram reaches the
end of the stroke. The pressure
will build up until it kicks the lever
out of detent.
hydraulic
lever
wedge
Hydraulic Lever
Vertical Splitting
24
Horizontal Splitting
Fig. 14 STARTING
Page 25

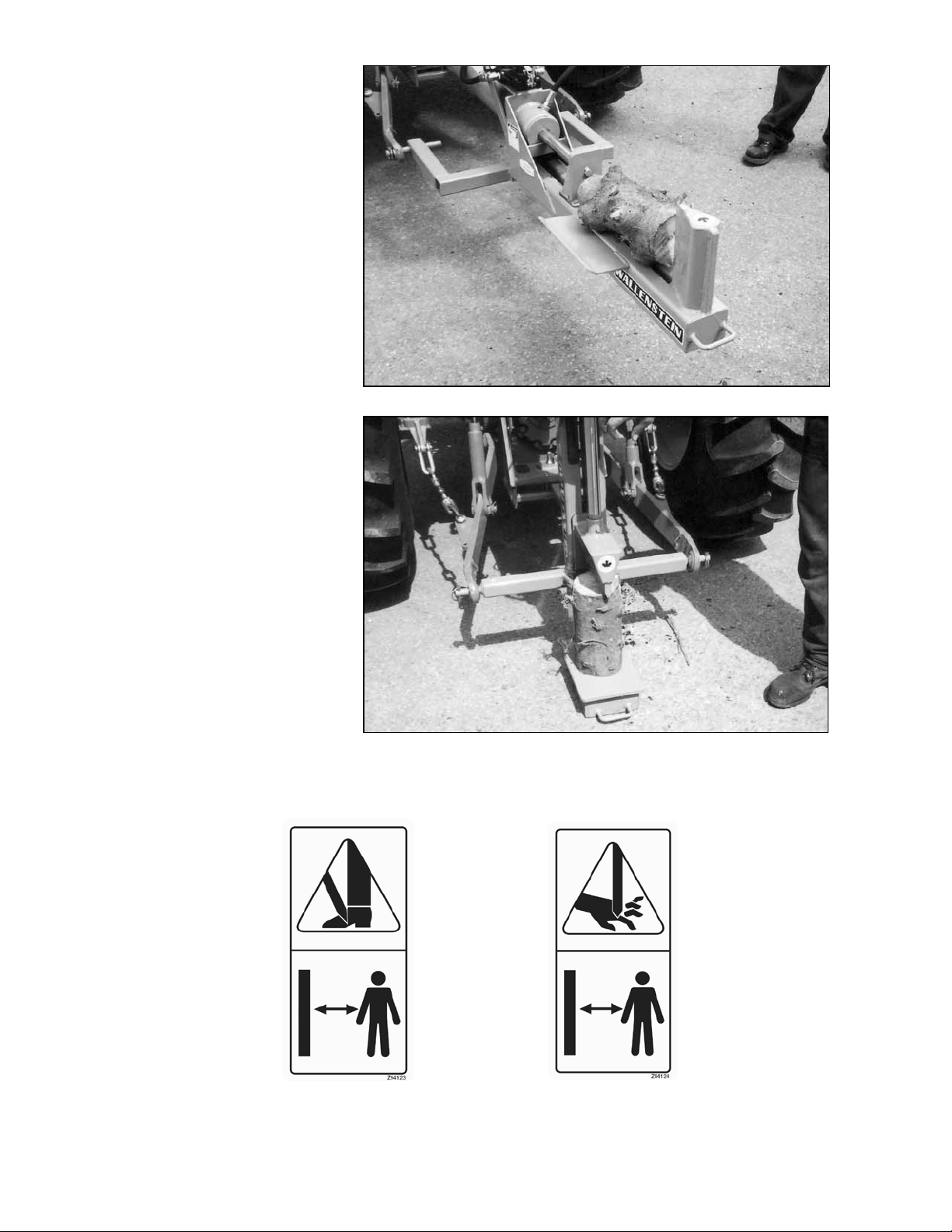

4.7.3 LOG PLACEMENT:
1. Always grasp the log by the
sides when placing in the
splitter. This will minimize
the chance of the operator
getting their ngers or arm
between the wedge and the
log.
2. Always wear the appropriate
safety gear when working
around the machine. This
includes but is not limited to:
• Hard hat for protection to
the head.
• Face mask for protection
to the face and eyes from
ying chips.
• Heavy gloves for protec-
tion from slivers, chips and
pinching.
• Safety shoes with slip
resistant soles for protection
to the feet and toes from
dropped logs and pieces of
wood. Slip resistant soles
reduce the change of slipping.
Horizontal
Fig. 16 LOG PLACEMENT
Vertical
25
Page 26

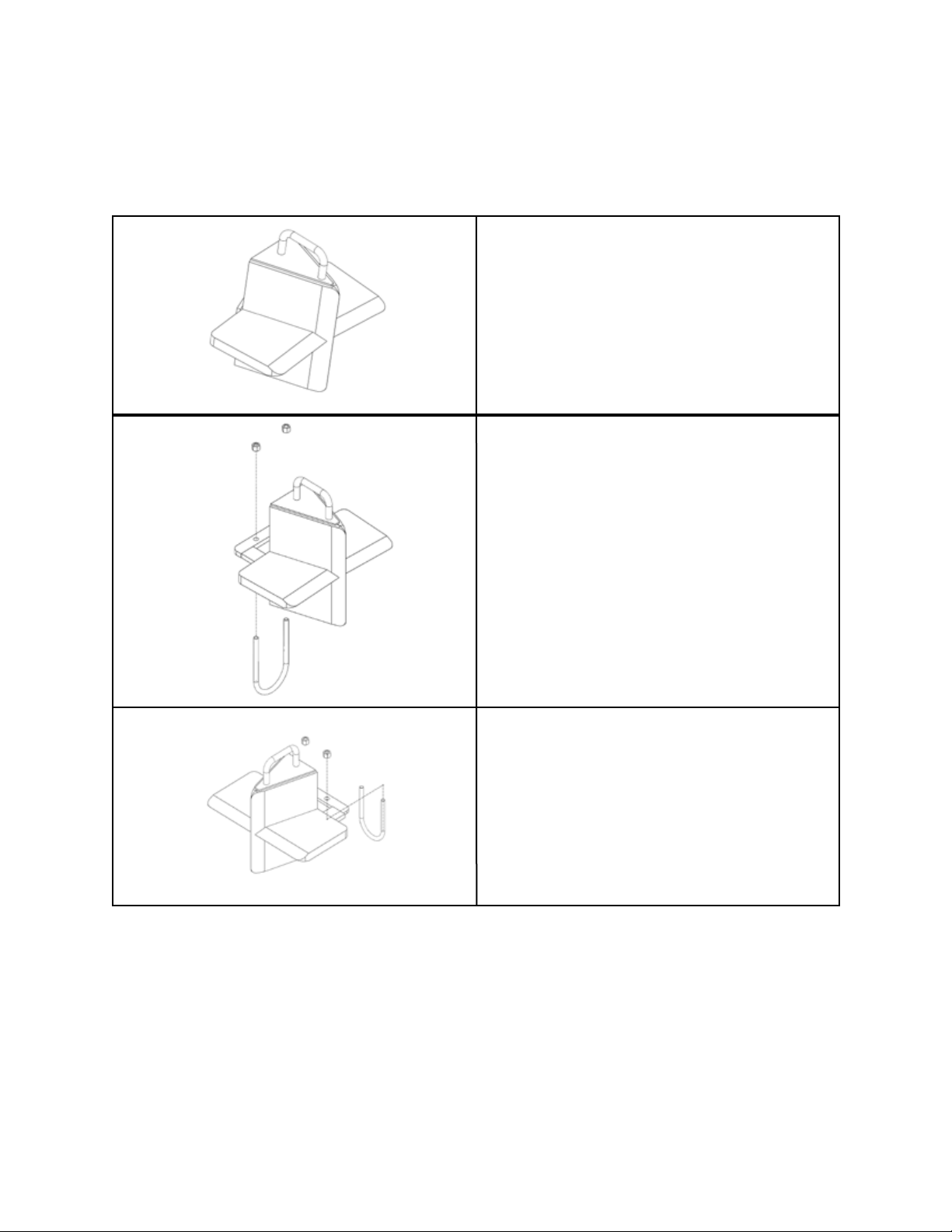

4.7.4 WEDGE CONFIGURATION:
All Woodsplitters come from the factory
equipped with a single blade wedge. An
optional 4 way wedge is available that ts
over the single wedge. It can be used at
any time to split wood into smaller more
manageable pieces.
See the accessories page at the back of this
manual, or call your dealer for more details.
4.7.5. WX370 CONVERSION
Horizontal to Vertical:
The WX370 Series is designed with a pivoting
latching main frame that allows it to be used in the
horizontal or vertical conguration.
4 way
wedge
Fig. 17 4 SEGMENT WEDGE
frame lock
& pin
1. Ensure the splitter is properly and securely
attached to the tractor.
2. Check that there is enough ground clearance
for the splitter frame to swing down.
3. Find the frame lock, unpin and swing the frame
lock away from the splitter frame
4. Find the frame latch and pull it out to release
the splitter frame
5. Carefully tilt the splitter frame forward, and
attach the frame lock and retainer pin when
the splitter frame is in position.
6. Position the 3 point hitch so that the anvil is
resting on the ground.
NOTE
Always install the frame
lock and retainer when the
frame is in its horizontal or
vertical conguration.
Frame Lock - Horizontal
frame latch
Frame Latch
26
frame lock
& pin
Frame Lock - Vertical
Fig. 18 HORIZONTAL TO VERTICAL
Page 27
4.7.6. OPERATING HINTS:
1. Hold the hydraulic lever in the
wedge extend direction until the
log/wood splits. There is no need
to complete the cycle once the
log is split.
2. Put the hydraulic lever into detent
when retracting, the wedge will
retract and automatically stop
when it reaches the end of the
stroke, leaving you free to perform other tasks.
3. Always keep the working area
neat and clean to prevent tripping. Pile the split and unsplit
wood in piles close to the working
area. Do not allow pieces to pile
up and clutter the area. A cluttered working area can lead to
tripping and an accident. Do not
take chances with safety.
4. Do not place the splitter on muddy, icy, wet or cluttered surfaces.
Each can lead to slipping or tripping and cause accidents.
5. When the machine is new lubricate the plate under the wedge
slider with graphite, each time the
machine is used to improve wear
and reduce friction and/or binding. When the paint is eventually
worn off, it will polish itself.
Horizontal
Fig. 19 WORK PLACE
Vertical
27
Page 28

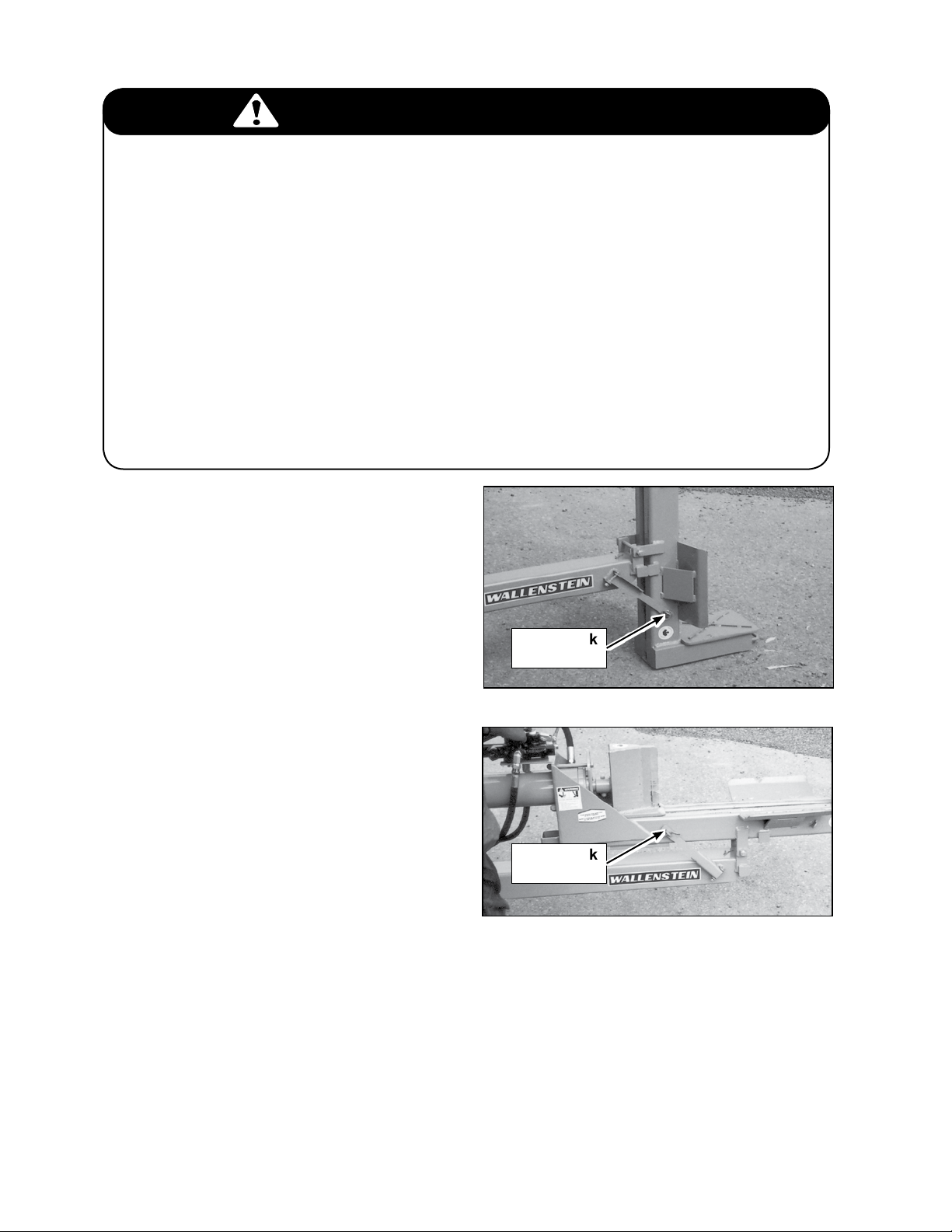

4.8 TRANSPORTING
TRANSPORT SAFETY
• Comply with state and local laws governing
highway safety and movement of machinery
on public roads.
• The use of ashing amber lights is acceptable
in most localities. However, some localities
prohibit their use. Local laws should be
checked for all highway lighting and marking
requirements.
• At all times, when driving the tractor and equip-
ment on the road or highway under 20 mph
(32 kph) use ashing amber warning lights
and a slow moving vehicle (SMV) identication emblem. Do not exceed 20 mph (32 kph).
Reduce speed on rough roads and surfaces.
When transporting the machine, review and follow
these instructions:
1. Be sure all bystanders are clear of the machine.
2. Be sure that the machine is securely attached to the tractor and all retainer pins are
installed.
3. WX370 Series: secure the frame lock bracket
with the anchor pin and retainer between the
frame members (g 20)
4. Be sure you have installed extra weights on
the front of the tractor if required.
5. Clean the SMV emblem, lights and reectors
and be sure they are working.
6. Be sure you are in compliance with all applicable lighting and marking regulations when
transporting. Check with your local authorities.
7. Be sure your machine can clearly be seen by
overtaking and oncoming trafc.
8. Keep to the right and yield the right-of-way to
allow faster trafc to pass. Drive on the road
shoulder if permitted by law.
9. Do not allow riders.
10. Always use hazard ashers on the tractor
when transporting unless prohibited by law.
11. Never transport in vertical position.
• Plan your route to avoid heavy trafc.
• Always install transport locks, pins or brackets
before transporting.
• Do not drink and drive.
• Be a safe and courteous driver. Always yield to
oncoming trafc in all situations, including narrow bridges, intersections, etc. Watch for trafc
when operating near or crossing roadways.
• Never allow riders on either tractor or machine.
frame lock
& pin
WX370: vertical working position
frame lock
& pin
WX370 horizontal, ready for transport
Fig. 20 FRAME LOCK BRACKET
28
Page 29
4.9 STORAGE
STORAGE SAFETY
• Store the unit in an area away from human activity.
• Do not permit children to play on or around the stored machine.
• Store the unit in a dry, level area. Support the frame with planks if required.
After the season's use, the machine
should be thoroughly inspected and
prepared for storage. Repair or replace
any worn or damaged components to
prevent any unnecessary down time at
the start of next season. To insure a long,
trouble free life, this procedure should
be followed when preparing the unit for
storage:
1. Clear the area of bystanders, especially small children.
2. Thoroughly wash the machine using
a pressure washer to remove all dirt,
mud, debris and residue.
3. Inspect the wedge, cylinder ram and
wear plates for damage or entangled
material. Repair or replace damaged parts. Remove all entangled
material.
4. Touch up all paint nicks and scratches to prevent rusting.
5. Move to storage area.
6. Select an area that is dry, level and
free of debris.
7. Fully retract the cylinder ram.
8. Stow hydraulic lines on the splitter so
they won't drag or lay on the ground.
9. Unhook from tractor.
10. If the machine cannot be placed
inside, cover with a waterproof tarpaulin and tie securely in place.
11. Store the machine in an area away
from human activity.
12. Do not allow children to play on or
around the stored machine.
Fig. 21 STORED
Horizontal Model
Vertical Model
29
Page 30
5 SERVICE AND MAINTENANCE
5.1 FLUIDS AND LUBRICANTS
MAINTENANCE SAFETY
1. Grease:
• Good maintenance is your responsibility.
Poor maintenance is an invitation to trouble.
• Follow good shop practices.
- Keep service area clean and dry.
- Be sure electrical outlets and tools are
properly grounded.
- Use adequate light for the job at hand.
Use an SAE multipurpose high temperature
grease with extreme pressure (EP) performance. Also acceptable is an SAE multipurpose lithium base grease.
2. Your wood splitter can operate at top efciency only if clean lubricants are used. Use
clean containers to handle all lubricants.
Store them in an area protected from dust,
moisture and other contaminants.
• Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in
a closed building. The exhaust fumes may
cause asphyxiation.
• Before working on this wood splitter, shut
off the engine, set the brake, and turn fuel
valve off.
• Never work under equipment unless it is
blocked securely.
• Always use personal protection devices
such as eye, hand and hearing protectors,
when performing any service or maintenance work. Use heavy gloves when
handling sharp components.
• Where replacement parts are necessary
for periodic maintenance and servicing,
genuine factory replacement parts must be
used to restore your equipment to original
specications. The manufacturer will not be
responsible for injuries or damages caused
by use of unapproved parts and/or accessories.
5.2 GREASING
Use the Maintenance Checklist provided to keep a
record of all scheduled maintenance.
1. Use a hand-held grease gun for all greasing.
2. Wipe grease tting with a clean cloth before
greasing, to avoid injecting dirt and grit.
3. Replace and repair broken ttings immediately.
4. If ttings will not take grease, remove and
clean thoroughly. Also clean lubricant pas-
sageway. Replace ttings if necessary.
5.3 SERVICING INTERVALS
See service record and service illustration for service interval information. The period recommended
is based on normal operating conditions. Severe
or unusual conditions may require more frequent
lubrication or oil changes.
• A re extinguisher and rst aid kit should
be kept readily accessible while performing
maintenance on this equipment.
• Periodically tighten all bolts, nuts and
screws and check that all electrical and fuel
connections are properly secured to ensure
unit is in a safe condition.
• When completing a maintenance or service
function, make sure all safety shields and devices are installed before placing unit in service.
30
IMPORTANT Do Not over grease.
Page 31
5.4 SERVICE ILLUSTRATION
Check Check Change Replace Clean
100 hours
8 Hours or Daily
Grease Frame Slide,
Hinges, Pivot Points
Clean Machine
.
See Service Record Chart
This illustration shows the general location of service points for all models in this manual.
IMPORTANT Do Not over grease.
100 hours or monthly
grease frame slide
On a regular basis
check all nuts, bolts and
screws and ensure they
are all properly secured
Grease Pivot Point &
Hinges: inspect daily,
grease every 40 hours
or weekly
Annually, wash and clean
wood splitter, remove
entangled material, wood
chips, small debris
On a regular
basis check the
oil level in the
hydraulic reser-
voir in the tractor
On a regular basis check the condition of all hydraulic lines, hoses and
ttings. Replace any that are dam-
aged. Re-route those that are rub-
bing, pinched or crimped. Tighten
any tting that is leaking. Ensure
ttings are clean and free of dirt.
5.5 SERVICE RECORD
See Lubrication and Maintenance sections for details of service. Copy this page to continue record.
8 Hours or Daily
Check Check Change Replace Clean
fittings, frame slide
Hydraulic hoses,
Secure fasteners
Hydraulic Oil Level
fittings, frame slide
Hydraulic hoses,
Secure fasteners
Hydraulic Oil Level
Grease Frame Slide,
100 hours
Hinges, Pivot Points
Clean Machine
.
31
Page 32
Second stage on pump
Cylinder Rod moves in wrong
6 TROUBLE SHOOTING
Always wear the appropriate safety gear when trouble shooting, performing maintenance or working around the
machine. This includes but is not limited to:
• Hard hat for protection to the head. • Face mask for protection to the face and eyes.
• Heavy gloves for hand protection. • Safety shoes with slip resistant soles and steel toes
PROBLEM CAUSE SOLUTION CAUTION
Cylinder rod moves slowly or
doesn't move.
Control handle doesn't go to
neutral after rod is fully
retracted.
No pressurized
hydraulic oil.
No pressurized
hydraulic oil
Wood jammed around
wedge.
Not enough pressure.
Low engine speed.
Detent set too tight.
Hydrualic fluid too
cold.
Hydrualic fluid is too
old or contaminated.
Oil filter plugged. Change filter.
Low hydraulic oil level, top up
Shut machine off and safely remove
wood.
Call technician, system relief setting
may be low (below 2750 psi).
Check that choke is off, check
throttle is set to maximum.
Call technician, adjustment required
with detent on valve.
Allow machine to warm up.
Change hydraulic fluid and filter
Ensure machine is off and cooled
down.
Ensure machine is off and cooled
down
Ensure machine is off
Ensure machine is off and call
hydraulic technician.
Ensure machine is off and call
hydraulic technician.
Ensure machine is off and cooled
down.
Control handle goes to
neutral before rod is fully
retracted.
Control handle does't go to
neutral when released.
Cylinder stops on contact
with wood.
Wedge jumps.
Leaking hydraulic hose.
Leaking cylinder. Seals worn.
diection
Hydraulics behave eratically
Detent set too loose.
Control may be
damaged.
not functioning.
Wedge frame
jamming.
Hose worn or
damaged.
Hydraulic hoses
switched
mis-matched valve
(open / closed system)
Call technician, adjustment required
with detent on valve.
Call technician, control may need
service or be replaced.
Call technician, pump may need
service or be replaced.
Lubricate wedge frame wear plates. Ensure machine is off.
Replace hose.
Call technician, seal replacement
may be required.
Switch hydraulic hose connections Ensure machine is off
Determine hydraulic system on
tractor, ensure valve system
matches
Ensure machine is off and call
hydraulic technician.
Ensure machine is off and call
hydraulic technician.
Ensure machine is off and call
hydraulic technician.
Ensure machine is off and cooled
down.
Ensure machine is off and call
hydraulic technician.
Ensure machine is off and call
hydraulic technician / service
32
Page 33
7 SPECIFICATIONS
215 lb / 98kg 375 lbs / 170 kg 425 lb / 193kg 220 lb / 100kg 320 lb / 146 290 lb / 132kg
OPEN CENTER WITH AUTO RETURN DETENT
HYDRAULIC FITTING TORQUE
Tightening)
7.1 MECHANICAL
MODEL
Mounting
Cylinder diameter 4" / 102 mm 4 1/2" / 115mm 4 1/2" / 115mm 4" / 102 mm 5" / 127mm 5" / 127mm
Cylinder stroke 24" / 609mm 36" / 914mm 48" / 1220mm 24" / 609mm 24" / 609mm 24" / 609mm
Splitting force @ 2550 psi 16 ton / tonne 20 ton / tonne 20 ton / tonne 16 ton / tonne 25 ton / tonne 16 ton / tonne
Splitting force @ 3000 psi 20 ton / tonne 25 ton / tonne 25 ton / tonne 20 ton / t onne 31 ton / tonne 20 ton / tonne
Standard valve type
Closed Center Hydraulic Valve
Splitter orientation HORIZ&VERT
4-way splitting wedge #W4110 #W4130 #W 4130 #W4120 #W4130 #W4120
Weight
Dimensions (L x W x H)
Recommended minimum
hydraulic flow
(GPM / lpm) gallon per minute /
WX310 WX320 WX330 WX350 WX360 WX370
HORIZONTAL VERTICAL
70" x 28" x 24"
178cm x 72cm x 61cm
10 GPM / 38 lpm 13 GPM / 50 lpm 13 GPM / 50 lpm 10 GPM / 38 lpm 16 GPM / 61 lpm 10 GPM / 38 lpm
96" x 30" x 24"
244cm x 77cm x 61cm
3 POINT HITCH MOUNTED
OPTIONAL
120" x 30" x 24"
305cm x 77cm x 61cm
70" x 28" x 18"
178cm x 72cm x 56cm
70" x 28" x 26"
178cm x 72cm x 66cm
86" x 30" x 30"
219cm x 77cm x 77cm
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
7.2 HYDRAULIC FITTING TORQUE
Tube Size
OD
Nut Size
Across
Flats
Torque Value*
(in.) (in.) (N.m) (lb-ft) (Flats) (Turn)
Recommended
Turns To Tighten
(After Finger
3/16 7/16 8 6 1 1/6
1/4 9/16 12 9 1 1/6
5/16 5/8 16 12 1 1/6
3/8 11/16 24 18 1 1/6
1/2 7/8 46 34 1 1/6
5/8 1 62 46 1 1/6
3/4 1-1/4 102 75 3/4 1/8
7/8 1-3/8 122 90 3/4 1/8
• The torque values shown are based on lubricated connections
as in reassembly.
Tightening Flare Type Tube Fittings
1. Check are and are seat for defects that
might cause leakage.
2. Align tube with tting before tightening.
*
3. Lubricate connection and hand tighten swivel
nut until snug.
4. To prevent twisting the tube(s), use two
wrenches. Place one wrench on the connector body and with the second tighten the swivel
nut to the torque shown.
33
Page 34

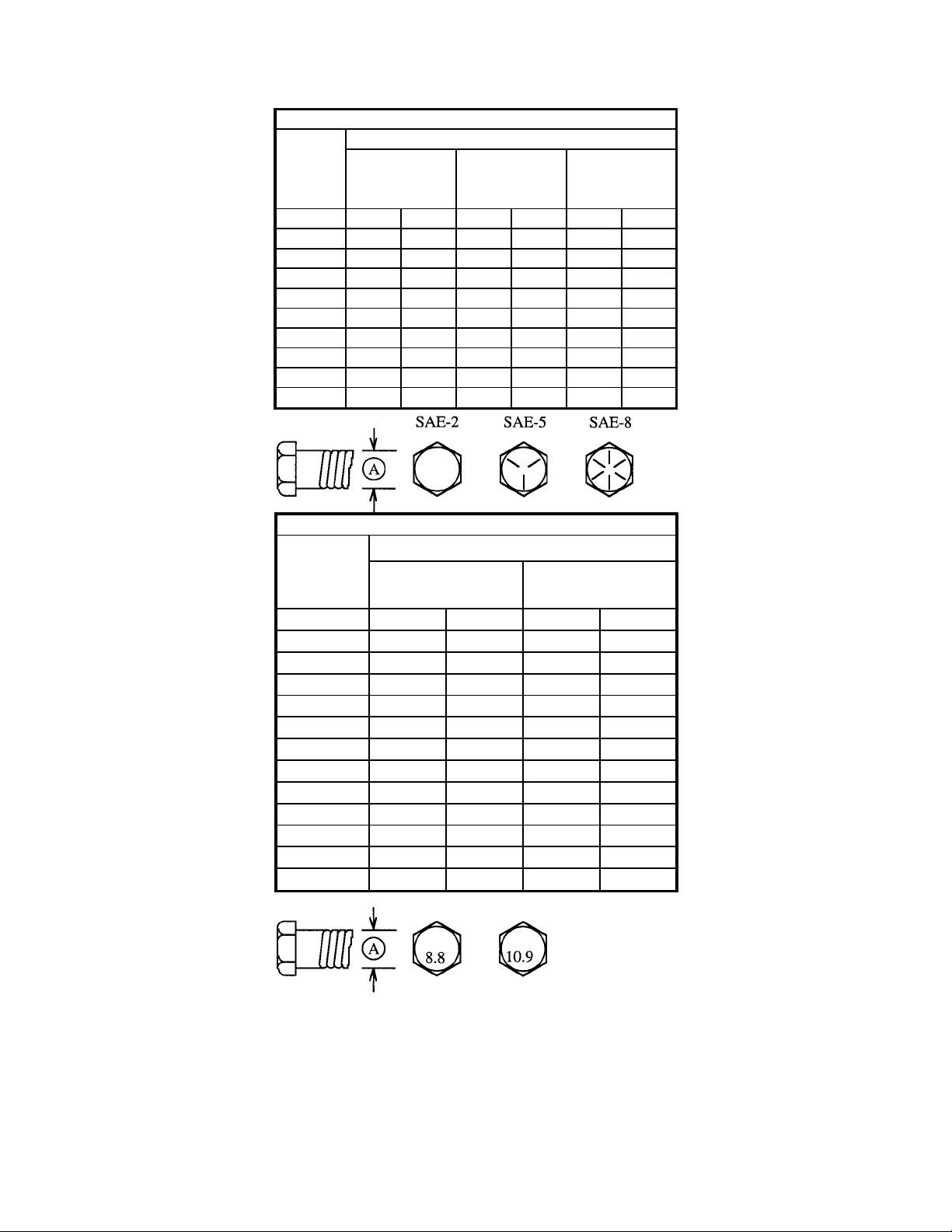

7.3 BOLT TORQUE
Bolt Torque*
METRIC TORQUE SPECIFICATIONS
CHECKING BOLT TORQUE
Bolt
Diamter
"A"
1/4" 8 6 12 9 17 12
5/16" 13 10 25 19 36 27
3/8" 27 20 45 33 63 45
7/16" 41 30 72 53 100 75
1/2" 61 45 110 80 155 115
9/16" 95 60 155 115 220 165
5/8" 128 95 215 160 305 220
3/4" 225 165 390 290 540 400
7/8" 230 170 570 420 880 650
1" 345 225 850 630 1320 970
ENGLISH TORQUE SPECIFICATIONS
SAE 2
(N.m) (lb-ft)
SAE 5
(N.m) (lb-ft)
(N.m) (lb-ft)
SAE 8
Bolt
Diameter
"A"
(N.m) (lb-ft)
Bolt Torque*
8.8
10.9
(N.m) (lb-ft)
M3 0.5 0.4 1.8 1.3
M4 3 2.2 4.5 3.3
M5 6 4 9 7
M6 10 7 15 11
M8 25 18 35 26
M10 50 37 70 52
M12 90 66 125 92
M14 140 103 200 148
M16 225 166 310 229
M20 435 321 610 450
M24 750 553 1050 774
M30 1495 1103 2100 1550
M36 2600 1917 3675 2710
Torque gures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise specied. Therefore, do not grease or oil bolts or capscrews unless otherwise specied in this
manual. When using locking elements, increase torque values by 5%.
* Torque value for bolts and capscrews are identied by their head markings.
34
Page 35
8 ACCESSORIES
4 way splitting wedge, Boost your productivity and make quick work out of chunks by splitting four pieces at
once. This is an ideal way to save time. Call your dealer for pricing and availability
#W4110 4 WAY SPLITTING WEDGE
For model: WX310
easy to install, slip over single staitionary wedge
and you're ready to go!
4 way splitting wedge, Boost your productivity and
make quick work out of chunks by splitting into four
#W4110
pieces at once. This is an ideal way to save time
#W4120 4 WAY SPLITTING WEDGE
For models: WX350 & WX370
easy to install, slip over and attach safety bolt
#W4120
#W4130
#W4130 4 WAY SPLITTING WEDGE
For models: WX320, WX330 & WX360
easy to install, slip over and attach safety bolt
35
Page 36
INDEX
A
ACCESSORIES ................................................ 35
C
CAUTION ............................................................ 7
CLOSED CENTRE .............................................. 6
CONTROL LEVER ............................................ 22
CONVERSION .................................................. 26
D
DANGER ............................................................. 7
DETENT. ............................................................ 21
E
EXTRA WEIGHTS ............................................. 19
F
FRAME LATCH ................................................. 26
FRAME LOCK ................................................... 26
G
GREASE ........................................................... 30
H
HINTS ................................................................ 27
HORIZONTAL ................................................... 20
HORIZONTAL SPLITTING ............................... 24
I
ILLUSTRATION ................................................ 31
INSPECTION ....................................................... 4
L
LEVER............................................................... 22
LIFT ARM .......................................................... 20
N
NEUTRAL ......................................................... 22
O
OPERATOR ORIENTATION ............................... 6
ORIENTATION .................................................... 6
P
PIN..................................................................... 28
R
RECORD ........................................................... 31
REGISTER .......................................................... 4
RETRACTED .................................................... 24
REVERSE ......................................................... 21
ROUTING .......................................................... 21
S
SAFETY ........................................................7, 12
EQUIPMENT ....................................................9
GENERAL ........................................................8
HYDRAULIC ..................................................13
MAINTENANCE .............................................14
PREPARATION .............................................. 11
SIGN-OFF ......................................................15
SIGNS ............................................................10
STORAGE......................................................13
TRAINING ......................................................10
TRANSPORT .................................................14
SAFETY ALERT SYMBOL ..................................7
SERIAL ................................................................5
SERIAL NUMBER ................................................5
SERVICE AND MAINTENANCE ........................30
FLUIDS AND LUBRICANTS ..........................30
GREASING .................................................... 30
SERVICE ILLUSTRATION ............................. 31
SERVICING INTERVALS ...............................30
SERVICING ........................................................ 30
SIGN ................................................................... 16
SIGNAL WORDS .................................................7
CAUTION .........................................................7
DANGER ..........................................................7
WARNING ........................................................7
SMV .................................................................... 28
T
THROTTLE ........................................................24
TOP LINK ........................................................... 20
TORQUE ............................................................ 34
TUBE .................................................................. 33
V
VERTICAL ................................................... 18, 20
VERTICAL SPLTTING .......................................24
W
WARNING ............................................................7
WASH .................................................................29
WEDGE ..............................................................26
WX440 ................................................................ 35
WX450 ................................................................ 35
WX460 ................................................................ 35
WX470 ................................................................ 35
36
Loading...
