BXT4213 / BXT4214su

BXT4224 / BXT4228su

BY EMB MFG INC.

BXT6224 / BXT6228su

TRAILER WOOD CHIPPER

MODEL BXT4213, BXT4214su, BXT4224,

BXT4228su, BXT6224, BXT6228su &

OPERATOR'S MANUAL

PRINTED IN CANADA Rev: 290512 PART NUMBER: Z97033

BXT6238

TABLE OF CONTENTS

WARRANTY ......................................................... 3

INSPECTION REPORT ........................................ 4

SERIAL NUMBER LOCATION ............................ 5

1 INTRODUCTION ..................................... 6

2 SAFETY .................................................. 7

2.1 GENERAL SAFETY ............................. 8

2.2 EQUIPMENT SAFETY GUIDELINES .. 9

2.3 SAFETY TRAINING ........................... 10

2.4 SAFETY SIGNS ................................. 10

2.5 PREPARATION .................................. 11

2.6 MAINTENANCE SAFETY .................. 11

2.7 OPERATING SAFETY ....................... 12

2.8 GAS MOTOR SAFETY ...................... 13

2.9 REFUELLING SAFETY ..................... 14

2.10 TIRE SAFETY .................................... 14

2.11 BATTERY SAFETY ............................ 14

2.12 STORAGE SAFETY...........................14

2.13 TRANSPORT SAFETY ...................... 14

2.14 SIGN-OFF FORM .............................. 15

3 SAFETY SIGN LOCATIONS ................ 16

3.1 3 - PANEL SAFETY SIGNS ..............16

3.2 2 - PANEL SAFETY SIGNS ..............17

4 OPERATION ......................................... 18

4.1 TO THE NEW OPERATOR OR

OWNER ......................................................... 18

4.2 MACHINE COMPONENTS ................ 19

4.3 MACHINE BREAK-IN ........................ 20

4.4 PRE-OPERATION CHECKLIST ........ 20

4.5 CONTROLS ....................................... 21

4.5.1 GAS ENGINE MANUAL START ........ 21

4.5.2. GAS ENGINE ELECTRIC START ..... 22

4.6 BALL & COUPLER.............................23

4.7 MACHINE SET-UP ............................ 24

4.8 FIELD OPERATION ........................... 25

4.8.1. PREPARE ..........................................25

4.8.2. STARTING PROCEDURE .................26

4.8.3 STOPPING: .......................................26

4.8.4 EMERGENCY STOPPING ................26

4.8.5 CHIPPING OPERATION ....................27

4.8.6 UNPLUGGING: ..................................28

4.8.7 SEVERE PLUG: .................................28

4.8.8 REFUELLING: ...................................29

4.8.9 SAFETY CURTAINS: .........................29

4.8.10 OPERATING HINTS: .........................29

5 TRANSPORTING .................................30

6 STORAGE ............................................31

6.1 PLACING IN STORAGE ....................31

6.2 REMOVING FROM STORAGE .........31

7 SERVICE AND MAINTENANCE ..........32

7.1 SERVICE ...........................................32

7.1.1 FLUIDS AND LUBRICANTS ..............32

7.1.2 GREASING ........................................32

7.1.3 SERVICE ILLUSTRATION .................33

7.1.4 SERVICE RECORD ...........................34

7.2 MAINTENANCE .................................35

7.2.1 CLEANING AIR CLEANER ................35

7.2.2 CHANGING ENGINE OIL ..................35

7.2.3 DRIVE BELT REPLACEMENT: .......... 35

7.2.4 BELT TENSION .................................36

7.2.5 SHEAVE ALIGNMENT .......................37

7.2.6 BLADE AND BREAKER

MAINTENANCE: ................................38

8 TROUBLE SHOOTING .........................40

9 SPECIFICATIONS ................................41

9.1 MECHANICAL....................................41

9.2 BOLT TORQUE ..................................42

10 ACCESSORIES ....................................43

INDEX.................................................................44

WARRANTY

Effective on products retailed on or after January 1, 2015.

This product is warranted to be free of defects in materials and workmanship under normal use and service, for a period of

Five (5) Years for Consumer

Two (2) Year for Commercial/Rental

from the date of purchase, when operated and maintained in accordance with the Operating and Maintenance Instructions

supplied with this unit. Warranty is limited to the repair of the product and/or replacement of parts.

This warranty does not cover the following items:

1) Parts lost or damaged during shipment,

2) Normal maintenance or adjustments

3) Normal replacement of service items.

4) Accessory items / parts not supplied by EMB MFG INC.

5) Damages resulting from:

• misuse, negligence, accident, theft or re

• use of improper or insufcient fuel, uids or lubricants

• use of parts or after market accessories other than genuine EMB MFG INC. parts

• modications, alteration, tampering or improper repair performed by parties other than an authorized servicer

• any device or accessories installed by parties other than an authorized EMB servicer

Engines are covered by the manufacturer of the engine and covered by the warranty period specied by that manufacturer.

Engine warranty must be registered at the engine manufactures website. For service contact your local engine dealer.

Under no circumstances will the manufacturer be liable for any consequential damage or expense of any kind, including loss

of prots. The manufacturer is under no circumstances liable for tow vehicle of any kind. The manufacturer is not liable for

the maintenance of the product.

This warranty is extended only to the original purchaser and is not transferable. Warranty is void if repairs are attempted by

anyone other than an authorized service centre.

If a difculty develops with the product, contact EMB MFG INC. Only our authorized service centres may make repairs to

the product or affect the replacement of defective parts, which will be done at no charge within a reasonable time after the

receipt of the product. Unit or parts shall be returned at the customer’s expense to the authorized service centre. Damage

in transit is not covered by warranty. Include the original purchase receipt with any claim (keep a copy of the receipt

for your les).

The distributor’s liability under warranty is limited to the repair of the product and/or replacement of parts and is given to the

purchaser in lieu of all other remedies including incidental and consequential charges. There are no warranties, expressed

or implied, other than those specied herein.

EMB MFG Inc

4144 Boomer Line, St Clements, ON N0B 2M0 Canada

Phone: 519-699-9283 Fax: 519-699-4146 : attention to Warranty Dept

Email: warranty@embmfg.com

rev.270315

WARRANTY IS VOID IF NOT REGISTERED

WALLENSTEIN

TRAILER WOOD CHIPPER

INSPECTION REPORT

This form must be lled out by the dealer and signed by both the dealer and the customer at the time of delivery.

Customer’s Name Dealer Name

Address Address

City, State/Province, Code City, State/Province, Code

Phone Number ( ) Phone Number ( )

Contact Name

Model

Serial Number

Delivery Date

DEALER INSPECTION REPORT

____ Check Blade Clearance ____ Blower Turns Freely ____ Belt Tension Checked ____ Pulleys Aligned ____ Fasteners Tight ____ Lubricate Machine ____ Check Tire Pressure ____ Retainer Installed Through Ball Hitch Mechanism ____ Check Engine Fluid Levels

I have thoroughly instructed the buyer on the above described equipment which review included the Operator’s Manual content, equipment care, adjustments, safe operation and applicable warranty policy.

Date Dealer’s Rep. Signature

The above equipment and Operator’s Manual have been received by me and I have been thoroughly instructed as to care, adjustments, safe operation and applicable warranty policy.

Date Owner's Signature

SAFETY

____ Safety Chain on Hitch ____ All Decals Installed ____ Guards and Shields Installed and Secured ____ Review Operating and Safety Instructions

To activate warranty, register your product online at www.embmfg.com

SERIAL NUMBER LOCATION

Always give your dealer the serial number of your Wallenstein Trailer Wood Chipper and Feed Hopper when ordering parts or requesting service or other information.

The serial number plate is located where indicated. Model BXT6238 is shown but the location of the plate is the same across all models covered in this manual. Please mark the numbers in the spaces provided for easy reference.

Engine

SERIAL NUMBER LOCATION

Model Number ____________________________________________________

Chipper Serial Number _____________________________________________

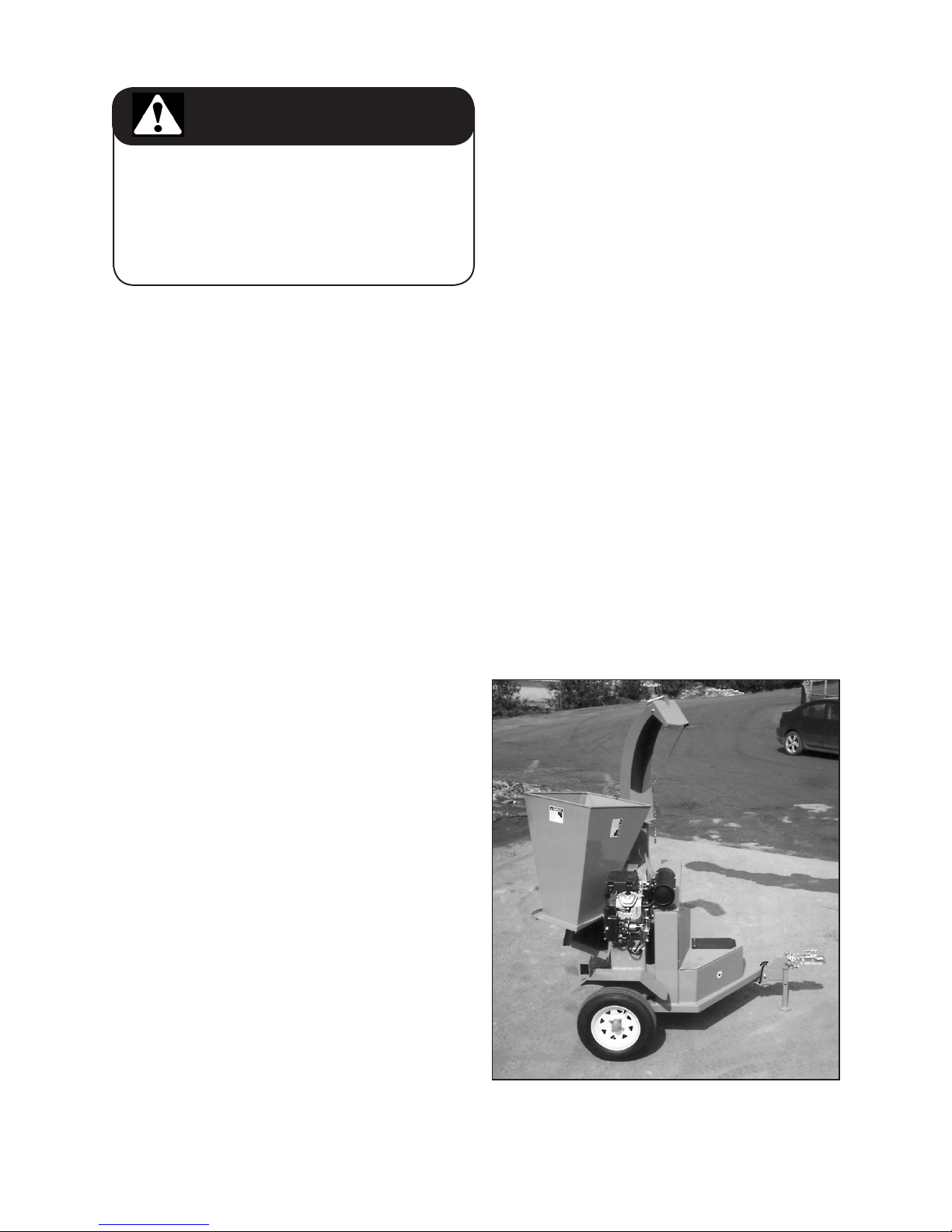

1 INTRODUCTION

Congratulations on your choice of an Wallenstein Trailer Wood Chipper to compliment your operation. This equipment has been designed and manufactured to meet the needs of a discerning timber or landscaping industry.

Safe, efcient and trouble free operation of your Wallenstein Wood Chipper requires that you and anyone

else who will be using or maintaining the chipper, read and understand the Safety, Operation, Maintenance and Trouble Shooting information contained within the Operator's Manual.

BXT4213 / BXT4214su

BXT4224 / BXT4228su

BXT6224 / BXT6228su

BXT6238

This manual covers the Wallenstein Trailer Wood Chipper BXT4213, BXT4224 , BXT6224 with Honda engines and BXT4214su, BXT4228su , BXT6228su with Subaru engines, and BXT6238 with a Kohler engine. Use the Table of Contents or Index as a guide to locate required information.

Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Wallenstein dealer or the Distributor if you need assistance, information or additional copies of the manuals.

OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout this manual, are determined when sitting in the pick-up driver's seat and facing in the direction of travel.

2 SAFETY

SAFETY ALERT SYMBOL

This Safety Alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Why is SAFETY important to you?

3 Big Reasons

SIGNAL WORDS:

Note the use of the signal words DANGER, WARNING and CAUTION with the safety

messages. The appropriate signal word for each message has been selected using the

following guide-lines:

The Safety Alert symbol identies

important safety messages on the Wallenstein Trailer Wood Chipper and in the manual. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message.

Accidents Disable and Kill Accidents Cost Accidents Can Be Avoided

DANGER - Indicates an imminently hazardous

situation that, if not avoided, will result in death or serious injury. This signal word is to be limited to the most extreme situations typically for machine components which, for functional purposes, cannot be guarded.

WARNING - Indicates a potentially hazardous

situation that, if not avoided, could result in death or serious injury, and includes hazards that are exposed when guards are removed. It may also be used to alert against unsafe practices.

CAUTION - Indicates a potentially hazardous

situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices.

If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or Wallenstein, 4144 Boomer Line, St. Clements, ON, N0B 2M0. Phone (519) 699-9283 or Fax (519) 699-4146.

SAFETY

2.1 GENERAL SAFETY

YOU are responsible for the SAFE operation and

maintenance of your Wallenstein Trailer Wood Chipper. YOU must ensure that you and anyone else who is going to use, maintain or work around the Trailer Wood Chipper be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. This manual will take you step-by-step through your working day and alerts you to all good safety practices that should be used while using the Trailer Wood Chipper.

Remember, YOU are the key to safety. Good safety practices not only protect you but also the people around you. Make these practices a working part of your safety program. Be certain that EVERYONE using this equipment is familiar with the recommended use and maintenance procedures and follows all the safety precautions. Most accidents can be prevented. Do not risk injury or death by ignoring good safety practices.

• Trailer Wood Chipper owners must give operating instructions to operators or employees before allowing them to operate the machine, and at least annually thereafter.

• The most important safety device on this equipment is a SAFE operator. It is the operator’s responsibility to read and understand ALL Safety and Operating instructions in the manual and to follow these. Most accidents can be avoided.

• A person who has not read and understood all

using and safety instructions is not qualied

to use the machine. An untrained operator exposes himself and bystanders to possible serious injury or death.

• Do not modify the equipment in any way.

Unauthorized modication may impair the

function and/or safety and could affect the life of the equipment.

• Think SAFETY! Work SAFELY!

1. Read and understand the Operator’s Manual and all safety signs before using, maintaining, adjusting or cleaning the Trailer Wood Chipper.

2. Have a rst-aid kit available

for use should the need arise and know how to use it.

3. Have a re extinguisher

available for use should the need arise and know how to use it.

4. Do not allow riders.

5. Wear appropriate protective gear. This list includes but is not limited to:

- A hard hat

- Protective

shoes with slip

resistant soles

- Protective glasses, goggles or face shield

- Heavy gloves

- Wet weather gear

- Hearing Protection

- Respirator or lter mask

6. Install and secure all guards before starting.

7. Wear suitable ear protection for prolonged exposure to excessive noise.

8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing or unplugging.

9. Clear the area of people, especially small children, before using the unit.

10. Review safety related items annually with all personnel who will operating or maintaining the Trailer Wood Chipper.

2.2 EQUIPMENT SAFETY GUIDELINES

1. Safety of the operator and bystanders is one of the main concerns in designing and developing equipment. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. You, the operator, can avoid many accidents by observing the following precautions in this section. To avoid personal injury or death, study the following precautions and insist those working with you, or for you, follow them.

2. In order to provide a better view, certain photographs or illustrations in this manual may show an assembly with a safety shield removed. However, equipment should never be used in this condition. Keep all shields in place. If shield removal becomes necessary for repairs, replace the shield prior to use.

3. Replace any safety sign or instruction sign that is not readable or is missing. Location of such safety signs is indicated in this manual.

7. Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question - DON'T TRY IT.

8. Do not modify the equipment in any way. Un-

authorized modication may result in serious

injury or death and may impair the function and life of the equipment.

9. In addition to the design and conguration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the engine and machine manuals. Pay close attention to the Safety Signs

afxed to the tow vehicle and the machine.

4. Never use alcoholic beverages or drugs which can hinder alertness or coordination while using this equipment. Consult your doctor about using this machine while taking prescription medications.

5. Under no circumstances should young

children be allowed to work with this equipment. Do not allow persons to use or assemble this unit until they have read this manual and have developed a thorough understanding of the safety precautions and of how it works. Review the safety

instructions with all users annually.

6. This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a responsible, properly trained and physically able person familiar with machinery and trained in this equipment's operations. If the elderly are assisting with work, their physical limitations need to be recognized and accommodated.

2.3 SAFETY TRAINING

2.4 SAFETY SIGNS

1. Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by a single careless act of an operator or bystander.

2. In addition to the design and conguration of

equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of this equipment.

3. It has been said, "The best safety feature is an informed, careful operator." We ask you to be that kind of an operator. It is the operator's responsibility to read and understand ALL Safety and Using instructions in the manual and to follow these. Accidents can be avoided.

4. Working with unfamiliar equipment can

lead to careless injuries. Read this manual before assembly or using, to acquaint yourself with the machine. If this machine is used by any person other than yourself, or is loaned or rented, it is the machine owner's responsibility to make certain that the operator, prior to using:

a. Reads and understands the operator's

manuals.

b. Is instructed in safe and proper use.

5. Know your controls and how to stop tow unit,

engine and machine quickly in an emergency.

Read this manual and the one provided with your engine.

6. Train all new personnel and review instructions frequently with existing workers. Be certain only a properly trained and physically able person will use the machinery. A person who has not read and understood all using

and safety instructions is not qualied to use

the machine. An untrained operator exposes himself and bystanders to possible serious injury or death. If the elderly are assisting with the work, their physical limitations need to be recognized and accommodated.

1. Keep safety signs clean and legible at all times.

2. Replace safety signs that are missing or have become illegible.

3. Replaced parts that displayed a safety sign should also display the current sign.

4. Safety signs in Section 3 each have a part number displayed with it. Use this part number when ordering replacement parts.

5. Safety signs are available from your authorized Distributor or Dealer Parts Department or the factory.

How to Install Safety Signs:

• Be sure that the installation area is clean and dry.

• Be sure temperature is above 50°F (10°C).

• Determine exact position before you remove the backing paper.

• Remove the smallest portion of the split backing paper.

• Align the sign over the specied area and

carefully press the small portion with the exposed sticky backing in place.

• Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place.

• Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.

2.5 PREPARATION

2.6 MAINTENANCE SAFETY

1. Never use the engine and machine until you have read and completely understand this manual, the Engine Operator's Manual and each of the Safety Messages found on the safety signs on the engine and machine.

2. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving

the unit. Do not allow long hair, loose tting

clothing or jewellery to be around equipment.

3. PROLONGED EXPOSURE

TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!

Power equipment with or

without equipment attached can often be noisy enough to cause permanent, partial hearing loss. We recommend that you wear hearing protection on a full-time basis if the noise in the Operator's position exceeds 80db. Noise over 85db on a long-term basis can cause severe hearing loss. Noise over 90db adjacent to the Operator over a long-term basis may cause permanent, total hearing loss. NOTE: Hearing loss from loud noise (from tractors, chain saws, radios, and other such sources close to the ear) is cumulative over a lifetime without hope of natural recovery.

4. Clear working area of stones, branches or hidden obstacles that might be hooked or snagged, causing injury or damage.

5. Use only in daylight or good articial light.

6. Be sure machine is properly mounted, adjusted and in good operating condition.

7. Ensure that all safety shielding and safety signs are properly installed and in good condition.

1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.

2. Follow good shop practices.

- Keep service area clean and dry.

- Be sure electrical outlets and tools are properly grounded.

- Use adequate light for the job at hand.

3. Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed building. The exhaust fumes may cause asphyxiation.

4. Before working on this machine, shut off the engine, set the brake, and turn fuel valve off.

5. Never work under equipment unless it is blocked securely.

6. Always use personal protection devices such as eye, hand and hearing protectors, when performing any service or maintenance work. Use heavy or leather gloves when handling blades.

7. Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement parts must be used to restore your equipment to original specications. The manufacturer will not be responsible for injuries or damages caused by use of unapproved parts and/or accessories.

8. A re extinguisher and rst aid kit should be kept readily accessible while performing maintenance on this equipment.

9. Periodically tighten all bolts, nuts and screws and check that all electrical and fuel connections are properly secured to ensure unit is in a safe condition.

10. When completing a maintenance or service function, make sure all safety shields and devices are installed before placing unit in service.

2.7 OPERATING SAFETY

1. Please remember it is important that you read and heed the safety signs on the Trailer Wood Chipper. Clean or replace all safety signs if they cannot be clearly read and understood. They are there for your safety, as well as the safety of others. The safe use of this machine is strictly up to you, the operator.

2. All things with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes potential hazards and follows reasonable safety practices. The manufacturer has designed this Trailer Wood Chipper to be used with all its safety equipment properly attached, to minimize the chance of accidents. Study this manual to make sure you have all safety equipment attached.

3. Close and secure rotor cover before operating.

4. Close and secure all guards, deectors and

shields before starting and operating.

5. Read and understand operator's manual before starting. Review safety instructions annually.

6. Personal protection equipment including hearing protection, hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving.

Do not allow long hair, loose-tting clothing, or

jewellery to be around moving parts.

11. Use care when feeding material into chipper. Do not send metal, bottles, cans, rocks, glass or other foreign material into wood chipper. If foreign material enters chipper, stop machine, turn engine off and place ignition key in your pocket and wait for all moving parts to stop before removing material and/or unplugging. Inspect machine for damaged or loose parts before resuming work.

12. Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment. Consult your doctor about operating this machine while taking prescription medications.

13. Do not allow riders on this machine at any time. There is no safe place for any riders.

14. Never allow children or unauthorized people to operate or be around this machine.

15. Do not reach into rotor or feed hopper openings when the engine is running. Install and secure access covers before starting engine.

16 Keep the working area clean and free of de-

bris to prevent tripping. Operate only on level ground.

17 Do not point discharge at people, animals or

buildings. Rotor can expel wood chips fast enough to cause injury.

18. Do not move or transport chipper when the rotor is turning.

7. Keep hydraulic lines and ttings tight, in good

condition and free of leaks.

8. Never place any part of your body where it would be in danger if movement should occur during assembly, installation, operation, maintenance, repairing, unplugging or moving.

9. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing or unplugging.

10. Do not run machine inside a closed building to prevent asphyxiation from engine exhaust.

19. Do not exceed a safe travel speed when transporting. Cross safety chain under hitch on trailer model when attaching to truck.

2.8 GAS MOTOR SAFETY

moved. If engine is ooded, place throttle in

"FAST" position and crank until engine starts.

BEFORE STARTING ENGINE, READ AND UNDERSTAND THE OPERATING AND MAINTENANCE INSTRUCTIONS THAT CAME WITH YOUR ENGINE.

WARNING: DO NOT

1. DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an odourless and deadly poison.

2. DO NOT place hands or feet near moving or rotating parts.

3. DO NOT store, spill, or use gasoline near

an open ame, or devices such as a stove,

furnace, or water heater which use a pilot light or devices which can create a spark.

4. DO NOT refuel indoors where area is not well ventilated. Outdoor refuelling is preferred.

5. DO NOT ll fuel chipper while engine is running. Allow engine to cool for 5 minutes before refuelling. Store fuel in approved safety containers.

6. DO NOT remove fuel tank cap while engine is running.

7. DO NOT operate engine if gasoline is spilled. Move machine away from the spill and avoid creating any ignition until gasoline has evaporated.

8. DO NOT smoke while lling fuel tank.

9. DO NOT choke carburettor to stop engine. Whenever possible, gradually reduce engine speed before stopping.

10. DO NOT run engine above rated speeds. This may result in injury.

11. DO NOT tamper with governor springs, governor links or other parts which may increase the governed speed.

12. DO NOT tamper with the engine speed selected by the original equipment manufacturer.

15. DO NOT strike ywheel with a hard object or

metal tool as this may cause ywheel to shat-

ter in operation. Use proper tools to service engine.

16 DO NOT operate engine without a mufer.

Inspect periodically and replace, if necessary.

If engine is equipped with a mufer deector,

inspect periodically and replace, if necessary

with correct deector.

17. DO NOT operate engine with an accumulation of grass, leaves, dirt or other combustible

materials in the mufer area.

18. DO NOT use this engine on any forest covered, brush covered, or grass covered unimproved land unless a spark arrester is

installed on the mufer. The arrester must be

maintained in effective working order by the operator. In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal land.

19. DO NOT touch hot mufer, cylinder or ns

because contact may cause burns.

20. DO NOT run engine with air cleaner or air cleaner cover removed.

WARNING: DO

1. ALWAYS DO remove the wire from the spark plug when servicing the engine or equipment TO PREVENT ACCIDENTAL STARTING. Disconnect the negative wire from the battery terminal if equipped wit a 12 volt starting system.

2. DO keep cylinder ns and governor parts free

of grass and other debris which can affect engine speed.

3. DO examine mufer periodically to be sure

it is functioning effectively. A worn or leak-

ing mufer should be repaired or replaced as

necessary.

13. DO NOT check for spark with spark plug or spark plug wire removed.

14 DO NOT crank engine with spark plug re-

4. DO use fresh gasoline. Stale fuel can gum carburettor and cause leakage.

5. DO check fuel lines and ttings frequently for

cracks or leaks. Replace if necessary.

2.9 REFUELLING SAFETY

1. Handle fuel with care. It is highly ammable.

2. Allow engine to cool for 5 minutes before refuelling. Clean up spilled fuel before restarting engine.

3. Do not refuel the machine while smoking or when

near open ame or sparks.

2.12 STORAGE SAFETY

1. Store the unit in an area away from human activity.

2. Do not allow children to play on or around the stored machine.

3. Store the unit in a dry, level area. Support the frame with planks if required.

4. Fill fuel tank outdoors.

5. Prevent res by keeping

machine clean of accumulated trash, grease and debris.

2.10 TIRE SAFETY

1. Failure to follow proper procedures when mounting a tire on a wheel or rim can produce an explosion which may result in serious injury or death.

2. Do not attempt to mount a tire unless you have the proper equipment and experience to do the job.

3. Have a qualied tire dealer or repair service

perform required tire maintenance.

4. When replacing worn tires, make sure they

meet the original tire specications. Never

undersize.

2.11 BATTERY SAFETY

1. Keep all sparks and ames away from batteries, as gas given off by electrolyte is explosive.

2. Avoid contact with battery electrolyte: wash off an spilled electrolyte immediately.

2.13 TRANSPORT SAFETY

1. Comply with Provincial / state and local laws governing safety and transporting of machinery on public roads.

2. Check that all the lights, reectors and other

lighting requirements are installed and in good working condition.

3. Do not exceed a safe travel speed. Slow down for rough terrain and cornering.

4. Fold up and secure feed hopper before moving or transporting.

5. Be sure the trailer is hitched positively to the towing vehicle and a retainer is used through the hitch jaws. Always attach a safety chain between the hitch and the towing vehicle.

6. Do not drink and drive.

7. Be a safe and courteous driver. Always yield

to oncoming trafc in all situations, including

narrow bridges, intersections, etc. Watch for trafc when operating near or crossing roadways.

8. Never allow riders on the machine.

3. Wear safety glasses when working near batteries.

4. Do not tip batteries more than 45°, to avoid electrolyte loss.

5. To avoid injury from spark or short circuit, disconnect battery ground cable before servicing any part of the electrical system.

2.14 SIGN-OFF FORM

SIGN-OFF FORM

Wallenstein follows the general Safety Standards specied by the American Society of Agricultural and Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be using and/or maintaining the Trailer Wood Chipper must read and clearly understand ALL Safety, Usage and Maintenance information presented in this manual.

Do not use or allow anyone else to use this chipper until such information has been reviewed. Annually review this information before the season start-up.

Make these periodic reviews of SAFETY and OPERATION a standard practice for all of your equipment. We

feel that an untrained operator is unqualied to use this machine.

A sign-off sheet is provided for your record keeping to show that all personnel who will be working with the equipment have read and understand the information in the Operator’s Manual and have been instructed in the operation of the equipment.

DATE EMPLOYEES SIGNATURE EMPLOYERS SIGNATURE

3 SAFETY SIGN LOCATIONS

3.1 3 - PANEL SAFETY SIGNS

The types of safety signs and locations on the equipment are shown in the illustrations that follow. Model BXT6238 is illustrated but indicates the general location of the various safety signs. Good safety requires that you familiarize yourself with the various safety signs, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS.

• Think SAFETY! Work SAFELY!

Z94007 x 4

Z94012 x 1

Z94013 x 1

Z94013

Z94007

Z94065 x 1

Z94012

Z94008

Z94008 x 3

Z94006 x 1

REMEMBER - If safety signs have been damaged, removed, become illegible or parts replaced without safety signs, new signs must be applied. New safety signs are available from your authorized dealer.

Z94006

Unit shown with hopper in up

(transport) position

3.2 2 - PANEL SAFETY SIGNS

• Think SAFETY! Work SAFELY!

Z94117 x 3

Z94120 x 4

Z94202 x 1

Z94127 x 1

Z94115 x 1

Z94119 x 1

REMEMBER - If safety signs have been damaged, removed, become illegible or parts replaced without safety signs, new signs must be applied. New safety signs are available from your authorized dealer.

Z94116 x 1

Unit shown with hopper in up

(transport) position

4 OPERATION

OPERATING SAFETY

• Please remember it is important that you read the operator's manual and heed the safety signs on the Trailer Wood Chipper. They are there for your safety, as well as the safety of others. The safe use of this machine is strictly up to you, the operator.

• Personal protection equipment including hearing protection, hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, or plugging.

Do not allow long hair, loose-tting clothing,

or jewellery to be around moving parts.

• Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing or unplugging.

• Do not run machine inside a closed building to prevent asphyxiation from engine exhaust.

• Use care when feeding material into chipper. Do not send metal, bottles, cans, rocks, glass or other foreign material into wood chipper. If foreign material enters chipper, stop machine, turn engine off and place ignition key in your pocket and wait for all moving parts to stop before removing material and/or unplugging. Inspect machine for damaged or loose parts before resuming work.

• Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment. Consult your doctor about operating this machine while taking prescription medications.

• Do not allow riders on this machine at any time. There is no safe place for any riders.

• Never allow children or unauthorized people to operate or be around this machine.

• Do not reach into rotor or feed hopper openings when the engine is running. Install and secure access covers before starting engine.

• Do not move or transport chipper when the rotor is turning.

• Do not exceed a safe travel speed when transporting. Cross safety chain under hitch on trailer model when attaching to truck.

• Keep hydraulic lines and ttings tight, in

good condition and free of leaks.

• Keep the working area clean and free of debris to prevent tripping. Operate only on level ground.

• Do not point discharge at people, animals or buildings. Rotor can expel wood chips fast enough to cause injury.

4.1 TO THE NEW OPERATOR OR OWNER

The Wallenstein Trailer Wood Chippers are designed to chip or chop scrap lumber, small trees, brush, limbs and other wood debris. The chipped

material is ne enough to be composted or used

in a variety of ways.

It is the responsibility of the owner or operator to read this manual and to train all other operators before they start working with the machine. Follow all safety instructions exactly. Safety is everyone's business. By following recommended procedures, a safe working environment is provided for the operator, bystanders and the area around the work site.

Untrained operators are not qualied to use

the machine.

Follow all safety instructions exactly. Safety is everyone's business. By following recommended procedures, a safe working environment is provided for the operator, bystanders and the area around the work site. Untrained operators are not qualied to operate the machine.

Many features incorporated into this machine are the result of suggestions made by customers like you. Read this manual carefully to learn how to use the chipper safely and how to set it to provide

maximum eld efciency. By following the using

instructions in conjunction with a good maintenance program, your Trailer Wood Chipper will provide many years of trouble-free service.

4.2 MACHINE COMPONENTS

The Wallenstein Trailer Wood Chipper is a rotor with blades for chipping wood. A hinged feed hopper moves the wood material into the rotor. Each rotor is designed with cutting blades and a twig-breaker to generate the small pieces of wood. A stationary blade at the rear of the rotor housing is placed by the moving blade to shear, chip or chop the material.

An engine is mounted on the frame to drive the rotor. Power is transmitted through a centrifugal clutch on the engine output shaft and through a "V" belt drive system.

Hour Meter

Location

BXT6238

BXT4228su,

BXT6228su

BXT4224,

BXT6224

engine mount

BXT4213 / BXT4214su

Belt Guard

Centrifugal

Storage

Swivel Jack

Engine

Clutch

Manual

Tube

Upper

Belt

Guard

Gas Tank

Access Flap

Hood Deector

Discharge

Chute

Double "B"

V Belt

Twig Breaker

Rotor

Sheave

Rotor Blade

Upper Rotor

Housing

Hopper

Transport

Latch

Fig. 7 PRINCIPLE COMPONENTS

Rotor Plate

Feed Hopper

Ledger Blade

4.3 MACHINE BREAK-IN

4.4 PRE-OPERATION CHECKLIST

Although there are no operational restrictions on

the Wood Chipper when used for the rst time,

it is recommended that the following mechanical items be checked:

A. After operating for 1 hour:

1. Check alignment of pulleys. Align as required.

2. Check belt tension. Adjust as required.

3. Torque all fasteners and hardware.

4. Check condition of rotor bearings.

5. Check the condition and clearance of the twig-breaker, rotor and stationary blades. Adjust or replace as required.

6. Check for entangled material. Remove all entangled material before resuming work.

7. Check tire pressure. Inate as required.

B. After operating for 10 hours:

Efcient and safe operation of the Wallenstein

Trailer Wood Chipper requires that each operator reads and understands the using procedures and all related safety precautions outlined in this section. A pre-operation checklist is provided for the operator. It is important for both the personal safety and maintaining good mechanical condition that this checklist is followed.

Before operating Wood Chipper and each time thereafter, the following areas should be checked off:

1. Lubricate the machine per the schedule outline in the Maintenance Section.

2. Check the tension and alignment of the belts. Adjust tension and align as required.

3. Check the rotor, blades and twig-breaker. Remove any twine, wire or other material that has become entangled.

4. Check the condition and clearance of the twigbreaker, rotor and stationary blades. Adjust or replace as required.

1. Repeat steps 1 through 7 listed above. (Section A)

2. Change engine oil. (review engine owners manual)

3. Go to the normal servicing and maintenance schedule as dened in the Maintenance Section.

5. Check engine uid levels. Top up as required.

6. Check that all bearings turn freely. Replace any that are rough or seized.

7. Make sure that all guards and shields are in place, secured and functioning as designed.

8. Check the condition of the curtain in the feed hopper. It must be in good condition to pre-

vent chips from ying out.

Feeder Hopper

Safety Curtain

Fig. 8 CURTAIN

4.5 CONTROLS

4.5.1 GAS ENGINE MANUAL / ELECTRIC START

BXT4213: Honda GX390

BXT4214su: Subaru EX40

Always read the engine Operator's manual supplied with the machine for the detailed operating procedures.

• Ignition Switch: This key operated switch controls the electric power to the engine.

OFF Turn key fully counterclockwise to

stop the electrical system power and turn the engine off.

RUN / ON Turn clockwise to the centre

detent for the run position. This is the position where the engine will continue to run.

START Turn fully clockwise to the last

spring-loaded detent position to engage the starter solenoid and start the engine. Release the key when the engine starts and it will

return to the RUN position.

• Fuel Shut-Off Valves: Each engine is equipped with a valve between the fuel tank and the carburettor. Slide the fuel valve toward the block to turn ON and away to turn OFF. Turn the fuel OFF when not in use or when transporting.

• Throttle: This lever controls the engine RPM. Move the lever side to side Always run at maximum throttle while operating.

• Choke: The choke controls the fuel/air mixture to the engine. Close the choke when starting if the engine is cold. Open the choke as the engine warms. Always open the choke fully during start-up.

• Starting rope: This retracting rope and T-bar is used to turn the engine over for start-

ing. Grasp the T-bar rmly and pull the rope

sharply to start the engine.

Throttle

Choke

Shut-Off

Choke

Fig. 9 ENGINE

Fuel

Honda GX 390

Ignition

Subaru EX40

Ignition

Throttle

Fuel

Shut-Off

4.5.2. GAS ENGINE ELECTRIC START

BXT4224, BXT6224: Honda GX690

BXT4228su, BXT6228su: Subaru EH72FI

BXT6238: Kohler CH980

Before starting to work, all operators should familiarize themselves with the location and function of controls.

1. Gas Engine:

Before starting, read the engine manufacturers

operator's manual for more detailed instructions.

• Ignition Switch: This key operated switch

controls the electric power to the engine.

OFF Turn key fully counterclockwise to

stop the electrical system power and turn the engine off.

RUN / ON Turn clockwise to the centre

detent for the run position. This is the position where the engine will continue to run.

START Turn fully clockwise to the last

spring-loaded detent position to engage the starter solenoid and start the engine. Release the key when the engine starts and it will return to the RUN position.

• Choke: (Honda & Kohler)

Honda: This push/pull knob controls the position of the choke. Pull the knob out to close the choke for starting when the engine is cold. Push the knob in to open the choke as the engine warms. Always push the knob in fully in when operating the machine.

Kohler: This left/right slider controls the position of the choke. Slide the choke to the right to close the choke for starting when the engine is cold. Slide the knob to the left to open the choke as the engine warms. Always slide the choke fully to the left when operating the machine.

• Throttle: This lever controls the engine RPM.

Subaru: slide the lever to the back to increase engine speed and forward to decrease.

Honda: slide the lever up to increase engine speed and down to decrease.

Kohler: slide the lever to the left to increase engine speed and right to decrease.

Throttle

Fig. 10 ENGINE

Subaru EH72FI

Ignition

Throttle

Choke

Honda GX 690

Ignition

Choke

Kohler CH980

Ignition

4.6 BALL & COUPLER

The Wood Chipper should always be located on a level, dry area that is free of debris and other foreign objects. When attaching the machine to a tow unit, follow this procedure:

Coupler

1. Make sure that all bystanders, especially small children, are clear of the working area.

2. Make sure there is enough room and clearance to safely back up to the machine.

3. Slowly back the tow vehicle until the coupler on the hitch and ball are aligned.

4. Attach the ball hitch:

a. Lift the hitch and place the coupler over

the ball on the hitch.

b. Flip the latch to lock the coupler around

the ball and install .

c. Install the snapper pin to secure the latch

d. BXT4213, BXT4214su: Pull out the snap-

per pin and pull up to place stand in its stowed position. Replace snapper pin.

e. BXT4224, BXT6224, BXT4228su, BXT-

6228su, BXT6238: Crank the swivel jack

up, pull out the snapper pin and swivel the stand into its stowed position. Replace snapper pin.

6. Attach the safety chain securely to the tow frame to prevent unexpected separation. Cross the chains when attaching to the toe vehicle

7. Reverse the above procedure when unhooking.

8. Ensure light wiring harness is connected to the tow vehicle.

9. Route the harness and cables across the hitch to prevent snagging. Be sure to provide slack for turning.

10. Reverse the above procedure when unhooking.

Ball

ALIGNED

ATTACHED

Install snapper

pin on coupler

latch

raise stand

Fig.11 PIN / STAND / SAFETY CHAIN

/ WIRING HARNESS

4.7 MACHINE SET-UP

Follow this procedure to prepare and set-up the machine at the work site:

1. Use the tow unit to position the Wood Chipper at the work site.

2. The chipper can be used as a stand alone, or if you require more stability leave your chipper attached to the tow vehicle.

IMPORTANT

Position the machine so the prevailing wind/breeze blows the exhaust gases/fumes away from the operator's station.

3. Lower the feed hopper down into its working

conguration:

a. remove the nuts on the hopper anchor

bolts,

b. unpin and the feeder hopper latch

c. carefully lower the hopper and secure it

with the with the nuts on the anchor bolts.

Fig. 12 BATTERY CABLE: (typical)

4. Check the battery cable and if required connect the cable and tighten fastener securely to ensure a good connection.

Stowed

Position

Feed Hopper

Fig. 14 FEED HOPPER

Latch

Feeder Hopper

Anchor Bolts

Working Position

4.8 FIELD OPERATION

OPERATING SAFETY

Do not allow long hair, loose-tting clothing,

or jewellery to be around moving parts.

• Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing or unplugging.

• Do not run machine inside a closed building to prevent asphyxiation from engine exhaust.

The operator has the responsibility of being familiar with all operating and safety procedures and following them.

Although the Trailer Wood Chipper is easy to use, each operator should review this section to familiarize himself with the detailed safety and operating procedures. When preparing this machine for use, follow this procedure:

4.8.1. PREPARE

• Clear the area of bystanders, especially small children.

• Each operator must be trained and familiar with the set up and operation of the Wood Chipper and its components.

• Review the machine components (see Section

4.2)

• Review and follow the Pre-Operation Checklist (see Section 4.4).

• Do not allow riders on this machine at any time. There is no safe place for any riders.

• Never allow children or unauthorized people to operate or be around this machine.

• Do not reach into rotor or feed hopper openings when the engine is running. Install and secure access covers before starting engine.

• Do not move or transport chipper when the rotor is turning.

• Do not exceed a safe travel speed when transporting. Cross safety chain under hitch on trailer model when attaching to truck.

• Keep hydraulic lines and ttings tight, in good condition and free of leaks.

• Keep the working area clean and free of debris to prevent tripping. Operate only on level ground.

• Do not point discharge at people, animals or buildings. Rotor can expel wood chips fast enough to cause injury.

• Review operation and function of the controls (see section 4.5)

• Survey the work site, move to a clear, level work area and position at the work site. Do not start the Wood Processor until it is in position.

• Set up the machine (see section 4.7).

• Each person must wear appropriate Personal Protective Equipment (PPE) whenever operating the Wood Processor or working in the vicinity. This equipment is designed to prevent injury to any personnel in the area. This list includes but is not limited to:

• Safety shoes with slip resistant soles.

• Safety goggles or face shield.

• Hearing protection.

• Heavy or leather gloves

4.8.2. STARTING PROCEDURE

a. The Wood Chipper should be set up and ready

to run. (see 4.7)

b. Set park brake if connected to tow vehicle.

c. Lower the support leg stand and secure with

the snapper pin.

d. Close the choke if the engine is cold. (not

available for fuel injected Subaru)

e. Move the throttle to its 1/4 throttle position (if

the throttle is set any higher the centrifugal clutch could potentially engage and stall a cold engine.)

f. Open the fuel supply valve (BXT4213,

BXT4214su).

g. Electric Start (BXT4224, BXT6224, BXT-

4228su, BXT6228su, BXT6238): Use the

ignition key and turn it to the "start" indicator, to turn over the engine. Release the key when the engine has started and the key will return to the centre run position. Manual Start (BXT4213, BXT4214su): Turn the ignition switch to "on". Grasp the "T" bar on

the pull cord rmly, and pull the rope sharply

to start the engine.

h. Run the engine for a few minutes to allow it

to warm.

i. Gradually open the choke.

j. Turn the discharge head to its desired posi-

tion.

k. Slowly increase the engine speed

to engage the centrifugal clutch.

l. Increase throttle setting to maximum speed

for operation.

m. Ensure that the rotor is up to speed, start

feeding material into hopper.

4.8.3 STOPPING:

a. Stop feeding material into the hopper.

b. Slow engine RPM.

c. Stop engine using ignition switch.

4.8.4 EMERGENCY STOPPING

If an emergency occurs:

shut off the engine. Correct emergency situation before restarting

engine and resuming work.

Turn discharge

head to desired

position

Swivel jack

secured in

position

Feeder Hopper

secured in work-

ing position

Chipper located

on clear level

work area

Fig. 15 STARTING/STOPPING

4.8.5 CHIPPING OPERATION

The BX Wood Chipper is a strong, rugged machine that is built to a straight-forward design which provides consistent chipping of logs up to 4" (102mm) in diameter for the BXT4213,

BXT4214su and 6" (153mm) in diameter for the BXT4224, BXT6224, BXT4228su, BXT6228su, BXT6238.

Always wear personal protective equipment (PPE) whenever operating the machine. This includes but is not limited to protective shoes with slip resistant soles, protective goggles or face shield, heavy gloves, hearing protection and protective clothing.

Do not place metal, bottles, cans, rocks, glass or other solid material into the wood chipper. If something like this gets into the machine, stop the machine immediately for a detailed inspection. Stop engine, remove ignition key and place in your pocket and wait for all moving parts to stop before inspecting or unplugging. Inspect machine for damaged or loosened parts before resuming work.

Caution and care should be exercised when feeding material into the feeder. Do not reach into the hopper past the curtain barrier.

a. Before beginning to feed, ensure the motor

warmed up and the rotor is up to speed.

b. Slowly slide the wooden material into the

feed hopper and move it into the rotor.

c. Do not force the material into the rotor, as

the material engages the rotor, the rotor will draw the material in. Use continuous lite pressure to guide in the material.

d. Be aware of how much material you feed in,

slow down or stop if the engine begins to slow down.

e. Do not reach into the feed hopper further

than the curtain to be sure not to contact the blades on the rotor.

f. Use a stick or branch to push any piece of

material into the rotor that does not move on its own. If the jam persists then stop the engine and wait for the rotor to stop and then clear the jam. Do not take a chance with

getting your hand caught in the rotor.

g. Ensure your wood chip pile is contained and

doesn't affect the immediate work area.

Fig. 16 OPERATING

Feeder Hopper

Safety Curtain

4.8.6 UNPLUGGING:

Although the machine is designed to handle

a wide variety of material without any problem, occasionally it plugs. When the machine plugs, follow this procedure to unplug:

a. Clear the area of bystanders, especially

small children.

b. Stop the engine, remove the ignition key

and place it in your pocket and wait for all moving parts to stop before unplugging.

c. Pull the material out of the feed hopper.

Be sure all the material is out and nothing is jammed or wedged between the input opening and the rotor.

d. Pull the material out of the discharge hood.

Use a stick to poke loose any material jammed into the discharge hood. Do not allow anything to remain in this area.

e. Check that everyone is clear of machine

before restarting engine.

f. Start the engine and resume working.

WARNING

4.8.7 SEVERE PLUG:

a. Clear the area of bystanders, especially

small children.

b. Stop the engine, remove the ignition key

and place it in your pocket or remove spark plug wire, and wait for all moving parts to stop before unplugging.

c. Loosen the feed hopper anchor nuts and

raise the feed hopper.

d. Remove jammed material from inside the

rotor compartment.

e. Clean out the discharge area/rotor.

f. Open the upper rotary housing and clean

out the housing.

g. Be sure to turn the rotor by hand to be sure

there is nothing jammed between the rotor and stationary blades.

h. Close, install and fold down all components

opened to unplug. Tighten fasteners to

their specied torque.

i. Check that everyone is clear of machine

before restarting engine.

j. Start the engine and resume working.

Machine is shown with guard removed or rotor cover opened for illustrative purposes only. Do not operate machine with guard removed or cover opened.

Remove jammed

Open upper

Rotary housing

material

Open feeder

hopper

Fig. 17 SEVERE PLUG

Remove jammed

material

4.8.8 REFUELLING:

BXT4213, BXT4214su models have an en-

gine mounted fuel tank.

BXT4224, BXT4228su models have the fuel

tank located in the front frame and is accessed by lifting the tool box lid.

BXT6224 BXT6228su, BXT6238 models

have the fuel tank located in the front frame

and is accessed by lifting the rubber ap over the cap. Do not overll. Use caution to

prevent spilling.

Do not smoke while refuelling.

BXT4213, BXT4214su

BXT6224, BXT6228su,

BXT6238

BXT4224, BXT4228su

4.8.9 SAFETY CURTAINS:

Each feed hopper is designed with an internal

rubber/belting curtain to prevent chips and debris from coming out of the hopper when working. Check the condition of the curtain each day prior to starting. Replace the curtain if torn, damaged or missing to minimize the chance of material coming out of the feed hopper.

4.8.10 OPERATING HINTS:

a. Keep the working area clean and free of

debris to prevent slipping or tripping. Operate only on level ground.

b. Do not place hands or any body parts into the

feed hopper during operation. Use a stick or branch to push material into the rotor when it goes past the curtain in the feed hopper.

c. Do not point discharge at people, animals or

buildings. Rotor can expel wood chips fast enough to cause injury.

d. Use care when feeding material into the chip-

per. Do not send metal, bottles, cans, rocks, glass or other foreign material into the wood chipper. If foreign material enters chipper, stop machine, turn engine off and place ignition key in your pocket and wait for all moving parts to stop before removing material and/or unplugging. Inspect machine for damaged or loose parts before resuming work.

Fig. 18 FUEL TANK

Fig. 19 CURTAIN

5 TRANSPORTING

TRANSPORT SAFETY

• Do not exceed a safe travel speed.

• Always follow and obey applicable highway rules and regulations.

• Be sure all lights and markers required by

the trafc regulations are in place, clean

and working.

• Inspect rims for dents or damage, check wheel lugs and tighten if required.

• Always attach the safety chains between the machine and the pick-up. Cross the

When transporting the machine, review and follow these instructions:

1. Clear the area of bystanders, especially small children.

2. Check that all the lights and reectors required by the highway authorities are in place, clean and working.

3. Insure that the machine is securely attached to the pick-up with a mechanical retainer through the ball hitch mechanism. Always use safety chains crossed between the truck and machine.

chains under the hitch when connecting.

• Always use a mechanical retainer through the ball hitch mechanism when attaching to tow vehicle.

• Do not drink and drive.

• Plan your route to avoid rough terrain. Slow down when encountering rough conditions or cornering.

• Raise and secure feed hopper before moving or transporting.

4. Do not allow riders.

5. Never exceed a safe travel speed. Slow

down when encountering rough road conditions and cornering.

6. Do not drink and drive.

7. Raise the feed hopper, and attach the chute

latch bar to the chute latch catch and secure it with the snapper pin before transporting.

8. Turn the discharge hood and point toward the

rotor to reduce the width of the machine.

9. Ensure upper rotor housing is securely bolted.

Chute turned in

Upper housing

securely bolted

Raise & swivel

jack for transport

Hopper raised &

secured

Latch

Latch Pin

Check lights

Fig. 20 TRANSPORT CONFIGURATION

6 STORAGE

OPERATING SAFETY

• Store the unit in an area away from human activity.

• Do not permit children to play on or around the stored machine.

• Store the unit in a dry, level area. Support the frame with planks if required.

6.1 PLACING IN STORAGE

After the season's use or when the machine will not be used for a period of time, completely inspect all major systems of the Trailer Wood Chipper. Replace or repair any worn or damaged components to prevent any unnecessary down time at the beginning of the next season.

Follow this procedure before storing:

12. Store in an area away from human activity.

13. Do not allow children to play around the stored unit.

6.2 REMOVING FROM STORAGE

When removing this machine from storage, follow this procedure:

1. Remove the tarpaulin if covered.

2. Install and connect the battery.

3. Bring the ignition key.

4. Review and follow the pre-operation checklist.

1. Remove all material from the machine.

2. Thoroughly wash the machine with a pressure washer or water hose to remove all dirt, mud or debris.

3. Inspect all rotating parts for entangled material. Remove all entangled material.

4. Check the condition of the belts and pulleys. Replace or adjust as required.

5. Run the machine a few minutes to dry the moisture from inside the machine.

6. Turn fuel valve off.

7. Move the feed hopper up and lock.

8. Touch up all paint nicks and scratches to prevent rusting.

9. Remove ignition key and store in a secure place.

IMPORTANT

If the machine has been stored for more than 6 months, warm the engine by running it for 2-3 minutes and drain the oil. Change the oil while the oil is warm to remove any condensation. Refer to Maintenance section.

10. Remove the battery and store it in a cool, dry area on wooden blocks or a wooden pallet. Charge it monthly to maintain an adequate charge.

11. It is best to store the machine inside. If that is not possible, cover with a waterproof tarpaulin and tie down securely.

Fig. 21 STORED

7 SERVICE AND MAINTENANCE

7.1 SERVICE

MAINTENANCE SAFETY

7.1.1 FLUIDS AND LUBRICANTS

• Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.

• Follow good shop practices.

- Keep service area clean and dry.

- Be sure electrical outlets and tools are

properly grounded.

- Use adequate light for the job at hand.

• Make sure there is plenty of ventilation. Never operate the engine of the towing vehicle in a closed building. The exhaust fumes may cause asphyxiation.

• Before working on this machine, shut off the

engine, set the brake, and turn fuel valve off.

• Never work under equipment unless it is

blocked securely.

• Always use personal protection devices

such as eye, hand and hearing protectors, when performing any service or maintenance work. Use heavy gloves when handling sharp components.

• Where replacement parts are necessary

for periodic maintenance and servicing, genuine factory replacement parts must be used to restore your equipment to original

specications. The manufacturer will not be

responsible for injuries or damages caused by use of unapproved parts and/or accessories.

• A re extinguisher and rst aid kit should

be kept readily accessible while performing maintenance on this equipment.

• Periodically tighten all bolts, nuts and

screws and check that all electrical and fuel connections are properly secured to ensure unit is in a safe condition.

1. Grease: Use an SAE multipurpose high temperature

grease with extreme pressure (EP) performance. Also acceptable is an SAE multipurpose lithium base grease.

2. Engine Oil: Refer to the engine manufacturer's manual for

maintenance and service information

3. Engine Gasoline: Use a standard automotive super unleaded

gasoline for all operating conditions.

Fuel Tank Capacity:

Honda GX390 6.5 L (1,5 gal US)

Subaru EX40 7 L ( 1.85 gal US)

Honda GX690 25 L (4 gal US)

Subaru EH72FI 25 L (4 gal US)

Kohler CH980 25 L (4 gal US)

4. Storing Lubricants:

Your machine can operate at top efciency

only if clean lubricants are used. Use clean containers to handle all lubricants. Store them in an area protected from dust, moisture and other contaminants.

7.1.2 GREASING

Refer to section 7.1.1 for recommended grease.

Use the Maintenance Checklist provided to keep a record of all scheduled maintenance.

1. Use a hand-held grease gun for all greasing.

2. Wipe grease tting with a clean cloth before

greasing, to avoid injecting dirt and grit.

3. Replace and repair broken ttings immediately.

• When completing a maintenance or service function, make sure all safety shields and devices are installed before placing unit in service.

4. If ttings will not take grease, remove and

clean thoroughly. Also clean lubricant pas-

sageway. Replace ttings if necessary.

7.1.3 SERVICE ILLUSTRATION

See Service Record Chart

This illustration shows the general location of service points for all models in this manual.

Refer to your engine instruction manual for specic maintenance instructions / requirements

Air Cleaner: check

daily consult your

engine manual for

specic service

instructions

Engine Oil: check

and top up daily consult your en-

gine manual for

specic service

instructions

Fuel: check daily or

every 8 hrs, Drain

fuel if not being

used for long peri-

ods of time.

On a regular basis check all

nuts, bolts and screws and

ensure they are all properly

secured

Belt drive: Check ten-

sion daily, adjust every

100 hrs

Every 100 hrs or annually.

wash and clean wood chipper,

remove entangled material,

wood chips, small debris

Grease Pivot Point &

Hinges: inspect daily,

grease every 40 hours

or weekly

Tire Pressure: check

every 100 hrs or an-

Rotor bearings: grease with

one shot of grease: front

and rear, every 100 hours or

annually

nually.

Rotor blades: check daily,

test sharpness every 50 hrs

Fig. 22 SERVICE

Twig Breaker:

check every 8 hrs.

Ledger blade: check daily, test sharpness

every 50 hrs

7.1.4 SERVICE RECORD

Twig Breaker, Chop

Block, Blades, Knives

Secure fasteners

Belt Drive /Pulley

Alignment

Inspect & Lubricate hinges and pivot points

Ledger Blade, Shredder

PTO Driveline

Rotor Bearings

Belt Drive

Clean Machine

See Lubrication and Maintenance sections for details of service. Copy this page to continue record.

8 Hours or Daily 50 Hours or Annually 100 Hours or Annually

Check Check Check Clean Sharpen Grease Grease Adjust Clean

Knives

7.2 MAINTENANCE

By following a careful service and maintenance program for your machine, you will enjoy many years of trouble-free operation. Review your engines

instruction manual for specic instructions /

requirements

7.2.1 CLEANING AIR CLEANER

1. Place all controls in neutral, stop and disable engine before beginning maintenance.

2. Review your engines instruction manual for

specic instructions / requirements

7.2.2 CHANGE ENGINE OIL

1. Place all controls in neutral, stop and disable engine before beginning maintenance.

2. Review your engines instruction manual for

specic instructions / requirements

7.2.3 DRIVE BELT REPLACEMENT:

1. Ensure the engine is off (ignition switch is off and the fuel valve is closed).

2. Remove the 4 bolts that secure the belt guard, and the 3 bolts that secure the upper belt guard to the chipper, and remove the guards.

3. Loosen (do not remove) the 4 x bolts that hold the engine mount to the main frame (located at the bottom of the motor mount)

4. Turn the belt tensioning bolt counter clockwise, until belt is loose enough to remove,

then remove the belt (see gure 24)

5. Replace with the new belt

6. Turn the belt tensioning bolt clockwise, to pull the engine mount outwards to tighten the belt

7. Check the tension by pushing on the belt

with your fore nger and measure its defection. Drive belt should deect no more than

1/2 to 5/8" (13 mm to 16 mm).

8. When tension is correct, check pulley alignment then tighten up all four engine mount bolts, and replace the belt shield and bolts.

9. Recheck tension after 10 hrs of use.

Engine

Front

Motor

Mount

Engine

Nuts (4)

Fig. 23 BOTTOM VIEW OF MOTOR MOUNT

7.2.4 BELT TENSION

The machine is designed with a centrifugal clutch on the engine shaft when engaged is used to drive

the rotor plate sheave.

When the belt is in disrepair or loose, the ability to efciently drive rotor may be affected.

Therefore it is important to periodically check the condition as well as the tension of the belt.

Frayed, cracked or worn drive belts should be replaced. Drive belt should deect no more than 1/2 to

5/8" (13 mm to 16 mm). For accurate measurement use a drive belt tension gauge. Contact your dealer for more information on belt tension.

Drive Belt Tension Check and Adjustment:

1. Ensure the engine is off (ignition switch is off and the fuel valve is closed).

2. Remove the 4 bolts that hold the belt guard to the chipper, remove the belt guard.

3. Check the tension by pushing on the belt with

your fore nger and measure its defection. Drive belt should deect no more than 1/2 to 5/8" (13

mm to 16 mm).

4. If the belt requires adjustment, lift and secure the hopper, loosen (do not remove) the 4 x bolts that hold the engine mount to the main frame, (access from the front of the motor, under the

motor mount: see g 23).

1. To tighten turn clockwise

2. To loosen turn counter-clockwise.

5. Turn the belt tensioning bolt clockwise, to pull the engine mount outwards to tighten the belt or turn the bolt clockwise, to loosen the belt.

6. Snug 1 bolt on each side of the engine mount.

7. Check the tension by pushing on the belt with

your fore nger and measure its defection. Drive belt should deect no more than 1/2 to

5/8" (13 mm to 16 mm).

8. If the tension is incorrect, loosen the engine mount bolts and adjust the belt tension bolt as required.

9. When tension is correct, tighten up all four engine mount bolts and replace the belt shield and bolts.

Belt Tension Bolt:

Motor

Mount

Centrifugal

Clutch

Drive belt should

deect no more than

1/2 to 5/8".

Rotor

Sheave

Belt Drive

Fig. 24 BELT TENSION

7.2.5 SHEAVE ALIGNMENT

A set of V belts transmits rotational power to the rotor. They must be kept properly tensioned and the sheaves aligned to obtain the expected performance and life. For maximum accuracy, have your sheaves aligned with a laser alignment tool. Contact your dealer for information on laser alignment.

Alignment may be carried out using a straight edge, to check the alignment, follow this procedure:

1. Clear the area of bystanders, especially small children.

2. Turn machine off, stop engine, remove ignition key and place in pocket and wait for all moving parts to stop.

3. Remove the belt guard and upper belt guard.

4. Have a straight edge at least 50" (127cm) in length.

5. Place the straight edge along the face on the back of the clutch, and place the opposite end along the back face of the rotor sheave.

Top view of belt drive system

Centrifugal

Clutch

Centrifugal

Clutch

Straight

Edge

Rotor

Sheave

Straight

Edge

6. Check to see if there is a gap between the straight edge and the clutch or the sheave, measure the gap (A).

7. If there is more than 1/32" (.8mm) offset then adjustment is required.

8. To adjust alignment:

a. Loosen the set screw on the bushing at-

tached to rotor sheave.

b. Remove the 3 hex bolts on the bushing,

and thread them into the tapped holes on the bushing.

c. Tighten the hex bolts progressively with

1/4 turns until bushing is free from the sheave taper.

d. Move the sheave to the required position

to align the belt.

e. If the offset is 1/32 (.8mm) or less then no

more adjustment is necessary.

Note: movement of the

sheave may occur when

tightening the bushing, some

allowance for movement

may be required.

f. Align drilled holes with tapped holes on the

sheave, replace and hand tighten the 3 hex bolts.

g. Tighten the set screw and recheck align-

ment.

h. Carefully tighten hex bolts progressively

(1/4 turns) and uniformly until rmly seated.

i. Recheck belt tension and assemble belt

guards.

Belt Drive

Set Screw

Bushing

Rotor

Sheave

Fig. 25 BELT DRIVE SYSTEM

7.2.6 BLADE AND BREAKER MAINTENANCE:

The rotor and ledger blades need to be sharp for the Chipper to perform as expected. Periodic inspec-

tion is recommended. Keep the blades sharp to reduce the amount of power required during operation. Watch the sharpness of the blades when processing material with a lot of sand, soil or dirt mixed with it. Reverse or sharpen the blades if the cutting edge becomes dull.

Rotor Blades:

The rotor is equipped with 2 blades (BXT4213, BXT4214su, BXT4224, BXT4228su) or 4 blades

(BXT6224, BXT6228su, BXT6238) spaced evenly to keep the rotor in balance. If one needs to be

changed, the one opposite should also be changed.

It is recommended that the rotor blades be removed from the rotor when sharpening. Always sharpen

the blades at a 45° angle to provide the best cutting effect as it meets the stationary blade. Be sure to

tighten the blade mounting bolts to their specied torque when re-installing the blades to the rotor.

1. Ensure the engine is off (ignition switch is off and the fuel valve is closed).

2. Remove the bolt that secures the upper rotor housing, and carefully open the rotor housing.

3. Manually rotate chipper rotor plate so that the blade is fully exposed

4. Remove the bolts that hold the rotor blade to the rotor, remove the blade.

5. Rotate the blade and reinstall or replace with new or re-sharpened blade.

6. Ensure the blade is properly oriented, with the leading edge out.

The blade is designed to t into the

rotor one way only. See diagram for proper installation.

7. Tighten down bolts as specied in the torque chart

8. Repeat steps for second blade.

Rotor Blade

Bolts

Leading Edge

WARNING

Machine is shown with guard removed for illustrative purposes only. Do not operate machine with guard removed.

Proper orientation

of Rotor Blade

Fig. 26 ROTOR BLADE

Ledger Blades:

Each machine is equipped with a ledger (stationary) blade that acts as a shear for the moving rotor

blades.

The ledger blade is designed with 4 usable corners. When the corner facing the rotor blade rounds

over, remove the blade and re-install with a different corner facing the rotor blade. It is recommended that the clearance between the rotor and stationary blades be set and maintained at 1/32 to 1/16 " (.76

- 1.52 mm) to obtain the best performance.

1. Ensure the engine is off (ignition switch is off and the fuel valve is closed).

2. Remove the 2 bolts that hold the ledger blade to the ledger mount, remove the blade.

3. Rotate the blade and replace or replace with new or re-sharpened blade.

4. Hand tighten the bolts and set the clearance between the ledger and rotor blades at 1/32 - 1/16" (.76 - 1.52 mm). For fast and easy setting, use our chipper clearance setting gauge, available from your dealer (see accessories)

5. Tighten down bolts as specied in the torque chart

Ledger Blade

Bolts

Fig. 27 LEDGER BLADE

Ledger Blade

Twig Breaker:

The Twig Breaker is a breaker tab located on side of the lower rotor housing. The discharge paddle

passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch. Inspect the twig breaker for damage such as gouges, a bent, or missing tooth. A damaged twig breaker should be replaced. If the tooth is showing wear, remove and replace the twig breaker.

1. Ensure the engine is off (ignition switch is off and the fuel valve is closed).

2. Remove the 2 bolts and nuts that hold the twig breaker to the housing, remove the twig breaker.

3. Reverse the steps to install the new twig breaker.

WARNING

Machine is shown with guard removed or rotor cover opened for illustrative purposes only. Do not operate machine with guard removed or cover opened.

Twig Breaker

Bolts

Twig Breaker

Nuts

Fig. 28 TWIG BREAKER

Lower Rotor

Housing

8 TROUBLE SHOOTING

Set clearance to 1/32 to 1/16 " (.76 -

The Wallenstein Trailer Wood Chipper is designed with blades on a rotor to cut, shear and shred wooden material. It is a simple and reliable system that requires minimal maintenance.

In the following section, we have listed many of the problems, causes and solutions to the problems that you may encounter.

If you encounter a problem that is difcult to solve, even after having read through this trouble shooting

section, please call your local distributor or dealer. Before you call, please have this Operator's Manual from your unit and serial number ready.

PROBLEM CAUSE SOLUTION CAUTION

Rotor does not turn

Slow feeding.

Unusual vibration while

running.

Obstructed discharge.

Rotor plugged.

Broken shear pin Replace shear pin. Ensure machine is off

Low engine speed.

Blades and/or knives are dull.

Rotor blade angle wrong, improper angle.

Obstructed discharge.

Broken or missing blade .

Rotor may be bent

Clear debris from discharge chute.

Inspect and clear chipper hopper lower rotor housing and rotor.

Throttle is set to specified speed (540 -1000)

Rotate, sharpen or replace blade and/or knives.

Re-sharpen knives to specified angle and check that blade is installed properly.

Clear debris from discharge chute .

Replace broken/missing blade. Ensure machine is off.

Check rotor to see if it wobbles. Replace rotor

Ensure machine is off

Ensure machine is off, call technician for repair

Machine requires excessive

Engine related issues.

power or stalls.

Obstructed discharge.

Feeding in too much material

Feeding material too quickly

Rotor plugged.

Green material will not discharge.

Chipper blade clearance too large.

Dull blades. Rotate, sharpen or replace blade Ensure machine is off.

Refer to your engine instruction manual for specific trouble shooting instructions / requirements.

Clear debris from discharge chute .

Feed smaller amounts into chipper hopper.

Feed larger material slowly into chipper hopper.

Inspect and clear chipper hopper lower rotor housing and rotor.

Allow material to dry or alternate dry/wet material.

1.52 mm). Use chipper clearance tool (see accessories)

Ensure machine is off

Ensure machine is off.

BXT6224 / 6228su /

6238

13HP Honda / 14HP

Subaru

24HP Honda / 28HP

Subaru

24HP Honda / 28HP

Subaru / 38HP Kohler

6" Dia.(15.2 cm)

Max. 12" slab (30.5cm)

6½" x 12"

16.5cm x 30.5cm

30"

76.2cm

197 lb

89.4 kg

Dimensions (Hopper

Folded) L x W x H

86"L x 75"W x 88"H

203cm x 191cm x 224cm

25" x 25"

64cm x 64cm

88"

224cm

785 lb

356 kg

825 lb

374 kg

1365 lb / 1385 lb

619 kg / 628 kg

72"

183cm

4" Dia.(10.1 cm)

Max. 10" slab (25.4cm)

4" × 10"

10.1cm x 25.4cm

25"

63.5cm

74 lb

33.6 kg

72" x 59" x 72"

203cm x 145cm x 183cm

20" x 20"

51cm x 51cm

9 SPECIFICATIONS

9.1 MECHANICAL

Model BXT4213 / 4214su BXT4224 / 4228su

Drive System

Engine

Chipper Capacity

Chipper Housing Opening

Rotor Size (Dia)

Number of Rotor Knives

Knife Type

Rotor Weight

Feeding System Feed

Mounting System

Hopper Opening

Belt drive, centrifugal clutch

Hardened tool steel

Self Feed

Trailer

4 Segmented

Discharge Hood Rotation

Discharge Hood Height

Rated RPM

Weight

Tire Size

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

4.8 x 8

360 degrees

1280

20.5 x 8 - 10

9.2 BOLT TORQUE

CHECKING BOLT TORQUE

The tables shown below give correct torque values for various bolts and capscrews. Tighten all bolts to

the torques specied in chart unless otherwise noted. Check tightness of bolts periodically, using bolt

torque chart as a guide. Replace hardware with the same strength bolt.

Torque gures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise specied. Therefore, do not grease or oil bolts or capscrews unless otherwise specied in this

manual. When using locking elements, increase torque values by 5%.

* Torque value for bolts and capscrews are identied by their head markings.

ENGLISH TORQUE SPECIFICATIONS

Bolt

Bolt Torque*

Diameter

"A"

1/4"

5/16"

3/8"

7/16"

1/2"

9/16"

5/8" 3/4" 7/8"

METRIC TORQUE SPECIFICATIONS

SAE 2

(N.m) (lb-ft)

8 13 27 41 61 95

128 225 230 345

6 10 20 30 45 60 95

165 170 225

SAE 5

(N.m) (lb-ft)

12 25 45 72

110 155 215 390 570 850

Bolt Torque*

Bolt

Diameter

"A"

8.8

(N.m) (lb-ft)

SAE 8

(N.m) (lb-ft)

9 19 33 53 80

115 160 290 420 630

17 36

63 100 155 220 305 540 880

1320

10.9

(N.m) (lb-ft)

12 27 45

75 115 165 220 400 650 970

M3 M4 M5 M6

M8 M10 M12 M14 M16 M20 M24 M30 M36

6 10 25 50 90

140 225 435

750 1495 2600

2.2 4 7

18 37

66 103 166 321 553

1103

1917

1.8

4.5 9

15 35

70 125 200 310 610

1050 2100 3675

1.3

3.3 7

11 26 52

92 148 229 450 774

1550 2710

10 ACCESSORIES

Call your dealer for pricing and availability For replacement parts, go to www.embmfg.com and click on "Parts and Manuals" to download the latest parts manual for you model splitter, then call your dealer to order.

#1012L269 LEDGER CLEARANCE SETTING GAUGE

For BXT Series Chippers An easy and accurate way of setting the critical clearances between the ledger blade and the rotor chipper blade.

#1012L269

INDEX

ACCESSORIES .................... 43

AIR CLEANER ...................... 35

ASABE .................................. 15

BALL HITCH ......................... 23

BELT GUARD ....................... 19

BELT TENSION .................... 36

BLADE .................................. 38

BREAKER ............................. 38

CAUTION ................................ 7

CHANGE ENGINE OIL ......... 20

CHOKE ............................21, 22

CONGRATULATIONS ............ 6

CURTAIN ............................... 20

DANGER ................................. 7

DRIVE BELT REPLACEMENT

............................................... 35

EMERGENCY ....................... 26

ENGINE OIL .......................... 35

FUEL SHUT-OFF .................. 21

FUEL SUPPLY VALVE .......... 26

FUEL TANK .......................... 29

GAUGE ...........................39, 43

GREASE ............................... 32

HARNESS ............................. 23

HONDA ................................... 6

HONDA GX390 ...............21, 32

HONDA GX690 ...............22, 32

HOPPER LATCH .................. 24

HOUR METER ...................... 19

IGNITION .........................21, 22

INSTALL SAFETY SIGNS .... 10

JAMMED ............................... 28

KOHLER ................................. 6

KOHLER CH980 .............22, 32

LATCH ................................... 30

LEDGER BLADES ................ 39

MANUAL START .................. 26

OIL ......................................... 32

OPERATING ......................... 27

ORIENTATION ........................ 6

OSHA .................................... 15

POSITION ............................. 24

PPE ....................................... 25

PROTECTIVE GEAR. ............. 8

ROTOR BLADE ..............19, 38

SAFETY .................................. 7

SAFETY CURTAIN ............... 27

SAFETY STANDARDS ......... 15

SERVICE ILLUSTRATION .... 33

SERVICE RECORD .............. 34

SEVERE PLUG ..................... 28

SHARPEN ............................. 38

SHEAVE ................................ 37

SIGNAL WORDS .................... 7

SPECIFICATIONS ................. 41

STARTING ROPE ................. 21

STOWED ............................... 24

S (cont.)

STRAIGHT EDGE ................. 37

SUBARU ................................. 6

SUBARU EH72FI ............22, 32

SUBARU EX40 ...............21, 32

SWIVEL JACK ...................... 30

SWIVEL JACK ...................... 19

TENSION BOLT .................... 36

TENSION CHECK ................. 36

THROTTLE .....................21, 22

TORQUE ............................... 42

TRAINING ............................. 10

TRANSPORT ........................ 30

TROUBLE ............................. 40

TWIG BREAKER ............19, 39

UNPLUGGING ...................... 28

UPPER BELT GUARD .......... 19

WARNING ............................... 7

WARNING: DO ...................... 13

WARNING: DO NOT ............. 13

WARRANTY ............................ 3

Wallenstein BXT4213, BXT4214su, BXT4224, BXT4228su, BXT6228su Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
