Wallenstein BXM32, BXM42 Operator's Manual
BXM32
BY EMB MFG INC.
EMB Manufacturing Inc.
4144 Boomer Line · St. Clements, On · N0B 2M0 · Canada
Ph: (519) 699-9283 · Fax: (519) 699-4146
www.embmfg.com
3 POINT HITCH CHIPPER-SHREDDER
MODEL BXM32 & BXM42
OPERATOR'S MANUAL
PRINTED IN CANADA
Rev: 220312 PART NUMBER: Z97053
BXM42
TABLE OF CONTENTS
WARRANTY .........................................................3
INSPECTION REPORT ........................................4
SERIAL NUMBER LOCATION ............................ 5
1 INTRODUCTION ...........................................6
2 SAFETY ........................................................7
2.1 GENERAL SAFETY .............................8
2.2 EQUIPMENT SAFETY GUIDELINES ..9
2.3 SAFETY TRAINING ...........................10
2.4 SAFETY SIGNS .................................10
2.5 PREPARATION .................................. 11
2.6 MAINTENANCE SAFETY .................. 11
2.7
2.8 STORAGE SAFETY...........................13
2.9 TRANSPORT SAFETY ......................13
2.10 SIGN-OFF FORM ..............................14
3 SAFETY SIGN LOCATIONS ...............15
3.1 3 - PANEL SAFETY SIGNS .............. 15
3.2 2 - PANEL SAFETY SIGNS .............. 16
4 OPERATION .........................................17
4.1 TO THE NEW OPERATOR
OR OWNER .......................................17
4.2 MACHINE COMPONENTS ................18
4.3 MACHINE BREAK-IN ........................19
4.4 PRE-OPERATION CHECKLIST ........19
4.5 CONTROLS ....................................... 20
4.5.1 TRACTOR PTO CONTROL: .............20
4.5.2 SHREDDER FEED GATE LEVER: ....20
4.5.3 DISCHARGE CHUTE: .......................20
4.5.4 HOOD DEFLECTOR: ........................20
4.6 DRIVELINE DIMENSION ...................21
4.7 THREE POINT HITCH
ATTACHMENT ................................... 22
4.7.1. MOUNTING .......................................22
4.7.2 QUICK HITCH MOUNTING. ..............23
4.7.3 3 P.H. LEVELLING. ............................ 23
4.8 FIELD OPERATION ...........................24
O PERATING SAFETY ..............................12
4.8.1. PREPARE .......................................... 24
4.8.2. STARTING PROCEDURE ................. 25
4.8.3 STOPPING: .......................................25
4.8.4 EMERGENCY STOPPING ................25
4.8.5 CHIPPING OPERATION .................... 26
4.8.6 SHREDDING OPERATION ...............27
4.8.7 UNPLUGGING: ..................................28
4.8.8 SEVERE PLUG: .................................28
4.8.9 SHEAR PIN: .......................................29
4.8.10 SAFETY CURTAINS: .........................29
4.8.11 OPERATING HINTS: .........................29
5 TRANSPORTING .................................30
6 STORAGE ............................................31
6.1 PLACING IN STORAGE ....................31
6.2 REMOVING FROM STORAGE .........31
7 SERVICE AND MAINTENANCE .................32
7.1 SERVICE ...........................................32
7.1.1 FLUIDS AND LUBRICANTS ..............32
7.1.2 GREASING ........................................32
7.1.3 SERVICE ILLUSTRATION ................. 33
7.1.4 SERVICE RECORD ...........................34
7.2 MAINTENANCE .................................35
7.2.1 DRIVE BELT REPLACEMENT
AND TENSIONING: ...........................35
7.2.2 DRIVELINE MAINTENANCE .............36
7.2.3 SHEAVE ALIGNMENT ....................... 37
7.3 CHIPPER / SHREDDER CHAMBER: 38
7.3.1
7.3.2 LEDGER BLADES: ............................39
7.3.3 TWIG BREAKER: ..............................40
7.3.4 SHREDDER KNIVES: ........................41
7.3.5 CHOPBLOCK: ...................................42
8 TROUBLE SHOOTING .........................43
9 ACCESSORIES .................................... 44
10 SPECIFICATIONS ................................45
10.1 MECHANICAL....................................45
10.2 BOLT TORQUE ..................................46
INDEX.................................................................47
ROTOR BLADES: ..............................38
2
WARRANTY
WARRANTY
Effective on products retailed on or after January 1, 2011.
Register your product online at www.embmfg.com within 30 days of purchase to activate warranty.
This product is warranted to be free of defects in materials and workmanship under normal use and service, for a period of
Three (3) Years for Consumer
One (1) Year for Commercial/Rental
from the date of purchase, when operated and maintained in accordance with the Operating and Maintenance Instructions
supplied with this unit. Warranty is limited to the repair of the product and/or replacement of parts.
This warranty does not cover the following items:
1) Machines or parts lost or damaged during shipment,
2) Normal maintenance or adjustments after initial pre-service and set up is completed
3) Normal replacement of service items.
4) Accessory items / parts not supplied by EMB MFG INC.
5) Damages resulting from:
• misuse, negligence, accident, theft or re
• use of improper or insufcient fuel, uids or lubricants
• use of parts or after market accessories other than genuine EMB MFG INC. parts
• modications, alteration, tampering or improper repair performed by parties other than an authorized dealer
• any device or accessories installed by parties other than an authorized EMB dealer or distributor
Engines are covered by the manufacturer of the engine and covered by the warranty period specied by that manufacturer.
Engine warranty must be registered at the engine manufactures website. For service contact your local engine dealer.
Under no circumstances will the manufacturer be liable for any consequential damage or expense of any kind, including loss
of prots. The manufacturer is under no circumstances liable for tow vehicle of any kind. The manufacturer is not liable for
the maintenance of the product.
This warranty is extended only to the original purchaser and is not transferable. Warranty is void if repairs are attempted by
anyone other than a Wallenstein Authorized Service Centre.
If a difculty develops with the product, contact the local dealer from which you purchased the unit. Only Wallenstein author-
ized dealers are authorized to make repairs to the product or affect the replacement of defective parts, which will be done at
no charge within a reasonable time after the receipt of the product. Unit or parts shall be returned at the customer’s expense
to the Authorized Service Centre. Damage in transit is not covered by warranty. Include the original purchase receipt with
any claim (keep a copy of the receipt for your les).
The distributor’s liability under warranty is limited to the repair of the product and/or replacement of parts and is given to the
purchaser in lieu of all other remedies including incidental and consequential charges. There are no warranties, expressed
or implied, other than those specied herein.
EMB MFG Inc
4144 Boomer Line, St Clements, ON N0B 2M0 Canada
Phone: 519-699-9283 Fax: 519-699-4146 : attention to Warranty Dept
Email: warranty@embmfg.com
rev.201011
WARRANTY IS VOID IF NOT REGISTERED
3
WALLENSTEIN
3 POINT HITCH CHIPPER SHREDDER
INSPECTION REPORT
This form must be lled out by the dealer and signed by both the dealer and the customer at the time of delivery.
Customer’s Name Dealer Name
Address Address
City, State/Province, Code City, State/Province, Code
Phone Number ( ) Phone Number ( )
Contact Name
Model
Serial Number
Delivery Date
DEALER INSPECTION REPORT
____ Check Blade Clearance
____ Rotor Turns Freely
____ Fasteners Tight
____ Lubricate Machine
____ Retainer Installed Through Mounting Pins
____ Check Cutting Blades Twig Breaker and Chop Block
____ Check that Spring-Loaded Shredder Gate Moves Freely
I have thoroughly instructed the buyer on the above described equipment which review included the Operator’s Manual content, equipment care, adjustments, safe operation and applicable warranty policy.
Date Dealer’s Rep. Signature
The above equipment and Operator’s Manual have been received by me and I have been thoroughly
instructed as to care, adjustments, safe operation and applicable warranty policy.
Date Owner's Signature
SAFETY
____ All Decals Installed
____ Guards and Shields Installed and Secured
____ Review Operating and Safety Instructions
To activate warranty, register your product online at www.embmfg.com
4
SERIAL NUMBER LOCATION
Always give your dealer the serial number of your Wallenstein 3 Point Hitch Chipper-Shredder when
ordering parts or requesting service or other information.
The serial number plate is located where indicated. Please mark the numbers in the spaces provided for
easy reference.
#####-###
######
SERIAL NUMBER LOCATION
Model Number ____________________________________________________
Serial Number ____________________________________________________
5
1 INTRODUCTION
Congratulations on your choice of a Wallenstein 3 Point Hitch Chipper-Shredder to compliment your operation. This equipment has been designed and manufactured to meet the needs of a discerning timber
or landscaping industry.
Safe, efcient and trouble free operation of your Wallenstein Chipper-Shredder requires that you and anyone else who will be using or maintaining the Chipper-Shredder, read and understand the Safety, Operation, Maintenance and Trouble Shooting information contained within the Operator's Manual.
BXM32
This manual covers the Wallenstein 3 Point Hitch Chipper-Shredder models BXM32 and BXM42. Use the
Table of Contents or Index as a guide to locate required information.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your
Wallenstein dealer or the Distributor if you need assistance, information or additional copies of the manuals.
OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout this
manual, are determined when sitting in the tractor driver's seat and facing in the direction of travel.
BXM42
6
2 SAFETY
SAFETY ALERT SYMBOL
This Safety Alert symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Why is SAFETY important to you?
3 Big Reasons
SIGNAL WORDS:
Note the use of the signal words DANGER,
WARNING and CAUTION with the safety
messages. The appropriate signal word for
each message has been selected using the
following guide-lines:
The Safety Alert symbol identies
important safety messages on the
Wallenstein 3 Point Hitch ChipperShredder and in the manual. When
you see this symbol, be alert to
the possibility of personal injury or
death. Follow the instructions in the
safety message.
Accidents Disable and Kill
Accidents Cost
Accidents Can Be Avoided
DANGER - Indicates an imminently hazardous
situation that, if not avoided, will
result in death or serious injury. This
signal word is to be limited to the
most extreme situations typically for
machine components which, for functional purposes, cannot be guarded.
WARNING - Indicates a potentially hazardous
situation that, if not avoided, could
result in death or serious injury, and
includes hazards that are exposed
when guards are removed. It may
also be used to alert against unsafe
practices.
CAUTION - Indicates a potentially hazardous
situation that, if not avoided, may
result in minor or moderate injury. It
may also be used to alert against
unsafe practices.
If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or Wallenstein, 4144 Boomer Line, St. Clements, ON, N0B 2M0. Phone
(519) 699-9283 or Fax (519) 699-4146.
7
SAFETY
2.1 GENERAL SAFETY
YOU are responsible for the SAFE operation and
maintenance of your Wallenstein 3 Point Hitch
Chipper-Shredder. YOU must ensure that you
and anyone else who is going to use, maintain or
work around the 3 Point Hitch Chipper-Shredder
be familiar with the using and maintenance procedures and related SAFETY information contained
in this manual. This manual will take you step-bystep through your working day and alerts you to
all good safety practices that should be used while
using the 3 Point Hitch Chipper-Shredder.
Remember, YOU are the key to safety. Good
safety practices not only protect you but also the
people around you. Make these practices a working part of your safety program. Be certain that
EVERYONE using this equipment is familiar with
the recommended using and maintenance procedures and follows all the safety precautions. Most
accidents can be prevented. Do not risk injury or
death by ignoring good safety practices.
• 3 Point Hitch Chipper-Shredder owners must
give operating instructions to operators or
employees before allowing them to operate
the machine, and at least annually thereafter.
• The most important safety device on this
equipment is a SAFE operator. It is the operator’s responsibility to read and understand
ALL Safety and Operating instructions in the
manual and to follow these. Most accidents
can be avoided.
1. Read and understand the Operator’s Manual and all safety
signs before using, maintaining,
adjusting or cleaning the 3 Point
Hitch Chipper-Shredder.
2. Have a rst-aid kit available for
use should the need arise and
know how to use it.
3. Have a re extinguisher available for
use should the need arise and know
how to use it.
4. Do not allow riders.
5. We ar ap p r o p r i ate
protective gear. This
list includes but is not
limited to:
- A hard hat
- Protective
shoes with slip
resistant soles
- Protective glasses, goggles or face shield
- Heavy gloves
- Wet weather gear
- Hearing Protection
- Respirator or lter mask
• A person who has not read and understood all
using and safety instructions is not qualied
to use the machine. An untrained operator
exposes himself and bystanders to possible
serious injury or death.
• Do not modify the equipment in any way.
Unauthorized modication may impair the
function and/or safety and could affect the life
of the equipment.
• Think SAFETY! Work SAFELY!
8
6. Install and secure all guards before starting.
7. Wear suitable ear protection for
prolonged exposure to excessive noise.
8. Turn machine off, stop and disable engine,
remove ignition key and place in your pocket,
set park brake and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
9. Clear the area of people, especially small children, before using the unit.
10. Review safety related items annually with all
personnel who will operating or maintaining the
3 Point Hitch Chipper-Shredder.
2.2 EQUIPMENT SAFETY GUIDELINES
1. Safety of the operator and bystanders is one
of the main concerns in designing and developing equipment. However, every year
many accidents occur which could have been
avoided by a few seconds of thought and a
more careful approach to handling equipment.
You, the operator, can avoid many accidents
by observing the following precautions in this
section. To avoid personal injury or death,
study the following precautions and insist
those working with you, or for you to follow
them.
2. In order to provide a better view, certain
photographs or illustrations in this manual
may show an assembly with a safety shield
removed. However, equipment should never
be used in this condition. Keep all shields in
place. If shield removal becomes necessary
for repairs, replace the shield prior to use.
3. Replace any safety sign or instruction sign
that is not readable or is missing. Location of
such safety signs is indicated in this manual.
7. Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely,
is in question - DON'T TRY IT.
8. Do not modify the equipment in any way. Un-
authorized modication may result in serious
injury or death and may impair the function
and life of the equipment.
9. In addition to the design and conguration of
this implement, including Safety Signs and
Safety Equipment, hazard control and accident prevention are dependent upon the
awareness, concern, prudence, and proper
training of personnel involved in the operation,
transport, maintenance, and storage of the
machine. Refer also to Safety Messages and
operation instruction in each of the appropriate sections of the tractor and machine manuals. Pay close attention to the Safety Signs
afxed to the tractor and the machine.
4. Never use alcoholic beverages or drugs which
can hinder alertness or coordination while using this equipment. Consult your doctor about
using this machine while taking prescription
medications.
5. Under no circumstances should young
children be allowed to work with this
equipment. Do not allow persons to use or
assemble this unit until they have read this
manual and have developed a thorough
understanding of the safety precautions
and of how it works. Review the safety
instructions with all users annually.
6. This equipment is dangerous to children and
persons unfamiliar with its operation. The
operator should be a responsible, properly
trained and physically able person familiar
with machinery and trained in this equipment's
operations. If the elderly are assisting with
work, their physical limitations need to be
recognized and accommodated.
9
2.3 SAFETY TRAINING
2.4 SAFETY SIGNS
1. Safety is a primary concern in the design and
manufacture of our products. Unfortunately,
our efforts to provide safe equipment can
be wiped out by a single careless act of an
operator or bystander.
2. In addition to the design and conguration of
equipment, hazard control and accident prevention are dependent upon the awareness,
concern, prudence and proper training of
personnel involved in the operation, transport,
maintenance and storage of this equipment.
3. It has been said, "The
best safety feature is an
informed, careful operator." We ask you to be that
kind of an operator. It is the
operator's responsibility to read and understand ALL Safety and Using instructions in the
manual and to follow these. Accidents can be
avoided.
4. Working with unfamiliar equipment can
lead to careless injuries. Read this manual
before assembly or using, to acquaint
yourself with the machine. If this machine
is used by any person other than yourself,
or is loaned or rented, it is the machine
owner's responsibility to make certain that
the operator, prior to using:
1. Keep safety signs clean and legible at all
times.
2. Replace safety signs that are missing or have
become illegible.
3. Replaced parts that displayed a safety sign
should also display the current sign.
4. Safety signs displayed in Section 3 each have
a part number in the lower right hand corner.
Use this part number when ordering replacement parts.
5. Safety signs are available from your authorized Distributor or Dealer Parts Department or
the factory.
How to Install Safety Signs:
• Be sure that the installation area is clean and
dry.
• Be sure temperature is above 50°F (10°C).
• Determine exact position before you remove
the backing paper.
• Remove the smallest portion of the split backing paper.
a. Reads and understands the operator's
manuals.
b. Is instructed in safe and proper use.
5. Know your controls and how to stop tractor
and machine quickly in an emergency. Read
this manual and the one provided with tractor.
6. Train all new personnel and review instructions frequently with existing workers. Be
certain only a properly trained and physically
able person will use the machinery. A person
who has not read and understood all using
and safety instructions is not qualied to use
the machine. An untrained operator exposes
himself and bystanders to possible serious injury or death. If the elderly are assisting with
the work, their physical limitations need to be
recognized and accommodated.
• Align the sign over the specied area and
carefully press the small portion with the exposed sticky backing in place.
• Slowly peel back the remaining paper and
carefully smooth the remaining portion of the
sign in place.
• Small air pockets can be pierced with a pin
and smoothed out using the piece of sign
backing paper.
10
2.5 PREPARATION
2.6 MAINTENANCE SAFETY
1. Never use the machine until you have read and
completely understand this manual, the tractor
Operator's Manual and each of the Safety Messages found on the safety signs on the engine
and machine.
2. Personal protection equipment
including hard
hat, safety glasses, safety shoes,
and gloves are
rec o mmended
during assembly, installation,
operation, adjustment, maintaining, repairing,
removal, cleaning, or moving the unit. Do not
allow long hair, loose tting clothing or jewellery
to be around equipment.
3. PROLONGED EXPOSURE
TO LOUD NOISE MAY CAUSE
PER M ANE N T HEA R ING
LOSS!
Po wer equ ipme nt with or
without equipment attached
can often be noisy enough to
cause permanent, partial hearing loss. We recommend that you wear hearing
protection on a full-time basis if the noise in the
Operator's position exceeds 80db. Noise over
85db on a long-term basis can cause severe
hearing loss. Noise over 90db adjacent to the
Operator over a long-term basis may cause
permanent, total hearing loss. NOTE: Hearing
loss from loud noise (from tractors, chain saws,
radios, and other such sources close to the ear)
is cumulative over a lifetime without hope of
natural recovery.
4. Clear working area of stones, branches or hidden obstacles that might be hooked or snagged,
causing injury or damage.
5. Use only in daylight or good articial light.
6. Be sure machine is properly mounted, adjusted
and in good operating condition.
7. Ensure that all safety shielding and safety signs
are properly installed and in good condition.
1. Good maintenance is your responsibility. Poor
maintenance is an invitation to trouble.
2. Follow good shop practices.
- K eep s e r v i c e
area clean and
dry.
- Be sure electrical outlets and
tools are properly grounded.
- Use adequate
light for the job
at hand.
3. Make sure there is plenty of ventilation. Never
operate the engine of the engine in a closed
building. The exhaust fumes may cause asphyxiation.
4. Before working on this machine, shut off the
engine, set the clutch brake, and turn fuel valve
off.
5. Never work on rotor unless it is disengaged from
the PTO
6. Always use personal protection devices such
as eye, hand and hearing protectors, when performing any service or maintenance work. Use
heavy or leather gloves when handling blades
or knives.
7. Where replacement parts are necessary for
periodic maintenance and servicing, genuine
factory replacement parts must be used to restore
your equipment to original specications. The
manufacturer will not be responsible for injuries
or damages caused by use of unapproved parts
and/or accessories.
8. A re extinguisher and rst aid kit should be kept
readily accessible while performing maintenance
on this equipment.
9. Periodically tighten all bolts, nuts
and screws and
check t hat a l l
electrical and fuel
connections are properly secured
to ensure unit is in a safe condition.
10. When completing a maintenance or service function, make sure all safety shields and devices
are installed before placing unit in service.
11
2.7
OPERATING SAFETY
1. Please remember it is important that you read
and heed the safety signs on the 3 Point Hitch
Chipper-Shredder. Clean or replace all safety
signs if they cannot be clearly read and understood. They are there for your safety, as well
as the safety of others. The safe use of this
machine is strictly up to you, the operator.
2. All things with moving parts are potentially hazardous. There is no substitute for a cautious,
safe-minded operator who recognizes potential
hazards and follows reasonable safety practices.
The manufacturer has designed this 3 Point Hitch
Chipper-Shredder to be used with all its safety
equipment properly attached, to minimize the
chance of accidents. Study this manual to make
sure you have all safety equipment attached.
3. Close and secure rotor cover before operating.
4. Close and secure all guards, deectors and
shields before starting and operating.
5. Read and understand operator's manual before
starting. Review safety instructions annually.
6. Personal protection equipment including hearing
protection, hard hat, safety glasses, safety shoes,
and gloves are recommended during assembly,
installation, operation, adjustment, maintaining,
repairing, removal, or moving. Do not allow
long hair, loose-tting clothing, or jewellery to
be around moving parts.
7. Keep hydraulic lines and ttings tight, in good
condition and free of leaks.
8. Never place any part of your body where it would
be in danger if movement should occur during
assembly, installation, operation, maintenance,
repairing, unplugging or moving.
Shredder. Do not send metal, bottles, cans,
rocks, glass or other foreign material into
Chipper-Shredder. If foreign material enters
Chipper-Shredder, stop machine, turn engine
off and place ignition key in your pocket and
wait for all moving parts to stop before removing
material and/or unplugging. Inspect machine for
damaged or loose parts before resuming work.
12. Never use alcoholic beverages or drugs which
can hinder alertness or coordination while operating this equipment. Consult your doctor about
operating this machine while taking prescription
medications.
13. Do not allow riders on this machine at any time.
There is no safe place for any riders.
14. Never allow children or unauthorized people to
operate or be around this machine.
15. Do not reach into shredder or feed hopper
openings when the engine is running. Be sure
the shredder hopper hinged gate and chipper
hopper rubber aps are in good condition and
function as required.
16. Keep the working area clean and free of debris to prevent tripping. Operate only on level
ground.
17. Do not point discharge at people, animals or
buildings. Rotor can expel wood chips fast
enough to cause injury.
18. Do not move or transport Chipper-Shredder
when the rotor is turning.
19. Do not exceed a safe travel speed when transporting.
9. Turn machine off, stop and disable engine, remove ignition key, set park brake and wait for all
moving parts to stop before servicing, adjusting,
repairing or unplugging.
10. Do not run machine inside a closed building to
prevent asphyxiation from engine exhaust.
11. Use care when feeding material into Chipper-
12
2.8 STORAGE SAFETY
2.9 TRANSPORT SAFETY
1. Store the unit in an area away from human
activity.
2. Do not children to play on or around the
stored machine.
3. Store the unit in a dry, level area. Support the
frame with planks if required.
1. Comply with state and local laws governing
safety and transporting of machinery on public
roads.
2. Check that all the lights, reectors and other
lighting requirements are installed and in good
working condition.
3. Do not exceed a safe travel speed. Slow
down for rough terrain and cornering.
4. Be sure the machine is hitched positively to
the tractor and a retainer is used through the
mounting pins.
5. Do not drink and drive.
6. Be a safe and courteous driver. Always yield
to oncoming trafc in all situations, including
narrow bridges, intersections, etc. Watch for
trafc when operating near or crossing roadways.
7. Never allow riders on the machine.
13
2.10 SIGN-OFF FORM
SIGN-OFF FORM
Wallenstein follows the general Safety Standards specied by the American Society of Agricultural and
Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone who
will be using and/or maintaining the 3 Point Hitch Chipper-Shredder must read and clearly understand ALL
Safety, Usage and Maintenance information presented in this manual.
Do not use or allow anyone else to use this Chipper-Shredder until such information has been reviewed. Annually review this information before the season start-up.
Make these periodic reviews of SAFETY and OPERATION a standard practice for all of your equipment. We
feel that an untrained operator is unqualied to use this machine.
A sign-off sheet is provided for your record keeping to show that all personnel who will be working with the
equipment have read and understand the information in the Operator’s Manual and have been instructed in
the operation of the equipment.
DATE EMPLOYEES SIGNATURE EMPLOYERS SIGNATURE
14
3 SAFETY SIGN LOCATIONS

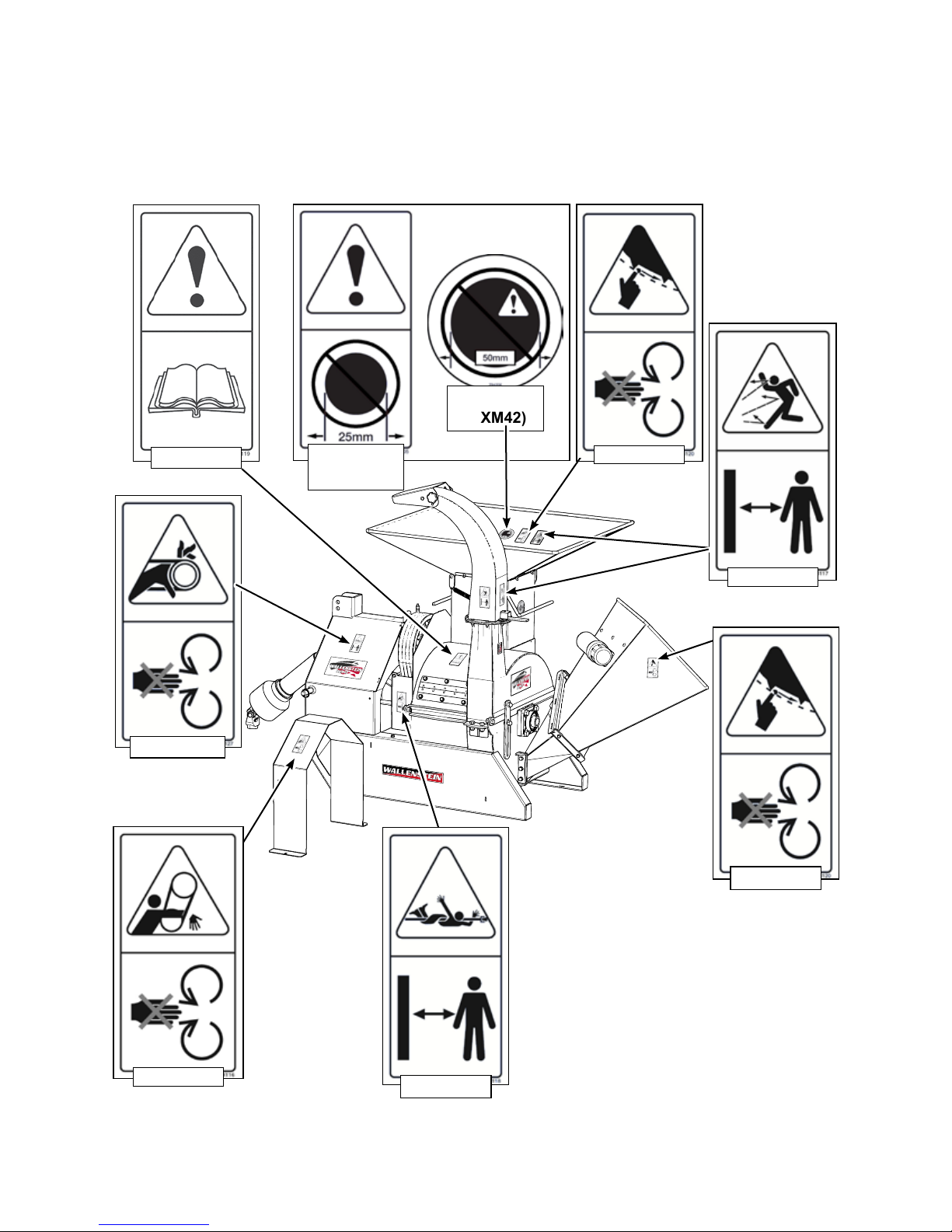

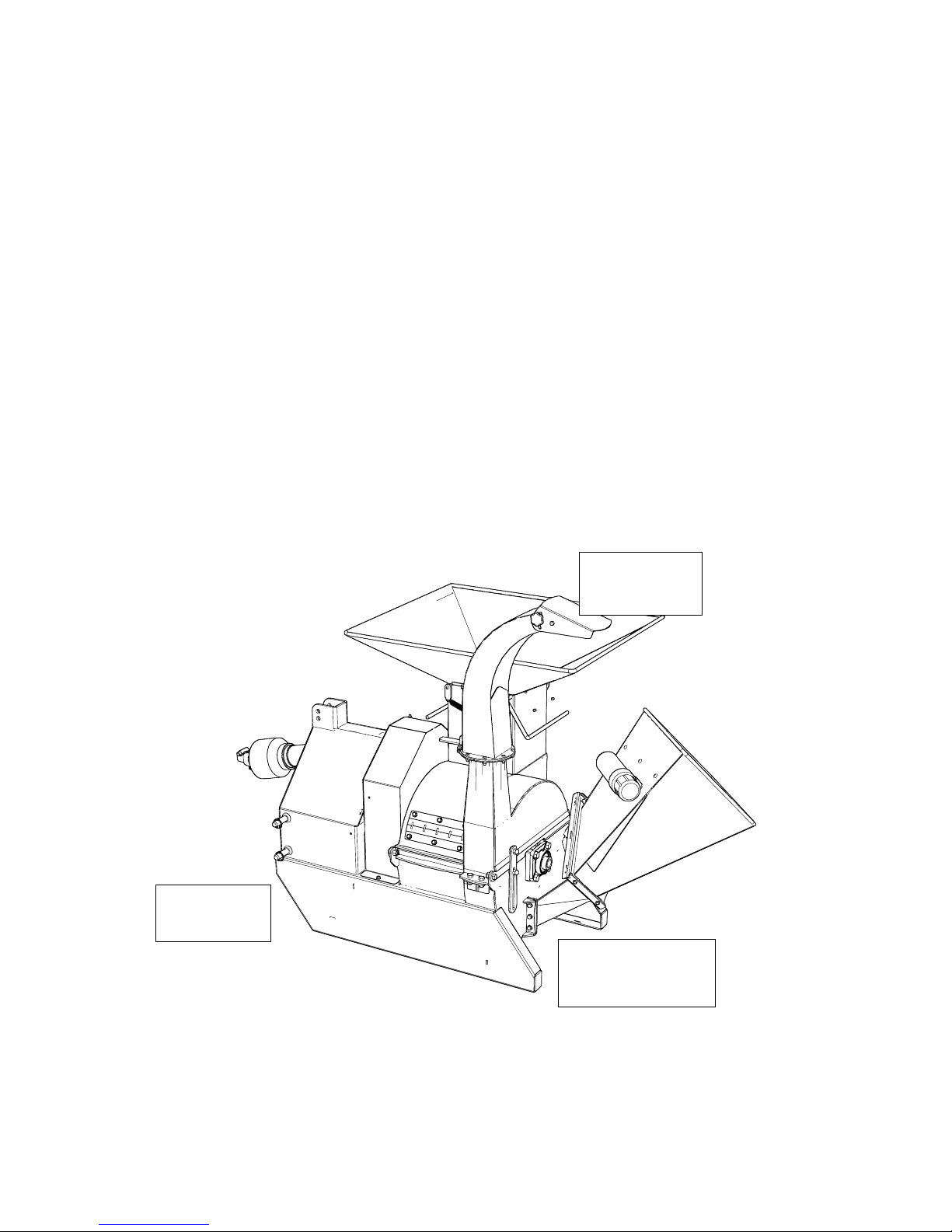

3.1 3 - PANEL SAFETY SIGNS

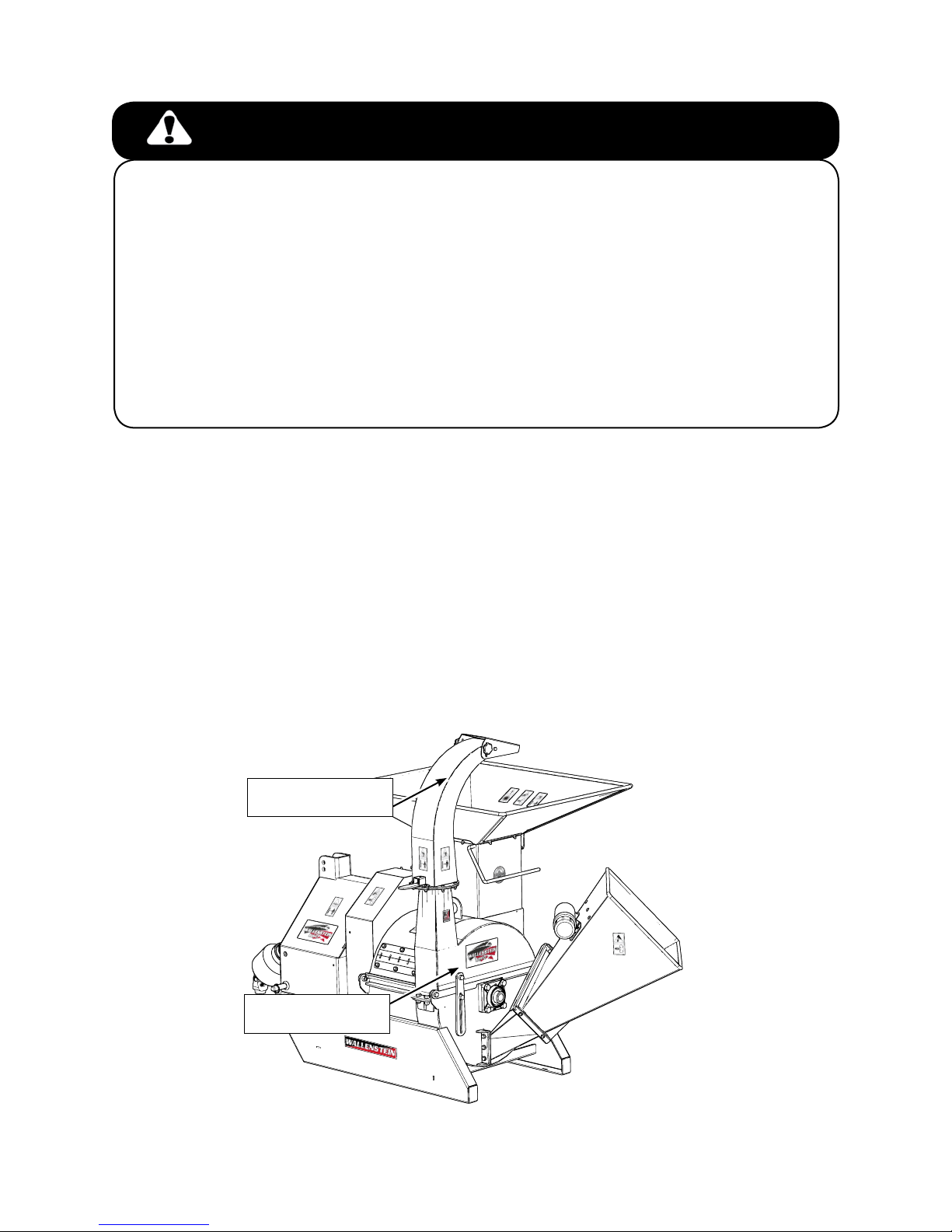

The types of safety signs and locations on the equipment are shown in the illustrations that follow.
Good safety requires that you familiarize yourself with the various safety signs, the type of warning and
the area, or particular function related to that area, that requires your SAFETY AWARENESS.
• Think SAFETY! Work SAFELY!
Z94006 x 1
Z94009 x 2
Z94006
Z94008
Z94008 x 5
Z94007
Z94007 x 4
Z94012 x 1
REMEMBER - If safety signs have been damaged, removed, become illegible or parts replaced without
safety signs, new signs must be applied. New safety signs are available from your authorized dealer.
Z94013 x 1
Z94013
Z94012
15
Loading...
