WallboxOK EV PORTABLE TYPE1, EV PORTABLE TYPE2 User And Installation Manual

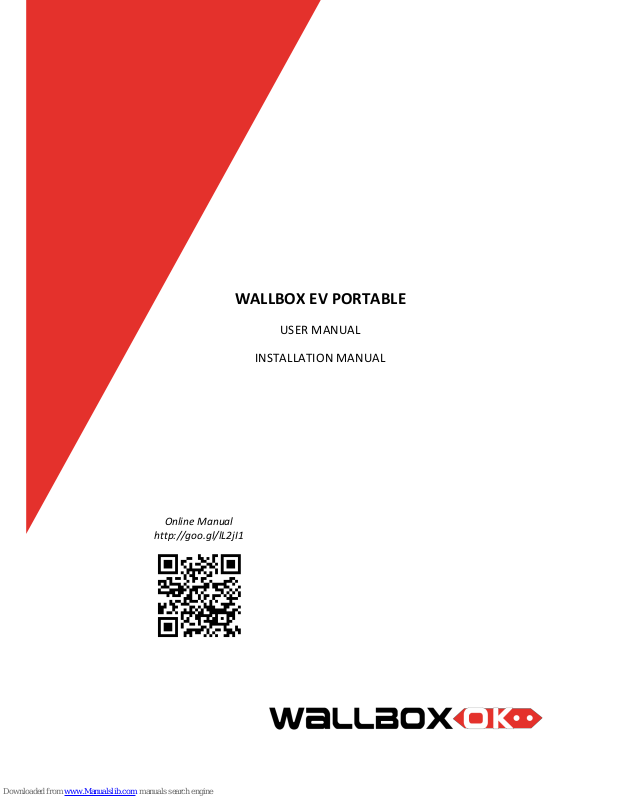

WALLBOX EV PORTABLE

USER MANUAL

INSTALLATION MANUAL

Online Manual

http://goo.gl/lL2jI1

2

WALLBOXOK bears the CE mark. The corresponding
Declarations of Conformity are located at
WallboxOK.

This product metes the requirements of the
ROHS Directive (2011/65/CE). The corresponding
Declarations of Conformity are located at

WallboxOK.

Disposal information

The above symbol indicates the selective collection of electrical and
electronic equipment (EEE) once its useful life has ended so that it enters
the recycling circuit, and does not end up in unauthorized garbage
containers. Therefore, the electrical and electronic equipment of the
electric charging station, as well as its accessories, must be disposed of
separately from household waste. The instructions can be found on the
product, in the instructions for use or on the packaging. The materials can
be reused in accordance with their marking. The reuse, the recycling of
materials and other forms of reuse of used equipment contribute
considerably to protect our planet.

3

1 INDEX

1 ÍNDEX ....................................................................................................................................... 3

2 IMPORTANT INFORMATION. ................................................................................................... 4

2.1 SAFETY INSTRUCTIONS .................................................................................................... 4

2.2 INTENDED USED ................................................................¡Error! Marcador no definido.

2.3 ABOUT THIS MANUAL ..................................................................................................... 5

3 OVERVIEW. .............................................................................................................................. 6

3.1 VERSION OVERVIEW ..........................................................¡Error! Marcador no definido.

3.2 VERSIONS ........................................................................................................................ 6

VERSIONS .................................................................................................................................... 6

4 USING DE CHARGING STATION. .............................................................................................. 7

4.1 ELECTRICAL CHARGING STATION WITH CABLE ............................................................... 7

4.2 CHARGING SPEED SELECTION ...........................................¡Error! Marcador no definido.

4.3 ACCESS TO CHARGING MENU ............................................................................................... 9

ANOMALIES SOLUTION. ................................................................................................................ 10

5 INSTALLATION GUIDELINES ................................................................................................... 11

5.1 GENERAL CRITERIA FOR THE SITE SELECTION FOR WHERE TO INSTALL DE CHARGING

CABLE............................................................................................................................. 11

5.2 SPECIFICATION FOR THE ELECTRICAL CONNECTION ..................................................... 12

Dear Customer,,

The WallboxOk team, want to thank you for buying one of our Electric Vehicle Charging Box. Our
passion in design and innovation makes our charging points leaders in technology.

Do not hesitate to contact us at [e-mail] if you have any suggestion.

Hope you enjoy your product

Kind regards,

WallboxOk team

4

2 IMPORTANT INFORMATION.

2.1 SAFETY INSTRUCTIONS

WARNING!

Not observing the safety instructions can result in risk of death, injuries and damage to the
device! WALLBOXOK assumes no liability for claims resulting from this.

 Electrical hazard / fire hazard! Never use damaged, worn or dirty charging plugs.

 The owner must ensure that the charging station is only ever operated in perfect

condition:

- The charging station must be checked regularly for faulty sockets and connectors

and damage to the housing (visual inspection).

- A damaged charging station must be switched off immediately and replaced.

- Repair work to the charging station is not allowed and may only be performed by

the manufacturer (replacement of the charging station).

- Do not carry out any unauthorized conversion work or modifications to the

charging station!

- Do not remove any notices on the device, such as safety symbols, warning notices,

rating plates, nameplates or cable markings!

 The charging station does not have its own power switch! The RCD circuit breaker and

the line circuit breaker of the building installation serve as mains disconnector.

 No extension cables are permitted for connecting an electric vehicle to the power

supply device for electric vehicles.

Only electrical vehicles or their chargers may be connected. No connection of other
loads is permitted (electric tools etc.)!

 chargeRead the information and instructions for your vehicle carefully before you the

vehicle using the charging station.

 Ventilation:

A number of vehicles require an external ventilation system in the interior areas due to
the possible creation of toxic or explosive gases during the charging procedure.

 Unplug the charging cable by pulling on the connector, never from the cable.
