Walker's Game Ear Hybrid EX User Manual

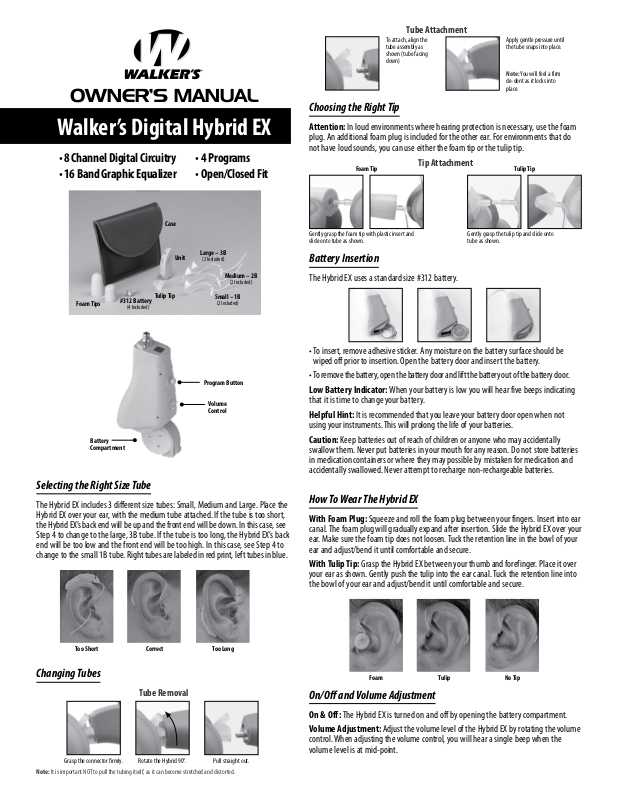

OWNER’S MANUAL
To attach, align the
tube assembly as
shown (tube facing
down)
Choosing the Right Tip
Tube Attachment
Apply gentle pressure until
the tube snaps into place.
Note: You will feel a firm
de-dent as it locks into
place.
Walker’s Digital Hybrid EX
• 8 Channel Digital Circuitry
• 16 Band Graphic Equalizer
Tulip Tip
(4 Included)
Battery
Compartment
#312 Battery
Foam Tips
Selecting the Right Size Tube
The Hybrid EX includes 3 different size tubes: Small, Medium and Large. Place the
Hybrid EX over your ear, with the medium tube attached. If the tube is too short,
the Hybrid EX’s back end will be up and the front end will be down. In this case, see
Step 4 to change to the large, 3B tube. If the tube is too long, the Hybrid EX’s back
end will be too low and the front end will be too high. In this case, see Step 4 to
change to the small 1B tube. Right tubes are labeled in red print, left tubes in blue.
• 4 Programs
• Open/Closed Fit
Case
Unit
Large – 3B
(2 Included)
Medium – 2B
Small – 1B
(2 Included)
Program Button
Volume
Control
(2 Included)
Attention: In loud environments where hearing protection is necessary, use the foam
plug. An additional foam plug is included for the other ear. For environments that do
not have loud sounds, you can use either the foam tip or the tulip tip.
Foam Tip Tulip Tip
Gently grasp the foam tip with plastic insert and
slide onto tube as shown.
Tip Attachment
Gently grasp the tulip tip and slide onto
tube as shown.
Battery Insertion
The Hybrid EX uses a standard size #312 battery.
• To insert, remove adhesive sticker. Any moisture on the battery surface should be
wiped off prior to insertion. Open the battery door and insert the battery.
• To remove the battery, open the battery door and lift the battery out of the battery door.
Low Battery Indicator: When your battery is low you will hear five beeps indicating
that it is time to change your battery.
Helpful Hint: It is recommended that you leave your battery door open when not
using your instruments. This will prolong the life of your batteries.
Caution: Keep batteries out of reach of children or anyone who may accidentally
swallow them. Never put batteries in your mouth for any reason. Do not store batteries
in medication containers or where they may possible by mistaken for medication and
accidentally swallowed. Never attempt to recharge non-rechargeable batteries.
How To Wear The Hybrid EX
With Foam Plug: Squeeze and roll the foam plug between your fingers. Insert into ear
canal. The foam plug will gradually expand after insertion. Slide the Hybrid EX over your
ear. Make sure the foam tip does not loosen. Tuck the retention line in the bowl of your
ear and adjust/bend it until comfortable and secure.
With Tulip Tip: Grasp the Hybrid EX between your thumb and forefinger. Place it over
your ear as shown. Gently push the tulip into the ear canal. Tuck the retention line into
the bowl of your ear and adjust/bend it until comfortable and secure.
Too Short Correct Too Long
Changing Tubes
Tube Removal
Grasp the connector firmly. Rotate the Hybrid 90°. Pull straight out.
Note: It is important NOT to pull the tubing itself, as it can become stretched and distorted.
Foam
Tulip No Tip
On/Off and Volume Adjustment
On & Off: The Hybrid EX is turned on and off by opening the battery compartment.
Volume Adjustment: Adjust the volume level of the Hybrid EX by rotating the volume
control. When adjusting the volume control, you will hear a single beep when the
volume level is at mid-point.
Program Selection
The Hybrid EX has 4 programs:
Program Ideal For
1. General Everyday Use
2. Crowds Restaurants/Sporting Events/Large Meetings
3. Music/Theater Concerts/Cinema
4. Nature Outside/Birdwatching/Hunting
When first turned on, the Hybrid EX defaults to #1, the General
program. To change between programs, push the program
button. You will hear a series of beeps as you change programs:
one beep: program # 1, two beeps: program # 2, etc.
Caring for Your Hybrid EX
The Hybrid EX is a delicate, precision electronic device and as such, requires the special care and handling
that would be afforded to any fine piece of equipment. Please read and follow the listed precautions to
insure quality performance:
• Remove your batteries when your device will not be in use for prolonged periods of time.
• Do not throw or drop your device.
• Do not immerse device in liquid or water.
• Do not wear device during bathing, showering, or swimming.
• Do not expose device to excessive heat, such as a stove top, microwave, dash board of a hot car, or a
hair dryer.
• Do not expose the device to chemicals, such as hair spray, insect repellent, perfume, or cosmetics.
Common Problems & Solutions
Problem Possible Cause Solution
Feedback or Whistling Ear wax accumulation in ear canal or tip Clean tulip tip, replace foam plug
Tip partially inserted Reinsert your device
No Sound Microphone opening, tip, or tube clogged with wax or debris Clean tip and tubing if necessary
Battery dead Replace battery
Tube and/or clip improperly attached Reinsert device
Fades and/ or Intermittent Dirty, corroded, weak or dead battery Replace battery
LIMITED WARRANTY
Walker’s warrants this product to the original purchaser to be free from defects in materials and workmanship, under normal use and conditions for a period of
two years parts/90 days labor from the date of the original purchase.
Under this warranty, this unit will be replaced or repaired at our option, without charge for parts or labor, excluding batteries, for a period of 90 days after the purchase.
After 90 days, the cost of labor with Shipping/Handling and Insurance of $99.95 is the customer’s responsibility.
This warranty is void if any of the following occur:
1. The warranty card was not sent in at the time or purchase
2. The unit is not owned by the original purchaser at the time of the warranty claim
3. The unit has been tampered with, opened or punctured
4. The unit has been immersed in water or other liquids, allowed to be filled with dirt or dust, or otherwise physically abused
5. The 24-month limited warranty has expired
This shall be the exclusive written warranty of the original purchaser and neither this warranty or any other warranty, expressed or implied, shall extend beyond the
24-month period listed above. In no event shall Walker’s Game Ear, Inc. be liable for consequential damages, consequential property damage, or consequential personal
injury. (Some states do not allow limitations on implied warranties or exclusions of consequential damages, so that these restrictions may not apply to you). This
warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
Record serial # for future reference: Serial #
___________________________________
Return bottom portion to: Walker’s, Inc. • PO Box 535189 • Grand Prairie, TX 75053-5189
Or you can register your product online at: www.WalkersGameEar.com
Warranty Registration
Model: Digital Hybrid EX Date of Purchase:
Purchased From:
City: State: Zip:
Primary Use:
Your Name:
Address:
City: State: Zip:
Serial #: Email:
Toll-free customer support 877-269-8490
www.walkersgameear.com
