P.1
W70CLA4DR
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Please visit our website for the most current instructions, assembly tips, report damage,
TM
Walker Edison
or request parts. www.walkeredison.com
Revised 06/08/2020(C)
®
General Assembly Guidelines
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
P.2
I. Ensure that all parts and hardware are available before beginning assembly.
II. Follow each step carefully to ensure the proper assembly of this product.
III. Two people are recommended for ease in the assembly of this product.
IV. The three main types of hardware used to assemble this product are: wood
dowels, screws and bolts.
V. The provided glue is to secure wood dowels in place. When first inserting dowels,
locate the appropriate hole for the dowel, place a small amount of glue in the hole
and insert the dowel. Wipe away excess glue immediately.
21
In future assembly steps when dowels are necessary to attach assembly parts
together, place a small amount of glue on the end of the dowel before attaching
parts together. Wipe away excess glue immediately.
VI. A Phillips head screwdriver is required for the assembly of this product .
VII. Power tools should not be used to assemble this product.
VIII. Drill may be needed for securing product to wall.
P.3
Parts List
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
1
3
7
7
6
4
5
11
12
8
9
10
14
13
14
15
13
20
21
13
19
22
x 4
2
14
18
17
16
P.4
Hardware List
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Ø8x30mm Wooden dowelA 36 pcs
Ø6x35mm Cam boltB 46 pcs
Ø15x11mm Cam lockC 30 pcs
D
E
F
G
H
J
K
L
M
N
P
Ø15x9mm Cam lock 16 pcs
Ø6x50mm Screw
Ø3x12mm Screw
M 4 Hex key
Handle
Ø4x19mm Handle Bolt
Ø3x17mm Screw
Plastic wedge
Ø4x32mm Screw
Ø30mm Sticker
Screw
13 pcs
48 pcs
1 pc
4 pcs
8 pcs
12 pcs
12 pcs
16 pcs
46 pcs
1 pc
Q
Drawer slider 4 sets
* Note: This piece comes preassembled for
shipping purposes and must be disassembled
to complete the desk assembly.
Philips head screwdriver required for assembly
(not included)
The hardware quantities listed above are required for proper assembly.
Some extra hardware may also have been included.
P.5
Step 1
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Insert wooden dowel (A) into parts (2,11) , then secure cam bolt (B) into parts (1,11)
with Philips head screwdriver as per diagram.
B
B
B
1
B
B
B
B
B
B
A
A
A
11
B
B
B
2
A
A
A
A
A
P.6
Step 2
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Insert wooden dowel (A) into parts (4,5,6,8,9,10) , then secure cam bolt (B) into parts (4,5,9,10)
with Philips head screwdriver as per diagram.
A
B
B
B
A
A
A
6
B
B
A
B
B
5
A
B
B
B
4
A
B
A
A
A
B
9
8
A
B
B
A
B
B
10
Step 3
P.7
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Insert wooden dowel (A) into parts (7,13) as per diagram.
A
A
13
A
A
7
A
x 2
A
x 3
Step 4
P.8
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Secure cam bolt (B) into parts (15,16,17,18) with Philips head screwdriver as per diagram.
B
16
B
B
B
B
15
B
B
B
17
B
B
B
B
18
B
B
B
B
Step 5
P.9
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using Cam lock(C) secure parts (4,5) to part (6) with Philips head screwdriver as per diagram.
21 3
5
C
C
4
6
C
C
6
Step 6
P.10
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

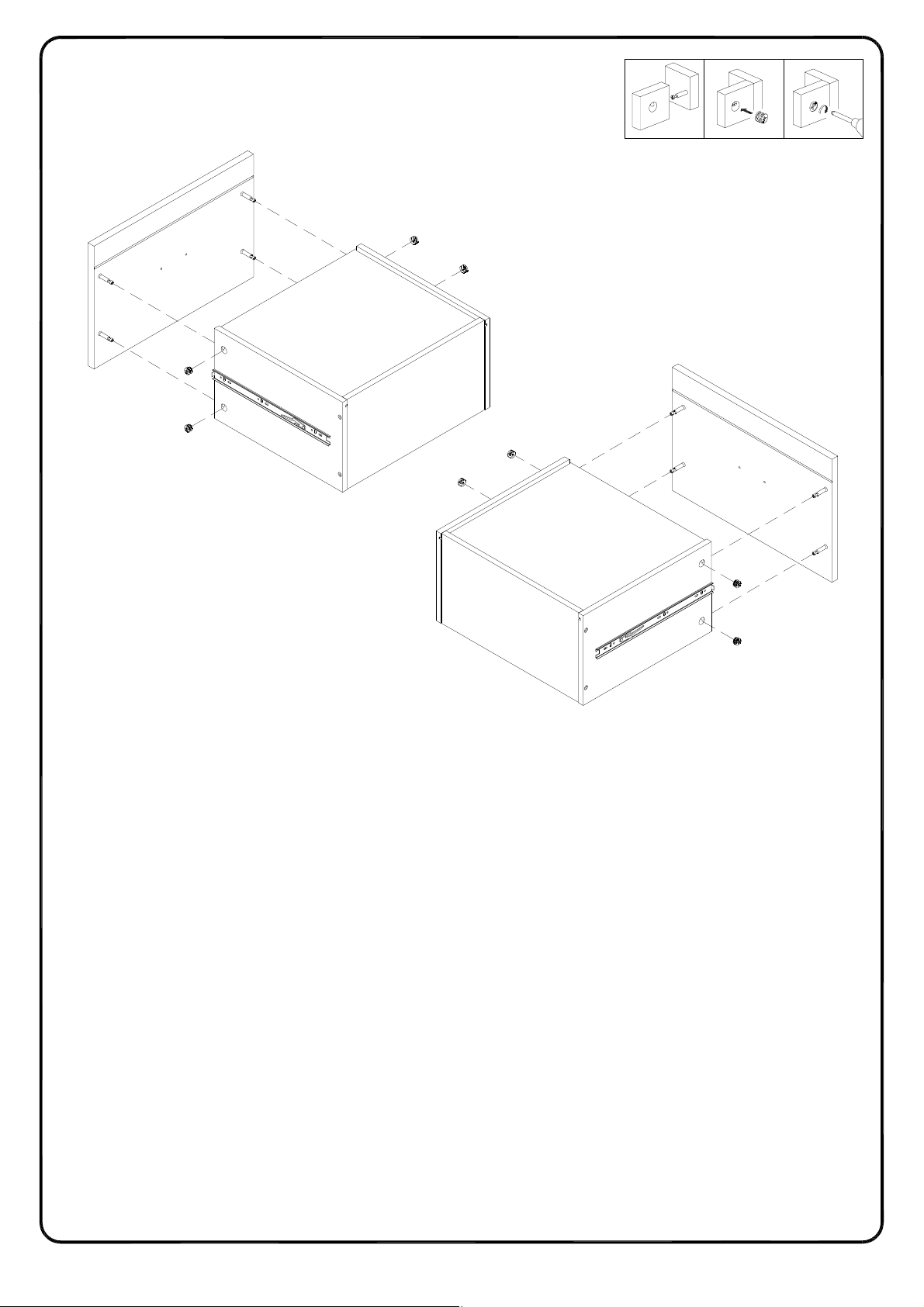

Using Cam lock(C) secure parts (9,10) to part (8) with Philips head screwdriver as per diagram.
21 3
10
C
C
9
8
C
8
C
P.11
Step 7
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

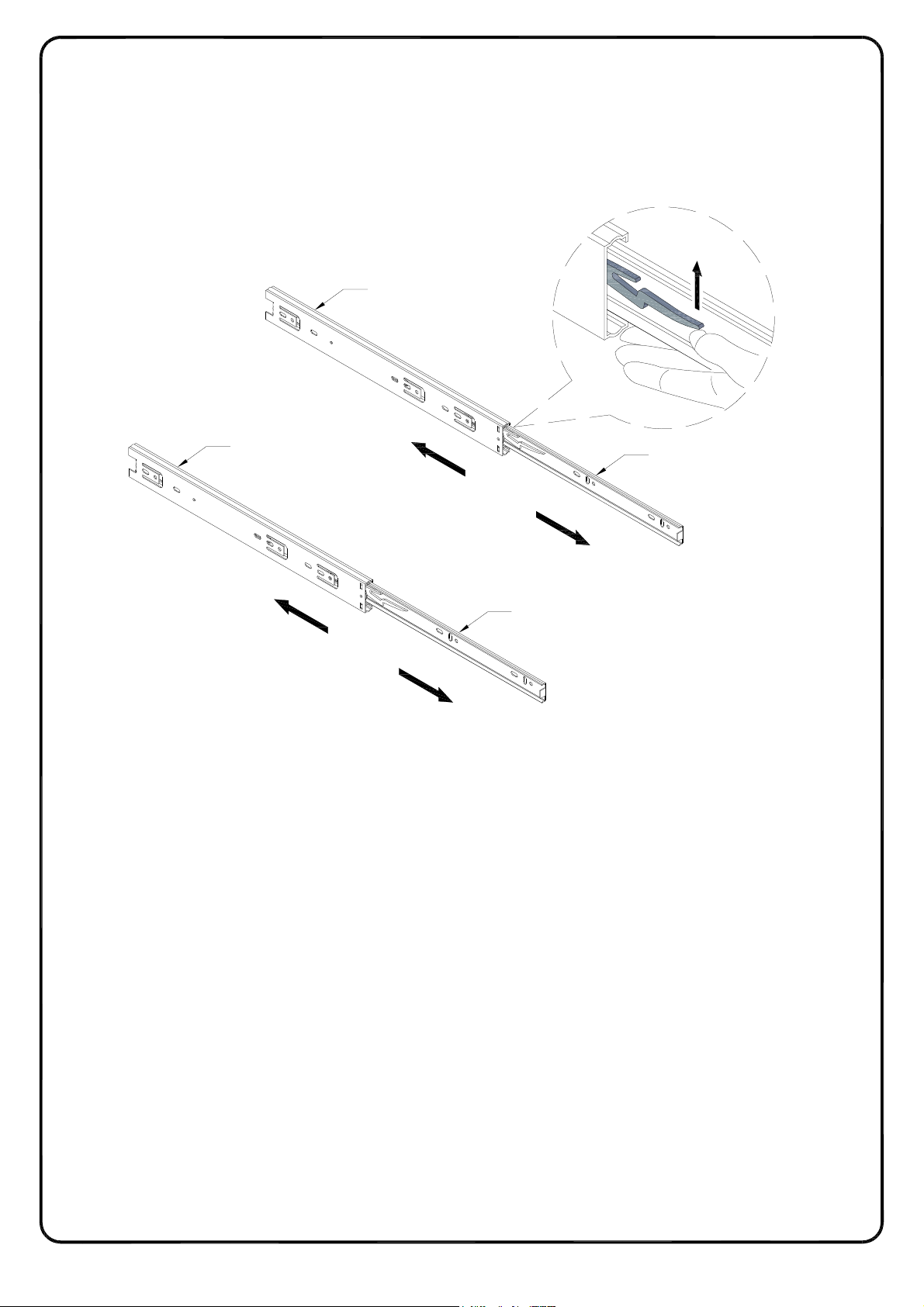

Pick up the slider arm (Q) and separate the slide runner for the following steps. Extend the
slide runner all the way forward,press the plastic release lever of the slider arm up and pull
the slide runner complete out .
Slider arm
Slider arm
Slider bracket
Q
Slider bracket
Q
P.12
Step 8
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using screw (F) attach drawer slider (Q) to parts (19,21) with Philips head screwdriver
as per diagram.
F
19
F
F
Q
F
Q
F
21
F
x 4
Step 9
P.13
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using screw (F) attach drawer slider (Q) to parts (6,8) with Philips head screwdriver as per diagram.
6
F
F
Q
Q
F
F
8
F
F
Step 10
P.14
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using screw (F) attach drawer slider (Q) to parts (13) with Philips head screwdriver as per diagram.
13
F
F
F
Q
Q
13
F
F
F
x 3
Step 11
P.15
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

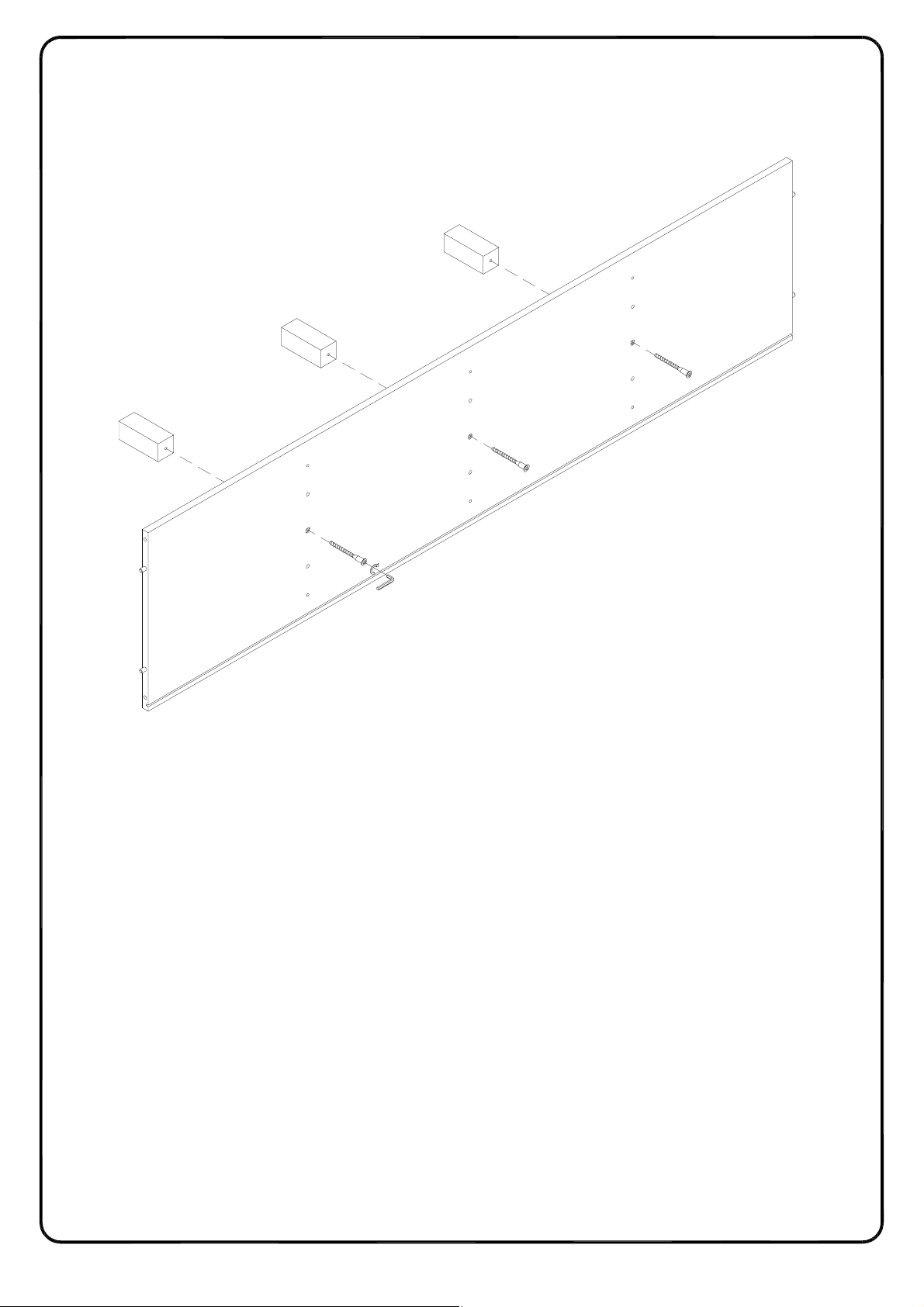

Using screw (E) secure part (14) to part (2) with Hex key (G) as per diagram.
14
14
14
E
E
2
E
G
Step 12
P.16
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

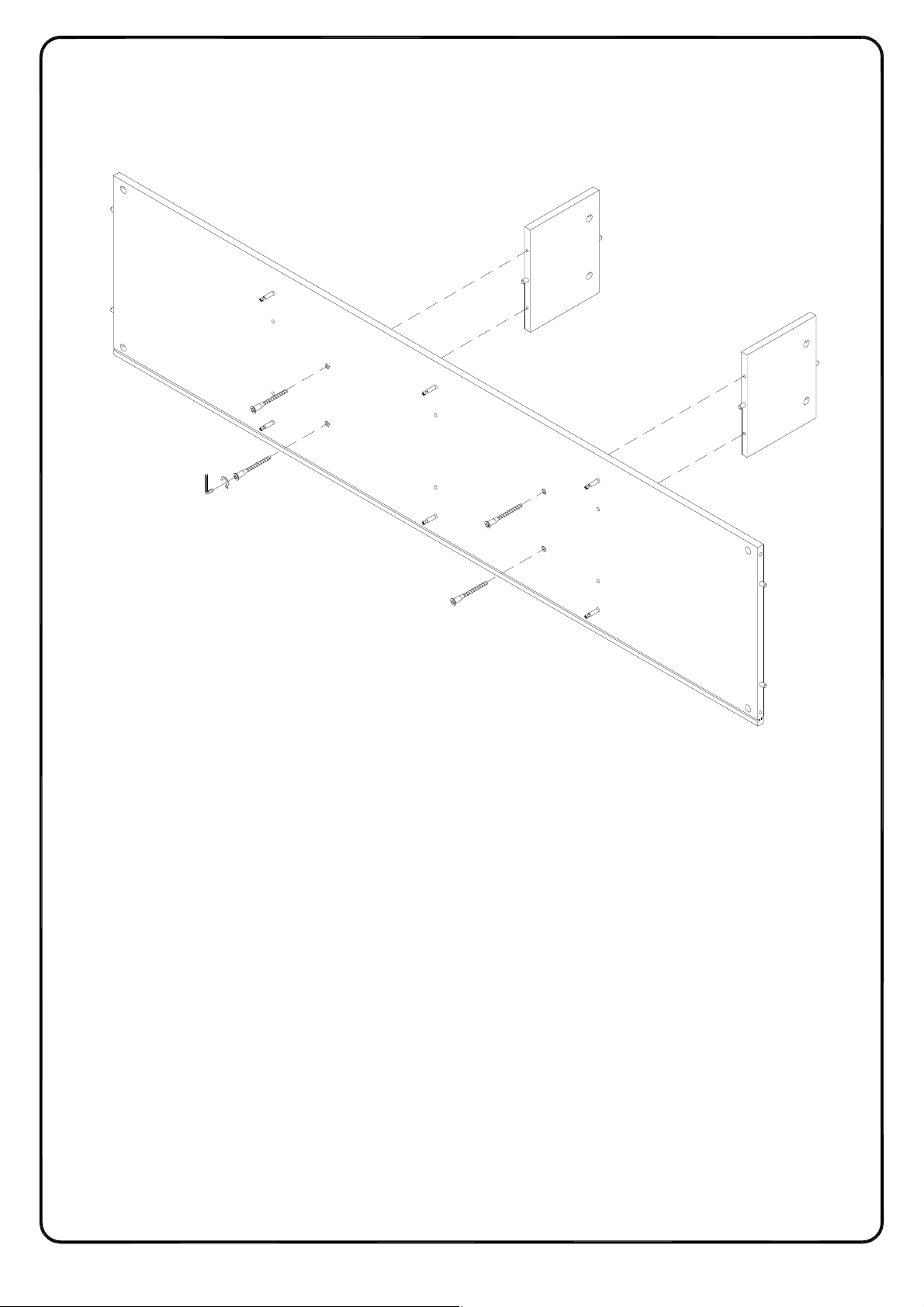

Using screw (E) secure part (11) to part (7) with Hex key (G) as per diagram.
7
G
E
E
E
E
11
7
Step 13
P.17
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

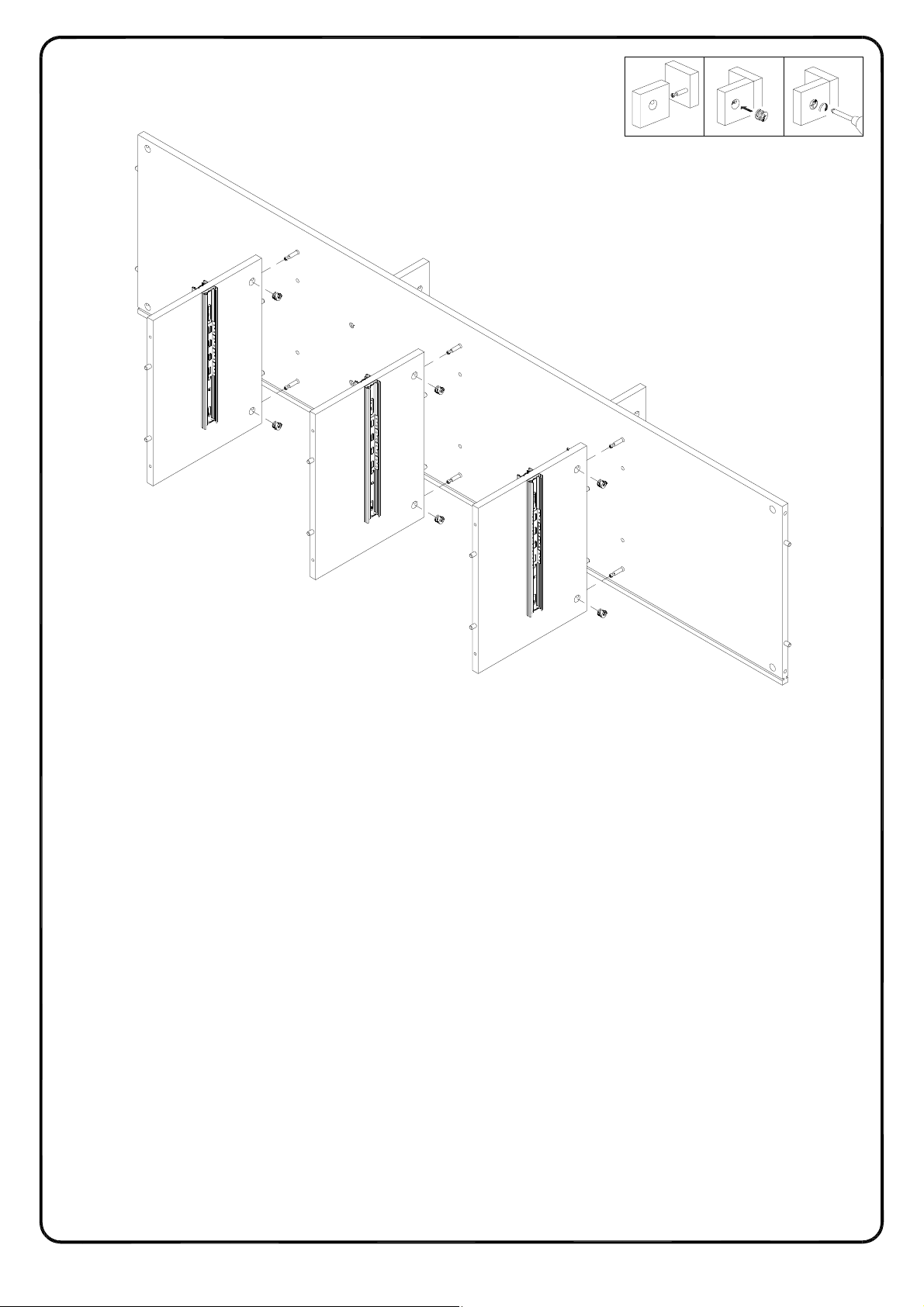

Using Cam lock(C) secure parts (13) to part (11) with Philips head screwdriver as per diagram.
13
21 3
C
C
C
C
13
C
11
13
C
Step 14
P.18
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

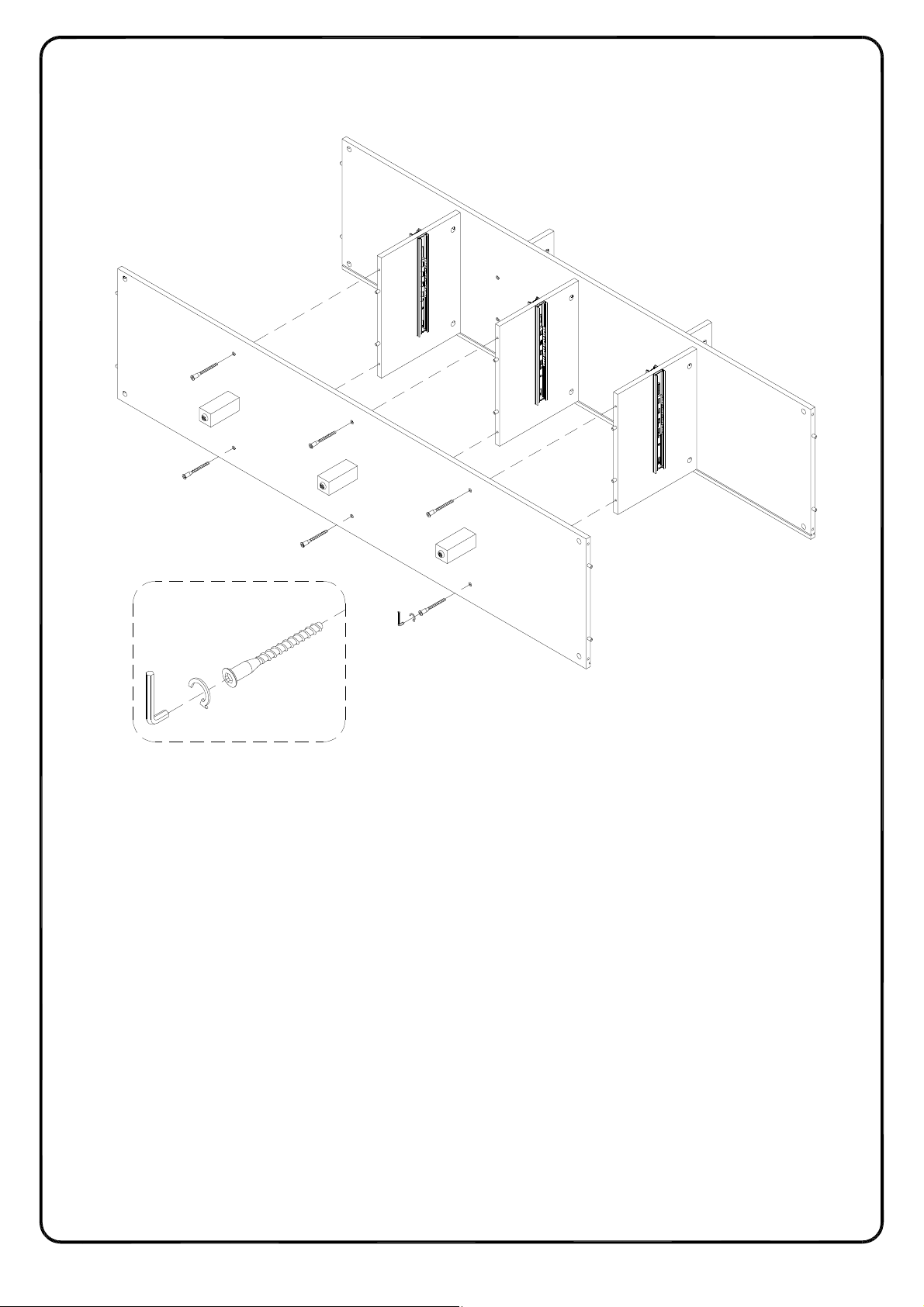

Using screw (E) secure part (2) to parts (13) with Hex key (G) as per diagram.
13
13
13
G
2
E
Step 15
P.19
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using Cam lock(C) secure parts (4,5) to parts (2,11) with Philips head screwdriver as per diagram.
5
4
21 3
C
C
C
C
11
2
Step 16
P.20
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

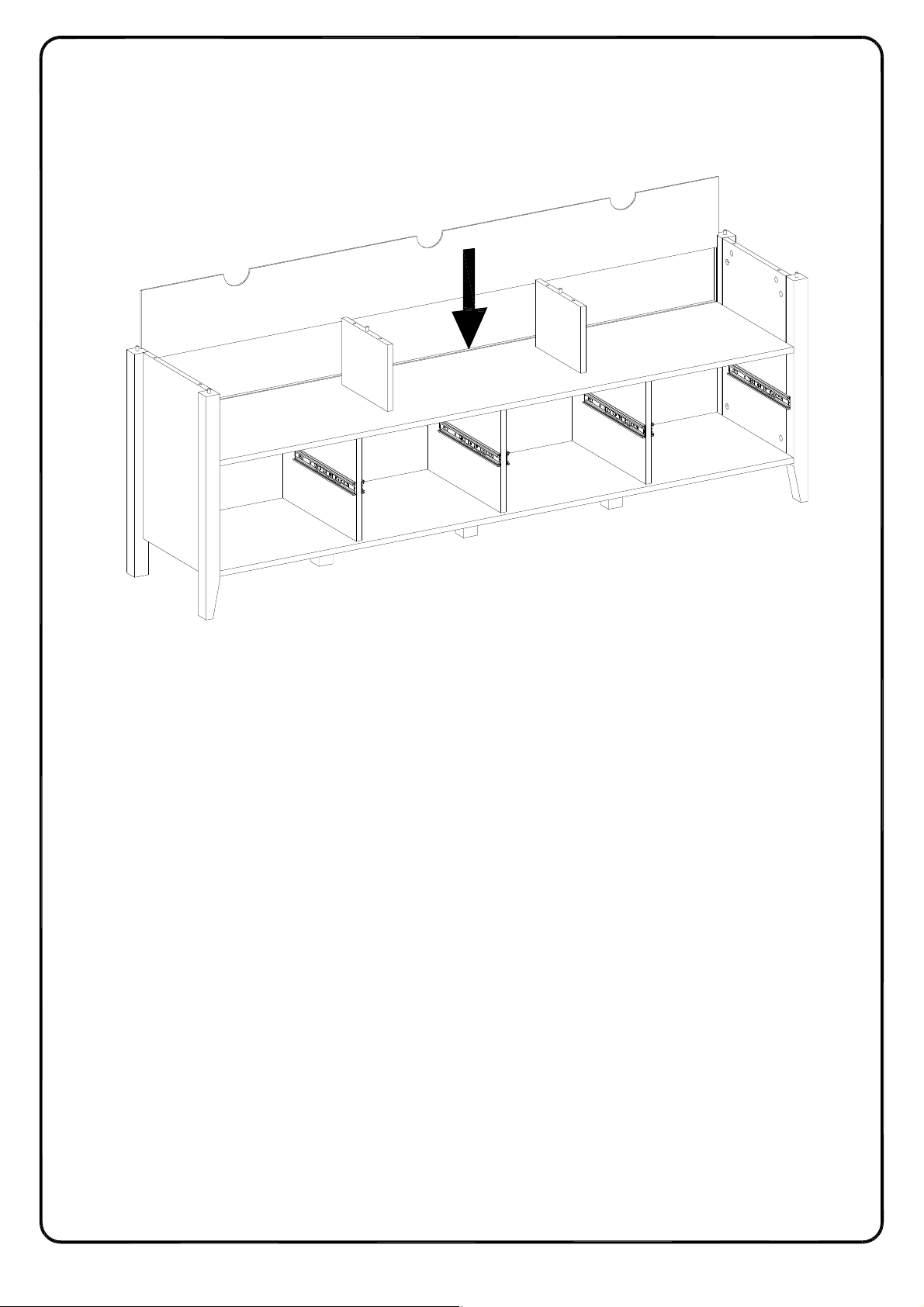

Put part (12) as per diagram.
11
2
12
Step 17
P.21
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

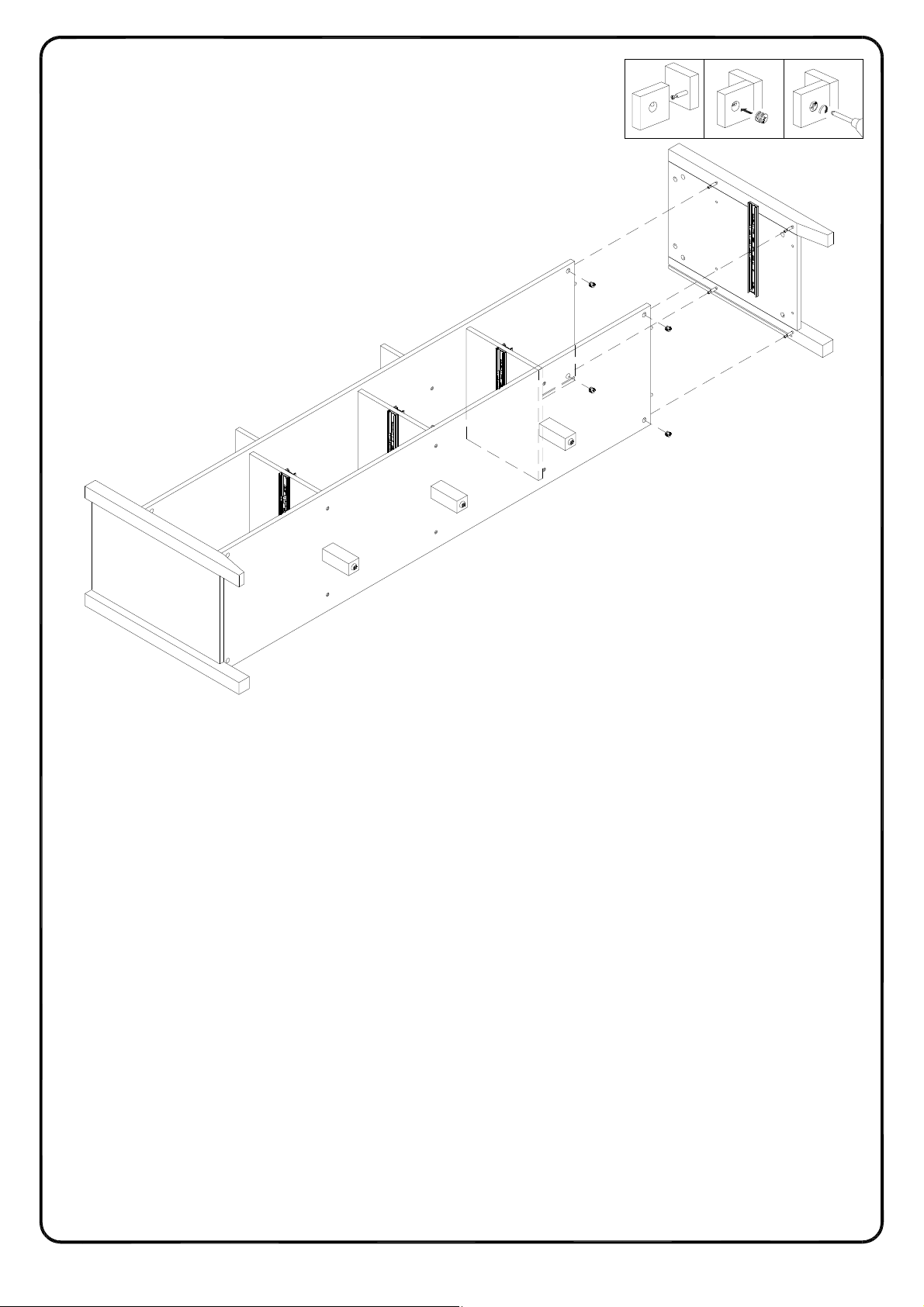

Using Cam lock(C) secure parts (9,10) to parts (2,11) with Philips head screwdriver as per diagram.
21 3
10
C
11
C
9
2
C
C
Step 18
P.22
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Put part (3) as per diagram.
4
9
3
11
Step 19
P.23
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using cam lock (C) secure part (1) into parts (6,7,8) with Philips head screwdriver as per diagram.
21 3
1
C
6
C
C
7
3
C
7
C
C
8
Step 20
P.24
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using screw (K) secure plastic wedge (L) with Philips head screwdriver as per diagram.
L
K
L
Step 21
P.25
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using handle bolt (J) attach handle (H) to parts (15,16,17,18) with Philips head screwdriver
as per diagram.
H
H
16
15
J J
J
J
H
17
H
18
Step 22
P.26
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using screw (M) attach parts (19,21) to part (20) with Philips head screwdriver .
then put part (22) as per diagram.
22
21
M
19
21
20
M
19
20
x 4
Step 23
P.27
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

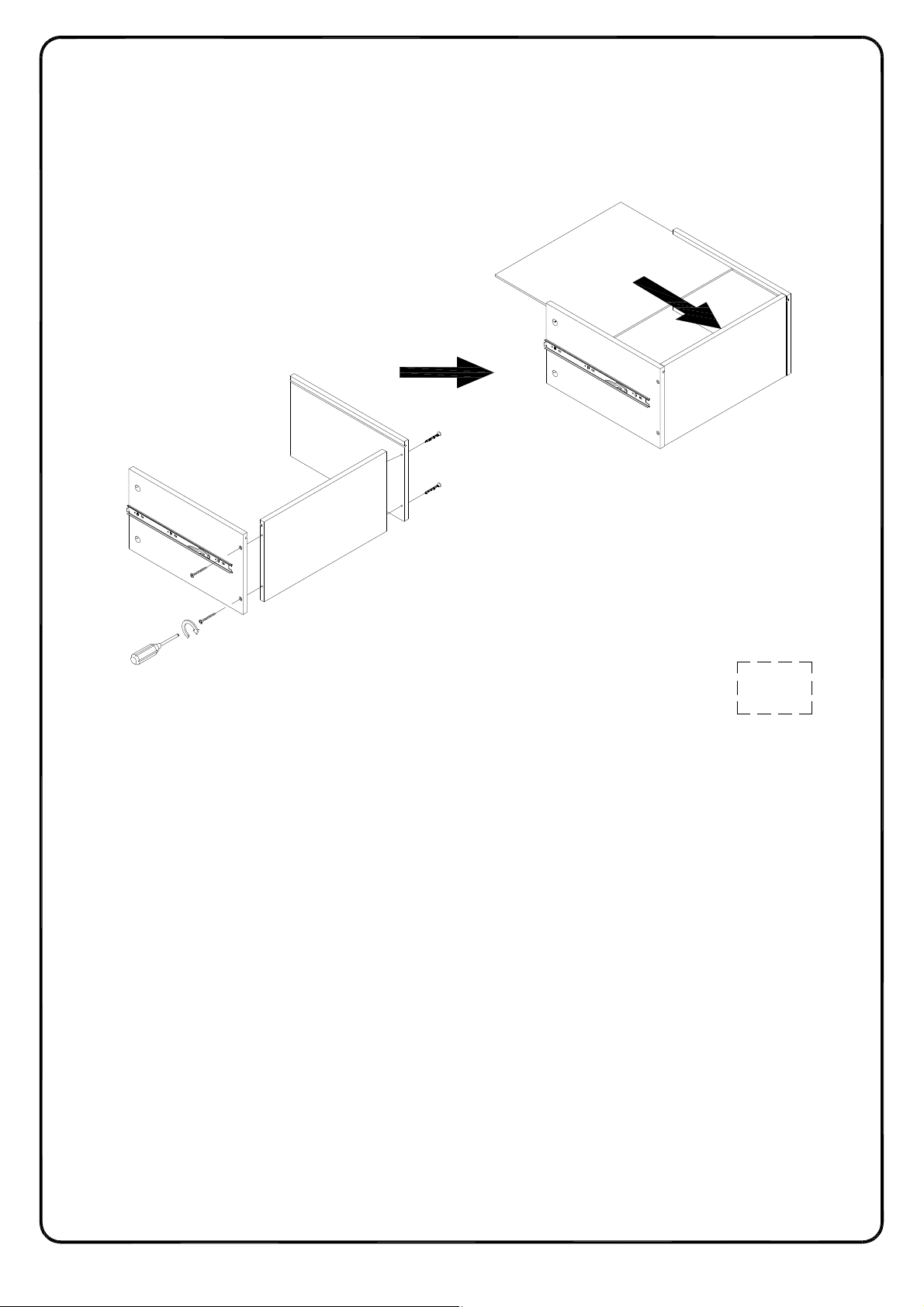

Using Cam lock(D) secure parts (15,18) to parts (19,21) with Philips head screwdriver
as per diagram.
15
D
21 3
D
D
21
D
19
19
D
D
18
D
D
21
Step 24
P.28
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using Cam lock(D) secure parts (16,17) to parts (19,21) with Philips head screwdriver
as per diagram.
16
21 3
D
D
D
D
19
19
D
21
D
17
D
D
21
Step 25
P.29
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Place sticker (N) cover the holes as per diagram .
15
16
17
18
N
Slider bracket
Slider arm
Step 26
P.30
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Insert the assembled drawers into the unit frame, extend the Ball Bearing Slide Tracks (Q) on the
pedestal Side Panel all the way forward .Then align the Slide Runners on the assembled drawers
with the Slide Tracks and push the drawer carefully inside until it stops. Note : if the drawer does
not go in smoothly, please take it out and repeat the step. If you need to remove the drawer, please
pull the drawer all the way out,press or lift the plastic release lever and pull out the drawer and
then re-assembled the drawer until it was going in smoothly .
18
17
16
15
OR
Q
Step 27
P.31
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Position the assembled unit at the desired location ,if necessary adjust the floor leveler at the
bottom of the support leg to level the unit .
Step 28
P.32
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.

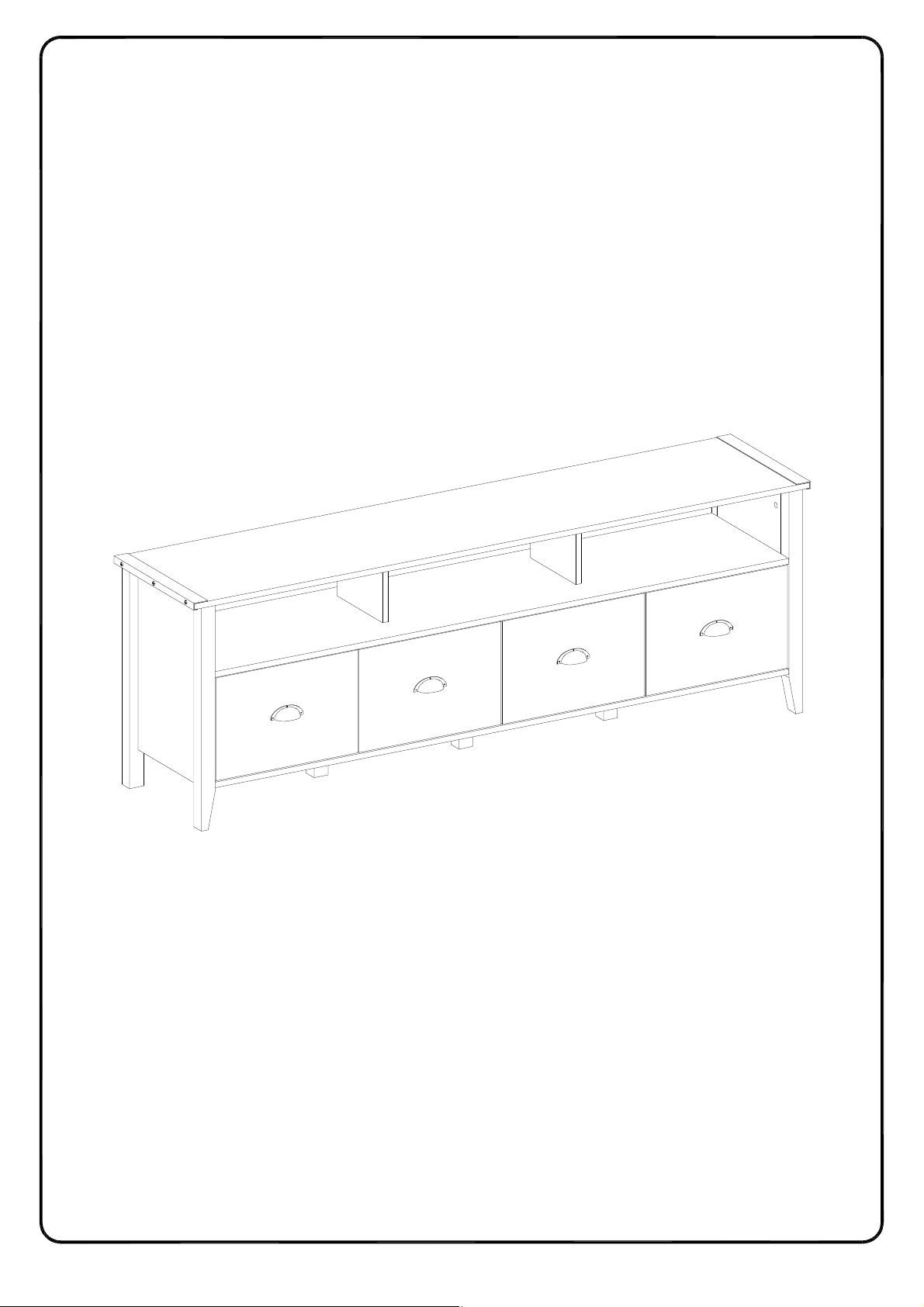

Final Assembly
