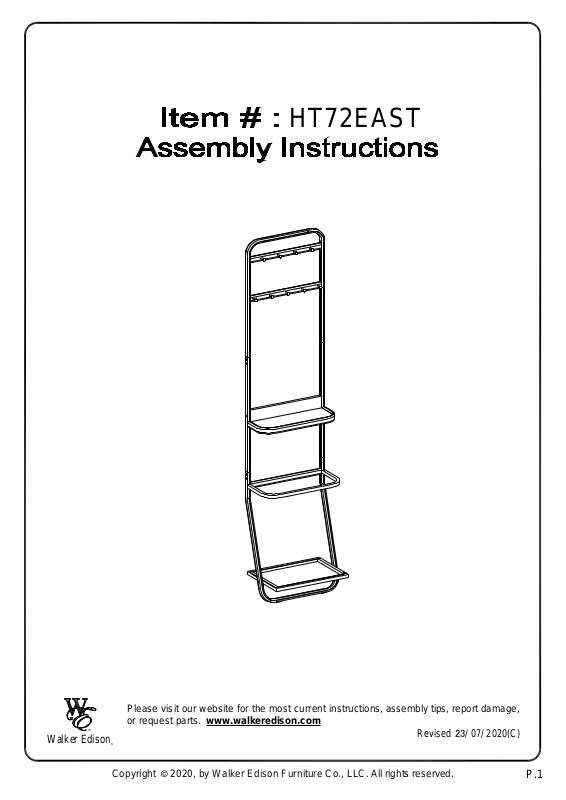

Walker Edison HT72EAST Assembly Instructions
P.1
HT72EAST
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Please visit our website for the most current instructions, assembly tips, report damage,
TM
Walker Edison
or request parts. www.walkeredison.com
®
Revised 23/07/2020(C)
General Assembly Guidelines
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
P.2
I. Ensure that all parts and hardware are available before beginning assembly.
II. Follow each step carefully to ensure the proper assembly of this product.
III. Two people are recommended for ease in the assembly of this product.
IV. The three main types of hardware used to assemble this product are: wood
dowels, screws and bolts.
V. The provided glue is to secure wood dowels in place. When first inserting dowels,
locate the appropriate hole for the dowel, place a small amount of glue in the hole
and insert the dowel. Wipe away excess glue immediately.
21
In future assembly steps when dowels are necessary to attach assembly parts
together, place a small amount of glue on the end of the dowel before attaching
parts together. Wipe away excess glue immediately.
VI. A Phillips head screwdriver is required for the assembly of this product .
VII. Power tools should not be used to assemble this product.
VIII. Drill may be needed for securing product to wall.
P.3
Parts List
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
1
2
5
3
5
4
6
9
7
8
P.4
Hardware List
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Ø8x30mm Wooden dowelA 2 pcs
Ø1/4"x12mmB 14 pcs
Ø1/4"x25mmC 2 pcs
D 2 pcs
H
J
K
L
M
Ø1/4"x50mm
Ø6x38mm ScrewE 2 pcs
Ø1/4"x50mm BoltF 4 pcs
M 4 Hex keyG 1 pc
Ø6x64mm
Bolt
Bolt
Bolt
Nut
Screw
Flat washer
Nut
EVA pad
2 pcs
2 pcs
2 pcs
2 pcs
2 pcs
N
Glue tube
1 pc
Philips head screwdriver required for assembly
(not included)
The hardware quantities listed above are required for proper assembly.
Some extra hardware may also have been included.
P.5
Step 1
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Insert wooden dowel (A) into part (2) as per diagram.
2
A
A
P.6
Step 2
Copyright
©
2020
, by Walker Edison Furniture Co., LLC. All rights reserved.
Using screw (E) attach part (3) into part (2) with Hex key (G) as per diagram.
2
3
E
E
G
