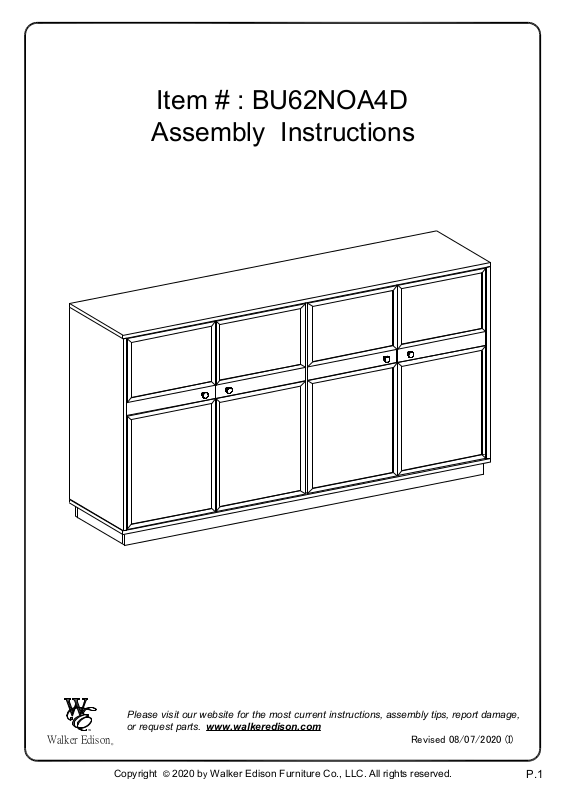

Walker Edison BU62NOA4D Assembly Instructions
P.1
Copyright
©
202
0 by Walker Edison Furniture Co., LLC. All rights reserved.
Item # : BU62NOA4D
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
TM
Walker Edison
or request parts. www.walkeredison.com
Revised 08/07/2020 (I)
®
P.2
Copyright
©
2020
by Walker Edison Furniture Co., LLC. All rights reserved.
General Assembly Guidelines
I. Ensure that all parts and hardware are available before beginning assembly.
II. Follow each step carefully to ensure the proper assembly of this product.
III. Two people are recommended for ease in the assembly of this product.
IV. The three main types of hardware used to assemble this product are : wood
dowels , screws and bolts.
V. The provided glue is to secure wood dowels in place . When first inserting dowels ,
locate the appropriate hole for the dowel , place a small amount of glue in the hole
and insert the dowel . Wipe away excess glue immediately.
21
In future assembly steps when dowels are necessary to attach assembly parts
together , place a small amount of glue on the end of the dowel before attaching
parts together . Wipe away excess glue immediately.
VI. A Phillips head screwdriver is required for the assembly of this product .
VII. Power tools should not be used to assemble this product .
VIII. Concealed hinges are three-way adjustable.
Door
Side panels
Door
Side panels
Door
Side panels
Horizontal
by screw adjustment
In-and-Out
by loosening the hinge-arm
mounting screw or via cam
adjustment
Vertical
Via slots in the mounting
plate or via cam adjustment
P.3
Parts List
Copyright
©
2020
by Walker Edison Furniture Co., LLC. All rights reserved.
1
6
8
3
7
11
10
11
10
4
5
9
12
9
2
13
12
12
13
P.4
Copyright
©
2020
by Walker Edison Furniture Co., LLC. All rights reserved.
Hardware List
Ø8x30mm Wooden dowelA 23 pcs
Ø6x32mm Cam boltB 32 pcs
Ø15x11mm Cam lockC 32 pcs
D
E
F
G
H
J
K
L
P
Sticker 32 pcs
Door stopper
Screw
Ø3x12mm
Ø4x18mm
Ø3.5x14mm Screw
Ø3x16mm Screw
Screw
Handle
Handle Bolt
Shelf support pin
Europe hinge
Europe hinge
2 pcs
4 pcsØ3x15mm
24 pcs
4 pcs
4 pcs
8 pcs
4 pcs
4 pcsM
48 pcsN
2 pcs
Q
R
S
T
Ø4x25mm Screw 2 pcs
Plastic strap 2 pcs
Nut 2 pcs
Glue tube 2 pcs
Philips head screwdriver required for assembly
(not included)
The hardware quantities listed above are required for proper assembly.
Some extra hardware may also have been included.
P.5
Copyright
©
2020
by Walker Edison Furniture Co., LLC. All rights reserved.
Step 1
Secure cam bolt (B) into parts (1,2), then using screw (F) attach Door stopper (E) to part (1) with
with Philips head screwdriver as per diagram.
B
F
E
B
F
E
B
B
B
1
B
2
B
B
B
B
B
2
B
B
F
E
B
B
B
B
B
B
B
B
B
B
B
B
P.6
Copyright
©
2020
by Walker Edison Furniture Co., LLC. All rights reserved.
Step 2
Insert wooden dowel (A) into parts (3,4,5) as per diagram.
A
A
3
A
A
A
5
A
A
A A
A
A
4
A
Step 3
P.7
Copyright
©
2020
by Walker Edison Furniture Co., LLC. All rights reserved.
Insert wooden dowel (A) into part (13) , then secure cam bolt (B) into part (13) with Philips head
screwdriver as per diagram.
A
12
A
A
B
3 x
13
A
B
A
2 x
B
