Walker Bay 10 Performance Sail Kit Assembly Instructions Manual
WB10-009
L2
L3
W
a
l
k
e
r
B
a
y
Figure 8 Knot
L2

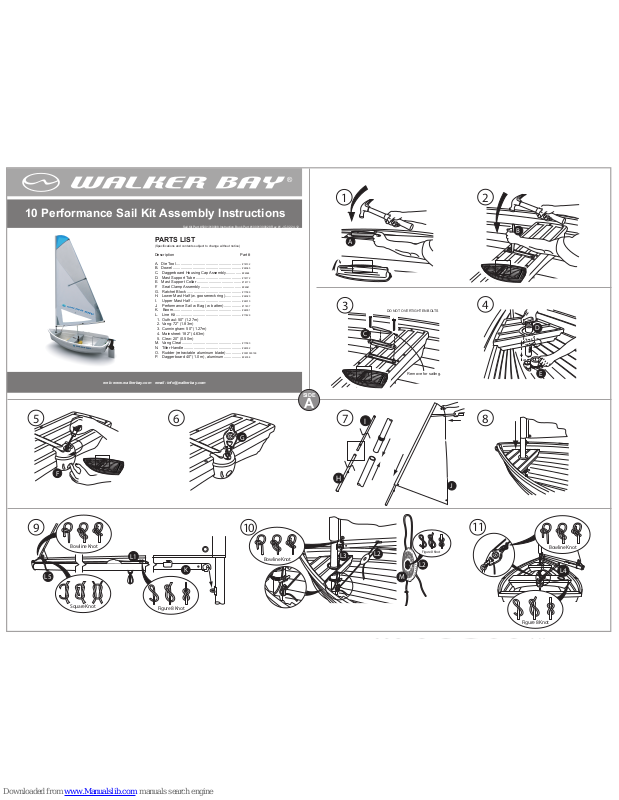

10 Performance Sail Kit Assembly Instructions
web: www.walkerbay.com email: info@walkerbay.com
PARTS LIST
(Specifications and contents subject to change without notice)
Description Part #
A. Die Tool............................................................ #18132
B. Dowel............................................................... #24065
C. Daggerboard Housing Cap Assembly..............#26024
D. Mast Support Tube .......................................... #18172
E. Mast Support Collar......................................... #18173
F. Seat Clamp Assembly..................................... #26041
G. Ratchet Block .................................................. #17099
H. Lower Mast Half (w. gooseneck ring)............... #24020
I. Upper Mast Half .............................................. #24010
J. Performance Sail w. Bag (w. batten)................ #17407
K. Boom............................................................... #24001
L. Line Kit ............................................................ #17429
1. Outhaul: 50" (1.27m)
2. Vang: 72" (1.83m)
3. Cunningham: 50" (1.27m)
4. Mainsheet: 182" (4.63m)
5. Clew: 20" (0.50m)
M. Vang Cleat....................................................... #17090
N. Tiller Handle..................................................... #24032
O. Rudder (retractable aluminum blade).............. #3001030199
P. Daggerboard 40" (1.0 m), aluminum................ #24058
1
3
5 7
9
10
11
2
4
6 8
F
G
J
H
I
E
D
C
DO NOT OVERTIGHTEN BOLTS
Remove for sailing.
B
A
Bowline Knot
Figure 8 Knot
Square Knot
L5
L1
K
M
Bowline Knot
Bowline Knot
L4
Figure 8 Knot
Sail Kit Part #5001010008 Instruction Book Part #10001300028 Rev #1 JG.02.24.12
®
SIDE
A
10 Performance Sail Kit Assembly Instructions
web: www.walkerbay.com email: info@walkerbay.com
®
WARNING
!
IMPOR TANT SAFETY INFORMA TION
• READ O WNERS MANU AL. IMPR OPER USE MA Y CA USE INJUR Y OR DEA TH.
• E ACH P ASSENGER MUST HA VE AN APPR OVED PERSONAL FLO TATION DEVICE.
• CARR Y AN O AR AND BAILER ON BO ARD WHILE SAILING.
• USE A B UDDY SYSTEM, SAIL WHERE PEOPLE CAN SEE AND HELP YOU IF
NECESSAR Y.
• DO NO T USE A MO TOR OR SAIL UNLESS YOU USE THE EQ UIPMENT IN THE MANNER
INTENDED AND/OR AS DESCRIBED IN THE MANU AL.
• DO NO T USE THIS BO AT UNDER THE INFLUENCE OF DR UGS OR ALCOHOL.
• DO NO T USE THIS BO AT IF YOU SUSPECT A CRA CK OR A HOLE. IT MAY BE UNSAFE.
• USE CA UTION WHEN ENTERING OR EXITING THE BO AT.
• KEEP YOUR WEIGHT CENTERED AND DISTRIB UTE THE WEIGHT OF GEAR AND
PASSENGERS EVENL Y.
• DO NO T USE THIS BO AT AS A T OW CRAFT .
• THIS BO AT IS NO T A T OY. ADUL T SUPER VISION AD VISED .
• PAR TS AND SPECIFICA TIONS SUBJECT TO CHANGE WITHOUT NO TICE.
• FOR SAFETY INFORMA TION OR P A RT S, CALL W ALKER BA Y BO ATS A T:
(888) 44-W ALKER OR (604) 682-5699.
12
13
A B C
D
E
F
CORRECT SAILING POSITIONS
RIGHTING YOUR BOAT AFTER CAPSIZE
MAINTENANCE AND STORAGE
- After use, especially in salt water, rinse boat, sail, spars and
rigging with fresh water.
- Do not use detergents or chemicals to clean sail.
- Roll sails and store inside sail bag.
- Do not store sails wet or damp.
- Avoid unnecessary prolonged exposure of sails to direct
sunlight.
- Check rigging before each use, and service if necessary.
SIDE
B
15
O
N
P
For less daggerboard resistance
remove front daggerboard brake
from daggerboard housing cap.
X
14
Less Wind More Wind...
...or
more
head
room
HOW TO ADJUST SAIL SIZE
(Performance Plus Sail Kit only)
