Walkera Voyager 5 Quick Start Manual
www.walkera.com
QUICK START GUIDE
Oct. 22th, 2018
V1.1
2
Contents
4
3
7
7-8
8
9-10
6
12
22
22
10
12
5
6
6
1.0 Get to know your aircraft
2.0 Get to know your Remote Controller
3.0 Specifications
4.0 Attention Before Flight
5.0 Check Battery Levels
6.0 Charge the Batteries
7.0 Downloading and Installing APP
8.0 APP Interface Instructions

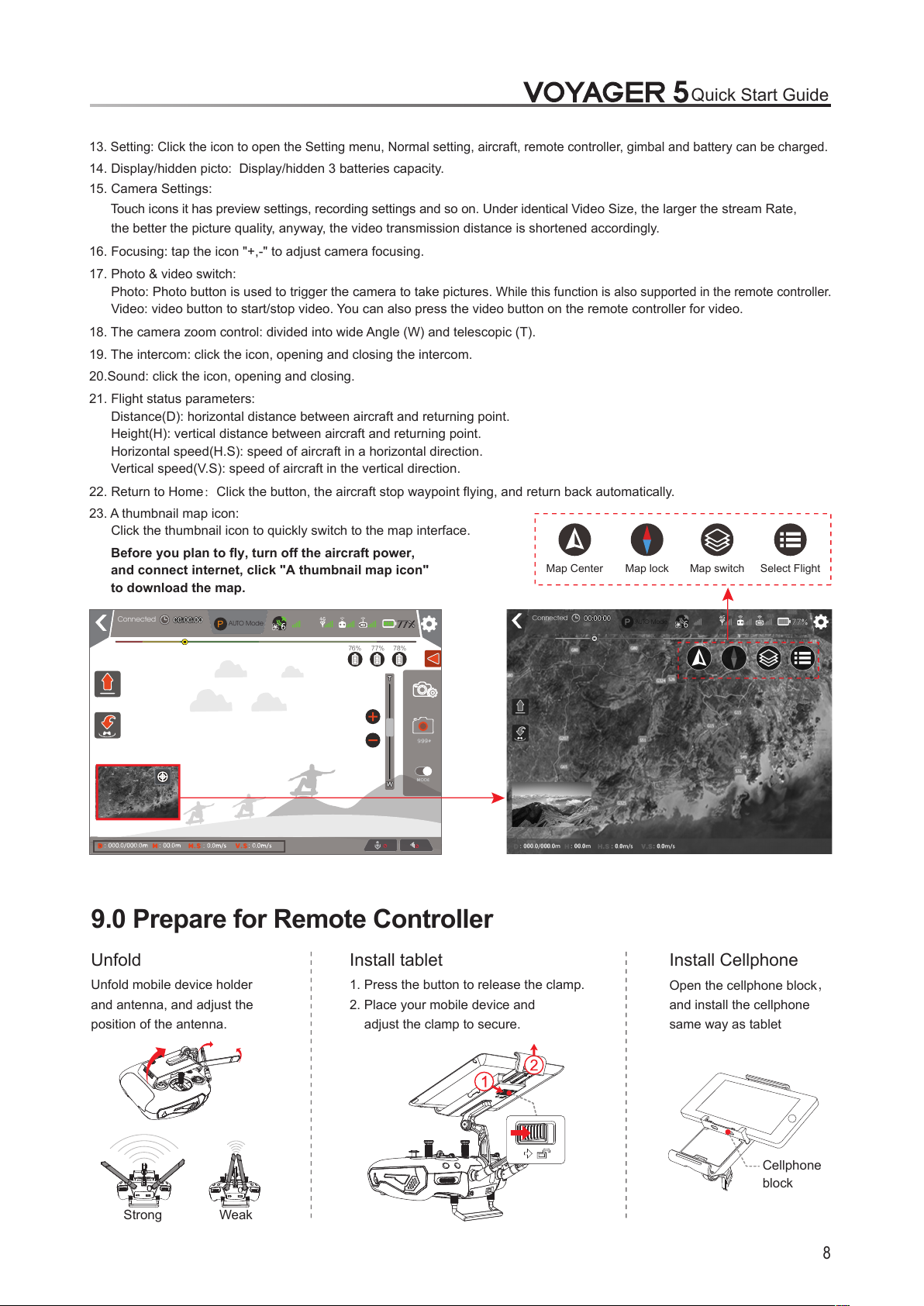

9.0 Prepare for Remote Controller
10.0 Prepare for Aircraft
11.0 Ready for Flight
13-17
18
11
18
18
19
19
20
21
20
11.1 Starting the aircraft / Get binding

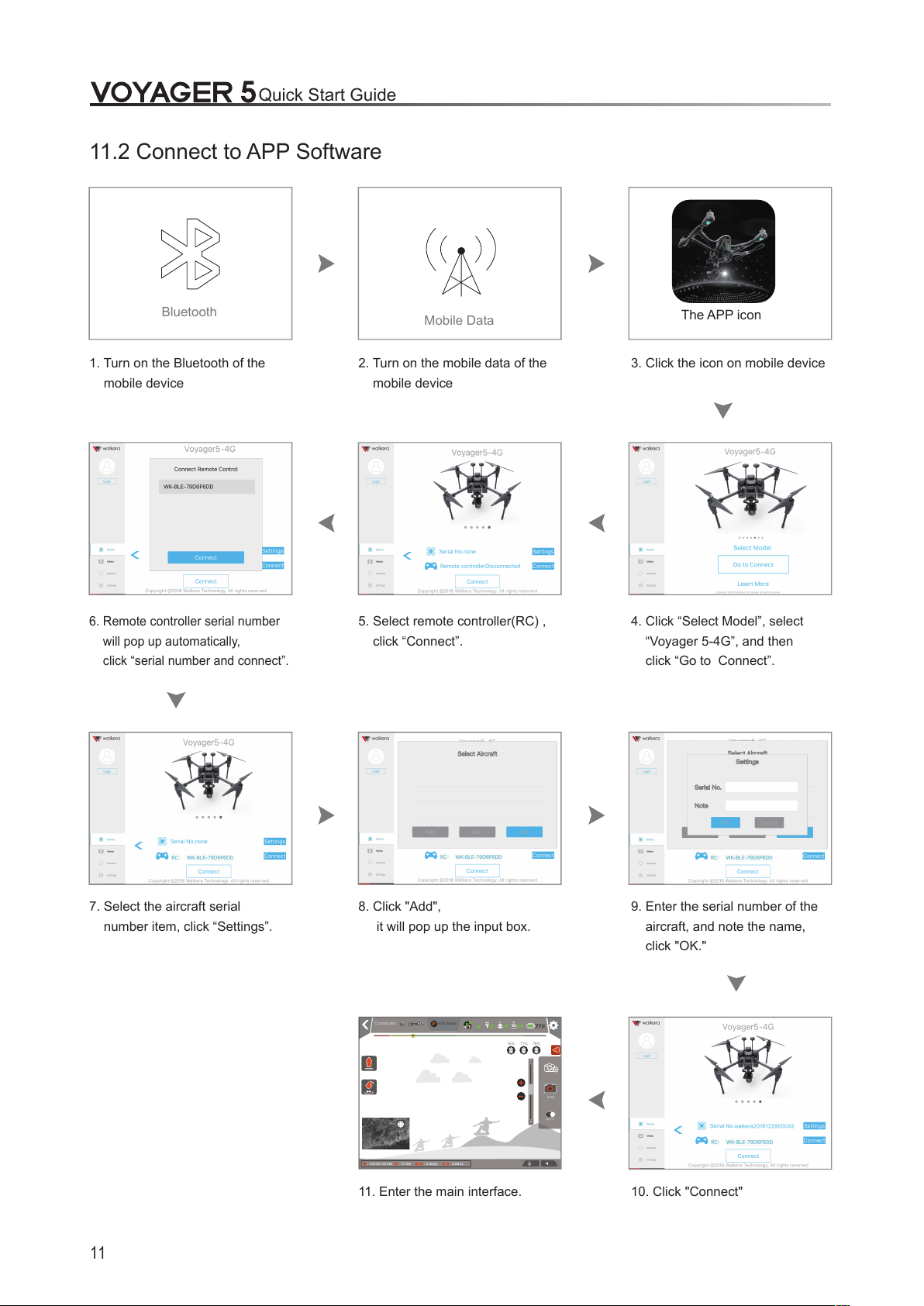

11.2 Connect the APP
11.3 GPS Indicator Lights
11.4 Motor Unlock/Lock
12.0 Flight Control
13.0 End flight
14.0 Additional remarks
14.1 Camera Gimbal Removal and Installation
14.2 Compass Calibration
14.3 Downward Vision System
14.4 Infrared Obstacle Avoidance System
14.5 Main board introduction
14.6 Brushless ESC and Brushless Motor connection diagram
14.7 Stick Mode Switch & Stick/Thumbwheel Calibration
15.0 Intelligent Flight Battery Safety Guidelines
15.1 Battery Use
15.2 Battery Maintenance
1.0 Get to know your aircraft
1. Gimbal and Camera
2. Micro SD card slot
3. Infrared Obstacle Avoidance System
4. CW propeller ( )
5. CCW propeller ( )
6. Brushless motor
7. Smart flight battery
8. GPS antennas
9. Landing gear
10. Rear LEDs
11. Front LEDs
12. 4G antennas
13. Infrade altimeter
14. Optical lense
15. 4G SIM card port
16. Idle port
17. USB upgrade slot
3
* 1) 4G communication card (SIM card) for aircraft and mobile devices, please buy and install them on your own.
2) To avoid property loss and personal injury caused by wrong operation, please read the manual carefully, upgrade the firmware
and calibrate the related items by watching the tutorial video at www.walkera.com before using VOYAGER 5.
3) Please deploy the 4G antennas before flying to ensure the best communication signal.
Quick Start Guide
The innovative design makes the aircraft arms and landing gear all foldable and portable. Easy assembly
generates quick operation.
The brand new three-battery redundant system provide Voyager 5 with double protection. Even when two
batteries have problem, the rest 1 battery still can ensure the flight safety.
Voyager 5 integrated a safety assurance system called FlightSafety, which is composed of a dual IMU,
dual compass, and dual GPS system, in order to make it much more reliable and safer.
The front facing infrared obstacle avoidance module, altimeter and optical flow positioning module,
enable the aircraft to better position and sense obstacles while flying in the air, greatly reducing risks caused
by misoperations.
Adopt 4G communication image transmission system, far transmission distance, wide range of applications.
Take “left-hand throttle (MODE 2)” as an example. The left stick controls the aircraft's altitude and heading,
while the right stick controls its forward, backward, left and right movements.
4
2.0 Get to know your Remote Controller
Left Stick Right Stick
Up
Down
Turn
Left
Turn
Right
Forward
Backward
Left Right
* 1) The Remote Controller have MODE 1, MODE 2, please select it in APP. Beginner is suggested to use MODE 2.
2) MODE 2 (Throttle stick on the left): Left stick--THRO/RUDD; Right stick --ELEV/AILE.
3) MODE 1 (Throttle stick on the right): Left stick--ELEV/RUDD; Right stick--THRO/AILE.
4) Please fly your aircraft in the open air without shelter and without electromagnetic interference.
The maximum signal range for the remote controller being about 1.5km is tested in experiment and only for reference.
Quick Start Guide
DEVO-F18 with the built-in Bluetooth Module, ensure the Max transmission distance can reach 1.5km, can see
the clear picture by the APP in mobile device.
Folded
100
50
25
10
13. Status LED
14. Battery Level LEDs
15. Charging Indicator
16. Bluetooth blue LED
17. Charger socket
18. Power Button
19. Return To Home
20. AUX3
21. AUX2
22. Motion Mode(Common)
23. Beginner Mode
24. Antenna
25. Data transfer port
26. Upgrade port
27. Left Gimbal Dial
28. Right Gimbal Dial
29. Stop button
30. Skid landing comtrol button
31. Photo button
32. Video button
33. Training port
34. Enter key
1. Mobile Device Holder
2. AUTO Landing
3. AUTO Takeoff
4. Manual Mode
5. GPS Mode
6. Left stick
7. Right stick
8. Follow me mode
9. Circle flight
10. IOC
11. AUX4
12. Gimbal control stick
3.0 Specifications
5
17 x 5.5 inch
700mm
Unfolded 1100 x 1100 x 340mm / Folded 300 x 300 x 340mm
No payload weight: 2.4kg / Maximum takeoff weight: 5.5kg
DEVO F18
WK-WS-58-001
Voyager 5
5m/s
3m/s
positioning mode 5m/s, motion mode 8m/s, posture mode 28m/s.
motion mode 30°, posture mode 30°, positioning mode 25°
150°/s
4500m
10m/s
vertical : ±0.1m(when vision positioning working), ±0.5m(when GPS positioning working)；
Horizontal: ±0.3m(when vision positioning working), ±1.5m(when GPS positioning working)
22.8V 4300mAh 6S LiPo
No payload: 41min, Payload: about 31min
-10℃~ +40℃
Aircraft
Gimbal
Main Rotor Dia.
Diagonal Wheelbase
Overall (L x W x H)
Weight
Remote Controller
Brushless Motor
Brushless ESC
Max Ascent Speed
Max Descent Speed
Max Horizontal Flight Speed
Max Angle Of Inclination
Max Speed Of Rotation Angle
Max Service Ceiling Above Sea Level
Max Wind Resistance
Hovering Accuracy
Battery
Flight Time
Working Temperature
Stabilization System
Controllable Accuracy
Controllable Range
Max Controllable Speed
3 axis (Pitch, Roll, Horizontal)
Static: ±0.008°; Motion: ±0.02°; Shake-proof: ±0.008°
Pitch: -110°~ +60°; Horizontal: ±150°; Roll: ±10°
Pitch: 30°/s; Horizontal: 30°/s
Camera
Sensor
ISO Range
Video Resolution
Photo Resolution
Focal Length
Zoom Ratio
Zoom Speed
Horizontal View
Close-shot Distance
Video Storage Maximum
Compress Standard
Files Format
Support Micro-SD
1/2.3 SONY IMX117 CMOS
100-3200(Video) / 100-1600(Image)
4K 30fps
3840 x 2160
6.7-134.5mm
30x optical zoom
About 2.0s
59.8°- 3.0°(Wide Angle-Telescopic)
10 - 1500mm(Wide Angle-Telescopic)
64Mbps
H.264 / H.265
JPG/MP4
SD/SDHC/SDX
C Micro-SD Card (maximum 128G, transmitting speed is C10 and above or UHS-1)
Downward Vision System
Infrared Obstacle Avoidance System
Velocity Range
Altitude Range
Hover Accuracy Range
Frequency
Operating Environment
Obstacle detecting range
FOV
Frequency
Velocity ≤ 10.8km/h ( 2m above ground and sufficient lighting)
≤ 3m
±0.5m
50Hz
Surfaces with rich patterns and sufficient lighting
5m
horizontal 30°; vertical ±30°
20Hz
Remote Controller
Overall (L x W x H)
Operating Frequency
Transmitting Distance
Video Output Port
Built-in Battery
Mobile Device Holder
165 x 174 x 62mm
2.4G
About 1.5km (open without shelter, no electromagnetic interference)
USB, HDMI
7.4V 3000mAh Li-po 2S
Applicable to tablet and phone
Quick Start Guide
100
50
25
10
6
4.0 Attention Before Flight
1) This product use 4G communication image transmission, please make sure the flight environment with
strong 4G signal, wide and no electromagnetic interference.
2) This product is suitable for people who has flight experience of hobby model and ages 14.
3) Do not fly in bad weather, such as windy, snowy, foggy etc..
4) Select the open, no-tall-buildings area. Extensive steel-used buildings will affect the compass,
blocking the GPS signal, causing worse on the aircraft positioning or even not able to locate.
5) Please keep away from highly spining parts(such as propellers and motors).
6) Please keep away from obstacles, people, water and so on.
7) Do not fly it in where there is high-voltage lines, communication base stations or radio towers, in order to
avoid signal interference.
8) Don’t fly in no-fly zone according to the local laws and regulations.
9) Flight performance will be effected with environment when flying above 4500m of sea levels,
as the battery and gravity system will be influenced.
5.0 Check Battery Levels
Turn on the remote controller and intelligent flight Battery to check the battery level.
Be sure the battery was fully charged at the first use.
1) Long press the power button for 2~3 seconds to turn on the remote controller.
2) Long press the power button for 3~5 seconds to turn on Intelligent Flight Battery.
(Repeat above operation to turn off the intelligent flight battery and remote controller)
6.0 Charge the Batteries
1) Connect the charger to the AC power (100 ~ 240v 50/60hz).
2) Only use the walkera charger for your Intelligent Flight Battery and remote controller.
Please turn off the intelligent flight battery and remote controller before charging.
3) The Level indicator of intelligent flight battery light off means charging finished completely;
The charging indicator of remote controller turns green means remote controller charging finished completely.
Low High
Low High
Quick Start Guide
Power Outlet
100~240V
Charger can charge 3pcs aircraft batteries
and the remote controller at the same time.
3pcs batteries maintain charge and discharge at the same time, to ensure best performance.
When charging, put it in a dry, ventilated place, keep away from the heat source and flammable and explosive.
B
B
10
0
50
25
1
0
7
Quick Start Guide
12. 3pcs batteries average capacity: Display the drone
batteries remaining capacity (or you can set as voltage)
8.0 APP Interface Instructions
On the interface, HD video and photographs can be previewed in realtime and you can set the dynamic
parameters, such as aircraft, remote controller, gimbal and battery.
1. Auto Takeoff: Click it, the aircraft takes off automatically.
2 . Battery level return: When the residual battery
level reach , aircraft will automatically return back.
3. Back: Back to last step.
4. Device connection status: Display connected or disconnected.
5. Flight time: Aircraft flight time.
6. The aircraft model: Displays aircraft’s flight mode.
7. Number of aircraft satellite:
Displays the received satellites of aircraft.
8. Positioning accuracy:
Displays aircraft positioning accuracy.
76% 77% 78%
Connected
AUTO Mode
10. The remote controller signal strength:
Displays the signal level between remote controller
and aircraft.
9. 4G signal:
Displays the 4G communication signal strength.
11. Camera signal
7.0 Downloading and Installing APP
Google Play
Android download Android download
APP software supports Android 5.1 and above systems iOS 9.0 and above,
Android system please download at Walkera official website (www.walkera.com) or go to Google play to search
for Walker Drone or scan the QR code to download and install;
iOS system please go to the APP Store to search for Walker Aircraft or scan the QR code to download and install.
iOS download
