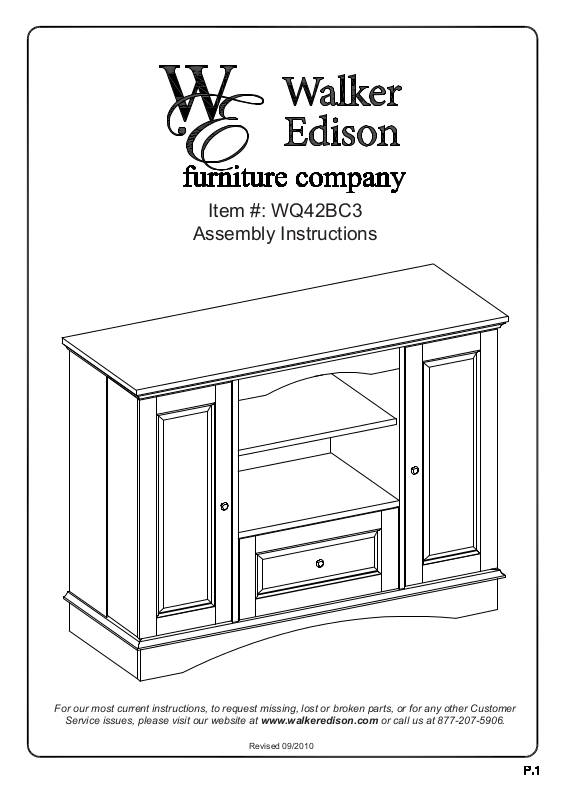

Walker WQ42BC3BL, WQ42BC3TB User Manual

Item #: WQ42BC3

Assembly Instructions

For our most current instructions, to request missing, lost or broken parts, or for any other Customer

Service issues, please visit our website at www.walkeredison.com or call us at 877-207-5906.

Revised 09/2010

General Assembly Guidelines

I. Ensure that all parts and hardware are available before beginning assembly.

II. Follow each step carefully to ensure the proper assembly of this product.

III. Two people are recommended for ease in the assembly of this product.

IV. The four main types of hardware used to assemble this product are: wood dowels,
cam bolts and locks, bolts and screws.

V. The provided glue is to secure wood dowels in place. When first inserting dowels,
locate the appropriate hole for the dowel, place a small amount of glue in the hole
and insert the dowel. Wipe away excess glue immediately.

In future assembly steps when dowels are necessary to attach assembly parts
together, place a small amount of glue on the end of the dowel before attaching
parts together. Wipe away excess glue immediately.

VI. A Phillips head screwdriver is required for the assembly of this product.

VII. Power tools should not be used to assemble this product.

P.2

Parts List

9

9

Hardware List

Wood dowel

Cam bolt

Large cam lock

Small cam lock

Door stopper

Round-head screw

Door stopper plate

Small screw

Handle

Small bolt

Large bolt

Door hinge

Large screw

Shelf support pin

Extra-large screw

Plastic wedge

Medium screw

Wrench

Glue tube

Sticker

Screw cam bolts (B) into top panel (1).

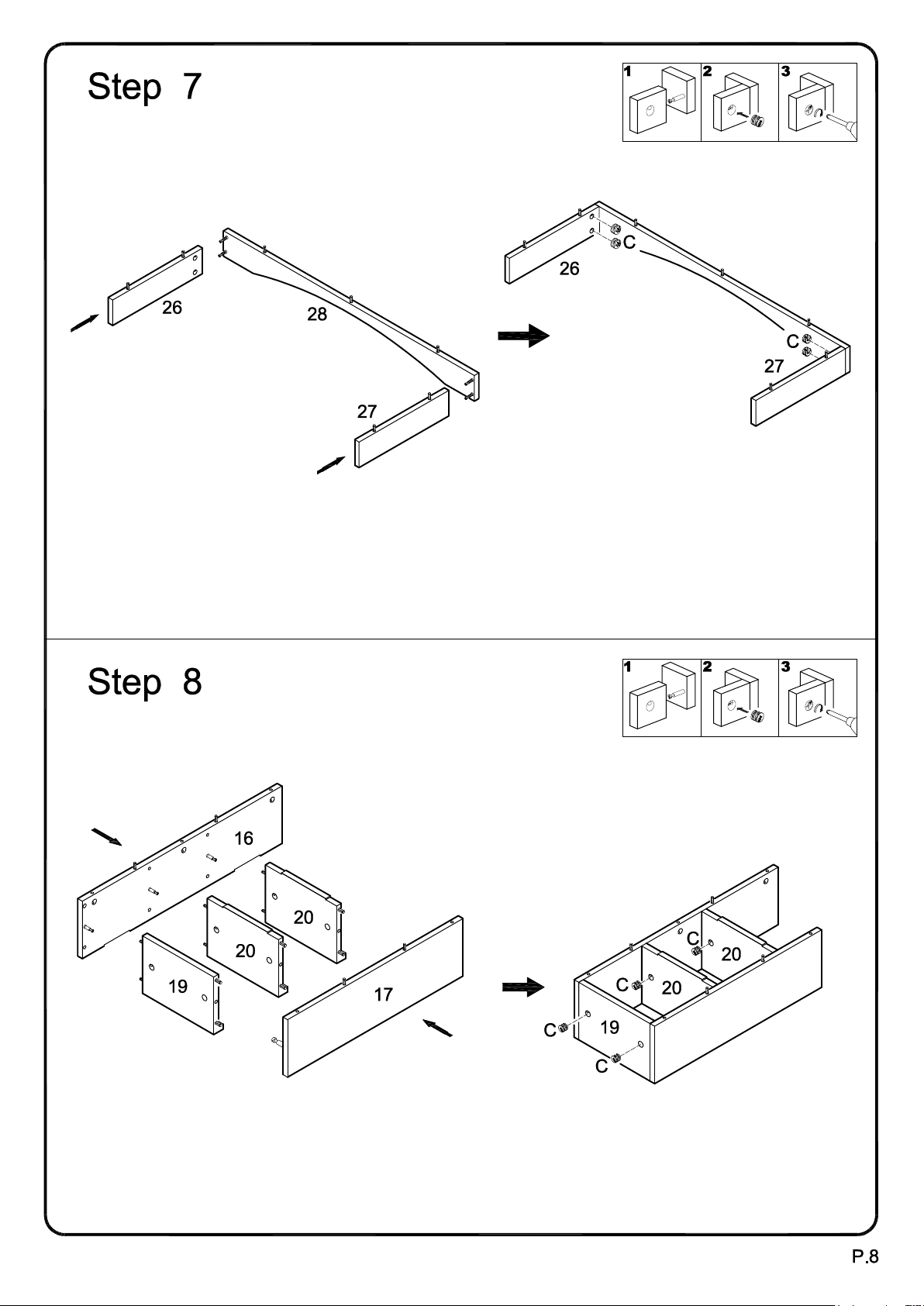

Screw cam bolts (B) into panels (3,4) and slat (28). Insert dowels (A) into panels (3,4) and slats (12,
26,27,28).

Screw cam bolts (B) and insert dowels (A) into panels (5,6). Attach door stoppers (E) to panels (5,6)
using round-head screw (F). Flip panels (5,6) over and screw in cam bolts (B).

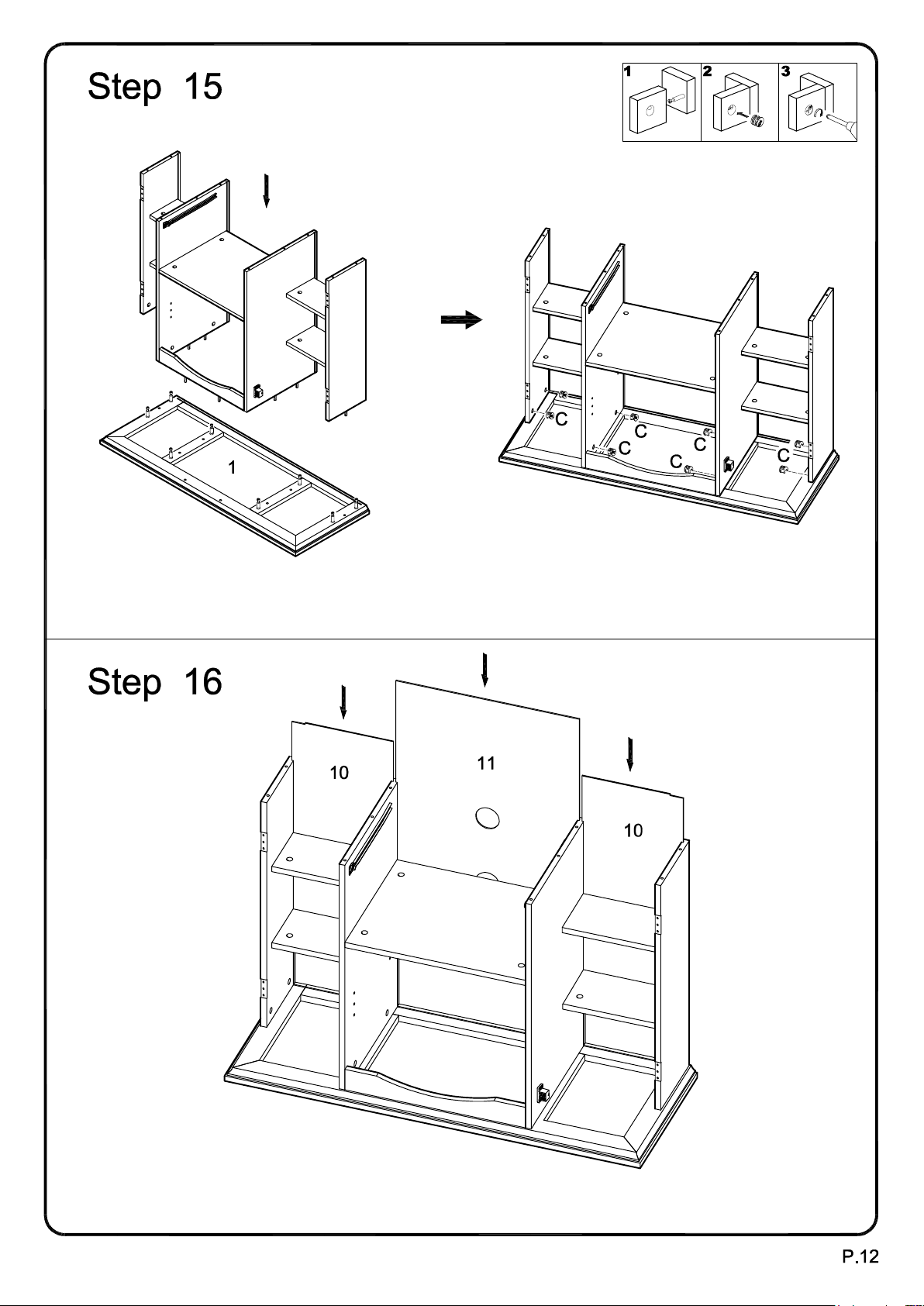

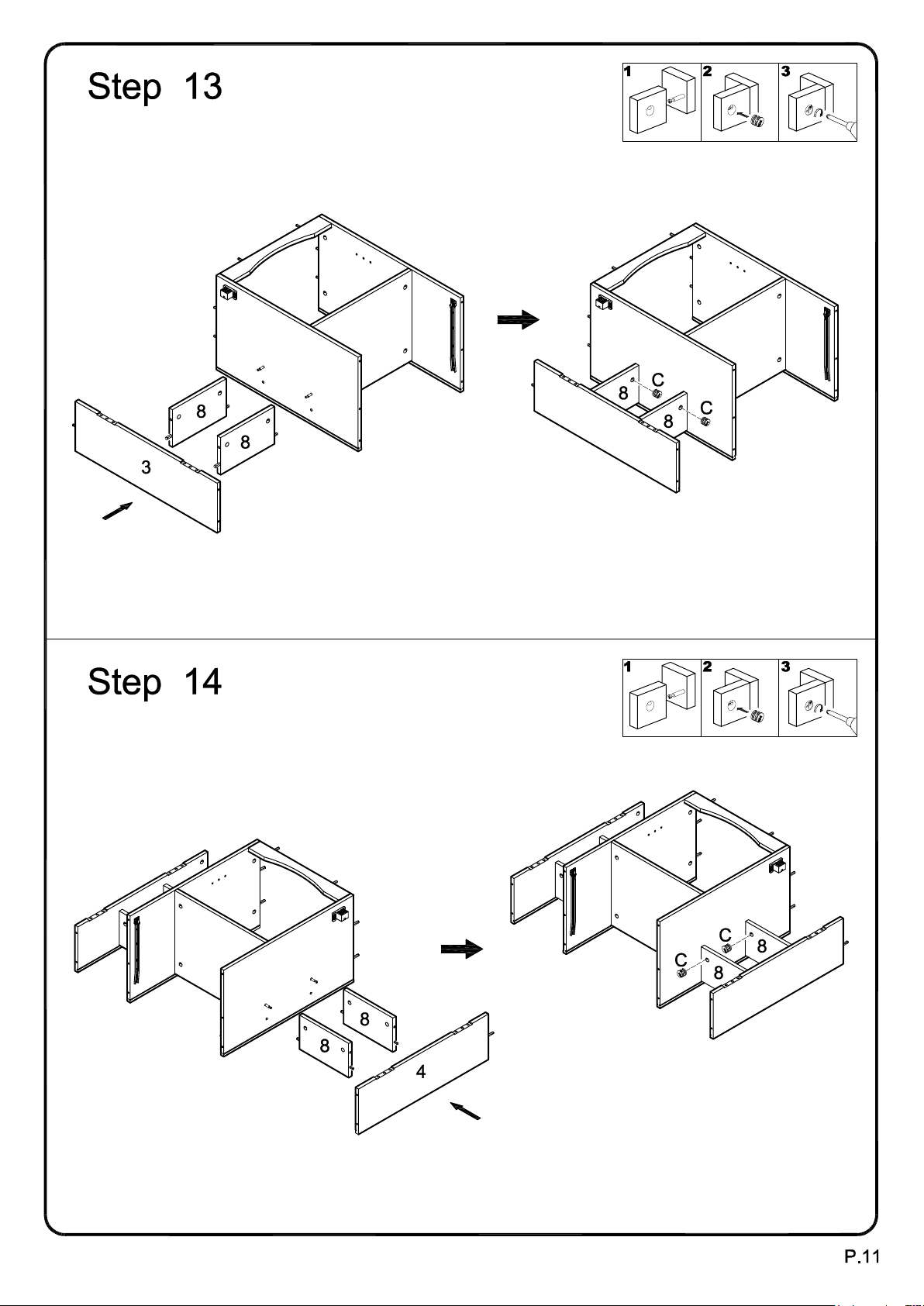

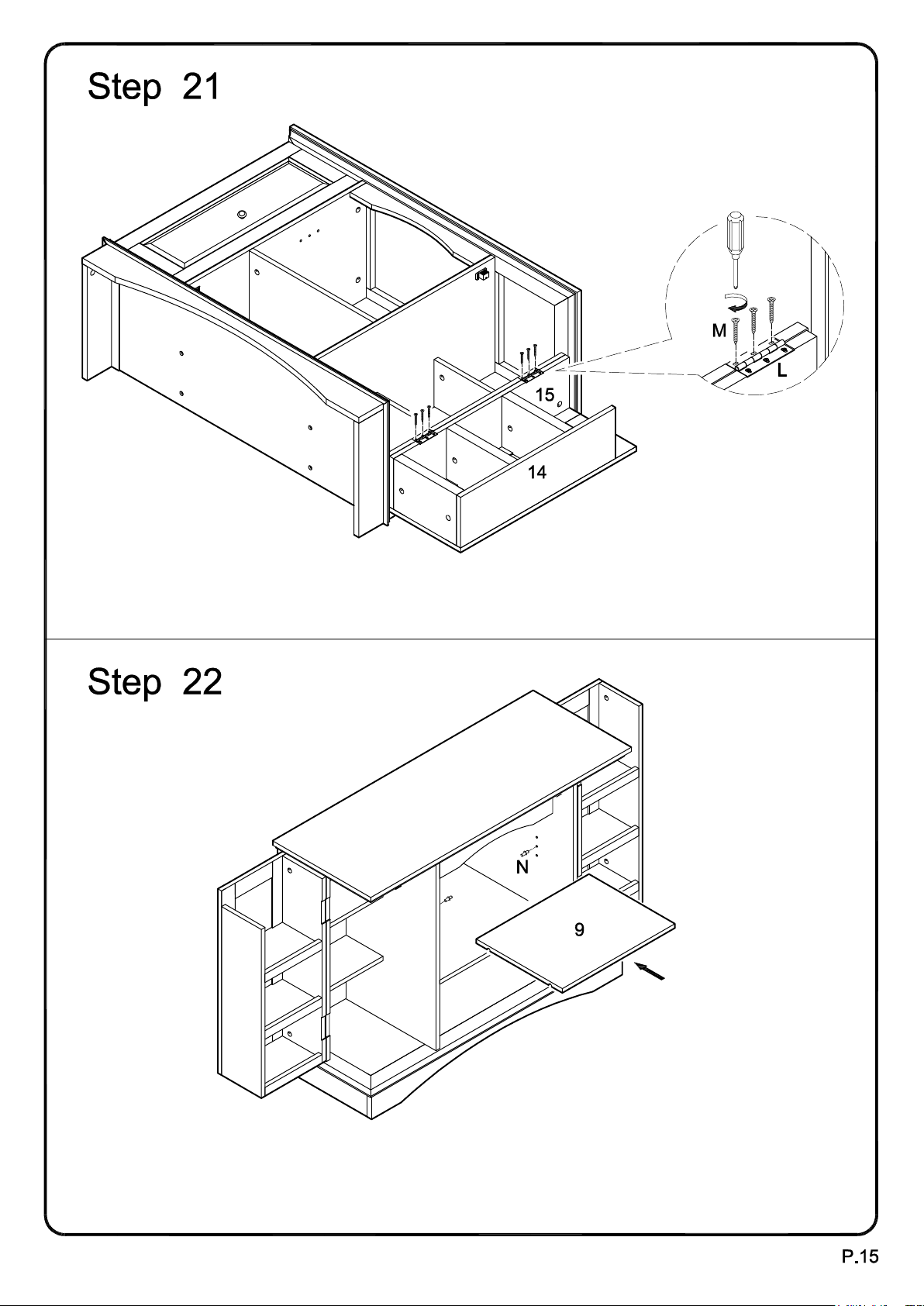

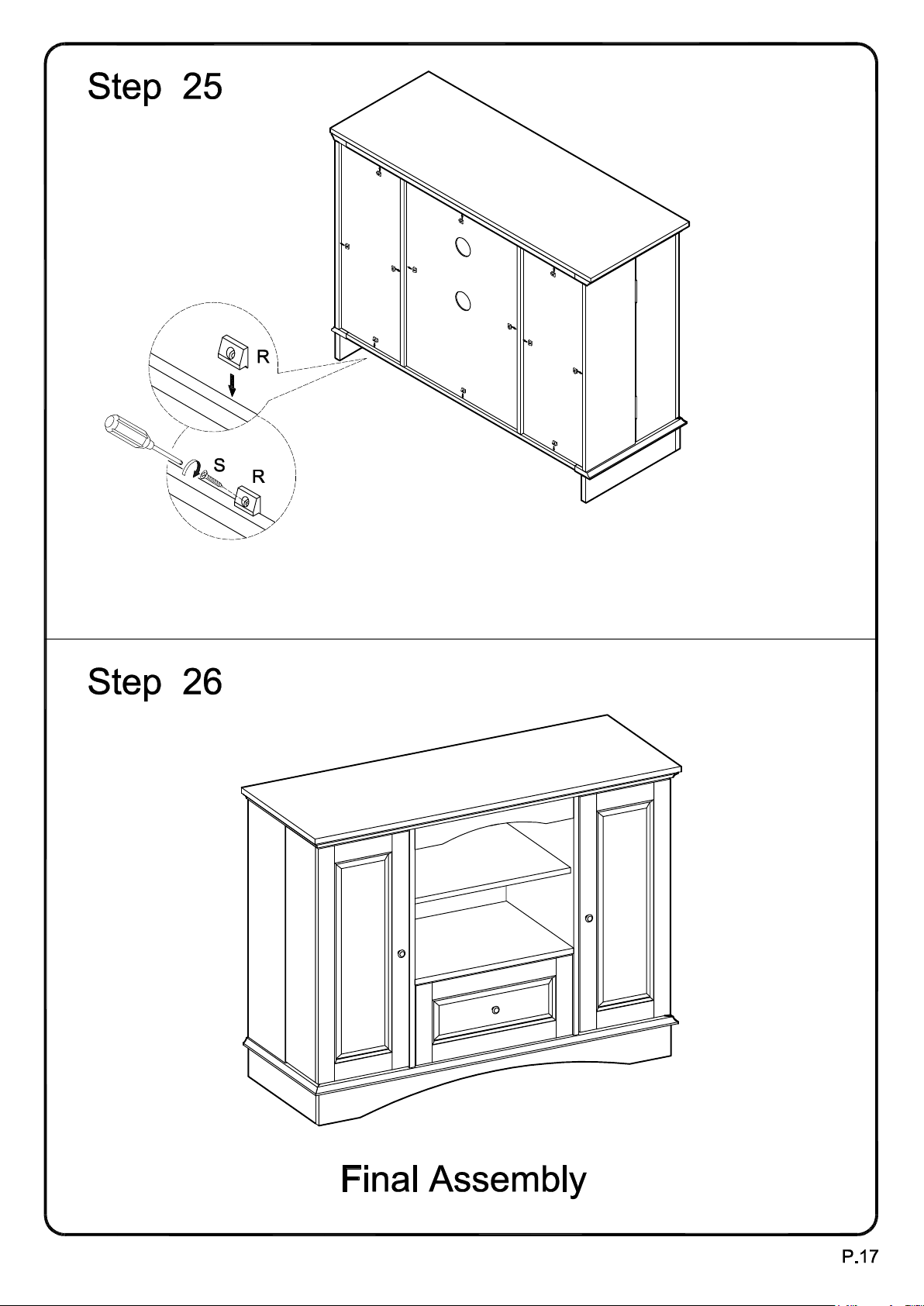

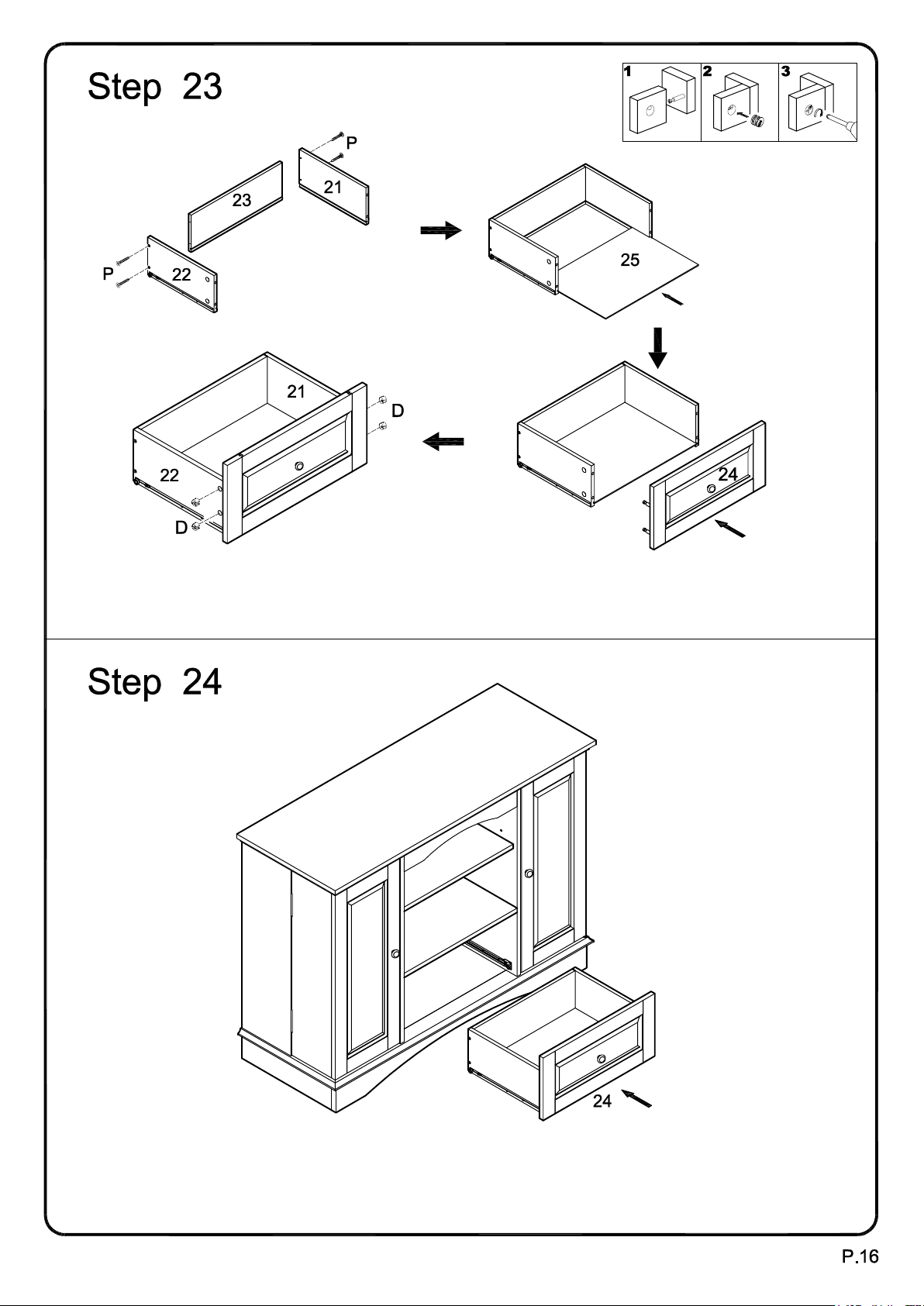

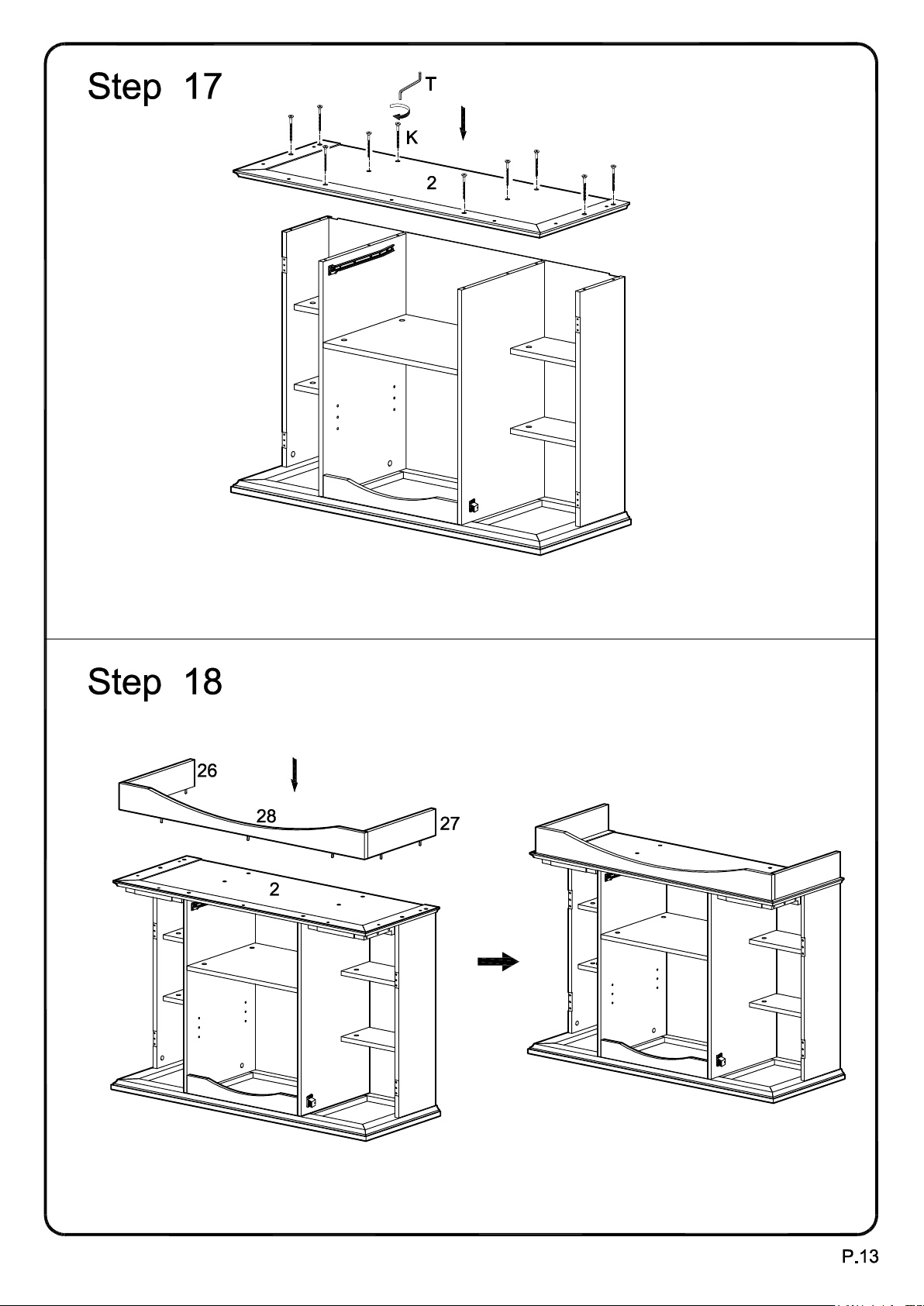

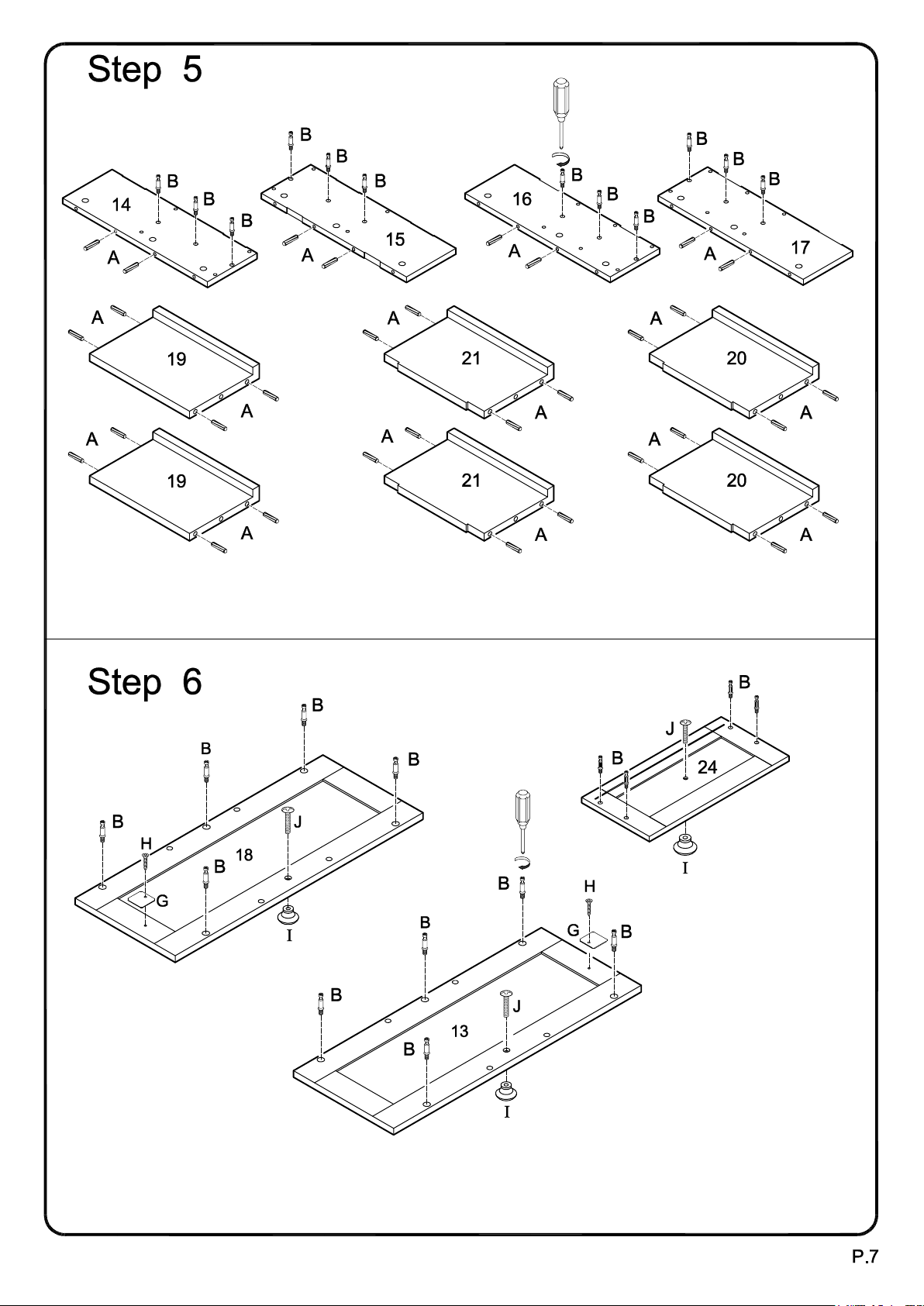

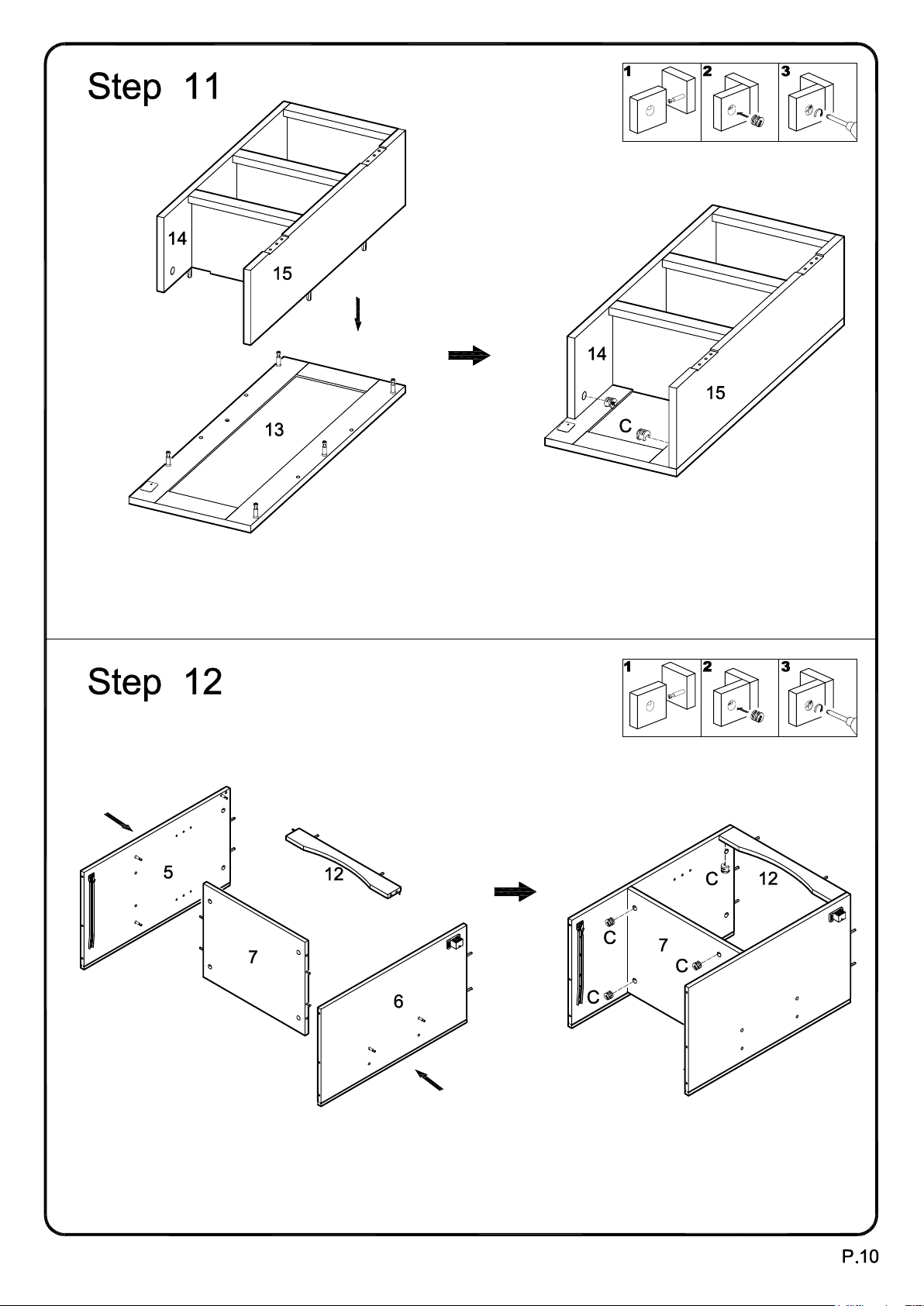

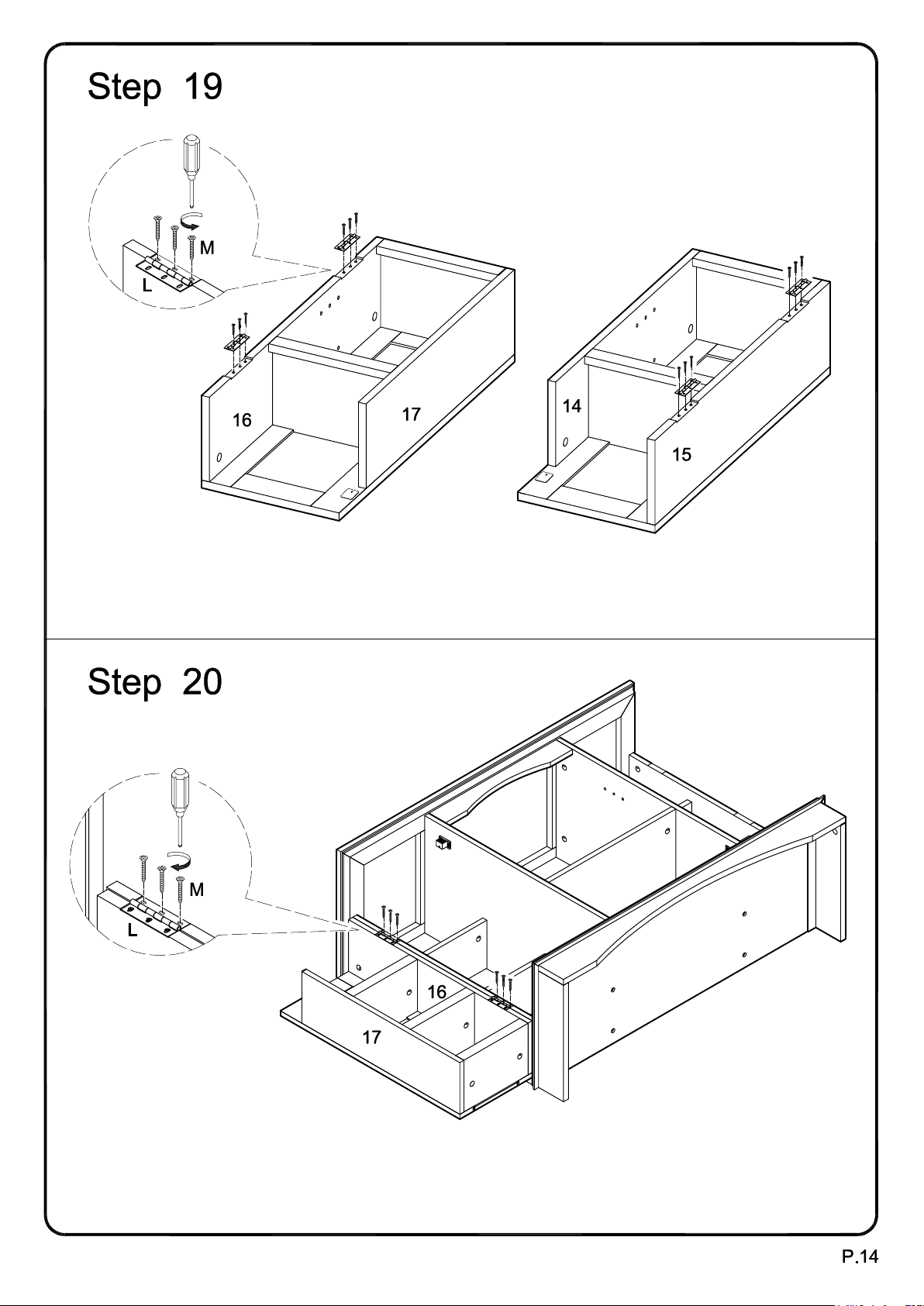

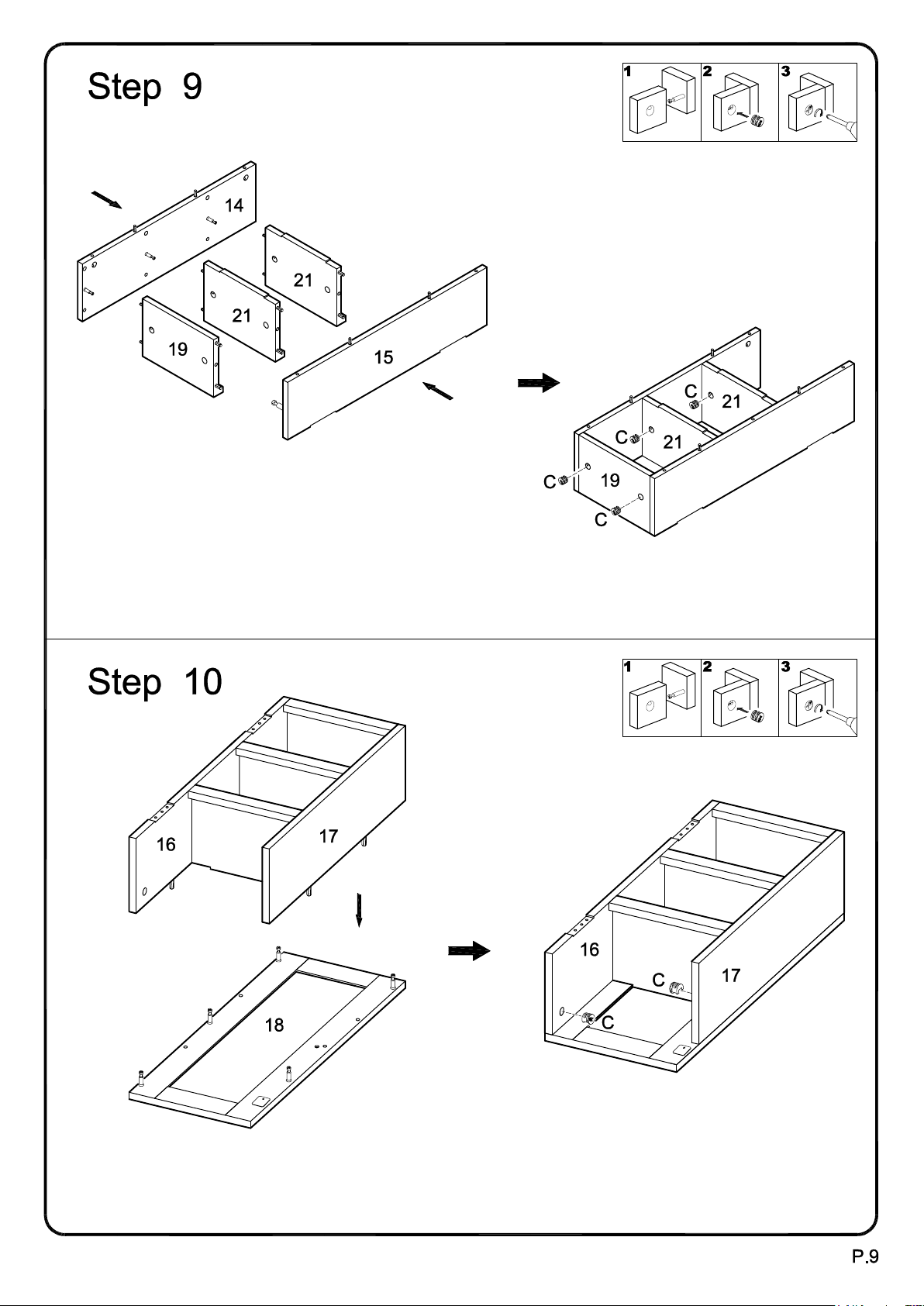

Insert dowels (A) into shelves (7,8).
