Walker WP3270LCD Operating Instructions Manual

Download

Page 1

COLOUR TELEVISION WITH REMOTE CONTROL

OPERATING INSTRUCTIONS

WP3270LCD

BE WALKER WISE...logon to www.walker.ie

Page 2

English - 1 -

Contents

Features ................................................................. 2

Introduction ............................................................. 2

Preparation ............................................................. 2

Safety Precautions ................................................. 3

Package Contents .................................................. 4

Environmental Information ..................................... 5

Repair Information .................................................. 5

Remote Control Buttons ......................................... 6

LCD TV and Operating Control Switch ................... 7

Viewing the Back side Connections ....................... 7

Viewing the Connections - Side Connectors .......... 8

Antenna Connection ............................................... 9

Aerial/Cable Connection ..................................... 9

Satellite Connection ............................................ 9

Power Connection .................................................. 9

Using USB Inputs ................................................... 9

Side HDMI Connection ......................................... 10

Connecting the LCD TV to a PC ........................... 10

Connecting to a DVD Player..................................11

Using Side AV Connectors ....................................11

Using Other Connectors ........................................11

Connecting to a Wired Network (optional) ............ 12

Remote Control Handset ...................................... 13

Inserting Batteries ............................................. 13

Switching On/Off ................................................... 13

To Switch the TV On ......................................... 13

To Switch the TV Off ......................................... 13

Digital Teletext (** for UK only) ......................... 13

Analogue Teletext ............................................. 14

Input Selection ...................................................... 14

Operation with the Buttons on the TV ............... 14

Operation with the Remote Control .................. 14

Viewing Electronic Programme Guide (EPG) ....... 14

Recording via EPG Screen ............................... 15

Programme Options.......................................... 16

First Time Installation............................................ 16

Auto Channel Scan Menu Operation ................ 18

Manual Tuning ..................................................... 19

Network Channel Scan ..................................... 19

Analog Fine Tune.............................................. 20

First Time Installation ........................................ 20

Clear Service List (*) ......................................... 20

Managing Stations: Channel List .......................... 20

Channel List Types ........................................... 20

Operating the Channel List ............................... 21

Moving a Channel ............................................. 21

Deleting a Channel ........................................... 21

Renaming a Channel ........................................ 21

Locking a Channel ............................................ 21

Channel List Filter ............................................. 21

Managing Stations: Favourites ............................. 21

Button Functions ............................................... 22

Managing Stations: Sorting Channel List ............. 22

On-Screen Information ......................................... 22

Media Playback Using Media Browser ................. 22

Viewing Videos via USB .................................. 23

Viewing Photos via USB ................................... 23

Slideshow Options ............................................ 23

Playing Music via USB ..................................... 23

Recordings Library ............................................... 24

Media Browser Settings........................................ 25

Timeshift Recording ............................................. 25

Instant Recording ................................................. 25

Watching Recorded Programmes ....................... 26

Changing Image Size: Picture Formats ................ 26

Conguring Picture Settings ................................. 27

Operating Picture Settings Menu Items ............ 27

Picture Settings Menu Items ............................. 27

PC Picture Settings........................................... 28

Conguring Sound Settings .................................. 29

Operating Sound Settings Menu Items ............. 29

Sound Settings Menu Items.............................. 29

Conguring Your TV’s Settings ............................. 29

Operating Settings Menu Items ........................ 29

Settings Menu Items ......................................... 29

Using a Conditional Access Module ..................... 30

Viewing Conditional Access Menu (*) ............... 30

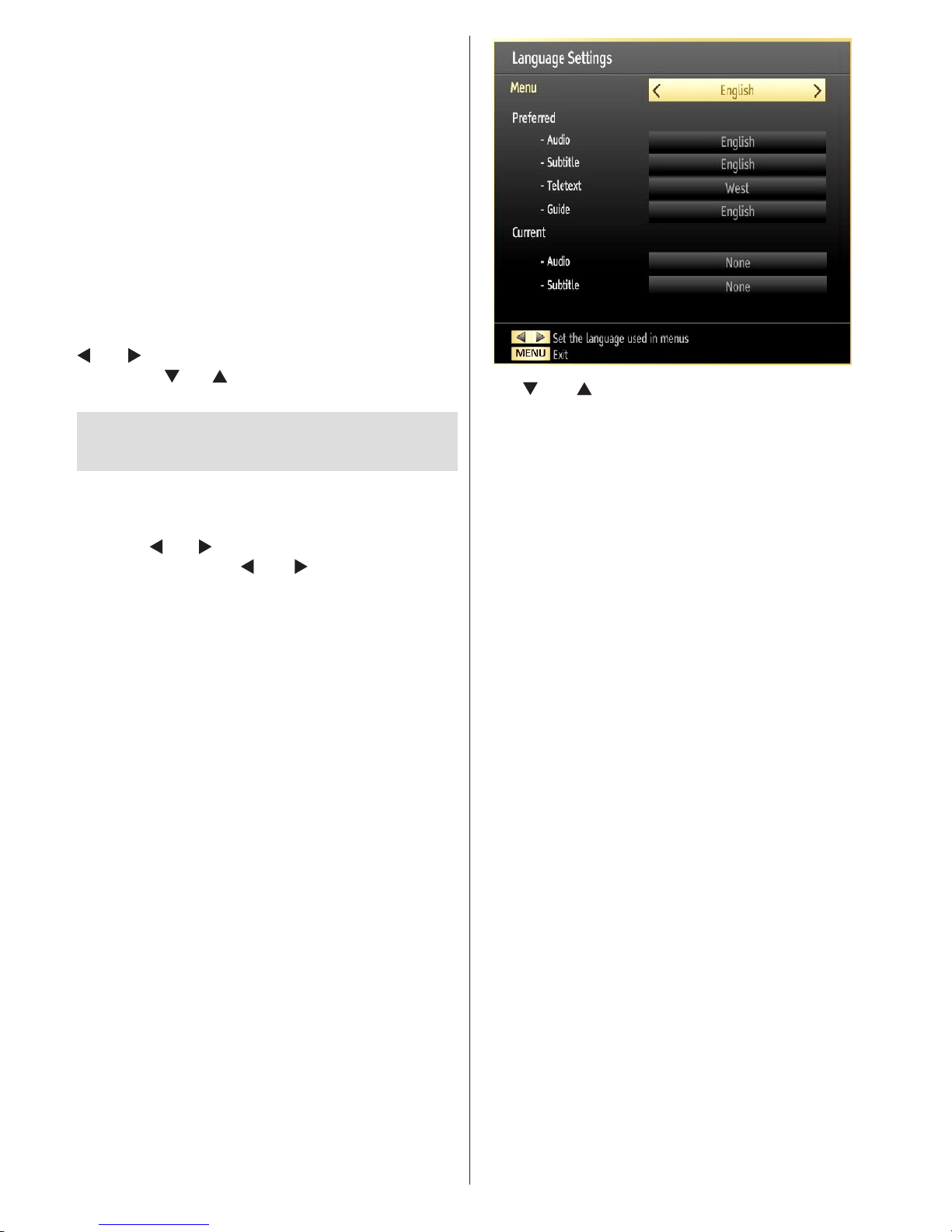

Conguring Language Preferences ...................... 30

Parental Control.................................................... 31

Parental Settings Menu Operation (*) ............... 31

Timers ................................................................... 32

Setting Sleep Timer .......................................... 32

Setting Programme Timers ............................... 32

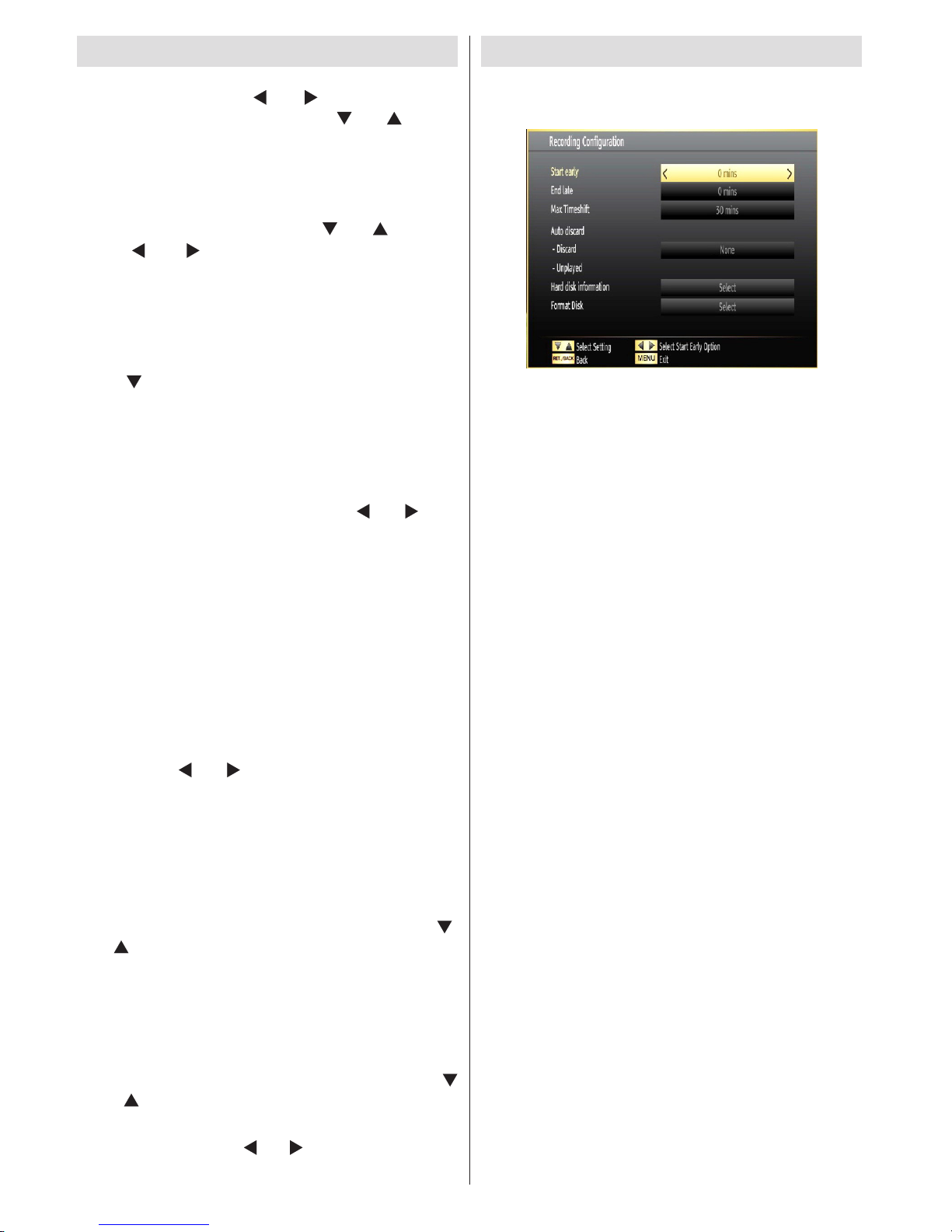

Recording Conguration ....................................... 32

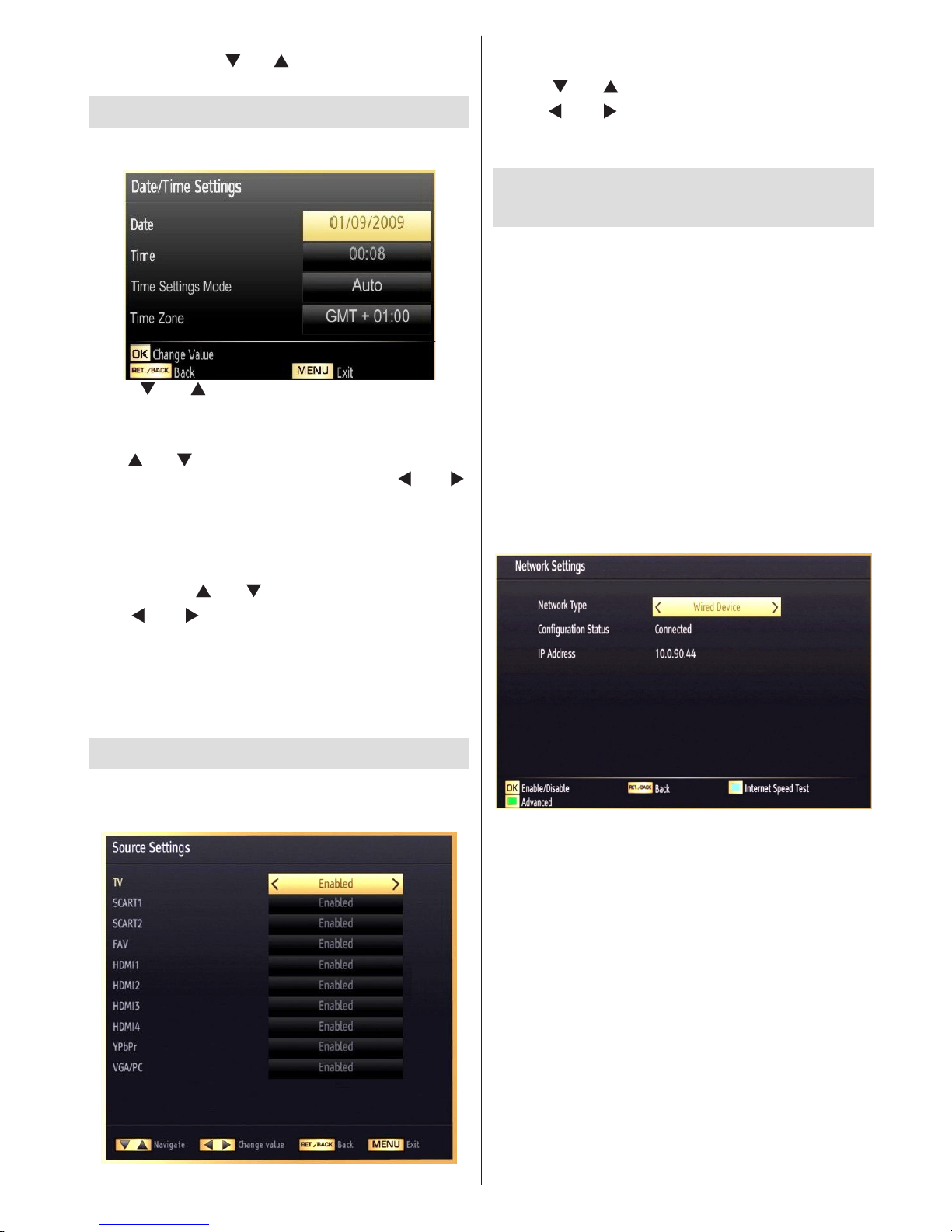

Conguring Date/Time Settings ............................ 33

Conguring Source Settings ................................. 33

Conguring Network Settings(optional) ................ 33

Conguring Wired Device Settings ................... 33

Setting Network Type ........................................ 33

Setting Conguration Status ............................. 33

IP Address ........................................................ 33

Conguring Wired Network Settings in Advanced

Mode ................................................................. 34

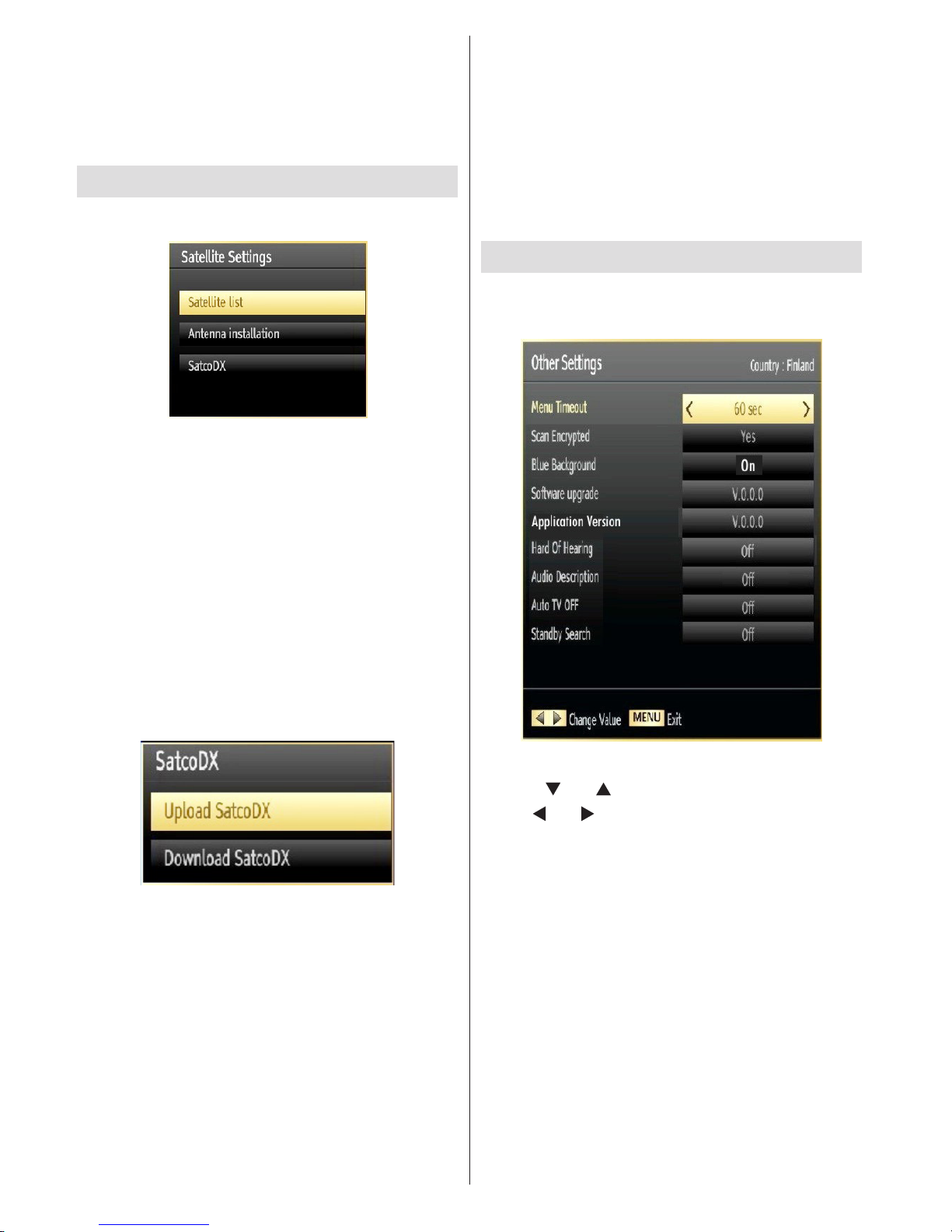

Conguring Satellite Settings ............................... 34

Conguring Other Settings ................................... 34

Operation .......................................................... 34

Other Features ..................................................... 35

Teletext ................................................................. 36

Tips ....................................................................... 36

Appendix B: PC Input Typical Display Modes ...... 37

Appendix C: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 37

Appendix D: Supported DVI Resolutions.............. 38

Appendix E: Supported File Formats for USB

Mode..................................................................... 38

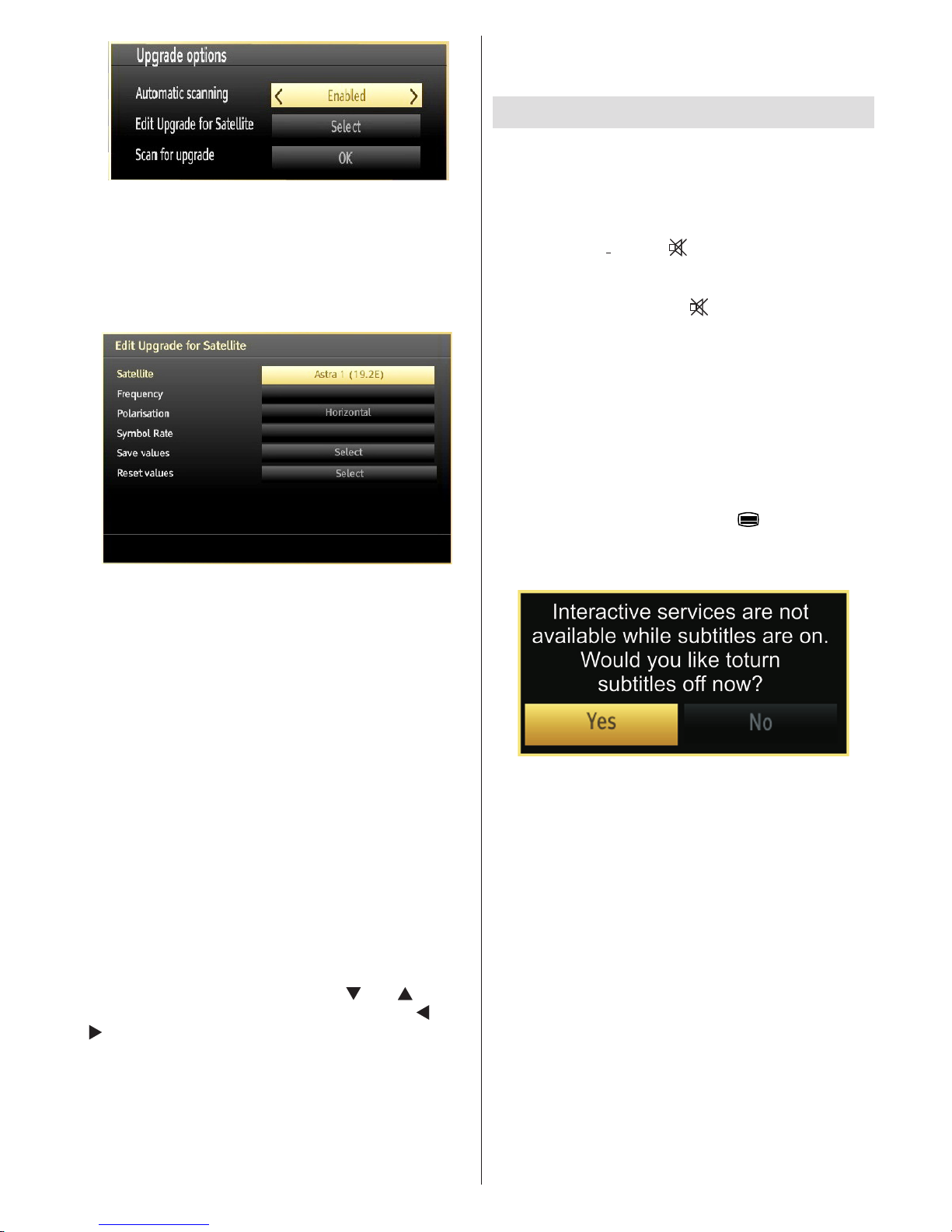

Appendix F: Software Upgrade ............................ 39

Manual Software Update .................................. 39

Specications ....................................................... 40

Digital Reception (DVB-T) .................................... 40

Digital Reception (DVB-C) .................................... 40

Digital Reception (DVB-S) .................................... 40

Important Instruction ............................................. 41

Page 3

English - 2 -

Features

Remote controlled colour LCD TV.•

Fully integrated Terrestrial digital-cable TV (DVB-T • C- MPEG2) (DVB-T-C MPEG4) DVB-Satellite.

• DVBS/S2 compliant

4 HDMI connectors for digital video and audio. • This connection is also designed to accept high

denition signals.

2 USB inputs.•

Programme recording•

Programme timeshifting•

10.000 programmes.•

OSD menu system.•

Integrated tuner DVB-T-C HD, MPEG 2 / MPEG 4 • compatible.

2 Scart sockets for external devices (such as video, • video games, audio set, etc.).

Teletext, Fastext, TOP text.•

Headphone connection.•

Automatic programming system.•

Forward or backward manual tuning.•

Sleep timer / Child lock.•

Automatic sound mute when no transmission.•

NTSC playback. •

AVL (Automatic Volume Limiting).•

Auto power down.•

PLL (Frequency Search).•

PC input. •

Plug&Play for Windows 98, ME, 2000, XP, Vista, • Windows 7.

• Ethernet (LAN) for service

• Picture Off function.

Introduction

Please read the corresponding instructions of this

handbook prior to the rst usage of the device, even

when the usage of electronic devices is familiar

to you. Notice especially the chapter SAFETY

PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these directions for use.

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references.

This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as

intended, or unauthorized modications have been

made. Operating your LCD TV in extreme ambient conditions may damage the device.

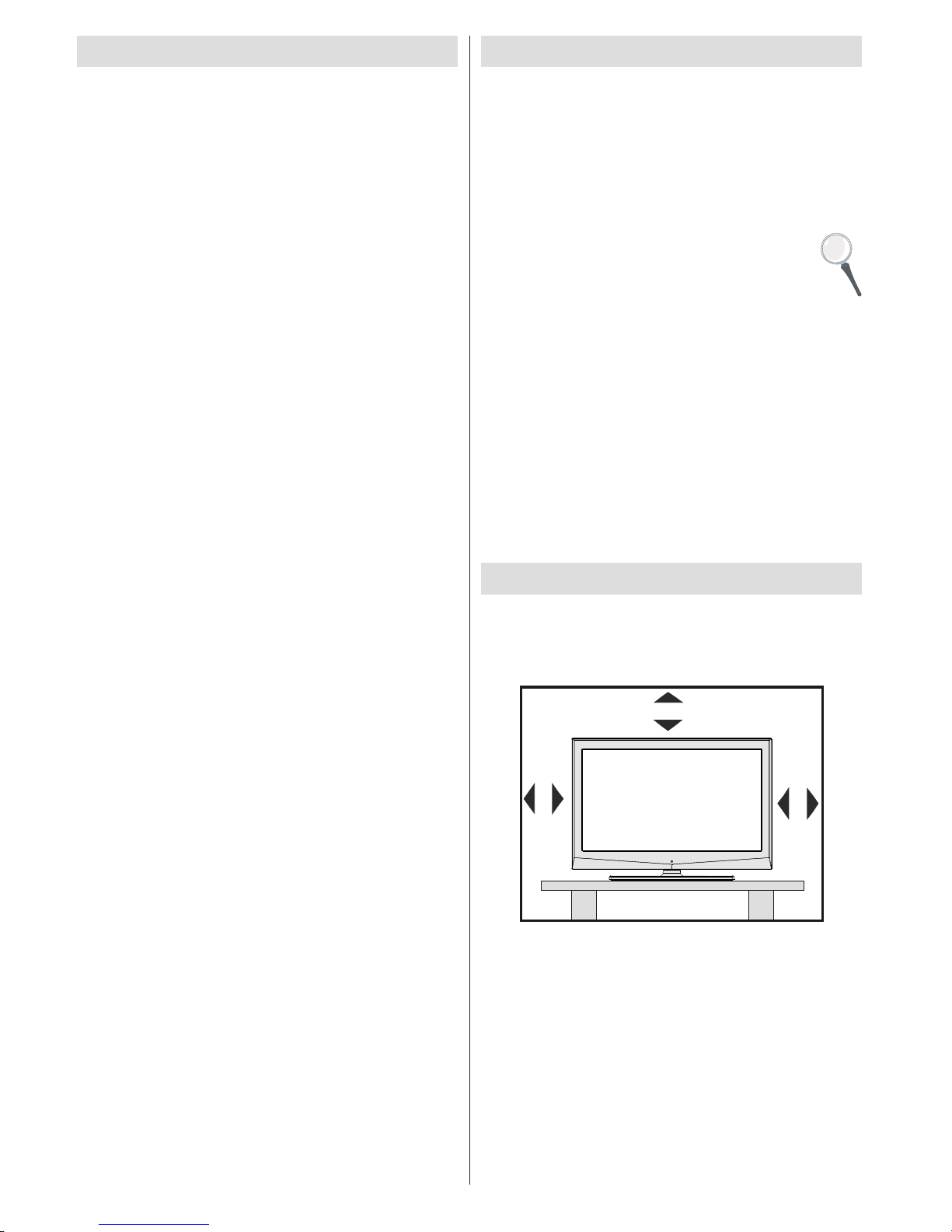

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.

10 cm

Page 4

English - 3 -

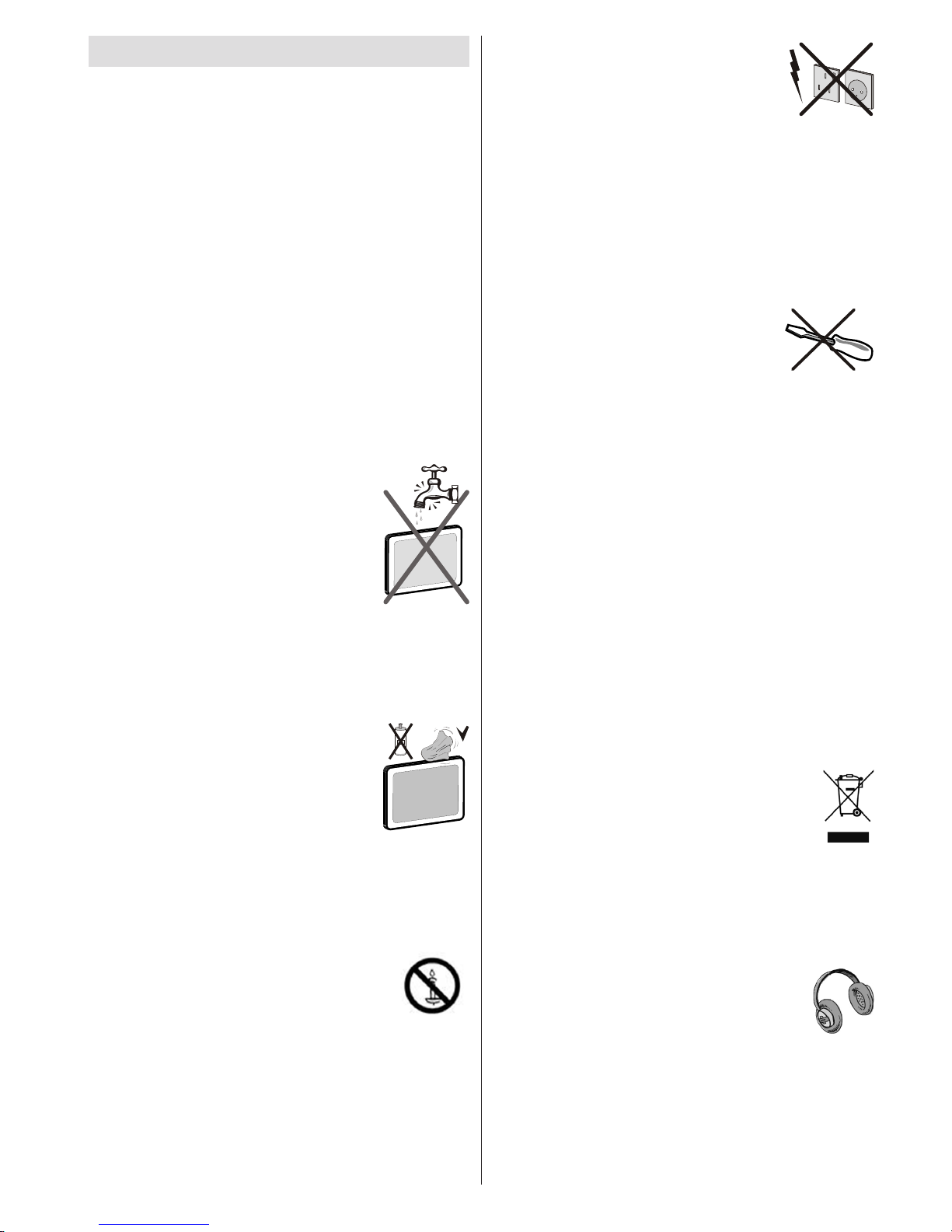

Safety Precautions

Rea d the fo llo wing re com men d ed sa fet y precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged

power cord can cause re or give you an electric shock.

When it is damaged and needs to be replaced, it should

be done by qualied personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with

liquids, such as ower vases, on top.

Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug

the TV and have it checked by qualied personnel

before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to

open ames and sources of intense heat

such as an electric heater. Ensure that

no open ame sources, such as lighted

candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine,

re or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts,

which are specied by the manufacturer or have the same specications as the original one. Unauthorized substitutions may result in re, electrical shock or

other hazards.

Servicing

Please refer all servicing to qualied

personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:•

Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children. Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.

• Don’t try to recharge batteries. Danger of explosion.

Replace batteries only with the same or equivalent type.

This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end o f its service life separately from your household wastes. There are separate collection systems for recycling in EU. For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

Page 5

English - 4 -

LCD Screen

The LCD panel is a very high technology product with

about a million thin lm transistors, giving you ne

picture details. Occasionally, a few non-active pixels

may appear on the screen as a xed blue, green or

red point. Please note that this does not affect the performance of your product.

Warning! Do not leave your TV in standby or operating mode when you leave your house.

Connection to a Television Distribution System (Cable TV etc.) from Tuner

Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a

re hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

Electrical device not in the hands of children

Never let children use electrical device unsupervised. Ch i ldren can´t always recogniz e properly t h e possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries unreachable for small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children. There is danger of suffocation.

Package Contents

LCD TV

1 2

C D

Source

Screen Lang

www

Presets

Text FAV Sleep

Back

Exit

Swap

P V

TUV

PQRS

WXYZ

JKLGHI

7 8 9

1 2

Subtitle

4 5

MNO

EPG

1 2

C D

Source

Screen Lang

www

Presets

Text FAV Sleep

Back

Exit

Swap

P V

TUV

PQRS

WXYZ

JKLGHI

7 8 9

1 2

Subtitle

4 5

MNO

EPG

Remote Control

Batteries: 2 X AAA

Instruction Book

Note: You should check the accessories after purchasing. Make sure that each accessory is included.

Page 6

English - 5 -

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the • environment but also you can save money by reducing electricity bills thanks to the energy efciency feauture

of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode •

as Eco, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If you set power save mode as Picture off, a message will appear on the screen and backlight will be off • within three seconds. Press any button on the remote controller to activate the picture again.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce • energy consumption.

Disconnect power when going away for longer time.•

It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption.Also • it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please help us to save environment by following these steps.•

Repair Information

Please refer all servicing to qualied personnel. Only qualied personnel must repair the TV. Please contact

your local dealer, where you have purchased this TV for further information.

Page 7

English - 6 -

Remote Control Buttons

No function1.

Play (in Media Browser mode) 2.

Programme recording3.

Fast rewind (in Media Browser mode)4.

No function5.

Mono/Stereo - Dual I-II / Current Language (*) 6.

Image size 7.

Teletext / Mix8.

Electronic Programme Guide9.

Numeric buttons10.

AV / Source11.

Menu on/off 12.

Programme Down - Page up / Programme Up - 13. Page down

Back to previous menu 14.

Green button15.

Red button16.

Media Browser17.

My Button 1(**)18.

My Button 2(**)19.

Info / Reveal (in TXT mode)20.

Blue button21.

Yellow button22.

Exit (in DTV mode) / Return / Index page (in 23. TXT mode)

OK / Select / Hold (in TXT mode) / Channel List24.

Volume up / down25.

Navigation buttons26.

Mute27.

Previous programme28.

Sleep timer29.

Favourite mode selection30.

Picture mode selecion 31.

Subtitle on-off / Subtitle (in Media Browser 32. mode).

No function33.

Fast forward (in Media Browser mode)34.

Stop (in Media Browser mode)35.

Pause / Timeshift recording36.

Standby37.

Operation LED light 38.

1 2

C D

Source

Screen Lang

www

Presets

Text FAV Sleep

Back

Exit

Swap

P V

TUV

PQRS

WXYZ

JKLGHI

7 8 9

1 2

Subtitle

4 5

MNO

EPG

1 2

C D

Source

Screen Lang

www

Presets

Text FAV Sleep

Back

Exit

Swap

P V

TUV

PQRS

WXYZ

JKLGHI

7 8 9

1 2

Subtitle

4 5

MNO

EPG

My Button 1(**)

Press MY BUTTON 1 for ve seconds when on a desired source, channel or link, until the “MY BUTTON

IS SET” message is displayed on the screen. This

confirms that the selected MY BUTTON is now

associated with the selected function.

My Button 2(**)

This button’s main function is to switch between

DVB-T, DVB-C and DVB-S broadcasts. However, if

you press MY BUTTON 2 for ve seconds, you can set a function to it as described in MY BUTTON 1.

Note that if you perform rst time installation, MY

BUTTON 2 will return to its default function, switching between DVB-T, DVB-C and DVB-S broadcasts.

Page 8

English - 7 -

LCD TV and Operating Control Switch

FRONT and REAR VIEW

Control Switch VIEW

Control Switch

1. Standby/On button

2. TV/AV button

3. Programme Up/Down buttons

4. Volume Up/Down buttons

Note: Press “ ” and buttons at the same time to view main menu.

Viewing the Back side Connections

1 3

300mA Max.

SCART 21. inputs or outputs for external devices.

SCART 12. inputs or outputs for external devices. Connect the SCART cable between SCART socket on

the TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

Component Video Inputs (YPbPr)3. are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output.

Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”, “Pb”, “Pr” correspond with your device’s connectors.

PC/YPbPr Audio Inputs4. are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.

Subwoofer Out5. is for connecting an external, active subwoofer to the set to give a much deeper bass effect. Use an appropriate RCA cable to connect the set to a subwoofer unit.

Page 9

English - 8 -

SPDIF Digital Out6. outputs digital audio signals of the currently watched source.

Use a digital optic cable to transfer audio signals to a device that has SPDIF input.

RF Input/SAT. input7. connects to an aerial,cable and satellite antenna system. Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

HDMI 3: HDMI Input8.

HDMI 2: HDMI Input9.

HDMI 1: HDMI Input 10. HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of

displaying High Denition pictures from devices such as a High Denition Satellite Receiver or DVD

Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080p (optional) signals. No sound connection is needed for an HDMI to HDMI connection.

PC Input11. is for connecting a personal computer to the TV set. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

Ethernet input (for service).12.

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe 1. to. For more information, see “Conditional Access” section.

USB Inputs. 2.

Note that programme recording feature is available via these USB inputs. You

canconnect external hard disk drives to this input.

Side HDMI Input is for connecting a device that has an HDMI socket.3.

Headphone jack is used for connecting an external headphone to the system. 4. Connect to the HEADPHONE jack to listen to the TV from headphones (optional).

Video Input is used for connecting video signals of external devices.Connect 5. the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.

Audio Inputs are used for connecting audio signals of external devices. 6. Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.

Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

7. , switch is used for turning the TV on or off.

5Vdc-Max500mA

Page 10

English - 9 -

Antenna Connection

Aerial/Cable Connection

Connect the aerial or cable TV plug to the AERIAL • INPUT socket located at the rear of the TV.

Satellite Connection

Connect the satellite TV plug to the SATELLITE • INPUT socket located at the rear of the TV.

1 3

SubW. OUT

300mAMax.

Aerial or Cable

Satellite

DiSEqC Switch

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket.

After unpacking, allow the TV set to reach the • ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Using USB Inputs

USB Connection

You can connect a USB hard disk drive or USB •

memory stick to your TV by using the USB inputs

of the TV. This feature allows you to play les stored

in a USB drive or record programmes.

2.5” and 3.5” inch (hdd with external power supply) • external hard disk drives are supported.

If one or more partitions of your hard drive are exFAT • formatted, none or less partitions might be visible,

even if they are formatted with a different le system

than exFat.

To record a programme, you should rst connect •

a USB disk to your TV while the TV is switched

off. You should then switch on the TV to enable

recording feature. Otherwise, recording feature will not be available.

IMPORTANT !

You may back up your les before making any •

connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not

be responsible for any le damage or dataloss.

It is possible that certain types of USB devices (e.g. • MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV.

IMPORTANT: The TV supports only FAT32 and NTFS disk formatting. However, NTFS format is not supported for recording features. For recording, if you connect a USB disk with NTFS format, the TV will ask

you to format the content. See the section, “Format Disk” in the following pages for more information on disk formatting.

Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case.

USB Disk Connection

• Plug your USB device to the USB input of the TV.

Note: Plug or unplug your USB disk while the TV is switched off.

Note: If you are going to connect a USB hard disk drive to the TV set, USB connection cable used between the disk drive and the TV should have a USB logo and should be as short as possible.

Note: While formatting a USB hard disk that has 1TB

(Tera Byte) or more le capacity, you can experience

problems with the formatting process. In such a case, you should format the disk with your personal computer and the formatted disk type should be FAT32.

SIDE VIEW USB MEMORY

CAUTION !

Quickly plugging and unplugging USB devices, • is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

Do not pull out USB module while playing or •

recording a le.

Programme Recording

To record a programme, you should rst connect a

USB disk to your TV while the TV is switched off.

You should then switch on the TV to enable recording

feature.

IMPORTANT: When using a new USB hard disk drive,

it is recommended that you rst format the disk using

your TV’s “Format Disk” option.

For using recording function, you should connect a • USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy

recordings on a computer; however, these les will

not be available to be played on a computer. You can play the recordings only via your TV.

Page 11

English - 10 -

Side HDMI Connection

You can use side HDMI input to connect a device that

has an HDMI connector to your TV. Use an appropriate HDMI cable to make such a connection. Note that you should switch to the HDMI source to view the content from the connected device. Power off both the TV and the device before making any connections. Side HDMI Input supports connections between HDMI devices

such as DVD players. You can use side HDMI input

of the TV to connect to an external HDMI device. Use an HDMI cable to connect.

HDMI DEVICE SIDE VIEW

Connecting the LCD TV to a PC

For displaying your computer’s screen image on your

LCD TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LCD TV. When the connection is made, switch to PC source. See “Input selection” section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

PC audio cable

(not supplied)

PC VGA cable (not supplied)

Audio inputs of the TV

PC input of the TV

Audio output of the PC

Monitor output of the PC

For more information on recording programmes, • see sections “Instant Recording”, “Timeshifting”, “Electronic Programme Guide”, “Recordings Library” or “Recording Timers” in the following parts.

Rec ord e d pro gra mmes ar e sp l it in to 4G B • partitions.

Recorded programmes are stored in the following • directory of the connected USB disk: \DVR\RECS. All recordings are indicated with a number. A text

(txt) le is created for each recording. This text

file includes information such as broadcaster, programme, and recording time.

Timeshifting may be stopped according to USB • device write speed. If the USB device speed is not enough for video stream bitrate, timeshifting may be stopped and recording may fail. If HD service bitrate is greater than 13 Mbp/sec. some freeze can be seen during timeshifting on both USB disk and on external HDD.

Recordings of HD programmes can occupy bigger •

size on the USB disk depending on the broadcast’s

resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during the recording. • This may harm the connected USB/HDD.

Multipartiton support is available. Maximum two • different partitions are supported. If the disk have more than two partitions, crash may occur. First partition of the usb disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.

Some stream packets may not be recorded because • of signal problems, so sometimes video may freezes during playback.

Record, Play, Pause, Display (for PlayListDialog) • keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.

• Radio record is not supported.

• The Tv can record programmes up to ten hours.

Page 12

English - 11 -

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer

to your DVD player’s instruction book for additional

information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

If your DVD player has an HDMI socket, you can • connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, “Input Selection” section.

Mos t DV D play ers ar e conn e cte d th roug h • COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When

the connection is made, switch to YPbPr source.

See, “Input selection” section.

You may also connect through the SCART 1 or •

SCART 2. Use a SCART cable as shown below.

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

HDMI

inputs

Scart sockets

DVD Player

Scart Cable

(not supplied)

HDMI Cable

(not supplied)

HDMI

SCART

Using Side AV Connectors

You can connect a range of optional equipment to

your LCD TV.

For connecting a camcorder, connect to the VIDEO • IN socket and the AUDIO SOCKETS. Do not connect the camcoder to VIDEO IN socket at the same time since it can cause noise in the picture. For selecting the related source, see the section “Input selection” in the following parts.

To listen the TV sound from headphon•

Using Other Connectors

You can connect a range of optional equipment

to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

For connecting a to a device that has SPDIF support, • use an appropriate SPDIF cable to enable sound connection.

External Speakers

A device that

supports

SPDIF signal.

Page 13

English - 12 -

Connecting to a Wired Network (optional)

For connecting to a wired LAN network, you should perform the following steps:

Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.•

Afterwards, you should connect your PC to the one of your modem’s LAN connectors (e.g. LAN 1) by using •

a proper LAN cable.

Use another LAN output of your modem (e.g. LAN 2) to enable the connection to your TV. You can add • your TV to your LAN by connecting the LAN port at the rear of your TV to your modem’s LAN connector as

illustrated below.

To access and play shared les, you must Select Media Browser. Press Menu button and select Media • Browser by using Left or Right button. Press OK to continue. Select the desired le type and press OK. You must always use the Media Browser screen to access and play shared network les.

To congure wired settings please refer Network Settings section in Settings menu.

PC with Nero Media Home software installed

Lan(Ethernet cable)

Broadband ISP Connection

Rear of TV

You might be able to connect your TV to your LAN network depending on your network’s conguration. In •

such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

The modem port on the wall

Rear of TV

Page 14

English - 13 -

Remote Control Handset

Inserting Batteries

Remove the battery cover located on the back of • the handset by gently pulling backwards from the indicated part.

Insert two • AAA/R3 or equivalent type batteries inside. Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC • 50 Hz.

Switch the • “ ” button to position “|” so the TV will switch to standby mode. Then the standby LCD lights up.

To switch on the TV from standby mode either:•

Press the “• ” button, P+ / P- or a numeric button on the remote control.

Press the • -P/CH or P/CH+ button on the TV.

The TV will then switch on.

Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

Switch the “• ” button to position 2 as illustrated,

( ) so the TV will switch OFF.

• To power down the TV completely, unplug the

power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LCD can blink to indicate that features such

as Standby Search, Over Air Download or Timer is active.

Standby Notications

If the TV switches off while in No Signal mode, the following on-screen message will be displayed on the next switch-on:

When the Auto Tv Off timeout is reached, the following

message will be displayed on the screen. Select YES

to shut down the TV. Select NO to cancel. The TV will switch off as well, if you do not make a selection on this screen.

If the TV switches off owing to the auto power down feature, the following on-screen message will be displayed on the next switch-on:

Digital Teletext (** for UK only)

• Press the “ ” button.

The digital teletext information appears.•

Operate it with the coloured buttons, cursor buttons • and OK button.

The operation method may differ depending on the contents of the digital teletext.

Follow the instructions displayed on digital teletext screen.

When Press “• OK” button or similar message appears on the screen, press the OK button.

When the “• ” button is pressed, the TV returns to television broadcasting.

With digital broadcasting (DVB), in addition to digital • teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.

Page 15

English - 14 -

The aspect ratio (picture shape) when watching • a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.

When you press the “• ” button again, the digital teletext screen will be displayed.

Analogue Teletext

Use of teletext and its functions are identical to the analogue text system. Please do refer to the “TELETEXT” explanations.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press “SOURCE” button on your remote control consecutively for directly changing sources.

(*) FAV source option will switch to the device connected via the SIDE AV socket.

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

Press “• ” button to decrease volume or button to increase volume, so a volume level scale (slider) will be displayed on the screen.

Programme Selection

Press “• P/CH +” button to select the next programme or “P/CH -” button to select the previous programme.

Viewing Main Menu

Press the “• V+”/”V-” button at the same time to view main menu. In the Main menu select the sub-menu using “AV” button and set the sub-menu using “

” or “ ” buttons. To learn the usage of

the menus, refer to the menu system sections.

AV Mode

Press the “• AV” button in the control panel on the TV to switch between AV modes.

Operation with the Remote Control

The remote control of your TV is designed to control • all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Volume Setting

Press “• V+” button to increase the volume. Press “V-” button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

Press “• P -” bu t ton to sel e ct t h e pr e vio us programme.

Press “• P +” button to select the next programme.

Programme Selection (Direct Access)

Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between, press the numeric buttons consecutively. When the pressing time is due for the second

numeric button, only the rst digit programme will

be displayed. Press directly the programme number to reselect single digit programmes.

Note: If the background is transparent, on screen texts will be slightly transparent as well.

Viewing Electronic Programme Guide (EPG)

You can view the electronic programme guide (EPG)

to view information about available programmes. To view the EPG menu please press EPG button on the remote control.

Press “• ”/“ ” buttons to navigate throug h channels.

Press “• ”/“ ” buttons to navigate through the programme list.

EPG• menu displays available information on all channels.

Please note that event information is updated • automatically. If there are no event information data available for channels, EPG will be displayed with blanks.

(*)

Page 16

English - 15 -

OK (Options): Views/records or sets timer for future

programs.

INFO (Event Details): Displays the programmes in detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordance with timeline schedule

Blue button (Filter): Views ltering options.

(RECORD): the TV will start to record the

selected progamme. You can press again to stop

the recording.

—EPG List schedule—

Red button (Prev Time Slice): Displays the

programmes of previous time slice.

Green button (Next Time Slice): Displays the programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes of previous day.

Blue button (Next day): Displays the programmes of the next day.

Text button (Filter): Views ltering options.

Numeric buttons (Jump): Jumps to the preferred

channel directly via numeric buttons.

OK (Options): Views/records or sets timer for future programs.

INFO (Event Details): Displays the programmes in detail.

(RECORD): the TV will start to record the

selected progamme. You can press again to stop

the recording.

—Timeline schedule—

Red button (Prev Day): Displays the programmes

of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): E xpands programme information.

Blue button (Filter): Views ltering options.

INFO (Event Details): Displays the programmes in

detail.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): Views/records or sets timer for future programs.

Text (Search): Displays “Guide Search” menu.

SUBTTL: Press SUBTITLE button to view Select

Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

(Now) : Shows the current programme.

(RECORD): the TV will start to record the

selected progamme. You can press again to stop

the recording.

Recording via EPG Screen

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

(RECORD): the TV will start to record the

selected progamme. You can press again to stop

the recording.

Note: Switching to a different broadcast or source is not available during the recording.

/ : Page left / Page right.

Page 17

English - 16 -

Programme Options

In EPG menu, press the OK button to enter the “Event Options” menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

After you have selected a programme in EPG menu, • press the OK button and and Options screen will be displayed. Select “Record” option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that • programme and press the OK button and select the option “Delete Rec. Timer”. The recording will be cancelled.

Note: You cannot switch to any other channel or source while there is an active recording on the current channel.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select “Set Timer on Event” option and press OK button. You can set a timer for future programmes.

To cancel an already set reminder, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

First Time Installation

IMPORTANT: Ensure that the aerial, cable or satellite is connected and a Common Interface module is not inserted before switching on the

TV for the rst time installation.

Do not insert a common interface module during the search process.

When the TV is operated for the rst time, installation •

wizard will guide you through the process. First, language selection screen will be displayed:

Use “• ” or “ ” buttons to select your language and press OK button to set selected language and continue.

After selecting the language, “• Welcome!” screen will be displayed, requiring you to set Country, Search

Type, Teletext Language and Scan Encrypted

options.

By pressing “• ” or “ ” button, select the country you want to set and press “ ” button to highlight Search Type option. Use “ ” or “ ” to set the desired search type. Available search types are digital only, analog TV only and full.

When set, press “• ” to select Teletext Language. Use “ ” or “ ” to select the desired Teletext Language.

Press • OK button on the remote control to continue and the following message will be displayed on the screen:

Page 18

English - 17 -

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

To continue please select YES and press OK. To

cancel operation, select NO and press OK.

You can select frequency ranges from this screen. For

highlighting lines you see, use “ ” or “ ” button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase

accordingly. When nished, press OK button to start

automatic search.

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Note: You can press “MENU” button to cancel.

After all the available stations are stored, Channel • List will be displayed on the screen. If you like the sort channels, according to the LCN, please select

“Yes” and than press “OK”.

Press • OK button to quit channel list and watch TV.

If you select Satellite option from the Search Type screen, you can set a satellite and watch satellite channels.

There are three types of antenna selection. You can

select Antenna type as Direct, Unicable or DiSEqC switch by using “ ” or “ ” buttons.

Direct: If you have a single receiver and a direct satellite dish, select this antenna type. After selecting Direct, another menu screen will be displayed. Select an available satellite and press OK to scan for services.

Page 19

English - 18 -

Unicable: If you have multiple receivers and a

unicable system, select this antenna type. Press OK to

continue. Congure settings by following instructions

on the screen. Press OK to scan for services.

DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (if available). Press GREEN button to scan all satellites or press YELLOW button to scan only the highlighted satellite. To save and exit press OK button.

When there is a short circuit in LNB, “Tuner Overload” message is displayed on the screen, in that case, please remove your satellite cable immediately from your TV set.

Auto Tuning

HINT: Auto tuning feature will help you to retune the TV set in order to store new services or stations.

Press “MENU” button on the remote control and select Installation by using “ ” or “ ” button. Press OK button and the following menu screen will be displayed.

Select Automatic Channel Scan (Retune) by using “ ”/“ ” button and press OK button. Automatic Channel Scan (Retune) options will be displayed. You can select options by using “ ”/“ ” and OK buttons.

Auto Channel Scan Menu Operation

Digital Aerial: Searches and stores aerial DVB stations.

Digital Cable: Searches and stores cable DVB stations.

Analogue: Searches and stores analogue stations.

Digital Aerial & Analogue: Searches and stores both

analogue and aerial DVB stations.

Digital Cable & Analogue: Searches and stores both analogue and cable DVB stations.

Satellite: Searches and stores satellite channels.

Whenever you select an automatic search type and • press OK button, a conrmation screen will appear on the screen. To start installation process, select

Yes, to cancel select No by using .“ ” or “ ” and OK button.

After auto channel scan type is set and selected • and conrmed, installation process will start and

progress bar will move along. Press “MENU” button to cancel process. In such a case, located channels are not stored.

Page 20

English - 19 -

Manual Tuning

HINT: This feature can be used for direct broadcast entry. You should select satellite before starting manual search. Satellite settings menu is located in the settings menu.

Select • Manual Channel Scan from the Installation menu by using “ ”/“ ” and OK buttons. Manual Scan options screen will be displayed.

Select the desired • Search Type using “ ” or “

” button. Manual search options will change accordingly. Use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option. You can press “MENU” button to cancel.

Digital Aerial Manual Search

In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital Aerial, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search.

Digital Cable Manual Search

In cable manual scan, you can enter frequency, modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.

Satellite Manual Search

In satellite manual scan, you can enter frequency, polarization, symbol rate, network channel scan and satellite options. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Note: Frequency, polarization and symbol rate may change in accordance with the selected channels.

Analogue Manual Search

After selecting search type as analogue, you can use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option.

Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Network Channel Scan

Select Network Channel Scan from the installation menu by using “ ” or “ ” and OK buttons. Network Channel Scan selection screen will be displayed. Select Digital Aerial or Digital Cable and press OK button to continue. The following message will

be asked. Select Yes to continue or select No to

cancel.

Page 21

English - 20 -

If you start Digital Aerial scan process, automatic scanning will start. You can press “MENU” button to cancel.

If you start Digital Cable scan process, the following screen will be displayed.

You can select frequency ranges from this screen. For

accordingly. When nished, press OK button to start

automatic search. Automatic searching screen will be displayed during the process.

Note: If you select an extended gap between Start and Stop frequency rate, automatic search duration will take a longer time.

Analog Fine Tune

Select • Analog Fine Tune from the Installation menu by using “ ” or “ ” and OK buttons. Analog Fine Tune screen will be displayed. Analog Fine Tune feature will not be available if there are no analog channels, digital channels and external sources

stored.

Press • OK button to proceed. Use “ ” or “ ” button to set Fine Tune. When nished, press OK button again.

First Time Installation

If you want to delete all channels and settings please select First Time Installation and press OK. The

TV’s memory will be deleted and installation progress

starts.

Clear Service List (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press “ ” or “ ” button to select Clear Service List and then press OK. The following OSD will be displayed on the screen:

Select YES and press OK to continue or select NO

and press OK button to cancel.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

Press “• MENU” button to view main menu. Select Channel List item by using “ ” or “ ” button. Press OK to view menu contents.

Select Edit Channel List to manage all stored channels. Use “ ” or “ ” and OK buttons to select Edit Channel List.

Channel List Types

You can set channel list type function to display

desired types of available channels.

RED: Li st s onl y dig i tal aeria l and ana l ogue broadcasts.

GREEN: Lists only digital cable and analogue broadcasts.

YELLOW: Li sts only sa t ellit e an d ana logue broadcasts.

OK: Watch selected.

MENU: Exits.

BLUE: Displays ltering options.

Page 22

English - 21 -

Operating the Channel List

Press “• ” or “ ” button to select the channel that will be processed. Press “ ” or “ ” button to select a function on Channel List menu.

Use • P+/P- buttons to move page up or down.

Press • BLUE button to view ltering options.

Press “• MENU” button to exit.

Note: The channels listed are mixed at the channel list. Channel types can be differentiated by the icons next to them: DTV (digital tv), HD (HD TV) , ATV (Analogue TV) ,TV (TV), RD (Radio), encrypted, lock, and at the favourite list.

Listed channels can also be sorted by using the active

channel list lter.

Moving a Channel

First select the desired channel. Select Move option • in the channel list and press OK button.

Edit Number screen will be displayed. Enter the • desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen

will be displayed. Select Yes if you want to move the

channel and press OK.

Press • OK button to process. Selected channel is now moved.

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select • Delete option. Press OK button to continue.

A warning screen will appear. Select • YES to delete, select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and • select Edit Name option. Press OK button to continue.

Pressing “• ” or “ ” button moves to the previous/ next character. Pressing “ ” or “ ” button toggles

the current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the

characters printed above the button one by one as the button is pressed.

When nished, press • OK button to save. Press “MENU” to cancel.

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

Select the channel that you want to lock and select • Lock option. Press OK button to continue.

You will be asked to enter parental control PIN. •

Default PIN is set as 0000. Enter the PIN number.

Press • OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.

Channel List Filter

Channel list ltering option can be set as desired. You can list only satellite or analogue channels. Use lter

to set channels as TV only, Radio only and Text only. If encrypted channel are not listed, you can as set free by using CAS/free feature. You can jump to the

related channels by using A-Z options. You can sort channels alphabetically by using Sort option. You can

customize channel list by using all this feature.

Managing Stations: Favourites

You can create a list of favourite programmes.

Press “• MENU” button to view main menu. Select Channel List item by using “ ” or “ ” button. Press

OK to view menu contents.

Select • Favourites to manage favourite list. Use “ ”/“ ” and OK buttons to select Favourites.

You can set various channels as favourites so that •

only the favourite channels are navigated.

Page 23

English - 22 -

Select a channel by using “• ” or “ ” button. Press OK button to add selected channel to favourites list. Press OK button again to remove.

Button Functions

OK• : Add/remove a station.

YELLOW• : Tag/untag a channel.

GREEN• : Tag/untag all channels.

BLUE• : Displays ltering options.

When a channel is added to the favourite list, you can press FAV button while watching TV in order to navigate only through your favourite channels with P+/P- button.

Press FAV button again to navigate through all channels again.

Note: In the channel list, always all channels will be shown.

Managing Stations: Sorting Channel List

You can select broadcasts to be listed in the channel

list. To display specic types of broadcast, you should

use Active Channel List setting.

Select Active Channel List from the Channel list menu by using “ ” or “ ” button. Press OK button to continue.

You can choose an active channel list from the list by

using “ ” /“ ” and OK buttons.

Broadcast Type (optional): When you set the desired

broadcast type by using “ ” or “ ” button, the TV will display the related channel list. If the related source has does not include any stored channels, “No channels for this type have been found.” message will be displayed on the screen.

On-Screen Information

You can press “INFO” button to display on-screen information. Details of the station and current programme will be displayed on the information banner.

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number.

Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). “Enter PIN” will be displayed on the screen in such a case:

Media Playback Using Media Browser

If the USB stick is not recognized after power off/on

or First Time Installation, rst, plug the USB device

out and power off/on the TV set. Plug the USB device in again.

To display Media Browser window, press either “MENU” button on the remote control and then select Media Browser by pressing “ ” or “ ” button. Press OK button to continue. Media Browser menu options will be displayed.

Also, when you plug USB devices, media browser screen will be displayed automatically:

You can play music, picture and video les from the

connected USB memory stick. Use “ ” or “ ” button to select Videos, Photos, Music, Recordings Library or Settings.

You can connect two USB devices to your TV. If both USB devices include music, picture or video les, USB

selection OSD will be displayed on the screen. The

rst USB device connected to the TV will be named

as USB Drive1.

Page 24

English - 23 -

Select a device by using “ ” or “ ” button and press OK.

Viewing Videos via USB

When you select Videos from the main options,

available video les will be ltered and listed on this screen. You can use “ ” or “ ” button to select a video le and press OK button to play a video. If you select a subtitle le and press OK button, you can select or deselect that subtitle le. The following menu will be displayed while playing a video le:

Play ( button): Starts the video playback.

Stop ( button): Stops the video playback.

Pause ( button): Pause the video playback.

Rewind ( button): Goes backward.

Forward ( button): Goes forward.

Subtitle/Audio (LANG. button): Sets subtitle/

Audio.

Yellow: Opens subtitle time correction menu

Press BACK button to switch back to previous menu.

Viewing Photos via USB

When you select Photos from the main options,

available image les will be ltered and listed on this

screen.

Jump (Numeric buttons): Jump to selected le using

the numeric buttons.

OK: Views the selected picture in full screen.

Slideshow ( button): Starts the slideshow using

all images.

RED: Sorts les by date.

GREEN: Views images in thumbnails.

BLUE: Switch between music,photo,video and all

YELLOW: Change view style

Slideshow Options

Pause ( button) : Pauses the slideshow.

Continue ( button) : Continues the slideshow.

Previous/Next (Left/Right buttons): Jumps to

previous or next le on slideshow.

Rotate (Up/Down buttons): Rotates the image using up/down buttons.

Loop/Shufe (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufe. Press once more to enable only Shufe. Press again to enable all. You can follow the disabled functions

with the change of the icons.

BACK (Exit): Back to le list.

INFO: Displays help screen.

Playing Music via USB

When you select Music from the main options,

available audio les will be ltered and listed on this

screen.

Page 25

English - 24 -

0..9 (Jump): When you press a digit button displays

textual le search.

Play This (OK button) : Plays the selected le.

Play ( button) : Plays all media les starting with

the selected one.

Stop ( button): Stops playback.

Pause ( button): Pauses the selected playback.

Previous/Next (Left/Right buttons): Jumps to

previous or next le to play.

RED: Sorts les by Title, Artist or Album.

Loop/Shufe (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufe. Press once more to enable only Shufe. Press again to enable all. You can follow the disabled functions

with the change of the icons.

Note:

If you start the playback with the button and activate the symbol, the TV will play the next music/video

le. The playback will proceed accordingly and when

the end of the list is reached, it will be played again from the beginning (loop function).

If you start the playback with the OK button and activate the symbol, the same music or video le

will be played in a loop (repeat function).

If you start the playback with or OK button and activate the symbol, music or video le will be

played in a shufe.

If you start the playback with or OK button and activate , symbols, music or video le playback

will continue randomly and the random playback will continue.

BLUE: Switch between music,photo,video and all.

YELLOW: Change view style.

Recordings Library

In the main menu, use “ ” or “ ” buttons to select Media Browser. Highlight Recordings Library item by using “ ” or “ ” button and press OK button to enter.

Recordings Library will then be displayed.

IMPORTANT: To view recordings library, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Select a recorded item from the list (if previously recorded) by using “ ” / “ ” button. Press OK button to view Play Options. Select an option by using “ ” / “ ” or OK buttons.

Available playback options:

• Play from start: Plays the recording from the

beginning.

• Resume: Recommences the recordings.

• Play from offset: Species a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press (STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use button to slow forward. Pressing button consecutively will change slow forwarding speed

Page 26

English - 25 -

Media Browser Settings

You can set your Media Browser preferences by

using the Settings dialog. Press “ ” or “ ” button to highlight an item and use “ ” or “ ” button to set.

View Style: Sets default browsing mode.

Music FF/FR Speed: Sets Music FF/FR Speed

time.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Language: Sets sup p or te d s u bt it le

language.

Subtitle Position: Sets subtitle position as up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

Timeshift Recording

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

• Press (PAUSE) button while watching a broadcast for switching to timeshifting mode.

• In timeshifting mode, the programme is paused and

simultaneously recorded to the connected USB disk (*). Press (PLAY) button again to watch the paused programme from the stopped moment.

• This playback is performed in x1 playback speed. You will see the timeshift gap between the real and

the timeshifted programme in the info bar.

• Use / (PREVIOUS/NEXT) buttons to move forward or backward on timeshift playback. When the timeshift is reached, timeshifting mode will be quitted and you will switch back to watching normal broadcast.

• Press (STOP) button to quit timeshifting mode.

(*) Similtaneous timeshifting recording’s duration depends on your connected USB disk’s file size

and defined Max. Timeshift in the Recordings

Conguration menu. See the section, “Recordings”

for more information on setting Max. Timeshift.

Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting.

Lip Sync delay may occur during the timeshifting.

Standby button is ignored during the timeshifting. The TV will not switch to standby mode during the timeshifting.

Instant Recording

IMPORTANT: To record a programme, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

• Press (RECORD) button to start recording an event instantly while watching a programme. The following OSD appears on the screen:

• Record OSD will then be displayed for a short time

and the current event will be recorded.

• You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording.

Press (STOP) button to cancel instant recording. The following OSD will be displayed:

Page 27

English - 26 -

Select Yes by using “ ” or “ ” / OK buttons to cancel instant recording.

Note: Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

Watching Recorded Programmes

In the main menu, use “ ” or “ ” buttons to select Media Browser. Highlight Recordings Library item by using “ ” or “ ” button and press OK button to enter.

Recordings Library will then be displayed.

IMPORTANT: To view recordings library, you should

rst connect a USB disk to your TV while the TV is

switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Select a recorded item from the list (if previously recorded) by using “ ” / “ ” button. Press OK button to view Play Options. Select an option by using “ ” / “ ” or OK buttons.

Available playback options:

• Play from start: Plays the recording from the

beginning.

• Resume: Recommences the recordings.

• Play from offset: Species a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press (STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

Changing Image Size: Picture Formats

You can change the aspect ratio (image size) of •

the TV for viewing the picture in different zoom modes.

Press “• SCREEN” button repeatedly to change the image size. Available zoom modes are listed below.

Auto

When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source(if available)

The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device.

Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.

16:9

This uniformly stretches the left and right sides of a

normal picture (4:3 aspect ratio) to ll the wide TV

screen.

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Page 28

English - 27 -

Note: You can shift the screen up or down by pressing “ ” / “ ” buttons while picture zoom is selected as 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

14:9 Zoom

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Conguring Picture Settings

You can use different picture settings in detail.

Press “MENU” button and select the Picture icon by using “ ” or “ ” button. Press OK button to view Picture Settings menu.

Operating Picture Settings Menu Items

Press “• ” or “ ” button to highlight a menu item.

Use “• ” or “ ” button to set an item.

Press “• MENU” button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set

the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and

Natural.

Contrast: Sets the lightness and darkness values of

the screen.

Brightness: Sets the brightness value for the screen.

Sharpness: Sets the sharpness value for the objects

displayed on the screen.

Colour: Sets the colour value, adjusting the colors.

Power Save Mode: Use “ ” or “ ” button to select

Power Save Mode. Press “ ” or “ ” button to set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode.

Backlight: This setting controls the backlight level and it can be set to Low, Medium, High and Auto.

Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

Page 29

English - 28 -

Advanced Settings

Use “ ” or “ ” button to select advenced settins.

Dynamic Contrast: You can change contrast rate by

using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.

Colour Temp: Sets the desired colour tone.

Picture Zoom:Sets the picture size to Auto,16:9,

Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.

HDMI True Black(optional): While watching from HDMI source, this feature will be visible in the Picture Settings

menu. You can use this feature to enhance blackness in the picture. You can set this feature as “On” for activating

HDMI True Black mode.

Note: HDMI True Black On/Off feature functions only when the HDMI device output is set to RGB.

Film mode (optional): Films are recorded at a different number of frames per second to normal television programmes. Press “ ” or “ ” button to select Film Mode. Press “ ” or “ ”button to set this feature On or

Off. Turn this feature on when you are watching lms

to see the fast motion scenes clearly.

Skin tone: Adjust the desired skin tone

Colour Shift: Adjust the desired colour tone.

RGB Gain: You can congure the colour temperature

values using the RGB Gain feature.

Reset: Resets the picture settings to factory default settings.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PC Picture Settings

For adjusting PC picture items, do the following:

Press “ ” or “ ” button to select Picture icon. Picture menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and Picture Zoom and other settings in this menu are

identical to settings dened in TV picture menu under

“Main Menu System”.

Sound, Settings and Source settings are identical to the settings explained in main menu system.

PC Position: Select this to display PC position menu items.

Autoposition: Automatically optimizes the display. Press OK to optimize. H Position: This item shifts the image horizontally to right hand side or left hand side of the screen. V Position: This item shifts the image vertically towards the top or bottom of the screen. Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

Conguring Sound Settings

Sound settings can be congured according to your

personal preferences.

Press “MENU” button and select the Sound icon by using “ ” or “ ” button. Press OK button to view Sound Settings menu.

Page 30

English - 29 -

Operating Sound Settings Menu Items

Press “• ” or “ ” button to highlight a menu item. Use “• ” or “ ” button to set an item. Press “• MENU” button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level. Equalizer: Press OK button to view equalizer sub-

menu.

In Equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the “MENU” button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or right speaker balance.

Headphone: Sets headphone volume.

Sound Mode: You can select Mono, Stereo, Dual I

or Dual II mode, only if the selected channel supports that mode.

AVL: Automatic Volume Limiting (AVL) function sets the

sound to obtain xed output level between programmes

(For instance, volume level of advertisements tend to be louder than programmes)

Headphone/Lineout: When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.

Digital Out: Sets digital out audio type.

Conguring Your TV’s Settings

Detailed settings can be configured to suit your personal preferences.

Press “MENU” button and select Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu.

Operating Settings Menu Items

Press “• ” or “ ” button to highlight a menu item.

Press • OK button to select an item.

Press “• MENU” button to exit.

Settings Menu Items

Conditional Access: Controls conditional access

modules when available.

Language: Congures language settings.

Parental: Congures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source

options.

Satellite settings: Congures satellite settings.

Network Settings: In Network Settings window you

can set network type of the TV set.

Other Settings: Displays other setting options of the TV set.

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only

when the TV is SWITCHED OFF.

In order to watch certain digital channels, a • conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and • the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

Insert the CAM and then the viewing card to the • slot that is located in the terminal cover at the rear side of the TV.

Th e CAM should be correctly inserted, it is • impossible to insert fully if reversed. The CAM or

Page 31

English - 30 -

the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Common Interface module detected” message appears on the screen.

Refer to the module instruction manual for details • of the settings.

Viewing Conditional Access Menu (*)

(*) These menu settings may change depending on the service provider.

Press “MENU” button and select the icon by using “

” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Conditional Access and press OK to view menu items.

Conguring Language

Preferences

You can operate the TV’s language settings using this menu.

Press “MENU” button and select the Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Language and press OK to continue:

Use “ ” or “ ” button to set an item. Settings are stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

Audio• : Sets the preferred audio language.

Subtitle• : Sets the subtitle language. Selected

language will be seen in subtitles.

Teletext• : Sets teletext language.

Guide• : Sets the preferred Guide language.

Current (*)

(*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed.

Audio• : Changes the audio language for the current channel.

Subtitle• : Sets the subtitle language for the current channel.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Page 32

English - 31 -

Language Settings

In the Settings menu, highlight the Language Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen:

Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “ ” or “ ” button to set.

Notes:

System Language determines the on-screen menu • language.

Audio Language is used for selecting the soundtrack • of a channels.

Primary settings are the rst priority when multiple •

choices are available on a broadcast. Secondary

settings are the alternatives when the rst options

are not available.

Parental Control

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Press “MENU” button and select the Settings by using “ ” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Parental and press OK to continue:

To display parental lock menu options, PIN number should be entered. Factory default PIN number is

0000. After coding the correct PIN number, parental settings menu will be displayed:

Parental Settings Menu Operation (*)

Select an item by using “• ” or “ ” button.

Use “• ” or “ ” button to set an item.

Press• OK button to view more options.

(*) If you set Country option as UK in the rst time

installation, Maturity Lock and Child Lock options will not be visible. This setting is available only for EU countries.

Menu Lock (Optional): Menu lock setting enables or

disables the menu access. You can disable access to

the installation menu or the whole menu system.

Maturity Lock (Optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock (Optional): When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.

Set PIN: Denes a new PIN number. Use numeric buttons to enter a new pin number. You will need to code your new PIN a second time for verication

purposes.

IMPORTANT: The factory default PIN number is 0000, if you change the PIN number make sure you write it down and keep it safe.

Page 33

English - 32 -

Timers

To view Timers menu, press MENU button and select Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Timers and press OK to continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after a certain time.

Highlight Sleep Timer by using “• ” or “ ” button. Use “• ” or “ ” button to set. The timer can be

programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular programme using this feature.

Press “ ” button to set timers on an event. Programme timer function buttons will be displayed on the screen.

Adding a Timer

Press • YELLOW button on the remote control to add a timer.

Channel: Changes channel by using “ ” or “ ”. Network Type: This feature is unavailable to be set. Timer Type: You can select timer type as Record

or Timer.

Date: Enter a date using the numeric buttons. Start: Enter a starting time using the numeric

buttons. End: Enter an ending time using the numeric

buttons. Duration: Displays duration between the starting and

ending time. Repeat: Sets a timer to be repeated as Once, Daily or

Weekly. Use “ ” or “ ” buttons to select an option.

Change/Delete: Sets the change/delete permission. Playback: Sets the playback permission and parental

settings.

Press • GREEN button to save the timer. Press RED button to cancel.

Editing a Timer

Select the timer you want to edit by pressing “• ” or “ ” button.

Press • GREEN button. Edit Timer menu screen will be displayed.

When nished with editing, press • GREEN button to save. You can press “MENU” button to cancel.

Deleting a Timer

Select the timer you want to delete by pressing “• ” or “ ” button.

Press • RED button.

Select • YES by using “ ” or “ ” buttons to delete the timer. Select NO to cancel.

Recording Conguration

Select Recording Conguration item in the Settings menu to congure recording settings. The following menu is displayed for recording conguration.

The following options are available for adjustments:

Start Early (*)

You set recording timer’s starting time to start earlier

by using this setting.

(*) Available only for EU country options.

End Late (*)

You set recording timer’s end time to end later by

using this settings.

(*) Available only for EU country options.

Max Timeshift

This setting allows you to set the maximum time allowed for timeshi fting. Duration o ptions are approximate and can change accordingly, depending on the broadcast received. When the Max Timeshift time is reached, auto play will proceed.

Format Disk

IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature.

•If you want to delete all les on the connected USB

hard disk drive or memory stick, you can use Format Disk option.

• Also, if your USB disk malfunctions, you can try

formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

• Press OK button while the Format Disk option is highlighted. A menu will appear on the screen, requiring you to enter a pin number. If you have not changed the pin number, the factory default is 0000. After you enter the pin, a pop-up menu appears on the screen to ensure that the hard disk should be

formatted, select “YES” and press OK to format the

hard disk. Select “NO” and press OK to cancel. Ensure you back up important recordings before you format the USB disk unit.

Hard Disk Info

Page 34

English - 33 -

To view the details about the USB disk, highlight Hard Disk Info by using “ ” or “ ” key and press OK. USB disk information will be displayed

Conguring Date/Time Settings

Select Date/Time in the Settings menu to congure Date/Time settings. Press OK button.

Use “• ” or “ ” buttons to highlight Date/Time.

Date, Time, Time Settings Mode and Time Zone Setting will be available.

Use “ ” or “ ” buttons to highlight the Time Settings Mode. Time Settings Mode is set using “ ” or “ ” buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

• By pressing “ ” or “ ” buttons select Time Zone.

Use “ ” or “ ” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.

Changes are automatically stored. Press “• MENU” to exit.

Conguring Source Settings

You can enables or disable selected source options. The TV will not switch to the disabled source options when “SOURCE” button is pressed.

Select • Sources in the Settings menu and press OK button.

Press“• ” or “ ” buttons to select a source.

Use “• ” or “ ” button to enable or disable the selected s ource. Changes are automa tically stored.

Conguring Network

Settings(optional)

Note: Your TV’s Network Settings include Wired and Wireless Connection options. However, if your TV does not have USB Wi-Fi dongle(sold separately), you should use Wired Connection type. If you try to connect via Wireless Connection when your TV does not have a USB Wi-Fi dongle, a warning screen will appear and the TV will not get an IP address. Try connecting the LAN cable after this and then the TV will be able to get an IP address.

Conguring Wired Device Settings

On • Network Settings window you can set network type of the TV set, which connects the TV to the Internet. If you are connecting the TV via ETHERNET INPUT, select Network Type as Wired

Device to congure.

Setting Network Type

Network type can be selected as • Wired or Wireless device, in accordance with the active connection to the TV set. Select this as Wired if you have connected to the TV a LAN cable. Select as Wireless if you connect via the wireless USB dongle(sold separately).

Setting Conguration Status

This section displays the status of the connection. • Select Connected if you want to activate Wired or Wireless connection. Select as Not Connected to quit an active connection.

IP Address

If an active connection is available, the IP address • will be displayed on this section. If you want to congure IP address preferences, press GREEN button and switch to the advanced mode.

Page 35

English - 34 -

Conguring Wired Network Settings in

Advanced Mode

After pressing GREEN button, Advanced mode will be available. While in Advanced Mode, press RED button to edit settings. When nished, press OK to save, Press RETURN/BACK to cancel.

Conguring Satellite Settings

Select Satellite settings in the Settings menu to

congure satellite settings. Press OK button.

Satellite List: To view available satellite list, please

select Satellite list option from satellite settings menu. If you want to add new satellite information, please press YELLOW button. If you want to change satellite name, please use the navigation buttons. To delete a satellite from list, press BLUE button or press OK to edit.

Antenna Installation: In this section, you can change antenna settings and scan satellite for new channels.

SatcoDX (optional): You can perform SatcoDX

operations using the Satelite Settings. On SatcoDX menu, there are two options regarding to satcodx feature as in the following:

You can download or upload satcoDX data. In order

to perform these functions supported for satcodx feature, a USB device must be connected to the TV

in the rst place.

You will be able to upload current services and related

satellites & transponders in TV, to a USB device with

a le named “mb70_sdx.sdx “.

In addition to the uploading feature you will be

able to download one of the satcodx les stored in

USB device, to the TV. When download option is

selected, a list of satcodx les stored in USB device

will displayed.

When you select one of these satcodx files, all services and related satellites and transponders in

the selected le will be stored in TV. If there are any

installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed.

Afterwards, check your antenna settings and make changes if necessary. An error message stating “No Signal” may be displayed if antenna settings are not

congured properly.

Conguring Other Settings

To view general conguration preferences, select

Other Settings in the Settings menu and press OK button.

Operation

Press “• ” or “ ” buttons to select an item.

Use “• ” or “ ” button to set an option.

Press• OK button to view a sub-menu.

Menu Timeout: Changes timeout duration for menu screens.

Scan Encrypted: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.

Blue Background: Activates or deactivates blue background system when the signal is weak or absent.

Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.

Page 36

English - 35 -

You can enable or disable automatic upgrade by

setting Automatic Scanning option.

You can select the satellite, which is used for updating

process by setting Edit Upgrade for Satellite option.

You can manually search for new software by

selecting Scan for upgrade.

Application version: Displays the current application

version.

Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary).

You can use this feature, only if the broadcaster

supports that additional narration track.

Auto TV Off: You can set the timeout value of auto off feature. After the timeout value is reached and the TV is not operated for selected time, the TV will go off.

Standby Search (optional): Use “ ” or “ ” button to select Standby Search and then press “ ” or “

” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.To use Standby Search please make sure that you select Standby Search as On.

Biss Key: Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key

setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast.

Other Features

Displaying TV Information: Programme Number,

Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or “INFO” button is pressed.

Mute Function: Press “ ” button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the rst one is pressing the “ ” button and the second one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game.

Displaying Subtitles: You can enable subtitles by

pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function.

If “Subtitle” is On, pressing the “ ” button causes the following warning message to be displayed on the screen (** for UK only)

Page 37

English - 36 -

Teletext

Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

“ ” Teletext / Mix : Activates teletext mode when

pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

“BACK” Index: Selects the teletext index page.

“INFO”Reveal: Shows hidden information (e.g.

solutions of games).

“OK” Hold: Holds a text page when convenient. Press again to resume.

“ ”/“ ” Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons (RED/GREEN/YELLOW/ BLUE)

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “ ” or “ ” commands will request the next or previous page respec tively.

Tips

Screen Care: Clean the screen with a dry, soft cloth.

Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.

Image Persistence: Please note that ghosting may

occur while displaying a persistent image. LCD TVs’

image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

Sound: You can not hear any sound. Did you perhaps

interrupt the sound, pressing the button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.

Remote Control: Your TV no longer responds to the

remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable: To record a programme, you

should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to

enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.

USB Is too Slow: If “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Page 38

English - 37 -

Appendix C: AV and HDMI Signal Compatibility (Input Signal Types)

Source

Supported Signals

Available

EXT-1

(SCART 1)

PAL 50/60 O

NTSC 60 O

RGB 50 O

RGB 60 O

EXT-2

(SCART-2)

PAL 50/60 O

NTSC 60 O

RGB 50 X

RGB 60 X

FAV

(SIDE AV)

PAL 50/60 O

NTSC 60 O

YPbPr

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

HDMI1

HDMI2

HDMI3

HDMI4

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

1080P 24Hz O

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix B: PC Input Typical Display Modes

The display has a maximum resolution of 1920 x 1080. The following table is an illustration of some of the

typical video display modes. Your TV may not support

different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index

Resolution

Frequency

640x480p - VGA 59

640x480p - VGA 72

640x480p - VGA 75

640x480p - VGA 85

800x600p - SVGA 56

800x600p - SVGA 60

800x600p - SVGA 72

800x600p - SVGA 75

800x600p - SVGA 85

1024x768p - XGA 60

1024x768p - XGA 66

1024x768p - XGA 70

1024x768p - XGA 75

1024x768p - XGA 84

1152x864p 75

1280x1024p - SXGA 75

1280x1024p - SXGA 85

1280x1024p - SXGA 60

1280x768p - WXGA 59

1280x768p - WXGA 74

1280x768p - WXGA 84

1280x960 - WXGA 60

1280x960p - WXGA 85

1360x768p - WXGA 60

1400x1050p - SXGA+ 74

1600x1200p - UXGA 60

1920x1080p 59

Page 39

English - 38 -

Appendix D: Supported DVI Resolutions

When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer

to the following resolution information.

24Hz

25Hz

30Hz

50Hz

60Hz

480i

480p

576i

576p

720p

þ þ

1080i

þ þ

1080p

þ þ þ þ þ

Appendix E: Supported File Formats for USB Mode

Media

File

Extension

Format

Remarks

Video

Audio

(Maximum resolution/Bit rate etc.)

Movie

.mpg, .mpeg MPEG1/2 MPEG1 Layer 1/2/3

MAX 1920x1080 @ 30P 20Mbit/sec

.dat MPEG1 MPEG1 Layer 1/2

.vob MPEG1/2

AC- 3, MPEG1 Layer 1/2,

DVD-LPCM

.mkv

H.264, MPEG2/4,

VC-1

MPEG1 Layer 1/2/3, AAC,

EAC-3/AC-3

.mp4, m4v

MPEG4, H.264,

H.263

AAC, EAC-3/AC-3

.avi XVID

MPEG1 Layer 1/2/3, AC-3,

LPCM, WMA

.mov

MPEG4, H.264,

H.263

AAC, EAC-3/AC-3

MAX 1920x1080 @ 30P 20Mbit/sec

Most QuickTime streams appear to be

MPEG-4 Part 12

.asf, .wmv VC-1 WMA MAX 1920x1080 @ 30P 20Mbit/sec

Music

.mp3

MPEG 1 Layer 1/2/3 (MP3)

.wma WMA

.wav LPCM

.m4a AAC

Photo .jpg .jpeg Baseline JPEG

MAX WxH = 14592x12288

Up to 8 MegaByte

Page 40

English - 39 -

Appendix F: Software Upgrade

• Your TV is capable of nding and updating new software upgrades over broadcast channels.

• For broadcast channels search, TV looks the available channels stored in your settings. So before software

upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.

• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings

menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.

• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download

progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) Background search and upgrade mode

• While TV is connected to Internet, in background it searches for critical software upgrades. If a critical software

upgrade is found it downloads the upgrade silently. When download completes with success a message is

displayed for reboot operation to activate new software. Press OK to continue with the reboot operation.

3) 3.AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is

nished successfully. During reboot TV makes nal initializations. In reboot sequence panel power is closed and

front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

• If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with

new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few

times more. If your set still can not operate, please call the service personnel to x the problem for you.

Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause your TV not to re-open again and can only be xed by service personnel.

Manual Software Update

Ensure that the ethernet cable is connected to your TV. If the ethernet cable is connected to the TV, ensure that the TV is receiving.

Menu -> Settings -> Network Settings -> Links Status -> Connected

Go to Settings tab from the main menu and select Other Settings. Highlight Software Upgrade and press OK. Select Scan for Upgrade and press OK button.

An OSD screen including the progress bar will be visible under the Software upgrade” title.

A warning screen will be displayed on the screen, stating that the TV will be rebooted. Press OK button to

nalize upgrade process and reboot TV.

Page 41

English - 40 -

Specications

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10.000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO OUTPUT POWER (W

RMS.

) (10% THD)

2 x 6

POWER CONSUMPTION (W)

150 W (max)

PANEL

32” Wide Screen

DIMENSIONS (mm)

DxLxH (With foot): 187 x 783 x 557

Weight (Kg): 10,50

DxLxH (Without foot): 95 x 783 x 514

Weight (Kg): 9,50

Digital Reception (DVB-T)

Transmission Standards:

DVB-T, MPEG2,DVB-T, MPEG4 HD

i. DEMODULATION

-Symbol rate: COFDM with 2K/8K FFT mode.•

-Modulation: 16-QAM - 64-QAM FEC for all DVB • modes (automatically found)

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 •

UK engine Prole (UK only)

Object carousel support compliant with ISO/IEC • 135818-6 and UK DTT prole(UK only)

Frequency range: 474-850 MHz for UK models•

ii. VIDEO

-H.264 (MPEG-4 part 10) main and high prole level •

4.1/MPEG-2 MP@HL video decoder.

-HD display multi format capable (1080i, 720p, • 576p)

-CVBS analogue output.(In HD channels, this will • not be available

iii. AUDIO

-MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC, • AC3, E-AC3

-Sampling frequencies supported are 32, 44.1 & • 48 kHz

Digital Reception (DVB-C)

Transmission Standards:

DVB-C, MPEG2, DVB-C, MPEG4

i. DEMODULATION

-Symbolrate: 4.0 Msymbols/s to 7.2 Msymbols/s

- Modulation: 16-QAM , 32-QAM ,64-QAM, 128-QAM and 256-QAM

ii. VIDEO

- All MPEG2 MP@ML formats with up-conversion and

ltering to CCIR601 format.

-CVBS analogue output

iii. AUDIO

-All MPEG1 Layer 1 and 2 modes

-Sampling frequencies supported are 32, 44.1 & 48 kHz.

Digital Reception (DVB-S)

Transmission Standarts:

• DVB-S / S2, MPEG2 • DVB-S / S2, MPEG4

Demodulation:

• Supports DVB-S2 Broadcast Services prole

• QPSK rates 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

• 8PSK rates 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

• Legacy QPSK demodulator/decoder

• 1–45 MBaud DVB-S

• 5–30 MBaud DVB-S2

Video:

• Video: MP @ ML, PAL, 4:3/16:9

• MPEG-4 AVC/H.264 HP@L4 Video Decoder

Audio:

Audio: MPEG-1 layer I / II / III (MP3), MPEG-2 AAC, • MPEG-4 AAC

Sampling frequencies supported are 32 kHz, 44.1 • kHz or 48 kHz.

Page 42

English - 41 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red.

For continued protection against risk of re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

GREEN

YELLOW

(Earth)

(if there is earth cable)

FUSE

BROWN

(Live)

BLUE

(Neutral)

Page 43

50216345
