Walker WP2211LCD Operating Instructions Manual

COLOUR TELEVISION WITH REMOTE CONTROL

OPERATING INSTRUCTIONS

WP2211LCD

BE WALKER WISE...logon to www.walker.ie

English - 1 -

Contents

Features ................................................................. 2

Accessories ............................................................ 2

Introduction ............................................................. 2

Preparation ............................................................. 2

Safety Precautions ................................................. 3

Power Source ..................................................... 3

Power Cord ......................................................... 3

Moisture and Water ............................................ 3

Cleaning.............................................................. 3

Heat and Flames ................................................ 3

Lightning ............................................................. 3

Replacement Parts ............................................. 3

Servicing ............................................................. 3

Waste Disposal ................................................... 3

Information for Users in European Union

Countries ............................................................ 3

Disconnecting the Device ................................... 3

Headphone Volume ............................................ 3

Installation........................................................... 4

LCD Screen ........................................................ 4

Warning .............................................................. 4

Connection to a Television Distribution System

(Cable TV etc.) from Tuner ................................. 4

Overview of the Remote Control ............................ 5

LCD TV and Operating Buttons .............................. 6

Viewing the Connections- Back Connectors .......... 6

Viewing the Connections - Side Connectors .......... 7

Aerial Connection ................................................... 7

Power Connection .................................................. 8

Using Side USB Input ............................................. 8

USB Memory Connection ................................... 8

Connecting the LCD TV to a PC ............................. 8

Connecting to a DVD Player................................... 8

Using Side AV Connectors ..................................... 9

Using Other Connectors ......................................... 9

Connecting Other Equipment via Scart .................. 9

Inserting Batteries in the Remote Control

Handset .................................................................. 9

Switching the TV On/Off ......................................... 9

To Switch the TV On ........................................... 9

To Switch the TV Off ......................................... 10

Input Selection ...................................................... 10

Basic Operations .................................................. 10

Operation with the Buttons on the TV ............... 10

Operation with the Remote Control .................. 10

Initial Settings ........................................................11

Electronic Programme Guide (EPG)................. 12

Programme Options.......................................... 12

Analogue Teletext ............................................. 13

Widescreen ....................................................... 13

Dijital TV Menu System ........................................ 13

Channel List ...................................................... 13

Navigating the Entire Channel List ................... 13

Moving the channels in the channel list ............ 13

Deleting the Channels in the Channel List ....... 13

Renaming channels .......................................... 14

Adding Locks to Channels ................................ 14

Setting Favourites ............................................. 14

Program Guide ................................................. 14

Timers ............................................................... 14

Common Interface ........................................... 15

TV Setup ........................................................... 15

Setup ................................................................ 15

Conguration .................................................... 15

Time Settings(**) ............................................... 16

Language Settings ............................................ 17

Language Settings ............................................ 18

Installation......................................................... 18

Video Playback (optional) ................................. 20

ıAnalogue TV Menu System ................................. 20

Picture Menu..................................................... 20

Sound Menu ..................................................... 21

Feature Menu ................................................... 22

Install Menu ...................................................... 23

Install Menu in AV Modes ................................. 24

Program Table .................................................. 24

Source Menu .................................................... 24

PC Mode Menu System........................................ 25

PC Position Menu ............................................. 25

Displaying TV Information .................................... 25

Mute Function ....................................................... 25

Picture Mode Selection......................................... 26

Freezing Picture ................................................... 26

Zoom Modes......................................................... 26

Teletext ................................................................. 26

Tips ....................................................................... 27

Appendix A: PC Input Typical Display Modes ....... 28

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 28

Appendix D: Supported File Formats for USB

Mode..................................................................... 29

Specications ....................................................... 30

Digital Reception (DVB-T) .................................... 30

Important Instruction ............................................. 31

English - 2 -

Features

• Remote controlled colour LCD TV.

• Fully integrated digital TV (DVB-T - MPEG2) (DVB-T-

MPEG4).

• HDMI connectors for digital video and audio. This

connection is also designed to accept high denition

signals.

• USB input.

• 200 programmes from VHF, UHF(analogue).

• 1000 programmes for digital mode (IDTV).

• Integrated tuner DVB-T HD, MPEG 2 / MPEG 4

compatible.

• OSD menu system.

• Scart socket for external devices (such as video,
video games, audio set, etc.).

• Stereo sound system.

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• Sleep timer.

• Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

• AVL (Automatic Volume Limiting).

• When no valid signal is detected, after 5 minutes the

TV switches itself automatically to standby mode.

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98, ME, 2000, XP, Vista,

Windows 7.

• Audio line out.

• Game Mode (optional).

Accessories

EXIT

/

GUIDE

WIDE

ABC

DEF

GHI

JKL MNO

PQR

STU

VWX

YZ

M

P<P

TV

DTV

i

I-II

INFO

- -

V P

+ +

-/--

PP

0

1

2

3

4

5

6

7

8

9

PC

OK

Remote

Controller

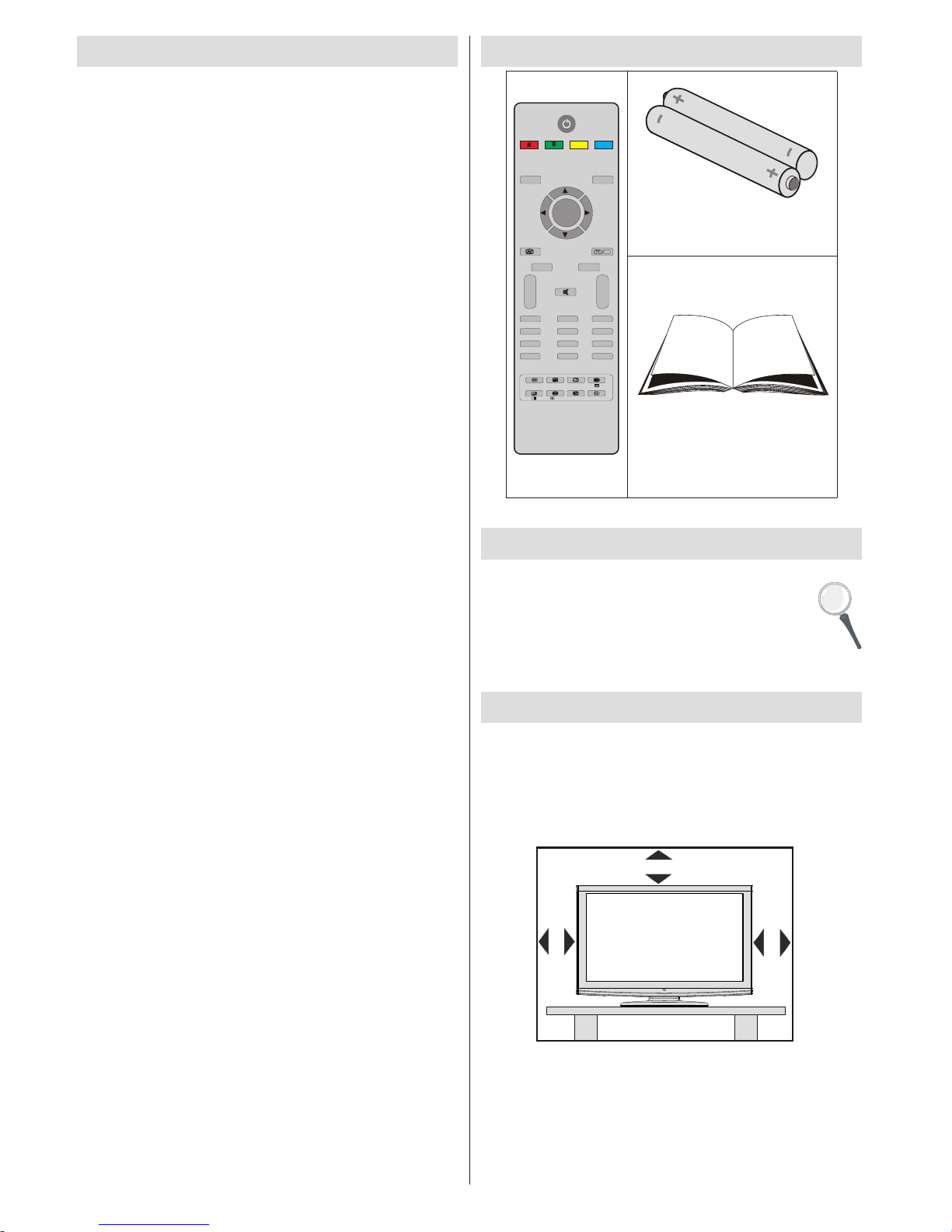

Batteries: 2 X AAA

Instruction Book

Introduction

Thank you for choosing this product. This manual will
guide you for the proper operation of your TV.

Before operating the TV, please read this

manual thoroughly.

Please do keep this manual in a safe place
for future references.

Preparation

For ventilation, leave a free space of at least 10 cm

all around the set. To prevent any fault and unsafe

situations, please do not place any objects on top

of the set.

Use this device in moderate climates.

10 cm

10 cm

10 cm

English - 3 -

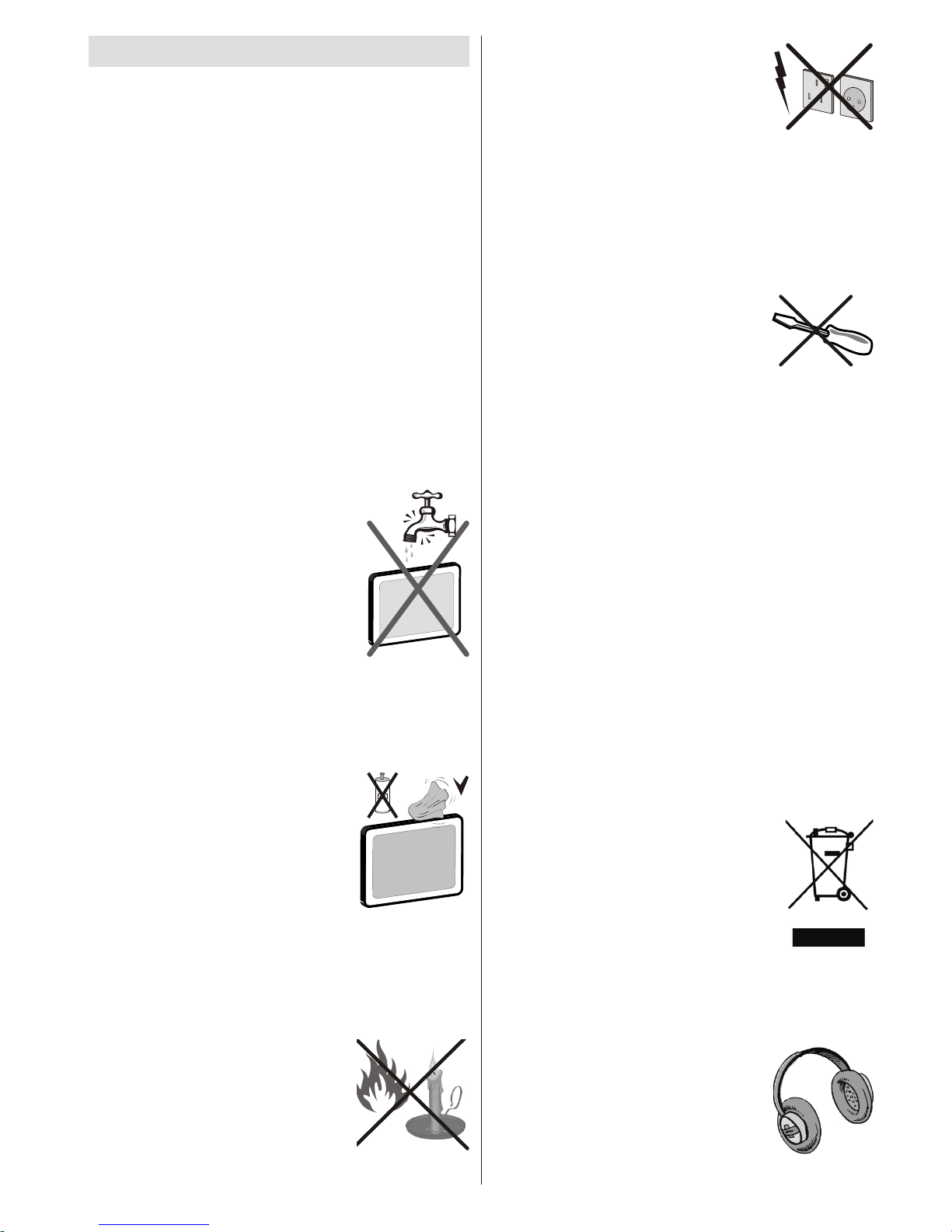

Safety Precautions

Please read the following recommended safety
precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240

V AC, 50 Hz outlet. Ensure that you select the correct

voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the

power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be

stepped on. A damaged power cord can cause re or

give you an electric shock. When it is damaged and

needs to be replaced, it should be done by qualied

personnel.

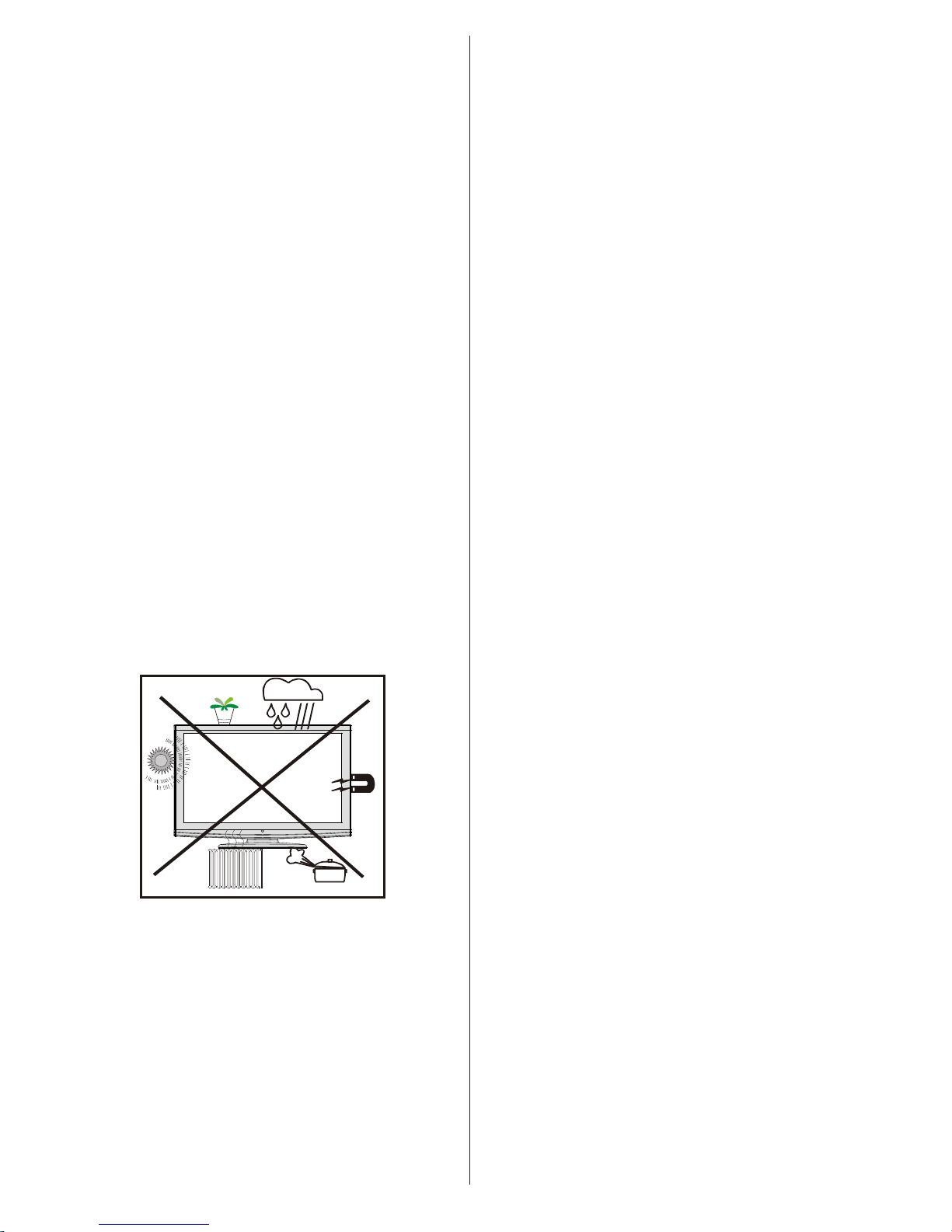

Moisture and Water

Do not use this device in a humid

and damp place (avoid the bathroom,
the sink in the kitchen, and near the

washing machine). Do not expose this

device to rain or water, as this may be

dangerous and do not place objects

filled with liquids, such as flower
vases, on top. Avoid from dripping

or splashing.

If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualied personnel

before operating it any further.

Cleaning

Before cleaning, unplug the TV

set from the wall outlet. Do not
us e liquid or aero sol clea ners.
U s e s o f t a n d d r y c l o t h .

Ventilation

The slots and openings on the TV
set are intended for ventilation and to ensure reliable

operation. To prevent overheating, these openings

must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to

open ames and sources of intense

heat such as an electric heater.

Ensure that no open ame sources,
such as lighted candles, are placed

on top of the TV. Batteries should not
be exposed to excessive heat such

as sunshine, re or the like.

Lightning

In case of storm and lightning or

when going on holiday, disconnect the

power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specied by the manufacturer or have the
same specications as the original one. Unauthorized
substitutions may result in re, electrical shock or

other hazards.

Servicing

Please refer all servicing to qualied

personnel. Do not remove the cover
yourself as this may result in an
electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materials,
such as foil bag, must be kept away from children.

• Batteries, including those which are heavy metal­free, should not be disposed of with household

waste. Please dispose of used battery in an
environment friendly manner. Find out about the
legal regulations which apply in your area.

• Cold cathode fluorescent lamp in LCD PANEL

contains a small amount of mercury; please follow
the local laws or regulations for disposal.

Information for Users in European
Union Countries

This symbol on the product or on its packaging means
that your electrical and electronic device should
be disposed at the end of its service
life separately from your household
wastes. There are separate collection
systems for recycling in EU.

For more information, please contact

the local authority or the dealer where
you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from
the mains and therefore it must remain readily
operable.

Headphone Volume

Exc e s sive sound p r essure from
earphones and headphones can
cause hearing loss.

English - 4 -

Installation

To prevent injury, this device must be securely

attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).

LCD Screen

The LCD panel is a very high technology product with

about a million thin lm transistors, giving you ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a xed blue, green or

red point. Please note that this does not affect the
performance of your product.

Warning

Do not leave your TV in standby or operating mode
when you leave your house.

Connection to a Television
Distribution System (Cable TV etc.)
from Tuner

Device connected to the protective earthing of the
building installation through the mains connection or
through other apparatus with a connection to protective
earthing-and to a television distribution system using

coaxial cable, may in some circumstances create a
re hazard.

Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range

(galvanic isolator, see EN 60728-11).

When you use the wall mount kit (optional) with

the LCD TV, we would denitely recommend to

plug all your cables into the back of the LCD
before mounting to the wall.

English - 5 -

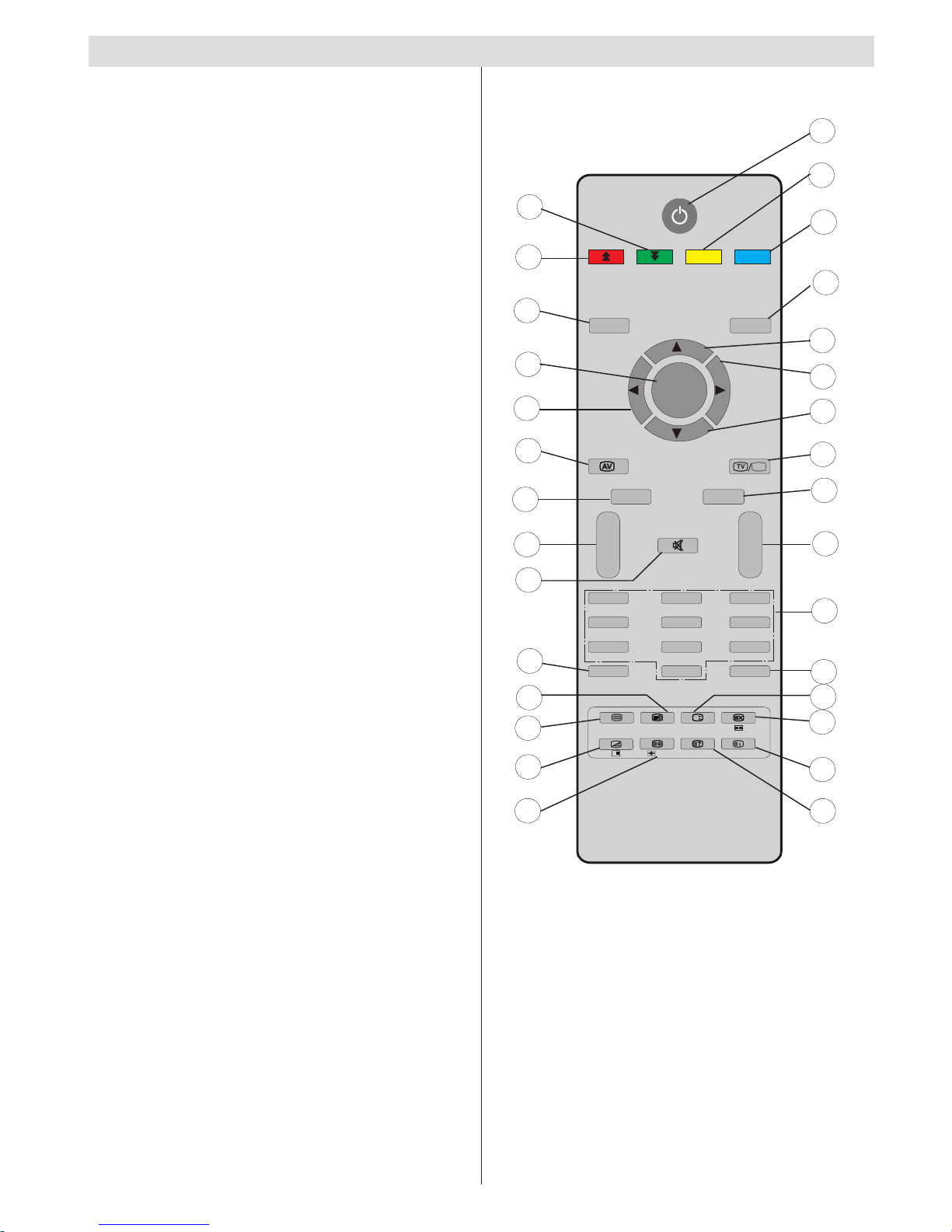

Overview of the Remote Control

Standby1.

Yellow (Current language (in DTV mode) (*) / 2.
Feature menu)

Install menu3.

Previous programme / Swap4.

Cursor up5.

Cursor right6.

Cursor down7.

TV / Digital TV8.

Mono/Stereo - Dual I-II 9.

Programme up/down10.

Numeric buttons11.

Exit (in DTV mode)12.

Hold (in TXT mode)13.

Update (in TXT mode) 14.

Index page (in TXT mode) / Electronic 15.

Programme Guide (EPG) (in DTV mode)

Reveal (in TXT mode) / Switch from TV to PC 16.

Green (Picture menu / Page down / Subtitle 17.
onoff (in DTV mode) (*)

Red (Sound menu / Page up / Channel list 18.
mode selection (in DTV mode)

Menu on/off19.

Ok - Conrm / Channel list (in DTV mode)20.

Cursor Left21.

AV / Source22.

Info23.

Volume up/down24.

Mute25.

Picture mode selection26.

Time / Subpage (in TXT mode) / Subtitle on-off 27.

(**)

Teletext on-off28.

Mix (in TXT mode)29.

Expand (in TXT mode) / Image size 30.

(*) available for EU countries.
(**) available for UK country option.

EXIT

/

GUIDE

WIDE

ABC

DEF

GHI

JKL MNO

PQR

STU

VWX

YZ

1

2

3

4

5

6

7

8

9

10

11

12
13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

M

P<P

TV

DTV

i

I-II

INFO

- -

V P

+ +

-/--

PP

0

1

2

3

4

5

6

7

8

9

PC

OK

English - 6 -

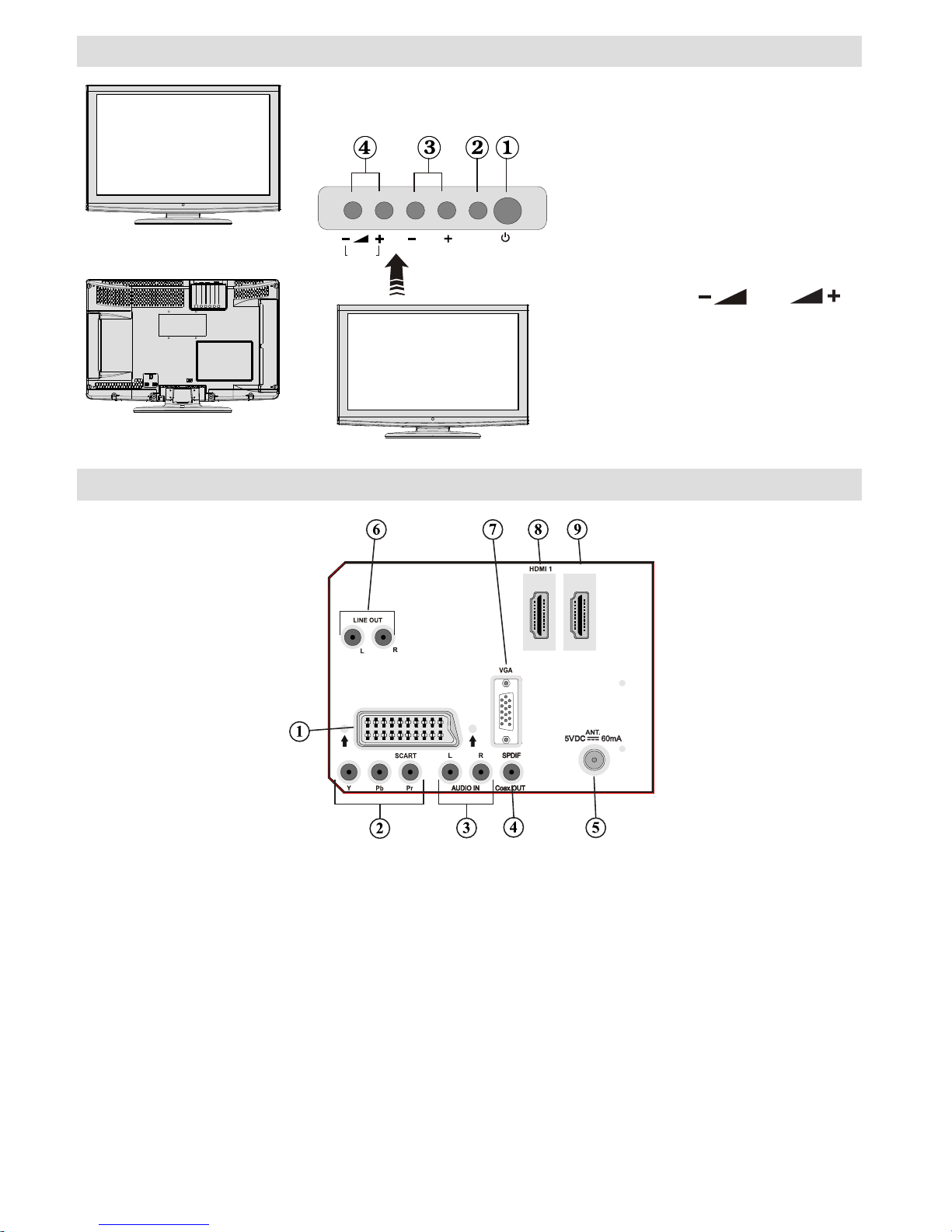

LCD TV and Operating Buttons

Standby button1.

TV/AV button2.

Programme Up/Down buttons3.

Volume Up/Down buttons4.

Note: Press

“ ” / “ ”

buttons at the same time to view
main menu.

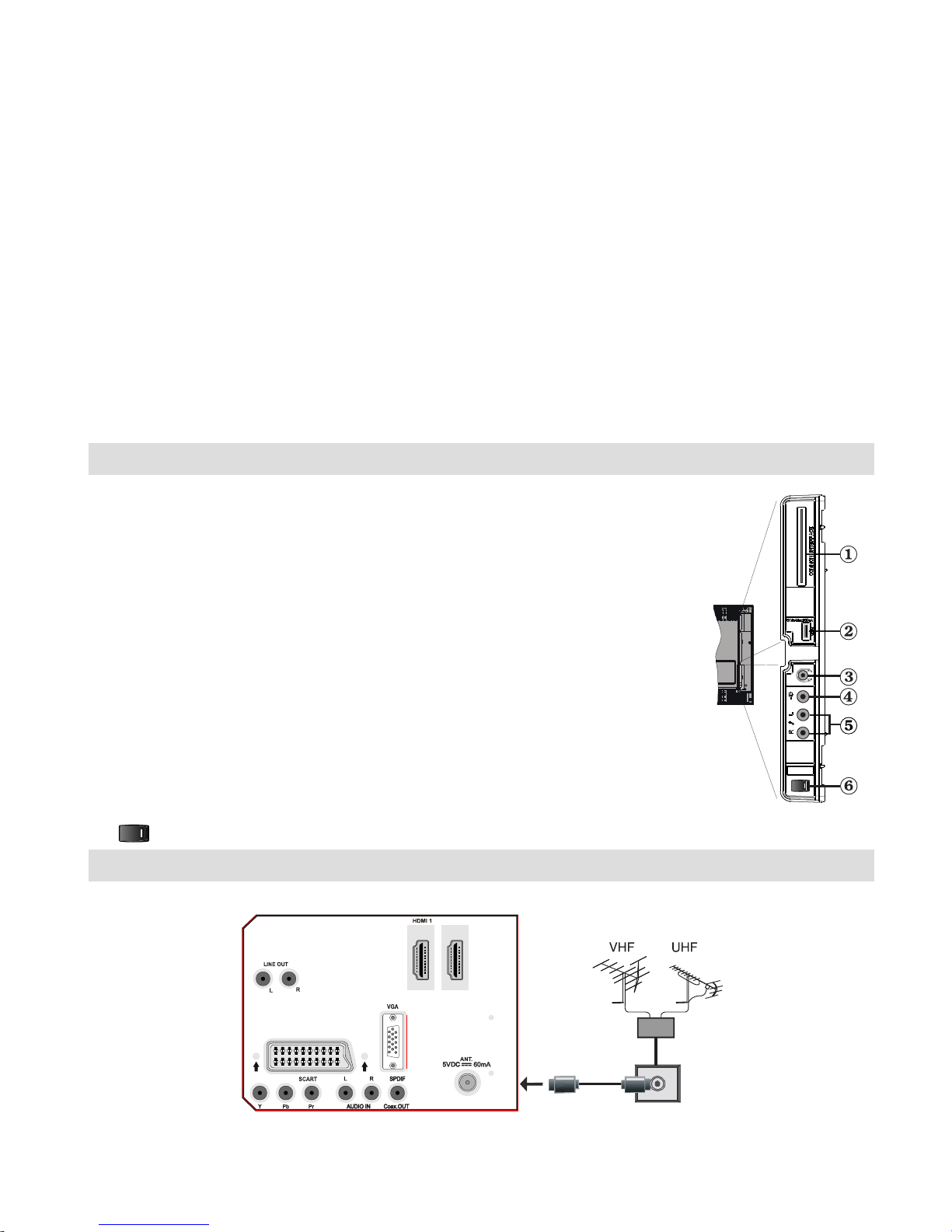

Viewing the Connections- Back Connectors

HDMI 2

SCART socket1. inputs or outputs for external devices.
Connect the SCART cable between SCART socket on TV and SCART socket on your external device
(such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV
mode.

Component Video Inputs (YPbPr)2. are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output.
Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and

the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”,

“Pb”, “Pr” correspond with your device’s connectors.

PC/YPbPr Audio Inputs3. are used for connecting audio signals of a PC or a device that connects to the

TV via YPbPr.
Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to
enable PC audio.
Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to
enable component audio.

TV/ VA

E UM N

P\CH

English - 7 -

SPDIF Out4. outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to transfer audio signals to a device that has SPDIF input.

You should also

set SPDIF Out option in the Sound Menu as On.

RF Input5. connects to an antenna or a cable.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the
device to the television with an appropriate antenna cable, as shown in the illustrationin the following

pages.

Audio Line Outs6. output audio signals to an external device such as an optional sound system.
To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.

Note: Line out feature cannot be used while in HDMI source. You can use SPDIF instead.

PC Input7. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

HDMI 1: 8. HDMI input

HDMI 2: 9. HDMI input
HDMI Inputs are for connecting a device that has an HDMI socket.

Your LCD Television is capable of displaying High Denition pictures from devices such as a High
Denition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets
or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p

(optional) signals. No sound connection is needed for an HDMI to HDMI connection.

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the 1.

channels that you subscribe to. For more information, see “Conditional Access”

section.

USB Input 2. (functional in DTV mode only)

Headphone jack is used for connecting an external headphone to the system. 3.
Connect to the HEADPHONE jack to listen to the TV from headphones
(optional).

Video Input is used for connecting video signals of external devices.Connect 4.
the video cable between the VIDEO IN socket on the TV and the VIDEO OUT
jack on your device.

Audio Inputs are used for connecting audio signals of external devices. 5.
Connect the audio cable between the AUDIO INPUTS on the TV and the
AUDIO OUTPUT jacks on your device.

Note: If you connect a device to the TV via the VIDEO INPUT, you should also

connect your device with an audio cable to the AUDIO INPUTS of the TV to
enable audio.

6. , switch is used for turning the TV on or off.

Aerial Connection

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

HDMI 2

English - 8 -

Power Connection

IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the

ambient room temperature before you connect the
set to the mains.

• Plug the power cable to the mains socket outlet.

Using Side USB Input

• You can connect USB devices to your TV by using

the USB input of the TV. This feature allows you to

display/play JPG, video (optional) and MP3 les

stored in a USB stick.

• It is possible that certain types of USB devices (e.g.

MP3 Players) may not be compatible with this TV.

• You may back up your les before making any

connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not

be responsible for any le damage or data loss.

• Do not pull out USB module while playing a le.

CAUTION: Quickly plugging and unplugging USB
devices, is a very hazardous operation. Especially,
do not repeatedly quickly plug and unplug the
drive. This may cause physical damage to the USB
player and especially the USB device itself.

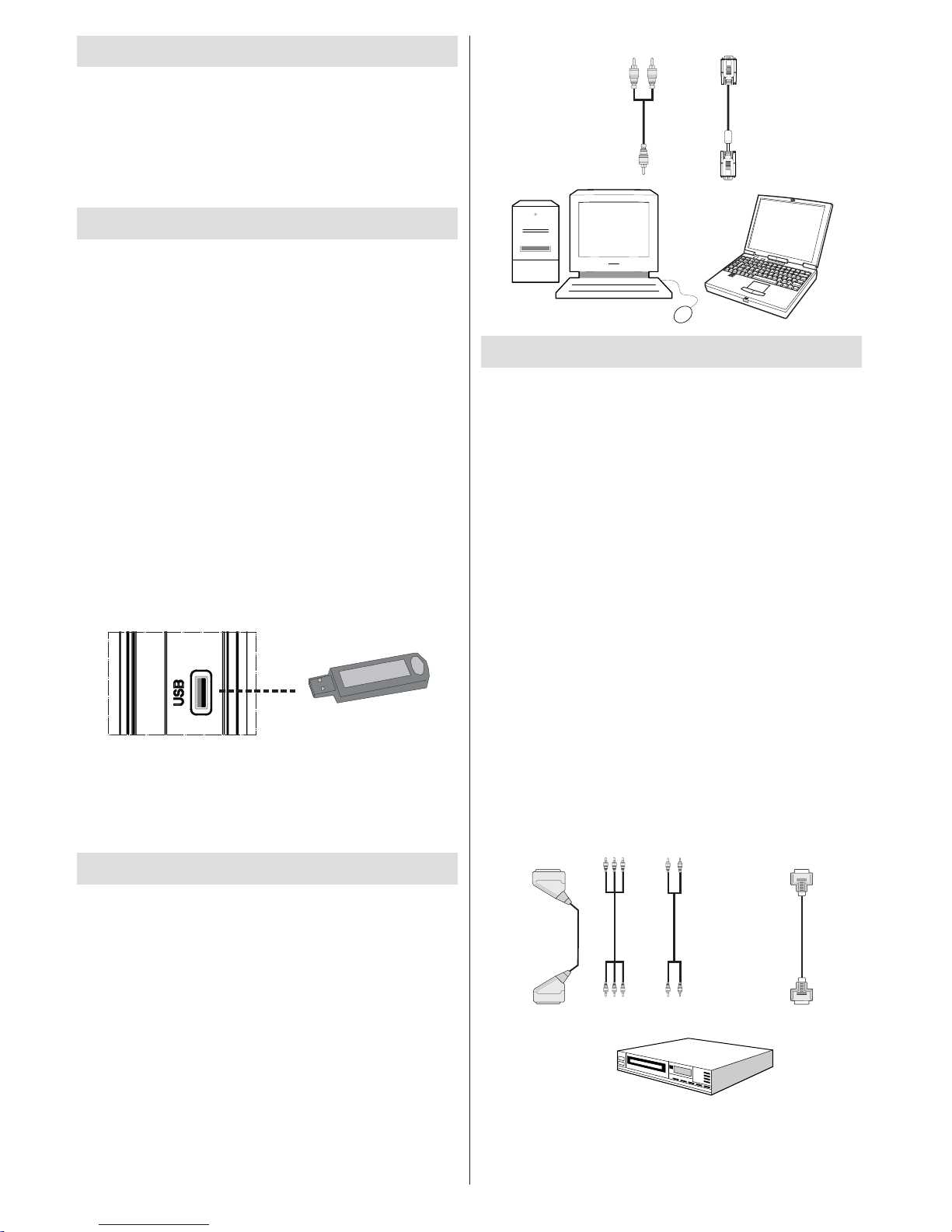

SIDE VIEW USB MEMORY

USB Memory Connection

• Plug your USB device to the USB input of the TV.

IMPORTANT: The TV supports only FAT32 disk
formatting. NTFS format is not supported.

Connecting the LCD TV to a PC

For displaying your computer’s screen image on

your LCD TV, you can connect your computer to the

TV set.

• Power off both computer and display before making

any connections.

• Use 15-pin D-sub display cable to connect a PC to

the LCD TV.

• When the connection is made, switch to PC source.

See “Input selection” section.

• Set the resolution that suits your viewing requirements.

Resolution information can be found in the appendix
parts.

PC audio cable

(not supplied)

to AUDIO INPUTS

on the TV

PC RGB cable
(not supplied)
to PC input

Audio
Inputs

PC Input

Connecting to a DVD Player

If you want to connect a DVD player to your LCD

TV, you can use connectors of the TV set. DVD

players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.

Note: Cables shown in the illustration are not
supplied.

• If your DVD player has an HDMI socket, you can

connect via HDMI. When you connect to DVD player

as illustrated below, switch to HDMI source. See,

“Input Selection” section.

• Mo s t DVD playe r s are conne c t ed th r o ugh

COMPONENT SOCKETS. Use a component video

cable to connect video input. For enabling audio,

use a component audio cable as illustrated below.

When the connection is made, switch to YPbPr
source. See, “Input selection” section.

• You may also connect through the SCART socket.

Use a SCART cable as shown below.

Note: These three methods of connection perform the
same function but in different levels of quality. It is not
necessary to connect by all three methods.

HDMI

input

SCART socket

Component

video
inputs

Component

audio

inputs

DVD Player

English - 9 -

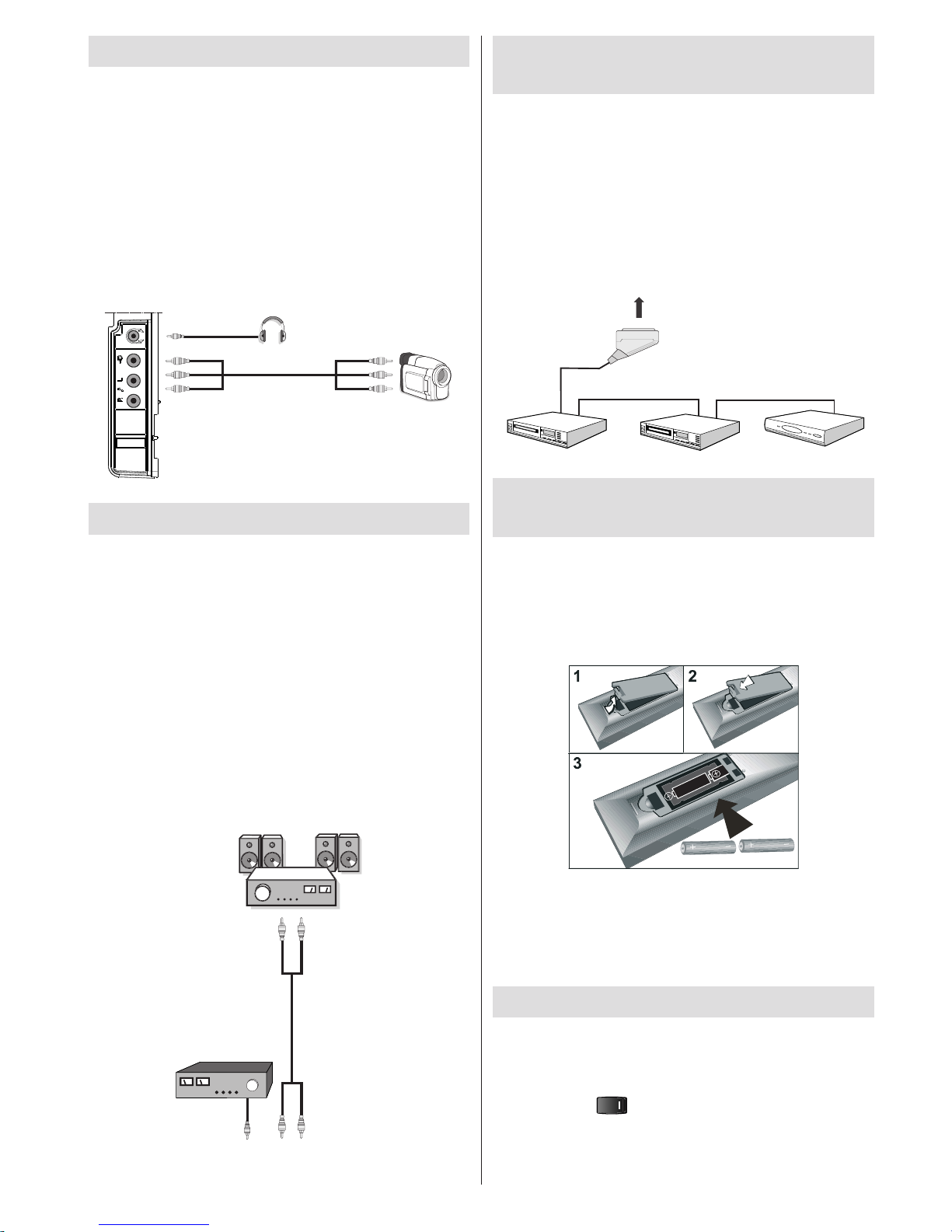

Using Side AV Connectors

You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.

• For connecting a camcorder, connect to the VIDEO

IN socket and the AUDIO SOCKETS. For selecting

the related source, see the section “Input selection”

in the following parts.

• To listen the TV sound from headphones, connect

to the HEADPHONE jack of theTV.

Camcorder

Headphone

Using Other Connectors

You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.

• To connect external speakers, use an audio cable.

Do not reverse the AUDIO LEFT and AUDIO RIGHT
jacks. Turn on the LCD TV and external speaker set
after all connections are made. Refer to your speaker
set’s manual for further queries.

• For connecting a to a device that has SPDIF support,

use an appropriate SPDIF cable to enable sound
connection. You should also set SPDIF Out option

in the Sound menu as On.

External Speakers

A device that

supports

SPDIF signal.

Connecting Other Equipment via
Scart

Most devices support SCART connection. You can

connect a; DVD recorder, a VCR or a decoder to your

LCD TV by using the SCART socket. Note that cables
shown in the illustration are not supplied.

Power off both the TV and the devices before making
any connections.

For more information, refer to your device’s own

instruction book.

SCART socket

Decoder

DVD Recorder

Video Recorder

Inserting Batteries in the Remote
Control Handset

• Remove the battery cover located on the back of

the handset by gently pulling backwards from the
indicated part.

• Insert two AAA/R3 or equivalent type batteries
inside. Observe the correct polarity (+/-) when
inserting batteries and replace the battery cover.

Note: Remove the battery from remote control
handset when it is not to be used for a long period.
Otherwise it can be damaged due to any leakage of
batteries.

Remote range is approximately 7m/23ft.

Switching the TV On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50

Hz.

• Switch the “

” button to position “|” so the TV
will switch to standby mode. Then the standby LED
lights up.

• To switch on the TV from standby mode either:

English - 10 -

• Press the “ ” button, P+ / P- or a numeric button

on the remote control.

• Press the “

” or +/- button on the TV.

The TV will then switch on.

Note: If you switch on your TV via PROGRAMME
UP/DOWN buttons on the remote control or on the
TV set, the programme that you were watching last
will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Switch the “ ” button to position 2 as illustrated,

so the TV will switch OFF.

• To power down the TV completely, unplug the

power cord from the mains socket.

Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.

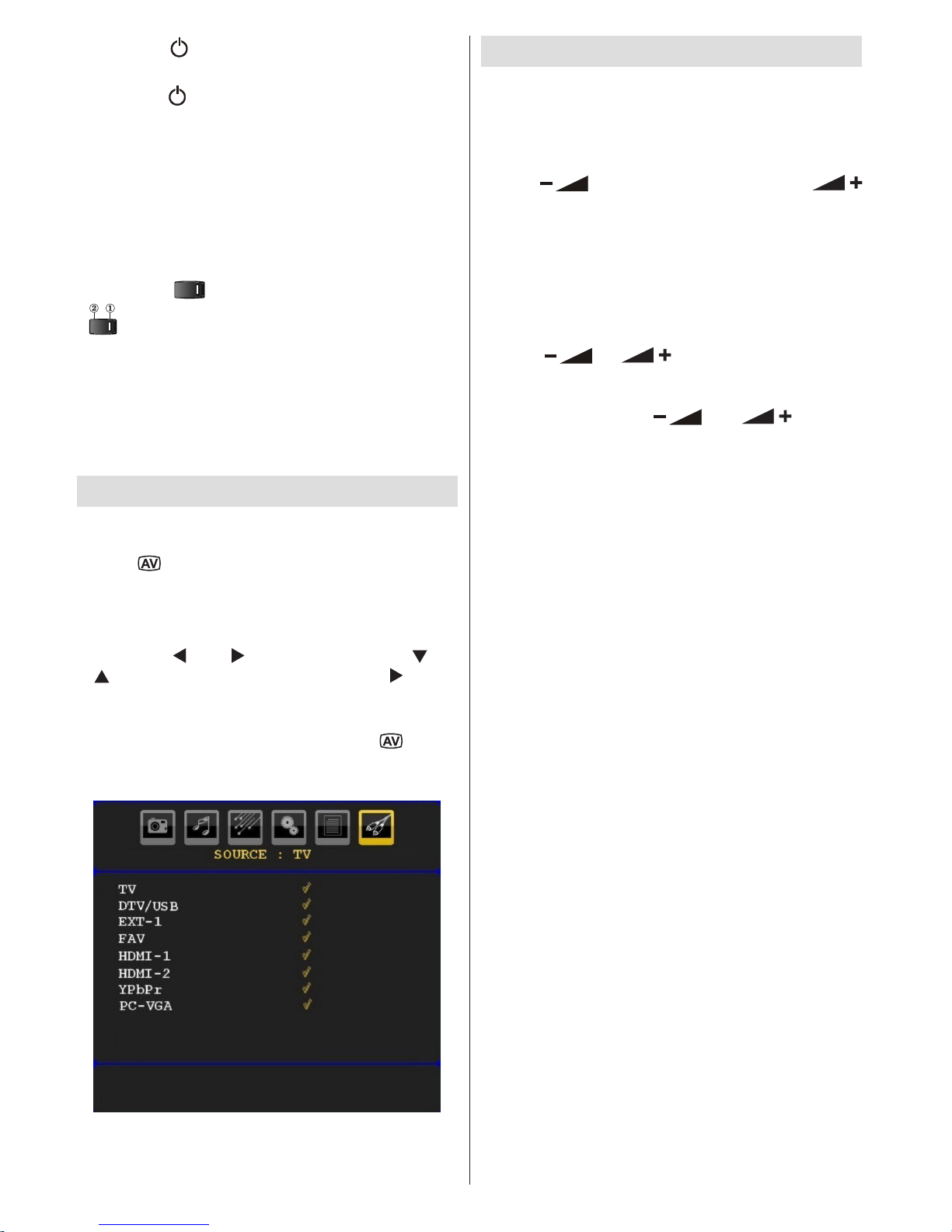

Input Selection

Once you have connected external systems to your

TV, you can switch to different input sources.

• Press “

” button on your remote control for directly

changing sources.

or,

• Select “Source” option from the main menu

by using “

” or “ ” button. Use then “ ” or
“ ” button to highlight an input and press “ ” button
to select.

Note: You can mark desired source options by
pressing the OK button. Therefore, when “

” button

is pressed, only the marked source options will be
available (except for the TV source).

Basic Operations

You can operate your TV using both the remote
control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

• Press “ ” button to decrease volume or “

” button to increase volume, so a volume level scale

(slider) will be displayed on the screen.

Programme Selection

• Press “P/CH +” button to select the next programme or
“P/CH -” button to select the previous programme.

Viewing Main Menu

• Press “ ” / “ ” buttons at the same time

to view main menu. In the Main menu select sub-

menu using “P/CH -” or “P/CH +” buttons and enter
the sub-menu using “

” or “ ” buttons.

To learn the usage of the menus, refer to the menu

system sections.

AV Mode

• Press the “TV/AV” button in the control panel on the
TV to switch between AV modes.

Operation with the Remote Control

• The remote control of your TV is designed to control

all the functions of the model you selected. The
functions will be described in accordance with the
menu system of your TV.

• Functions of the menu system are described in the

following sections.

Volume Setting

• Press V+ button to increase the volume. Press V-
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.

Programme Selection (Previous or Next
Programme)

• Press “P -” butt o n to se lect the pre v ious
programme.

• Press “P +” button to select the next programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select

programmes between 0 and 9. The TV will switch
to the selected programme. To select programmes
between 10 - 999 (for IDTV) or 10-199 (for analogue),
press the numeric buttons consecutively. The limit
of the delay time is 3 seconds.

• Press directly the programme number to reselect

single digit programmes.

English - 11 -

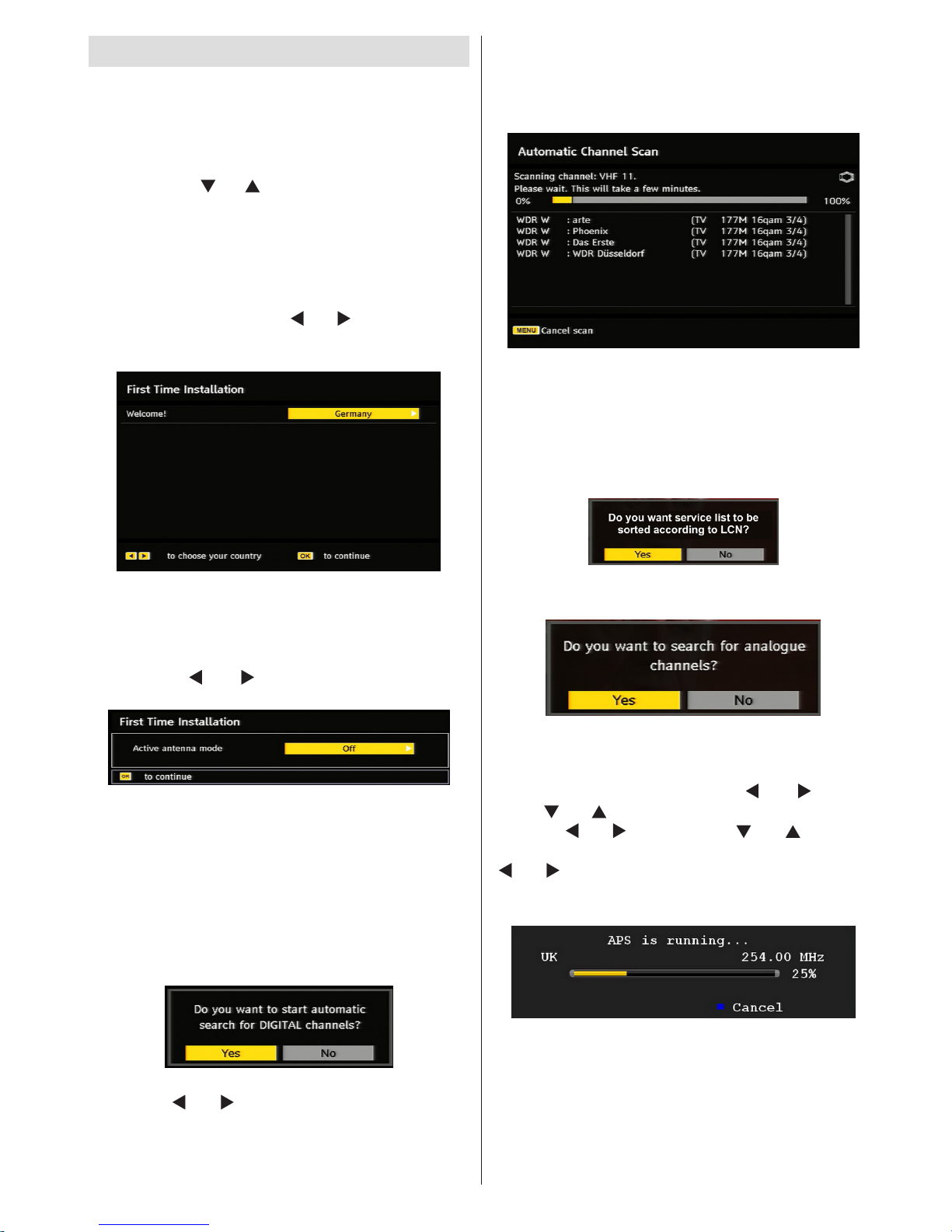

Initial Settings

When the TV is turned on for the rst time, the menu

for the language selection appears on the screen. The
message “Welcome please select your language!”
is displayed in all language options sequentially in
the OSD.

By pressing the “

” or “ ” buttons highlight the language

you want to set and press OK button.

You can get information about the menu usage by
pressing INFO button. Press INFO button again to
exit the help menu.

After then, “First time installation” OSD will appear
on the screen. By pressing “

” or “ ” buttons, select

the country you want to set and press OK button.

Note: Country selection will not be available for UK.
Press OK to continue.

After then, the active antenna selection OSD appears

on the screen:

By pressing “

” or “ ” buttons, set active antenna

mode as on or off.

If an active antenna is connected to your TV, you can

select this option as On. Antenna power should be
“Off” when standard antenna is used instead of the
active antenna. See “Conguration Menu” in the
following sections for more information.

Press OK button on the remote control to continue
and the following message will be displayed on the
screen:

• To select the “Yes” or “No” option, highlight the item

by using “ ” or “ ” buttons and press OK button.

The IDTV will automatically tune to the transmission

channels, searching for digital terrestrial TV broadcasts

and displaying the names of channels found. This

process will take a few minutes. To cancel searching,

you can press M button at any time during the
process. The following OSD will be displayed during
the automatic search:

After Automatic Search is completed, the following
message will be displayed, asking for sorting option.

If you select “YES”, programme list will be sorted
according to LCN (logical channel number). Select
“NO” for using frequency sort. (This feature is

available for only Germany,Austria and Italy country

option)

After this operation, the following menu will appear
on the screen, asking for analog channel search:

To search for analogue channels, select “Yes”. TV

switches to the analogue TV mode. A menu will be
displayed to search for analogue channels.

Set Language item by pressing “

” or “ ” button.
Press “ ” or “ ” button to highlight Country item and
then use “ ” or “ ” to set. Press “ ” or “ ” button to
highlight TXT. Language. Set TXT Language by using
“ ” or “ ” button. To cancel, press the BLUE button.
When nished, press OK or RED button to continue
and the following OSD will be displayed:

After automatic tuning is nalized, a programme list
will appear on the screen. In the programme list you
will see the programme numbers and names assigned
to the programmes.

If you do not accept the locations and/or the names

of the programmes, you can change them in Program
table. For details, see the section, “Program table”.

English - 12 -

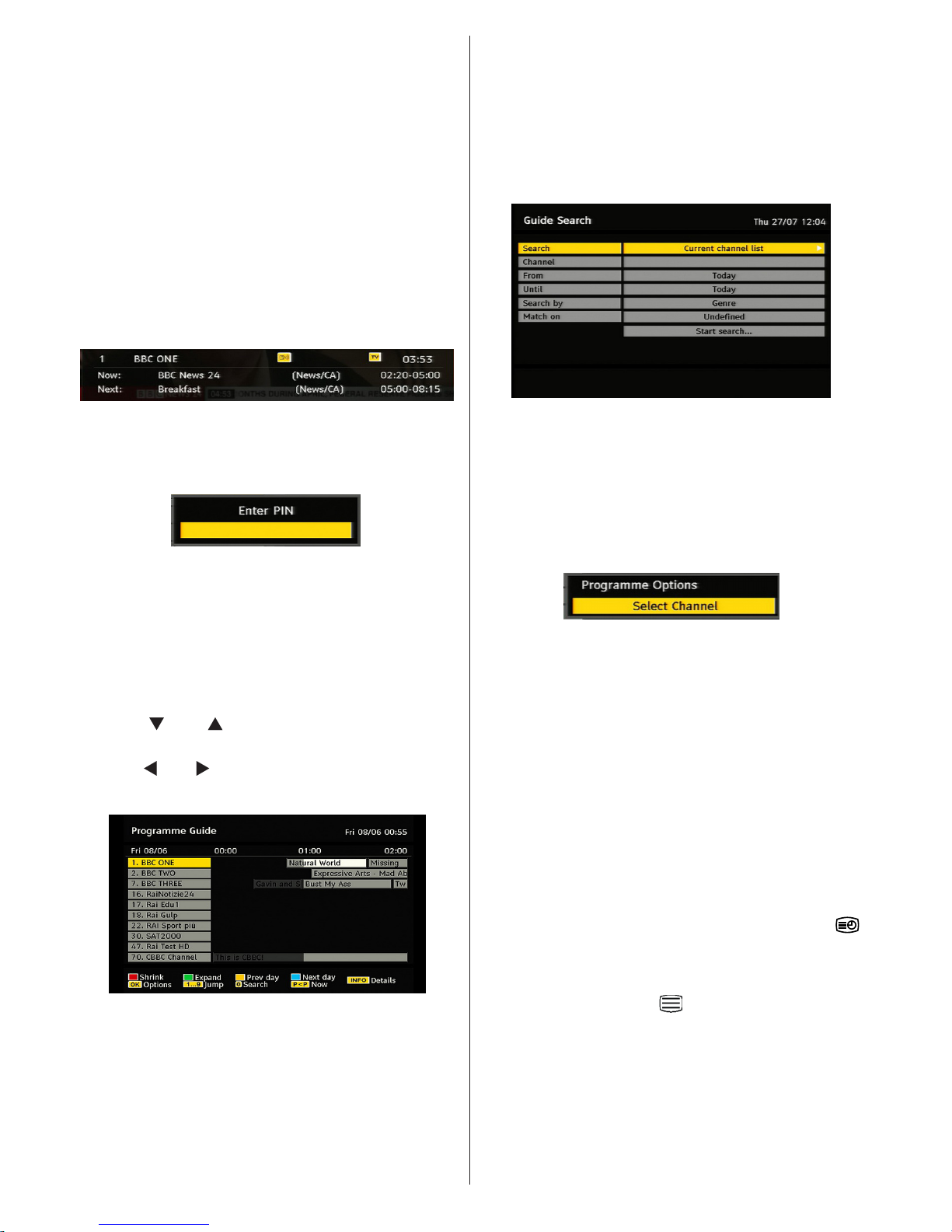

General Operation

Pressing the TV/DTV button at any time while
watching television programmes will switch the TV
set to the digital terrestrial television broadcasting.

Information Banner

• Whenever you change the channel using the P + or

P - button or numeric buttons, the TV displays the

broadcast picture along with an information banner
at the bottom of the screen. This will remain on the
screen for approximately a few seconds.

• The information banner can also be displayed by

pressing the INFO button at any time while watching
the TV. Pressing INFO button again removes the
banner.

If the selected channel is locked, you must enter

the correct four digit key to view the channel. In this

case, a dialog box asking for the lock key will be

displayed:

Electronic Programme Guide (EPG)

Some, but not all, channels send information about

the current and next events. Please note that event
information is updated automatically. If there are no

event information data available for channels,EPG

will be displayed with blanks.

• Press GUIDE button to view the EPG menu.

• Press “

” or “ ” buttons to navigate through

channels.

• Press “

” or “ ” buttons to navigate through the

programme list.

RED button (Shrink): makes the info boxes
smaller.

GREEN button (Expand): makes the info boxes
larger.

YELLOW button (Prev. Day): di s plays th e
programmes of previous day.

BLUE button (Next day): displays the programmes
of the next day.

INFO (Details): displays the programmes in detail.

OK (View / Timer): shows the highlighted channel /

sets the reminder for future programmes.

Numeric buttons (Jump): go to preferred channel
directly via numeric buttons.

P<P: Jump to current broadcast.

0 (SEARCH): activates “Guide Search” window

Press “0” button to view Guide Search menu. Using

this feature, you can search the programme guide

database in accordance with the genre selected or
with name match.

Programme Options

In EPG menu, press the OK button to enter the
“Programme Options” menu.

Using this option, you can switch to the selected

channel.

Over Air Download

To ensure that your IDTV always has the most up-

to-date information, please ensure that, after use,
it is set to standby mode. At 3 A.M. each day, the

IDTV automatically searches for any updates which
may be broadcast and will download this to your
IDTV automatically. This operation will normally take
approximately 30 minutes.

Displaying Subtitles

With digital terrestrial broadcasting (DVB-T), some

programmes are broadcast with subtitles.

Note: You can enable subtitles by pressing the

(For UK**) or GREEN (for EU*) button.

Digital Teletext (For UK only**)

• Press the TELETEXT ( ) button.

• The digital teletext information appears.

• Operate it with the coloured buttons, /// buttons and

OK button.

The operation method may differ depending on the
contents of the digital teletext.

Follow the instructions displayed on digital teletext
screen.

English - 13 -

• When “Press “SELECT” button or similar message
appears on the screen, press the OK button.

• When the TELETEXT (

) button is pressed, the

TV returns to television broadcasting.

• With digital terrestrial broadcasting (DVB-T), in

addition to digital teletext broadcasting together with

the normal broadcasting, there are also channels

with just digital teletext broadcasting.

• The aspect ratio (picture shape) when watching

a channel with just digital teletext broadcasting is
the same as the aspect ratio of the picture viewed
previously.

• When you press the TELETEXT (

) button again,

the digital teletext screen will be displayed.

Analogue Teletext

Use of teletext and its functions are identical to
the analogue text system. Please do refer to the
“TELETEXT” explanations.

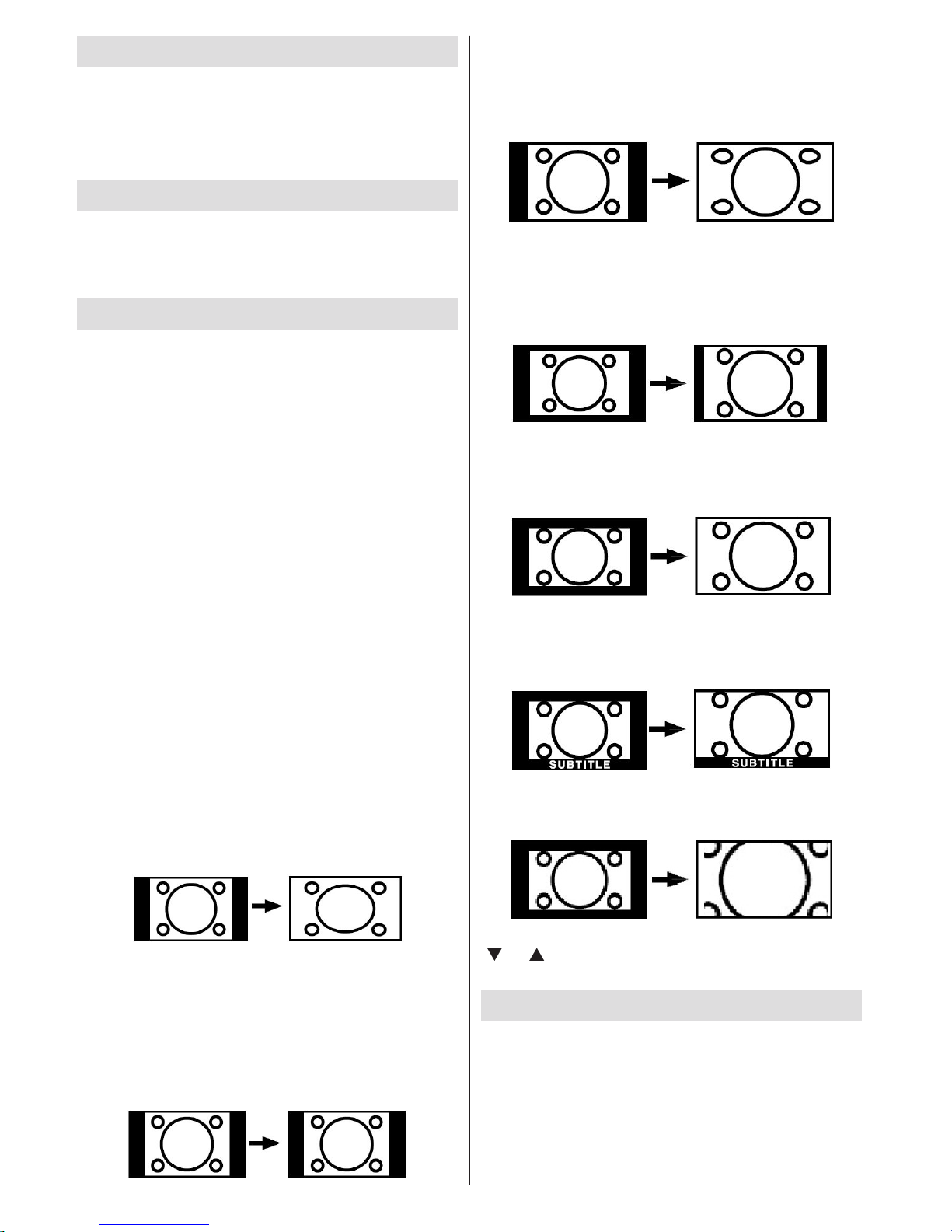

Widescreen

Depending on the type of the broadcast being

transmitted, programmes can be viewed in a number

of formats. Press the WIDE button repeatedly to
change screen format.

When Auto is selected, the format being displayed is

determined by the picture being broadcast.

PLEASE NOTE: Menu size changes depending on
the chosen image size.

Dijital TV Menu System

• Press M button and DTV main menu will be

displayed.

Channel List

Using “ ” or “ ” buttons on the remote control in

main menu, make sure that the rst item, Channel
List, is highlighted and press the OK button to display

the Channel List.

You can use following buttons for Move, Delete and

Lock functions.

• Channel List is the place where the channels are

managed.

YELLOW: Tags/untags the selected channel.

BLUE: Tags/untags all channels.

Navigating the Entire Channel List

• Press “ ” or “ ” keys for selecting the previous or
next channel.

• You can press

or buttons to move page up or

page down.

• To watch a specic channel, highlight it using “

”
or “ ” buttons and then press OK button, while the
“Select” item on Channel List menu is highlighted
via “ ” or “ ” buttons.

Moving the channels in the channel
list

• Press “ ” or “ ” buttons to select the channel that
will be moved.

• Press “

” or “ ” buttons to select the ‘’Move’’ item

on Channel List menu and press OK to conrm.

Note: If you enter the same programme number of

the channel that you want to move, “....services will

be replaced. Do you want to continue?” OSD will
be displayed. Press OK to conrm or select “No”
to cancel.

Note: The following screen will be displayed when
want to move or delete channels that are sorted by
LCN (logical channel number) service.

Select “YES” to continue. Select “NO” to cancel
(LCN feature is available for only Germany, Austria,
Switzerland and Italy country options).

Deleting the Channels in the Channel
List

• Press “ ” or “ ” buttons to select the channel that

will be deleted.

• Press “

” or “ ” buttons to select the “Delete’’ item

on Channel List OSD.

English - 14 -

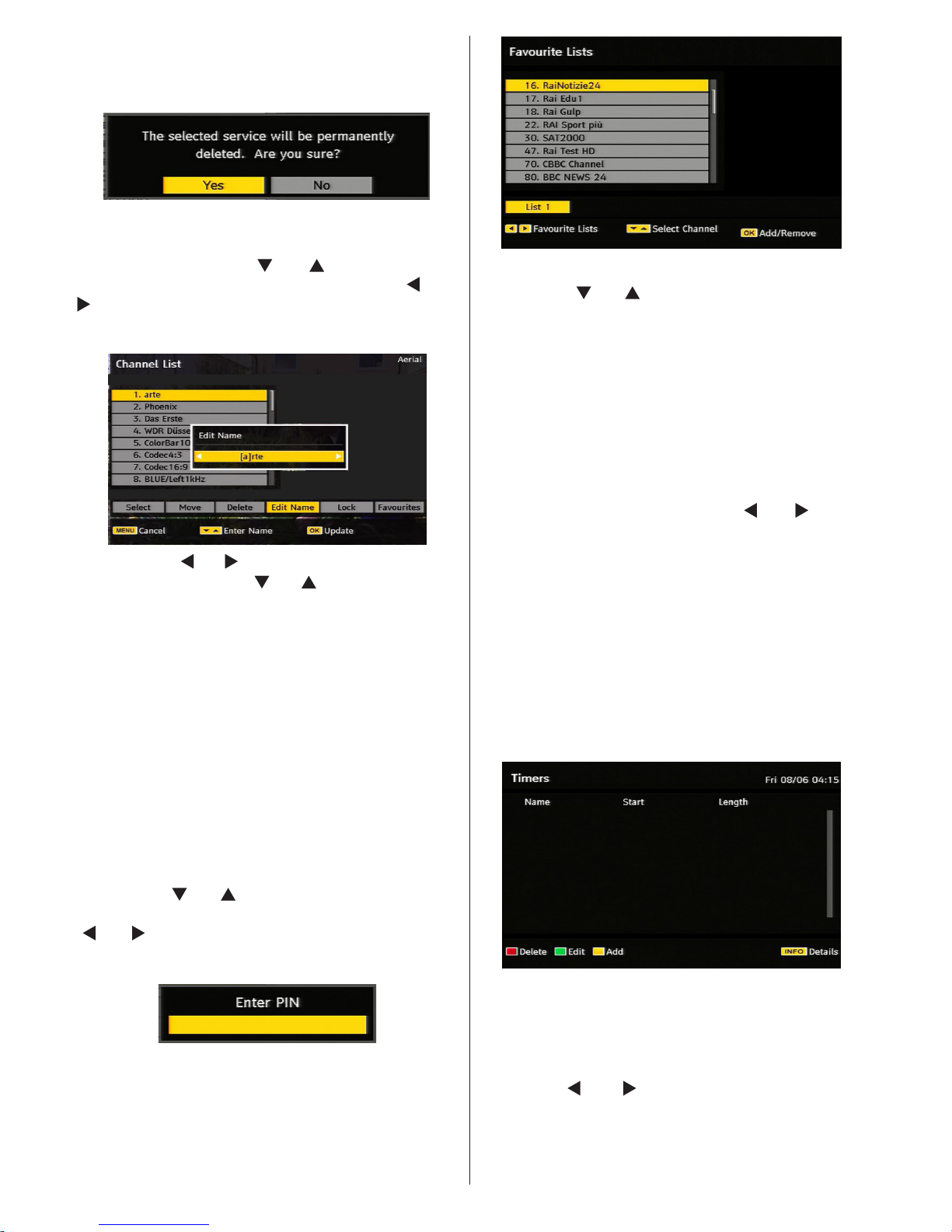

Press “OK’ button to delete the highlighted channel
in the channel list. Then the message below appears
on the screen.

Renaming channels

To rename a specic channel, the channel must be

highlighted via pressing “ ” or “ ” buttons and then
highlight the “Edit Name” item by pressing “ ” or “

” buttons. Press “OK” button to activate rename

feature.

Now pressing “ ” or “ ” buttons moves to the previous/
next character. Pressing “ ” or “ ” buttons toggles the

current character, i.e., ‘b’ character becomes ‘a’ on and
‘c’ on . Pressing the numeric buttons ‘0...9’ replaces the

highlighted character with the characters printed above
the key one by one as the button is pressed.

Press the M button to cancel the editing or OK button
to save the new name.

Adding Locks to Channels

Channel Locking provides a password-protected
access to channels selected by parents.

In order to lock a channel you should know the
Parental Lock password (default value is set to
0000 in the factory and can only be changed from the
Conguration menu).

By pressing “

” or “ ” buttons, highlight the channel
to be locked and select the “Lock” option by pressing
“ ” or “ ” buttons. Then press the OK button and a
password box is displayed:

Setting Favourites

To set a favourite you should highlight the “Favourites”
item at the bottom of the Channel List menu. Then
press OK button and Edit Favourite List menu
appears on the screen.

Adding a Channel to a Favourites List

By pressing “ ” or “ ” buttons, highlight the channel
that you want to add to the favourite list. By pressing

OK button, the highlighted channel is added to

Favourite List. F icon indicates that a channel is added
to Favourite List.

Removing a Channel from a Favourite List

• Highlight the channel that you want to remove from the

favourite list and press OK button to remove.You can
press OK button again to re-adding a channel.

• To activate Favourites, go to the Conguration menu

and select Favourite mode. Use “

” or “ ” to set

Favourite mode as on. To cancel Favourites, set

Favourite Mode to Off.

Hint: Pressing

INFO button can help you for

displaying information in IDTV.

Program Guide

This section is same with the instructions given in
the General Operations page. Please see Electronic
Programme Guide (EPG) section in the General
Operations part.

Timers

To display timers window, press either TIME button
on the remote control or activate the item from the
main menu. To add a timer, press the YELLOW
button on the remote control. Then “Add Timer”
window appears.

Channel: “

” or “ ” keys will navigate the user

through the TV or Radio list.

Date: Starting date is entered via the Left/Right or
the numeric buttons.

English - 15 -

Start: Starting time is entered via the Left/Right or

the numeric buttons.

End: Ending time is entered via the Left/Right or the
numeric buttons.

Duration: Displays the duration of the recording.

Duration item will be automatically displayed after the
starting and ending times are entered.

Change / Delete: permits or prohibits any modications

for other users.

You can save the adjustments by pressing the GREEN
key or cancel the process by pressing the RED button.
You can edit the list via GREEN key and delete with
the RED button.

Common Interface

Press M button to display the main menu and use
the “ ” or “ ” buttons to highlight the “Common
Interface” line and press OK button.

It is required to subscribe to a pay channel company
to view the pay channels of the Digital Terrestrial
broadcasting.

Obtain the Conditional Access Module (CAM) and
the viewing card by subscribing to a pay channel

company, then insert those to the Television using

the following procedure.

• Switch off the TV and unplug from the mains.

• Insert the CAM, and then the viewing card to the

slot.

• The CAM should be correctly inserted, it is impossible

to insert fully if reversed. The CAM or the TV terminal
may be damaged if the CAM is forcefully inserted.

• Connect the TV to the mains supply, switch on

and then wait for few moments until the card is
activated.

• Some CAMs may require the following set up.

Please set the CAM by entering the DIGITAL TV

menu, Common Interface then pressing OK button.

(CAM set up menu is not displayed when it is not
required.)

•To see the viewing contract information:

• Enter DIGITAL TV; press M button, then highlight

Common Interface and press OK button.

• When no module is inserted, “No Common

Interface module detected” message appears on

the screen.

• Refer to the module instruction manual for details

of the settings.

NOTE: Insert or remove the CI module only when the
TV is in STANDBY mode or SWITCHED OFF.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed from
the main menu. Press the M button to display the main
menu and use or buttons to highlight “TV Setup”.
Press OK button to display TV Setup menu screen.

You can nd detailed information for all menu items

in “Analogue TV Menu System” section.

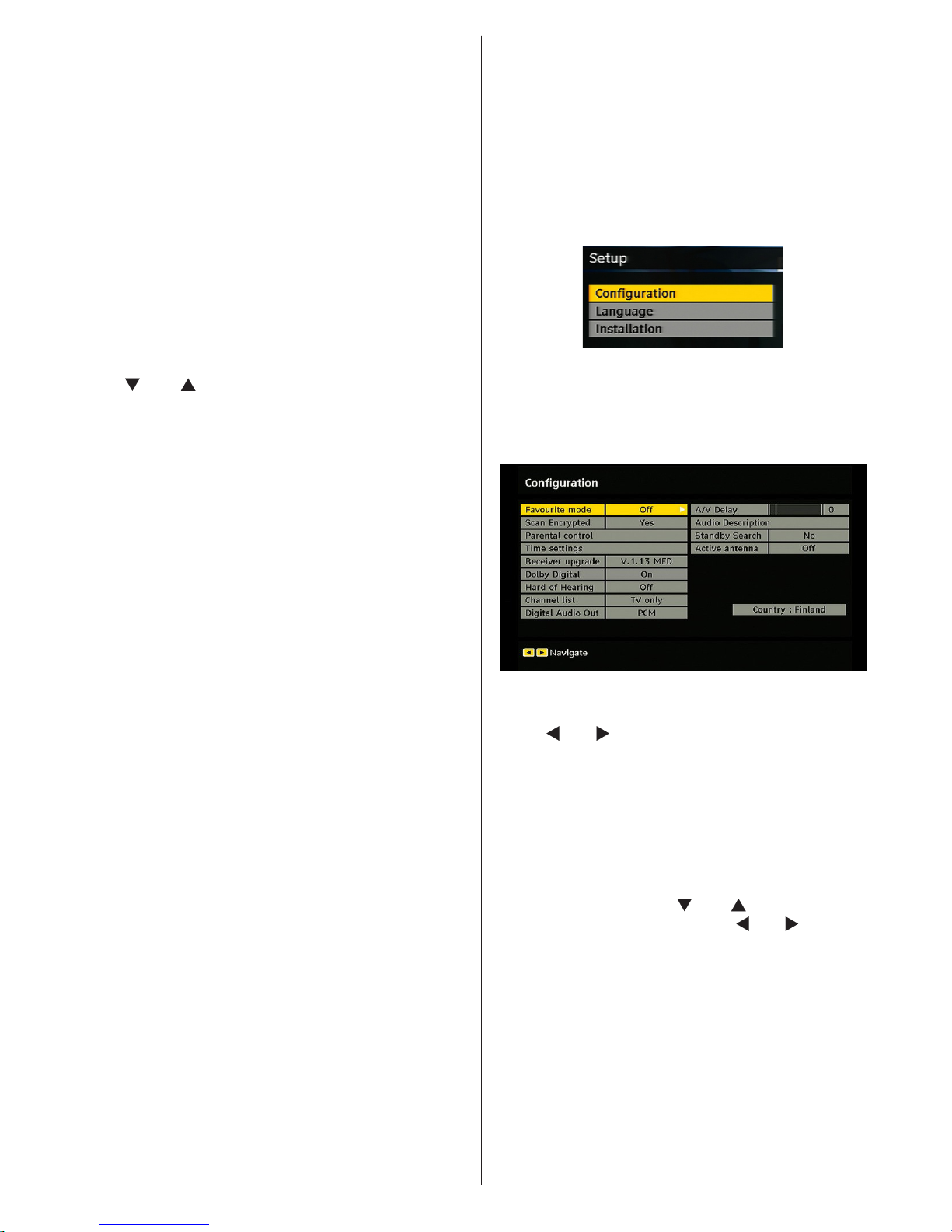

Setup

The adjustments in this menu are given as the
following:

Conguration

You can congure the settings of your TV. Select

Conguration from Setup menu and press OK to
view this menu. Press the EXIT button on the remote
control to exit.

Favourite Mode

Use this function to enable or disable favourite mode.
Press “

” or “ ” button to set this function as on or

off.

Scan Encrypted

Scan Encrypted Channel feature will always be ON

after performing rst time installation. When this
setting is on, search process will locate the encrypted
channels as well. If it is set as OFF manually, encrypted

channels will not be located while in automatic search
or manual search. Use “

” or “ ” button to select

Scan Encrypted and then press “

” or “ ” button to

set this setting as On or Off.

Parental Control

• Some channels broadcast material which you do not

want younger members of the family to watch. Any
channel can be ‘locked’ so that it cannot be selected
for viewing unless a four-digit PIN code is entered.
In this way any channel not suitable for younger
viewers can be prohibited.

• This function enables or disables the menu protection

system and allows the PIN code to be changed.

English - 16 -

• Use “ ” or “ ” buttons to highlight Parental Control.

Press OK button to enter Parental Control menu. A

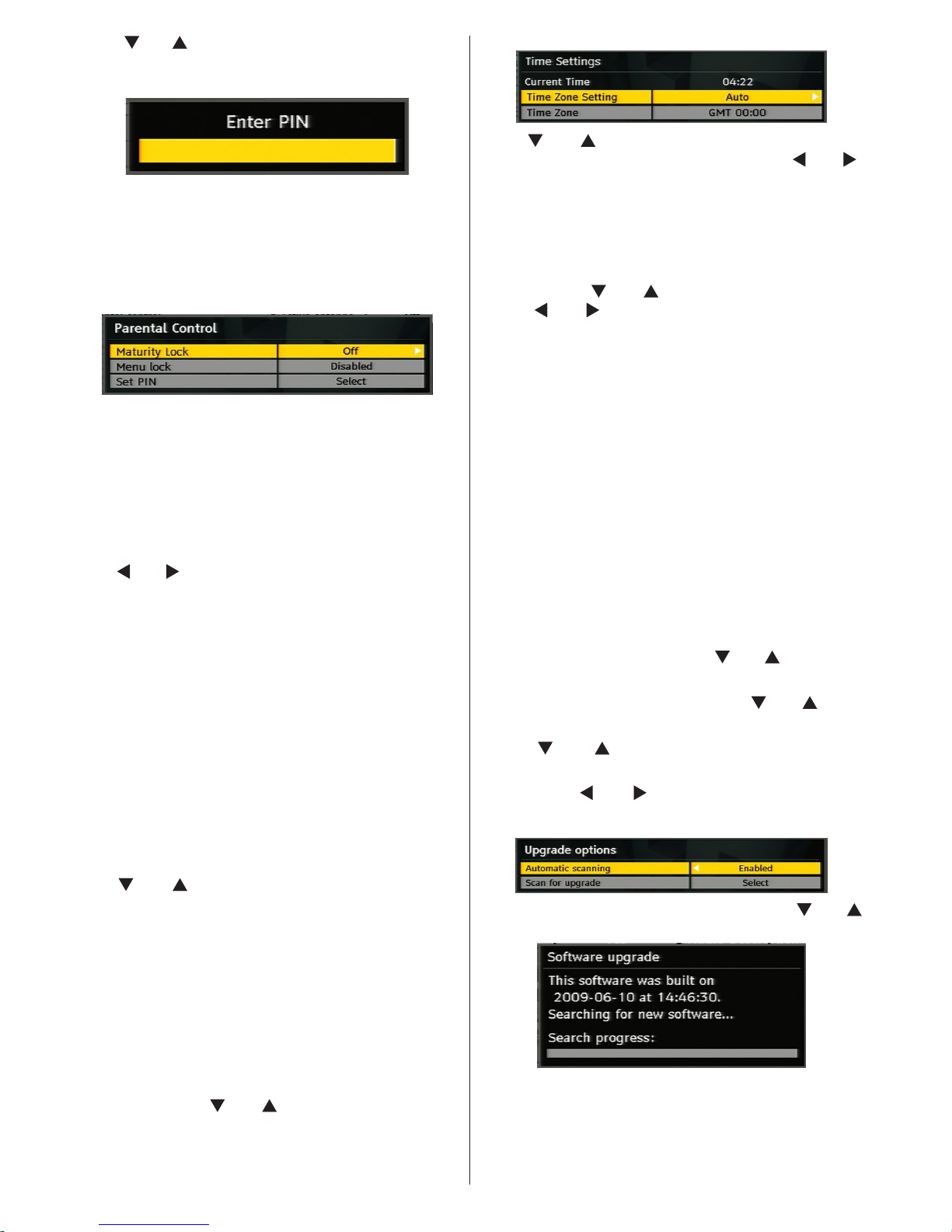

dialog box asking for the lock key is displayed:

There is only one key which is set to “0000” initially.

Enter lock key. If wrong lock key is entered, the

“WRONG PIN” message will be displayed on the
screen and the TV returns to the previous menu. If the

PIN is correct, the Parental Control menu including

following items will be displayed:

Maturity Lock (**)

(**) If you set Country option as UK in the rst time
installation, Maturity Lock option will not be vsible.

When set, this option gets the maturity information
from the broadcast and if this maturity level is disabled,

the TV will not display the related video-audio.

Menu Lock

Use “ ” or “ ” buttons to set Menu Lock. Here, you
can set/reset locking function for the main menu or
the installation menu to restrict access. If the menu

lock is disabled, there will be free access to the menu

system.

Disabled: All menus are unlocked.

All Menus: All menus are accessible only with the

correct lock key. So the user cannot add, delete,

rename or move the channels and cannot set the
timers.

Installation Menu: Installation menu is locked, so the

user cannot add channels. Changes will be updated

after exiting Conguration Menu.

Set PIN

Use “ ” or “ ” buttons to go to “Set PIN” option.
Press OK to display the “Set PIN” window. Use
numeric buttons to enter new pin number you will need

to input your new pin a second time for verication
purposes. The factory default pin number is 0000, if

you change the pin number make sure you write it
down and keep it safe.

Time Settings(**)

(**): Time setting will not be available for UK.

In the conguration menu, highlight the Time Settings

item by pressing “

” or “ ” buttons. Press OK and
Time Settings sub menu will be displayed on the
screen:

Use “ ” or “ ” buttons to highlight the Time Zone
Setting. Time Zone Setting is set using “ ” or “ ”
buttons. It can be set to AUTO or MANUAL. When

AUTO is selected, Current Time and Time Zone

options will not be available to be set.

If MANUAL option is selected as the Time Zone

Setting, Time Zone can be altered:

• By pressing “

” or “ ” buttons select Time Zone.
Use “ ” or “ ” buttons to change the Time Zone
between GMT-12 or GMT+12. Current Time on the
top of the menu list will then change according to
the selected Time Zone.

Receiver Upgrade

Over Air Download (OAD)

To ensure that your TV always has the most up to date

information, use this setting. Please ensure that the TV

is set to standby mode. The TV automatically
powers up at 3.00 A.M. each day and searches for
any new information which may be broadcast and
will download this to your receiver automatically. This
operation will normally take approximately 30 minutes.
If you have an important recording to be carried out at

3.00 A.M. and you do not want to interrupt it, disable

auto OAD search by performing the following:

• Press M button and using the “

” or “ ” buttons to

choose Setup and press OK button.

• Highlight Conguration menu with “

” or “ ” keys

and press OK.

• Use “

” or “ ” buttons to choose “RECEIVER

UPGRADE” and press OK button.

• Using the “

” or “ ” button change “Automatic

scanning” from Enabled to Disabled.

• Highlight “Scan for upgrade” menu with “ ” or “
”keys and pres OK to commence upgrade.

• After the search progress is completed, the message

“ Completed searching for upgrade. No new software
was found” appears on the screen if no new software
is found.

English - 17 -

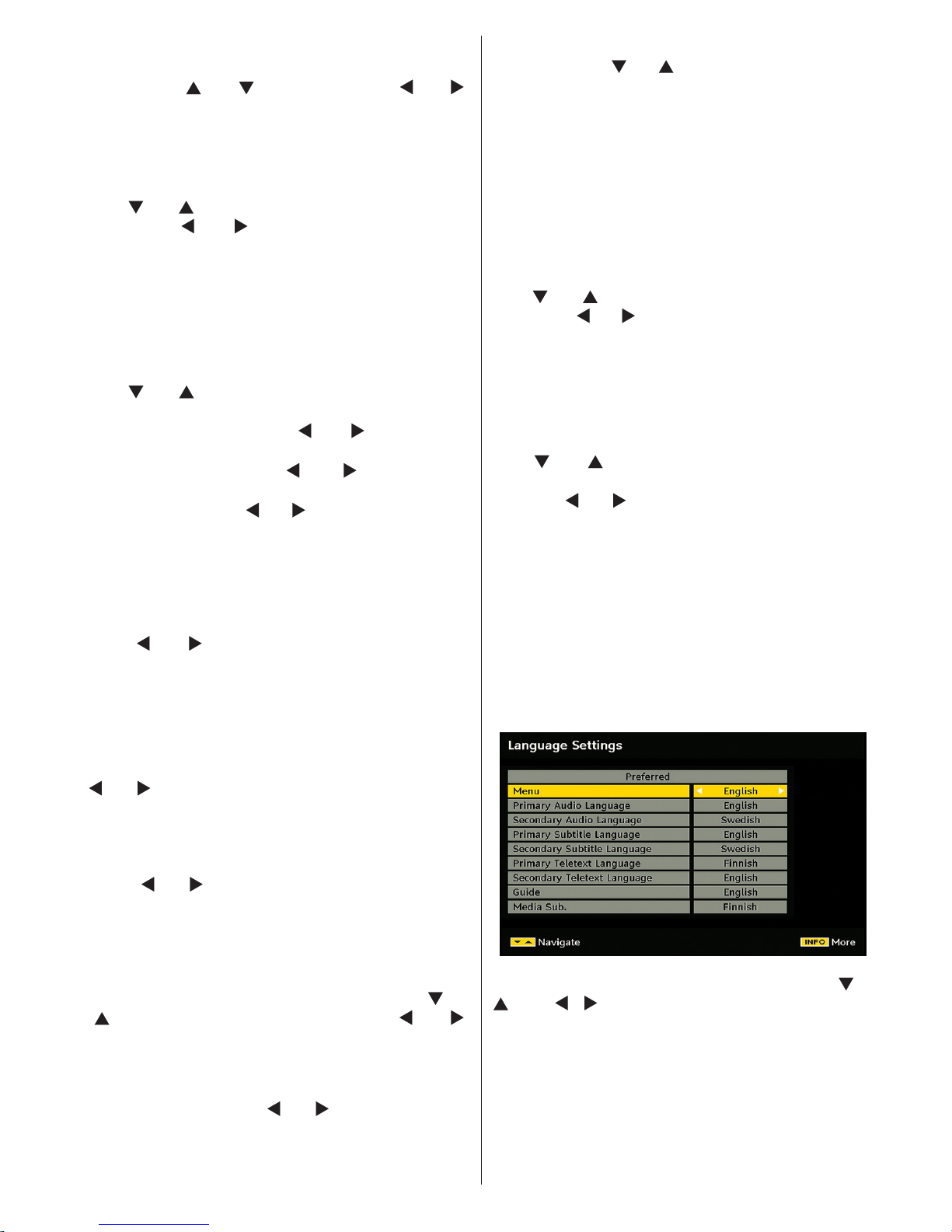

Dolby Digital

In the Conguration Menu, highlight the Dolby D item

by pressing “ ” or “ ” buttons. Use the “ ” or “ ”
buttons to set the Dolby Digital as On or Off. If the

channel that you are watching supports Dolby Digital
and Dolby Digital Plus, you can turn this setting on.

Hard of Hearing (*)

Use “ ” or “ ” button to select Hard of Hearing and
then press “ ” or “ ” button to set this setting as
On or Off.

If the broadcaster enables a ny special signal

concerning the audio, you can set this setting as On

to receive such signals.

(*) Hard of Hearing function will not be available for UK.

Channel List

Use “ ” or “ ” buttons to go to Channel List option.
Use or buttons to toggle Channel List Mode. If you
select “TV Only”, with the “ ” or “ ” buttons, you
navigate through only TV channels. If you select
“Radio Only”, with the “

” or “ ” buttons, you
navigate through only radio channels. If you select
“Text Only”, with the “

” or “ ” buttons, you navigate
through only text channels. If you choose “Show All”
all channels can be navigated. To save the recent
changes and exit; press the M button.

Digital Audio Out

Use this setting to dene digital audio out signal type.

Use “ ” or “ ” buttons to set Digital audio out as
AC3 or PCM.

If your selected channel includes AC3 sound stream,

you should connect your TV to external equipment
by using Spdif out of your TV for enabling the sound

output.If you have no external sound equipment,

please select Digital Audio Out as “PCM” by using “

” or “ ” button.

A/V Delay

You can use this setting when there is an AV
synchronization problem in the received broadcast.

Press “ ” or “ ” button to change the delay.

Audio Description (Optional)

Audio description refers to an additional narration
track for blind and visually impaired viewers of visual

media. You can use this feature, only if the broadcaster

supports that additional narration track. Use “ ” or
“ ” buttons to select an item. Then use “ ” or “ ”
buttons to set.

Audio Description (Optional)

This function enables or disables the audio description
feature by pressing the “

” or “ ”buttons.

Preferred Language (Optional)

By pressing the “

” or “ ” buttons the preferred audio

description language is being changed. This setting

can be used, only if it is available.

Relative Volume (Optional)

Using this option, the Audio Description volume level
can be increased or decrased relatively, according to

the general volume.

Standby Search (*)

(*) This setting is visible only when the Country option

is set to Denmark, Sweden, Norway or Finland.

Use “

” or “ ” button to select Standby Search and

then press “ ” or “ ” button to set this setting as On or

Off. If you change Standby Search to Off, this function

will be unavailable.

To use Standby search please make sure that

you select Standby Search as On.

Active Antenna (*)

Use “ ” or “ ” buttons to highlight Active Antenna
option. When antenna power option is set as On by
pressing “ ” or “ ” button, +5V will be transmitted to
the antenna output.This feature enables the use of
active antenna.

Note: Antenna power should be “Off” when standard
antenna is used instead of the active antenna.

Language Settings

In this menu the user can adjust the preferred language.
Select “Language” item in the Setup menu and press
OK button. Then language settings menu will be
displayed.

You can set the desired language options by using “ ” /“

” and “ ”/“ ” buttons.

Note: If the Country option is set to Denmark, Sweden,
Norway or Finland, the Language Settings menu will
function as described below:

English - 18 -

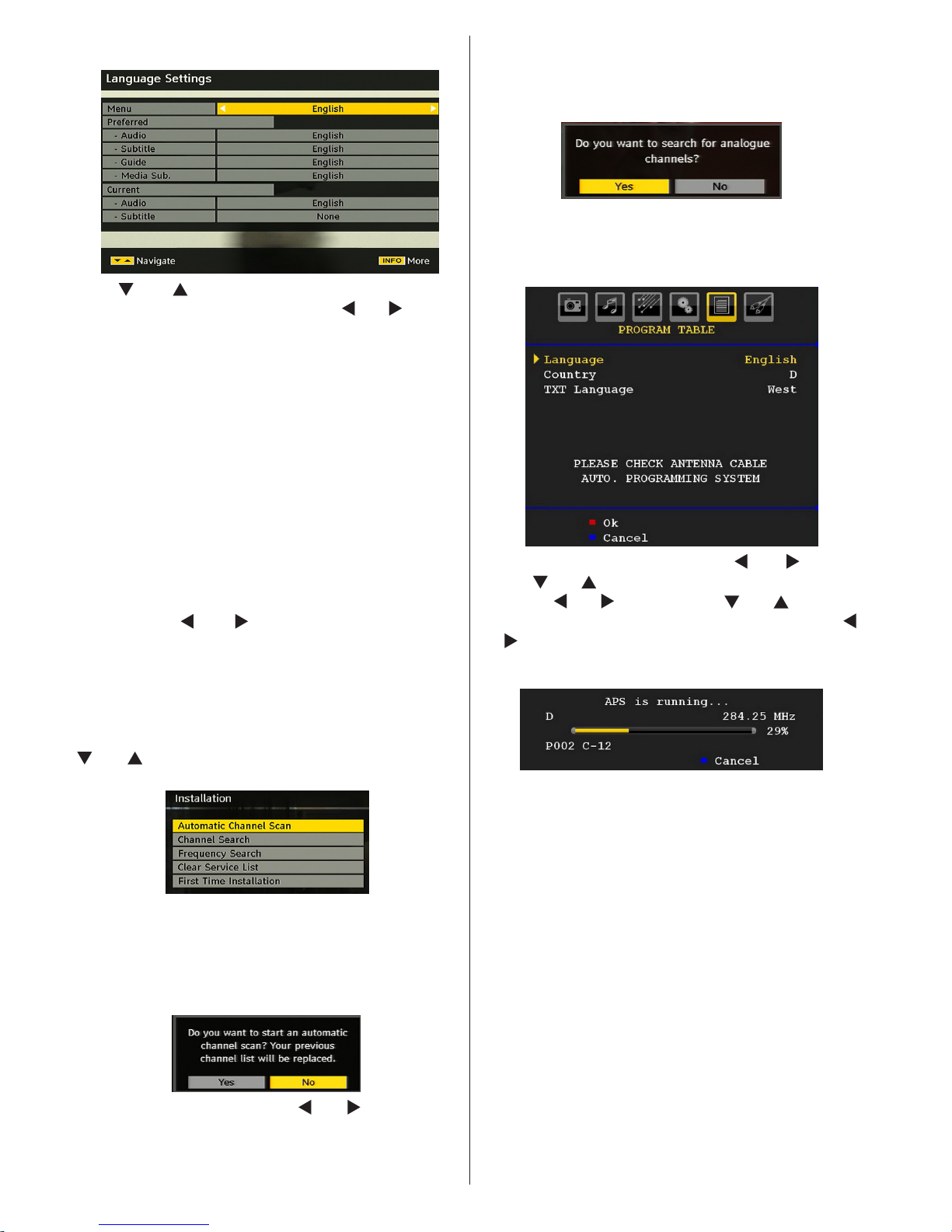

Language Settings

.

Use “ ” or “ ” buttons to highlight the menu item
that will be adjusted and then press “ ” or “ ” button
to set.

• Audio Language is used for selecting the soundtrack
of a channels. Primary settings are the rst priority

when multiple choices are available on a broadcast.
Secondary settings are the alternatives when the

rst options are not available.

• Guide Language: If the received EPG data includes
the selected guide language, EPG data language

will be changed accordingly.

•Tel e t e x t language se t s the de s i r e d teletext

language.

Media Subtitle: In order to display subtitles properly,

use this setting to select a movie subtitle language.

By pressing “

” or “ ” button, select the desired

language option.

Installation

The Installation menu is mainly intended to help you

for creating a Channel Table in most efcient way.

Select Installation from the main menu by pressing “

” or “ ” buttons.

Automatic Channel Scan

Automatic channel scan is started by pressing
OK button while Automatic channel scan item is
highlighted.

The following message appears on the screen:

Highlight Yes or No by using “ ” or “ ” buttons and
press OK button to conrm.

If Yes is selected, automatic search starts.

Selecting No cancels automatic search.

After search is completed for digital channels, a

message asking whether to search for analogue
channels appears on the screen:

Highlight Yes and press OK button to search for
analogue channels. The following menu appears on
the screen for analogue channel search:

Set Language item by pressing “ ” or “ ” button.
Press “ ” or “ ” button to highlight Country item and
then use “ ” or “ ” to set. Press “ ” or “ ” button to
highlight TXT Language. Select a region by using “ ”
or “ ” button. When nished, press OK or RED button

to continue. To cancel, press the BLUE button.

After APS is nalized, the programme table will appear
on the screen. In the programme table you will see
the programme numbers and names assigned to the
programmes.

Manual Search

In Manual Search, the number of the multiplex is entered

manually and only that multiplex is searched for the

channels. For every valid channel number, signal level

and signal quality are shown on the screen.

In both manual and auto search any existing channel
in the database is not re-stored to avoid redundant
duplicates of that channel.

Frequency Search

Enter the desired frequency. When nished, press OK
button, and the TV wili start frequency search.

Clear Service List (*)

(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.

English - 19 -

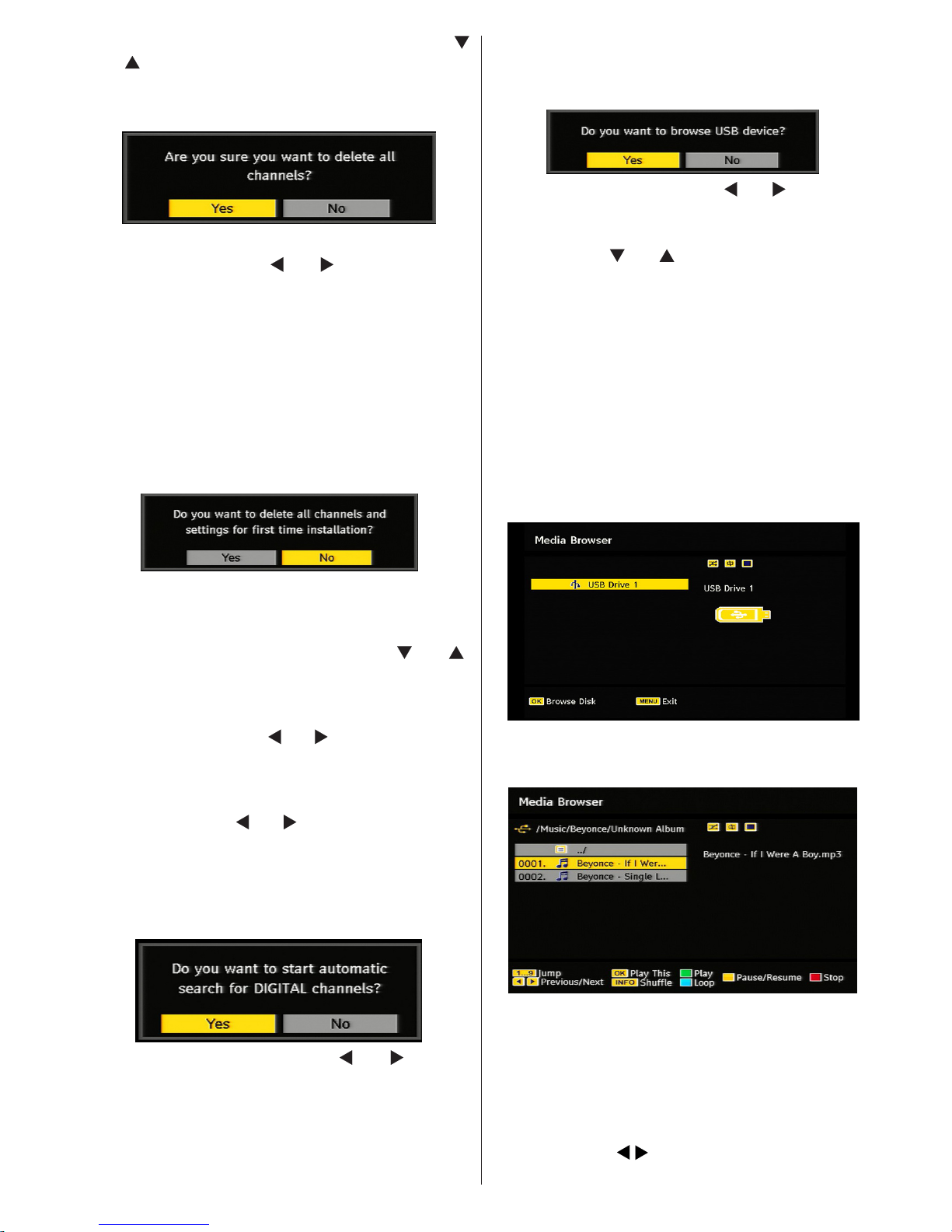

Use this setting to clear channels stored. Press “
” or “ ” button to select Clear Service List and then
press OK. The following OSD will be displayed on
the screen:

Press OK to cancel.

Select Yes by pressing “

” or “ ” button and press

OK to delete all of the channels.

First Time Installation

The user can use this item to load default settings,

which were loaded to the receiver at the factory.

To install factory settings, highlight “First Time
Installation” menu item and press OK button, then

you will be asked whether or not to delete the settings.
Selecting “Ye s” by pressing OK button while the “Yes”

is highlighted, will delete the existing channel table.

After factory settings are loaded, “First Time

Installation” menu will be displayed.

The menu which is displayed for language selection

appears on the screen at rst. By using “

” or “ ”

buttons, select the desired language option, and press

OK button to activate.

After then, “First time installation” OSD will appear on

the screen. By pressing “

” or “ ” buttons, select the
Country you want to set and press OK button (* only
for EU countries).

Next, active antenna mode selection OSD will appear

on the screen. Use “

” or “ ” to set and press OK to

continue. See the section, “Initial Settings” for more

information.

After active antenna mode option is selected, a

message asking for automatic search appears on
the screen:

Highlight “Yes” item by pressing “ ” or “ ” buttons
and press OK button to start installation. After search

is completed for digital channels, a message asking

whether to search for analogue channels appears
on the screen. This process is same as described in
Automatic Search section.

Media Browser (in DTV mode)

Whenever you plug a USB ash disk to your TV, the

following message will be displayed on the screen:

Select YES or NO by pressing “ ” or “ ” button and
“OK” button to continiue.

You can also select Media Browser item from the main
menu by using “

” or “ ” buttons. Press OK to view

Media Browser contents.

You can play audio and photo les from a USB ash

disk.

Note: Some USB compliant devices may not be
supported.

Note: If you plug USB stick in analogue mode, the TV
will automatically switch to digital TV mode.

Note: If the USB stick is not recognized after Power

off/on or First Time Installation, rst plug the USB

device out and power off/on the TV set. Plug the USB
device again.

Press OK to browse, “M” to quit.

Playing Audio Files:

Play This (OK) : Plays the selected le.

Play (GREEN) : Play all media les in the folder

starting with the selected one.

Pause/Resume (YELLOW button): Pauses or
resumes playback.

Stop (RED) : Stop the playing le.

Previous/Next (

/ ) : Jumps to previous or next

le to play.

English - 20 -

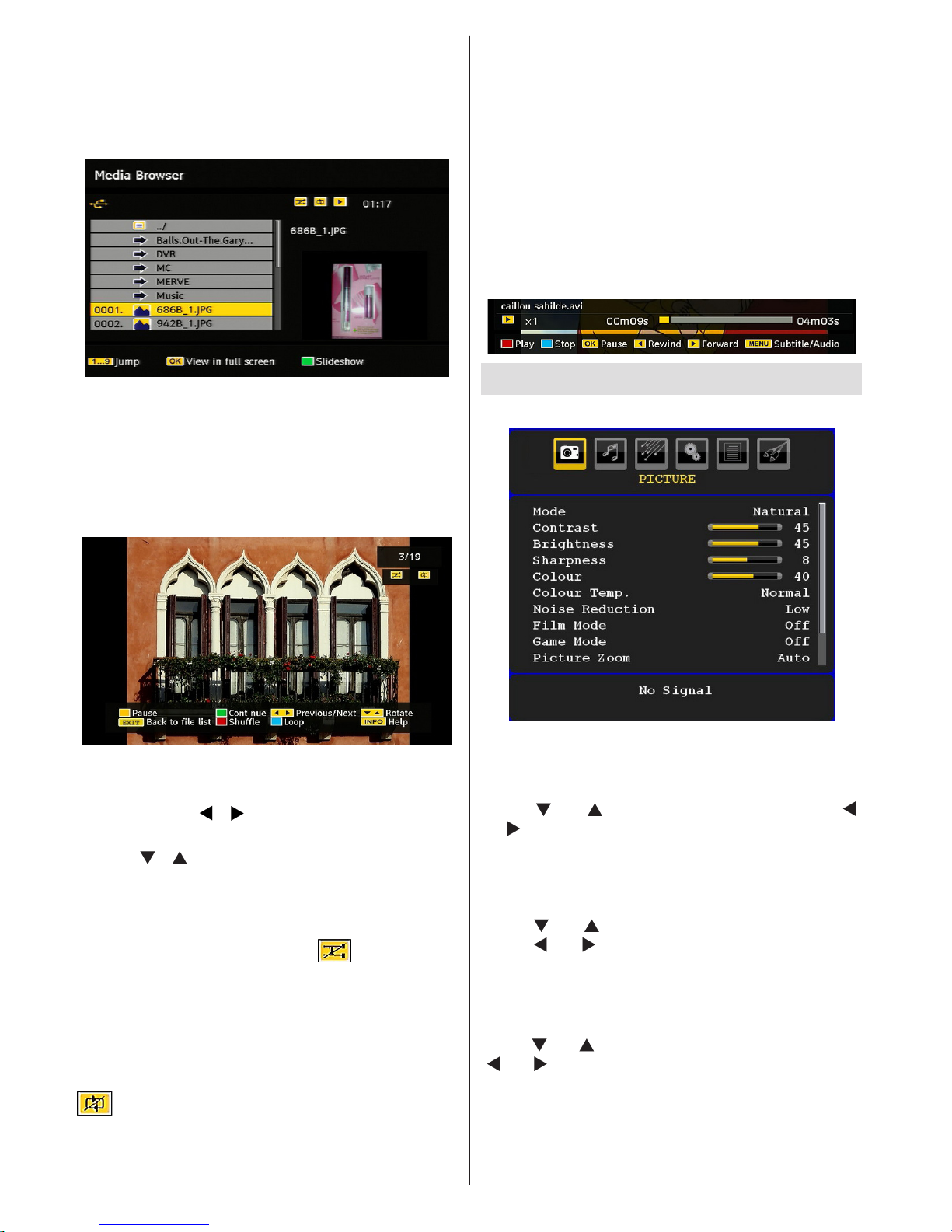

Shufe (INFO) : Plays the les randomly. If shufe
mode is enabled, previous/next functions will also

jump to the tracks randomly.

Loop (BLUE) : Plays the selected le repeatedly.

Viewing JPEG Files

Jump (0...9) : jump to selected le using the numeric

buttons.

OK : view the selected picture in full screen.

Play / Slideshow (GREEN) : start to slideshow with

all pictures in the folder.

Slideshow Options

Pause (YELLOW) : Pause the slideshow.

Continue (GREEN) : Continue with the slideshow.

Previous/Next (

/ ) : Jump to previous or next

le of slideshow.

Rotate (

/ ) : Rotate the picture using up/down

buttons.

EXIT : Back to le list.

Shuffle (RED) : Shows the files randomly and

continuous in current folder and

icon turns the

highlighted icon. If during a slideshow the shufe mode
is enabled, the next pictures will be chosen randomly
(If the loop function is not enabled, the slideshow will
stop at the end. If the loop function is enabled, after
the slideshow ends, it will start again and again).

Loop (GREEN) : Slideshow goes on continuously and

icon turns the highlighted icon.

Info : Activate the operations bar.

Video Playback (optional)

Play (Red button) : Starts the video playback.

Stop (Blue button) : Stops the video playback.

Pause (OK button) : Pause the video playback.

Rewind (Cursor Left) : Goes backward.

Forward (Cursor Right) : Goes forward.

Menu (M button) : Sets subtitle/Audio.

You can set subtitles by using OK button before
starting the playback or by using M button during

the playback. Press EXIT button to switch back to

previous menu.

ıAnalogue TV Menu System

Picture Menu

Mode

For your viewing requirements, you can set the related

mode option.

Press “

” or “ ” button to select Mode. Press “ ”

or “ ” button to choose from one of these options:

Cinema, Dynamic and Natural.

Brightness/Contrast/Colour/Sharpness/
Hue

Press “ ” or “ ” button to select the desired option.
Press “ ” or “ ” button to set the level.

Note: Hue option can only be visible when the TV
receives an NTSC signal.

Colour Temp

Press “ ” or “ ” button to select Colour Temp. Press
“ ” or “ ” to choose from one of these options: Cool,
Normal and Warm.

Note:

• Setting Cool option gives white colours a slight
blue stress.

English - 21 -

• Setting Warm option gives white colours a slight
red stress.

• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is
noisy, use Noise Reduction setting to reduce the
noise amount.

Press “

” or “ ” button to select Noise Reduction.

Press “

” or “ ” to choose from one of these options:

Low, Medium, High or Off.

Film Mode

Films are recorded at a different number of frames per
second to normal television programmes.

Press “

” or “ ” button to select Film Mode.

Press “

” or “ ” button to set this feature On or Off.

Turn this feature on when you are watching.

lms to see the fast motion scenes clearly.

Game Mode (optional)

Select Game Mode by pressing “ ” or “ ” button.
Use “ ” or “ ” button to set Game Mode as On or

Off. When Game Mode is set to On, specic game
mode settings, which are optimized for better video
quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness,

Colour and Colour Temp settings will be invisible and
disabled while Game Mode is on.

Note:

Picture mode selection button on the remote control
will have no function while Game Mode is on.

Picture Zoom

Select Picture Zoom by pressing “ ” or “ ”
button.

Use “

” or “ ” buttons, to change picture zoom to
Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Subtitle
or Zoom.

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “Stored...” will be
displayed on the screen.

Reset

Press “ ” or “ ” button to select Reset. Press
“ ” or “ ” or OK button to reset the picture modes to
factory default settings.

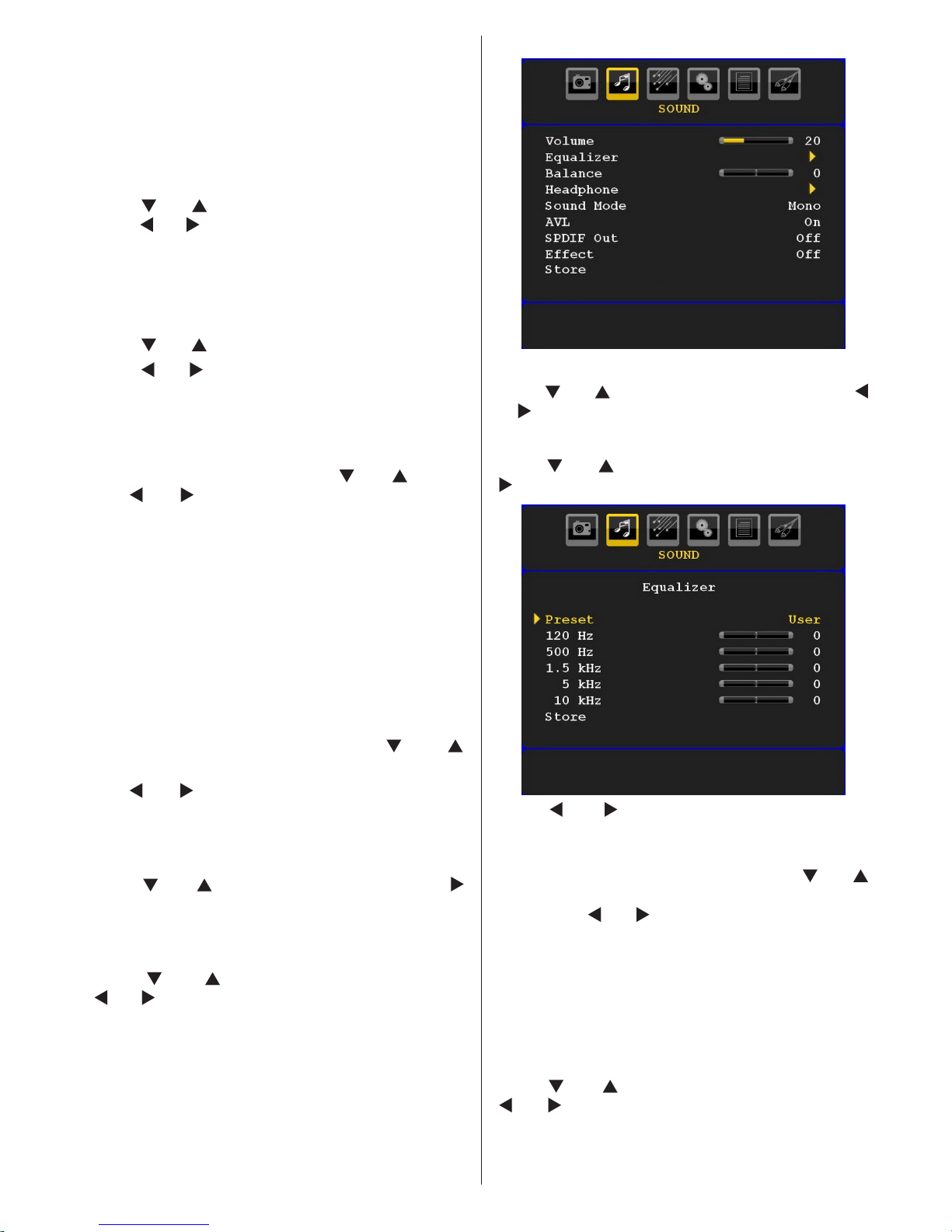

Sound Menu

Volume

Press “ ” or “ ” button to select Volume. Press “ ”
or “ ” button to change the level of the Volume.

Equalizer

Press “ ” or “ ” button to select Equalizer. Press
“ ” button to view equalizer menu.

Press “ ” or “ ” button to change the preset. In

equalizer menu, the preset can be changed to Music,
Movie, Speech, Flat, Classic and User.

Select the desired frequency by pressing “

” or “ ”
button and increase or decrease the frequency gain
by pressing “ ” or “ ” button.

Press the “M” button to return to the previous menu.

Note: Equalizer menu settings can be changed only
when the Equalizer Mode is in User.

Balance

This setting is used for emphasizing left or right
speaker balance.

Press “

” or “ ” button to select Balance. Press
“ ” or “ ” button to change the level of the balance.
Balance level can be adjusted between -32 and +

32.

English - 22 -

Headphone

Press “ ” or “ ” button to select Headphone. Press
“ ” button to view the headphone menu.

Note: Headphone will be disabled when SPDIF option
is set to on.

Headphone sub-menu options are described below:

Volume

Press “

” or “ ” button to select Volume. Press “
” button to increase headphone volume level. Press
“ ” button to decrease headphone volume level.
Headphone volume level can be adjusted between

0 and 63.

Sound Mode (optional)

Press “ ” or “ ” button to select Sound Mode. Using
“

” or “ ” button, you can select Mono, Stereo, Dual I

or Dual II mode, only if the selected channel supports

that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the

sound to obtain xed output level between programmes
(For instance, volume level of advertisements tend to

be louder than programmes).

Press “

” or “ ” button to select AVL. Press “ ” or

“ ” button to set the AVL as On or Off.

Spdif Out

Press “ ” or “ ” button to select Spdif Out. Press “

” or “ ” button to set the Spdif Out. as On or Off.

Note: If Spdif Out is set to On, headphone will be
disabled.

Effect

If you are watching a mono broadcast, set Effect on to

obtain a better sound effect which will be more stereo-

like. If the current sound system is stereo, switching

this effect on will give a more spatial effect.

Press “

” or “ ” button to select Effect. Press “ ”

or “ ” button to set as On or Off .

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “Stored...” will be
displayed on the screen.

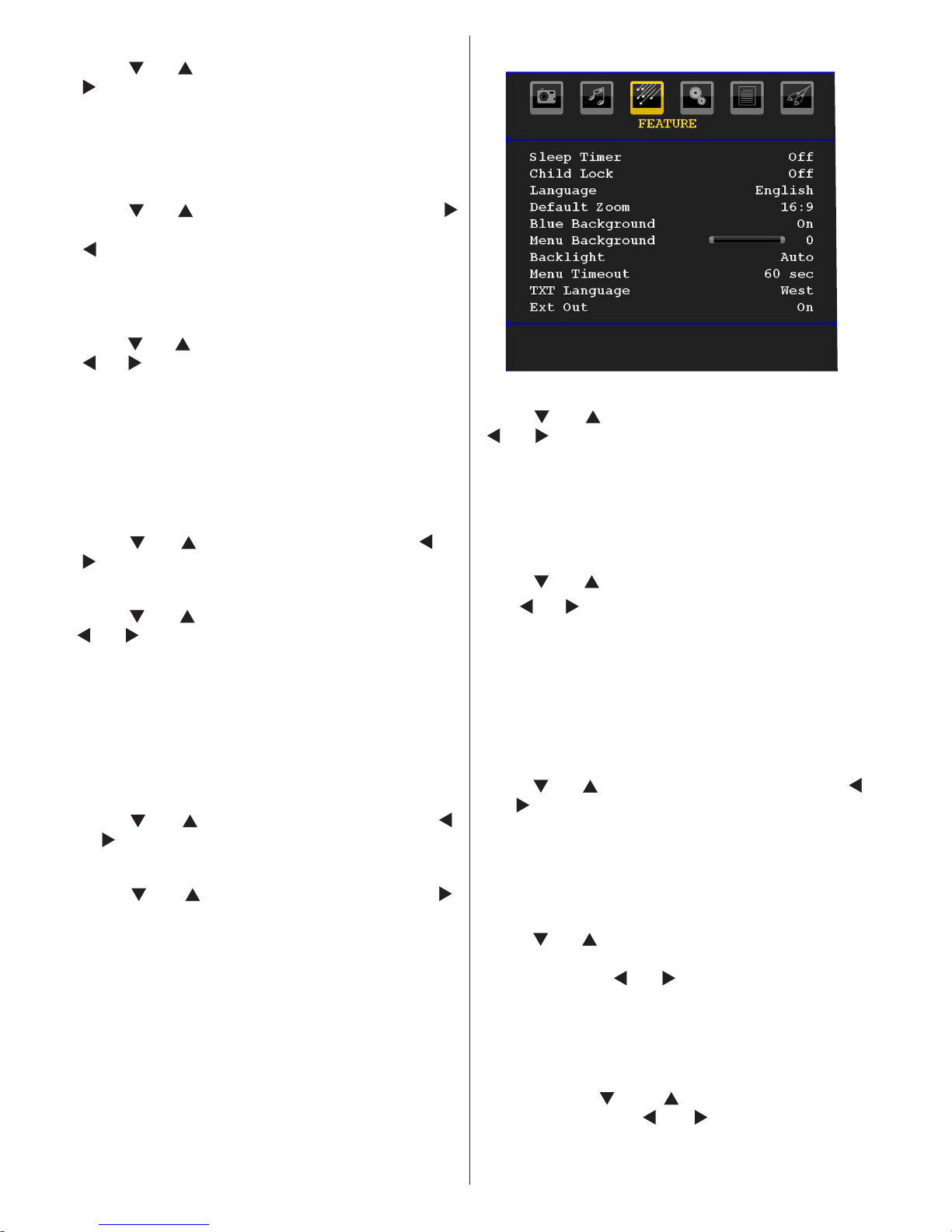

Feature Menu

Sleep Timer

Press “ ” or “ ” button to select Sleep Timer. Use
“

” or “ ” button to set the Sleep Timer.

The timer can be programmed between Off and 120
minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected

time, the TV goes automatically to standby mode.

Child Lock

Press “ ” or “ ” button to select Child Lock.

Use “

” or “ ” button to set the Child Lock On or Off.

When On is selected, the TV can only be controlled

by the remote control handset. In this case the control

panel buttons will not work.

Hence, if one of those buttons is pressed, Child Lock
On will be displayed on the screen when the menu

screen is not visible.

Language

Press “ ” or “ ” button to select Language. Use “
” or “ ” button to select the Language.

Default Zoom

While zoom mode is set as AUTO, the TV will set

the zoom mode in accordance with the signal of
the broadcast. If there is no WSS or aspect ratio

information, the TV will then use this setting to adopt.

Press “ ” or “ ” button to select Default Zoom. You
can set Default Zoom to Panoramic, 16:9, 4:3 or

14:9 by pressing “ ” or “ ” button.

Blue Background

If the signal is weak or absent, the TV will automatically
change to a blue screen. To enable this, set Blue

Background to On.

By pressing “

” or “ ” button, select Blue

Background. Press “

” or “ ” button to set Blue

Background as On or Off.

English - 23 -

Menu Background

Press “ ” or “ ” button to select Menu Background.
Yo u c a n s e t m e n u b a c k g r o u n d l e v e l b y
pressing “ ” or “ ” button.

Backlight

This setting controls the backlight level. Select
Backlight by pressing “ ” or “ ” bu tt o n .
Press“ ” or “ ” button to set Backlight to Auto,

Medium, Maximum or Minimum.

Menu Timeout

To set a specic display timeout for menu screens,

set a value for this option.

Press “

” or “ ” button to select Menu Timeout. Use

“ ” or “ ” button to change menu timeout to 15 sec,

30 sec or 60 sec.

Teletext Language

Press “ ” or “ ” button to select Teletext Language.
Use “ ” or “ ” button to change Teletext Language to

West, East, Turk/Gre, Cyrillic, Arabic or Persian.

Ext Out

Press “ ” or “ ” button to select Ext Out. Use “ ” or
“ ” button to set the Ext Out as On or Off.

Note:

For copying from a DVD or VCR device, you should
choose desired source from source menu and turn
“On” to EXT Out from feature menu.

Ext Out should be On in order to use Timers function
in the DTV mode.

HDMI PC Full Mode (optional)

If you want to view PC screen in HDMI mode by using

external connection, HDMI PC FULL MODE option

should be On to adjust the screen ratio correctly. This
item might be inactive in some resolutions.

Note: If you connect an HDMI device and switch the
TV to HDMI mode, this feature will be visible (except
for 1080i/1080P resolution).

Full Mode (optional)

If you connect a device via HDMI connectors and

set 1080i/1080P resolutions, Full Mode item will be

visible.You can set Full Mode as 1:1 or Normal by
using “

” or “ ”.If you select 1:1, screen ratio will

be adjusted correctly. If you set Normal, screen ratio

may expand.

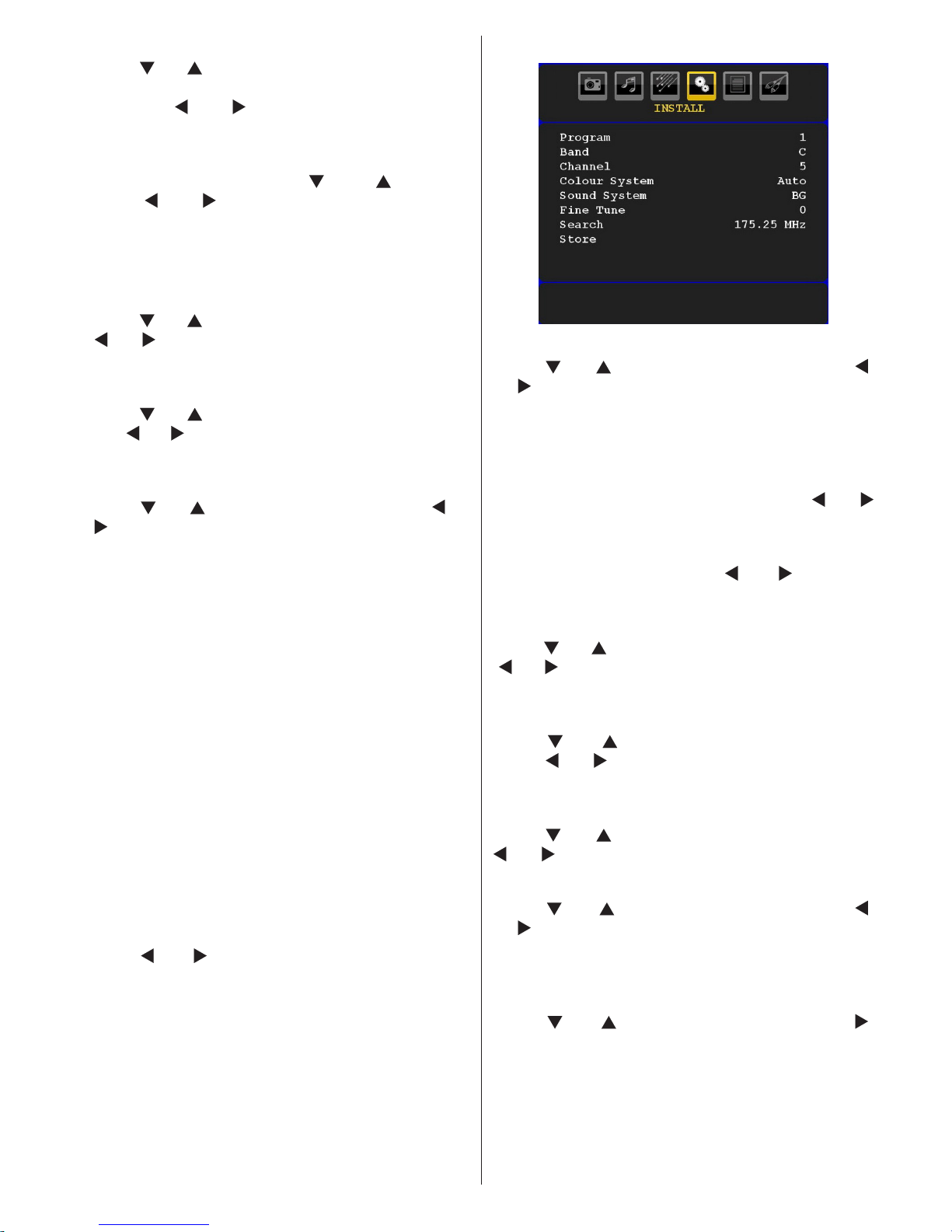

Install Menu

Program

Press “ ” or “ ” button to select Program. Use “ ”
or “

” button to select the program number. You can
also enter a number using the numeric buttons on the
remote control. There are 200 programme storage
between 0 and 199.

Band

Band can be selected either C or S. Press “ ” or “
” button to set Band.

Channel

Channel can be changed by “ ” or “ ” button or
numeric buttons.

Colour System

Press “ ” or “ ” button to select Colour System. Use
“ ” or “ ” button to change the colour system to PAL,

PAL 60, SECAM or AUTO.

Sound System

Press “ ” or “ ” button to select Sound System.
Press “ ” or “ ” button to change the sound system

to BG,DK, I, L or L’.

Fine Tune

Press “ ” or “ ” button to select Fine Tune. Press “

” or “ ” button to adjust the tuning.

Search

Press “ ” or “ ” button to select Search. Use “ ”
or “ ” button to start programme searching. You can
also enter the desired frequency using the numeric
buttons while Search item is highlighted.

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “Stored...” will be
displayed on the screen.

English - 24 -

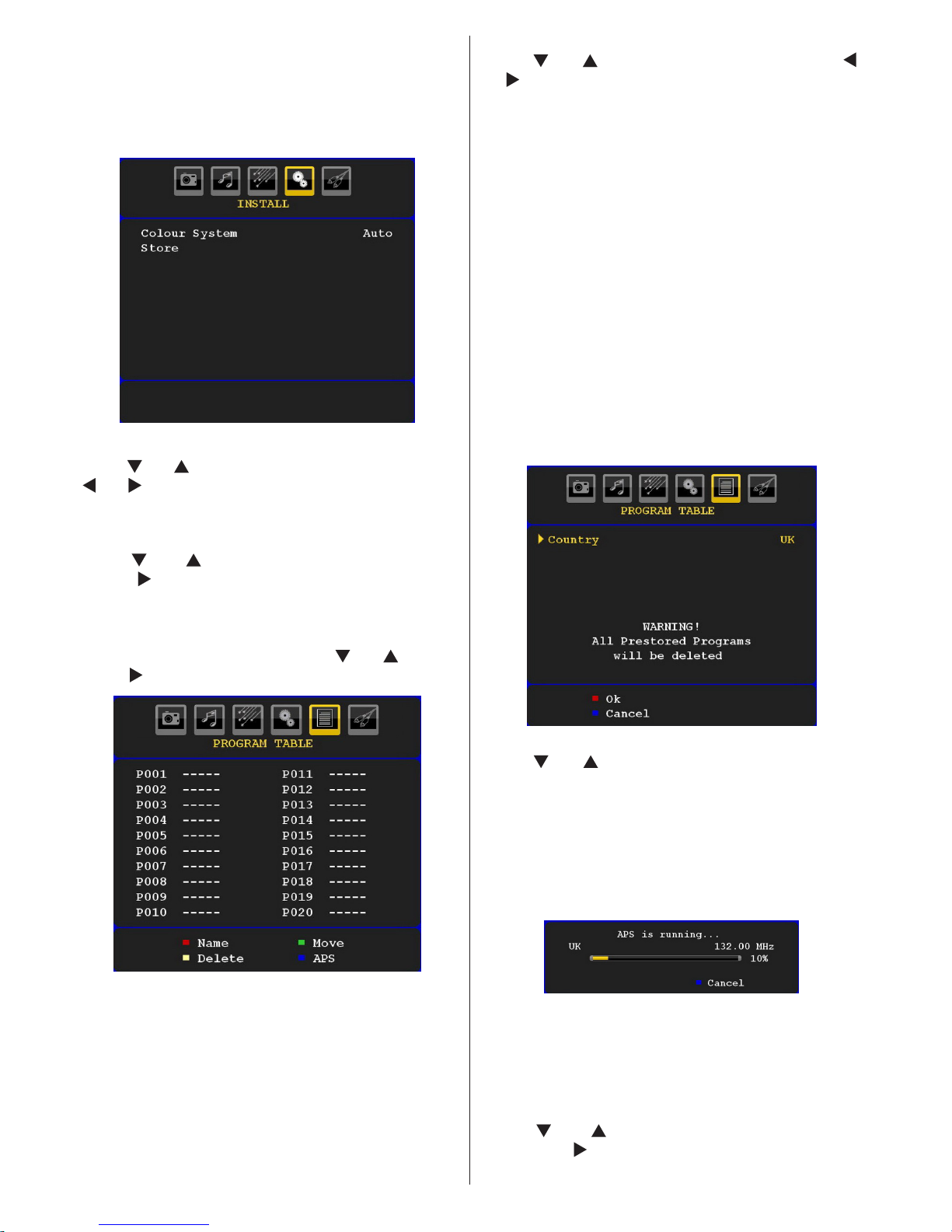

Install Menu in AV Modes

The following screen appears in the install menu when
the TV is in AV modes. Note that limited options will
be available. Switch to TV mode for viewing complete
version of the Install menu.

Colour System

Press “ ” or “ ” button to select Colour System. Use
“

” or “ ” button to change the colour system to PAL,

SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.

Store

Press “ ” or “ ” button to select Store Program.
Press “ ” or OK button to store the settings.
“Stored...” will be displayed on the screen.

Program Table

Select Program Table by pressing “ ” or “ ” button.
Press “

” to display Program Table:

By moving the cursor in four directions you can reach
20 programmes in the same page. You can scroll the
pages up or down by pressing the navigation buttons
to see all the programmes in TV mode (except for the

AV modes). By cursor action, programme selection is

done automatically.

Name

To change the name of a programme, select the

programme and press the RED button.

The rst letter of the selected name will be highlighted.

Press “

” or “ ” button to change that letter and “ ”
or “ ” button to select the other letters. By pressing
the RED button, you can store the name.

Move

Select the programme which you want to move by
navigation buttons. Press the GREEN button. By
navigation buttons move the selected programme to
the decided programme space and press the GREEN
button again.

Delete

To delete a programme, press the YELLOW button.
Pressing the YELLOW button again erases the

selected programme from the programme list, and

the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting

automatic tuning, Auto Programming System menu
will appear on the screen:

Country

Press “

” or “ ” button to select your country. If you
want to exit from A.P.S. function, press the BLUE
button.

When you press OK or RED button for starting

automatic tuning, all stored programmes will be erased

and the TV will search for available channels. During

the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS function
stops and Program Table appears on the screen.

If you wait until the end of APS, Program Table will be

displayed with the programmes found and located.

Source Menu

Press “ ” or “ ” button and select the sixth icon.
Then press “

” or OK button. Source menu appears

on the screen:

English - 25 -

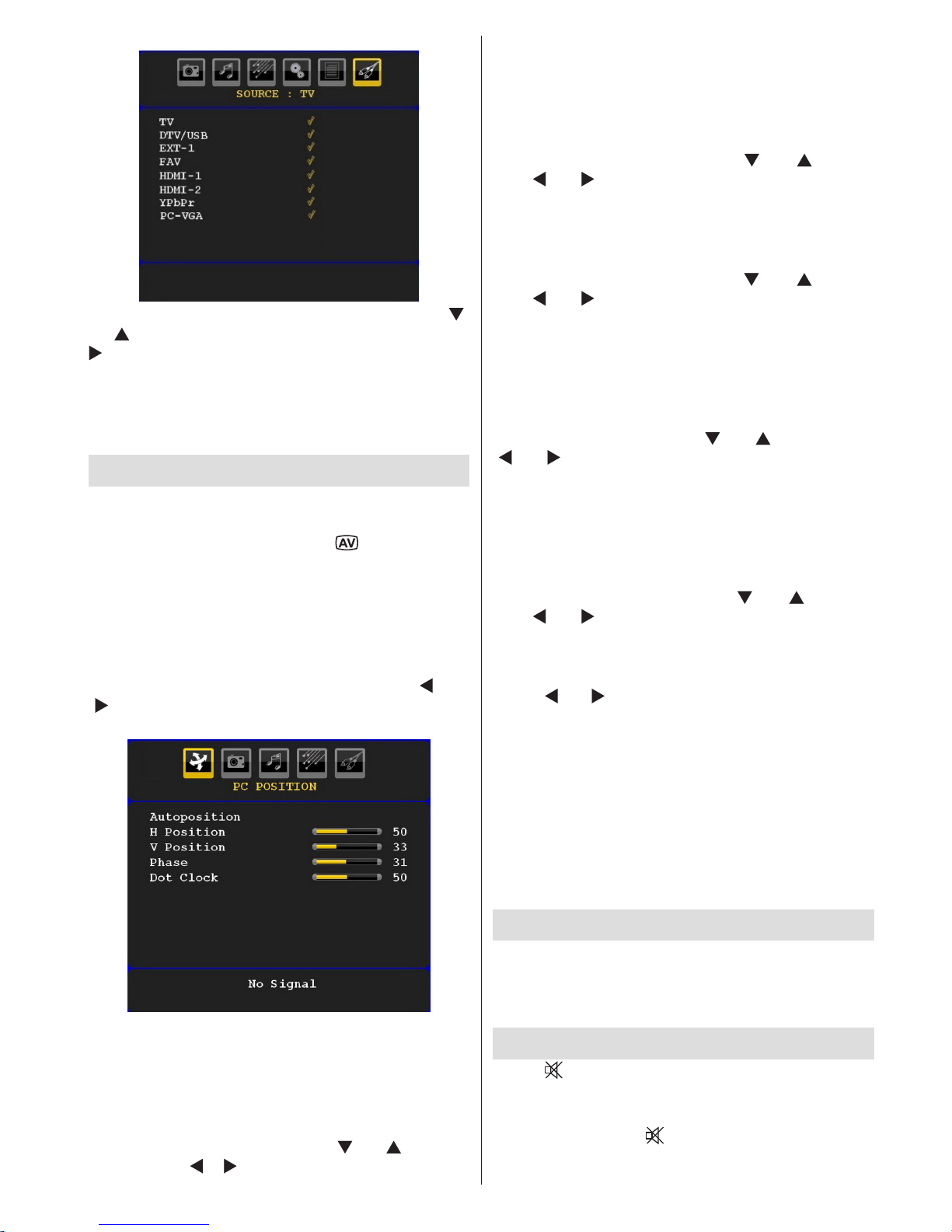

In source menu, highlight a source by pressing “ ”

or “ ” button and switch to that mode by pressing “

” button. Source options are; TV, DTV/USB, EXT-1,

FAV, HDMI-1, HDMI-2, YPbPr and PC-VGA.

Note: Once you have connected optional equipment
systems to your TV, you should select the required
input to view pictures from that source.

PC Mode Menu System

See “Connecting the LCD TV to a PC” section for
connecting a PC to the TV set.

For switching to PC source, press “

” button on your
remote control and select PC input. You can also use
“Source” menu to switch to PC mode.

Note that PC mode menu settings are available only
while the TV is in PC source.

PC Position Menu

Select the first icon by pressing “ ” or
“ ” button. PC Position menu appears on the
screen:

Autoposition

If you shift the picture horizontally or vertically to an

unwanted position, use this item to put the picture

into correct place automatically. This setting therefore
automatically optimizes the display.

Select Autoposition item by using “

” or “ ” buttons.

Press OK or “ ”, “ ” button.

Warning: Please ensure auto adjustment is performed
with a full screen image to ensure best results.

H (Horizontal) Position

This item shifts the image horizontally to right hand
side or left hand side of the screen.

Select H Position item by using “

” or “ ” button.

Use “

” or “ ” button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top
or bottom of the screen.

Select V Position item by using “

” or “ ” button.

Use “ ” or “ ” button to adjust the value.

Phase

Depending on the resolution and scan frequency that

you input to the TV set, you may see a hazy or noisy

picture on the screen. In such a case you can use this
item to get a clear picture by trial and error method.

Select Phase item by using “

” or “ ” buttons. Use

“ ” or “ ” button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference
that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or
text in smaller fonts.

Select Dot Clock item by using “

” or “ ” buttons.

Use “

” or “ ” button to adjust the value.

PC Picture Menu

For adjusting PC picture items, do the following:

Press “

” or “ ” button to select the second icon. PC

Picture menu appears on the screen.

Brightness, Contrast, Colour and Co l our
Temperature settings in this menu are identical to

settings dened in TV picture menu under “Analogue

TV Menu System”.

Note: If you set Colour Temp as User, you can dene

R, G, B settings manually.

Sound, Feature and Source settings are identical to

the settings explained in Analog TV menu system.

Displaying TV Information

Programme Number, Programme Name, Sound
Indicator and Zoom Mode information is displayed

on the screen when a new programme is entered or
“INFO” button is pressed.

Mute Function

Press “ ” button to disable sound. Mute indicator will
be displayed in the upper side of the screen.

To cancel mute, there are two alternatives; the rst

one is pressing the “

” button and the second one

is increasing the volume level.

English - 26 -

Picture Mode Selection

By pressing PP button, you can change Picture
Mode settings in accordance with your viewing

requirements. Available options are Dynamic, Natural

and Cinema.

Note: This feature cannot be set while in PC mode.

Freezing Picture

You can freeze the picture on the screen by pressing
the “OK” button on the remote control. Press the “OK”
button to freeze picture. Press again to quit freeze
mode (Note: Not available in “ATV” mode).

Zoom Modes

You can change the aspect ratio (image size) of the TV
for viewing the picture in different zoom modes.

Press WIDE button to directly change the zoom
mode.

Available zoom modes are listed below.

Note:

In YPbPr and HDMI modes, while in 720p-1080i
resolutions, only 16:9 mode is available.

Zoom mode cannot be changed while in PC mode.

Auto

When a WSS (Wide Screen Signalling) signal, which
shows the aspect ratio of the picture, is included in

the broadcast signal or the signal from an external
device, the TV automatically changes the ZOOM
mode according to the WSS signal.

• When the AUTO mode does not function correctly
due to poor WSS signal quality or when you want to
change the ZOOM mode, change to another ZOOM
mode manually.

16:9

This uniformly stretches the left and right sides of a

normal picture (4:3 aspect ratio) to ll the wide TV

screen.

• For 16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect ratio),

use the 16:9 mode to restore the picture to its
original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this
is its original size.

Panoramic

This stretches the left and right sides of a normal

picture (4:3 aspect ratio) to ll the screen, without

making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

14:9

This zooms up the wide picture (14:9 aspect ratio) to
the upper and lower limits of the screen.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to
the full screen.

Subtitle

This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.

Zoom

This option zooms to the picture.

Note: You can shift to screen up or down by pressing
“ ” / “ ” buttons while picture zoom is selected as

panaromic, 14:9, Cinema or Subtitle.

Teletext

Teletext system transmits information such as news,

sports and weather on your TV. Note that is the signal

degrades, for example in poor/adverse weather
conditions, some text errors may occur or the teletext

mode may be aborted.

Teletext function buttons are listed below:

English - 27 -

“ ” Teletext On-Off

Activates teletext mode when pressed once. Pressing
again will quit the teletext mode.

“

” Index

Selects the teletext index page.

“

” Mix

Places the teletext screen over the programme.

“

” Expand

Press once to enlarge top half of the page, press again

to enlarge the bottom half of the page. Press again to
revert back to normal size.

“

” Reveal

Shows hidden information (e.g. solutions of games).

“

” Hold

Holds a text page when convenient. Press again to
resume.

“

” Subcode Pages

Selects subcode pages if available when the teletext is

activated. When the teletext is not activated, displays

time info if the programme has teletext transmission.

P+ / P- and numbers (0-9)

Press to select a page.

Note: Most TV stations use code 100 for their index
pages.

Coloured Buttons

(RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text systems.

When these systems are available, the pages are

divided into groups or topics.

When FASTEXT system is available, sections in a
teletext page will become colour-coded and can be
selected by pressing the coloured buttons. Press a
coloured button that corresponds to with your needs.

The coloured writings will appear, showing you which

coloured buttons to use when TOP text transmission is
present. Pressing P - or P + commands will request the
next or previous page respec tively.

Tips

Screen Care

Clean the screen with a slightly damp, soft cloth. Do

not use abrasive solvents as they may damage the
coating layer of the TV screen.

For your safety, unplug the mains plug when cleaning
the set. When moving the TV, hold it properly from

the bottom part.

Image Persistence

Please note that ghosting may occur while displaying
a persistent image. LCD TVs’ image persistence may

disappear after a short time. Try turning off the TV
for a while.

To avoid this, do not leave the screen in still picture

for extended periods.

No Power

If your TV system has no power, please check the

main power cable and connection to the mains
socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV
set or house aerial located too close to a non-earthed

audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures
or ghost images. Sometimes you can improve the
picture quality by changing the direction of the
aerial.

Is the picture or teletext unrecognisable? Check if you
have entered the correct frequency. Please retune
the channels.

The picture quality may degrade when two peripherals
are connected to the TV at the same time. In such a

case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs
connected tightly to the aerial socket? Is the aerial
cable damaged? Are suitable plugs used to connect

the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a
transmission. Have you selected the correct button
on the remote control? Try once more.

Also make sure the correct input source has been
selected.

Sound

You can not hear any sound. Did you perhaps interrupt

the sound, pressing the

button?

Sound is coming from only one of the speakers. Is the
balance set to one extreme? See Sound Menu.

Remote Control

Your TV no longer responds to the remote control.
Perhaps the batteries are exhausted. If so you can still
use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that

no device is connected.

Check the AV cables and connections if you have tried
to connect a device.

English - 28 -

Appendix A: PC Input Typical
Display Modes

The display has a maximum resolution of 1600 X

1200. The following table is an illustration of some of

the typical video display modes.

Your TV may not support different resolutions.
Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a

warning OSD will appear on the screen.

Index

Resolution

Frequency

Standard
Hor

Ver

Ver

(Hz)

Hor

(KHz)

1

640 480 60 31.5 VESA

2

640 480 72 37.9 VESA

3

640 480 75 37.5 VESA

4

800 600 56 35.2 VESA

5

800 600 60 37.9 VESA

6

800 600 70 43.8

7

800 600 72 48.1 VESA

8

800 600 75 46.9 VESA

9

832 624 75 49.7 MAC

10

1024 768 60 48.4 VESA

11

1024 768 70 56.5 VESA

12

1024 768 72 57.7

13

1024 768 75 60.0

14

1152 864 70 64.2 VESA

15

1152 864 75 67.5 VESA

16

1152 870 75 68.9 MAC

17

1280 768 60 47.7 VESA

18

1360 768 60 47.7

19

1280 960 60 60.0 VESA

20

1280 1024 60 64.0 VESA

21

1280 1024 75 80.0 VESA

22

1600 1200 60 75.0 VESA

Appendix B: AV and HDMI Signal
Compatibility (Input Signal Types)

Source

Supported

Signals

Available

EXT-1

(SCART)

PAL 50/60 O

NTSC 60 O

RGB 50 O

RGB 60 O

FAV

PAL 50/60 O

NTSC 60 O

YPbPr

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

HDMI1

HDMI2

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

1080P 24 HZ O

(X: Not Available, O: Available)

Note: In some cases a signal on the LCD TV may
not be displayed properly. The problem may be
an inconsistency with standards from the source
equipment (DVD, Set-top box, etc.). If you do
expereince such a problem please contact your dealer
and also the manufacturer of the source equipment.

English - 29 -

Appendix D: Supported File Formats for USB Mode

Media

File

Extension

Format

Remarks

Video

Audio

(Maximum resolution/Bit rate etc.)

Movie

(optional)

.avi

XviD/ 3ivx PCM/MP3 XviD Verson up to: 1.1.2

MPEG4 PCM/MP3

MS ISO
MPEG4

PCM/MP3 Support SP and ASP

Music

- - PCM Sample Rate: 8K ~ 48KHz

.mp3 -

MPEG 1/2

Layer 1/2/3

(MP3)

Sample Rate: 8K ~ 48KHz, Bit Rate:

32K~320Kbps

Photo .jpg

Baseline JPEG

WxH = 14592x12288, Up to 179 Mega-pixel

Support format: 444/ 440/ 422/ 420/ Grayscale

Progressive JPEG

Up to 4 Mega-pixel

Support format: 444/ 440/ 422/ 420/ Grayscale

External
Subtitles

(optional)

.srt

Support Text File Format, but do not support

Picture File Format

.smi

Note: Necessary bitrates for some video types are higher than USB limits. For this reason, some video types
cannot be played.

English - 30 -

Specications

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

200

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German+Nicam Stereo

AUDIO OUTPUT POWER (W

RMS.

) (10% THD)

2 x 2,5

POWER CONSUMPTION (W)

70 W (max)

< 1 W (Standby)

PANEL

22” wide display

DIMENSIONS (mm)

DxLxH (With foot): 118 x 532x 376

Weight (Kg): 4,70

DxLxH (Without foot): 60 x 532 x 347

Weight (Kg): 4,55

Digital Reception (DVB-T)

Transmission Standards:

DVB-T, MPEG2,DVB-T, MPEG4 HD

i. DEMODULATION

-Symbol rate: COFDM with 2K/8K FFT mode.

-Modulation: 16-QAM - 64-QAM FEC for all DVB
modes (automatically found)

ii. VIDEO

-H.264 (MPEG-4 part 10) main and high prole level

4.1/MPEG-2 MP@HL video decoder.

-HD display multi format capable (1080i, 720p,

576p)

-CVBS analogue output.

iii. AUDIO

-MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC,

AC3

-Sampling frequencies supported are 32, 44.1 & 48

kHz

English - 31 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains
supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with

the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.

For continued protection against risk of re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT

ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

GREEN

&

YELLOW

(Earth)

(if there is earth cable)

FUSE

BROWN

(Live)

BLUE

(Neutral)

50174018
