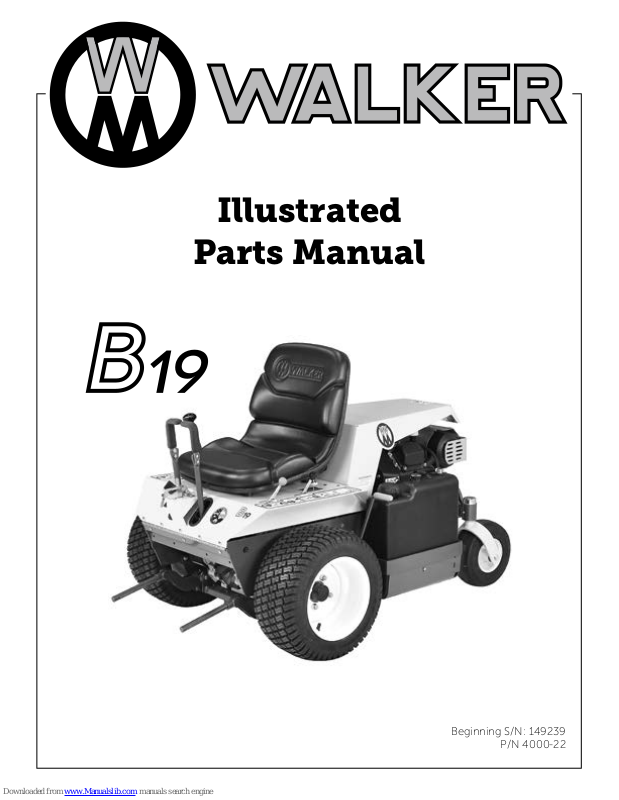

Page 1
Illustrated
Parts Manual
Beginning S/N: 149239
P/N 4000-22
Page 2
KEY TO ABBREVIA TIONS USED IN THIS MANUAL
Abbreviation What it Represents
º (Dimension) .....................................................................................................................................Degrees (Angle)
" (Dimension) .....................................................................................................................................................inches
(-) ....................................................................................................................................................Negative (Polarity)
(+) ....................................................................................................................................................Positive (Polarity)
AT ................................................................................................................................................................All-Terrain
CCW ...............................................................................................................................................Counter-clockwise
Conn. ..........................................................................................................................................................Connector
CW ...............................................................................................................................................................Clockwise
D ...................................................................................................................................................................Diameter
DC ..................................................................................................Deck, Collection (number refers to size in inches)
DM ...................................................................................................Deck, Mulching (number refers to size in inches)
DR .........................................................................................Deck, Rear Discharge (number refers to size in inches)
DS...........................................................................................Deck, Side Discharge (number refers to size in inches)
DU ...................................................................................................................................................Garlock (Bearing)
ESNA (Fastener)..........................................................................................................................Nylon Insert Locknut
FSC ........................................................................................................................................Forward Speed Control
GA.....................................................................................................................................................................Gauge
gal. .....................................................................................................................................................................gallon
GHS ........................................................................................................................................Grass Handling System
GR (Fastener) ....................................................................................................................................................Grade
HD .............................................................................................................................................................Heavy Duty
HP ...........................................................................................................................................................Horse Power
ID ...............................................................................................................................Identication or Inside Diameter
L ........................................................................................................................................................................Length
LH ............................................................................................................Left Hand (orientated with operator on seat)
LP ..............................................................................................................................................................Low Prole
mm (Dimension) .........................................................................................................................................millimeters
MS (Fastener) ......................................................................................................................................Machine Screw
NS (as part number).....................................................................................Item is not sold by Walker Manufacturing
OD ...................................................................................................................................................Outside Diameter
oz. ......................................................................................................................................................................ounce
PFH (Fastener) ................................................................................................................................Phillips Flat Head
P/N...........................................................................................................................................................Part Number
PPH (Fastener) ................................................................................................................................Phillips Pan Head
PTH (Fastener) ..............................................................................................................................Phillips Truss Head
PTO .................................................................................................................................................... Power Take-O
QKS ...........................................................................................................................................................Quick Slide
qt..........................................................................................................................................................................quart
RH ........................................................................................................Right Hand (orientated with operator on seat)
SAE (Fastener) .........................................................................................................Society of Automotive Engineers
SBH (Fastener) ...................................................................................................................Socket Button Head (Bolt)
SD........................................................................................................................................................Side Discharge
SFH (Fastener) .................................................................................................................................Slotted Flat Head
SHC (Fastener)................................................................................................................................Socket Head Cap
SHL (Fastener) ....................................................................................................................................Shoulder (Bolt)
SM (Fastener) ..............................................................................................................................Sheet Metal (Screw)
S/N........................................................................................................................................................Serial Number
Spg. ...................................................................................................................................................................Spring
SQH (Fastener) ......................................................................................................................................Square Head
SS (Fastener) ......................................................................................................................................Stainless Steel
ST (Fastener) ..............................................................................................................................Self-T apping (Screw)
Term. ..............................................................................................................................................................Terminal
V ..........................................................................................................................................................................Volts
NOTE: In some instances, combinations of abbreviations may be used (e.g. PPHMS - Phillips Pan Head Machine Screw).
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 3
ILLUSTRA TED P ARTS LIST
Section of Tractor Covered Page Section of Tractor Covered Page
Decals
Tractor Decals ..........................................................2
Body / Chassis Assemblies
Body / Chassis Assembly ..........................................4
Tractor Components
Main Component Power Transmission .....................6

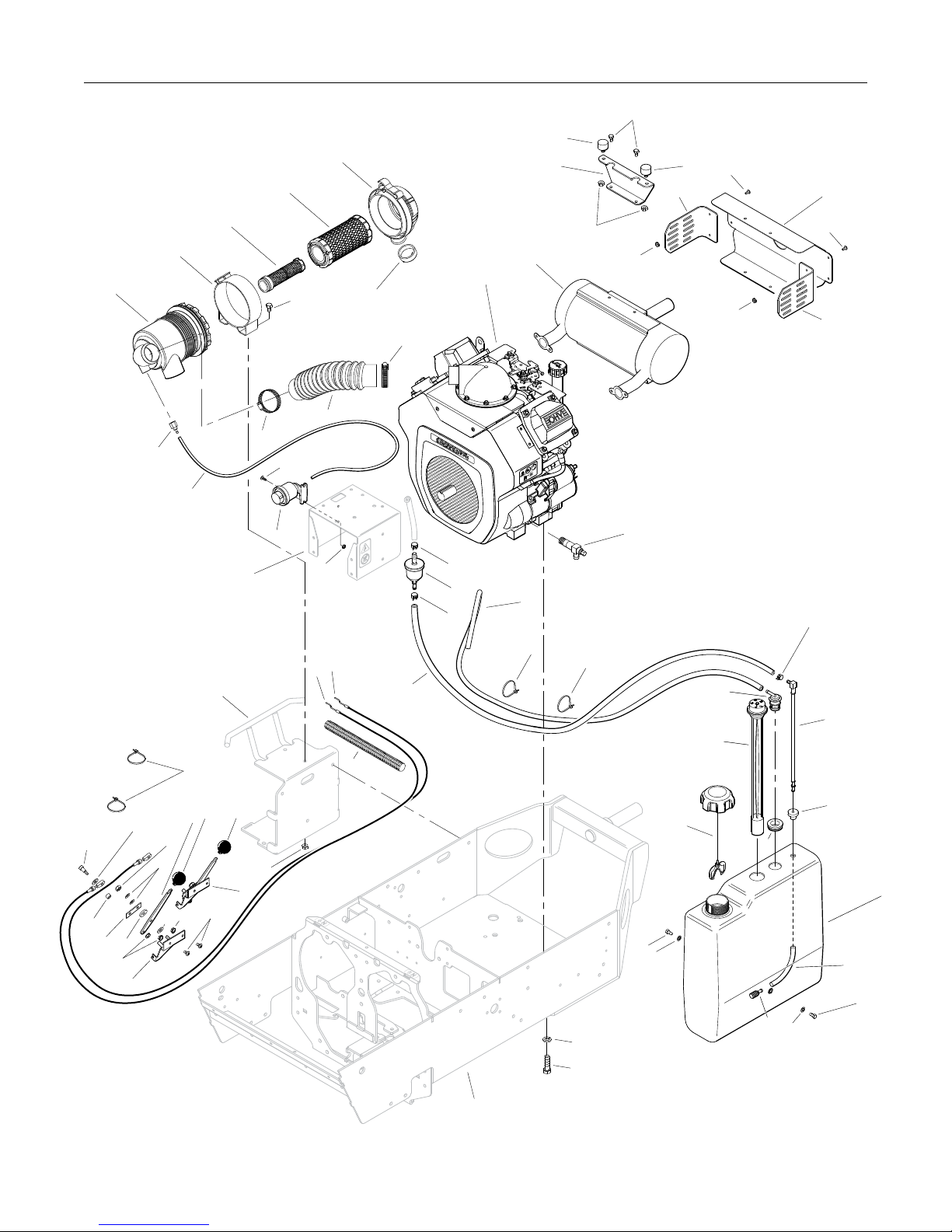

Engine Group............................................................8
Hydrostatic Ground Drive Assemblies.....................10

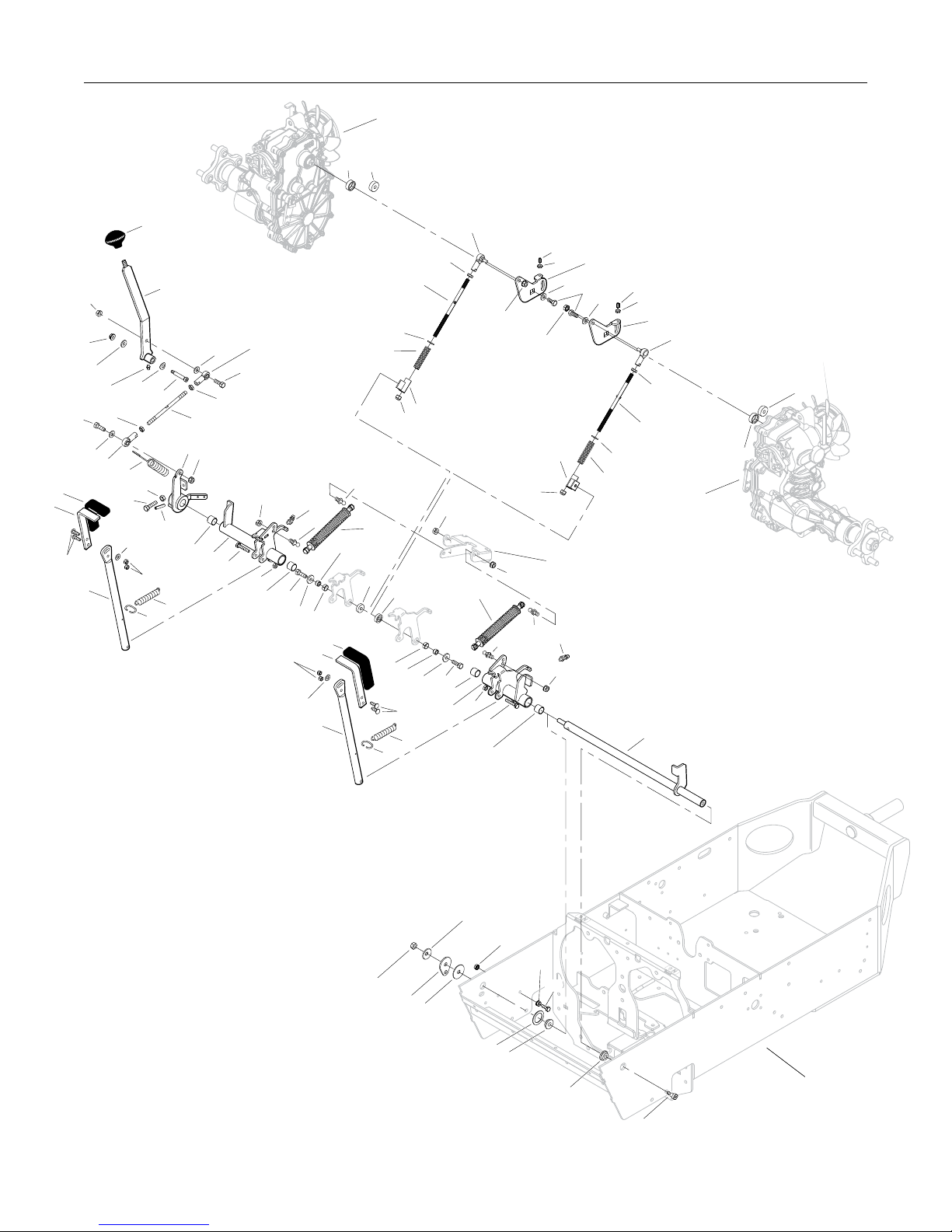

Steering Control Assemblies ...................................12

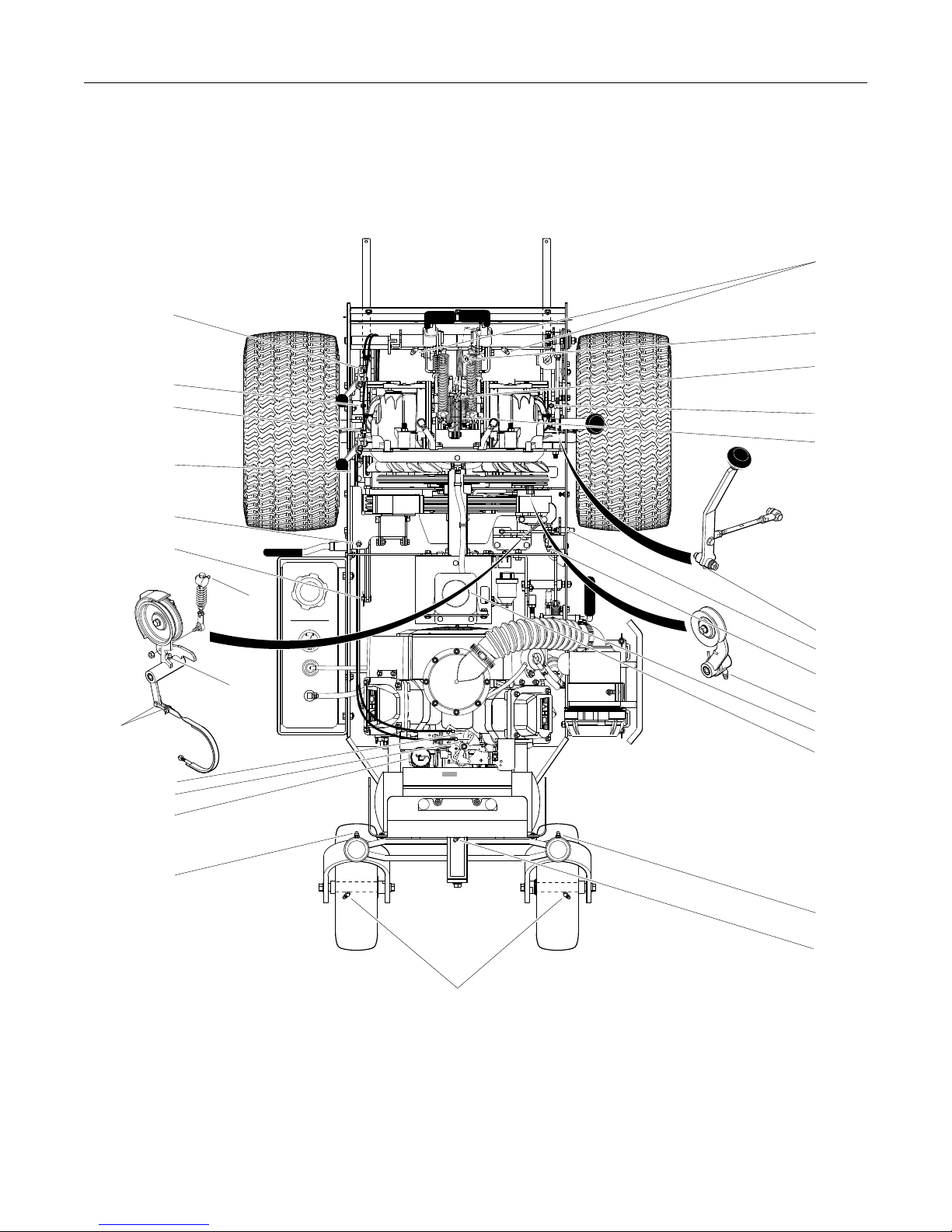

Electrical Components

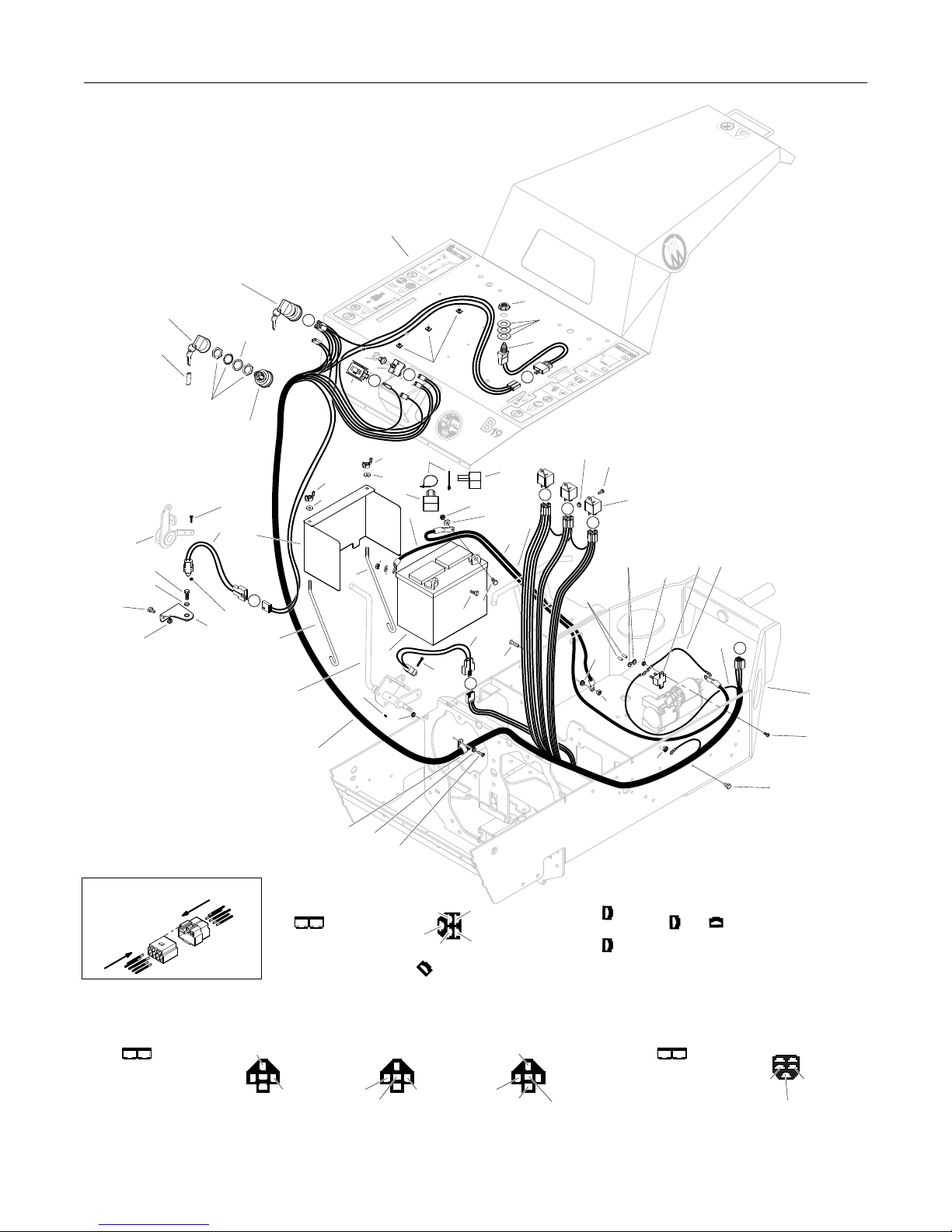

Electrical Assembly .................................................14
Maintenance
Lubrication Points ...................................................16

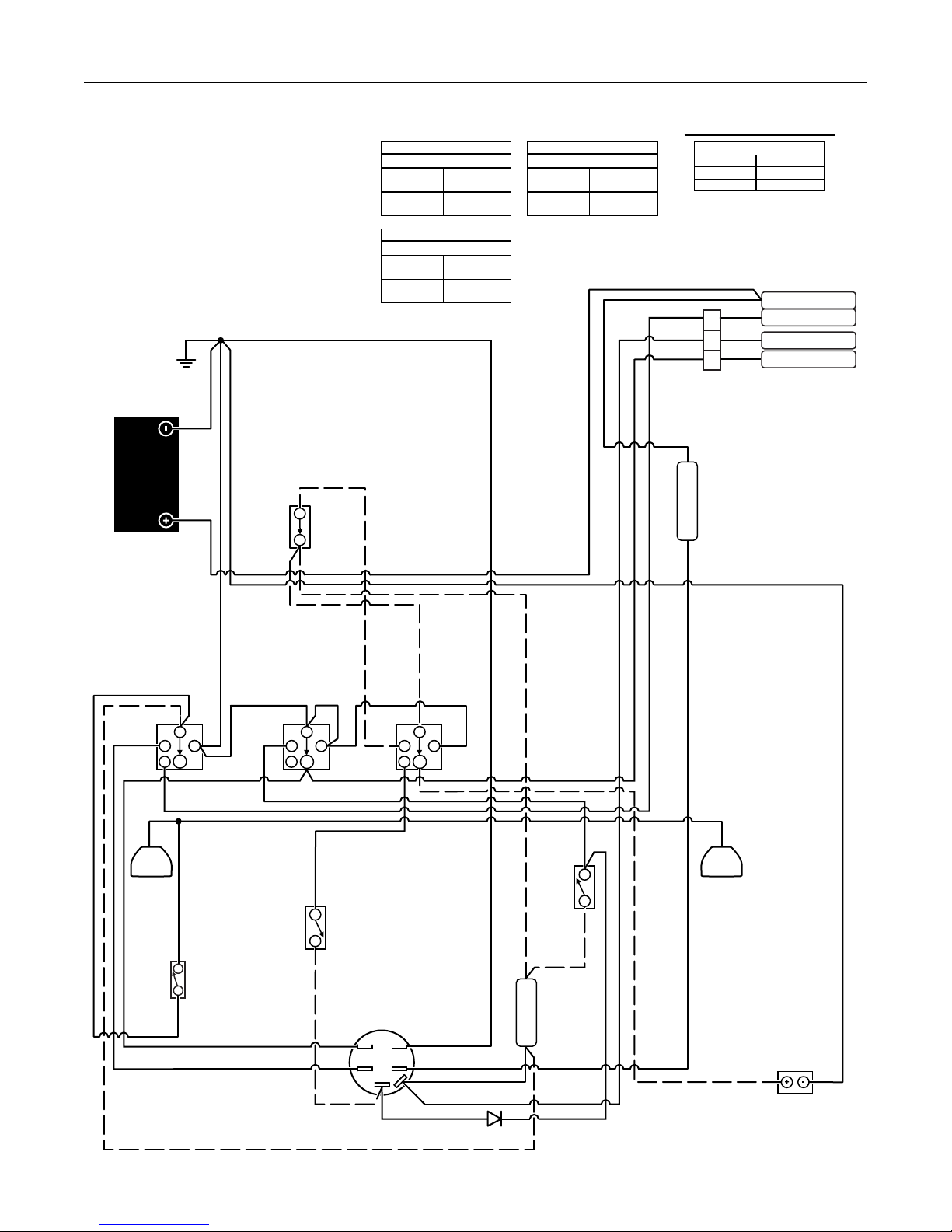

Wiring Schematic ....................................................18
Maintenance And Service Record Sheet.................19
Warranty
Limited Warranty ....................................................21
Beginning S/N 149239
Use only genuine Walker® replacement parts.
1
Page 4
TRACTOR DECALS
ITEM PART DESCRIPTION LOCATION NO.
NO. NO. REQ’D
Walker Product and Operation Decals
1 8600-26 RH Fender Body, RH Side Near Seat 1
2 9804-1 Axle Lockout Chassis 2
3 8600-27 LH Fender Body, LH Side Near Seat 1
4 5800-13 Decal, Walker Round (3-3/4") Rear Body (one on each side) 2
5 5800-7 Decal, Walker (8") Rear Body 1
6 8821-13 Decal, B19 Body 1
7 5856-1 Made In USA Body 1
Danger Decals Warning Decals Caution Decals
8 4107-12 Decal, Belt Routing Rear Body, Underside 1
9 8600-5 Caution, Engine Exhaust Rear Body 1
10 8600-12 Danger, Engine Exhaust Engine 1
11 8600-2 Danger, Rotating Components Flex Coupling Guard (one on each side) 2
Maintenance Decals
12 5855 Important, Engine Cooling Engine 1
13 6875 PTO Alignment Arrow Universal Joint Tube Assembly 1
NOTE: All parts requiring decals are shipped with decals applied.
2
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 5

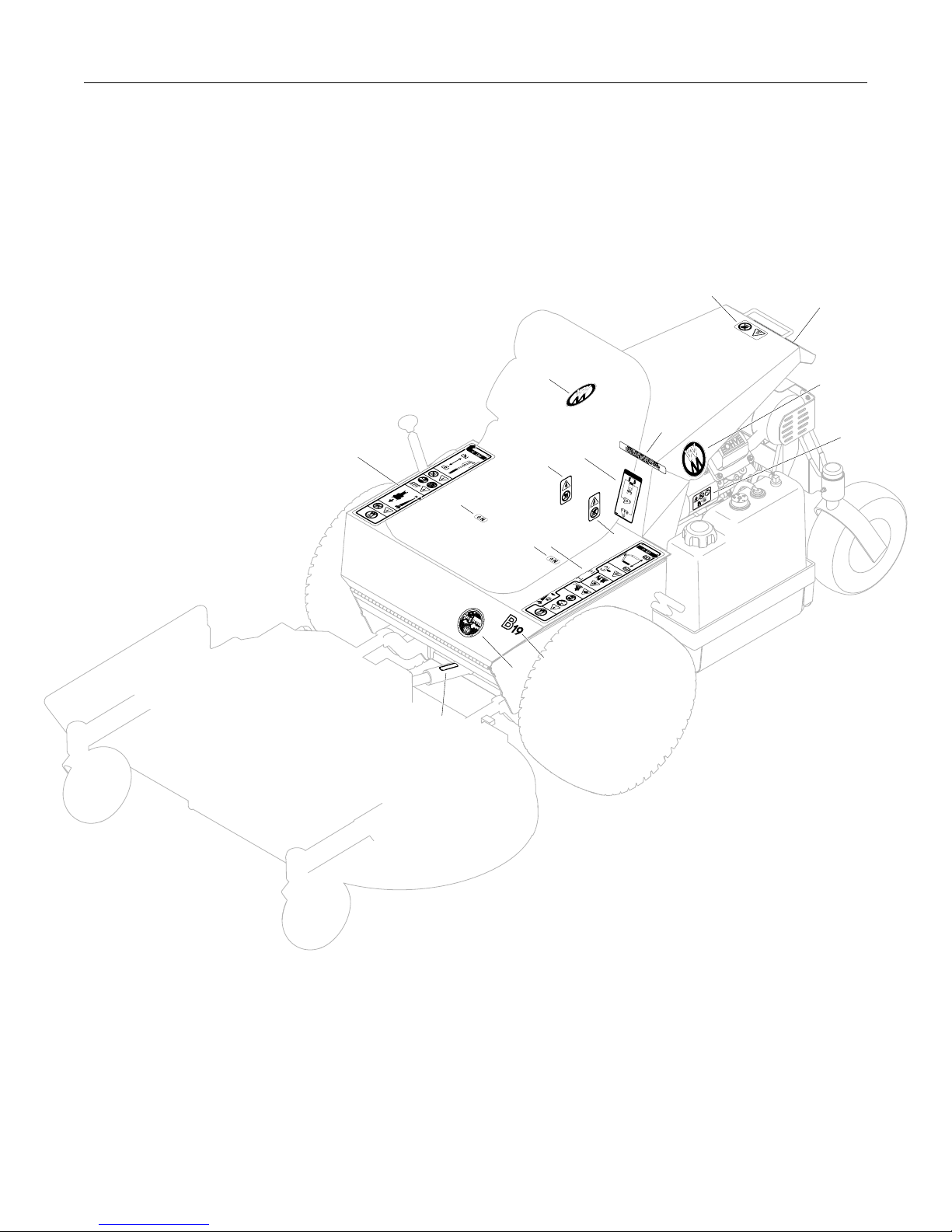

TRACTOR DECALS
.
.
1
Refer to Decks
Parts Manual
for Deck Decals
.
9
8600-5
.
4
.
12
.
.
8
11
.
1. 2.
2
9804-1
.
.
7
8600-2
.
2
3
9804-1
<15°
.
6
BELT ROUTING
GROUND DRIVE BELT
WALKER P/N 4230-2
ENGINE/PTO BELT
WALKER P/N 4230-1
4107-12
8600-2
8600-12
.
11
.
5
4
.
10
13
Beginning S/N 149239
Use only genuine Walker® replacement parts.
3
Page 6
BODY / CHASSIS ASSEMBL Y
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Seat Assembly
1 5103 Seat 1
2 2505 Leaf Spring 1
3 7223-4 Compression Spring 2
4 7845-1 Rubber Bumper (1.375 x .750) 2
5 5841-1 Retainer Washer 4
6 7434 Washer (3/8 x 1-1/4 x 1/4) 2
7 7440-5 Shock Mount (1-1/4 x 3/4) 2
Body Assembly
8 4105-5 Rear Body (Includes Item # 9) 1
9 4190-2 Insulation Foam Pad 1
10 5989-4 Dome Plug (3/8) 2
11 5989-3 Dome Plug (5/16) 2
12 4100-6 Front Body 1
13 4102-1 Body Guide / Upper 1
14 5845 Rubber Bumper (1.50 x 1.25) 2
15 5146 10mm Ball Stud 2
16 4145-2 Gas Spring Assembly 1
(Includes Item # 15)
17 5180 Edge Molding / Lever Opening 2
18 4504-3 Hinge (19") 1
19 5989-55 Dome Plug (1/2) 1
Chassis Assembly
20 4010-8 Precleaner / Battery Mount 1
21 4320-1 Gas T ank Mount 1
22 4215-10 Shock Mount / Body Lift Arm 1
23 4301-8 Chassis Frame 1
24 4102-2 Body Guide / Lower 1
25 7222 Extension Spring (1/4 x 3) 1
26 7854 Plastic Tip, Red 1
27 7383-1 Body Latch Hook 1
Spread Tail Wheel Assembly
28 4401-4 Washer (1-3/4 x 3/8 x 1/4 Thk) 1
29 4301-2 Fiberglide Thrust Washer 2
30 4301-3 Fiberglide Bearing 2
31 5830-3 Grease Fitting (45 Deg.) 1
32 4301-1 Tail Wheel Pivot 1
(Includes Items # 30, 31 & 33)
33 5830 Grease Fitting 4
34 8769-8 Dust Cap, Deck Caster 2
35 8769-6 Bearing Cone (1" ID) 4
36 8769-5 Bearing Cup (2 x 1-5/8) 4
37 8769-7 Seal 2
38 8765-11 Caster Wheel Fork 2
39 8767 Axle, Caster Wheel (5-1/8) 2
40 8768-2 Seal, Reverse Lip 4
41 8037 Bearing Cone (3/4 ID) 4
42 8768 Caster Wheel, Pneumatic (11 x 4.00-5) 2
8768-3 Tire, Pneumatic (11 x 4.00-5) *
8768-5 Caster Wheel (5 x 3) *
43 8766 Axle Nut (3/4-16) 2
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Deck Support Arm & Hitch Assemblies
44 4301-10 Deck Arm Support Mount 1
45 6840-1 Support Arm Bushing (2-1/16) 2
46 4431-1 Deck Support Arm, LH (Includes Item # 33) 1
47 5775-2 Hitch Pin (#6) 2
48 4430-1 Deck Support Arm, RH (Includes Item # 33) 1
Tilt-Up Latch Assembly**
49 5847 Plastic Tip 1
50 5744-20 Spring Arm, Tilt-Up Latch 1
51 5744-10 Spring Pivot Bushing 1
52 5744-15 Compression Spring (3/8 x 5/8) 1
53 5744-13 Mount Angle, LH 1
54 5744-12 Hook, Tilt-Up Latch 1
55 5744-14 Mount Angle, RH 1
Fasteners
F002 10-24 Keps Nut 9
F004 1/4-20 Keps Nut 12
F005 1/4-20 ESNA Nut 1
F009 5/16-18 Whiz Locknut 17
F013 3/8-16 Whiz Locknut 2
F020 5/16-18 ESNA Nut 1
F025 10-24 x 3/8 PPHMS 7
F028 10-24 x 3/4 PPHMS 1
F029 1/4-20 x 1/2 Hex Bolt 4
F034 5/16-18 x 3/4 Hex Bolt 9
F038 3/8-16 x 1 Hex Bolt 1
F051 3/8 SAE Washer 1
F093 5/16-18 x 1 Hex Bolt 2
F116 1/4-20 x 1-1/4 Hex Bolt 1
F183 .312 x .700 x .074 Washer 2
F200 7/16-20 x 3 Grade 8 Bolt 2
F219 7/16-14 x 1-1/4 Hex Bolt 4
F227 3/8 x 1-1/4 x 1/8 Washer 2
F246 1/4-20 x 1/2 PTHMS 5
F256 7/16 SAE Washer 4
F257 3/8 x 1-1 1/16 Shoulder Bolt 2
F278 3/8 Split Lock Washer 1
F341 Coil Roll Pin (7/64 x 9/16) 1
F342 5/16 Conical Washer 2
F344 3/4-16 Slotted Hex Nut 2
F347 3/4 SAE Washer 2
F348 1/8 x 1-1/2 Cotter Pin 2
F381 1/4-20 Hex Nut 1
F388 3/8-16 x 2-1/2 Hex Bolt 2
F430 7/16-20 ESNA Nut 2
F475 1/4-20 x 1 PFH Screw 1
F477 1/4-20 x 5/8 Carriage Bolt 2
* Service Part Only
** Complete Tilt-Up Latch Assembly Kit available by ordering
kit # 5747.
4
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 7
.

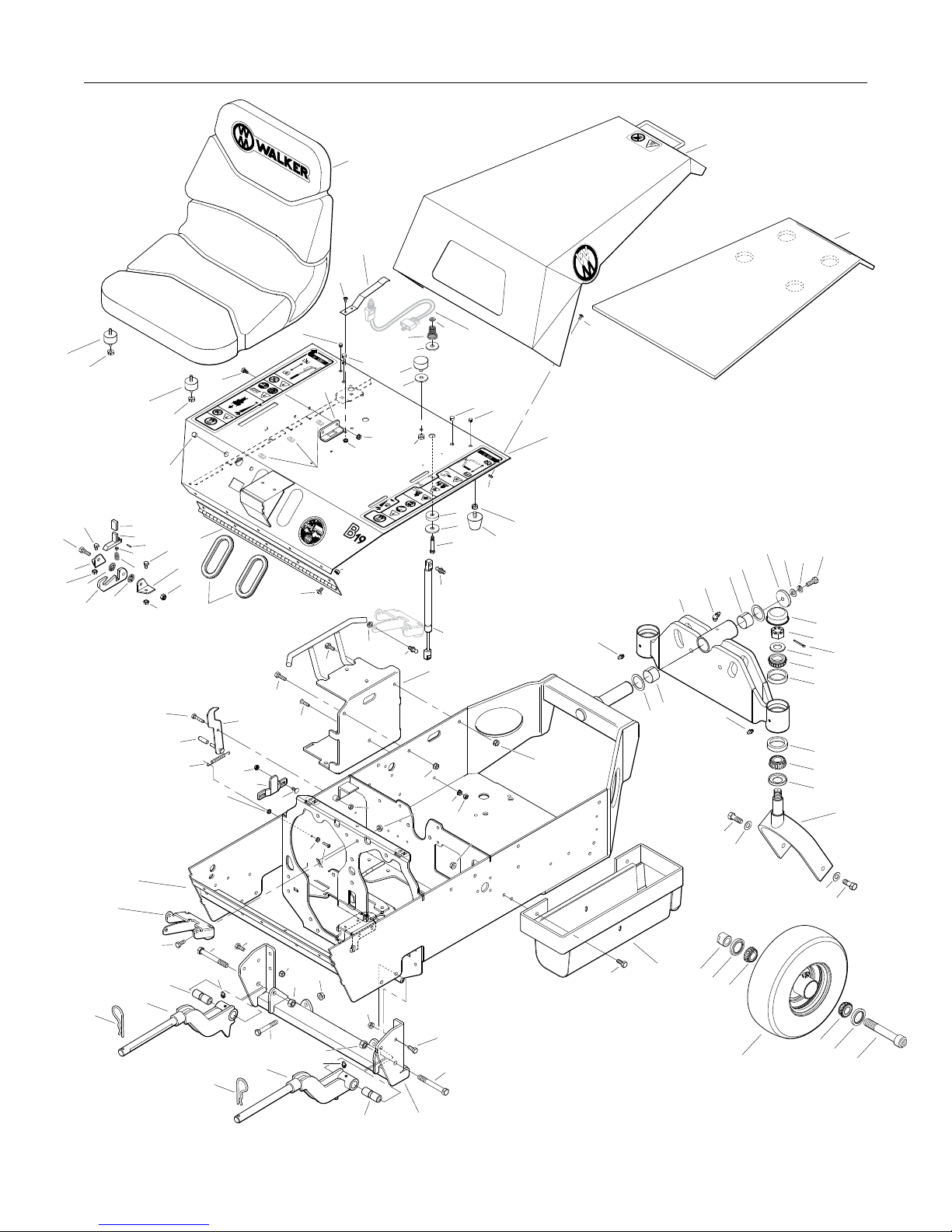

BODY / CHASSIS ASSEMBL Y
.
F093
F004
.
8600-5
.
8
1
.
.
F038
.
34
F344
F347
35
36
36
35
37
F256
F219
41
9
F348
38
.
.
40
39
.
2
.
F025
.
.
10
F002
F009
F009
.
F004
.
F005
.
4
.
3
.
F227
5
F009
15
.
<15°
F009
9804-1
.
.
F009
.
.
15
20
F004
F034
F183
.
.
.
F257
16
F381
F200
Refer to
Electrical
Assembly
10
6
5
.
F009
.
F002
F025
11
12
.
F009
14
.
31
.
32
.
33
.
30
29
F009
.
.
F219
.
28
.
F051
.
.
.
.
.
F278
.
.
.
29
30
33
.
.
.
F256
.
F034
.
.
.
21
43
40
41
42
.
11
1. 2.
F093
.
F477
.
F246
.
F475
.
.
13
Refer to
Electrical Assembly
F004
.
F034
9804-1
.
.
7
F009
F029
7
F009
.
19
.
.
F029
.
55
F342
54
.
.
.
F342
.
49
50
.
.
F341
51
.
52
F004
.
F116
.
F029
.
53
26
.
25
.
F020
.
18
17
.
.
27
.
F004
24
F002
F002
23
.
22
.
F034
F034
.
45
.
47
.
48
F200
33
F388
.
46
F028
.
F009
.
.
F013
F430
F430
33
47
Beginning S/N 149239
Use only genuine Walker® replacement parts.
45
44
5
Page 8

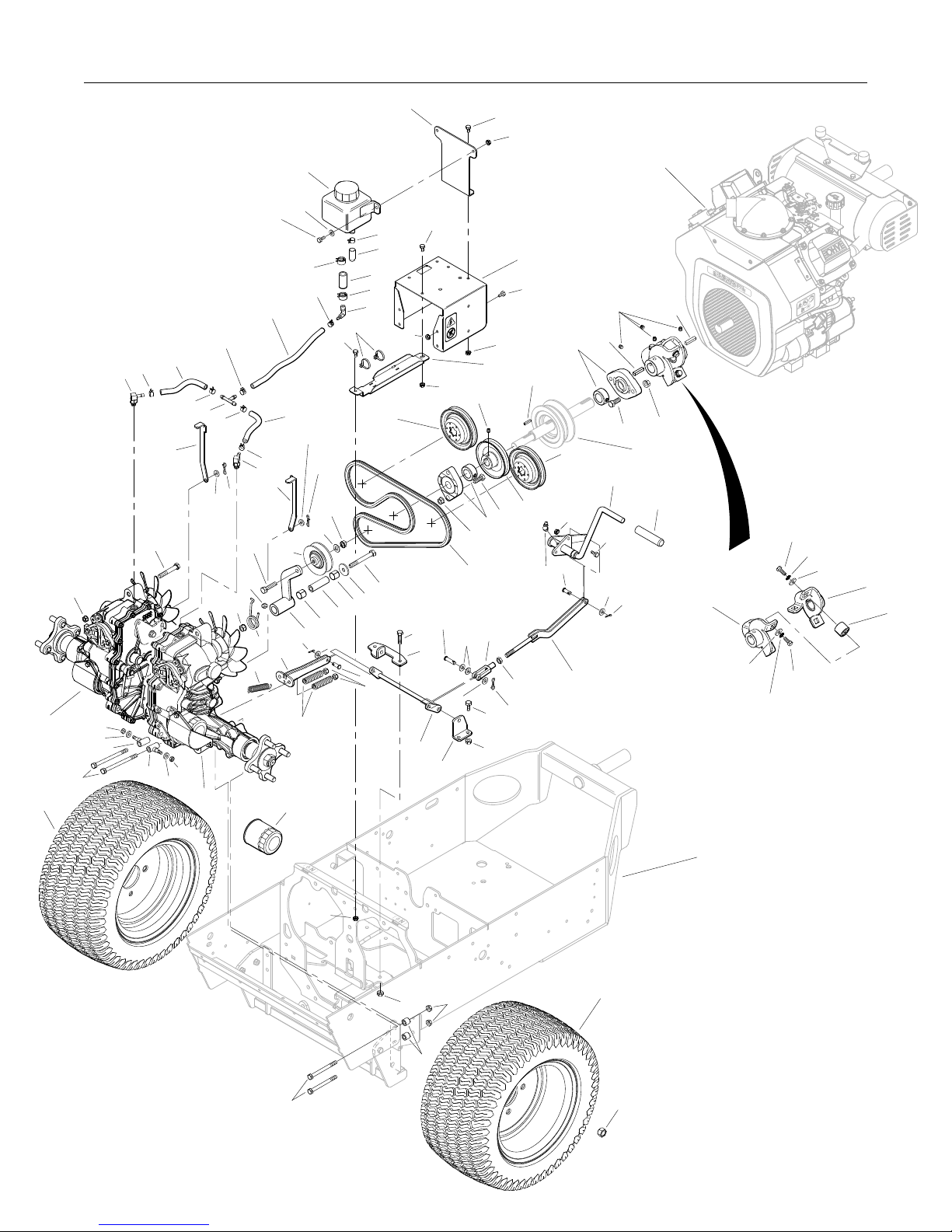

MAIN COMPONENT POWER TRANSMISSION
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
PTO Drive Assembly
1 4850 Handle Grip, Black 1
2 2358-12 Fiberglide Bushing 1
3 7201-2 Fiberglide Bearing (1/2") 1
4 4358-13 Clutch Lever 1
(Includes Items # 1 & 5)
5 5830 Grease Fitting 4
6 5103-2 Pivot Bushing (5/16 ID) 2
7 2358-6 5/16-18 x 1-3/4 Stud 2
8 5214-13 Ball Joint (3/8) 2
9 2358-8 Adjustor Brace 1
10 4358-12 Clutch Pivot Plate 1
11 7775-6 Wire Lock Pin (2-1/2") 3
12 4302 Right Hand Shoe 1
13 4302-5 Upper Shoe, LH 1
14 4302-1 Left Hand Shoe 1
15 2302-6 Shoe Mount, LH 1
16 4302-2 Shoe Mount 2
17 4325-12 Idler Mount 1
18 4236-3 PTO Drive Pulley (5/AA) 1
19 4302-6 PTO Shoe 1
20 7775-7 Wire Lock Pin (3") 1
21 7275-9 Quick Coupler Installation Tool 1
22 7275-16 Universal Joint Tube Assembly / Spline 1
23 4274-12 PTO Drive Shaft Assembly / Spline 1
24 4358-7 Clutch / Pivot Stop 1
25 7201-3 Fiberglide Bearing 2
26 7201-8 Inner Race (4") 1
27 4359 Clutch Engagement (Includes Item # 5) 1
28 7523-3 Clevis Pin W/Hole (1/4 x 1/2) 1
29 4359-2 Brake Band Link / Rear 1
30 4304 Brake Band 1
31 4359-1 Brake Band Link / Front 1
32 7523-2 Clevis Pin W/Hole (1/4 x 5/8) 1
33 4411-3 Drive Shaft 1
34 4245-1 Idler Pulley (4/Flat) 2
35 4230-1 Engine/PTO Belt/Matched Set 1
36 4236-4 Idler Pulley (4/AA) 1
37 5214-2 Ball Joint (5/16-24) (Nylon Lined) 1
38 5226-1 Spring (3/4 x 2-1/2) 1
39 7380 Knuckle Joint 1
40 4303-7 Clutch Actuator Bolt (5/16) 1
41 2358-11 Clutch Actuator 1
42 7377 Plastic Washer (1 x .438 x .025) 2
43 7378 Pivot Bearing (7/16 x 9/16) 1
44 4325-1 Clutch Arm 1
45 5221 Extension Spring (3/4 x 4) 1
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Fasteners
F004 1/4-20 Keps Nut 8
F005 1/4-20 ESNA Nut 2
F008 5/16-24 Keps Nut 1
F009 5/16-18 Whiz Locknut 17
F010 5/16-24 ESNA Nut 1
F012 3/8-16 Keps Nut 2
F013 3/8-16 Whiz Locknut 2
F014 3/8-16 ESNA Nut 1
F024 5/16-24 Jam Nut 1
F029 1/4-20 x 1/2 Hex Bolt 1
F031 1/4-20 x 5/8 Hex Bolt 12
F034 5/16-18 x 3/4 Hex Bolt 7
F035 5/16-18 x 1-1/4 Hex Bolt 5
F040 3/8-16 x 1-1/2 Hex Bolt 1
F041 3/8-16 x 1-3/4 Hex Bolt 2
F051 3/8 SAE Washer 5
F058 1/4 Wave Spring W asher 6
F060 AN960516 Washer 2
F061 1/4 Star Lock Washer 1
F067 3/16 x 3/16 x 1 Key 1
F069 3/32 x 1/2 Cotter Pin 2
F093 5/16-18 x 1 Hex Bolt 1
F120 AN960416 Washer 8
F149 1/4 x 1/4 x 1-1/2 Key 1
F153 3/16 x 3/16 x 1-1/4 Key 1
F171 5/16-18 x 3/8 Set Screw 2
F178 1/4 x 1 Fender Washer 1
F183 .312 x .700 x .074 Washer 2
F209 .765 ID x 1.312 OD x .032 Washer 1
F211 1/4-20 x 7/8 Hex Bolt 2
F290 3/8-16 x 5 Hex Bolt 1
F298 3/8-24 Jam Nut 2
F325 1/4-20 x 3 Hex Bolt 2
F350 1/4-20 LP Nylock 6
F381 1/4-20 Hex Nut 1
F435 1/4 x 1/4 x 1-1/4 Key 1
F449 Washer 1/2 x 1-5/8 x 1/4 1
F451 1/2-20 Nylon Locknut 1
F484 Washer .380 ID x 1.0 OD x .120 3
6
Beginning S/N 149239
Use only genuine Walker® replacement parts.

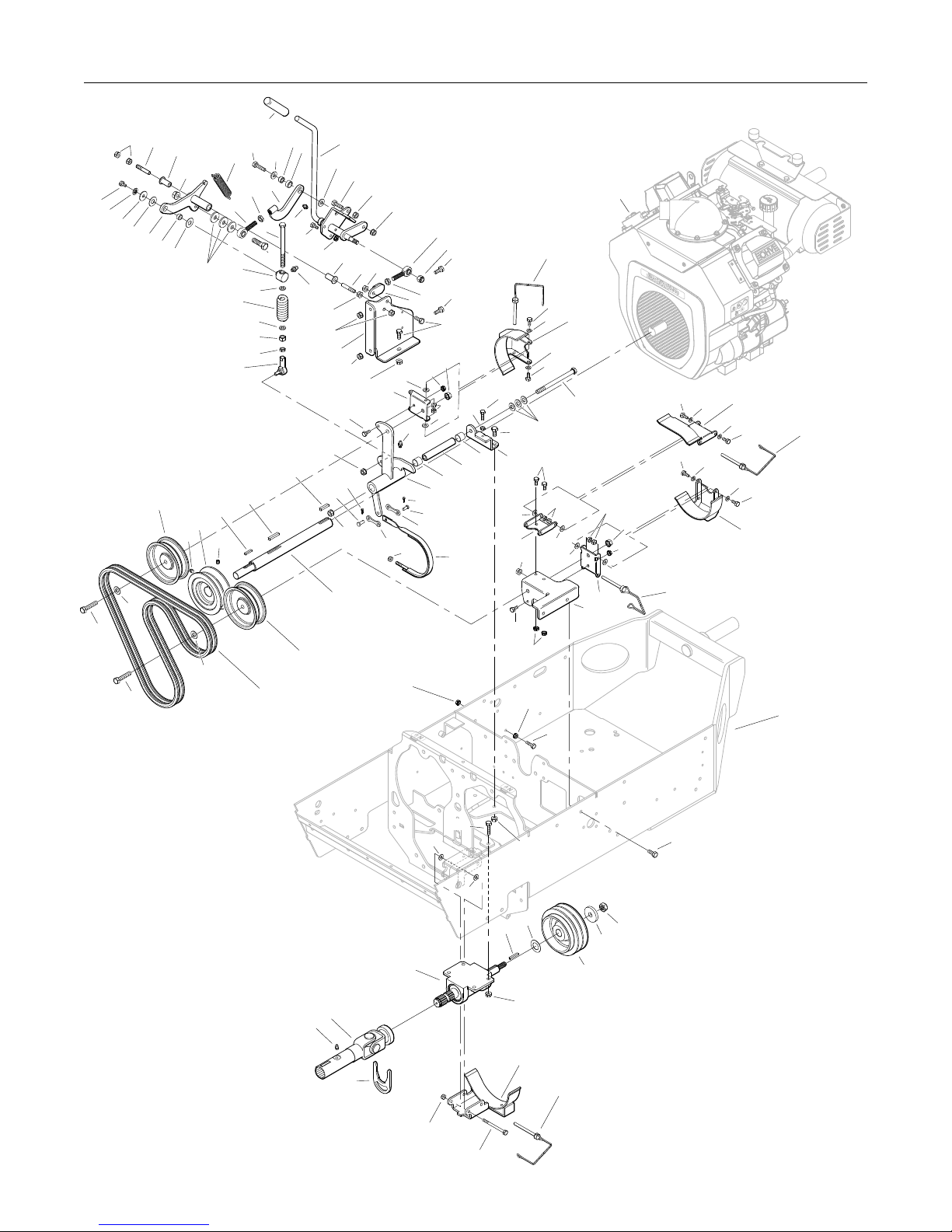

Page 9
.
.
F009
7
6
.
F013
.
F029
F061
F178
.
.
.
42
44
.
.
43
42
.
F484
.
34
.
.
.
.
F171
.
F067
.
36
F171
F051
F041
MAIN COMPONENT POWER TRANSMISSION
.
.
3
34
.
F004
5
.
F009
F009
F008
.
F183
10
F009
F031
.
32
.
33
.
4
.
6
F069
F013
.
F093
F009
F009
Refer to
Engine Group
F009
.
8
F014
.
.
7
F009
.
.
F034
F034
F298
9
F034
.
.
F120
16
.
.
F012
F004
F350
F120
5
25
27
F069
.
28
..
.
F381
.
.
26
.
.
25
F211
F120
24
F034
.
F051
F031
.
11
F031
.
F058
F058
F031
.
F350
.
12
.
F290
F350
29
F120
F120
.
31
F005
30
15
F009
.
16
17
F031
F004
.
.
45
.
8
.
39
38
37
.
F149
F035
F298
.
F060
F060
.
F010
F024
.
.
40
.
F040
1
.
F183
41
.
.
.
.
F435
.
2
.
5
F031
F012
.
F004
F120
F031
F031
11
.
F058
F058
.
13
F058
F058
8600-12
F031
14
11
F031
F051
F041
35
F004
F004
Refer to
Body / Chassis Assembly
9804-1
F211
.
5
Beginning S/N 149239
Use only genuine Walker® replacement parts.
9804-1
.
F035
F120
F120
.
23
22
.
21
.
.
.
F153
F009
.
F209
F009
.
19
. .
.
F451
F449
18
.
20
F034
F005
F325
7
Page 10
ENGINE GROUP
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Precleaner Assembly
1 4088-10 Air Cleaner Assembly 1
(Includes Items # 2-6 & 9)
2 5088-3 Air Cleaner Band 1
3 2090-3 Safety Filter Insert 1
4 2090-1 Air Cleaner Cartridge 1
5 2088-2 Air Cleaner Cap 1
6 2090-2 Vacuator Valve 1
7 7840 Hose Clamp (1-1/4 to 1-3/4) 2
8 2012 Flex Hose (1-3/4 x 2) 1
9 5091-6 Air Flow Indicator W/Bracket 1
10 M258 V acuum Hose (13") 1**
11 5091-5 1/8 Pipe Thread Female W/Barb 1
Engine Assembly
12 4104-3 Body Support 1
13 4845 Rubber Bumper (1.0 x .625) 2
14 NS Bolt (Kohler) 2
15 2013-4 Shield Side 2
16 2013-3 MuferHeatShield 1
17 NS Mufer 1
18 NS 19 HP Engine (Kohler) 1
19 4010-1 Drain Valve 3/8-18 NPTF 1
Fuel Tank Assembly
20 5879-3 Hose Clamp (1/2) 3
21 NS Fuel Filter (Kohler) 1
22 M246 Fuel Line (1/4 x 28") 1**
23 M113 Fuel Line (3/16 x 33-1/2") 1**
24 5975-3 Cable Tie (50# x 7") 4
25 8043-8 Roll Over Valve 1
26 5977-7 Roll Over Grommet (.900 x 1-1/2) 1
27 5083-8 Tank T ube (13") 1
28 5083-1 Bushing, Rubber (Fits 5083) 1
29 6055-2 Fuel Tank, 4.0 Gal. Gas (Black) 1
(Includes Items # 25-27, 30, 31 & 33)
30 M246 Fuel Line (1/4 x 6") 1**
31 5020-2 Fuel Filter, In T ank 1
32 5082-4 2-1/4 Ratchet Fuel Cap (EPA) 1
33 8055-2 Fuel T ank Gauge 1
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Choke and Throttle Assemblies
34 4108-3 Control Cable (64") 1
35 2108-4 Control Cable (68") 1
36 8123-3 Insultherm (3/8 x 10) 1
37 5108-6 Choke Control Knob, Black 1
38 5108-5 Throttle Control Knob, Red 1
39 5108-1 Control Lever, Throttle/Choke 2
40 7108 Control Assembly 2
4108-2 Throttle Control and Cable *
Assembly (Includes Item # 38)
2109-3 Choke Control and Cable *
Assembly (Includes Item # 37)
41 5108-8 Control Bracket 2
42 5108-10 Friction Washer (.125) 2
43 5108-7 Control Lock T ab 2
44 5172 Bearing, Delrin (.255 ID x .379 OD x .250) 1
Fasteners
F002 10-24 Keps Nut 10
F005 1/4-20 ESNA Nut 2
F009 5/16-18 Whiz Locknut 4
F025 10-24 x 3/8 PPHMS 8
F050 1/4 SAE Washer 4
F091 5/16-18 x 5/8 Hex Bolt 2
F094 8-32 x 1/2 PTHMS 2
F164 10-24 x 1/4 x 3/8 SHL Bolt 2
F175 1/2 Split Lock Washer 4
F184 1/4-20 x 1/2 Hex Bolt, SS 2
F185 1/4 Internal Star Lock Washer , SS 2
F201 1/4 Belleville Spring Washer 4
F439 1/2-13 x 1-3/4 Hex Bolt 4
F482 8-32 Nylock Nut 2
* Service Part Only
** Required hose specications:
M113 - 3/16" ID fuel/oil/vapor hose (Gates 4219-0093 or
equivalent)
M246 - 1/4" ID low permeation (<15g/m^2/day) fuel hose
(Parker 38904 or equivalent)
M258 - 7/64" ID automotive vacuum hose
8
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 11
.
ENGINE GROUP
.
.
13
.
5
.
.
12
.
4
.
3
.
2
.
1
.
F091
.
.
.
.
17
18
6
.
7
F009
14
.
F002
.
13
.
F025
15 16
F025
F002
.
15
.
F164
.
.
.
7
11
.
.
F094
8
8600-12
10
.
19
20
24
.
.
25
.
27
Refer to
Hydrostatic Ground
Drive Assemblies
Refer to
Body / Chassis
Assembly
9
.
F482
.
8600-2
.
.
20
21
.
23
20
.
.
.
35
34
24
22
.
33
24
.
.
.
.
F005
F002
.
38
37
39
.
F009
40
F025
.
F050
.
F201
.
.
44
43
F050
42
F002
41
36
.
.
32
.
28
.
26
29
9804-1
9804-1
.
F184
.
F185
.
30
.
F184
.
F175
.
31
F185
F439
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Refer to
Body / Chassis
Assembly
9
Page 12
HYDROST A TIC GROUND DRIVE ASSEMBLIES
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Ground Drive Assemblies
1 4025-6 Bottle Mount 1
2 2351-3 Flex Coupler Half 2
(Includes Items # F171 & F435)
3 2351-1 Rubber Iso Coupler 3
4 4349-12 Flanged Bearing (1") 1
5 6349-2 Flanged Bearing (3/4") 1
6 4010-10 Flex Coupling Guard 1
7 4025-33 Hose Channel (Single Hose) 1
8 5975-3 Cable Tie (50# x 7") 2
9 4026-9 Pulley (53804) *
10 4240-1 Drive Pulley 1
(Includes Items # F067 & F171)
11 4230-2 Ground Drive Belt 1
12 5841-1 Retainer Washer 1
13 7201-3 Fiberglide Bearing 2
14 7201-5 Inner Race (2-1/4) 1
15 4245 Idler Pulley (3/A) 1
16 4325-13 Idler Arm (Includes Items # 13 & 18) 1
17 7364-2 Torsion Spring 1
18 5830-3 Grease Fitting (45 Deg.) 2
19 9430-1 Spacer Tube 4
20 2026-6 Hydro-Gear® Oil Filter (52114) 2
21 4025-11 Hydro-Gear ZT3100, LH 1
22 4026-11 Hydro-Gear ZT3100, RH 1
23 4407-4 Bow Tie Cotter Pin 3
24 2028-5 Lockout Arm, LH 1
25 2025-17 Straight Thread Hose Fitting 2
26 5879-4 Hose Clamp (7/16) 2
27 M11 1 Hose (1/4 x 5-1/4) 2**
28 5879-3 Hose Clamp (1/2) 4
29 2028-6 Lockout Arm, RH 1
30 8043-9 1/4 x 1/4 x 1/4 Tee 1
31 M11 1 Hose (1/4 x 10-1/2) 1**
32 4025-3 Elbow (1/4 x 1/2) 1
33 5879-8 Hose Clamp (13/16) 2
34 5087-1 Hose (1/2 x 1-3/4) 1
35 2025-8 Reservoir Bottom Caps 1
36 5879-7 Hose Clamp (5/8) 1
37 2025-1 Oil Expansion Reservoir (71327) 1
Parking Brake Assembly
38 4406 Parking Brake Lever 1
(Includes Items # 18 & 39)
39 7406-1 Handle Grip, Red 1
40 8655-4 Clevis Pin (5/16 x 3/4) 2
41 4406-12 Brake Actuator Pull 1
42 2280 Clevis (3/8) 1
43 2406-4 Clevis Pin (5/16 x 1-1/8) 1
44 4401-6 Parking Brake Mount 1
45 4401-7 Parking Brake Pivot 1
46 4407-3 Parking Brake Actuator 1
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
47 5665-1 Compression Spring (2-1/2) 2
48 4407 Parking Brake Link 1
49 5222 Extension Spring (1/2 x 3-1/4) 1
50 5463 Steering Lever Actuator 2
Wheel Assembly
51 5075-1 LP Wheel & Tire Assembly (18 x 8.50-10) 2
5075-2 LP Tire (18 x 8.50-10) *
5075-5 LP Wheel (10 x 7) *
5033-6 Wheel & Tire (18 x 7.00-8) ***
5030-6 Standard Tire (18 x 7.00-8) *
5031-2 Standard Wheel (8 x 5.00-5) *
5030-4 Tire Tube (18 x 8.50-8) *
Fasteners
F004 1/4-20 Keps Nut 13
F009 5/16-18 Whiz Locknut 8
F012 3/8-16 Keps Nut 2
F013 3/8-16 Whiz Locknut 6
F015 1/2-20 Wheel Lug Nut 8
F020 5/16-18 ESNA Nut 2
F029 1/4-20 x 1/2 Hex Bolt 8
F031 1/4-20 x 5/8 Hex Bolt 5
F034 5/16-18 x 3/4 Hex Bolt 2
F035 5/16-18 x 1-1/4 Hex Bolt 2
F038 3/8-16 x 1 Hex Bolt 4
F040 3/8-16 x 1-1/2 Hex Bolt 1
F042 3/8-16 x 2-1/4 Hex Bolt 2
F043 3/8-16 x 3 Hex Bolt 1
F050 1/4 SAE Washer 2
F051 3/8 SAE Washer 1
F052 5/16 Ext. Star Lock Washer 6
F067 3/16 x 3/16 x 1 Key 1
F069 3/32 x 1/2 Cotter Pin 2
F093 5/16-18 x 1 Hex Bolt 6
F171 5/16-18 x 3/8 Set Screw 5
F182 1/4 x 5/8 x 1/8 Washer 4
F183 .312 x .700 x .074 Washer 5
F336 3/8-16 Jam Nut 1
F350 1/4-20 LP Nylock 2
F369 5/16-18 x 4-1/2 Hex Bolt 2
F434 5/16-18 x 3-1/2 Hex Bolt 4
F435 1/4 x 1/4 x 1-1/4 Key 2
F481 Washer 5/16 x 1 x .125 6
* Service Part Only
** Required hose specications:
M111 - 1/4" ID fuel/oil/vapor hose (Gates 4219-0103 or
equivalent)
*** May be ordered as a factory-installed option or for dealer in-
stallation. Narrow Drive Tires are used when installing a 36"
Deck. Contact your Walker dealer .
10
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 13
.
HYDROST A TIC GROUND DRIVE ASSEMBLIES
.
1
.
37
.
.
F050
F031
.
33
.
28
.
31
.
.
.
25
27
26
.
28
.
28
30
28
27
F029
.
36
.
35
.
34
33
.
32
.
8
F029
F004
F004
.
9
F182
.
F013
.
.
F042
29
.
.
F182
.
23
F012
.
F040
.
18
.
26
.
25
24
.
15
.
F069
17
.
48
.
49
.
16
23
.
F012
.
F051
13
F183
.
.
.
.
.
F043
12
13
14
.
.
.
F035
.
44
.
43
40
F020
.
22
F350
F182
.
.
F369
51
.
50
F350
50
F182
21
47
.
20
F183
.
46
45
8600-2
F183
.
F171
F013
11
.
7
.
5
.
42
.
F034
F009
.
F029
F004
.
F038
.
.
23
F004
6
.
.
F336
F029
.
F067
10
Refer to
Engine Group
F038
Refer to
Main Component
Power Transmission
38
..
F435
F013
.
F171
.
F435
4
9
.
8600-12
39
F004
F031
.
40
18
.
.
F183
.
F069
41
2
F481
.
F093
F093
.
F052
.
F481
.
2
.
3
F052
9804-1
F004
.
F434
Beginning S/N 149239
Use only genuine Walker® replacement parts.
9804-1
F009
Refer to
Body / Chassis Assembly
F009
.
51
19
.
F015
11
Page 14
STEERING CONTROL ASSEMBLIES
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Steering Lever & FSC Assemblies
1 5862 FSC Knob 1
2 4170 FSC Lever Assembly (Includes Item # 4) *
3 2170-1 Step Washer 1
4 5830 Grease Fitting 1
5 5214-5 Ball Joint (5/16-24/LH) W/O Stud 1
6 4173 Control Rod (5-3/8) 1
7 5214-4 Ball Joint (5/16-24) W/O Stud 1
8 4219 Extension Spring (3/4 x 6-1/2) 1
9 4451-9 FSC Friction Actuator 1
10 4199-2 Steering Lever Dampener Assembly 2
11 5146 10mm Ball Stud 4
12 5830-3 Grease Fitting (45 Degree) 2
13 7201-2 Fiberglide Bearing (1/2") 2
14 5463-5 Steering Arm Pivot Bushing (SS) 2
15 5463-6 Washer 5/16 x 3/4 x .250 2
16 5463-4 Steering Lever Actuator 2
17 5665-1 Compression Spring (2-1/2) 2
18 4213-2 Control Rod (6-3/4) 2
19 5214-2 Ball Joint (5/16-24) (Nylon Lined) 2
20 2212-3 Seal Retainer 2
21 2212 Transmission Control Arm Stop 2
22 6212-2 Transmission Control Arm, RH 1
23 6212-3 Transmission Control Arm, LH 1
24 4451-1 Steering Pivot Shaft W/Stop 1
25 9704-3 Pivot Rod Bushing / Plastic 2
26 4142-2 FSC Friction Washer 1
(1-1/2 x 1-1/32 x 1/16)
27 5141 FSC Friction Washer (1-1/2 x 3/8 x 1/16) 1
28 4142-1 FSC Cam 1
29 8201-3 Fiberglide Bearing 4
30 4452-6 Steering Pivot (1/4-20 x 1-5/8) 2
31 6451-1 Speed Control Actuator, LH 1
(Includes Items # 12 & 29)
32 5222 Extension Spring (1/2 x 3-1/4) 2
33 5450 D-Clip 2
34 6452-1 Steering Lever Tube W/T ab 2
35 5453-10 Steering Lever Handle / Adjustable 2
(Includes Items # 36 & F345)
36 5850-2 Handle Grip, Foam (5-1/2) 2
37 6451-2 Speed Control Actuator, RH 1
(Includes Items # 12 & 29)
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Fasteners
F004 1/4-20 Keps Nut 2
F005 1/4-20 ESNA Nut 2
F008 5/16-24 Keps Nut 2
F009 5/16-18 Whiz Locknut 6
F010 5/16-24 ESNA Nut 2
F024 5/16-24 Jam Nut 3
F035 5/16-18 x 1-1/4 Hex Bolt 1
F044 5/16-24 x 3/4 Hex Bolt 2
F059 3/8 Wave Spring W asher 1
F093 5/16-18 x 1 Hex Bolt 4
F146 1/4-20 Jam Nut 2
F167 5/16-18 Hex Nut 1
F183 .312 x .700 x .074 Washer 6
F188 1/4-20 Self-Locking Nut 4
F192 3/8-24 Self-Locking Nut 1
F198 .250 x .625 x .040 Washer , SS 2
F211 1/4-20 x 7/8 Hex Bolt 1
F312 3/8 x 3/8 Shoulder Bolt 1
F345 1/4-20 x .770 Knurled Bolt 4
F373 5/16-24 Hex Nut, LH 1
F385 1/4 x 1-1/4 Roll Pin 1
F386 5/16-18 x 1-1/2 x 3/8 Shoulder Bolt 1
F391 1/4-20 x 1/2 Set Screw, SS 2
F407 Belleville Washer 3/8 x 1.187, SS 1
F427 5/16-18 Flange Nut 1
F582 Washer 5/16 x 7/8 x .125 2
* Service Part Only
12
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 15
.
STEERING CONTROL ASSEMBLIES
Refer to
Hydrostatic Ground
Drive Assemblies
.
.
20
21
.
1
.
.
18
F183
.
17
.
.
16
F010
10
.
15
15
14
13
F582
F345
32
33
.
F059
.
8
.
.
F198
F167
.
F386
.
F188
.
33
.
2
F385
.
32
.
.
5
F183
.
F093
.
.
F373
6
.
9
F009
.
.
.
F009
11
.
12
.
11
.
29
37
30
.
.
.
F005
29
F093
F582
F188
13
.
.
14
36
35
.
F009
.
.
F427
.
3
4
.
F024
F093
.
F183
7
.
36
.
35
.
.
F035
.
F345
34
F198
34
F024
F093
F009
29
31
.
19
10
F005
.
F391
.
.
22
F146
.
F008
F008
F183
.
F044
F183
F391
F146
.
23
F024
19
21
18
16
F010
17
F183
Refer to
Hydrostatic Ground
Drive Assemblies
Refer to
Body / Chassis
Assembly
F009
11
11
.
12
20
F009
.
30
.
24
29
Beginning S/N 149239
Use only genuine Walker® replacement parts.
.
F192
.
F407
.
.
.
28
27
F004
F004
.
26
25
.
F211
.
9804-1
9804-1
25
.
F312
Refer to
Refer to
Body / Chassis
Body / Chassis
Assembly
Assembly
13
Page 16
ELECTRICAL ASSEMBL Y
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Electrical Assembly
1 5942-11 Delta Hex Nut 1
2 5942-9 Safety Switch (NO), Delta Threaded 1
3 7834-3 Wire Saddle (3 Wires) 3
4 7941-3 Boot, Circuit Breaker 1
5 7941-8 Circuit Breaker (5 Amp) 1
6 8990-1 Hourmeter (Global) 1
7 5975-1 Cable Tie (18# x 3-3/4") 2
8 5932 Battery T erminal Insulation Black (-) 1
9 5933 Battery T erminal Insulation Red (+) 1
10 4940-6 Battery Cable 33" 1
11 6923-4 Battery Cable 13-1/2" (-) 1
12 6942 Relay Switch 20/40 Amp (NC) 3
13 8404-8 Plastic Cover, Red 2
14 8941 Circuit Breaker (30 Amp) 1
(Auto Reset/Sealed)
15 4940-11 Jumper Wire 1
16 5835 Cable Clamp (3/4) 1
17 4940-13 Wire Harness 1
18 5942-10 Safety Switch (NC), Delta Side Mount 1
19 NS Battery (12V/300CCA/Dry) 1
20 5839 Hook Bolt 2
21 4024-13 Safety Switch Plate 1
22 5942-8 Safety Switch (NO), Delta Side Mount 1
23 4910-4 Battery Cover 1
24 8960-15 Ignition Switch W/Keys 1
(Includes Items # 25, 26 & F349)
25 7854 Plastic Tip, Red 1
26 8960-3 Key Set W/Umbrella 1
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Fasteners
F002 10-24 Keps Nut 7
F004 1/4-20 Keps Nut 6
F019 1/4-20 ESNA Wing Nut 2
F026 10-24 x 1/2 PPHMS 5
F028 10-24 x 3/4 PPHMS 1
F029 1/4-20 x 1/2 Hex Bolt 3
F031 1/4-20 x 5/8 Hex Bolt 2
F050 1/4 SAE Washer 2
F112 5/8 x 1-1/4 x .03 Washer 3
F146 1/4-20 Jam Nut 1
F182 1/4 x 5/8 x 1/8 Washer 2
F211 1/4-20 x 7/8 Hex Bolt 1
F232 10-32 Keps Nut 2
F349 Washer .835 ID 1.122 OD, SS 1
F381 1/4-20 Hex Nut 1
F475 1/4-20 x 1 PFH Screw 1
F505 6-32 x 7/8 Hex Trim MS, SS 4
F506 6-32 Nylock Nut 4
14
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 17
ELECTRICAL ASSEMBL Y
8600-5
.
Refer to
Body / Chassis
Assembly
Refer to
Steering Control
.
Assemblies
F211
.
F146
F029
F004
24
.
26
.
25
.
F349
.
B
.
.
4
6
1. 2.
.
.
.
1
.
F112
.
2
.
5
D
3
C
A
<15°
24
24
.
.
F019
7
.
.
F505
.
22
23
F019
F182
.
F182
.
9
.
10
.
.
.
F004
.
.
F050
.
8
BLK
F004
.
.
E
F506
21
20
Refer to
Main Component
Power Transmission
20
F050
F031
F031
.
18
.
19
F505
F506
F002
17
F475
I
9804-1
.
.
.
.
F002
F026
H
F004
.
F381
.
.
F232
12
. .
14
F002
15
RED
J
Refer to
Body / Chassis
Assembly
F
.
G
G
11
.
13
F026
9804-1
F004
.
F029
END VIEWS ARE SHOWN FROM BACK OF PLUG
DETAIL A
BRN
BLU
ORG
DETAIL E
RED/WHT
DETAIL F
RED
PUR/RED
YEL
BLK
YEL
BLK
Beginning S/N 149239
Use only genuine Walker® replacement parts.
16
PUR/WHT
BRN
F002
WHT
WHT
F028
RED/WHT
BLU
PUR
PUR
DETAIL G
BLK
BLK
DETAIL B
YEL
RED
BLK
BLK
WHT
BLK
PUR/
RED
DETAIL H
PUR/WHT
ORG
PUR/WHT
PUR/WHT
PUR
PUR/RED
BLK
BRN/WHT
DETAIL C
DETAIL D
BLK
BRN/WHT
DETAIL I DETAIL J
PUR/WHT
PUR/WHT
PUR/RED
YEL
GRA
PUR
WHT
15
Page 18
LUBRICA TION POINTS
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
Lubrication Points
1 Steering Lever Pivot Grease 2
2 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
3 Universal Joint Tube Assembly Grease* 1
4 Deck Support Arm Pivot Grease 2
5 Universal Joint Quick Connect Grease 1
Spline (Grease Slide Area)
6 FSC Lever Pivot Grease 1
7 Body Latch Pivot Oil 1
8 Clutch Actuator Push Rod Grease 1
9 Hydro Idler Pivot Grease 1
10 PTO Clutch Lever Pivot Grease 1
11 Transaxle Oil Reservoir Oil/20W-50 1
12 Tail Wheel Caster Fork Pivot Grease 2
13 Rear Axle Pivot Grease 1
14 Rear Wheel Bearing Grease 2
ITEM PART DESCRIPTION NO.
NO. NO. REQ’D
15 Engine Oil Filler / Dipstick Oil
16 Throttle Control Cable Ends Oil 2
17 Choke Control Cable Ends Oil 2
18 Brake Band Pivot Pins Oil 2
19 PTO Belt Tightener Pivot Grease 1
20 Parking Brake Clevis Oil 2
21 Parking Brake Lever Grease 1
22 Choke Control Pivot Oil 1
23 Throttle Control Pivot Oil 1
** 1
* Grease every 25 hours.
** Refer to B19 Operator’s Manual for procedure for
checking and changing oil in Engine Crankcase.
NOTE: See Model B19 Operator’s Manual (P/N 4000-19)
for proper lubrication intervals.
16
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 19
16 & 23
4
17 & 22
20
LUBRICA TION POINTS
1
2
3
4
5
21
20
8
6
7
19
18
17
16
15
12
8
9
10
11
12
13
Beginning S/N 149239
Use only genuine Walker® replacement parts.
14
17
Page 20
BLK
BLK
BLK
WIRING SCHEMA TIC
RELAY - A
IGNITION RELAY
OFF
START
RUN
PTO ON
START RELAY
OFF
START
RUN
PTO ON
RELAY - B
30 + 87A
30 + 87
30 + 87
30 + 87A
30 + 87A
30 + 87
30 + 87
30 + 87A
IGNITION RELAY
OFF
START
RUN
PTO ON
RELAY - C
30 + 87A
30 + 87
30 + 87
30 + 87A
WALKER MODEL B19
Beginning S/N 146367
IGNITION SWITCH CIRCUITS
OFF
START
RUN
S1 = START CIRCUIT
S2 = START/ACCESSORY CIRCUIT
M = MAGNETO GROUND CIRCUIT
B = BATTERY CIRCUIT
A = ACCESSORY CIRCUIT
G = GROUND CIRCUIT
YEL
PUR
WHT
RED
G + M
B + A / S1 + S2
B + A
BLK
RED
BLU
STARTER SOLENOID
PUR
RECTIFIER/REGULATOR
WHT
STARTER
MAGNETO
RED
PUR/RED
YEL
BATTERY
RELAY - B
RED
OPTIONAL
LIGHTS
RED
RED
87
30
87A
YEL
BLK
BLK
8585
86
OPTIONAL
LIGHTS
BLK
RELAY - A
BRN
WHT
RED/WHT
PUR/
RED
SWITCH
PUR/WHT
PUR/WHT
BLK
30
87A
ORG
PTO
BLK
8685
WHT
NEUTRAL
INTERLOCK
WHT
YEL
RED/WHT
BLK
FSC
SWITCH
M
S1
RELAY - C
PUR/
RED
ORG
G
B
A
S2
BLU
8787
85
PUR/
WHT
30
86
87A
BRN/WHT
BLK
RED
PUR
PUR
BLK
PUR/
WHT
SEAT
SWITCH
5 AMP
CIRCUIT
BREAKER
BRN
PUR/
WHT
BLU
RED
RED
30 AMP
CIRCUIT
BREAKER
RED
OPTIONAL
LIGHTS
BRN/WHT
HOUR
METER
BLK
BLK
18
PUR/RED
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 21
MAINTENANCE AND SER VICE RECORD SHEET
DATE SERVICE ENGINE
ITEM HOURS
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
Beginning S/N 149239
Use only genuine Walker® replacement parts.
19
Page 22
MAINTENANCE AND SER VICE RECORD SHEET
DATE SERVICE ENGINE
ITEM HOURS
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
______________________________________________________________________________________________________________
20
Beginning S/N 149239
Use only genuine Walker® replacement parts.
Page 23
LIMITED W ARRANTY
FOR
W ALKER MODEL B19
RIDER MOWERS
1. WHA T THIS W ARRANTY COVERS, AND FOR HOW LONG:
Walker Manufacturing company will, at its option, repair or replace, without charge, any part covered by this warranty which
is found to be defective in material and/or workmanship within one (1) year* after date of sale to the original retail purchaser
unless the product is used for rental purposes, in which case this warranty is limited to ninety (90) days. At W alker’s request,
customer will make the defective part available for inspection by Walker and/or return the defective part to Walker, transportation charges prepaid. All parts and components of the Walker Mower are covered by this warranty except the following
components which are warranted separately by their respective manufacturers:
Kohler Engine
Battery
The available warranties covering these items are furnished with each mower. W alker does not assume any warranty obligation, liability or modication for these items, which are covered exclusively by the stated warranty of the respective manufacturers noted above.
* Extended warranties are oered for the following powertrain components:
• A two (2) year or 2000 hour (whichever comes rst) warranty is oered for Hydro-Gear ZT3100 Hydrostatic transaxle;
covers full cost of replacement up to 1000 hours of use, and after 1000 hours warranty coverage is prorated against
2000 hours.
2. WHA T THIS W ARRANTY DOES NOT COVER:
A. This warranty does not cover defects caused by depreciation or damage caused by normal wear, accidents, improper
maintenance, improper use or abuse of the product, alterations, or failure to follow the instructions contained in the
Operator’s Manual for operation and maintenance.
B. The customer shall pay any charges for making service calls and/or for transporting the mower to and from the place
where the inspection and/or warranty work is performed.
3. HOW TO OBT AIN SERVICE UNDER THIS W ARRANTY:
Warranty service can be arranged by contacting the dealer where you purchased the mower or by contacting Walker Manufacturing Company, 5925 East Harmony Road, Ft. Collins, CO 80528. Proof of the date of purchase may be required to verify warranty coverage.
4. WARRANTY LIMIT A TION:
A. THERE IS NO OTHER EXPRESS WARRANTY . ANY W ARRANTY THA T MA Y BE IMPLIED FROM THIS PURCHASE
INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE IS HEREBY LIMITED TO THE
DURATION OF THIS WARRANTY AND TO THE EXTENT PERMITTED BY LAW ANY AND ALL IMPLIED
WARRANTIES ARE EXCLUDED. Some states do not allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you.
B. WALKER WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES AND/OR
EXPENSES IN CONNECTION WITH THE PURCHASE OR USE OF THE MOWER. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation(s) or exclusion(s) may not apply
to you.
C. Only the warranty expressed in this limited warranty shall apply and no dealer, distributor, or individual is authorized to
amend, modify, or extend this warranty in any way. Accordingly, additional statements such as dealer advertising or
presentations, whether oral or written, do not constitute warranties by Walker , and should not be relied upon.
D. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
21
Page 24
WALKER MFG. CO. • 5925 E. HARMONY ROAD, FORT COLLINS, CO 80528 • (970) 221-5614
FORM NO. 021418 PRINTED IN USA www.walkermowers.com ©2018 WALKER MFG. CO
Loading...
