Waldmann 113182000-00680208 Information guide

Errors and technical changes excepted. Images can vary from original.

Photometric and electrical data may vary due to component tolerances.

illuminance

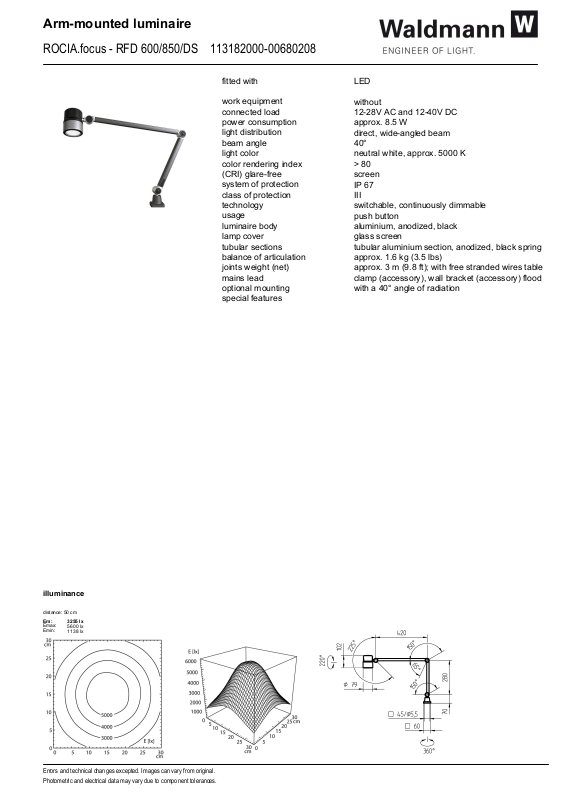

Arm-mounted luminaire

ROCIA.focus - RFD 600/850/DS 113182000-00680208

fitted with

work equipment
connected load
power consumption
light distribution
beam angle
light color
color rendering index
(CRI) glare-free
system of protection
class of protection
technology
usage
luminaire body
lamp cover
tubular sections
balance of articulation
joints weight (net)
mains lead
optional mounting
special features

LED

without
12-28V AC and 12-40V DC
approx. 8.5 W
direct, wide-angled beam
40°
neutral white, approx. 5000 K
> 80
screen
IP 67
III
switchable, continuously dimmable
push button
aluminium, anodized, black
glass screen
tubular aluminium section, anodized, black spring
approx. 1.6 kg (3.5 lbs)
approx. 3 m (9.8 ft); with free stranded wires table
clamp (accessory), wall bracket (accessory) flood
with a 40° angle of radiation

distance: 50 cm

Em:

3255 lx

Emax:

5600 lx

Emin:

1138 lx
