Waldmann 113182000-00680110 Information guide

Arm-mounted luminaire

Errors and technical changes excepted. Images can vary from original.

Emax:

Photometric and electrical data may vary due to component tolerances.

illuminance

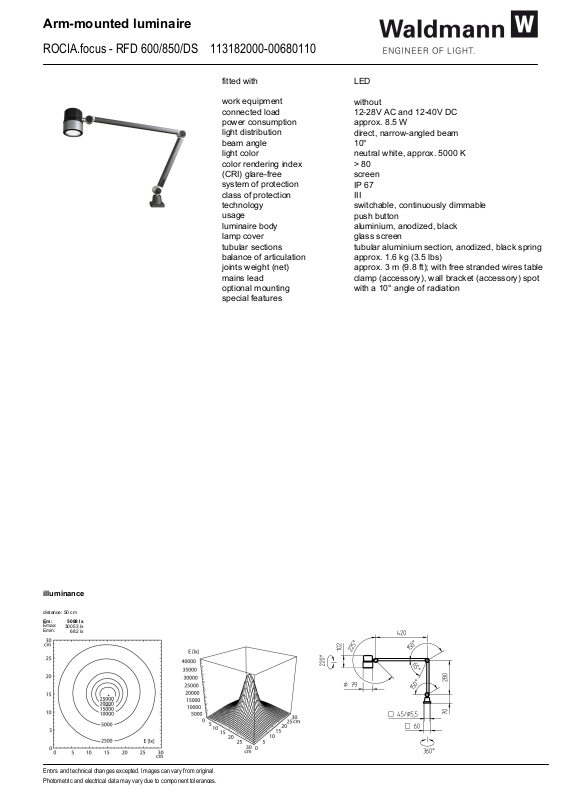

ROCIA.focus - RFD 600/850/DS 113182000-00680110

Em:

distance: 50 cm

fitted with

LED

work equipment
connected load
power consumption
light distribution
beam angle
light color
color rendering index
(CRI) glare-free
system of protection
class of protection
technology
usage
luminaire body
lamp cover
tubular sections
balance of articulation
joints weight (net)
mains lead
optional mounting
special features

without
12-28V AC and 12-40V DC
approx. 8.5 W
direct, narrow-angled beam
10°
neutral white, approx. 5000 K
> 80
screen
IP 67
III
switchable, continuously dimmable
push button
aluminium, anodized, black
glass screen
tubular aluminium section, anodized, black spring
approx. 1.6 kg (3.5 lbs)
approx. 3 m (9.8 ft); with free stranded wires table
clamp (accessory), wall bracket (accessory) spot
with a 10° angle of radiation

5088 lx

30053 lx

682 lx
