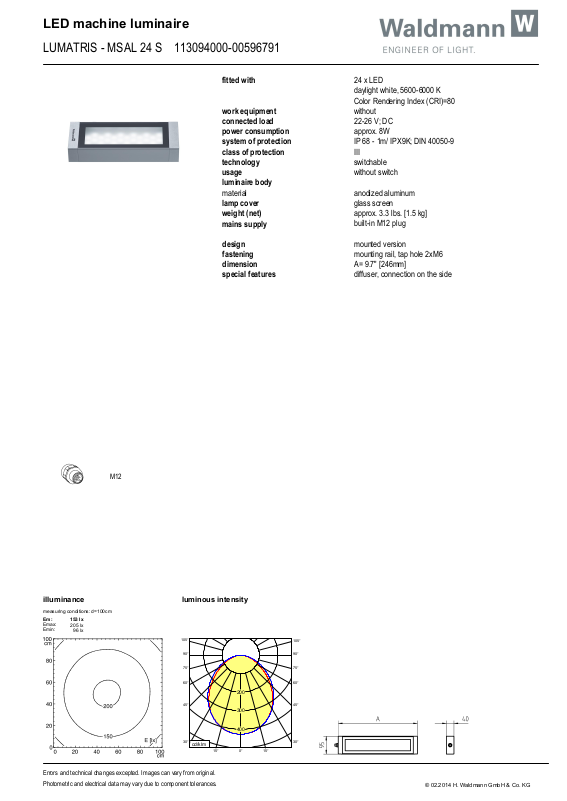

Waldmann 113094000-00596791 Information guide

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

200

300

400

cd/klm

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emax:
measuring conditions: d=100cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

LUMATRIS - MSAL 24 S 113094000-00596791

Em:

fitted with 24 x LED

daylight white, 5600-6000 K
Color Rendering Index (CRI)=80

work equipment without
connected load 22-26 V; DC
power consumption approx. 8W
system of protection IP 68 - 1m/ IPX9K; DIN 40050-9
class of protection III
technology switchable
usage without switch
luminaire body

material anodized aluminum

lamp cover glass screen
weight (net)
mains supply

approx. 3.3 lbs. [1.5 kg]
built-in M12 plug

design
fastening
dimension
special features

mounted version
mounting rail, tap hole 2xM6
A= 9.7" [246mm]
diffuser, connection on the side

M12

153 lx

205 lx

96 lx

© 02.2014 H. Waldmann GmbH & Co. KG
