Waldmann 113080000-00580672 Information guide

Serie 814

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

200

300

400

cd/klm

LED machine luminaire

Emax:
measuring conditions: d=100cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

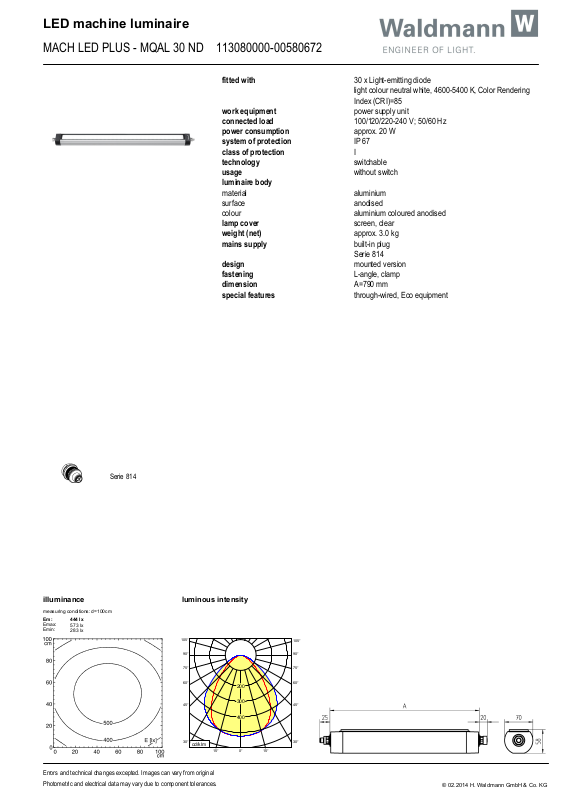

MACH LED PLUS - MQAL 30 ND 113080000-00580672

Em:

444 lx

fitted with

30 x Light-emitting diode
light colour neutral white, 4600-5400 K, Color Rendering
Index (CRI)=85

work equipment

power supply unit

connected load

100/120/220-240 V; 50/60 Hz

power consumption

approx. 20 W

system of protection

IP 67

class of protection

I

technology

switchable

usage

without switch

luminaire body

material

aluminium

surface

anodised

colour

aluminium coloured anodised

lamp cover

screen, clear

weight (net)

approx. 3.0 kg

mains supply

built-in plug
Serie 814

design

mounted version

fastening

L-angle, clamp

dimension

A=790 mm

special features

through-wired, Eco equipment

573 lx
283 lx

Errors and technical changes excepted. Images can vary from original

© 02.2014 H. Waldmann GmbH & Co. KG
