Waldmann 113072000-00580648 Information guide

Serie 713

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

200

300

400

cd/klm

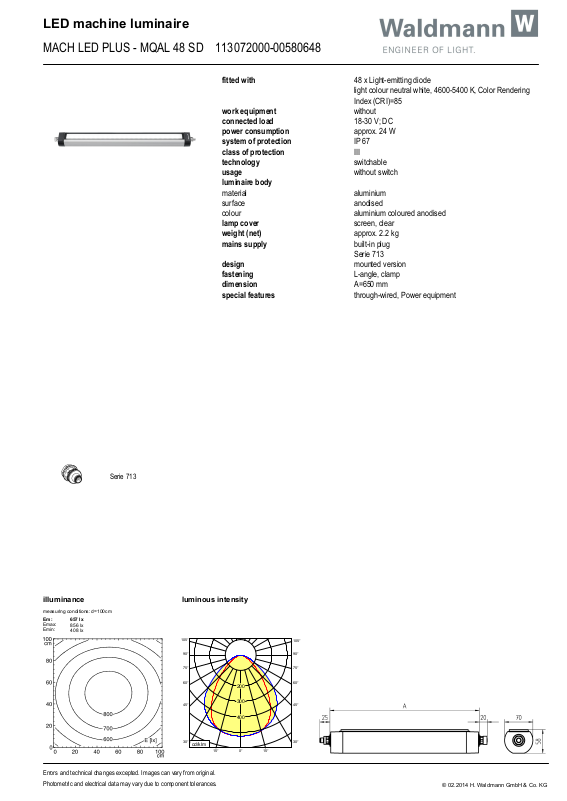

LED machine luminaire

Emax:
measuring conditions: d=100cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

MACH LED PLUS - MQAL 48 SD 113072000-00580648

Em:

657 lx

fitted with

48 x Light-emitting diode
light colour neutral white, 4600-5400 K, Color Rendering
Index (CRI)=85

work equipment

without

connected load

18-30 V; DC

power consumption

approx. 24 W

system of protection

IP 67

class of protection

III

technology

switchable

usage

without switch

luminaire body

material

aluminium

surface

anodised

colour

aluminium coloured anodised

lamp cover

screen, clear

weight (net)

approx. 2.2 kg

mains supply

built-in plug
Serie 713

design

mounted version

fastening

L-angle, clamp

dimension

A=650 mm

special features

through-wired, Power equipment

856 lx
408 lx

Errors and technical changes excepted. Images can vary from original.

© 02.2014 H. Waldmann GmbH & Co. KG
