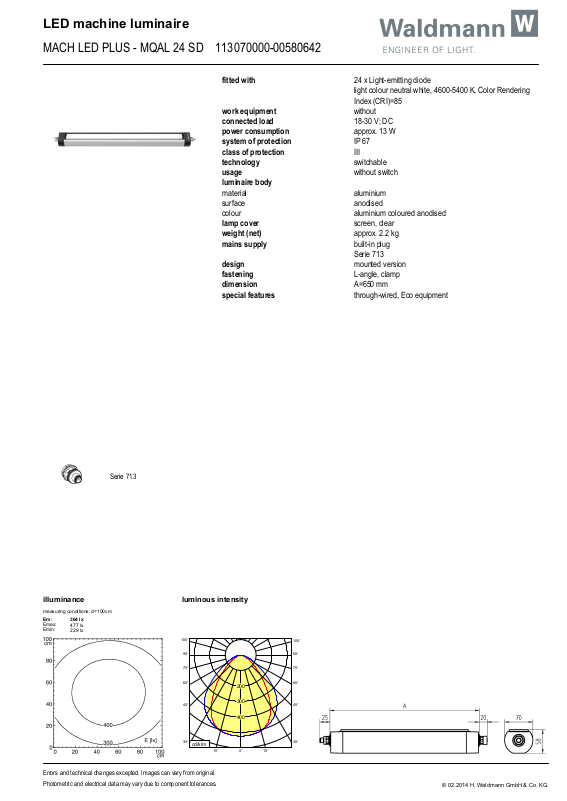

Waldmann 113070000-00580642 Information guide

Serie 713

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

200

300

400

cd/klm

LED machine luminaire

Emax:
measuring conditions: d=100cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

MACH LED PLUS - MQAL 24 SD 113070000-00580642

Em:

364 lx

fitted with

24 x Light-emitting diode
light colour neutral white, 4600-5400 K, Color Rendering
Index (CRI)=85

work equipment

without

connected load

18-30 V; DC

power consumption

approx. 13 W

system of protection

IP 67

class of protection

III

technology

switchable

usage

without switch

luminaire body

material

aluminium

surface

anodised

colour

aluminium coloured anodised

lamp cover

screen, clear

weight (net)

approx. 2.2 kg

mains supply

built-in plug
Serie 713

design

mounted version

fastening

L-angle, clamp

dimension

A=650 mm

special features

through-wired, Eco equipment

477 lx
229 lx

Errors and technical changes excepted. Images can vary from original.

© 02.2014 H. Waldmann GmbH & Co. KG
