Waldmann 113045000-00580702 Information guide

M12

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

200

300

400

cd/klm

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emax:
measuring conditions: d=100cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

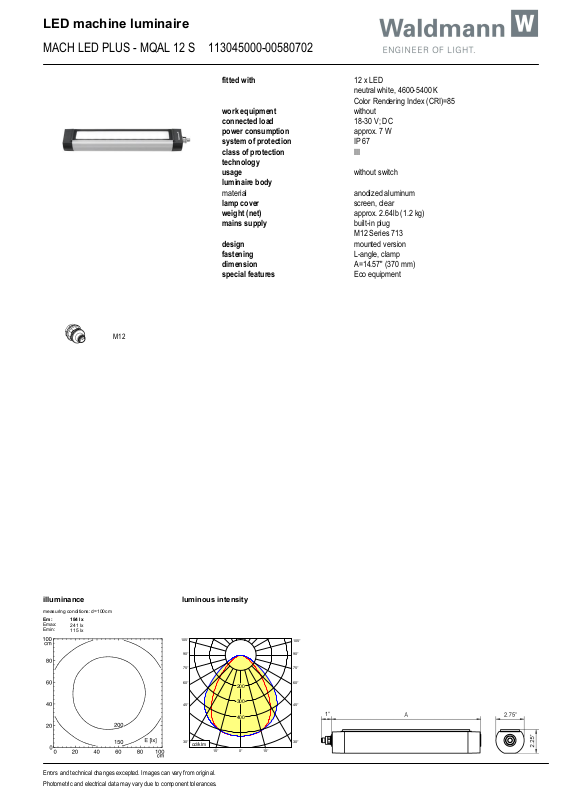

MACH LED PLUS - MQAL 12 S 113045000-00580702

Em:

fitted with 12 x LED

neutral white, 4600-5400 K
Color Rendering Index (CRI)=85

work equipment without
connected load 18-30 V; DC
power consumption approx. 7 W
system of protection IP 67
class of protection III
technology
usage without switch
luminaire body

material anodized aluminum

lamp cover screen, clear
weight (net) approx. 2.64lb (1.2 kg)
mains supply built-in plug

M12 Series 713

design mounted version
fastening L-angle, clamp
dimension A=14.57" (370 mm)
special features Eco equipment

184 lx

241 lx
115 lx
