Waldmann 112993000-00562567 Information guide
90°
105°
105°
90°
75°
60°
45°
30°
15° 0° 15°
30°
45°
60°
75°
200
300
400
500
600
cd/klm

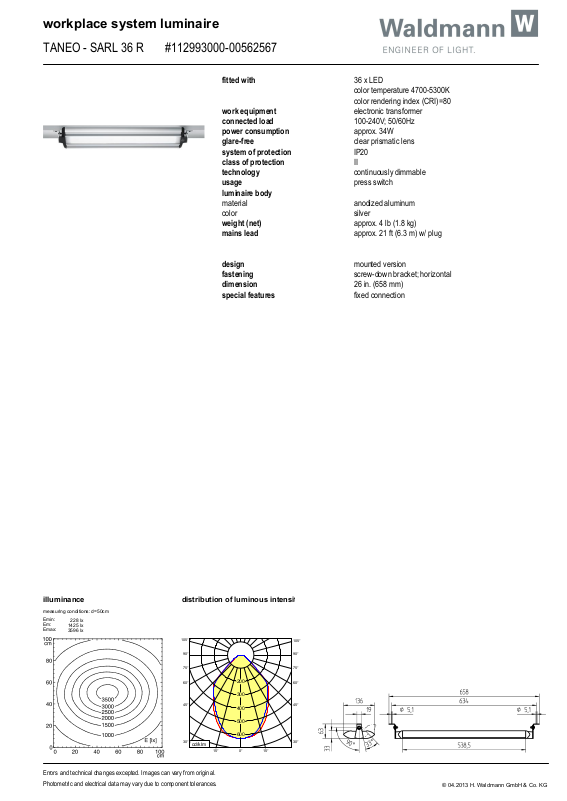

workplace system luminaire
Emin:
Em:
Emax:
measuring conditions: d=50cm
Photometric and electrical data may vary due to component tolerances.
illuminance
distribution of luminous intensity
TANEO - SARL 36 R #112993000-00562567
fitted with
36 x LED
color temperature 4700-5300K
color rendering index (CRI)=80
work equipment
connected load
power consumption
glare-free
system of protection
class of protection
technology
usage
electronic transformer
100-240V; 50/60Hz
approx. 34W
clear prismatic lens
IP20
II
continuously dimmable
press switch
luminaire body
material anodized aluminum
color silver
weight (net) approx. 4 lb (1.8 kg)
mains lead approx. 21 ft (6.3 m) w/ plug
design
mounted version
fastening screw-down bracket; horizontal
dimension 26 in. (658 mm)
special features fixed connection
228 lx
1425 lx
3596 lx
Errors and technical changes excepted. Images can vary from original.
© 04.2013 H. Waldmann GmbH & Co. KG
