Waldmann 112992000-00562495 Information guide

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

200

300

400

500

600

cd/klm

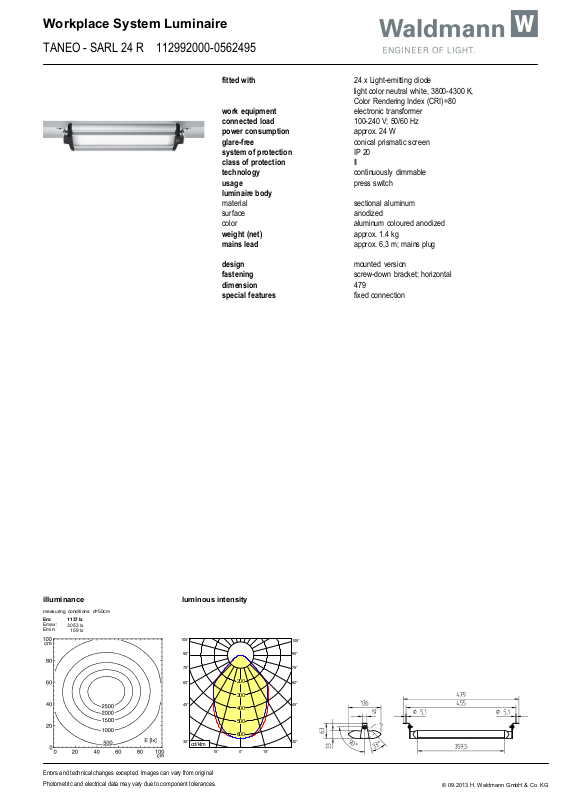

Workplace System Luminaire

Emax:
measuring conditions: d=50cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

TANEO - SARL 24 R 112992000-0562495

Em:

fitted with

24 x Light-emitting diode
light color neutral white, 3800-4300 K,
Color Rendering Index (CRI)=80

work equipment
connected load
power consumption
glare-free
system of protection
class of protection
technology
usage

electronic transformer
100-240 V; 50/60 Hz
approx. 24 W
conical prismatic screen
IP 20
II
continuously dimmable
press switch

luminaire body

material sectional aluminum
surface anodized
color aluminum coloured anodized

weight (net) approx. 1.4 kg
mains lead approx. 6,3 m; mains plug

design
fastening
dimension
special features

mounted version
screw-down bracket; horizontal
479
fixed connection

1137 lx

3053 lx

159 lx

Errors and technical changes excepted. Images can vary from original

© 09.2013 H. Waldmann GmbH & Co. KG
