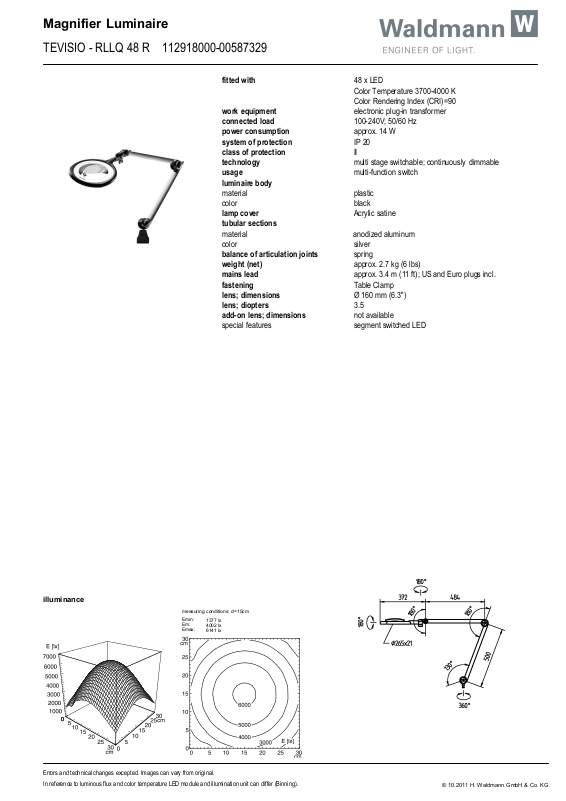

Waldmann 112918000-00587329 Information guide

Magnifier Luminaire

Errors and technical changes excepted. Images can vary from original.

Emin:
Em:
Emax:

measuring conditions: d=15cm

illuminance

TEVISIO - RLLQ 48 R 112918000-00587329

fitted with 48 x LED

work equipment electronic plug-in transformer
connected load 100-240V; 50/60 Hz
power consumption approx. 14 W
system of protection IP 20
class of protection II
technology multi stage switchable; continuously dimmable
usage multi-function switch
luminaire body

material plastic
color black

lamp cover Acrylic satine
tubular sections

material anodized aluminum
color silver

balance of articulation joints spring
weight (net) approx. 2.7 kg (6 lbs)
mains lead approx. 3.4 m (11 ft); US and Euro plugs incl.
fastening
lens; dimensions Ø 160 mm (6.3")
lens; diopters 3.5
add-on lens; dimensions not available

special features segment switched LED

Color Temperature 3700-4000 K
Color Rendering Index (CRI)=90

Table Clamp

In reference to luminous flux and color temperature LED module and illumination unit can differ (Binning).

1377 lx
4002 lx
6141 lx

© 10.2011 H. Waldmann GmbH & Co. KG
