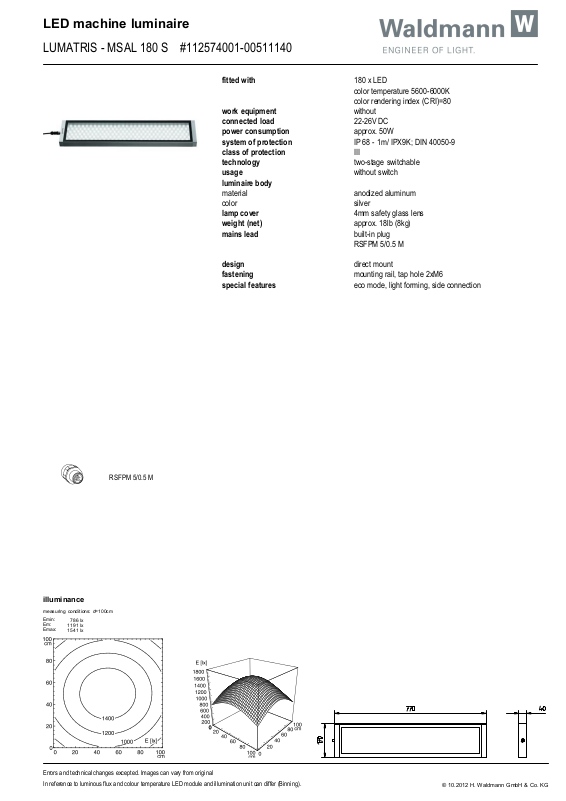

Waldmann 112574001-00511140 Information guide

RSFPM 5/0.5 M

LED machine luminaire

Emin:
Em:
Emax:

measuring conditions: d=100cm

In reference to luminous flux and colour temperature LED module and illumination unit can differ (Binning).

illuminance

LUMATRIS - MSAL 180 S #112574001-00511140

fitted with 180 x LED

work equipment without
connected load 22-26V DC
power consumption approx. 50W
system of protection IP 68 - 1m/ IPX9K; DIN 40050-9
class of protection III
technology two-stage switchable
usage without switch
luminaire body

material anodized aluminum
color silver

lamp cover 4mm safety glass lens
weight (net)
mains lead

design direct mount
fastening mounting rail, tap hole 2xM6
special features eco mode, light forming, side connection

color temperature 5600-6000K
color rendering index (CRI)=80

approx. 18lb (8kg)
built-in plug
RSFPM 5/0.5 M

786 lx
1191 lx
1541 lx

Errors and technical changes excepted. Images can vary from original

© 10.2012 H. Waldmann GmbH & Co. KG
