Waldmann 112463003 Information guide

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

1000

1500

2000

2500

cd/klm

Errors and technical changes excepted. Images can vary from original.

Emax:
measuring conditions: d=50cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

LED machine luminaire

Em:

fitted with
work equipment

connected load

power consumption

system of protection

class of protection

technology

usage

luminaire body

lamp cover

tubular sections

balance of articulation joints

weight (net)

mains lead

fastening
accessory

special features

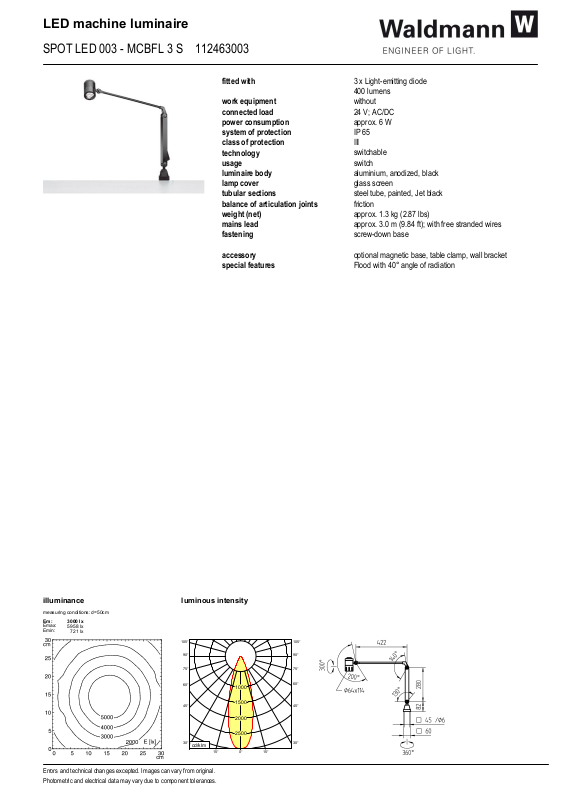

SPOT LED 003 - MCBFL 3 S 112463003

3 x Light-emitting diode

400 lumens

without
24 V; AC/DC
approx. 6 W
IP 65
III
switchable
switch
aluminium, anodized, black
glass screen
steel tube, painted, Jet black
friction
approx. 1.3 kg (2.87 lbs)
approx. 3.0 m (9.84 ft); with free stranded wires
screw-down base

optional magnetic base, table clamp, wall bracket
Flood with 40° angle of radiation

3000 lx

5958 lx

721 lx
