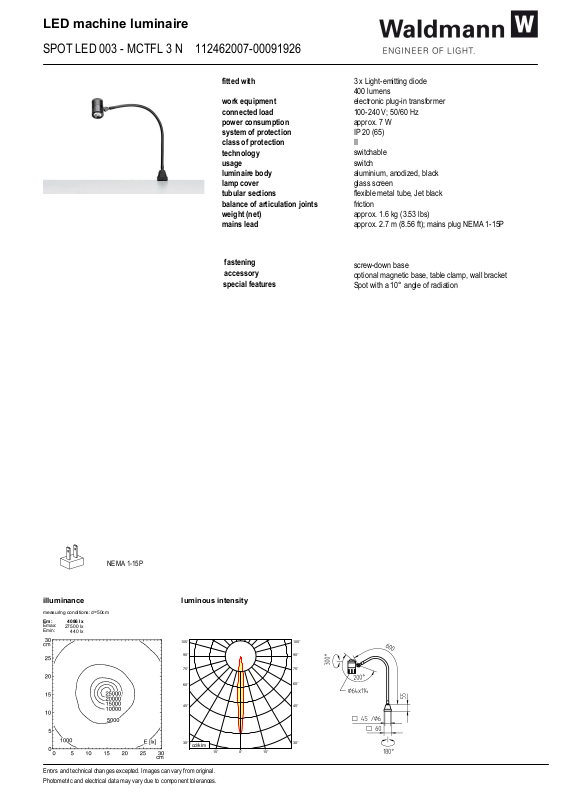

Waldmann 112462007-00091926 Information guide

90°

105°

105°

90°

75°

60°

45°

30°

15° 0° 15°

30°

45°

60°

75°

cd/klm

LED machine luminaire

Errors and technical changes excepted. Images can vary from original.

Emax:
measuring conditions: d=50cm

Photometric and electrical data may vary due to component tolerances.

illuminance

luminous intensity

SPOT LED 003 - MCTFL 3 N 112462007-00091926

NEMA 1-15P

Em:

fitted with
work equipment

connected load

power consumption

system of protection

class of protection

technology

usage

luminaire body

lamp cover

tubular sections

balance of articulation joints

weight (net)

mains lead

3 x Light-emitting diode

400 lumens

electronic plug-in transformer
100-240 V; 50/60 Hz
approx. 7 W
IP 20 (65)
II
switchable
switch
aluminium, anodized, black
glass screen
flexible metal tube, Jet black
friction
approx. 1.6 kg (3.53 lbs)
approx. 2.7 m (8.56 ft); mains plug NEMA 1-15P

fastening
accessory

special features

screw-down base
optional magnetic base, table clamp, wall bracket

Spot with a 10° angle of radiation

4086 lx

27500 lx

440 lx
